Installation Instructions

603 DECT Intercom

PROFESSIONAL INSTALL ONLY

Do NOT give this manual to end user!

Models 603-IBK, AB, ABK, HB, HBK, FB, FBK, IMP, IMPK

The manufacturer cannot legally offer technical support to non-qualified gate

or door installers. End users should employ the services of a professional

install company to commission or support this product!

Tip: Site Survey BEFORE you begin. See Page 3!

P a g e | 2

Contents

Overview of System

…………….Pg 3

Site Survey

…………….Pg 3

Wall / Pillar Mounting

…………….Pg 3

Gooseneck / Pedestal Mounting

…………….Pg 4

Mounting Speech Panels

…………….Pg 5

Wiring

…………….Pg 6

Keypad Overview

…………….Pg 7

Keypad Programming

…………….Pg 7

Using the Keypad

…………….Pg 9

The Handset

…………….Pg 9

Re-coding or Adding a Handset

…………….Pg 10

Testing

…………….Pg 10

Using the Handset

…………….Pg 10

Adjusting Relay Time

…………….Pg 11

Adjusting Handset Displayed Time

…………….Pg 11

Voicemail

…………….Pg 11

Troubleshooting Guide

.………….Pg 11

P a g e | 3

Overview of System

Please read this entire manual before attempting to install this system.
This system should only be installed by a professional automatic gate installer or access control
specialist installer.
It is recommended that the system be range tested on site BEFORE being fully installed.

Site Survey

Before installing this system, you need to be sure that the range of the system will be sufficient.
The transmitter and speech unit can be powered up, call button pressed, and then check that the
handset will ring from all areas in which it will be used.

Wall/Pillar Mounting

.

Tip: For longer range installations, locate the handset close to the front of the property, near a
window if possible. Concrete walls can reduce the open-air range of 400 metres/yards by 30-50%
per wall.

!

603 Range

Intercom

Transmitter

TIP: Most technical calls received are due to installers using CAT5 or alarm cable to power
the unit. Neither are rated to carry enough power (1.2 amp peak). Please use following
cable…

Up to 2 metres (6 feet) – Use minimum 0.5mm2 (20 gauge)
Up to 4 metres (12 feet) – Use minimum 0.75mm2 (18 gauge)
Up to 8 metres (24 feet) – Use minimum 1.0mm2 (16 gauge)

Speech

panel

Walls causing weak signal

Up to 200m / yards

Transmitter

Speech

point

Screened CAT5

Keep short as

possible!

Power cable (2x1mm / 16 gauge)

24v dc PSU

CAUTION!

Competent person only!

Keep high!

P a g e | 4

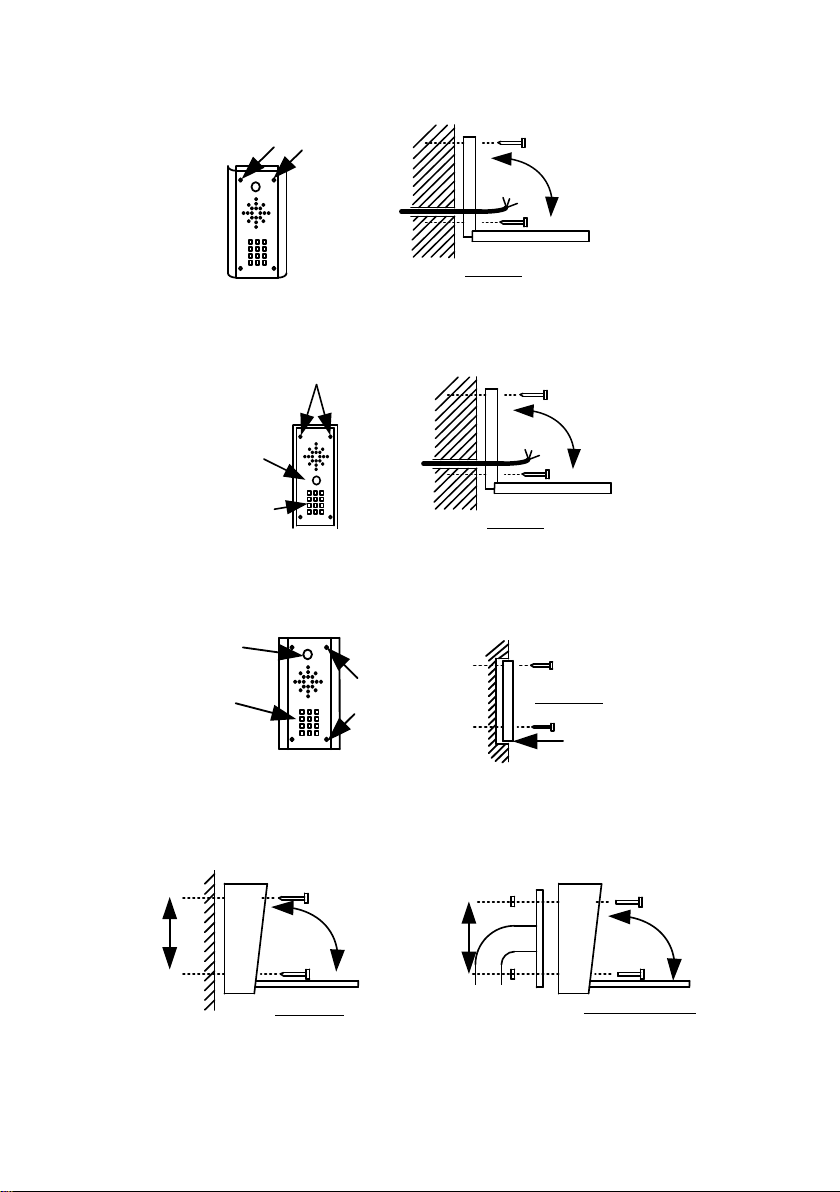

Gooseneck / Pedestal Mounting

!

603 Range

Intercom

Transmitter

Tip: For shorter distances, some installs may mount transmitter on pedestal for convenience.
Range test first! For high security applications, it is recommended to locate the transmitter INSIDE
the property perimeter.

!

603 Range

Intercom

Transmitter

TIP: Most technical calls received are due to installers using CAT5 or alarm cable to power
the unit. Neither are rated to carry enough power (1.2 amp peak). Please use following
cable…

Up to 2 metres (6 feet) – Use minimum 0.5mm2 (20 gauge)
Up to 4 metres (12 feet) – Use minimum 0.75mm2 (18 gauge)
Up to 8 metres (24 feet) – Use minimum 1.0mm2 (16 gauge)

Screened CAT5 included. (8m / yards MAX)

Lightning prone areas must
use Surge protector

transmitter

Keep High!

Speech

point

Power cable (2x1mm / 16 gauge)

Power (2x1mm / 16 gauge)

24v dc PSU

Power (2x1mm / 16 gauge)

Keep High!

24v dc PSU
