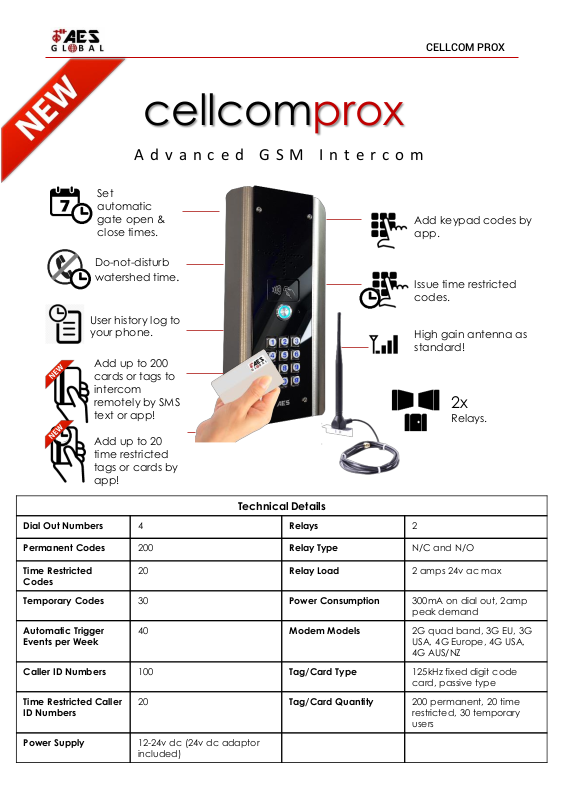

AES Cellcom Prox Service manual

A d v a n c e d G S M I n t e r c o m

CELLCOM PROX

Add keypad codes by
app.

Issue time restricted
codes.

Set
automatic
gate open &
close times.

Do-not-disturb
watershed time.

User history log to
your phone.

2x

Relays.

High gain antenna as
standard!

Add up to 200
cards or tags to
intercom
remotely by SMS
text or app!

Add up to 20
time restricted
tags or cards by
app!

cellcomprox

Technical Details

Dial Out Numbers 4 Relays 2

Permanent Codes 200 Relay Type N/C and N/O

Time Restricted
Codes

20 Relay Load 2 amps 24v ac max

Temporary Codes 30 Power Consumption 300mA on dial out, 2amp

peak demand

Automatic Trigger
Events per Week

40 Modem Models 2G quad band, 3G EU, 3G

USA, 4G Europe, 4G USA,
4G AUS/NZ

Caller ID Numbers 100 Tag/Card Type 125kHz fixed digit code

card, passive type

Time Restricted Caller
ID Numbers

20 Tag/Card Quantity 200 permanent, 20 time

restricted, 30 temporary
users

Power Supply 12-24v dc (24v dc adaptor

included)

A d v a n c e d G S M I n t e r c o m

CELLCOM PROX

P r o x P a n e l n o n K e y p a d

cellcomprox

PRIME6-PX-IMP Europe

PRIME6-PX-IMP/3GE Europe

PRIME6-PX-IMP/4GE Europe

PRIME6-PX-IMP/4GA USA

PRIME6-PX-IMP/4GSA Australia

/NZ

Ultra stylish all black panel with textured powder coated aluminium hood and gloss
black acrylic facia trim over a tough metal back plate. Complete with modern white
illuminated push button and integrated Prox reader. Kits complete with 3 proximity
cards with additional cards available to purchase.

PRIME6-PX-AB Europe

PRIME6-PX-AB/3GE Europe

PRIME6-PX-AB/4GE Europe

PRIME6-PX-AB/4GA USA

PRIME6-PX-AB/4GSA Australia

/NZ

Stylish curved architectural model. Constructed from BS316 marine grade stainless steel
and finished with gloss black acrylic trim. Complete with modern blue illuminated push
button and integrated Prox reader. Kits complete with 3 proximity cards with additional
cards available to purchase.

PRIME6-PX-AS Europe

PRIME6-PX-AS/3GE Europe

PRIME6-PX-AS/4GE Europe

PRIME6-PX-AS/4GA USA

PRIME6-PX-AS/4GSA Australia

/NZ

Stylish curved architectural model. Constructed from BS316 marine grade stainless steel.
Complete with white illuminated push button and integrated Prox reader. Kits
complete with 3 proximity cards with additional cards available to purchase.
