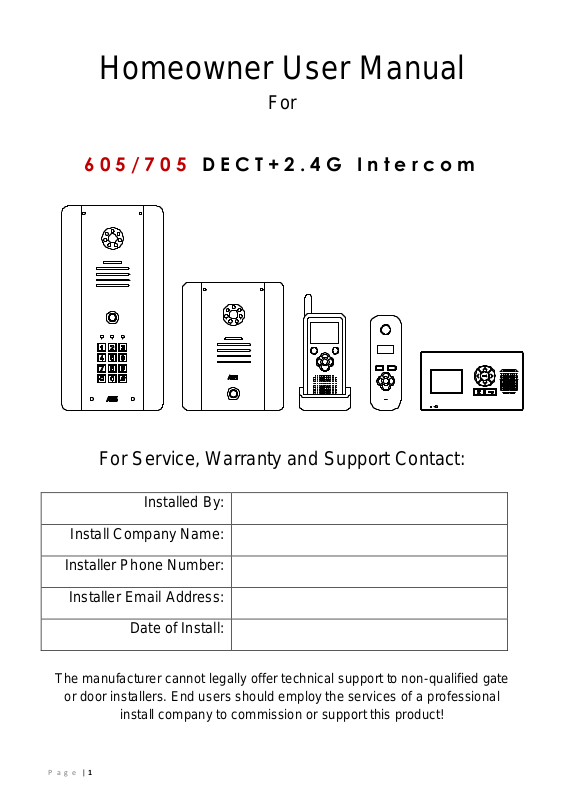

AES 605, 705 User Manual

P a g e | 1

Homeowner User Manual

For

605/ 7 0 5 D E C T + 2 . 4 G I n t e r c o m

Wireless Video Intercom System

Models 605AB, 605ABK,705ABK,705AB

For Service, Warranty and Support Contact:

Installed By:

Install Company Name:

Installer Phone Number:

Installer Email Address:

Date of Install:

The manufacturer cannot legally offer technical support to non-qualified gate

or door installers. End users should employ the services of a professional

install company to commission or support this product!

P a g e | 2

Wireless Signals

This intercom combines 2.4G digital & DECT 1.88GHz digital signals.

Handsets

Tip: For longer range installations, locate the handset close to the front of the property, near a
window if possible. Concrete walls can reduce the open-air range of 400 metres/yards by 30-50%
per wall.
Tip: To achieve best range, locate the handset away from other sources of radio transmission,
including other cordless phones, wifi routers, wifi repeaters, and laptops or PCs.

705 Monitors

Tip: The 705 monitor has a built-in antenna/receiver, it is best to use this for short range installs.
(see diag.1) For longer range installs, fit an external antenna (see diag. 2)

Installation

External

Antenna/Receiver

Intercom

Antenna

Antenna

Intercom

diag.1

Intercom

Intercom

Antenna

Antenna

Intercom

Antenna

diag.2

P a g e | 3

705 Video Monitor and Mounting

705 Video Monitor

The Video Handset

0v

Mounting Bracket

Side View

Back View

Adjust speaker

ringtone volume

Microphone

Answer

Monitoring

Optional external
antenna
connections

Mounting screws

Code Button

Mounting screws

Wall Fixing

Mounting screws
12v

Gate/Door

Trigger

The Video handset
should be charged
for 8 hours before
use. It is
recommended to
give it at least 1
hour charge before
range testing.

Adjust speaker

ringtone volume

Answer

Monitoring

Gate/Door

Trigger

Microphone
