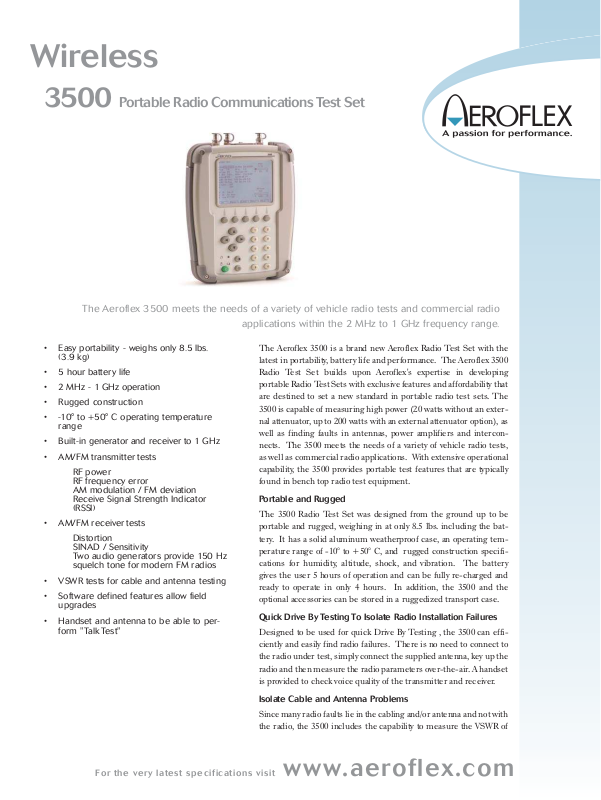

Aeroflex 3500 Datasheet
The Aeroflex 3500 meets the needs of a variety of vehicle radio tests and commercial radio
applicatiions within the 2 MHz to 1 GHz frequency range.
Wireless
3500 Portable Radio Communications Test Set
• Easy portability - weighs only 8.5 lbs.
(3.9 kg)
• 5 hour battery life
• 2 MHz - 1 GHz operation
• Rugged construction
• -10° to +50° C operating temperature
range
• Built-in generator and receiver to 1 GHz
• AM/FM transmitter tests
RF power
RF frequency error
AM modulation / FM deviation
Receive Signal Strength Indicator
(RSSI)
• AM/FM receiver tests
Distortion
SINAD / Sensitivity
Two audio generators provide 150 Hz
squelch tone for modern FM radios
• VSWR tests for cable and antenna testing
• Software defined features allow field
upgrades
• Handset and antenna to be able to perform "Talk Test"
The Aeroflex 3500 is a brand new Aeroflex Radio Test Set with the
latest in portability, battery life and performance. The Aeroflex 3500
Radio Test Set builds upon Aeroflex's expertise in developing
portable Radio Test Sets with exclusive features and affordability that
are destined to set a new standard in portable radio test sets. The
3500 is capable of measuring high power (20 watts without an external attenuator, up to 200 watts with an external attenuator option), as
well as finding faults in antennas, power amplifiers and interconnects. The 3500 meets the needs of a variety of vehicle radio tests,
as well as commercial radio applications. With extensive operational
capability, the 3500 provides portable test features that are typically
found in bench top radio test equipment.
Portable and Rugged
The 3500 Radio Test Set was designed from the ground up to be
portable and rugged, weighing in at only 8.5 lbs. including the battery. It has a solid aluminum weatherproof case, an operating temperature range of -10° to +50° C, and rugged construction specifications for humidity, altitude, shock, and vibration. The battery
gives the user 5 hours of operation and can be fully re-charged and
ready to operate in only 4 hours. In addition, the 3500 and the
optional accessories can be stored in a ruggedized transport case.
Quick Drive By Testing To Isolate Radio Installation Failures
Designed to be used for quick Drive By Testing , the 3500 can efficiently and easily find radio failures. There is no need to connect to
the radio under test, simply connect the supplied antenna, key up the
radio and then measure the radio parameters over-the-air. A handset
is provided to check voice quality of the transmitter and receiver.
Isolate Cable and Antenna Problems
Since many radio faults lie in the cabling and/or antenna and not with
the radio, the 3500 includes the capability to measure the VSWR of
