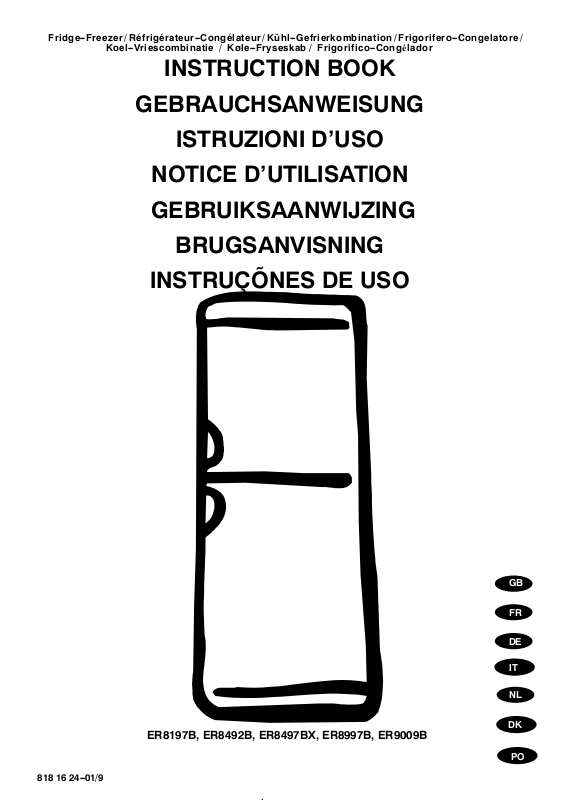

AEG-Electrolux ER9009B User Manual

Fridge-- Freezer / Réfrigérateur--Congélateur / Kühl--Gefrierkombination /Frigorifero--Congelatore /
Koel--Vriescombinatie / Køle--Fryseskab / Frigor ifi co--Congé lador
INSTRUCTION BOOK
GEBRAUCHSANWEISUNG
ISTRUZIONI D’USO
NOTICE D’UTILISATION
GEBRUIKSAANWIJZING
BRUGSANVISNING
818 16 24--01/9
ER8197B, ER8492B, ER8497BX, ER8997B, ER9009B
GB
FR
DE
IT
NL
DK
DK
PO
Safety instructions
Your new fridge/freezer may have other functions compared to your previous one. Carefully read these instructions to learn how the appliance works and how to care for it. Keep the booklet. It will come in handy if you later sell the cabinet or give it to somebody else. These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance. Your safety is of paramount importance. If you are insure about any of the meanings or warnings contact the Customer Care Department.
For the User
· The cabinet is intended for keeping foodstuff in a
normal household as explained in this instruction booklet.
· Do not keep explosive gases or liquids in the
refrigerator or freezer compartment. They may explode and cause injury and material damage.
· Do not let sharp objects come into contact with
the refrigerating system on the back of and i nside the cabinet. If the refrigerating system is punctured, the cabinet will be damaged and foodstuff inside may spoil.
· Do not keep carbonised drinks or bottles in the
freezer compartment. The glass bottles may break.
· The cabinet is heavy. The edges and projecting
parts of the cabinet may be sharp. Be careful when moving the cabinet and always use gloves.
Child Safety
· Pay attention so that small children do not gain
access to the operating controls or the inside of the cabinet.
Scrapping old cabinets
When discarding the cabinet, hand it over to a recycling station. For more information, call your local city office or your dealer.
GB
instruction
Contents
Safety instructions 2.................
Scrapping old cabinets 2.......................
Contents 2..........................
Description of the Appliance 3........
Control Panel 5..............................
Before use 5.........................
Using fridge 5.......................
To start the fridge and set the correct temperature 5.
Temperature inside the fridge 6.................
Measuring the temperature 6...................
Switching off 7..............................
Alarms and other features 7....................
Cabinet interior 7............................
Using the freezer 8...................
To start the freezer and set the correct temperature 8
Temperature inside the freezer 8................
Alarms and other features 8....................
Switching off 9..............................
Freezing 9..................................
Suitable storage periods 10......................
Thawing 10..................................
Cabinet interior 10............................
GB
Hints and Tips 11.....................
Saving energy 11.............................
Food Storage 11..............................
Protect the environment 12......................
Maintenance and Cleaning 12..........
Removing the ventilation grille 12................
Cleaning 12..................................
Defrosting the fridge 12........................
Defrosting the freezer 13.......................
To Change the Light Bulb 13....................
When the appliance is not in use 13...............
Something Not Working 14............
Guarantee Conditions 15.......................
Customer Care Department 15...................
Service and Spare Parts 15......................
Technical specification 16.............
Installation 16........................
Unpacking 16................................
Remove the transport supports 16................
Cleaning 17..................................
Installing the cabinet 17........................
Electrical connection 18........................
Door Reversal 18.............................
Electrolux 818 16 24--01/9
2
Description of the Appliance
GB
1
2
1
1
1
3
3
8
9
9
4
6
11
6
5
5
7
Model ER8197B
1. Glass shelf
2. Bottle shelf
3. Vegetable drawer
4. Butter compartement
5. Door shelf
6. Egg holder
7. Bottle shelf
8. Freezing tray + accumulator
9. Freezer basket
10. Ventilation grille
9
9
10
11. Freezer calender
1
4
5
6
6
Model 8497BX, ER8492B
1. Glass shelf
2. Bottle shelf
2
1
1
1
5
3. Vegetable drawer
4. Butter compartment
5. Door shelf
6. Egg holder
7. Bottle shelf
3
3
7
8. Freezing tray + accumulator
9. Freezing basket
9
8
9
9
10
11
10. Ventilations grille
11. Freezer kalender
Electrolux 818 16 24--01/9
3
12
13
Model ER8997B
1
1
1
2
4
5
6
6
1. glass shelf
2. cooling rack
3. vegetable drawer
5
4. diary compartment
5. door shelf
6. egg tray
11
7
7. bottle shelf
8. freezing tray + accumulator
9. freezer basket
10. ventilation grille
11. freezer calender
3
3
8 9
9
9
9
12. removeable shelf
10
13. quick store
1
1
2
1
1
1
3 3
6
6
6
7
10
4
9
Model ER9009B
1. Glass shelf
2. Bottle shelf
10
9
3. Vegetable drawer
4. Butter compartment
9
5. Bottle shelf
6. Freezer drawer
7. Ventilation grille
5
8. Freezer calendar
9. Door shelf
8
10. Egg holder
Electrolux 818 16 24--01/9
4
Control Panel
*
ACTION COOL
-- 1 85
ACTIONFREEZE
ABCDEF GHIJKL
A. Refrigerator power switch
Switches the refrigerator on and off.
B. Temperature display
Shows the average temperature inside the refrigerator.
C. Temperature adjustment buttons/thermostat
Used to set the temperature in the refrigerator.
D. ACTION COOL button
Used to switch the Action Cool feature on and off.
E. Yellow indicator lamp
Lights when Action Cool is operating.
F. Freezer power switch
Switches the freezer on and off.
Before use
Position and clean the cabinet as explained in the section "Installation". Check that the drain hose at the rear of the cabinet discharges into the drip tray.
Before inserting the power plug into the outlet and switching on the cabinet for the first time, leave it standing upright for about 30 minutes, or for 4 hours if it was transported horizontally. Otherwise the compressor may sustain damage. This time will allow the oil sufficient time to return to the compressor.
G. Temperature display
Shows the highest temperature inside the freezer.
H. Temperature adjustment buttons/thermostat
Used to set the temperature in the freezer.
I. FAST FREEZE button
Used to switch the fast Freeze feature on and off.
J. Yellow indicator lamp
Lights when fast Freeze is operating.
K. Alarm shut-off button
Used to turn the audible alarm off.
L. Red warning lamp
Flashes when one of the alarms in the cabinet has been triggered.
GB
Using fridge
To start the fridge and set the correct temperature
Switching on:
Switch on the fridge by pressing the power switch.
GB
5
5
-18
Electrolux 818 16 24--01/9
Setting the temperature
Press the buttons until the desired temperature flashes in the temperature display (The temperature can be set between +1°C and +9°C.) "+" raises the temperature. "-" lowers the temperature.
A setting of 5°C is usually suitable for normal operation. Once set, the temperature display shows "-" until the temperature inside the fridge reaches +9°C or below. Allow the cabinet to run for a period of 24 hours whenever the temperature setting is changed. This will allow the temperature to stabilise inside the cabinet. It is not necessary to reset the temperature when the cabinet is switched on after it has been out of use. The thermostat recalls the previously set temperature.
Temperature inside the fridge
A s uitable temperature inside the fridge is approx. +5°C. If the thermostat control is set to a too cold temperature, food with a high water content may start to freeze if it has been placed in the coldest places in the fridge. The picture shows the coldest and warmest places inside the fridge. (+ warm, - cold) Meat, fish and milk should be put in the coldest part of the cabinet. The temperature will be affecteed by:
· How often the door is opened
· How much food is stored
· Position of the appliance (See chapter
Installation)
5
+
-18
+
--
--
--
--
+
+
+
Measuring the temperature
If the temperature is measured using a standard, single thermometer, this should be put in a glass of water centrally placed inside the cabinet. This will reflect the temperature inside the food products. Do not place the thermometer hanging or lying directly on the shelf.
Hints:
· Distribute foodstuffs to allow cold air to
circulate freely between the products.
· Do not place food products directly against the
cooling plate on the rear wall since they may freeze in this case.
· Also never put warm products into the cabinet.
Wait until they have cooled down.
· Cover all foods properly to avoid odours and
flavours from tainting other food.
Electrolux 818 16 24--01/9
6
Switching off
Switch off the cabinet by pressing the power switch. Keep the button pressed for approx. 1 second.
Power to the cabinet is completely interrupted only when the power plug is disconnected or the fuse is removed.
Alarms and other features
Door open alarm
If the fridgedoor remains open for more than 5 minutes, the red warning lamp starts flashing and an audible alarm sounds. To switch off the alarm: Press the "alarm shut-off button". The red warning lamp goes out when the door is closed.
Action cool
Use Action Cool to refrigerate a large quantity of products. When Action Cool is switched on, the temperature is automatically set to +2°C. "A" is then displayed in the temperature display and the yellow indicator lamp lights. After about 6 hours, Action Cool is switched off and the temperature gradually returns to the previously set temperature. It is possible to switch off Action Cool manually by pressing the Action C ool button once more.
A
5
5
-18
-18
-18
Cabinet interior
The shelves and door compartments are removable and can easily be re-arranged. Certain shelves must be lifted up by the rear edge to enable them to be removed. The lower door compartment and the glass shelf above the vegetable drawer must not be moved. They are required for proper air circulation inside the cabinet. Shelves with a raised edge should be placed with the raised edge facing the rear wall of the cabinet, and thus prevent food products from touching the cooling plate.
The vegetable drawer has a removable plate to separate different vegetables.
Model ER8997B
Cooling Rack for Beverages
To achieve maximum cooling in the cooling rack, heed the following:
· Place the rack immediately under the drip
channel.
· Be sure the rack is cold before placing bottles
and cans, that you want to cool, on it.
· Place large cans and bottles in the big
recesses in the middle of the rack.
· Place small cans and bottles in the small
recesses close to the cabinet wall.
Do notput the coolingrackin a
freezer to achieve quicker cooling.
Do not put loads heavier than
6.5kg onto the shelf
.
Electrolux 818 16 24--01/9
7
Using the freezer
To start the freezer and set the
GB
correct temperature
Switching on:
Switch on the freezer by pressing the power switch. The alarm sounds if the temperature inside freezer reaches room temperature. Turn off the by pressing the switch-off
Setting the temperature Press the buttons until the desired temperature blinks on the temperature display. (The temperature can be set between -15°C and -24°C.) "+" increases the temperature. "-" decreases the temperature.
Once set, the temperature display shows the current temperature inside the freezer. Allow the cabinet to run for a period of 24 hours whenever the temperature setting is changed. This will allow the temperature to stabilise inside the cabinet. It is not necessary to reset the temperature when the cabinet is switched on after it has been out of use. The thermostat recalls the previously set temperature.
button.
the
alarm
5
5
5
-18
20
-18
Temperature inside the freezer
To ensure that foodstuff will keep for a long time, be sure that the temperature inside the freezer is -18°C or below. Please note, however, that the energy consumption increases as the temperature decreases. The built-in temperature display shows the warmest temperature inside the freezer. If the temperature is measured using a thermometer, put it between the products since this will reflect the real temperature in the frozen products. It is normal that the built-in temperature display shows a temperature slightly above that measured in other ways.
Alarms and other features
Door open alarm
If the door remains open for more than about 1 minute, the red indicator lamp starts flashing and an audible alarm sounds. To switch off the alarm: Press the alarm shut-off button. As long as the door remains open, the audible alarm will sound anew at 1-minute intervals. The red indicator lamp goes out when the door is closed.
5
-18
Electrolux 818 16 24--01/9
8
Temperature alarm
If the temperature rises above -12°C, the red warning lamp flashes and an audible alarm sounds. The temperature display will then start to flash. To switch off the alarm: Press the alarm shut-off button to switch off the audible alarm. The temperature display will stop flashing. The red warning lamp goes out when the temperature inside the freezer again falls below
-11°C. Find out what caused the alarm. See the chapter "Something not working".
Temperature memory
The temperature memory shows when an alarm has been triggered in the cabinet. The temperature memory operates as follows: When the temperature inside the freezer again falls below -11°C the audible alarm stops. The temperature display and the red warning lamp will flash t o indicate than an alarm was triggered. When the alarm shut-off button is pressed, the display then displays the warmest temperature inside the cabinet during t he alarm phase and t he display stops flashing. By referring to the temperature display indication, it is possible to decide whether or not to discard the products inside the freezer. At about -12°C: Most food products can be immediately re-frozen. Ice cream is especially sensitive to temperature changes and should be consumed as soon as possible. At -9° Food products should be prepared (cooked) prior to eating or re-freezing them.
-- -2°C:
5
5
-11
-18
Switching off
Switch off the cabinet by pressing the power switch. Keep the button pressed for approx. 1 second.
Power to the cabinet is completely interrupted only when the power plug is disconnected or the fuse is removed.
Freezing
You need not press the fast-freezing button when freezing smaller quantities of food during any 24-hour period. In all other cases, press the fast-freezing button approx. 24 hours prior to placing the food in the freezer . Fast-freezing is automatically switched of 48 hours after the button has been pressed. Fast-freezing can be discontinued by pressing the fast-freezing button once again. The yellow fast-freezing lamp remains lit as long as the fast-freezing button is engaged. A" (ACTION FREEZE) is displayed in temperature display
.
the
5
5
-18
A
Electrolux 818 16 24--01/9
9
Practical advice on freezing
· When freezing products, use the top shelf, and if
necessary the shelf beneth that.
· Place the foods directly on the freezer shelves.
· Spread out the products as much as possible to
allow air to circulate between them.
· Do not place food products which are to be
frozen directly against other frozen food. The heat from the unfrozen food may cause the frozen food to thaw on the surface.
· Once frozen, re-arrange the products and put
them as close as possible to each other. The food will then stay cold longer i n t he event of a power failure.
· When freezing large amounts of food/provisions,
the accumulator moves to the tray/space nearest to the lower freezing shelf.
· Do not freeze too much food at the same time.
The freezing capacity of the unit is indicated in the specifications section.
Suitable storage periods
Food purchased in frozen condition: Follow the advice on the maximum storage period indicated on the packaging. Food frozen at home: Fatty and salty food should not be kept frozen for more than three months. Cooked food and low-fat food may be kept up to about six months. Lean food and berries can be kept for approximately one year.
Check that the cabinet is operating and keeps the set temperature one day after switching it on for the first time. Only after then should the freezer be used to freeze fresh foodstuff.
Thawing
It is best to use the fridge to thaw food. P l ace the foodstuff on a plate with a raised edge to prevent liquids from running out. To quickly thaw food, put it in room temperature or in cold water. When using a microwave oven to thaw foodstuff, follow the manufacturer's instructions.
Cabinet interior
Freezer drawers
The freezer drawers make it easy to quickly and easily find the food package you want. To gain space, the drawers can be removed and the products can be put directly on the shelves. On all shelves, except the top shelf, it is possible to place products that protrude 20 mm from the front edge. This allows maximum use of the available space. Do not remove the bottom drawer. It is required to assure proper air circulation.
Freezer tray
Use the freezer tray to freeze berries and vegetables. After about 4 hours the food will be thoroughly frozen and can then be packaged normally. Food that is frozen in this way will not stick together, enabling you to use only the amount required.
10
Electrolux 818 16 24--01/9
Model ER8197B, ER8497BX, ER8997B
Cold accumulator
The cold accumulator will keep the food cold for longer after a power failure. The cold accumulator will be most effective when placed at the front of the fast-freezing tray. When freezing large amounts of food/provisions, the accumulator moves to the tray/space nearest to the lower freezing shelf. When defrosting: Place the cold accumulator on top of the frozen food to keep it cold.
Ice cubes
Fill the ice tray to max. 3/4 since water expands as it freezes. Release the ice cubes by twisting the ice tray.
If ice cubes are kept for a long time, they will dry out and t he taste is affected. Thus, throw away old ice cubes and prepare new ones when needed.
Model ER8997B
Removeable shelf
There is a middle shelf inside the freezer. Remove the shelf when large food products need to be frozen.
Hints and Tips
Saving energy
· Pay careful attention to where the cabinet is
placed. See the section "Installation". When installed correctly, the cabinet will consume less energy.
· Try to avoid keeping the door open for long
periods, or opening the door to frequently as warm air will enter the cabinet, and cause the compressor to switch on unnecessarily often.
· Ensure there are no obstructions prevending the
door from cloosing properly.
· Thaw frozen food in the fridge. This will ensure
safer defrosting of foods and reduce the work of the refridgeration unit
· It is advisable to periodically clean the
refrigeration systemat the back of the appliance with a duster or vacuum cleaner.
· Always leave warm food to cool down to room
temperature before placing in the fridge.
· Food which is to be frozen (when cool) should
be placed in the fridge before being transfered to the freezer.
· Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight packages before placing them in the freezer.
· Carefully follow the advice on freezing products
in the section "Using the freezer". This will prevent wasting energy.
· Do not set the temperature too low in the freezer.
A suitable temperature is in the range of -18°C
GB
to -20°C .
· Defrost the freezer when the frost layer reaches a
thickness of 3-5 mm.
· Make sure the door gasket is complete and
always clean.
Food Storage
· To obtain the best results from your appliance,
neither hot foods nor liquids which may evaporate, should be placed in the larder compartment.
· Avoid buying frozen food if you can not store it
straight away. The use of an isulated container is advisable. When you arrive home place the frozen food in the freezer immediately.
· Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure t hat food is consumed at its best. Remove suspect food from you refrigerator and clean, refer to cleaning and maintenance.
11
Electrolux 818 16 24--01/9
Protect the environment
· Hand over the cabinet packaging and discarded
fridges and freezers to a recycling station. Contact your local city office or your closest dealer for more information.
· Keep foodstuff in re-usable containers. Cut down
on disposable material as much as possible.
· When cleaning the cabinet, use a mild
washing-up detergent.
· Follow the advice in the section "S aving energy"
· The door gasket and coolant used in this
cabinet will not harm the ozone layer.
· All parts in the packaging can be recycled.
· The cabinet has been designed for easy
dismantling and subsequent recycling.
Maintenance and Cleaning
Removing the ventilation grille
The ventilation grille can be removed, e.g. to wash the grille. Make sure the door is open when removing the ventilation grille. Unsnap the upper edge of the grille by pulling outward/downward. Then pull the grille straight out to completely remove it.
Cleaning
Clean the cabinet at regular intervals.
Do nt use detergents, abrasive powers, high perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol when cleaning the product
Disconnect the appliance from electricity supply.
Internal Cleaning
Clean the inside and accossories with warm wather and bicarbonate of soda (5ml to 0,5 liter water) Rise and dry thoroughly. Regularly check the door seals and wipe clean to ensur they are clean and free from debris. Clean out the drip channel inside the fridge at regular intervals and ensure that the drip channel is clear att all times. If bocked carefully clear using a piece of flexible curtain wire inserted into the drain outlet to remove the blockage.
External Cleaning
Wash the outer cabinet with warm sopy water. Remove the ventilation grille (see the section "Removing the ventilation grille") and vacuum-clean under the cabinet. Twice a year pull out the cabinet from the wall and vacuum-clean the backside of the cabinet, the refrigerating system and the compressor.
Defrosting the fridge
The fridge is defrosted automatically every time the compressor stops. Frost formation can be prevented by:
· not putting warm foodstuff inside the cabinet.
· avoiding frequently opening the door or keeping
it open t oo long.
· do not place foodstuffs directly against the cold
cooling plate.
GB
When moving the cabinet, lift it by the front edge to avoid scratching the floor.
12
Electrolux 818 16 24--01/9
Defrosting the freezer
A certain amount of frost will always form on the freezer shelves and around the top compartment. Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. Remove the freezer drawers and place them on top of each other by turning every other drawer one half turn. Put insulating material around the drawers, e.g. blankets or newspapers. The frozen products can also be packed closely together and be kept in a cold location, e.g. in the fridge. Defrosting can be accelerated by placing bowls with hot water (not boiling) inside the freezer. Take out the drain spout and place it in the bottom freezer drawer where water can collect. Loosen the ventilation grille to enable the bowl to fit under the drain spout. Carefully scrape off the ice when it starts to thaw. Use a wood or plastic scraper. Do not use sharp objects as these may damage the interior. When all the ice has melted, clean and wipe the cabinet dry, then push the drain spout back in place. Switch on the cabinet and replace the frozen foodstuff.
Never use a hair drier or other heating appliances to speed up defrosting. Excessive heat may damage the plastic interior, and humidity could enter the electric appliance making it live.
To Change the Light Bulb
The light is switched on automatically when the door is opened. Before replacing the light bulb, disconnect the power plug from t he outlet.
2. Cut the packaging around the bulb socket.
3. Keep the packaging on to hold the bulb when setting it i nto t he socket. Do not touch the bulb with your bare fingers. Halogen light bulbs are sensitive to grease from the skin. Use a clear, UV-blocked, low-pressure type halogen light bulb. Socket G4. Voltage 12 V. Power rating 20 W/bulb.
When the appliance is not in use
Disconnect the appliance from electricity supply. Empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells. If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.
13
Electrolux 818 16 24--01/9
Something Not Working
Before contacting your local Service Force Center check the following point:
Problem Possible cause / Remedy
GB
"" is displayed in the temperature display.
Or
The yellow Action Freeze and red warning lamp both flash.
Audible alarm + flashing red warning lamp. (It is too warm inside the freezer.)
It is too warm inside the refrigerator. Set a lower temperature.
It is too cold inside the refrigerator. Set a higher temperature.
An error has occurred in measuring the temperature. Call your service representative. (The cooling system will continue to keep food products cold, but temperature adjustment will not be possible.)
Switch off the audible alarm by pressing the alarm shut-off button. The audible alarm could have been triggered by: The cabinet having been recently switched on and the temperature still being too high. See the chapter "Switching on and setting the temperature". The door may have been open for so long that the `door open' alarm was triggered.
Put food products in the right place inside the refrigerator. See the chapter "Temperature inside the refrigerator".
Distribute the food products to allow cold air to circulate around them.
Make sure that the door is completely closed and that the insulating strip is complete and clean.
Vegetables and other products that are easily frozen have been placed on a "too cold" shelf. See the chapter "Temperature inside the refrigerator".
There is water on the cooling plate inside the refrigerator.
Water is running inside the refrigerator. Clean the water drain and drain hole inside the refrigerator
Water comes out on the floor. Place the drain hose at t he back of the cabinet above the drain
It is too warm inside the freezer. Set a lower temperature.
It is too cold inside the freezer. Set a higher temperature.
This is normal. During automatic defrosting, frost thaws on the cooling plate.
using e.g. cotton swabs or a bottle cleaner brush. Some food products could have been placed causing the water
from running into the drain.
bowl. See the chapter "Before using t he cabinet the first time".
Make sure that the door is completely closed and that the insulating strip is complete and clean.
If warm food products have been put inside the freezer, wait for a couple of hours and then check the temperature again.
Distribute the food products to allow cold air to circulate around them.
Action Freeze could have been switched on. The temperature display s hows the highest temperature inside
the cabinet. Thus a difference between the temperature indicated on the display and the (average) t emperature measured in another way is normal.
14
Electrolux 818 16 24--01/9
Too much frost and ice are produced. Make sure that the door is completely closed and t hat the
insulating strip is complete and clean. Set a higher temperature.
The compressor operates continuously. Set a higher temperature.
Make sure that the door is completely closed and that the insulating strip is complete and clean.
The cabinet does not operate at all. Cooling or interior light does not operate. No indicator lamps light.
Sound level in cabinet is too high. The refrigerating system will always produce some sounds. A
Power failure Do not unnecessarily open the cabinet, except when the power
The power plug is not properly connected. The fuse has blown. The cabinet is not switched on. Power does not reach the cabinet. (Try connecting another
electrical device to the power outlet.)
pulsing sound is heard when coolant is pumped inside the cooling pipes. A ticking sound from the thermostat can be heard when the compressor switches on and off. The sound level varies depending on the operation of the cabinet. If you feel the sound level is incorrect:
Make sure the pipes at the back of the cabinet not touch each other. Carefully bend them if they do.
If the cushion spacers (between the cabinet wall and pipes) come loose, put them back in place again.
Carefully follow the instructions in the chapter "Installing the cabinet".
outage seems to be long, in which case the food products should be moved to another cabinet that works. In case the frozen products are still hard following the power outage, they may be immediately refrozen. If the food products have thawed but still are fresh and smells alright, they may be used, however they should be prepared before re-freezing or eating them.
Guarantee Conditions
See Guarantee Conditions on the R egistration Card.
Customer Care Department
Fore general enquiries concerning your Electrolux appliance or futher information on Electrolux products, you areinvited to contact our Costumer Care Department by letter or phone as follows:
Customer Care Department Electrolux Electrolux House Hambridge Road Newbury Berkshire RG14 5EP
Phone: 01635 521313
ServiceandSpareParts
In the event of your appliance requiring service, or if oyu wish to purchase spare parts please contact
your local Electrolux Service Force Centre by telephoning: XXXXXXXXXXX Your call be routed the Service Force Centre covering your post code area. The address of your local Service Force Center ids detailed in the accompanying Customer Care Book. Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working" When you contact the Service Center you will need to give the following details.They will be found inside your appliance.
MOD (modell):.....................................................
PROD.NO (model number):..................................
SER:NO (serial number):.......................................
Purchase date............................................................
15
Electrolux 818 16 24--01/9
Technical specification
Model ER8197B ER8497BX ER8997B ER8492B ER9009B
GB
Volume fridge Volume freezer
Width 595 mm 595 mm 595 mm 595 mm 595 mm Height 2000 mm 1800 mm 2000 mm 1800 mm 2000 mm Depth 600 mm 600 mm 600 mm 600 mm 600 mm Energy consumption 336 kWh/y 460 kWh/y 511 kWh/y 343 kWh/y 365 kWh/y Energy class A B B A A Rated power 160W 160W 160W 160W 160W Weight 89 kg 87 kg 94 kg 83 kg 86 kg Freezing capacity 12 kg/24 h 12 kg/24 h 12 kg/24 h 12 kg/24 h 12 kg/24 h Number of compressors 2 2 2 2 2
Installation
193 l 97 l
240 l 85 l
240 l 127 l
240 l 85 l
292 l 85 l
GB
Unpacking
Unpack the cabinet and check that it is in good condition and free of any transport damage. Notify the dealer immediately of any damage. Hand the packaging over for recycling. For more information, contact your local city office or the dealer.
Do not allow children to play with the packaging. The plastic film can cause suffocation.
Remove the transport supports
Remove the tape and the transport supports from
· the door sides
· inside the door hinges
· the shelves
Remove the transport support on the glass shelf by pushing the support forward along the edge of the shelf until it stops at the protuberance of the shelf. Take hold of the rear edge of the glass shelf and pull the shelf and transport support forward until the shelf tilts and the transport support can be removed. Some models are fitted with a silencing pad under the cabinet. Do not remove this pad.
16
Electrolux 818 16 24--01/9
Cleaning
Wash the inside of the cabinet using lukewarm water, a mild washing-up detergent and a soft cloth.
Installing the cabinet
To otain the best performance from the cabinet, ensure :
· the cabinet is placed in a dry, cool place and
is not exposed to direct sunlight.
· the cabinet is not placed close to a source of
heat, e.g. a cooker or dishwasher.
· the room in which the cabinet is placed
has a temperature of +16Cto+32C.
· the cabinet is level.The cabinet should not lean
against any wall. If necessary adjust the feet using the supplied adjustment spanner.
· there is good air circulation around the cabinet
and that the air channels below and behind the cabinet are not blocked. The ventilation space above the cabinet and any grocery/top cabinet must be at least 200 cm@.
The ventilation space can either be a) directly above the cabinet, or b) behind and above the top cabinet. In this case,
the space behind the cabinet must be at least
50 mm deep. Check that the drain hose at the rear of the cabinet discharges into the drip tray. If the cabinet is placed in a corner and the side with the hinges faces the wall, the distance between the wall and the cabinet must be at least 10 mm to allow the door to open enough so that the shelves can be removed.
a)
b)
50mm
17
Electrolux 818 16 24--01/9
Electrical connection
Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter
This appliance must be earthed.
If the plug that is fitted to your appliance is not suitable for your socket outlett, it must be cut of and the appropriate plug fitted. Remove the fuse from the cut off plug.The cut off plug should then be disposed of to prevent the hazard of socket inanother part of your home. The wires in the mains lead are coloured in accordance with the following code:
Green and yellow -Earth Blue -Neutral Brown -Live
If you fit your own plug, the colours of the Wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:
Door Reversal
1. Close the cabinet and pull out the plug from the electrical outlet.
"E" or the earth symbol
or coloured greeen and
yellow.
Connnect the blue (neutral) wire to the terminal in the plug which is marked with the letter "N" or coloured black
Connect the brown (live) wire to the terminal in the plug which is marked with the letter "L" or coloured red.
The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BSI362 fuse. Onely ASTAor BSI approved fuses should be used. The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug. A replacement cover/carrier must be obtained from your local Service Force Centre.
1
2. Remove the ventilation grille. There is a part on the grille that can be removed. Remove it and put it on the other side.
3. Put the cabinet on a wooden board when it is laid down. Later, when raising the cabinet, it will be easier to grip under the cabinet thanks to the board.
4. Unscrew the lower hinge and remove the lower door. Unscrew the upper hinge pin and remove the upper door.
5. On the centre beam: Remove the plastic plugs by driving a drift into them and rocking them loose. Move the centre hinge unit to t he other side. Flatten the threads in the holes remaining from the hinges and insert new plastic plugs.
2
3
4
5
18
Electrolux 818 16 24--01/9
6. On the doors: Change the positions of the door fittings. Put a new plug in the hole on the lower door.
7. Replace the upper door and secure the upper hinge pin. Replace the lower door. Change the position of the hinge pin of the lower hinge. Then secure the hinge. Remove any play in the door by adjusting the height of the lower hinge with the supplied spanner. Secure with the lock-nut.
8. Raise the cabinet and replace the ventilation grille.
9. Unscrew the handle. Carefully press in the plastic plugs on the opposite side using a drift. Secure the handle in the plug holes. Then press the supplied plastic plugs into the holes to which the handle was previously fitted.
Model ER8497BX
9. To transfer the handle. Unscrew the screws. Fit the handle onto the opposite side by turning it one half circle.
6
7
10. Put the cabinet in position. Check that it stands straight. See the section "Positioning the cabinet".
9
9
19
Electrolux 818 16 24--01/9
MARIESTAD DD--AV
Loading...
