AEG-Electrolux EMS2020 User Manual

USER MANUAL
EMS2020
EMS2020
Before using your microwave oven 4
Technical data
Safety instructions
– Utensil safety – Testing suitability of Cookware – Food safety – Installation – Oven utensils and accessories guide – Unpacking
How to operate your microwave oven
– Name and function of parts – Control panel – Setting the Clock – Child Safet y L o ck – To Stop the Oven – Switching the beeper off – Quick Start – Microwave Power setting Guide – Microwave cooking – Automatic Defrost – Automatic Reheat – Snack Function
Contents

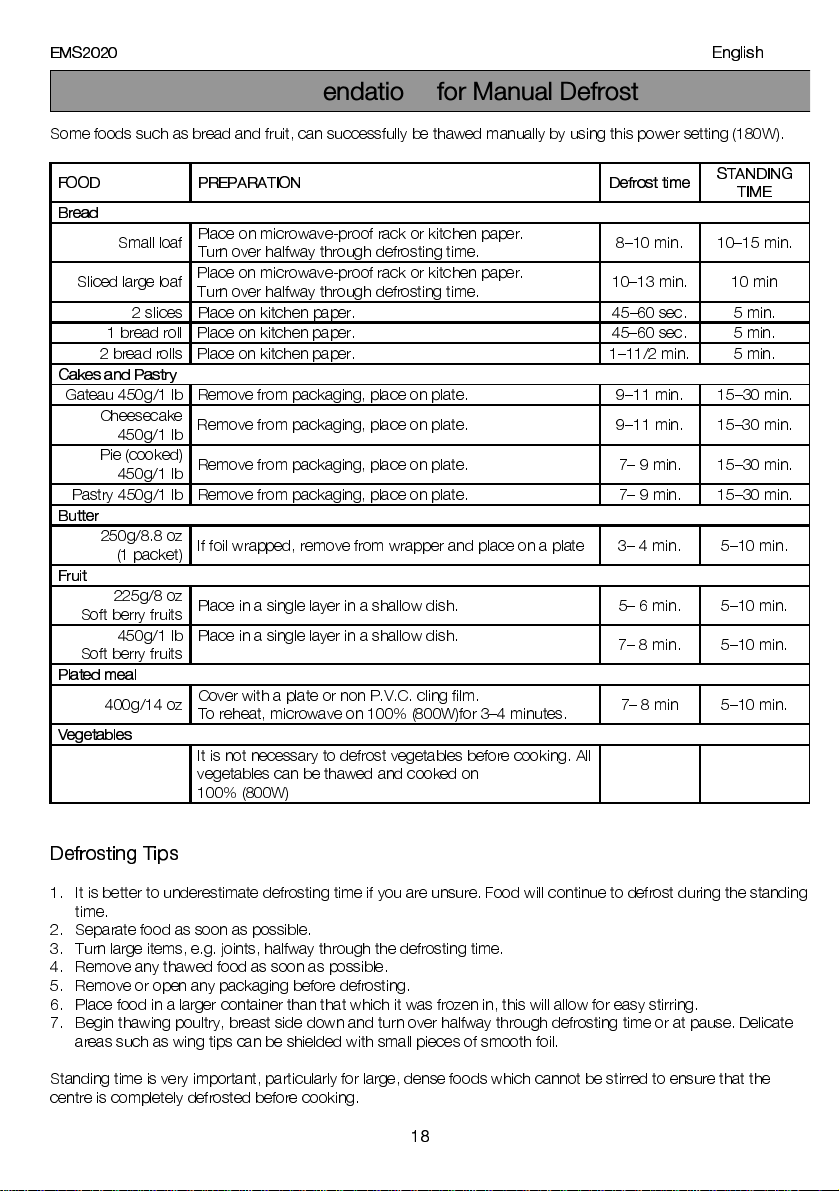

Recommendations for Manual Defrost

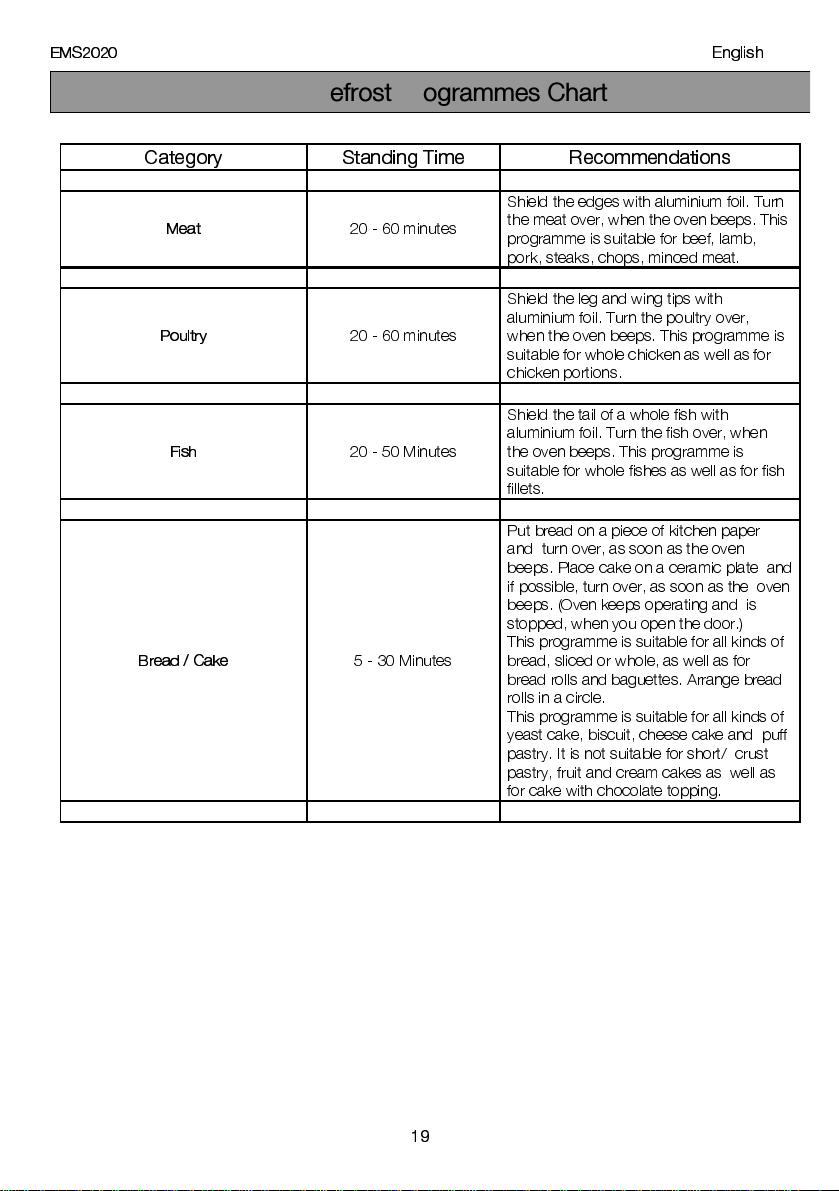

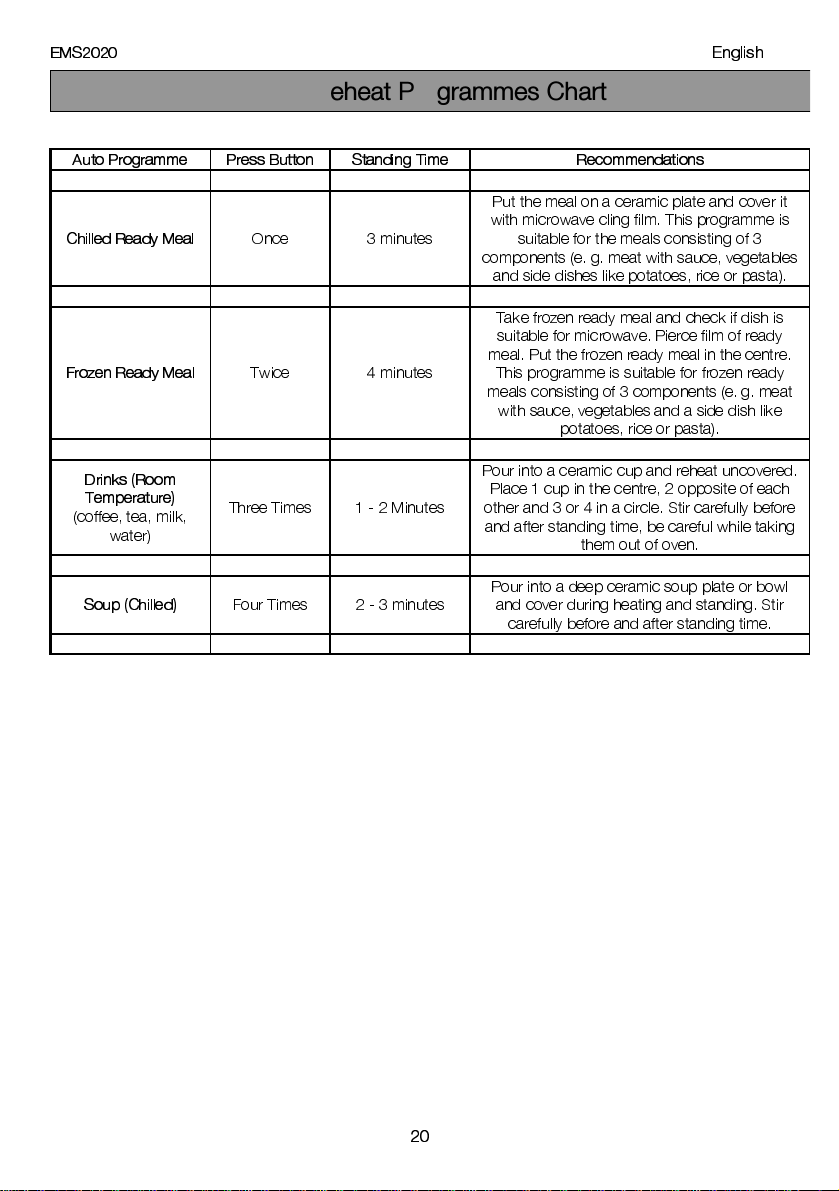

– Auto Reheat Programme s C hart – Auto Defrost Programmes Chart
4

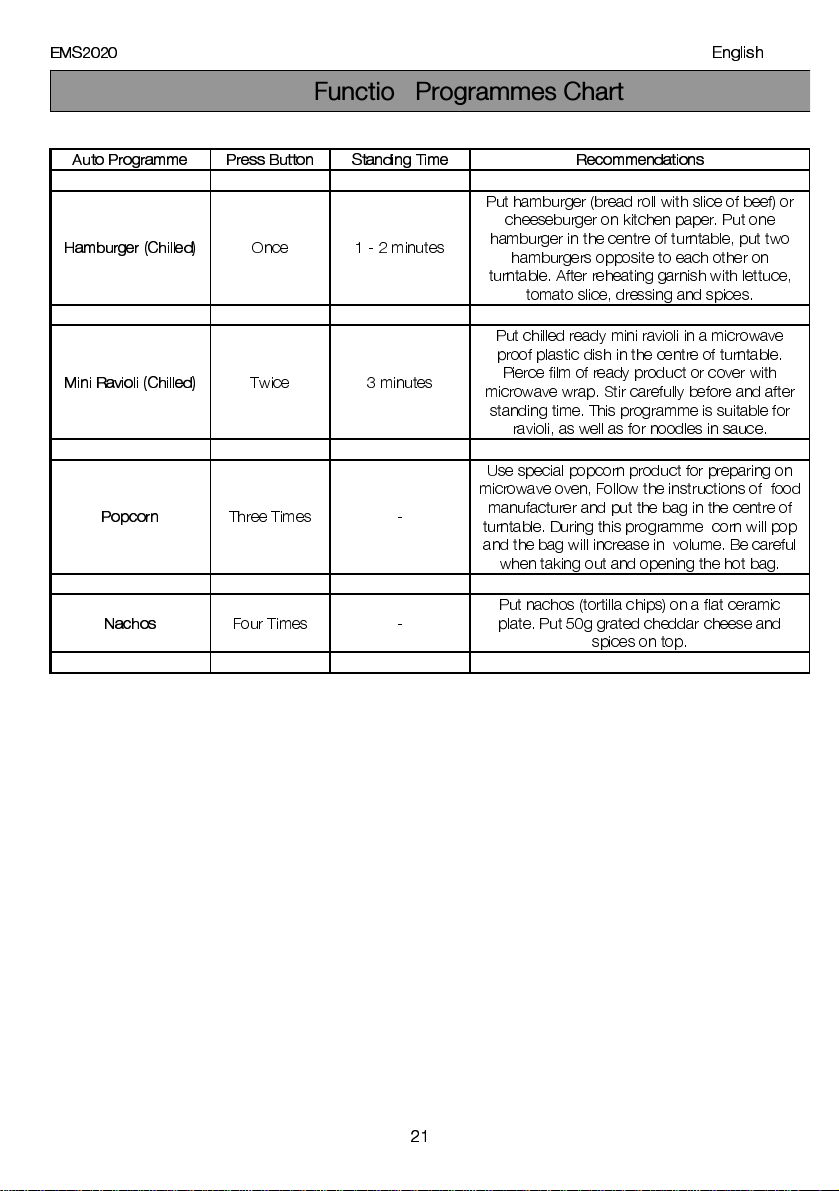

– Snack Function Programmes Chart
5
5

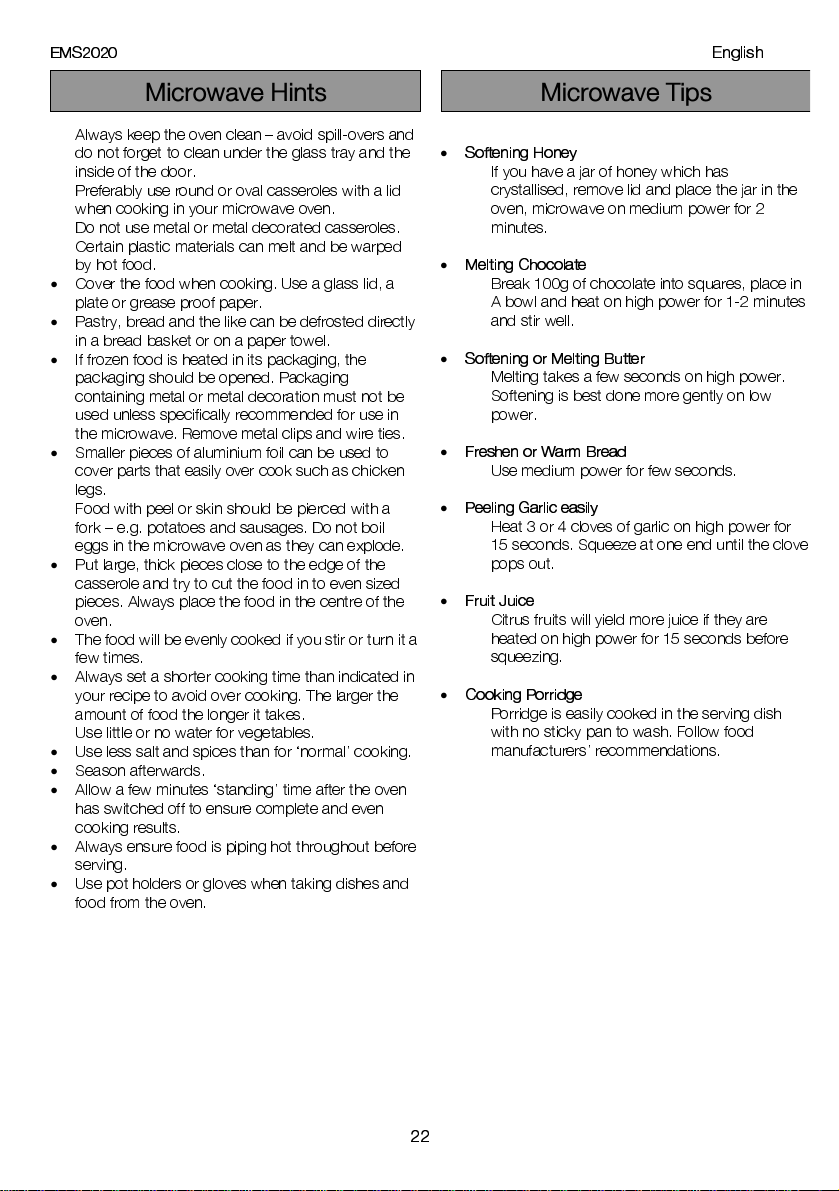

Microwave Hints Care and cleaning
5

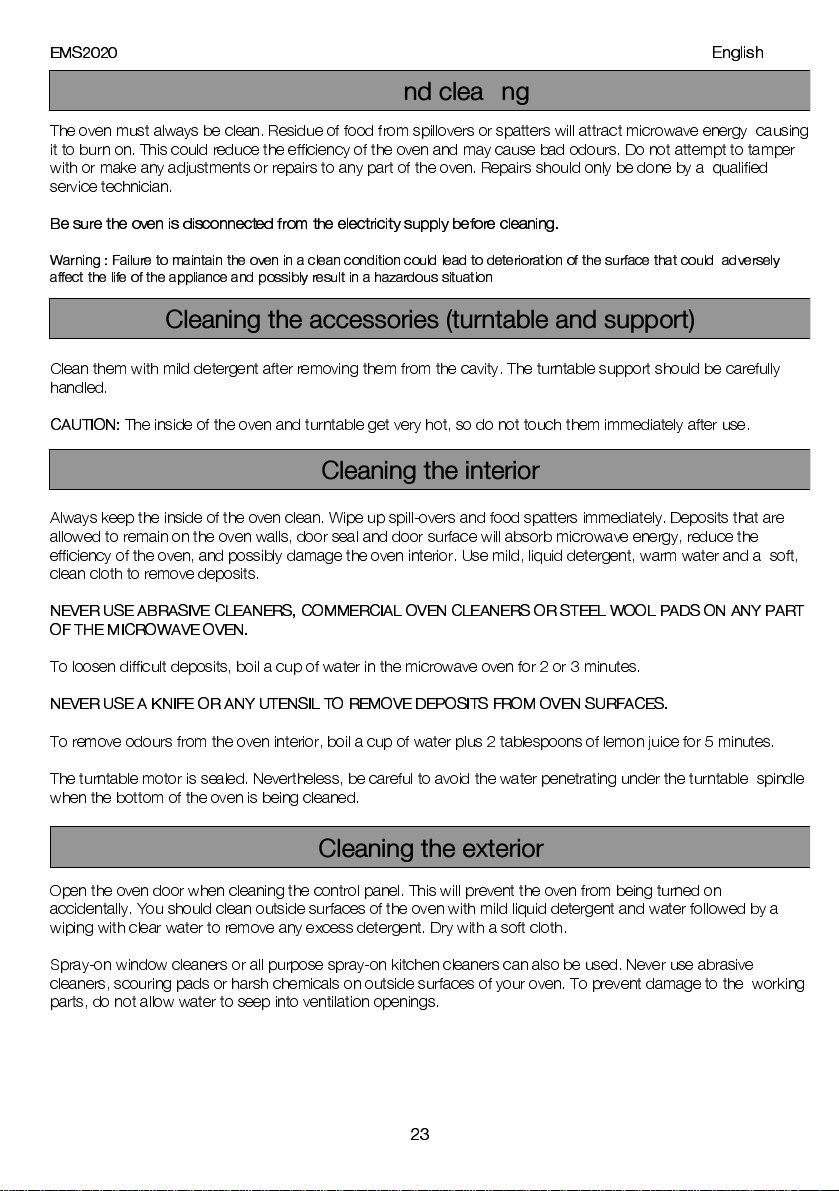

– Cleaning the accessories (turntable and support)
6 8
– Cleaning the interior – Cleaning the exterior
9 9
Guarantee Conditions
10
10 11 12 12 12 13 13 13 14 15 16 17
3
English
18
19 20 21
22 23
23
23 23
24
EMS2020
Congratulations on the purchase of your new Microwave Oven
English
Thank you for having chosen a Electrolux product. We are convinced that yo u will find your new microwave oven very useful and that it will be of great help to you. As with all ne w kitchen applia nces, it will take some time to learn all the new functions and features, but with time, this o v e n will become indispe n sable to you.
Read through the instruction manual carefully. In order that you can get the best from your new Electrolux Microwave Oven, the following instructions have been prepared. Please make su re you read them carefully. It is important that this instru c tio n b o ok is retained with the appliance for f u tu re reference. Should the appliance be sold or transferred to another owner, or if you move house and leave the appliance, always ensure that the book is supplied with the appliance or that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. Please ensure you have read the whole instruction book before using the appliance and that you follow the recommendations given.
Before using your Microwave Oven
Technical data
Overall dimensio n Weight
Width 484 mm Depth 376 mm Height 275 mm
Cavity dimension Fuse
Width 323 mm Depth 296 mm Height 218 mm
4
13.5 kg
Volum e 20
Power source
Power co n sumption
Power o ut p ut
Litre
230V, 50 Hz
10A
800 W
1350 W
0
EMS2020
•
•
•
•
m
m
•
•
•
•
•
•
Important Safety instructions.
READ CAREFULLY AND K EEP F OR FUT URE REFEREN CE
The built-in safety interlock switches prevent the microwave oven from operating when the door is open.
Do not tamper with them, or attempt to operate the oven with the door open as open door operation can result in exposure to microwave energy.
Do not allow food spills or cleaner residue to accumulate on door sealing surfaces. Se e the Cleaning and Care section for cleaning instructions.
It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (warped), (2) hinges and latches (broken or insecure), (3) door seals and sealing surfa ce.
WARNING
or door seals are damaged, the microwave must not be operated until it has been repaired by a authorized service person.
WARNING
except factory trained se r vi c e personnel to service or make adjustments to this oven. Contact your nearest authorised service agent if service should be required.
Do not remove the outer case, door or control panel at any time. Doing so may cause exposure to extremely high voltage.
Install or locate this oven only in accordance with ‘installation instructions’ found in this manual.
Use the appliance for its intended use as described in this manual. Do not use corrosive chemicals in this appliance. This typ e of oven is specifically designed to heat, cook, or defrost food. It is not designed for industrial or laboratory use neither for commercial use a s this will invalidate the g u a rantee.
Do not operate the oven empty. If food or water is not present to absorb the microwave energy, the magnet ron tube can be da m aged. Do not store this appliance outdoors. Do not use this product near water.
Do not attempt to dry clothing or newspape rs in the micro w a ve oven. These i tems can igni te .
: If the door, hinges/latches
: It is hazardous for anyone
•
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
•
The temperature of accessible surfaces may be high when the appliance is operating.
m
WARNING
off or unplug the appliance and keep the door closed in order to stifle any flames. Never use water.
m
WARNING
persons to use the microwav e, without supervision, when adequate instru ctions h a ve been given so that the child or infirm person is able to use the microwave in a safe way and understand the hazards of improper use.
Utensil safety
•
Only use utensils that are suitable for use in a microwave oven.
•
Most glass, glass ceramic and heat-resistant glass- ware utensils are excellent for use in the micro- wave oven. Although microwave energy will not heat most glass and ceramic items, th ese utensils can become hot as heat transfers from the food to the container. The use of oven glo ves to remove dishes is recommen d ed.
Testing suitability of cookw are
•
Utensils should be check e d to ensure they are suitable for use in Microwave Ovens.
•
Place the cookware in the microwave along with a glass half full of wa te r. H eat on one minute. If the cookware feels hot, you should not use it. If it is just slightly warm, you can use it for reheating but not for cooking. If the dish is room temperature, it is suitable for microwave cooking.
•
Paper napkins, wax paper, paper towels, plates, cups, cartons, freezer wrap and cardboard are great convenience utensils. Always be s ure containers are filled with food to absorb energy and thus avoid the possib ility of overheating or ignitio n .
5
: If smoke is observed, switch
: Only allow children or i nfirm
(800W)
English
(100%) for
EMS2020
v
•
•
•
•
•
Many plastic dishes, cups, freezer containers and plastic wraps may be used in the microwave oven. Follow manufacturer’s instructions when using plastics in the oven. Avoid using plastic utensils with foods that have high fat or sugar content since these foods reach high temperatures and co uld melt some plastics.
Do not leave oven unattended, and look at it from time to time when heating or cooking food in plastic, paper or other combustible containers. Metal utensils and u tensils with metallic trim sh ould not be used in the microwave oven, unless specifically recommended for microwave use.
Containers with restricted openings, such as bottles, should not be used for microwave cooking.
Use caution when removing a lid or co ve r from a dish to avoid steam burns.
Foil containers
Shallow foil containers may safely be used to reheat foods in your microwave oven providing the following rules are observed:
1. Foil containers should not be more than 3 cms (1 1/4”) deep.
2. Foil lids must not be used.
3. The foil containers must be at least two-thirds full of food. Empty containers must never be used.
4. Foil containers should be used singly in t he microwave oven and should not be allowed to touch the sides. If your oven has a me tal turntable or cooking rack, the foil container should be placed on an upturned oven-proof plate.
5. Foil containers should never be re-used in th e microwave oven.
6. If the microwave oven ha s been in use for 15 minutes or more, allow it to cool before using it again.
7. The container and turntable may become hot during use, take great care when removing either from the oven. It is advisable to use an oven cloth or glove when doing so.
English
8. Remember when using an alum inium foil container that the reheating or cooking times ma y be longer than you are used to, always ensure that the food is piping hot before serving.
Food safety
•
Do not heat food in a can in the microwave oven. Always remove the food to a suitable container.
•
Deep fat frying should not be d one in the microwave oven, because the fat temperature cannot be controlled, hazardous situations can result.
•
Popcorn may be prepared in the microwave oven, but only in special packages or utensils designed specifically for this purpose. This cooking operation should never be unattended.
•
Pierce foods with non-porous skins or membranes to prevent steam build-up and bursting. Apples, potatoes, chicken livers, and egg yolks are examples of items that should be pierced.
•
The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before co nsumption, in order to avoid bu rns.
m
WARNING
not be heated in sealed containers since they are liable to explode.
m
WARNING
beverages can result in delayed eruptive boiling, therefore care mu st be ta ke n w hen handling the container.
m
WARNING
soups, sauces and beverages in your microwa boiling point can occur withou t evid en ce of bubbling. This could result in a sud den boil over of the hot liquid. To prevent this possibility the following steps should be ta ken:
1. Avoid using straight-sided containers with narrow necks.
2. Do not overheat.
6
: Liquids or other foods must
: Microwave heating of
: When heating liquids, e.g.
e oven, overheating the liquid beyond
EMS2020
3. Stir the liquid before placing the container in the
4. After heating, allow to stand in the oven for a short
m
&
oven and again halfway through the h eating time.
time, stirring again before carefully removing the container.
WARNING
whole eggs and sealed containers – for example, closed glass jars – may explode and should not be heated in this oven. Occasionally, poached eggs may explode during cooking. Always pierce the yolk, then cover and allow the standing time of one minute before removing cover.
It is quite normal for steam to be emitted around the door, or for misting to occur on the
door, or even for water droplets to appear below the door during the cooking cycle. This is merely condensation from the heat of the food and does not affect the safety of your oven. The door is not intended to seal the oven cavity completely.
: Some products such as
English
•
Do not force the turntable to rotate by hand. This may cause malfunctioning.
•
Arcing in the oven during microwave operation usually occurs from use of metallic uten sils. Continuous arcing, however, can damage the unit. Stop the programm e and check the utens il.
•
Care should be taken not to obstruct any air vents located on the top, rear, side and bo ttom of the oven.
m WARNING
commercial purposes.This oven is made for domesti c us e on ly.
: Do not use this oven for
7
EMS2020
1. Remove any promotion label from the door.
2. The oven sh ould be installed on a flat, level surface. The surface m ust b e stro ng enough to safely bear the weight (13.5 kg) of the oven , and the contents. To a void the possibility of causing vibration or noise the oven must be in a stable position.
3. Keep the oven away from heat and water. Exposure to heat and water can lower oven efficiency and lead to malfunctioning, so be sure to install the oven away from he at and water sources.
4. Do not block air vents on the top and the sides of the cabinet and also do not place any articles on the top of the oven. If air vents are blocked during operation, the oven may overheat, and this may lead to malfunctioning. Hot air escape s from the vents, so be sure not to obstruct it or let curtains come between the oven and the rear wall.
5. Place the oven as far away from radios and TV’s as possible. This oven does conform to E EC requirements of radio interference suppression, but some interference may occur if it is placed too close to a radio or TV, so keep them as far apart as possible.
6. If positioned in a corner, leave a gap of at least 10 cm from the walls and 10 cm above the microwave.
IMPORTANT!
anywhere in the kitchen. Ma ke sure the oven is placed on a flat, level surface and that vents as well as the surface underneath th e oven are not blocked (for sufficient ventilation).
The oven can be placed almost
Installation.
English
Connecting to the mains
The oven is delivered with the power cord and a plug for 230V, 50Hz, earthed socket outlet. Earth protection minimises the risks should a short circuit occur. Check to en sure the voltage of the oven matches the supply.
N.B. If the oven is connected to the socket via an extension cord, make sure the cord is earthed.
m
This appliance must not be used on a non- earth protected power supply. Contact an electrician if you are uncertain regarding
electrical connection of the oven or provision of earth protection of the supply.
m
This appliance must be earthed. If t his appliance is fitted with a non-rewireable plug for which your socket is unsuitable, it must be
replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
m
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
8
EMS2020
Oven utensils and accessories guide
English
A variety of Utensils and Materials may be used for cooking in your microwave oven. For your safety and to prevent damaging utensils and your oven choose appropriate utensils and materials for each cooking method. The list below is a general guide.
Material Utensils Microwave
Corning ware
Heat resistant glass
Ceramic & Glass
China
Pottery*2
Plastic
Metal
Paper
Wood
Accessories
YES: Utensils and accessor ies to use NO: Utensils and accessories to avoid
*1 Only if there is no metal trim.
*2 Only if it does not have a glaze co ntaining metal.
*3 NOTE: Use aluminium foil only for shielding purposes, o ver use may cause arcing.
ware
Glass ware with metal
decoration
Lead crystal glass
Without metal
decoration
Microwave oven heat-proof wear
Plastic wrap
Baking pan
Aluminium foil*3
Cups, plates, towels
Waxed pap e r
Grill rack Turntable
Turntable support
YES
YES*1
NO
NO
YES
YES
YES
YES
NO YES YES YES
NO
NO YES YES
Unpacking
N.B. When you unpack the oven, check that the product is free from damage. Damage or any missing parts must be reported immediately to the retailer. The oven, parts of the oven you must remove this foil before using the oven. Do not leave packing material so that small children can play with it. This can be hazardous.
or the accessories may be wrapped by a protection foil. If so,
9
