AEG LAVAMAT 4520 User Manual

LAVAMAT 4520
The environmentally friendly washing machine
User information
PERFEKT IN FORM UND FUNKTION
User information
CONTENTS
Warnings.........................................................................................................4
Usage ...............................................................................................................4
Precautions against frost...........................................................................5
Scrapping........................................................................................................6
Protection of the environment ...............................................................6
Washing machine description..................................................................7
The detergents dispenser...........................................................................7
Control panel.................................................................................................8
Programme selector....................................................................................8
Additional programme pushbuttons .....................................................9
Spinning speed pushbutton / RINSE HOLD.......................................11
Programme progress display ................................................................. 11
Opening and closing the lid................................................................... 12
Additional rinse cycles ........................................................................... 12
Consumptions and programme durations ........................................ 14
Sorting and preparing your washing.................................................. 15
Washing load depending on the nature of the material ............. 15
Detergents and additives........................................................................ 16
International symbols..............................................................................17
Loading the washing................................................................................ 18
Selecting the desired washing programme...................................... 18
Selecting the spinning speed ................................................................ 19
Selecting the pushbuttons.....................................................................19
Selecting, if necessary, a delay start...................................................19
Programme progress................................................................................ 20
End of programme.................................................................................... 20
Programmes tables................................................................................... 21
2
User information
Descaling the washing machine........................................................... 23
The surface.................................................................................................. 23
The detergents dispenser........................................................................ 23
Installation and connection instructions .......................................... 29
Garantee conditions and After Sales Service................................... 35
3
User information
Warnings
Keep this user’s manual with your washing machine. If you sell your washing machine or give it away, make sure that it is accompanied by its user’s manual. The new user can then be informed of how the washing machine operates and read relevant warnings.
These warnings have been written for your safety and for the safety of others. Please read these comments carefully before installing and using your washing machine. Thank you for your attention.
Usage
• When you receive your washing machine, unpack it or have it unpacked immediately. Check its general appearance. Make any reserves in writing on the delivery form and keep a copy.
• Your washing machine was designed for use by adults. Make sure that children do not touch it or use it as a toy.
• Do not modify or attempt to modify the characteristics of this washing machine. This could be dangerous for you.
• Your washing machine is intended for normal domestic use. Do not use it for commercial or industrial purposes of for any purpose other than that for which it was designed : to wash, to rince and to spin.
• Unplug the power suplly plug and close the water supply tap every time after using your washing machine.
• Only wash articles that can resist machine washing. Refer to the instructions on the label for each article.
• Do not wash underwear with bones, or any material without hems, or torn materials in your washing machine.
• Remember to remove all coins, safety pins, boraches, screws, etc., before each wash. They can cause serious damage if they are left in your washing.
4
User information
• Do not put articles in your washing machine if you have used a solvent, alcohol, trichloroethylene, etc., to remove stains from them. If you must use these stain removers, wait until the product has evaporated before putting the articles in the drum.
• Collect all small articles such as socks, belts, etc., in a small cloth bag or pillow case.
• Use the quantity of detergent indicated in the «proportioning of detergents» section.
• Always unplug the washing machine before cleaning it and doing any maintenance.
Precautions against frost
If your washing machine is exposed to temperatures below 0°C, take the following precautions :
• Close the tap and disconnect the water supply pipe.
• Put the end of this pipe and the drain pipe into a bowl on the floor.
• Select the «Drain» programme and make sure it works until it is complete.
• Switch the washing machine off by putting the program selector to the «Off»
*
position or pressing on the «On/Off»* key.
• Unplug the washing machine.
• Screw in the water inlet pipe and install the drain pipe.
Water that remained in the pipes will then be evacuated, thus preventing the formation of frost or ice that can damage your washing machine.
*depending on model
5
User information
The next time you want to use your washing machine, make sure that it is installed in a room in which the temperature is above 0°C.
Scrapping
All materials marked with the symbol can be recycled. Put them in a waste tip (ask for information from your municipal offices) so that they can be recovered and recycled.
When you take your washing machine to the tip, make sure that everything that could be dangerous is out of service ; cut the power supply cable flush with the surface of your washing machine.
Protection of the environment
We recommend that the following instructions should be followed to achieve savings in water and energy and therefore to contribute to protection of the environment:
• If possible, use the washing machine at full capacity rather than with partial loads (however, do not overload the drum).
• Only use the Prewash or Soak function for very dirty washing.
• Use a detergent dose adapted to the water hardness (see «propor­tioning of detergents» section) and to the amount of washing and how dirty it is.
6
Washing machine description
1
User information
2
3
4
5

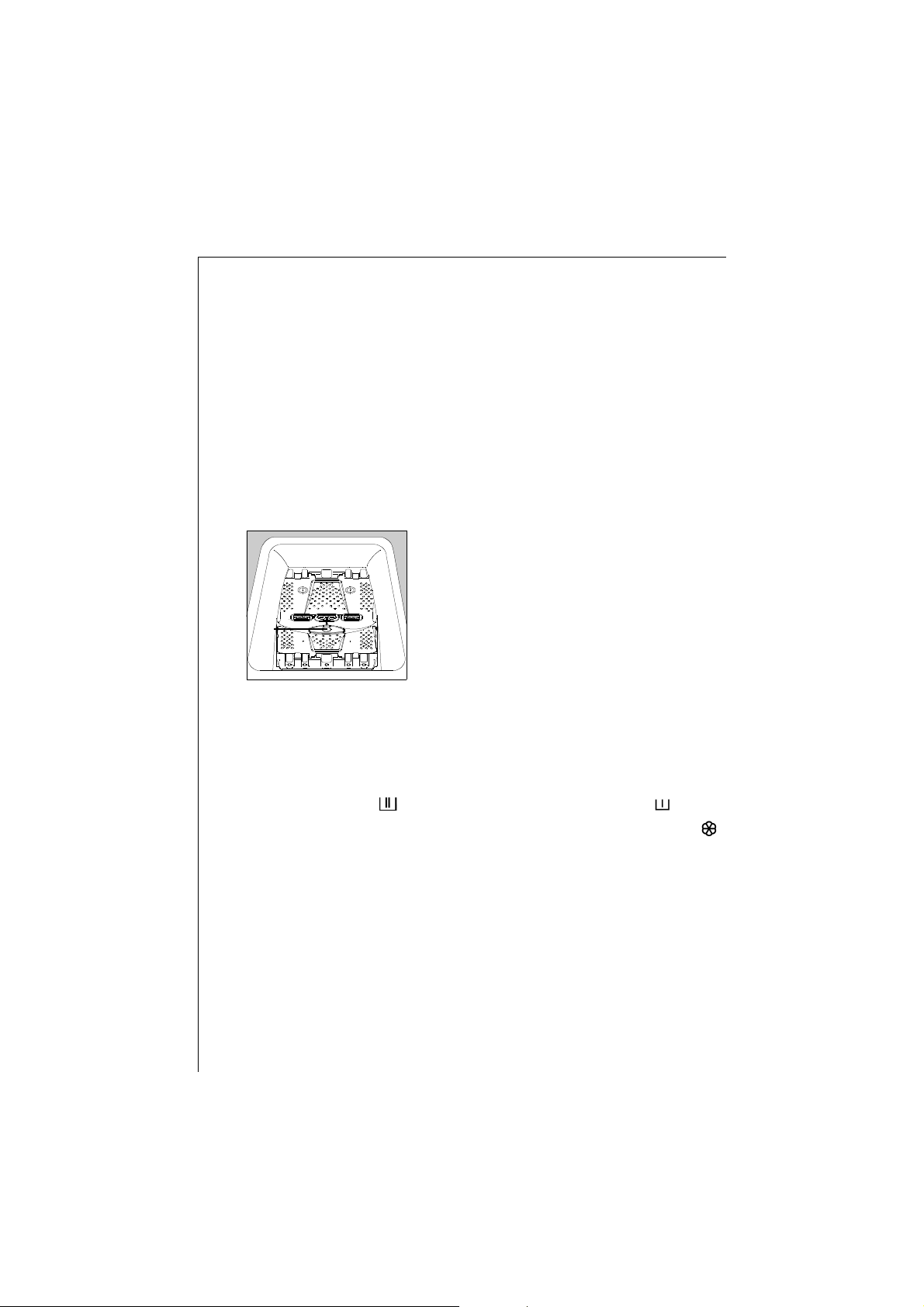

The detergents dispenser
Symbols
1 - Control panel 2 - Lid opening handle 3 - Filter door 4 - Leveling screws 5 - Lever for moving the washing machine
1 - prewash
2
1
4
3
2 - wash 3 - softener
(do not exceed the MAX mark)
4 - softener overflow (if overfilled).
7
User information
Control panel
Additional programme pushbuttons
Spin pushbutton/
RINSE HOLD
Programmes procedure
Programme selector
1
2
3
Start/Pause pushbutton Door control lamp
4
5
Programme selector
It is used to select the most suitable programme to the type and soiling of your laundry.
It can be turned to the right or to the left.
OFF (UIT/ARRET)
This position of the programme selector switchs off the appliance. Moreover, thanks to this option, you can cancel a programme which has already been selected. Another programme can then be selected.
WHITE / COLOUREDS (WITTE/BONTE WAS / BLANC/COULEURS)
Main wash for coloured or white laundry from 30°C to 95°C.
ECO
By washing normally soiled white clothes at around 60°C, this programme saves water and energy. Futhermore, it increases the wash duration and it can not be combined with the QUICK (KORT / COURT) pushbutton
8
*
.
User information
SYNTHETICS (KREUKHERSTELLEND / SYNTHETIQUES)
Main wash for lightly soiled fabrics from 30°C to 60°C.
DELICATES (FIJNE WAS / LINGE DELICAT)
Main wash for delicates fabrics at 30°C or 40°C.
WOOL (WOL / LAINE) / SILK (SIJDE / SOIE) /
Main wash (cold to 30°C) for machine washable woollen garments and also for all other garments carrying the «hand washable» symbol.
RINSES (FIJNSPOELEN / RINCAGE DELICAT)
Separate rinse which can, for instance, be used to rinse and spin handwash garments. The appliance performs 3 rinses cycles and a short spin.
DRAIN (POMPEN / VIDANGE)
Separate drain of the water after a rinse hold (without spinning). The effect of the rinse hold function is that the washing is left to soak in the last rinse water, without spinning.
SPINNING (CENTRIFUGEREN / ESSORAGE)
Drain of the water after a rinse hold and spin or separate spin for handwashed cotton garments.
Additional programme pushbuttons
Additional programme pushbuttons enable to adapt the washing programme to the laundry soil level. It is not necessary to use these options so as to wash normally soiled garments. The use of the different options depends on the chosen programme.
When these buttons are pressed, the corresponding lights illuminate. When pressed again, the corresponding lights extinguish.
*depending on model
9
User information
When an additional function is not compatible with the selected programme, the corresponding lights does not illuminate.
PREWASH (VOORWAS / PRELAVAGE)
Prewash at 30°C before the main wash which starts automatically. The prewash ends by a short spin as far as the white/coloureds, synthetics programmes are concerned and by a drain of the water for the delicate garments. It is not possible to select the prewash option with the wool and handwash programmes and also with the SOAKING pushbuttons. This option is recommended for very soiled clothes.
QUICK (KORT / COURT)
Shortened wash programme for lightly soiled washing. This function can not be used on the wool and handwash programmes and also with STAIN* pushbutton.
DELAY START (STARTTIJDKEUZE / DEPART DIFFERE)
This pushbutton is used to delay the start of a programme in order to take advantage of attractive night rates (for instance).
*
and STAIN*
Using the delayed start :
• Select the programme and the options
• Select the required time (6 or 3 hours) for the delayed start by pressing the DELAY START puhbutton
• Press the START/PAUSE pushbutton. The programme starts when the time has elapsed.
Modifying the delayed start :
• Press the START/PAUSE pushbutton
• Press the DELAY START pushbutton with your new choice ; if you want to cancel a delay start, move the programme selector to the OFF position.
• Press the START/PAUSE pushbutton again so as to activate the new delayed start selection or to start the programme (if the delayed start has been cancelled).
*depending on model
10
User information
Be careful : if you use liquid detergent for a washing cycle with a delayed start, use a ball to put directly in the drum and choose a programme without prewash. If you want to realize a prewash with a delay start in the same time, please use powder detergent.
Spinning speed pushbutton / RINSE HOLD
The maximum spin speed is defined as a function of the type of washing and depending on the selected program. However, you can reduce the speed or choose the rinse hold*, drain*, or spinning suppression* positions.
START/PAUSE (START/PAUZE / DEPART/PAUSE) pushbutton
Start:
After having selected the wash programme, press this button to start the appliance ; the corresponding light remains illuminated. If you have selected a delay start, the timer starts.
Pause:
The programme in progress is interrupted when this button is pressed. It continues when this button is pressed again. During the pause, the light of the START/PAUSE button flashes.
Programme progress display
When you select a programme, the leds corresponding to the different steps during the programme light on. When the programme starts, only the concerned led of the programme cycle stays lighted on.
RINSE PLUS (SPOELEN + / RINCAGE +)
This option allows to rinse the laundry with more water : the relevant light is on (see below).
11
