1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or in­struction concerning use of the appliance in a safe way
and understand the hazards involved.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Cleaning and user maintenance shall not be made by

children without supervision.

3ENGLISH

1.2 General Safety

• This appliance is intended to be used in household and

similar applications such as:

- Farm houses; sta󰀨 kitchen areas in shops, o󰀩ces

and other working environments

- By clients in hotels, motels, bed and breakfast and

other residential type environments

• Use this appliance for storage of wine only.

• Keep ventilation openings, in the appliance enclosure

or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to ac-

celerate the defrosting process, other than those rec­ommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the
type recommended by the manufacturer.

4

www.aeg.com

• Do not use water spray and steam to clean the appli-

ance.

• Clean the appliance with a moist soft cloth. Only use

neutral detergents. Do not use abrasive products, abra­sive cleaning pads, solvents or metal objects.

• Do not store explosive substances such as aerosol

cans with a ammable propellant in this appliance.

• If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualied

persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

5ENGLISH

2.1 Installation

WARNING! Only a qualied per-

son must install this appliance

• Remove all the packaging.

• Do not install or use a damaged ap­pliance.

• Obey the installation instruction sup­plied with the appliance.

• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.

• Make sure the air can circulate around
the appliance.

• Wait at least 4 hours before connecting
the appliance to the power supply. This

is to allow the oil to ow back in the

compressor.

• Do not install the appliance close to
radiators or cookers, oven or hobs.
The rear of the appliance must stand
against the wall.

• Do not install the appliance where
there is direct sunlight.

• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices, ga­rages or wine cellars.

• When you move the appliance, lift it by the

front edge to avoid scratching the oor.

2.2 Electrical connection

WARNING! Risk of re and elec-

trical shock.

• The appliance must be earthed.

• All electrical connections should be

made by a qualied electrician.

• Make sure that the electrical informa­tion on the rating plate agrees with the
power supply.

• If not contact an electrician.

• Always use a correctly installed shock­proof socket.

• Do not use multi-plug adapters and ex­tension cables.

• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor). Con­tact the Service or an electrician to
change the electrical components.

• The mains cable must stay below the
level of the mains plug.

• Connect the mains plug to the mains
socket only at the end of the installa­tion. Make sure that there is access to
the mains plug after the installation.

• Do not pull the mains cable to discon­nect the appliance. Always pull the
mains plug.

2.3 Use

WARNING! Risk of re and elec-

trical shock or re.

• Do not change the specication of this
appliance.

• Do not put electrical appliances (e.g.
ice cream makers) in the appliance un­less they are stated applicable by the
manufacturer.

Be careful not to cause damage to
the refrigerant circuit. It contains
isobutane (R600a), a natural gas
with a high level of environmen­tal compatibility. This gas is am­mable.

• If damage occurs to the refrigerant
circuit, make sure that there are no

ames and sources of ignition in the

room. Ventilate the room.

• Do not let hot items to touch the plastic
parts of the appliance.

• Do not store ammable gas and liquid
in the appliance.

• Do not put ammable products or items

that are wet with ammable products

in, near or on the appliance.

• Do not touch the compressor or the
condenser.

• They are hot.

6

www.aeg.com

2.4 Care and cleaning

WARNING! Risk of injury or

damage to the appliance

• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.

• This appliance contains hydrocarbons
in the cooling unit. Only a qualied per­son must do the maintenance and the
recharging of the unit.

• Regularly examine the drain of the ap­pliance and if necessary, clean it. If the
drain is blocked, defrosted water col­lects in the bottom of the appliance.

3. PRODUCT DESCRIPTION

1 2 3 4 5

2.5 Disposal

WARNING! Risk of injury or suf-

focation.

• Disconnect the appliance from the
mains supply.

• Cut o󰀨 the mains cable and discard it.

• Remove the door to prevent children
and pets to be closed inside of the ap­pliance.

• The refrigerant circuit and the insu­lation materials of this appliance are
ozone friendly.

• The insulation foam contains am­mable gas. Contact your municipal
authority for information on how to dis­card the appliance correctly.

• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.

1

Door Release Mechanism

2

Telescopic runners

3

Control panel

4

Shelves

678

5
6
7
8

Fastening bar
Door
Gasket
Rating plate

4. CONTROL PANEL

1 2 3 4 5

7ENGLISH

1

ON/OFF key

2

Light key

3

Display

4.1 On/O󰀨switchand
temperature setting

To switch on the appliance press the ON/
OFF key.
The display shows the set default tem­perature (12°C).
The temperature can be adjusted from 5°
to 20°C (with steps of 1°C) by touching
the -/+ key.

To switch o󰀨 the appliance press the ON/

OFF key for 5 seconds.

4.2 Light Key

When the door is opened, the LED light is

on, when closed is o󰀨. If you want to keep

the light on with the door closed, open the
door, and press the light key.
If you want to restore the standard condi­tions, press the light key again.

4.3 Display

The display shows the temperature set,
the error messages, if the demo mode is
selected, if the keys are locked.

4

Temperature colder key

5

Temperature warmer key

4.4 Lock keys mode

Press the + key and the light key for 3
seconds to activate the lock keys mode.
The appliance will continue to work with
the last settings.
To deactivate the lock keys mode, do the
same procedure.
By selecting this function, the message
“bl” appears on display touching any key.

4.5 Demo Mode

DEMO MODE has been created for exhi­bitions and showroom purposes.
The display will be ON with possibility to
change the temperatures but the Cooling
motor will be OFF.
To activate or deactivate the DEMO
MODE, Press + and – simultaneously for
3 seconds.
Display will show the ON for 5 seconds,
then the temperature will be showed
again.
It Is possible to keep the inner led light
turned ON also when the door is closed.
Press the Light key to activate the light
ON mode.

8

www.aeg.com

5. USE

5.1 Door Opening

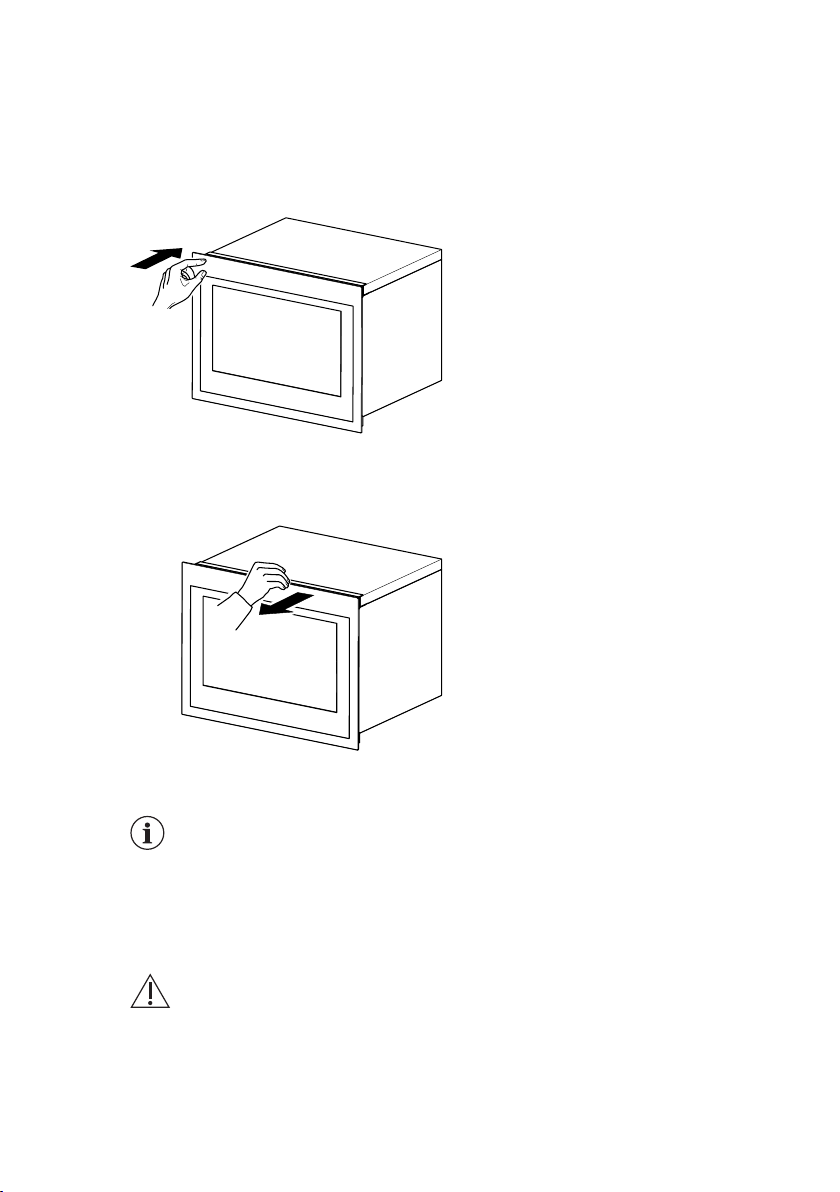

To open the door:

- push in the left side of the door panel, to

open the door

- or pull it

5.3 Temperature Recol­lection Function

In the event of a power cut, the wine cellar
can remember the previous temperature
setting, and when power is recovered, the
temperature will go back to the original.

5.2 First Use

Before using the appliance for the
rst time, wash the interior and all inter­nal accessories with lukewarm water and
some neutral soap, then dry thoroughly.

Do not use detergents or abra-

sive powders, as these will dam-

age the nishing.

To turn on the appliance, press ON/OFF
key and adjust temperature according to
the wine stored.

9ENGLISH

5.4 Wine Storage

The storage time for wine depends on
ageing, the type of grapes, alcoholic con­tent and level of fructose and tannin con­tained in it. At the time of purchase,check
if the wine is already aged or if it will im­prove over time.
Preservation temperature suggested:

- Champagne/Prosecco and Sparkling

wines +6 to +8°C

- White Wines +10 to +12°C

- Rosé wines +12 to +16°C

- Red Wines +14 to +18°C
(for 750 ml Bordeaux bottles)
Total: 18 bottles

5.5 Wine Shelves

• For easy access to the bottles, pull the
shelves out of the rail compartment.

To prevent damaging the door,

make sure that the door is fully
opened when pulling shelves out.

• To remove or t the wooden shelves lift
or push the shelf.

10

www.aeg.com

• Standard conguration

To store up to 18 bordeaux bottles placing
6 bottles each level.

• Horizontal conguration

The rst level has been designed to acco­modate larger and taller bottles.

Suitable for large and tall bottles.

By removing the shelves is possible to
increase the capacity as showed in the
pictures.

WARNING! Please ensure in

this case that the bottles do not come in
contact with the backwall of the cavity.

To easily store large and tall bottles on the
second shelf, can be removed the upper
shelf as showed in the picture.

6. INSTALLATION

6.1 Positioning

Adequate air ventilation should be around
the appliance, to prevent overheating. To
achieve su󰀩cient ventilation follow the in­stallation instructions.
Install this appliance at a location where
the ambient temperature corresponds to
the climate class indicated on the rating
plate of the appliance:

Climate class Ambient

SN +10 °C to +32 °C
N +16 °C to +32 °C
ST +16 °C to +38 °C
T +16 °C to +43 °C

7. CARE AND MAINTENANCE

11ENGLISH

temperature

CAUTION! Unplug the appliance

before carrying out any mainte­nance operation.

This appliance contains hydro-

carbons in its cooling unit; main­tenance and recharging must
therefore only be carried out by
authorized technicians.

7.1 Periodic cleaning

The equipment has to be cleaned regu­larly:

Do not pull, move or damage any

pipes and/or cables inside the
cabinet.

Never use detergents, abrasive

powders, highly perfumed clean­ing products or wax polishes
to clean the interior as this will
damage the surface and leave a
strong odour.

• Clean the inside surfaces with a warm
water and baking soda solution. The
solution should be about 2 tablespoons
of baking soda to a quart of water.

• Clean the shelves with a mild deter­gent solution.

• Wring excess water out of the sponge
or cloth when cleaning area of the con­trols, or any electrical parts.

• Clean the inside and accessories with
lukewarm water and some neutral
soap.

• Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.

• Rinse and dry thoroughly.

7.2 Periods of non-opera-

tion

When the appliance is not in use for long
periods, take the following precautions:

• disconnect the appliance from electric­ity supply.

• remove all items.

• clean the appliance and all accesso­ries.

• leave the door open to prevent un­pleasant smells.

12

www.aeg.com

8. TROUBLE SHOOTING GUIDE

You can solve many common Wine cellar
problems easily, saving you the cost of a
possible service call. Try the suggestions.

Problem Possible cause Solution

Wine cellar
does not
operate.

Wine cellar
is not cool
enough.

The
compressor
operates
continuously.

The light
does not work.

Too much
vibration.

Too much
noise.

The door does
not close
properly.

Acoustic alarm

E3 is displayed

E1 is displayed
and an acoustic
alarm will sound
every 5 minutes.

E2 is displayed

• Not plugged in.

• The appliance is turned o󰀨.

• The circuit breaker tripped.

• Demo Mode is active.

• Check the temperature control setting.

• The door is not completely closed.

• The door gasket does not seal properly.

• The room temperature is hotter than
normal.

• The door is opened too often.

• The door is not completely closed.

• The door gasket does not seal properly.

• Not plugged in.

• The circuit breaker tripped.

• The LED has burned out.

• The light button is not operating.

• Check that the wine cellar is levelled. • Level the appliance.

• The rattling noise may co me from the ow

of the refrigerant, which is normal.

•

Contraction and expansion of the inside walls

may cause popping and crackling noises.

• The wine cellar is not level.

• Fan is dirty.

• The wine cellar is not level.

• The door was xed not properly.

• The gasket is dirty.

• The door is not closed (the alarm lasts
30 min).

• The door was left open for more than
30 min.

• Door reed switch is broken.

• The temperature inside the wine cellar
is outside the range of -20°C +60°C

• The temperature sensor is out of order
or disconnected.

• Warm coming from nearest appliances.

• Ambient temperature is out of the
product climate class Range.

• Compressor or fan are out of order.

• Please connect the appliance.

• Please turn ON the appliance.

• Turn on the circuit breaker.

• Deactivate the Demo mode (press +/- for 3sec.).

• Verify the set temperature.

• Verify the closure of the door.

• Clean the door gasket with a humid sponge
using neutral detergent and water.

• Verify the room temperature.

• Do not keep the door open longer than necessary.

• Verify that the door is completely closed.

• Verify the gasket condition and in case clean it with
a humid sponge using neutral detergent and water.

• Please connnect the appliance.

• Turn on the circuit breaker.

• Contact the service.

• Contact the service.

• Level the appliance.

• Clean the fan from powder.

• If the noises become louder contact the
service.

• Level the appliance.

• Verify the closure of the door.

• Clean the door gasket with a humid sponge
using neutral detergent and water.

• Close the door.

• Close the door.

• Contact the service.

• Verify absence of heating from nearest
appliances.

• Contact the service.

• Verify absence of heating from nearest appliances.

• Verify if the product is installed in a place with
ambient temperature within declared product
climate class.

• Contact the service.

13

www.aeg.com

9. ENVIRONMENTAL CONCERNS

Recycle the materials with the symbol
Put the packaging in applicable container
to recycle it. Help protect the environment
and human health and to recycle waste
of electrical and electronic appliances.

Do not dispose appliances marked with
the symbol with the household waste.
Return the product to your local recycling

facility or contact your municipal o󰀩ce.

14

www.aeg.com

TABLE DES MATIÈRES

1. INFORMATIONS DE SÉCURITÉ ..............................................................................15

2. CONSIGNES DE SÉCURITÉ ....................................................................................17

3. DESCRIPTION DU PRODUIT ...................................................................................18

4. PANNEAU DE CONTRÔLE .......................................................................................19

5. UTILISATION ..............................................................................................................20

6. INSTALLATION ...........................................................................................................23

7. SOIN ET ENTRETIEN ................................................................................................23

8. GUIDE POUR LA RÉSOLUTION DES PROBLÈMES .............................................24

9. PROBLÈMES ENVIRONNEMENTAUX ....................................................................25

POUR DES RÉSULTATS PARFAITS

Nous vous remercions d’avoir choisi un produit AEG. Le produit a été conçu pour garantir
de hautes performances pendant de nombreuses années, grâce à des technologies inno-

vantes qui simplient la vie, caractéristiques que ne garantissent pas tous les dispositifs or­dinaires. Quelques minutes su󰀩sent pour lire les instructions et obtenir un fonctionnement

optimal du dispositif.
Visiter le site du fabricant pour :

Obtenir conseils utiles, brochures, guides de résolution des problèmes et informa­tions sur les services :

www.aeg.com

Enregistrer le produit pour une meilleure assistance :

www.registeraeg.com

Acheter des accessoires, des consommables et des pièces détachées d’origine
pour le dispositif :

www.aeg.com/shop

SOIN ET ENTRETIEN DE LA PART DU CLIENT

Il est recommandé d’utiliser des pièces détachées d’origine.
Avant de contacter l’assistance, veiller à disposer des données suivantes.

Sur la plaque, gurent les informations suivantes : modèle, code article et numéro de série.

Avertissement / Attention - Informations de sécurité.

Informations générales et conseils.

Informations écologiques.

Sujet à modications sans préavis.

1. INFORMATIONS DE SÉCURITÉ

Avant l’installation et l’utilisation du dispositif, veiller à
lire soigneusement les instructions fournies. Le fabricant
décline toute responsabilité en cas de dommages et/ou
de blessures causés par une mauvaise installation et/ou
une utilisation impropre. Veiller à conserver les instruc­tions avec le dispositif pour pouvoir les consulter en cas
de besoin.

1.1 Sécurité des enfants et des personnes vulné-

rables

• Le dispositif objet du présent manuel peut être utilisé

par des enfants à partir de 8 ans et par des personnes à
capacités physiques, sensorielles ou mentales réduites
ou bien ne possédant pas l’expérience ni les connais­sances nécessaires, uniquement à condition que ce
soit sous surveillance ou d’avoir reçu les instructions
relatives à l’utilisation du dispositif dans des conditions
de sécurité et à condition d’en avoir compris les dan­gers.

• Ne pas laisser des enfants jouer avec le dispositif.

• Ne pas laisser les emballages à la portée des enfants.

• Les opérations de nettoyage et d’entretien ne doivent

pas être conées à des enfants sans surveillance.

15FRANÇAIS

1.2 Sécurité générale

• Le dispositif est prévu pour être utilisé pour des appli-

cations domestiques ou similaires telles que :

- Agritourismes, zones de cuisine repas pour le per-

sonnel de magasins, bureaux et autres lieux de tra­vail ;

- Utilisation dans des hôtels, motels et bed&breakfast

(pour les clients) et autres espaces de type résiden­tiel ;

• Utiliser le dispositif uniquement pour la conservation du

vin.

16

www.aeg.com

• Maintenir les ouvertures de ventilation, présentes sur

l’unité externe ou dans la structure incorporée, libres de
toute obstruction.

• Ne pas utiliser de dispositifs mécaniques ni de moyens

pour accélérer la décongélation autres que ceux
conseillés par le fabricant.

• Ne pas endommager le circuit de réfrigération.

• Ne pas utiliser d’électroménagers à l’intérieur des com-

partiments de conservation des aliments du dispositif, à
moins qu’ils ne soient du type conseillé par le fabricant.

• Pour nettoyer le dispositif ne pas vaporiser d’eau ni de

vapeur.

• Nettoyer le dispositif uniquement avec un chi󰀨on humi-

dié. Utiliser exclusivement des détergents neutres. Ne
pas utiliser de produits abrasifs, chi󰀨ons abrasifs, de

solvants et d’objets métalliques.

• Ne pas conserver dans le dispositif des substances

explosives (bombe aérosol contenant du gaz inam­mable).

• Dans le cas où le câble d’alimentation serait endomma-

gé, il doit être changé par le fabricant, par un technicien

d’assistance ou une personne qualiée an de prévenir

tout danger.
