AEG ESSL3ISP User Manual
ESSL3ISP
................................................ .............................................
EN CONTROL PANEL USER MANUAL
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Safety instructions 2
Product description 3
Operating instructions 4
Helpful hints and tips 4
Care and cleaning 5
What to do if… 5

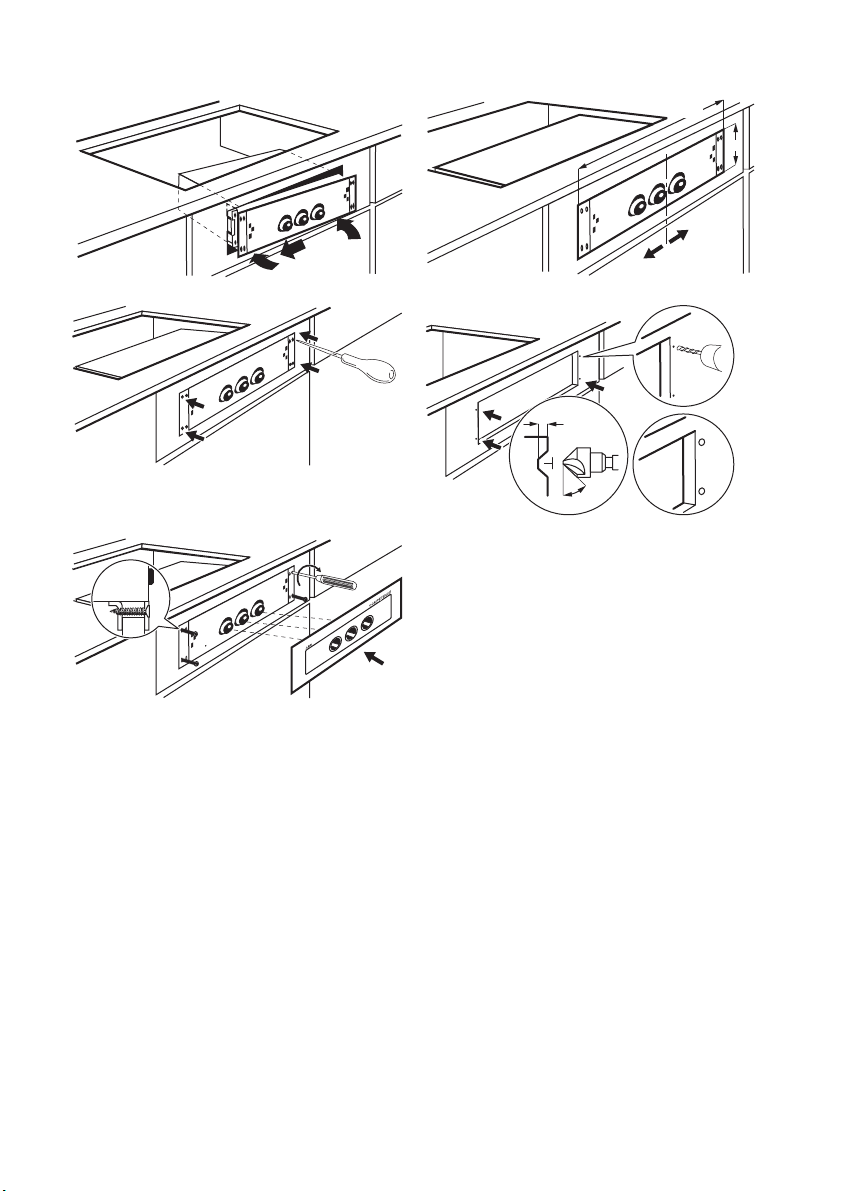

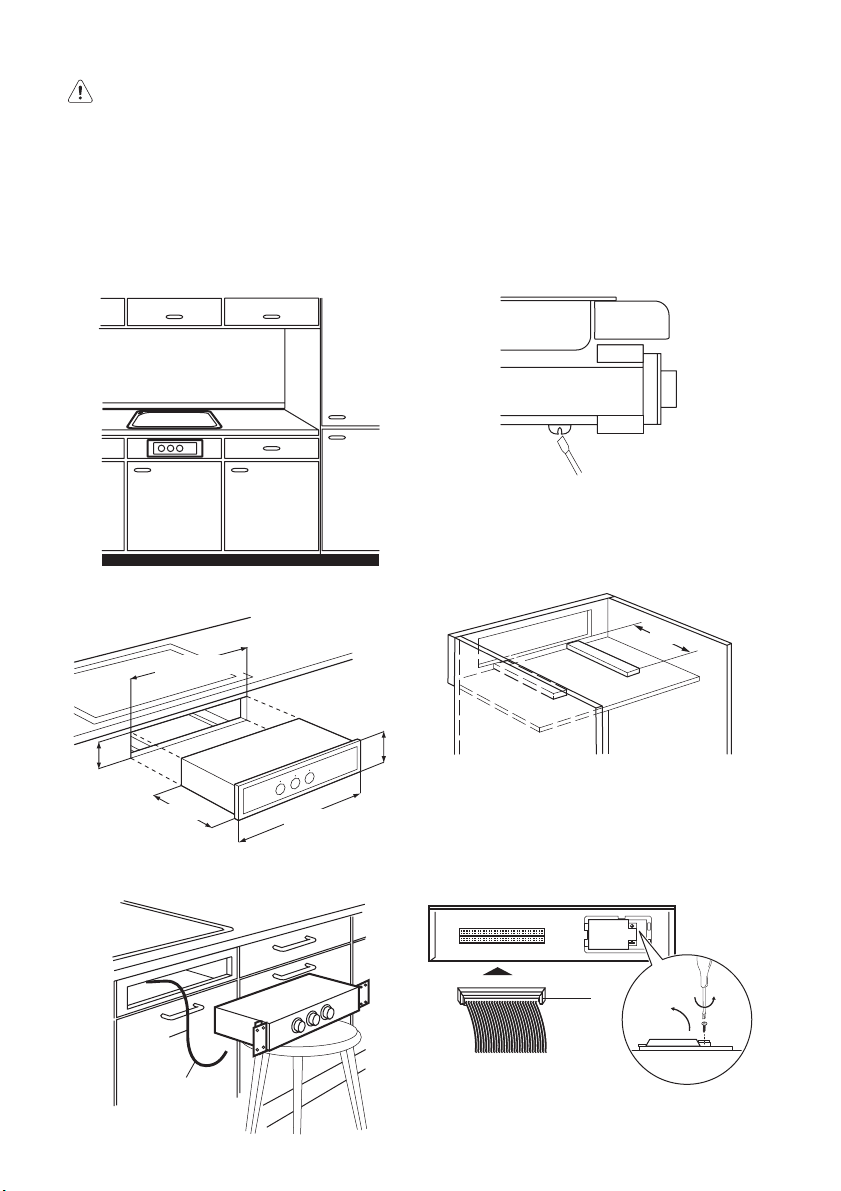

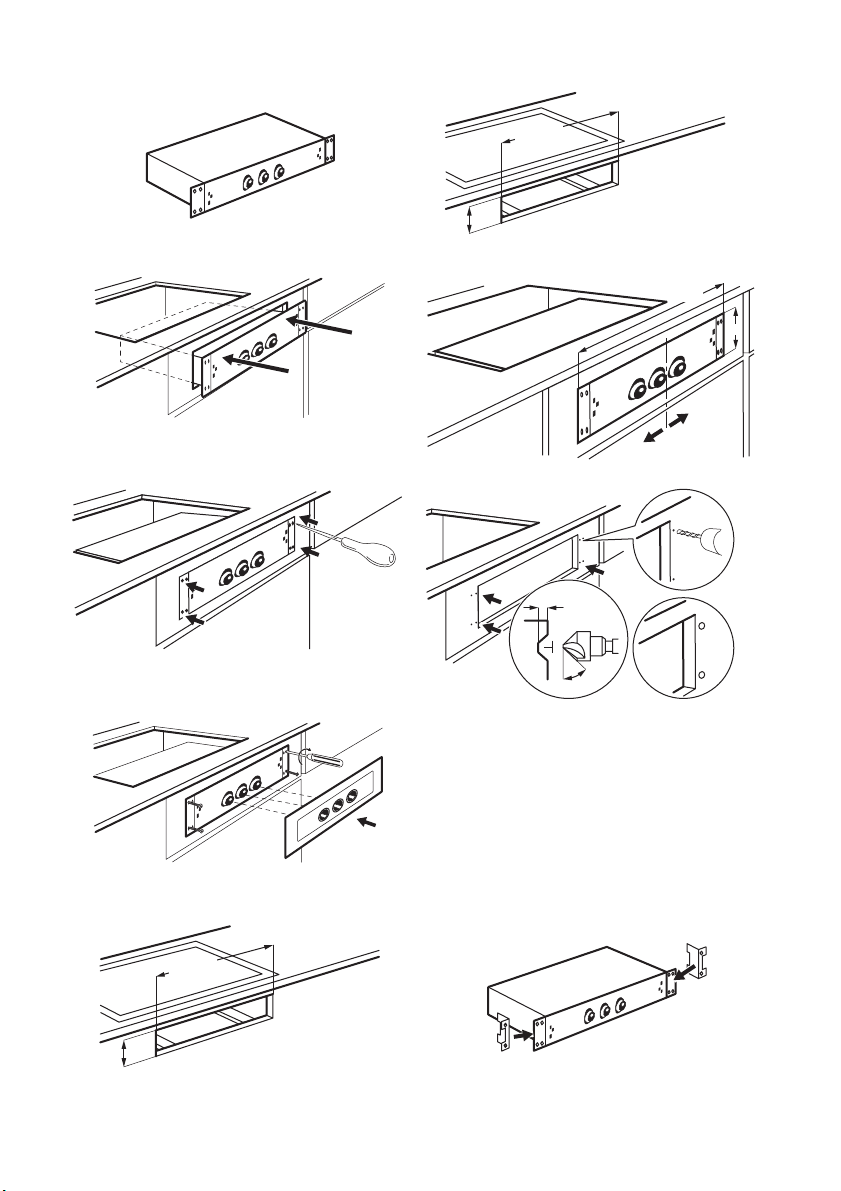

Installation instructions 5
Environment concerns 10
Garantie, Garanzia, Guarantee 10
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Cleaning and user maintenance shall not be made by children without supervision.
GENERAL SAFETY
• Do not use water spray or steam cleaner to clean the control panel.
SAFETY INSTRUCTIONS
INSTALLATION
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
electrolux 3
Electrical connection
Warning! Risk of fire and electrical
shock.
• All electrical connections must be made
by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable tangle.
• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets
• Make sure the appliance is installed correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Make sure that a shock protection is installed.
USE
Warning! Risk of injury, burns or
electric shock.
• Only use the appliance to operate the
hob.
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Do not let the appliance stay unattended
during operation.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Set the cooking zone to “off” after each
use. Do not rely on the pan detector.
• Do not use the appliance as a work surface or as a storage surface.
Warning! Risk of damage to the
appliance.
• Do not keep hot cookware on the control
panel.
• Be careful not let objects or cookware fall
on the control panel. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
CARE AND CLEANING
Warning! Risk of damage to the
appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
DISPOSAL
Warning! Risk of injury or suffocation.
• Contact your municipal authority for information on how to discard the appliance
correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
SERVICE
• Contact the Service to repair the appliance. We recommend only the use of
original spare parts.
PRODUCT DESCRIPTION
GENERAL OVERVIEW
1
Control knobs
1
4 electrolux
THE CONTROL KNOB
1 2
OPERATING INSTRUCTIONS
To use the appliance, push the control
knob. The control knob comes out.
To switch on and increase the heat setting
turn the knob clockwise. To decrease the
heat setting turn the knob counter-clockwise. To switch off turn the knob to the 0.
0 The zone is off
Keep warm
1 Minimum heat setting
9 Maximum heat setting
Activates outside ring
ACTIVATION AND DEACTIVATION OF
THE OUTER RINGS
If you connect the appliance to the hob with
the multiple cooking zones, you can adjust
Illuminated control knob
1
Assignment of the control knob
2
the surface you cook to the dimension of
the cookware.
You can activate it only for the cooking
zones with outer rings.
To activate the outer ring turn the knob
clockwise, through a light resistance, to the
. Then turn the knob counterclockwise
to the necessary heat setting. To deactivate
turn the knob to the 0.
Do the procedure again to deactivate the
outer ring.
The knob illumination comes on when
the appliance operates.
HELPFUL HINTS AND TIPS
EXAMPLES OF COOKING
APPLICATIONS
The data in the table is for guidance only.
Heat
setting
Keep cooked foods warm as re-
-1
1-2 Hollandaise sauce, melt: butter, choco-
late, gelatine
Use to: Time Hints
quired
5-25
min
Cover the food
Mix occasionally
