AEG EHT6415K, EGG646ICN User Manual

operating instuctions

Руководство пользователя

Gas hob

Газовая варочная панель

EHT 6415

2 electrolux

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will

provide you with lots of pleasure in the future.

The Electrolux ambition is to offer a wide variety of quality products that make

your life more comfortable.

You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage of the benefits of your new machine.

We promise that it will provide a superior User Experience delivering Ease-ofMind.

Good luck!

4 electrolux

Contents

Instructions for the User

Important Safety Information 5

Description of the Hob 7

Operation 8

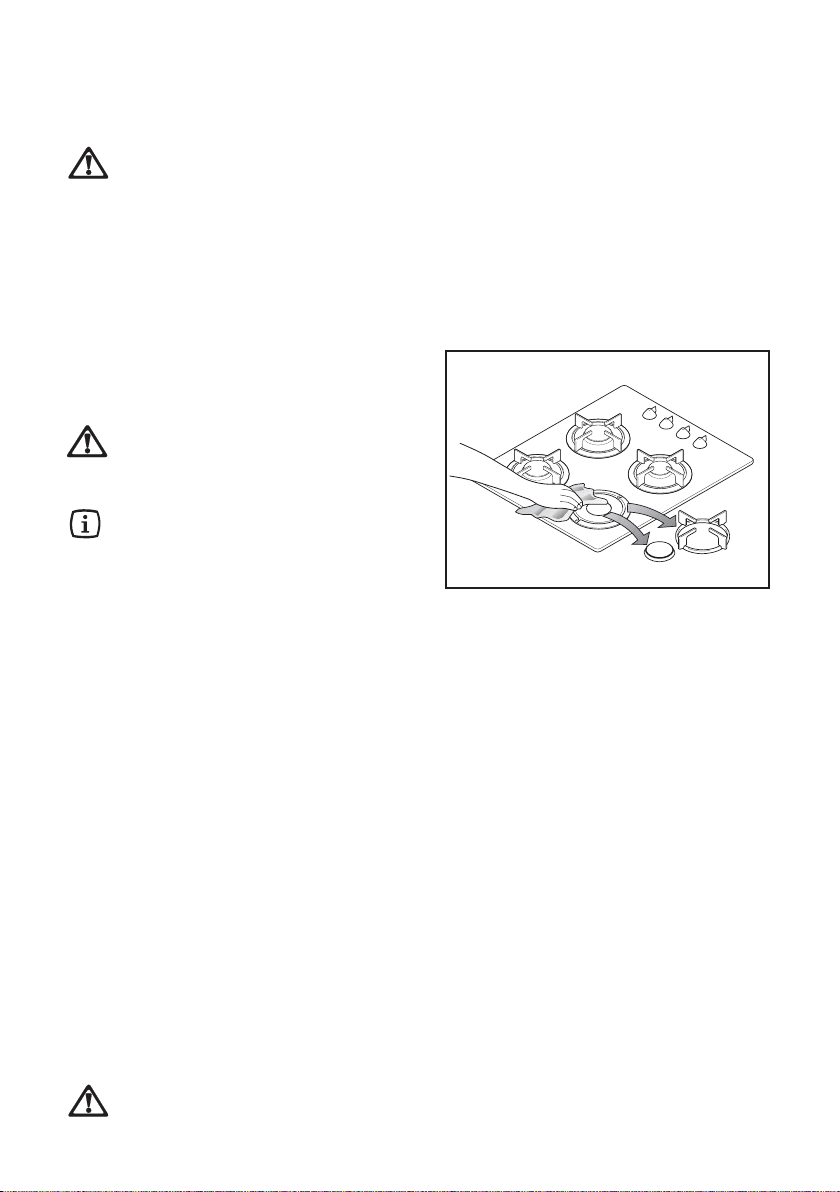

Maintenance and Cleaning 10

Something Not Working? 12

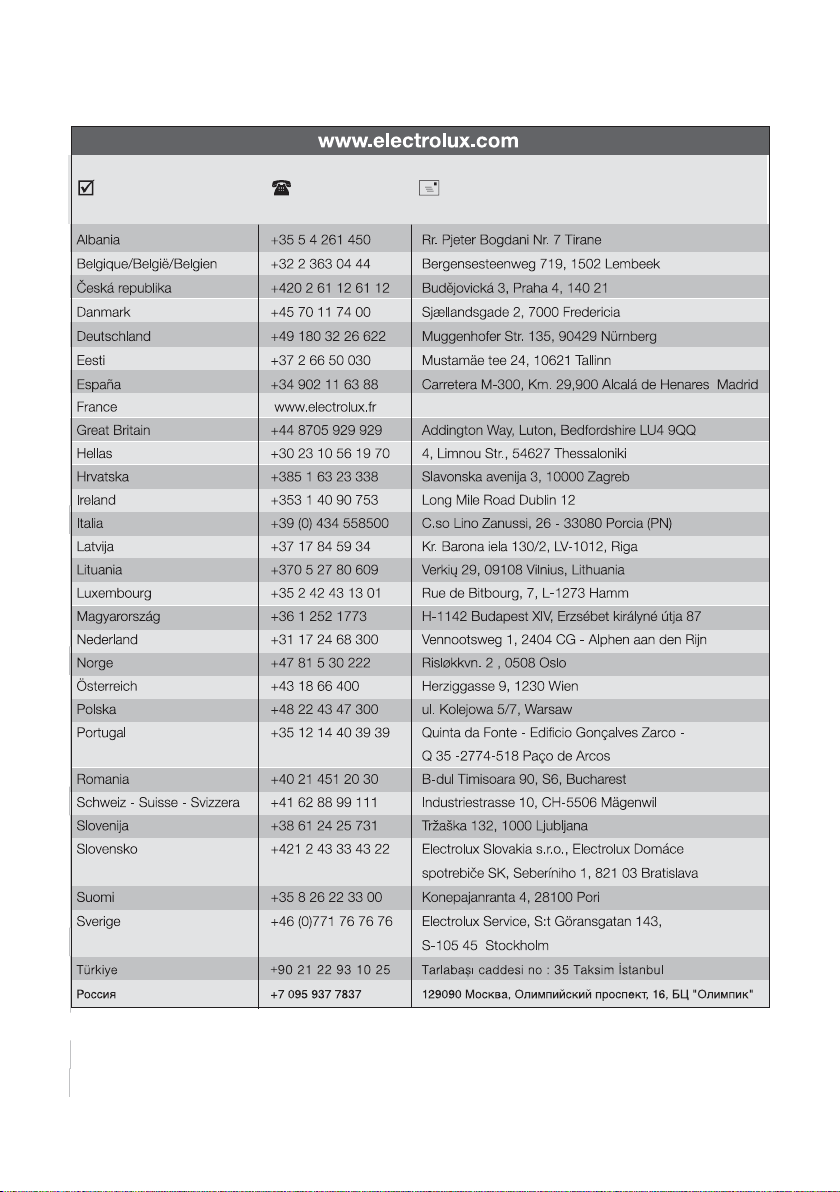

Service and original spare parts

Instructions for the Installer

Engineers Technical Data 13

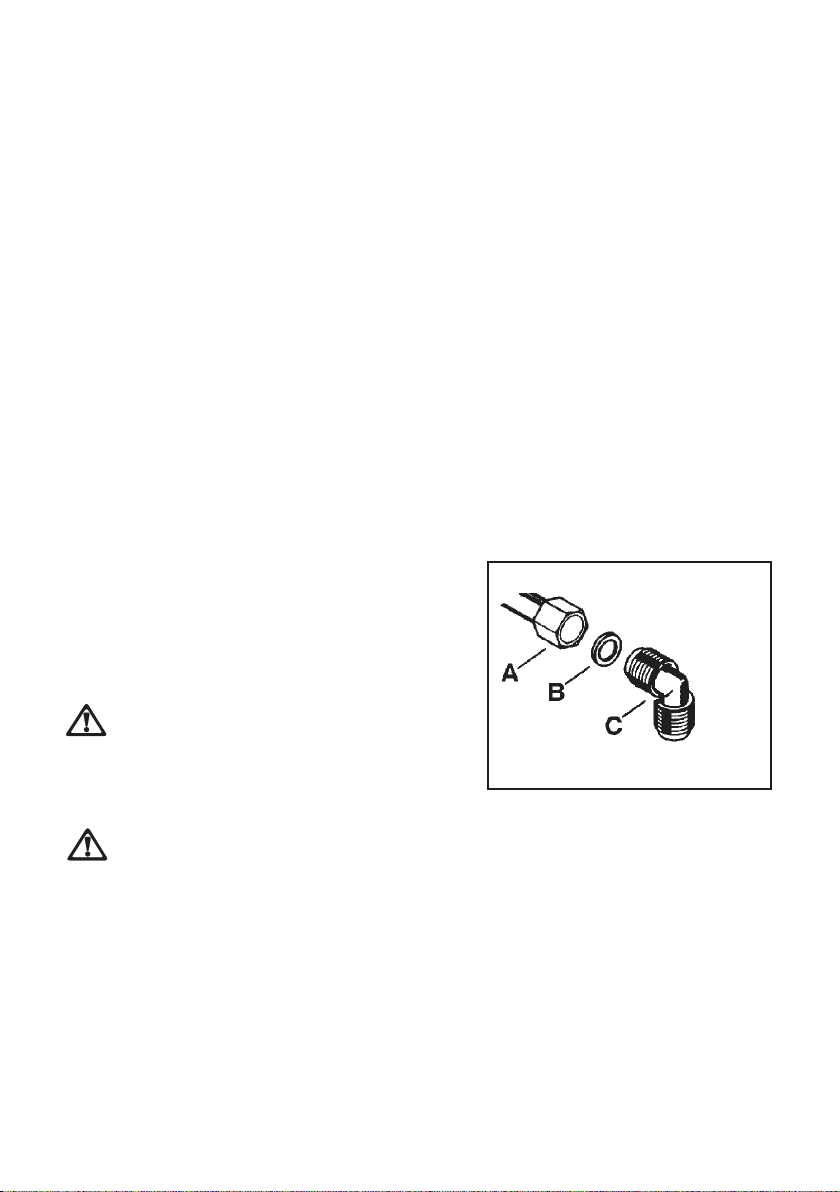

Gas Connection 15

Electrical Connection 17

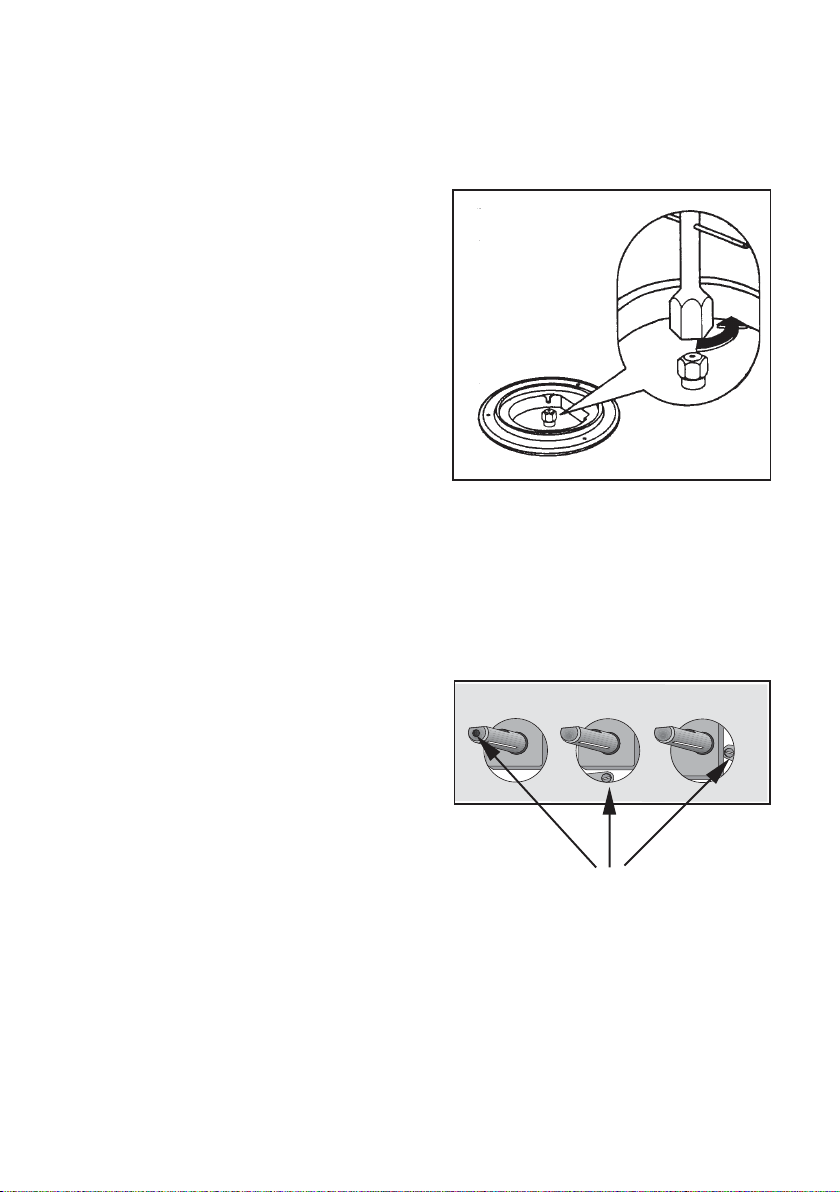

Adaptation to different Types of Gas 18

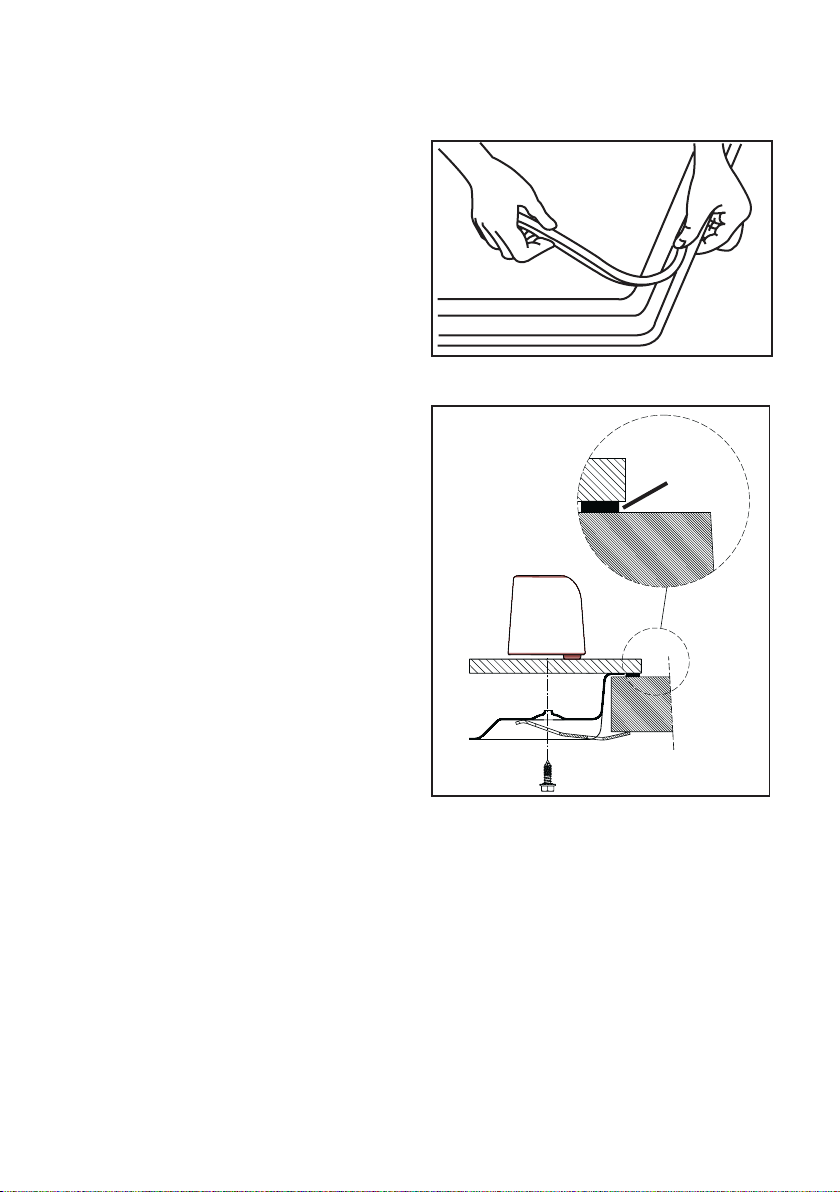

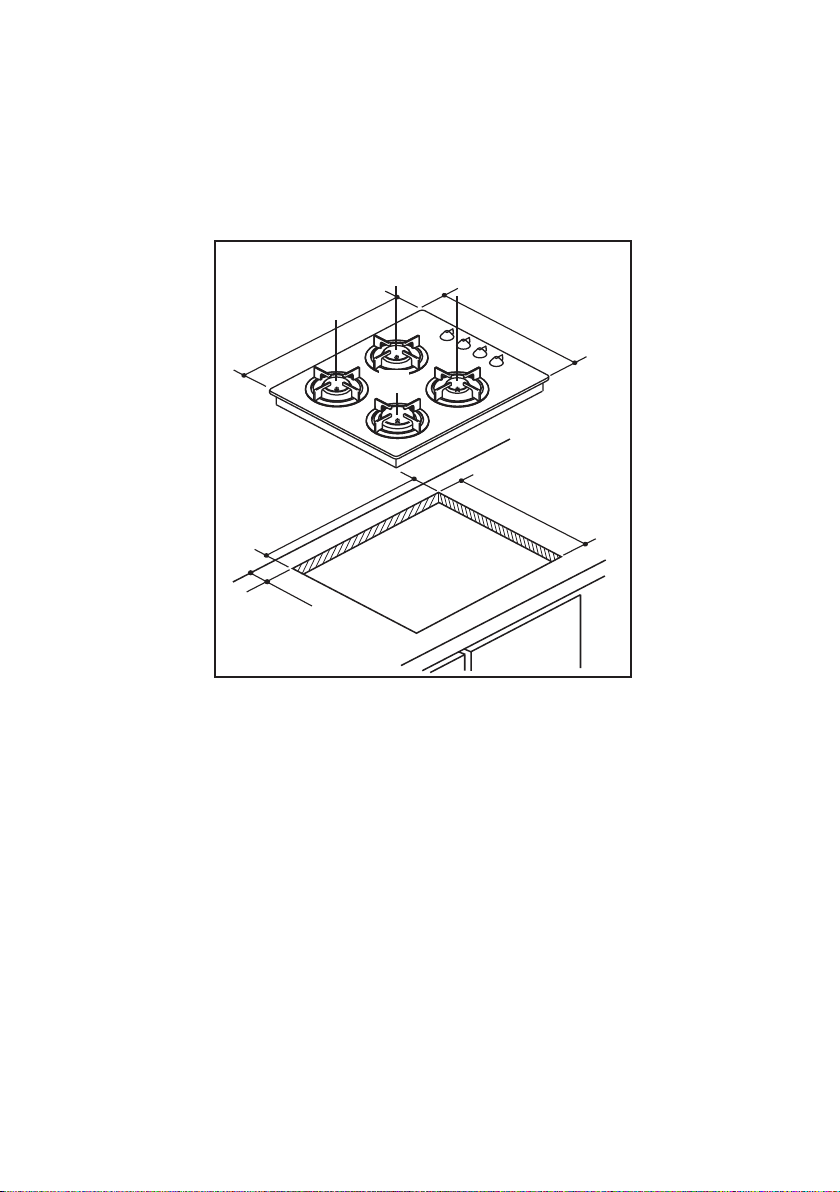

Building In 19

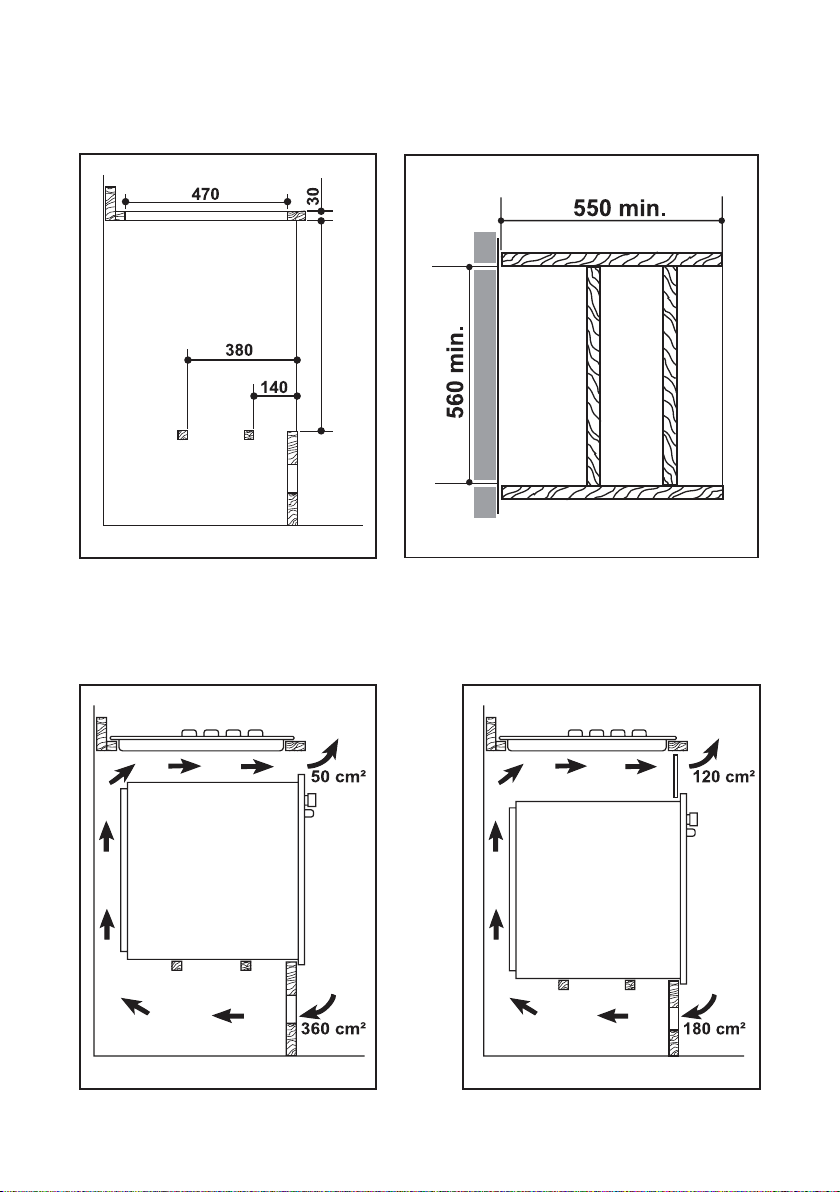

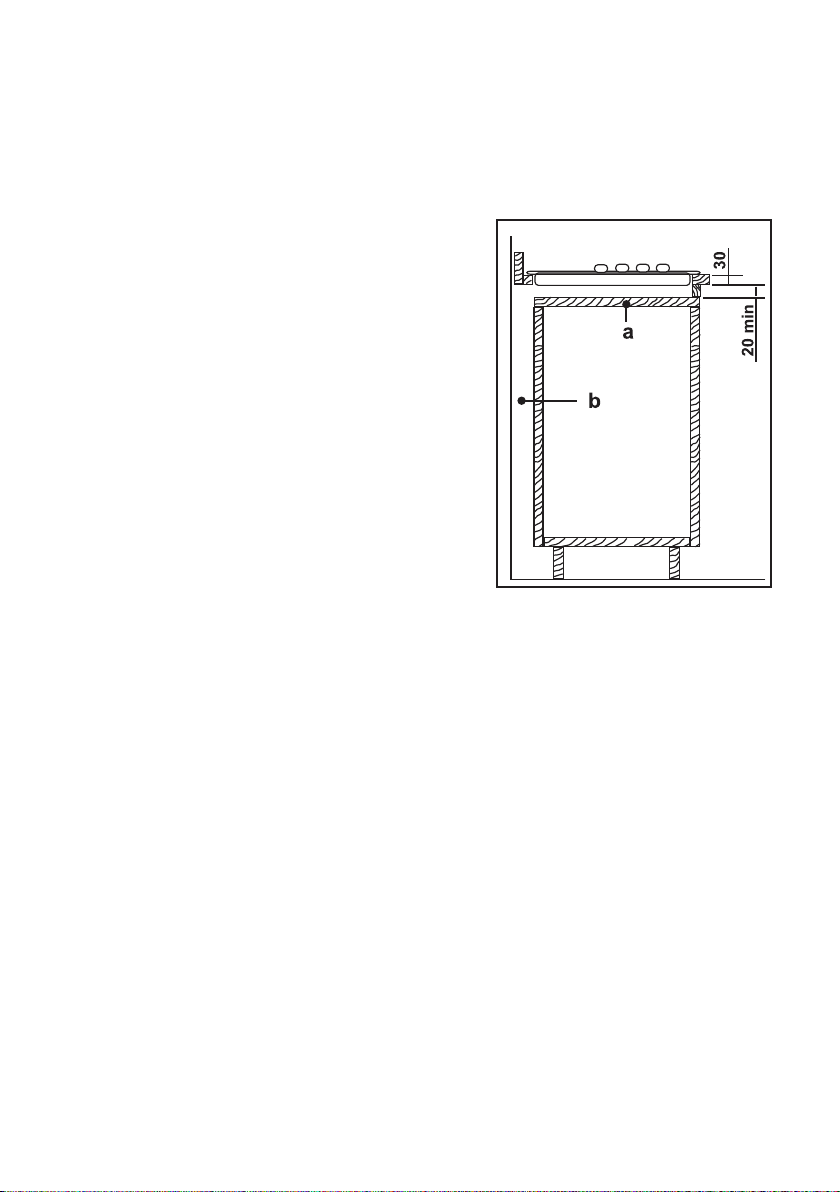

Possibilities for Insertion 21

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions

Step by step instructions for an operation

Hints and Tips

Environmental Information

This appliance is manufactured according to the following EEC directives: 73/23 EEC - 90/683 EEC - 93/68 EEC 89/336 EEC - 90/396 EEC, current edition.

electrolux 5

ENGLISH

Important Safety Information

These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings. These instructions are only valid for countries whose identification symbols are shown on the cover of this instruction booklet and on the appliance itself.

During Operation

• This appliance has been designed for non professional purpose in private houses only. It is meant to cook edible foodstuff only and MUST NOT be used for any other purposes.

• It is dangerous to alter the specification in any way.

• For hygiene and safety reasons, this appliance should be kept clean at all times. A build-up of fats or other foodstuff could result in a fire.

• Do not use this hob if it is in contact with water. Do not operate the hob with wet hands.

• Never leave the hob unattended when cooking with oil and fats.

• Unstable or misshapen pans should not be used on the hob as unstable pans can cause an accident by tipping or spillage.

• Never use plastic or aluminium foil dishes on the hob.

• Perishable food, plastic items and areosols may be affected by heat and should not be stored above or below the hob unit.

• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts.

• Ensure that all control knobs are in the OFF position when not in use.

• Should you connect any electrical tool to a plug near this cooking appliance, ensure that electric cables are not in contact with it and keep them far enough from the heated parts of this appliance.

• If the appliance is out of order, disconnect it from the electric supply.

Child Safety

• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.

• This appliance has been designed to be operated by adults and children under supervision. Young children MUST NOT be allowed to tamper with the controls or play near or with the oven.

6 electrolux

• Accessible parts of this appliance may become hot when it is in use. Children should be KEPT AWAY until it has cooled.

• Children can also injure themselves by pulling pans or pots off the hob.

About Installation, Cleaning and Manteinance

• It is mandatory that all operations required for the installation are carried out by a qualified or competent person, in accordance with existing rules and regulations in force in the country where the appliance is used.

• Ensure a good ventilation around the appliance. A poor air supply could cause lack of oxygen.

• Ensure that the gas and electrical supply complies with the type stated on the identification label, placed near the gas supply pipe.

• This appliance is not connected to a combustion products evacuation device. It must be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

• The use of a gas cooking appliance results in the production of heat and moisture in the

room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.

• Once you removed all packaging from the appliance, ensure that it is not damaged and the electric cable is in perfect conditions. Otherwise, contact your dealer before proceeding with the installation.

• Disconnect the appliance from the electrical supply, before carrying out any cleaning or manteinance work.

• This appliance cannot be cleaned with steam or with a steam cleaning machine.

• The residual heat indicator comes on when the cooking zone is switched on. Children should be kept away until it switches off.

• Never use the ceramic hob as a working space. Do not store things on the ceramic hob.

• Never use plastic or aluminium foil dishes on the ceramic hob, as they could melt on the hob, thus damaging it. Anyway,If anything of this nature accidentally comes into contact with the ceramic surface it must be scraped off immediately while stlll hot and wiped away to avoid damage to the surface. In the same way, remove sugar or food residues with hich sugar content, which may have split from saucepans by using a scraper for ceramic hobs.

• Unstable or misshapen pans should not be used on the ceramic hob as unstable pans can cause an accident by tipping or spillage.

• The ceramic hob is shockproof, but not unbreakable! Hard or pointed objects falling from a height can damage the hob. If scratches or cracks are noticed, disconnect the appliance from the electrical supply to avoid the risk of electric shock and call you nearest Service Force Centre. Never use scratching sponges, abrasive products or chemically powerful detergents. Use only cleaning agents specific for ceramic hobs.

• The manufacturer disclaims any responsability should all the safety measures not be carried out.

electrolux 7

Service

Environmental Information

• After installation, please dispose of the packaging with due regard to safety and the environment.

• When disposing of an old appliance, make it unusable, by cutting off the cable.

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Description of the Hob

1. Hob Top

2. Rapid Burner

3. Semi-rapid Burner

4. Auxiliary Burner

5. Control knob for back right burner (semi-rapid)

6. Control knob for back left burner (semi-rapid)

7. Control knob for front left burner (rapid)

8. Control knob for front right burner (auxiliary)

8 electrolux

INSTALLATION

Any gas installation must be carried out by qualified personnel, and in accordance with existing rules and regulations.

The relevant instructions are to be found in the second section of this manual.

Please, ensure that, once the hob is installed, it is easily accessible for the engineer in the event of a breakdown.

The manufacturer will not accept liability, should the above instructions or any of the other safety instructions incorporated in this book be ignored.

WHEN THE HOB IS FIRST INSTALLED

Once the hob has been installed, it is important to remove any protective materials, which were put on in the factory.

Operation

Hob Burners

To light a burner:

" turn the relevant knob anticlockwise to

maximum position and push down the knob to ignite.

" After lighting the flame, keep the knob pushed

down for about 5 seconds. This will allow the "thermocouple" (Fig. 2 - lett. D) to be heated and the safety device to be switched off, otherwise the gas supply would be interrupted. Then, check the flame is regular and adjust it as required. If you cannot light the flame even after several attempts, check the "cap" (Fig. 1 - lett. A) and “crown” (Fig. 1 - lett. B) are in the correct position. To put the flame out, turn the knob to the symbol

In the absence of electricity, ignition can occur without the electrical device; in this case approach the burner with a flame, push the relevant knob down and turn it anti-clockwise until it reaches the"maximum" position.

A - Burner cap B - Burner crown C - Ignition electrode D - Thermocouple

Fig. 1

When switching on the mains, after installation or a power cut, it is quite normal for the spark generator to be activated automatically.
