Electric Hobs
INSTRINSTR
INSTR
INSTRINSTR
UCTION BOOKLETUCTION BOOKLET
UCTION BOOKLET
UCTION BOOKLETUCTION BOOKLET
35678-3202
Mod. EHE 64
AU
![](/html/6f/6f57/6f573a88d70f6c8a2bb25761310d76b5993f7c764e5bb38082b7103fd28411c6/bg2.png)
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order
that the new owner can get to know the functions of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully before installing or
using the appliance.
Installation
z This hob must be installed by qualified personnel,
according to the manufacturer’s instructions and to
the relevant Australian Standards.
z Remove all packaging before using the hob.
z Ensure that the electrical supply complies with the
type stated on the rating plate, located on the bottom
of the hob.
z Do not attempt to modify the hob in any way.
Child Safety
z The appliance is not intended for use by young
children or infirm persons without supervision.
z This hob is designed to be operated by adults. Do
not allow children to play near or with the hob.
z The hob gets hot when it is in use.
z Children should be kept away until it has cooled.
z Children can also injure themselves by pulling pans
or pots off the hob.
During Use
z This hob is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.
z Do not use this hob if it is in contact with water.
Do not operate the hob with wet hands.
z Ensure the control knobs are in the ‘OFF’ position
when not in use.
z When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the hob.
z Unstable or misshapen pans should not be used on
the hob as unstable pans can cause an accident by
tipping or spillage.
Service
z This hob should only be repaired or serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
z After installation, please dispose of the packaging
with due regard to safety and the environment.
z When disposing of an old appliance, make it
unusable, by cutting off the cable.
z The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
)
Hints and Tips
z Never leave the hob unattended when cooking with
oil and fats.
z Never use plastic or aluminium foil dishes on the
hob.
z Perishable food, plastic items and areosols may be
affected by heat and should not be stored above or
below the hob unit.
2
Environmental Information
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
![](/html/6f/6f57/6f573a88d70f6c8a2bb25761310d76b5993f7c764e5bb38082b7103fd28411c6/bg3.png)
Contents
For the User
Important Safety Information 2
Description of the Hob 3
Operation 4

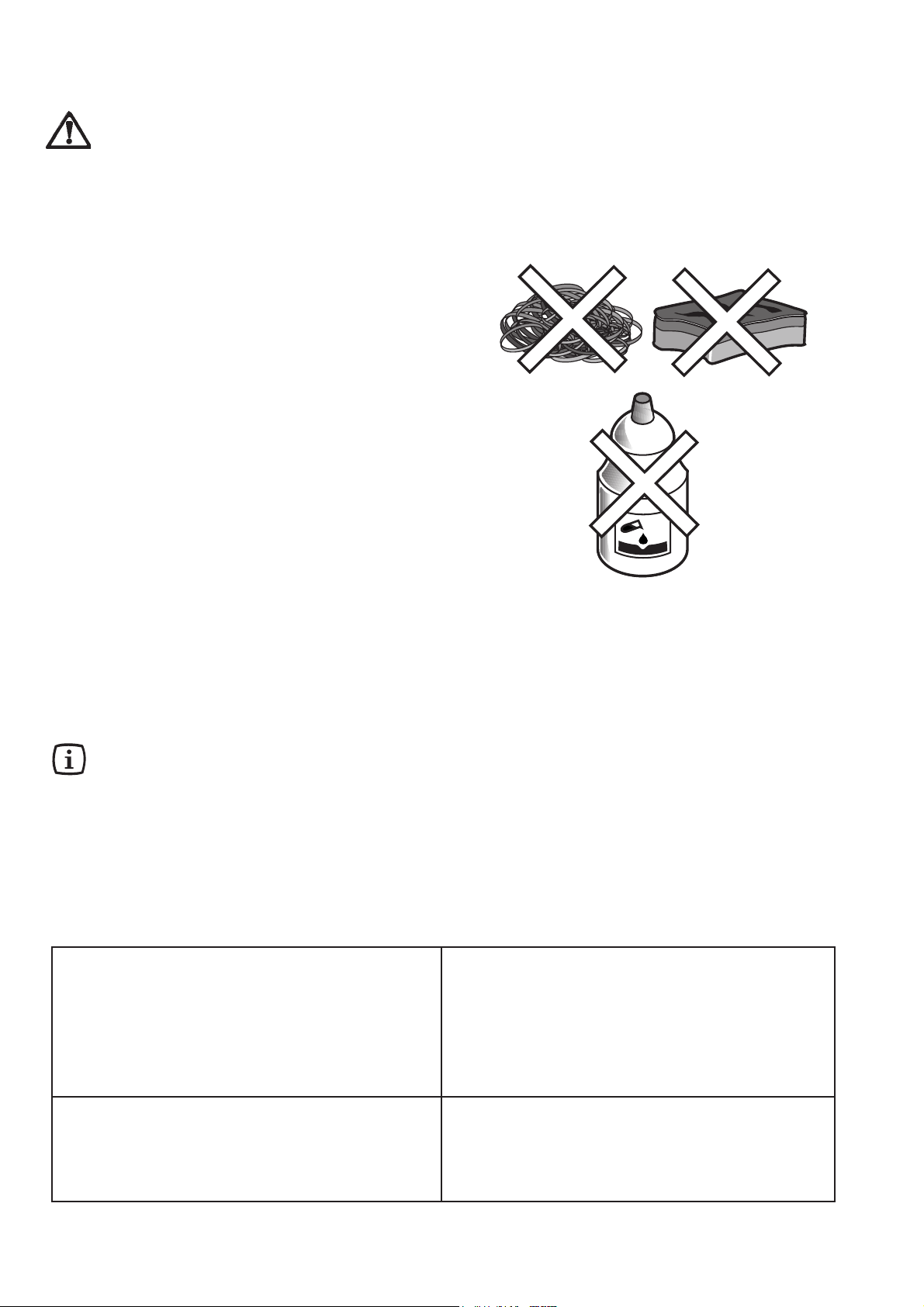

Maintenance and Cleaning 5
Something Not Working? 5
For the Installer
Instructions for the Installer 6

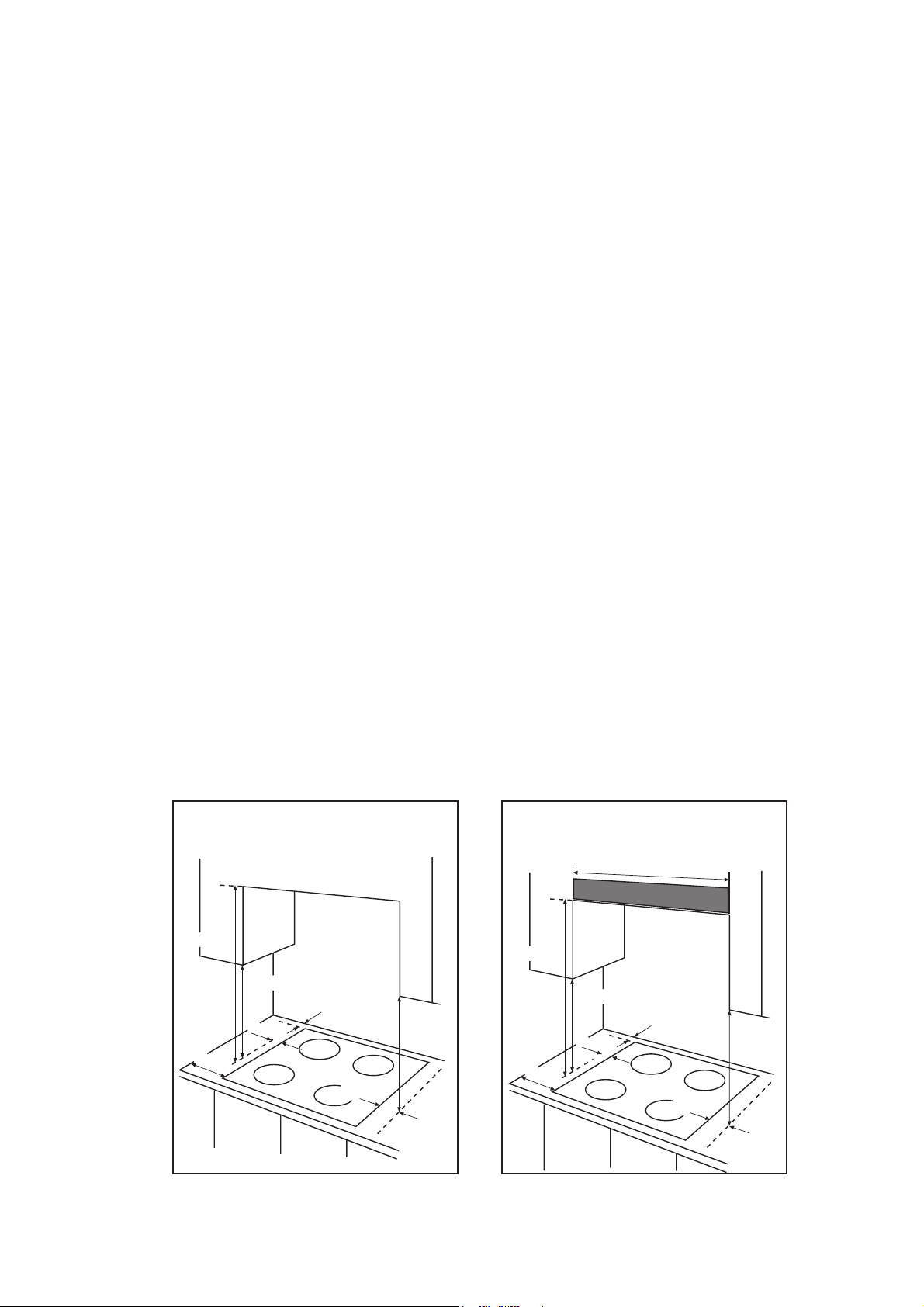

Installation 7

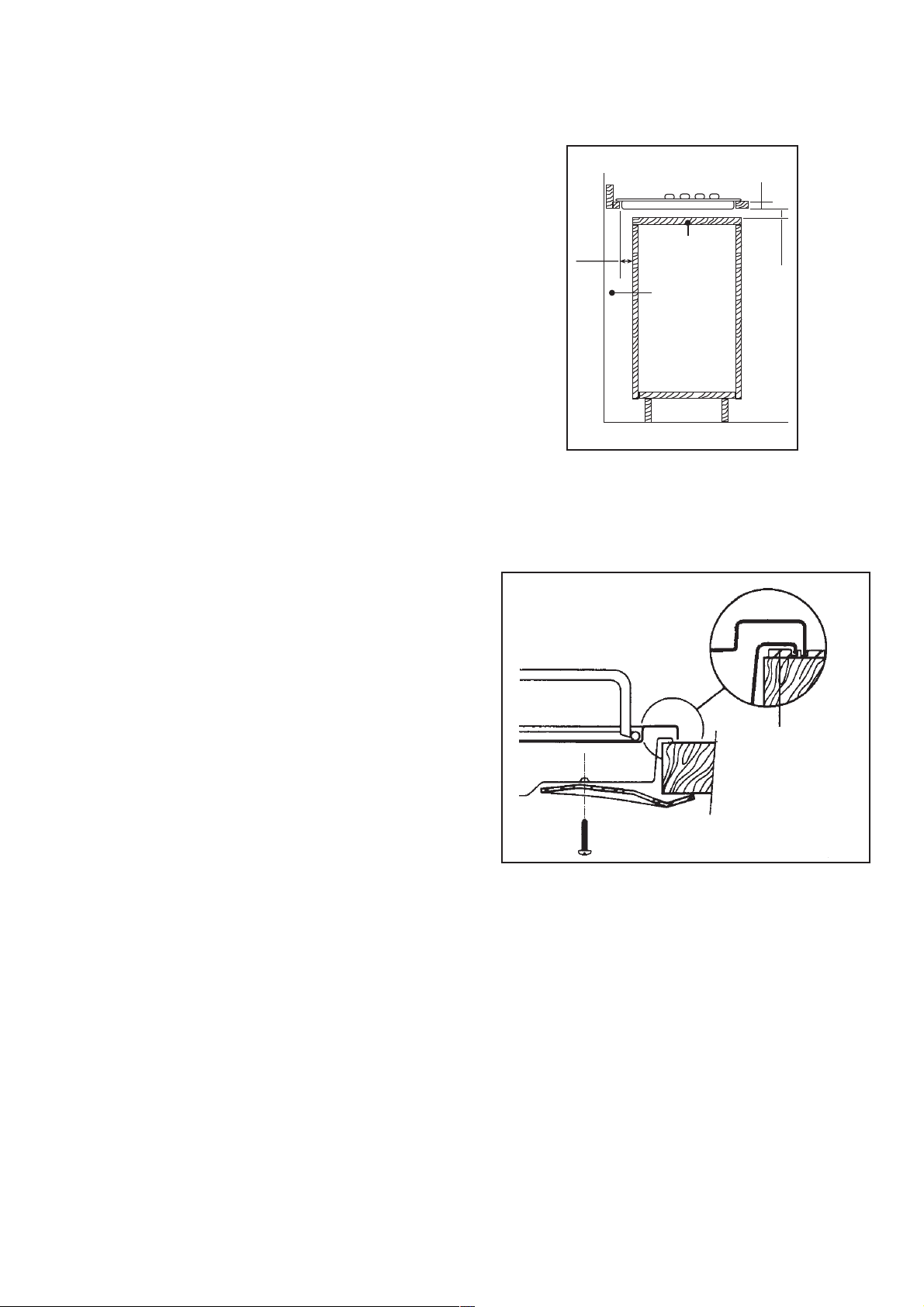

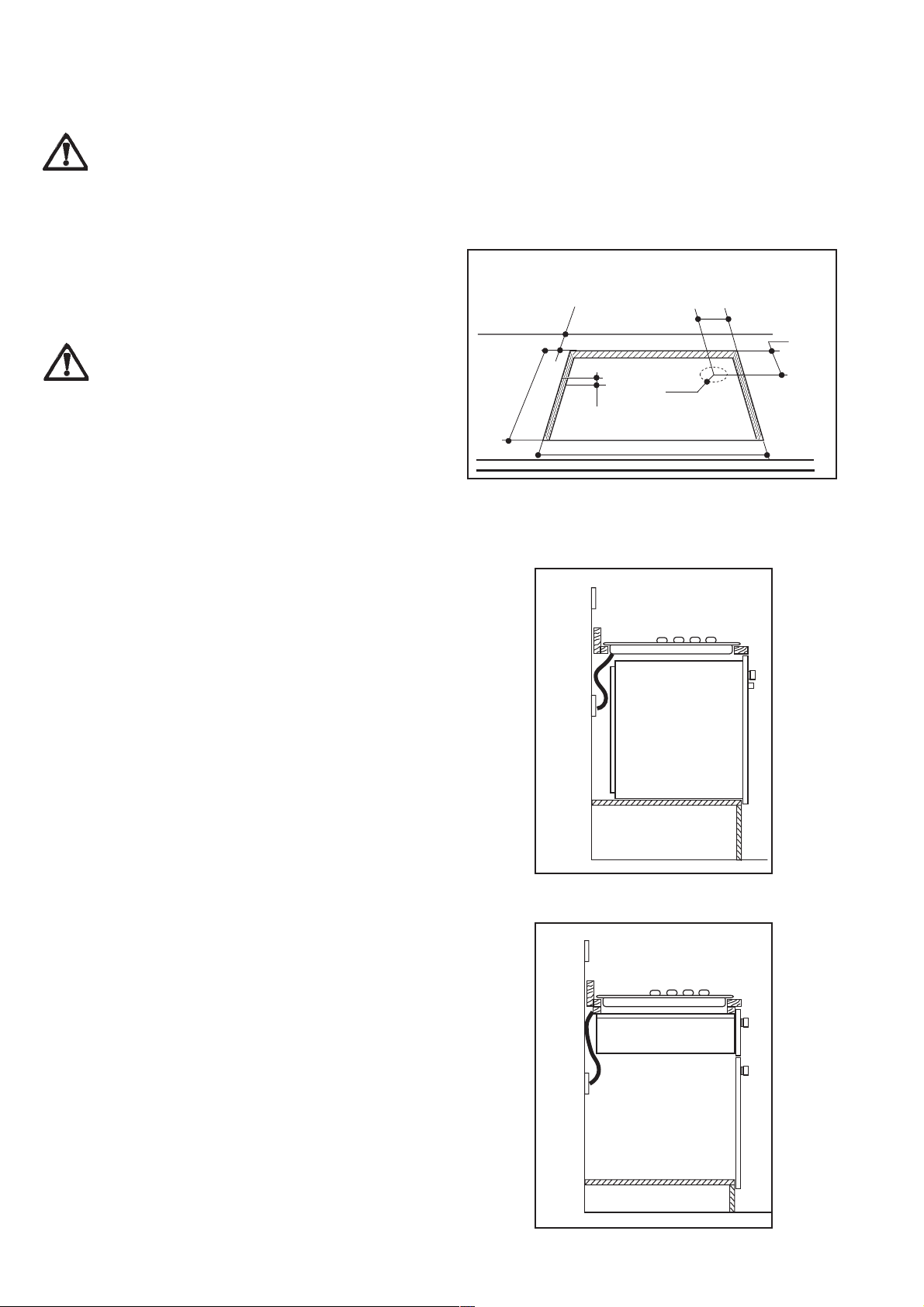

Building In 7

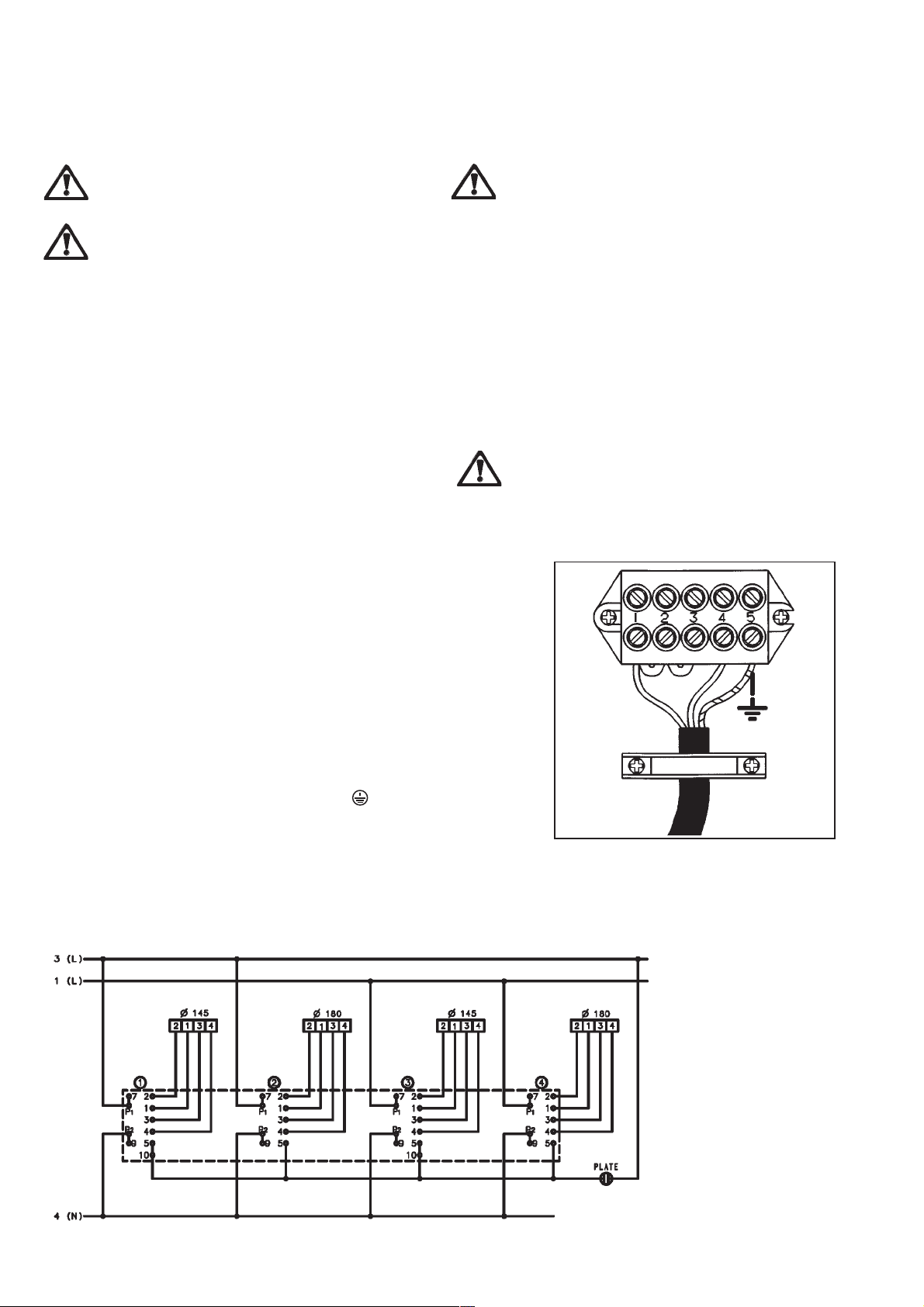

Electrical connections 9
Wiring diagram 9
Description of the Hob
3
1
2
4
5
6
7
1. Hob Top
2. Rapid Hotplate - 2090 W/180 mm dia.
3. Normal Hotplate - 1045 W/145 mm dia.
4. Rapid Hotplate - 1570 W/145 mm dia.
5. Normal Hotplate - 1570 W/180 mm dia.
6. Control knob for the hotplates
7. Electric Hotplates Control Light
3
![](/html/6f/6f57/6f573a88d70f6c8a2bb25761310d76b5993f7c764e5bb38082b7103fd28411c6/bg4.png)
Operation
Electric hotplates
To switch on a hotplate, turn the relevant control knob
anticlockwise to the required heat setting.
The control knob is numbered 1 - 6
0 - OFF
1 - Minimum
6 - Maximum.
The hob has four hotplates:
Normal Hotplates
We recommend the plates are switched to maximum
(6) for a short while to boost the plate, and then adjusted
to the required setting.
Rapid Hotplates
The rapid hotplates are indicated by a red dot, and will
heat up more quickly than a normal plate. As the red
dots are painted on the plate, they may deteriorate
during use and even disappear completely after a
period of time. This will not affect the performance of
the hob.
It is important to note that the plate may smoke
a little and produce a slightly unpleasant odour
when used for the first time. This is quite normal
and will disappear after a few minutes.
Electric Hotplates Control Light
Hints and Tips
Saucepans for use on solid plates should have several
characteristics:
z They should be fairly heavy duty
z They should fit the heat area exactly, or be slightly
larger for efficient use, NEVER smaller.
z They should have a flat base to ensure good contact
with the plate.
This is particularly important when using pans for high
temperature frying or pressure cooking.
As soon as liquid starts boiling, turn down the plate control
knob so that it will barely keep the liquid simmering.
You can switch off the plate a short while before you
finish cooking, and the final stage will be completed on
the accumulated heat. Similarly, stews etc. cooked in
well covered saucepans cook at lower temperature which
is more economical.
Ensure pans are large enough to avoid liquids
being spilt onto the plates.
Never leave the plates on without a pan on them
or with an empty pan on them.
Take care never to lean or reach over a hot electric
plate. Always point pan handles inward or over the
work surface next to the hob to avoid accidentally
knocking over a pan as you pass by.
Take care when frying food in hot oil or fat, as the
overheated splashes could easily ignite.
If the control knobs become difficult to turn, please
contact your local Service Centre.
The Hotplates Control Light will come on each time a
cooking zone is switched on.
Suggestions for the correct setting of the plates are given
in the following table.
OFF 0
Very Gentle 1 To keep food warm
To melt butter and chocolate
Gentle 2 To prepare cream-sauces,
stews and milk puddings
or to fry eggs
Slow 3 Dried vegetables, frozen
food, fruit, boiling water
or milk
Medium 4 Boiled potatoes, fresh
vegetables, pâtés, soups,
broths, pancakes or fish
High 5 Larger stews, meat roll, fish,
omelettes, steaks
Fast 6 Steaks, escalopes and frying.
4
