AEG DU3160-ML, DU4361-AD9, DU3150-ML User Manual
DU 3150 - DU 3160
DU 3360 - DU 4360
DU 4161 - DU 4361
DU 4561
Dunstabzugshaube
Afzuigkap
Hotte
Cooker Hood
Montage- und Gebrauchsanweisung
Installatie- en gebruiksaanwijzing
Notice dutilisation et dinstallation
Operating and Installation Instructions
Contents
Safety warnings .............................................................................. 62
For the user ...................................................................................... 62
For the installer ................................................................................. 63
Description of the Appliance ......................................................... 65
Extraction mode ................................................................................ 65
Recirculation mode ........................................................................... 65
Control Panel ............................................................................. 66-67
Control Panel - DU 4561 ............................................................ 68-69
Maintenance and Care ................................................................... 70
Cleaning the hood ............................................................................. 70

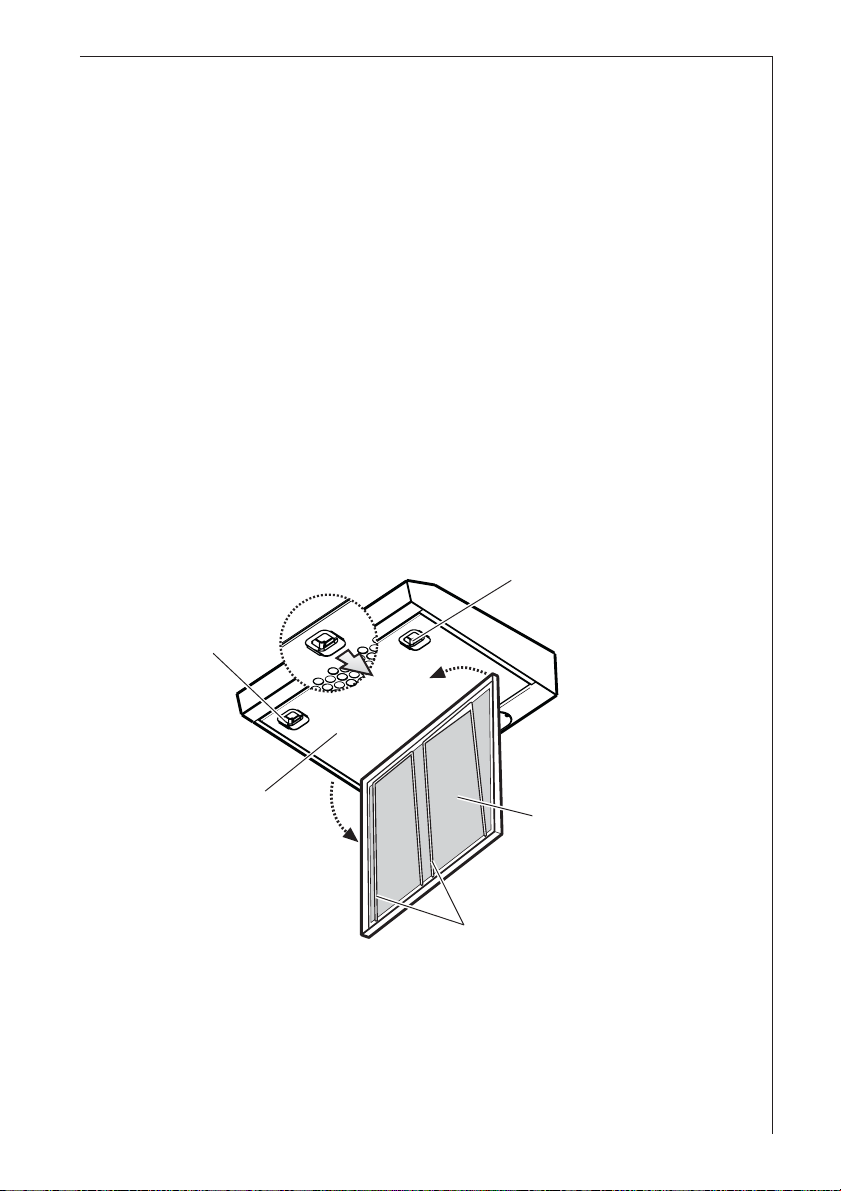

Paper grease filter ............................................................................. 71

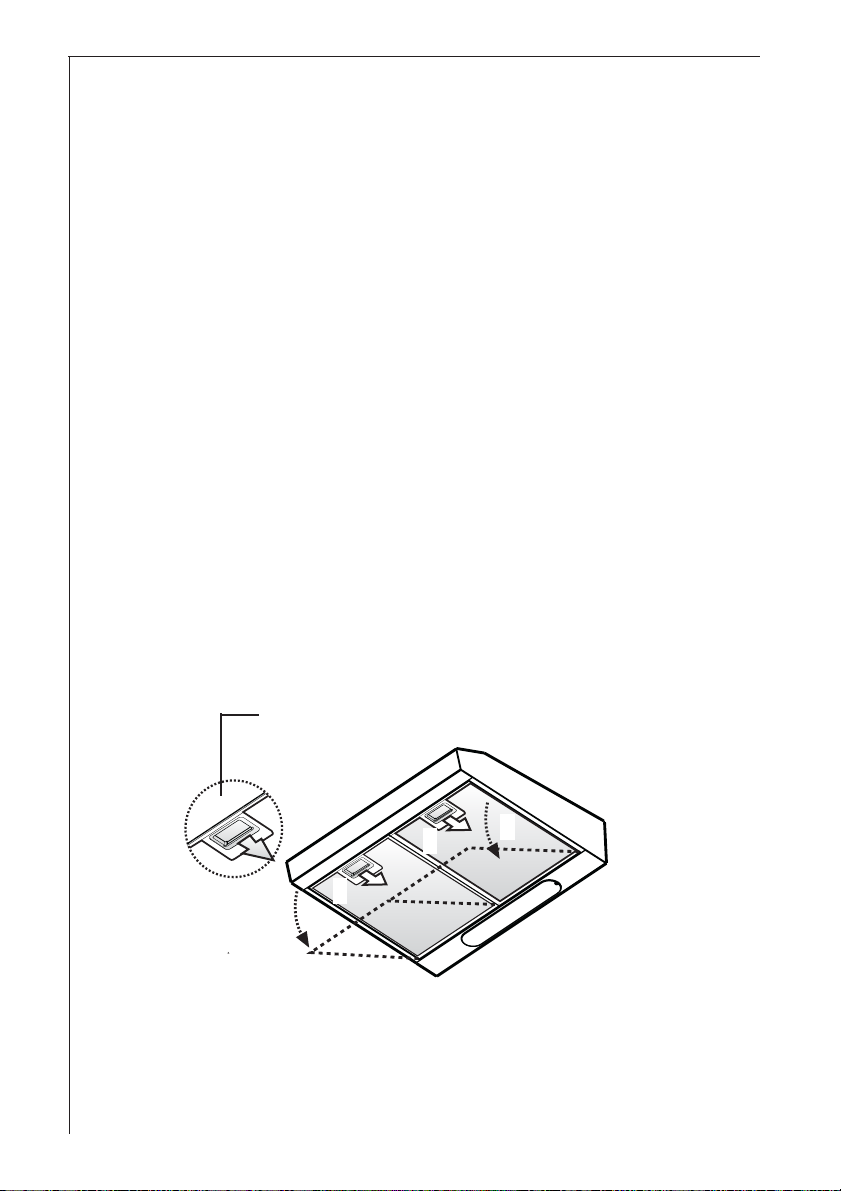

Metal grease filter ............................................................................. 72

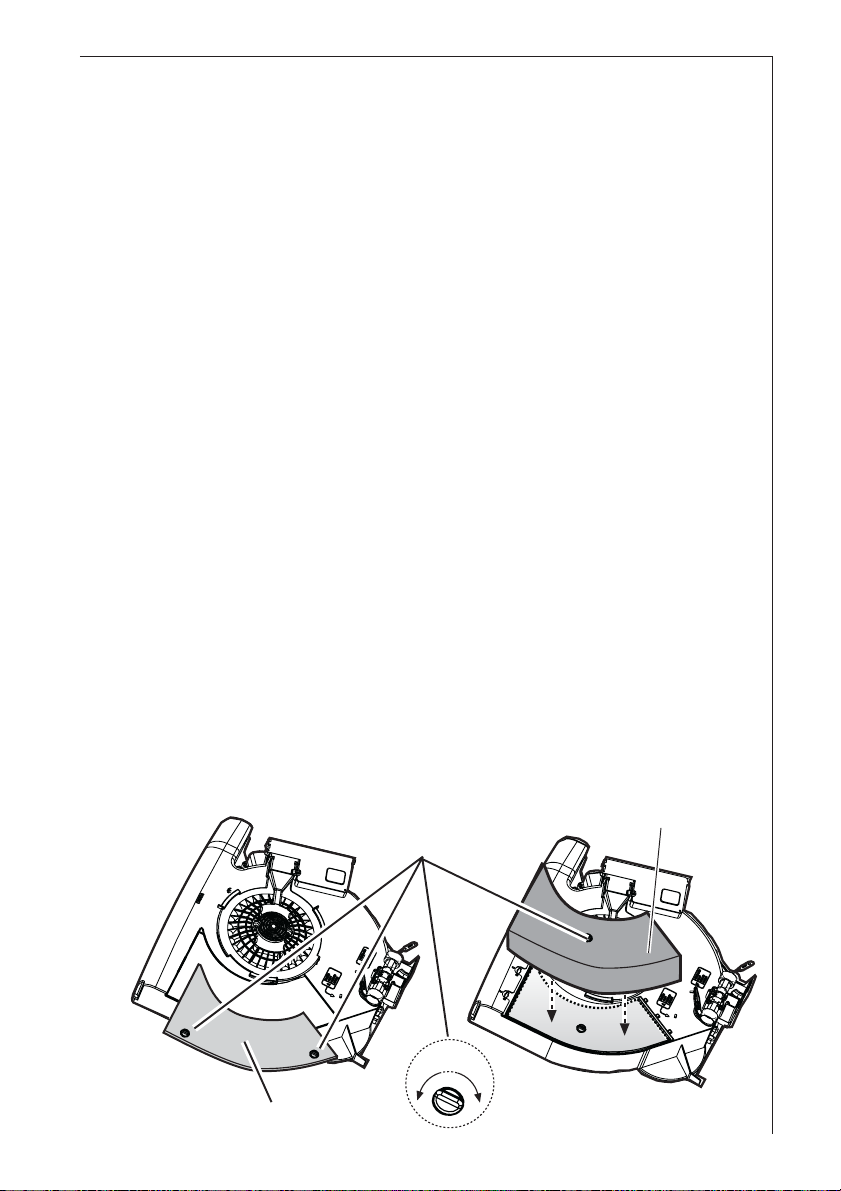

Charcoal filter .................................................................................... 73

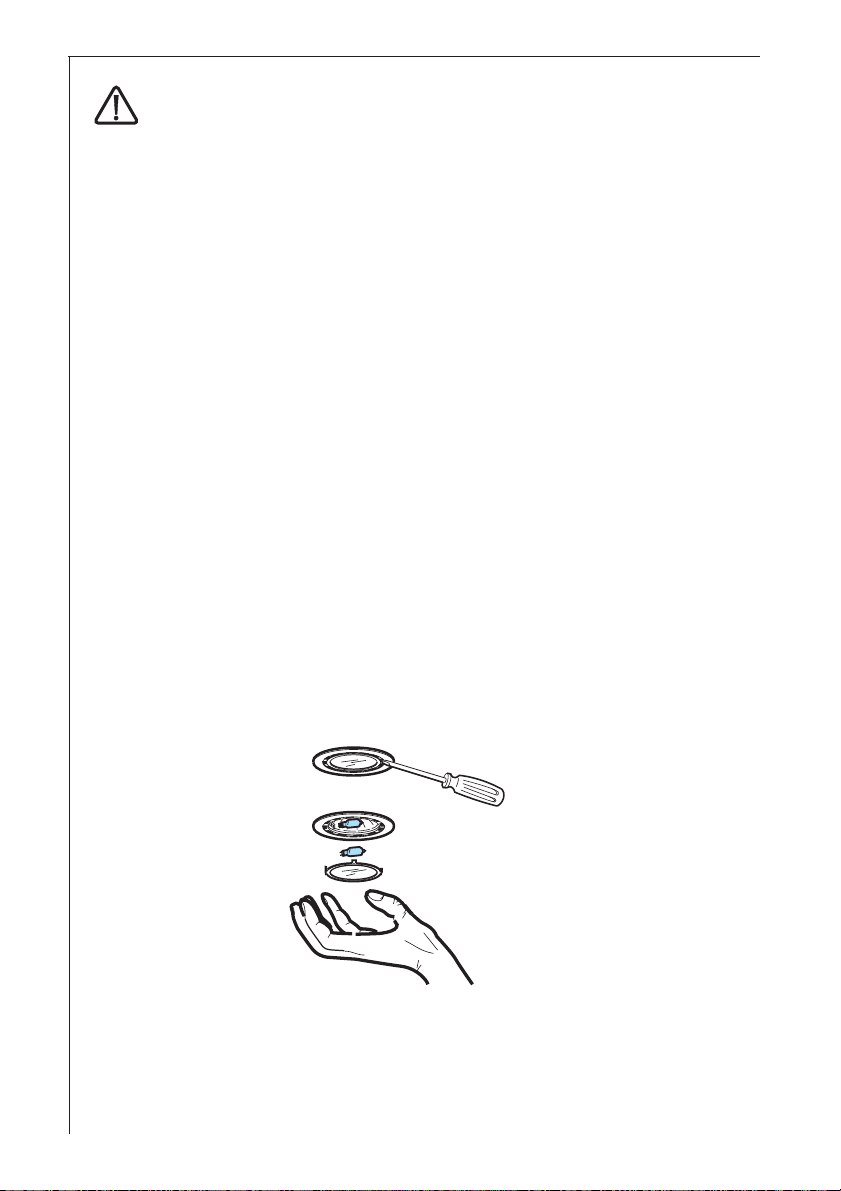

Changing the light bulb ...................................................................... 74
What to do if ................................................................................... 75
Special accessories ........................................................................ 75
Technical assistance service ......................................................... 76
Technical Specifications ................................................................ 77
Mounting accessories included ......................................................... 78
Electrical connection ..................................................................... 78

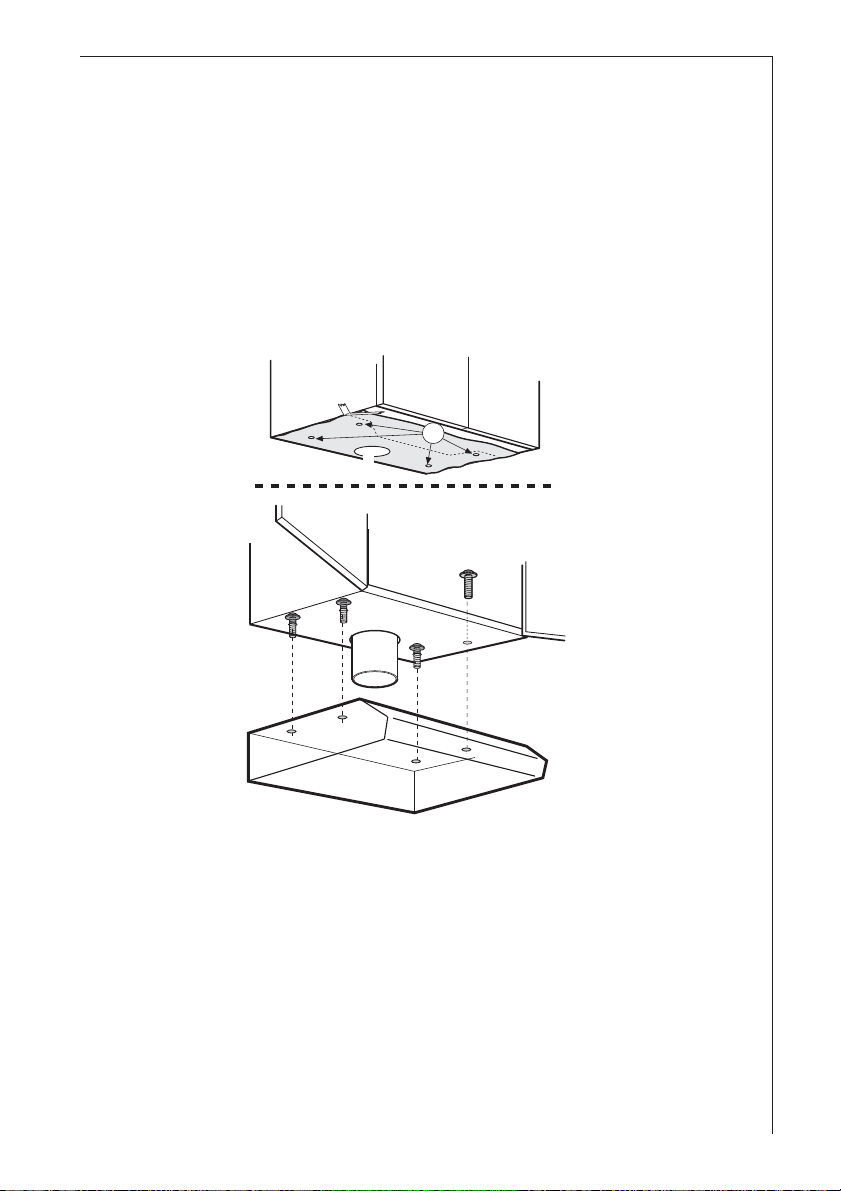

Wall unit mounting ............................................................................ 79

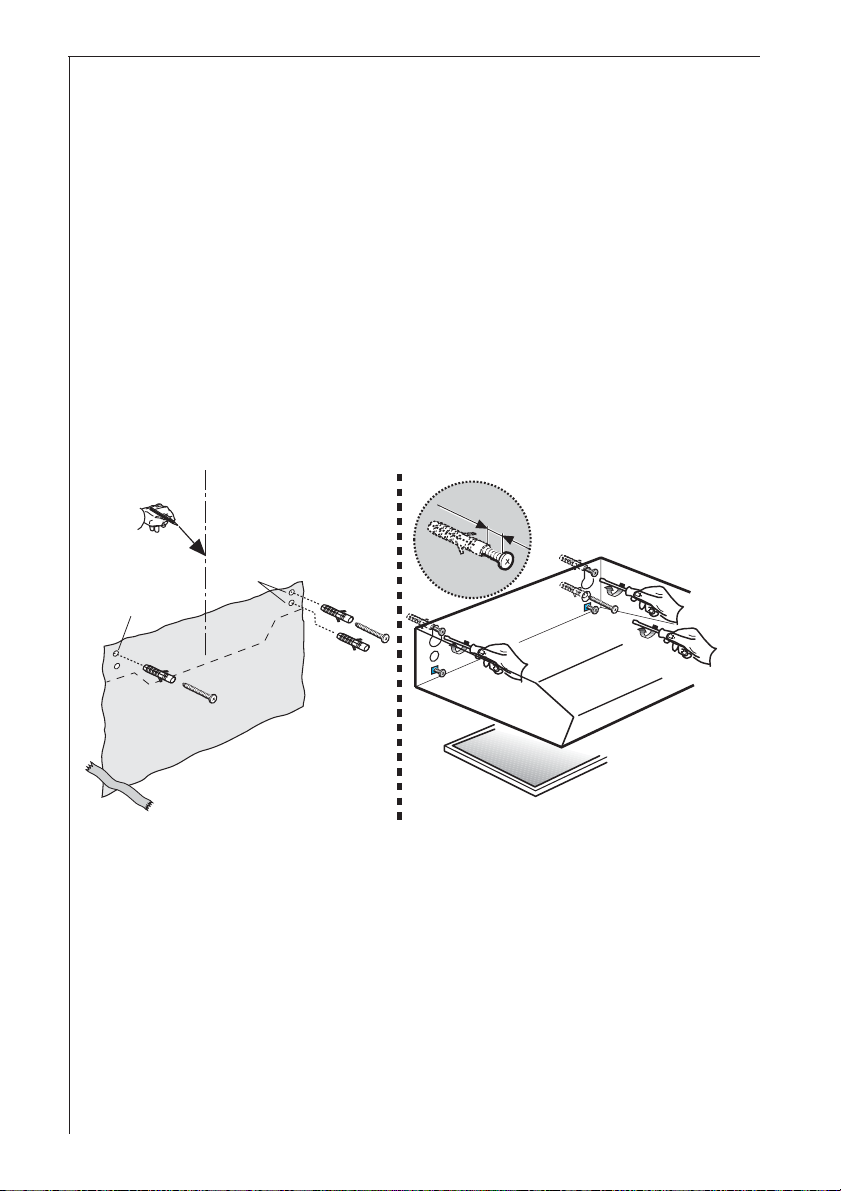

Wall mounting ................................................................................... 80
61
Safety warnings
For the user
The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.
Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.
Also, when frying, keep the deep frying pan on the cooker top/cooker
under careful control.
The hot oil in the frying pan might ignite due to overheating.
The risk of self-ignition increases when the oil being used is dirty.
It is extremely important to note that overheating can cause a fire.
Never carry out any flambé cooking under the hood.
Always disconnect the unit from the power supply before
carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch off
the automatic circuit breaker).
It is very important to clean the hood and replace the filter at
the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.
The appliance is not intended for use by young children or infirm
persons without supervision.
Older children must be supervised if using the appliance.
Young children should be supervised to ensure that they do not play
with the appliance.
WARNING - Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
This appliance is marked according to the European directive 2002/96/
EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of
this product.
The symbol on the product, or on the documents accompanying
the product, indicates that this appliance may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
62
For the installer
When used as an extractor unit, the hood must be fitted with a
125mm diameter hose.
DU 3150/3160/4561/4361/4161: Should there already be a pipe of
diameter 100 that ducts to the outside through the walls, it is
possible to use the 125-100 mm reduction flange provided.
In this case the hood will be slightly noisier.
When installing the hood, make sure you observe the follow-
ing minimum distance from the top edge of the cooking hob/
ring surfaces:
electric cookers 500 mm
gas cookers 700 mm
If the instructions for installation for the gas hob specify a greater
distance, this must be adhered to.
The national Standard on fuel-burning systems specifies a maximum
depression of 0.04 mbar in such rooms.
The air outlet must not be connected to chimney flues or combustion
gas ducts. The air outlet must under no circumstances be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
The air outlet installation must comply with the regulations laid down
by the relevant local authorities.
When the unit is used in extraction mode, a sufficiently large
ventilation hole must be provided, with dimensions that are approximately the same as the outlet hole.
National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected to
a chimney, such as coal or oil room-heaters and gas fires, in the
same room.
Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approximately
500-600 cm2 large to avoid the possibility of a depression being
created during operation of the hood.
If you have any doubts, contact the relevant controlling authority or
building inspectors office.
Since the rule for rooms with fuel burning appliances is outlet hole of
the same size as the ventilation hole, a hole of 500-600 cm2, which
is to say a larger hole, could reduce the performance of the extractor
hood.
If the hood is used in its recirculation mode, it will operate simply and
safely in the above conditions without the need for any of the
63
aforementioned measures.
When the hood is used in its extraction mode, the following rules
must be followed to obtain optimal operation:
- short and straight outlet hose
- keep bends in outlet hose to a minimum
- never install the hoses with an acute angle, they must always
follow a gentle curve.
- keep the hose as large as possible (preferably the same diameter
as the outlet hole).
- the length should be no more than:
3 metres with one 90° bend
2 metres with two 90° bends
Bends of more than 90° will reduce the efficiency of the hood and
reduce the airflow.
Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.
64
Description of the Appliance
1
2
Ø 125 mm
Ø 100 mm
C
The cooker hood is designed to extract unpleasant odours from
the kitchen, it will not extract steam.
The hood is supplied as an extractor unit and can also be used with a
recirculation mode by fitting a charcoal filter.
In some models the charcoal filter is supplied. The hood, therefore,
can be used immediately in the recirculation mode. We advise
removing the charcoal filter to use the hood in the extraction mode.
Extraction mode
In this mode fumes are extracted to the
outside via a hose connected to the
coupling ring C. Fig. 1.
In order to obtain the best performance the
hose should have a diameter equal to the
outlet hole.
Should there already be a pipe of diameter
100 that ducts to the outside through the
walls, it is possible to use the 125-100 mm
reduction flange provided.
In this case the hood will be slightly noisier.
Recirculation mode
The air is filtered through a charcoal filter and returned to the
kitchen.
Move the lever to position F - Fig. 2.
You will need an original charcoal filter for the recirculation mode.
(See Special Accessories).
Bild 1
charcoal filter
Lever
90°
Fig. 2
65
Control Panel - DU 3150/3160/4161
Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or until
all the odours have disappeared.
The control switches are located on the hoods front panel:
the light switch switches the hood lamp on and off
the motor switch switches the motor on and off, enabling you to
select one of the three different speeds.
DU 3150
DU 3160
66
DU 4161
Light switch
Light switch
Motor switch
Motor switch

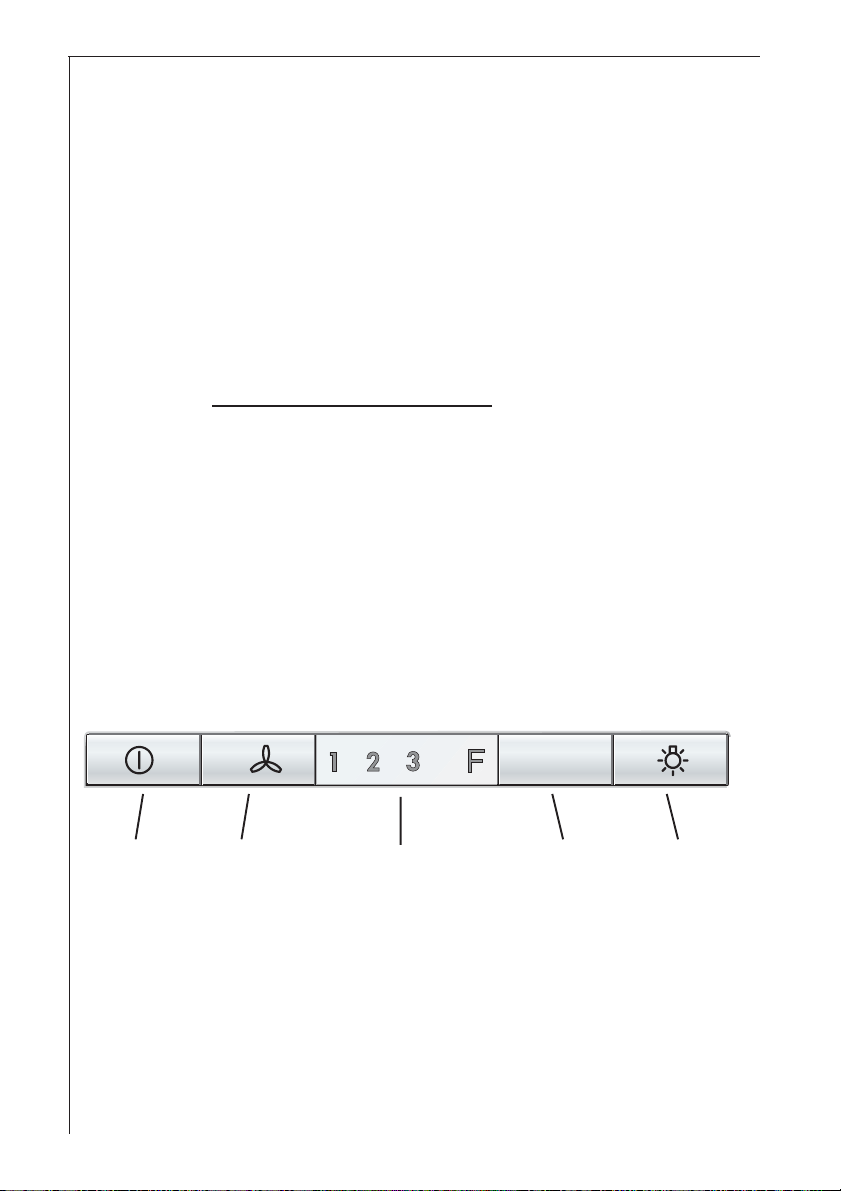

Control Panel - DU 3360/4360/4361
Best results are obtained by using a low speed for normal conditions
and a high speed when odours are more concentrated.
Turn the hood on a few minutes before you start cooking.
The hood should be left on after cooking for about 15 minutes or until
all the odours have disappeared.
The control switches are located on the hoods front panel:
the light switch switches the hood lamp on and off
the motor switch switches the motor off
Speed 1: Speed 1 push-button
Speed 2: Speed 2 push-button
Speed 3: Speed 3 push-button
Light switch
Motor switch
Speed 1
Speed 3
Speed 2
67
