Page 1

D41116

User manual Built in double oven -

Australia

Page 2

Contents

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently. To refer to this manual any time you need to, we recommend you to keep it in a safe plac e. An d p le as e pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Operating Instructions 2

Safety information 2 Product description 4

General overview 4 Control Panel Overview 5 Oven accessories 5

Before first use 6

Preparing to use your appliance 6 Cookware 7 Setting the Time 7 Initial Cleaning 7

Operation 8

The top oven 8 Oven Functions 8 Clock Functions 9 Countdown 10 Cook time 10 End time 10 Cook time and End time combined 10

Use, tables and tips 11

Roasting 12 Top Oven - Conventional Cooking 14 Top Oven - Grilling 15 Main Oven - Conventional Cooking 16 Main Oven - True Fan - Baking 17

Main Oven - True Fan - Roasting 17 Main Oven - Grilling 18 Main Oven - Rotitherm Roasting 18 Main Oven - Fan Baking 20

Care and cleaning 20

Shelf supports 22 Replacing the side oven lamp/Cleaning the glass cover (for selected models only)

Oven back lamp (for selected models only)

Oven door 24 Oven door glass 26 Cleaning the outside of the appliance

Cleaning inside the grill and oven compartments 30

What to do if… 30

Installation Instructions 31

Installation 31

Electrical Installation 34

Disposal 35 Warranty 35

Subject to change without notice

Operating Instructions

Safety information

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance.

Page 3

Safety information

Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings please contact customer care.

Installation

• The appliance must be installed according to the instructions supplied.

• The installation work must be undertaken by a qualified electrician or competent person.

• The appliance should be serviced by an authorised Service Engineer and only genuine approved spare parts should be used.

• The appliance must be installed in an adequately ventilated room.

• It is imperative that the appliance is left in the base to protect both the appliance and the floor.

• This appliance is heavy and care must be taken when moving it. Always wear safety gloves.

• Do not attempt to lift or move this appliance by the handles.

• All packaging, both inside and outside the appliance must be removed before the appliance is used.

• It is dangerous to alter the specifications or modify the appliance in any way.

Child safety

• Do not allow children to play with any part of the packaging.

• Do not allow children to sit or climb on the drop down doors.

• This appliance is not intended for use by children and other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.

• Children should be supervised to ensure that they do not play with the appliance.

CAUTION!

Accessible parts may become hot during use, to avoid burns young children should be kept away.

During use

WARNING!

Never leave the appliance unattended when the oven door is open.

• This appliance is not intended to be operated by means of an external timer or separate remote control system.

• This appliance has been designed for domestic use to cook edible foodstuffs only and must not be used for any other purposes.

• Take great care when heating fats and oils as they will ignite if they become too hot.

• Never place plastic or any other material that may melt in or on the oven.

• Always support the grill pan when it is in the withdrawn or partially withdrawn position.

• Always use oven gloves to remove and place food in the oven.

• During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven.

• Ensure that all vents are not obstructed to ensure ventilation of the oven cavity.

• Never line any part of the appliance with foil.

Page 4

Product description

• Always stand back from the appliance when opening the oven door to allow any build up of steam or heat to release.

• Stand clear when opening the drop down doors. Support the doors using the handles until fully open.

• Do not place sealed cans or aerosols inside the oven. They may explode if they are heated.

• Ensure that all control knobs are in the OFF position when not in use.

• Do not stand on the appliance or on the open oven doors.

• Do not hang towels, dishcloths or clothes from the appliance or its handles.

• Do not use this appliance if it is in contact with water. Never operate it with wet hands.

Cleaning and maintenance

WARNING!

For hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fat or other foodstuff could result in a fire especially in the grill pan.

• Do not leave cookware containing foodstuffs, e.g. fat or oil in the appliance in case it is inadvertently switched on.

• Always allow the appliance to cool before switching off at the wall prior to carrying out any cleaning/maintenance work.

• Only clean this appliance in accordance with the instructions given in this book.

• Never use steam or high pressure steam cleaners to clean the appliance.

Product description

General overview

1 Control panel 2 Top oven handle 3 Top oven

Page 5

4 Main oven handle 5 Main oven

Control Panel Overview

1 2 8 6 7

1 Top oven function knoob 2 Top oven temperature knob 3 Decrease button 4 Mode button 5 Increase button 6 Main oven function knob 7 Main oven temperature knob 8 Display

3 4 5

Product description

Oven accessories

3 oven shelfs

Oven grill shelf

Page 6

Before first use

Anti stick meat/Drip pan

Before first use

Rating plate

This is situated on the front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable). The appliance must be protected by a suitably rated fuse or circuit breaker. The rating of the appliance is given on the rating plate.

WARNING!

Do not remove the rating plate from the appliance as this may invalidate the guarantee.

Preparing to use your appliance

Wipe over the base of the oven(s) with a soft cloth using hot soapy water. Wash the furniture before use. We suggest that you run the oven(s) and grill for 10 – 15 minutes at maximum temperature, to burn off any residue from their surfaces. Accessible parts may become hotter than in normal use. Children should be kept away. During this period an odor may be emitted, it is therefore advisable to open a window for ventilation.

There is a hot surface label on the oven door, please do not remove the label from the door.

The cooling fan

The cooling fan comes on immediately the top oven or grill is switched on. It may run on after the ovens are switched off until the appliance has cooled. During the cooling down period the cooling fan may switch on and off.

WARNING!

Always allow the cooling fan to cool the appliance down before switching off the electrical supply to carry out cleaning or maintenance.

Control panel indicator neon(s)

The indicator neon will operate when the oven(s) is switched on. The indicator neon will glow. It may turn on and off during use to show that the setting is being maintained. If the neon does not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and reset following the instructions for the required setting.

Page 7

Before first use

Condensation and steam

When food is heated it produces steam similar to a boiling kettle. The vents allow some of this steam to escape. However, always stand back from the appliance when opening the door(s) to allow any build up of steam or heat to release. If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance. To prevent discoloration, regularly wipe away condensation and foodstuff from surfaces. For your safety wall coverings at the rear of the appliance should be securely fixed to the wall.

Cookware

Baking trays, dishes etc., should not be placed directly against the grid covering the fan at the back of the oven. Do not use baking trays larger than 30cm x 35cm (12” x 14”) as they will restrict the circulation of heat and may affect performance.

Setting the Time

The oven only operates when the time has been set.

1. When the appliance is connected to the electrical supply or when there has been a

power cut, Time

2. Using the

3. After approx. 5 seconds, the clock stops flashing and the clock displays the time of day

set. The appliance is now ready to use.

flashes automatically.

or button, set the current time.

Initial Cleaning

Before using the oven for the first time you should clean it thoroughly.

WARNING!

Do not use any caustic, abrasive cleaners! The surface could be damaged.

To clean metal fronts use commercially available cleaning agents.

1. Turn the oven function switch to oven lighting .

2. Remove all accessories and the shelf support rails and wash them with warm water

and washing up liquid.

Page 8

Operation

3. Then wash out the oven with warm water and washing-up liquid, and dry.

4. Wipe the front of the appliance with a damp cloth.

Operation

The top oven

The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruitcakes, sweet and savoury flans or quiche. The top oven is ideal for use as a warming compartment. It can be used to warm dishes and keep food hot. Use the lowest setting on the top oven temperature control.

WARNING!

Do not place cookware and cooking pots with rough bases e.g. cast iron on the oven door as damage to the glass may occur.

Always grill with the door closed.

Switching the Oven On and Off

1. Turn the oven functions dial to the desired function.

2. Turn the temperature selector to the desired temperature.

3. To turn the oven off, turn the oven functions dial and the temperature selector to the

Off position.

The power indicator is lit as long as the oven is in operation.

The temperature pilot light is lit as long as the oven is heating up.

The fan switches on automatically in order to keep the appliance’s surfaces cool. When the oven is switched off, the fan continues to run to cool the appliance down, then switches itself off automatically.

Oven Functions

Top Oven

Oven function Application

Light Using this function you can light up the oven interior, e.g. for

Conventional Cooking This form of cooking gives you the opportunity to cook with-

Top Heat Browning This function uses the top element to give single level cook-

cleaning.

out the fan in operation. It is particularly suitable for dishes, which require extra base browning such as pies, quiches and flans. Gratin's, lasagne and hot pots which require extra top browning also cook well in the conventional oven.

ing. This is particularly suitable for dishes which require extra top browning

Page 9

Operation

Oven function Application

Base Hit Finishing For baking cakes with crispy or crusty bases.

Economy Grill For grilling flat foodstuffs placed in the middle of the grill

Full Grill For grilling flat foodstuffs in large quantities and for toasting.

and for toasting.

Bottom Oven

Oven function Application

Light Using this function you can light up the oven interior, e.g. for

True Fan The fan function is particularly suitable for cooking larger

Fan Baking For baking on one oven level dishes that require more inten-

Conventional Cooking This form of cooking gives you the opportunity to cook with-

Base Heat Finishing For baking cakes with crispy or crusty bases.

Fan Controlled Defrosting For defrosting e. g. flans and gateaux, butter, bread, fruit or

Economy Grill For grilling flat foodstuffs placed in the middle of the grill

Full Grill For grilling flat foodstuffs in large quantities and for toasting.

cleaning.

quantities of food. Set the oven temperatures 20-40 °C lower than when using Conventional.

sive browning and a crispy base. Set the oven temperatures 20-40 °C lower than when using Conventional

other frozen foods.

and for toasting

Rotitherm Roasting For roasting larger joints of meat or poultry on one level. The

function is also suitable for gratinating and browning.

Clock Functions

•Countdown - See appropriate chapter on setup. A signal sounds after the time has elapsed. This function does not affect the functioning of the oven.

• Cook time

•End time

•Time

How to use the clock functions

• After a function has been selected, the corresponding function indicator flashes for about 5 seconds. During this period, the desired times can be set using the increase decrease

• When the desired time has been set, the function indicator continues to flash for approx. 5 seconds. After that the function indicator is then lit. The set time begins to run.

- is used to set the desired period of cooking time.

- when set the appliance is turned off at desired time.

- shows the current time.

button.

Page 10

Operation

• Press any of the buttons to stop the audible signal.

• The desired oven function and temperature can be selected before or after the clock functions Cook time

• When the cooking process is completed, turn the oven function dial and the temperature selector back to the OFF position.

and End time are set.

Countdown

1. Press the Mode button repeatedly until the function indicator Countdown flashes.

2. Using the increase

30 minutes).

3. After approx. 5 seconds the display shows the time remaining. The function indicator

Countdown

4. When the time has elapsed, the function indicator flashes and an audible signal sounds

for 2 minutes. The signal can be stopped by pressing any button.

or decrease button set the desired Countdown (max. 2 hours

lights up.

Cook time

1. Press the Mode button repeatedly until the function indicator Cook time flashes.

2. Using the increase

After approx. 5 seconds the display returns to showing the current time. The function indicator Cook time

When the time has elapsed, the function indicator flashes, an audible signal sounds for 2 minutes and the oven switches itself off.

3. The signal and the programme can be stopped by pressing any button.

or decrease button set the desired cooking time.

lights up.

End time

1. Press the Mode button repeatedly until the function indicator End time flashes.

2. Using the increase

After approx. 5 seconds the display returns to showing the current time. The function indicator End time

When the time has elapsed, the function indicator flashes, an audible signal sounds for 2 minutes and the oven switches itself off.

3. The signal and the programme can be stopped by pressing any button.

or decrease button set the desired switch-off time.

lights up.

Cook time and End time combined

Cook time and End time can be used simultaneously, if the oven is to be switched on and off automatically at a later time.

1. Using the Cook time

2. Using the End time

The function indicators Cook time is shown in the display.

The oven switches on automatically at the time calculated. And switches itself off again when the cooking time entered has elapsed.

function, set the time required for cooking the dish.

function, set the time at which the dish should be ready.

and End time light up and the current time

Page 11

Use, tables and tips

Baking

Oven levels

• Baking with Conventional Cooking is only possible on one level.

• When baking with Fan Cooking one to two baking trays can be put into the bottom oven at the same time:

1 tray, e.g. oven level 3

1 cake in cake tin, e.g. oven level 1

2 tray, e.g. oven levels 1 and 3

Baking tins

• Baking tins made from dark-coloured metal with Teflon coating are suitable for baking using Conventional Cooking.

• For baking using the Fan Cooking function, baking tins made of shiny light-coloured metal are suitable.

General instructions

• Insert the tray with the bevel at the front.

• When baking using Conventional Cooking and Fan Cooking , you can also place two baking trays next to one another on one level. This does not significantly affect the baking time.

When frozen items are placed on baking trays, they can buckle during cooking. This happens due to the large difference in temperature between the frozen item and the oven. After cooling, the buckling in the trays disappears.

Page 12

Use, tables and tips

How to use the Baking Tables

• The tables give the required temperature settings, cooking times and oven levels for a selection of typical dishes.

• Temperatures and baking times are for guidance only, as these will depend on the consistency of pastry, dough or mixture, the amount and the type of baking tin.

• We recommend setting the oven to a lower temperature for the first time and only setting a higher temperature when required, e.g. if you require more browning or if the baking is taking too long.

• If you cannot find the settings for a certain recipe, look for similar items.

• The baking time can be 10-15 minutes longer when baking cakes on trays or in tins on multiple levels.

• Recipes with moist ingredients such as pizzas or fruit flans are to be baked on one level.

• Cakes and pastries at different heights may brown at an uneven rate at first. You should not change the temperature setting if this occurs. Different rates of browning even out as baking progresses.

• Baking and roasting times could differ from those of your previous oven. For this reason you should adjust the settings you usually use (temperature, cooking times, etc.) and oven levels to the recommendations provided in the following tables.

Roasting

Ovenware for roasting

• Any heat-resistant ovenware is suitable to use for roasting. (Please follow the manufacturer's instructions.)

•

You can place large roasts directly in the roasting tray or on the shelf with the

roasting tray underneath.

•

We recommend roasting leaner cuts in a roasting pan with a lid. The meat will be more succulent.

• All types of meat which are supposed to be browned or form a crust or crackling can be roasted in a roasting pan without a lid.

The information given in the following tables is for guidance only.

•

We recommend meat and fish weighing 1 kg or more for roasting in the oven.

• To prevent escaping meat juices or fat from burning on to the pan, we recommend placing some liquid in the roasting cookware.

• If required, turn the roast after 1/2 - 2/3 of the cooking time.

• Use the cooking juices to baste large roasts and poultry several times during the cooking time. This will give better roasting results.

Hints and tips when using the grill

• Most foods should be placed on the grid in the grill pan to allow maximum circulation of air and to lift the food out of the fats and juices.

• Adjust the grid and grill pan runner position to allow for different thicknesses of food.

• Position the food close to the element for faster cooking and further away for gentler cooking.

• Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

Page 13

Use, tables and tips

• Accompaniments such as tomatoes and mushrooms may be placed underneath the grid when grilling meats.

• When toasting bread, use the shelf in the top position with the grid in the ‘high’ position.

• Preheat the grill on a full setting for a few minutes before sealing steaks or toasting. Adjust the heat setting and the shelf as necessary during cooking.

• The food should be turned over during cooking as required.

• When using the centre section grill, ensure food is placed centrally on the grilling grid directly beneath the grill element.

Hints and tips when using the top oven

• Arrange the shelves in the required positions before switching the oven ON. Shelf positions are counted from the bottom upwards.

• There should always be at least 2.5cm (1”) between the top of the food and the element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings etc. When cooking cakes, pastry, scones bread etc., place the tins or baking trays centrally on the shelf.

• Ensure that food is placed centrally on the shelf and there is sufficient room around the baking tray/dish to allow for maximum circulation.

• Stand dishes on a suitably sized baking tray on the shelf to prevent spillage onto the oven base and to help reduce cleaning.

• The material and finish of the baking tray and dishes used affect base browning. Enamelware, dark, heavy or non-stick utensils increase base browning. Shiny aluminium or polished steel trays reflect the heat away and give less base browning.

• Because of the smaller cooking space and lower temperatures, shorter cooking times are sometimes required. Be guided by the recommendations given in the cooking chart.

• For economy leave the door open for the shortest possible time, particularly when placing food into a pre-heated oven.

Hints and tips when using fan cooking

• Arrange the shelves in the required positions before switching the oven on. Shelf positions are counted from the bottom upwards.

• When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than placing several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results.

• When batch baking one type of food, e.g. Victoria sandwich cakes, those of similar size will be cooked in the same time.

• It is recommended that when baking larger quantities the shelf positions should be evenly spaced to suit the load being cooked. A slight increase in cooking time may be necessary.

• Do not place baking trays directly on the oven base as it interferes with the oven air circulation and can lead to base burning; use the lower shelf position.

Hints and tips when defrosting

• Place the frozen food in a single layer where possible and turn it over half way through the defrosting process.

• The actual speed of defrosting is influenced by room temperature. On warm days defrosting will be faster than on cooler days.

Page 14

Use, tables and tips

• It is preferable to thaw fish, meat and poultry slowly in the fridge. However, this process can be accelerated by using the defrost function. Small or thin fish fillets, frozen peeled prawns, cubed or minced meat, liver, thin chops, steaks etc., can be thawed in 1 – 2 hours.

• A 1kg/2¼lb oven ready chicken will be thawed in approximately 5 hours. Remove the giblets as soon as possible during the thawing process.

• Joints of meat up to 2kg/4½lb in weight can be thawed using the defrost function.

• All joints of meat and poultry must be thawed thoroughly before cooking.

• Always cook thoroughly immediately after thawing.

• Do not leave food at room temperature once it is defrosted. Cook raw food immediately or store cooked food in the fridge, once it has cooled.

Top Oven - Conventional Cooking

Shelf Positions are not critical but ensure that oven shelves are evenly spaced when more than one is used (e.g. shelf positions 1 and 3)

Food

Biscuits 170 - 190 10 - 20 1

Bread 200 - 220 30 - 35 1

Bread rolls/buns 200 - 220 10 - 15 1

Cakes:

- Small & Queen 170 - 180 18 - 25 1

- Sponges 160 - 175 20 - 30 1

- Victoria Sandwich 160 - 170 18 - 25 1

- Madeira 140 - 150 75 - 90 1

- Rich Fruit 140 - 150 120 - 150 1

- Gingerbread 140 - 150 75 - 90 1

- Meringues 90 - 100 150 - 180 1

- Flapjack 160 - 170 25 - 30 1

- Shortbread 130 - 150 45 - 65 1

Casseroles:

- Beef/Lamb 150 - 170 150 - 180 1

- Chicken 160 - 180 75 - 90 1

Convenience Foods Follow manufacturer´s instructions.

Fish 170 - 190 20 - 30 1

Fish Pie (Potato Topped)

Fruit Pies, Crumbles 190 - 200 30 - 50 1

Milk Puddings 150 - 170 90 - 120 1

Temperature

[°C]

190 - 200 20 - 30 1

Approx Cook Time

(mins)

Shelf Position

Page 15

Use, tables and tips

Food

Pasta Lasagne etc. 170 - 180 40 - 50 1

Pastry:

- Choux 180 - 190 30 - 40 1

- Eclairs, Profiteroles 180 - 190 30 - 40 1

- Flaky/Puff Pies 210 - 220 30 - 40 1

Shortcrust:

- Mince Pies 190 - 200 15 - 20 1

- Meat Pies 190 - 210 25 - 35 1

- Quiche, Tarts, Flans 180 - 200 25 - 50 1

Scones 220 - 230 8 - 12 1

Shepard´s Pie 190 - 200 30 - 40 1

Soufflés 180 - 190 20 - 30 1

Vegetables:

- Baked Jacket Potatoes

- Roast Potatoes 180 - 190 60- 90 1

Yorkshire Pudding:

- Large 200 - 210 25 - 40 1

- Individual 210 - 220 15 - 25 1

Roasting Meat, Poultry See roasting chart.

Temperature

[°C]

180 - 190 60 - 90 1

Approx Cook Time

(mins)

Shelf Position

Top Oven - Grilling

Adjust shelf position and grill pan grid to suit different thicknesses of food

Food

Bacon Rashers 5- 6

Beefburgers 10 - 20

Chicken Joints 20 - 40

Chops

- Lamb 15 - 25

- Pork 20 - 25

Fish - Whole Trout/ Makarel

Fillets - Plaice/Cod 4 - 6

Grill Time

(mins in total)

10 -12

Page 16

Use, tables and tips

Food

Kebabs 12 - 18

Kidneys - Lamb/Pig 6 - 10

Sausages 20 - 30

Steaks

- Rare 4 - 6

- Medium 6 - 8

- Well Done 12 - 15

Toasted Sandwiches 3 - 4

Main Oven - Conventional Cooking

Food Shelf Position

Biscuits 3 180 - 190 10 - 20

Bread 3 200- 220 30 - 35

Cakes:

- Small & Queen 3 170 - 180 18 - 25

- Sponges 3 170 - 180 20 - 25

- Madeira 3 150 - 160 60 - 75

- Rich Fruit 2 140 - 150 120 - 150

- Christmas 2 140 - 150 180 - 270

Fish 3 170 - 180 20 - 30

Fruit Pies, Crumbles 3 180 - 200 30 - 50

Milk Puddings 3 150 - 170 60 - 90

Pastry:

- Choux 3 180 - 190 30 - 40

- Shortcrust 3 190 - 200 25 - 35

- Flaky 3 190 - 210 30 - 40

- Puff Follow manufacturer´s instructions

Plate Tarts 3 190 - 200 25 - 45

Quiches/Flans 3 200 - 210 25 - 45

Scones 3 220 - 230 8 - 12

Roasting: Meat and Poultry

3 170 - 190 see Roasting Chart

Temperature

[°C]

Grill Time

(mins in total)

Approx Cook Time

(mins)

Page 17

Use, tables and tips

Main Oven - True Fan - Baking

Shelf Positions are not critical but ensure that oven shelves are evenly spaced when more than one is used (e.g. shelf positions 1 and 3)

Food

Biscuits 180 - 190 10 - 20

Bread 190 - 210 30 - 35

Cakes:

- Small & Queen 160 - 170 18 - 25

- Sponges 160 - 170 20 - 25

- Madeira 140 - 160 60 - 75

- Rich Fruit 130 - 140 120 - 150

- Christmas 130 - 140 180 - 270

Fish 160 - 180 20 - 30

Fruit Pies, Crumbles 170 - 180 30 - 50

Milk Puddings 140 - 160 60 - 90

Pastry:

- Choux 180 - 190 30 - 40

- Shortcrust 180 - 190 25 - 35

- Flaky 180 - 190 30 - 40

- Puff Follow manufacturer´s instructions; Reduce the temperature for

Plate Tarts 180 - 190 25 - 45

Quiches/Flans 170 - 180 25 - 45

Scones 210 - 230 8 - 12

Roasting: Meat and Poultry 160 - 180 see Roasting Chart

Temperature

[°C]

Fan oven by 20°C

Approx Cook Time

(mins)

Main Oven - True Fan - Roasting

Meat Temperature [°C] Cooking Time

Beef/ Beef boned

Mutton/ Lamb

Pork/ Veal/ Ham

Chicken

160 - 180

20-35 minutes per ½ kg (1lb)

and 20-35 minutes over

20-35 minutes per ½ kg (1lb)

and 20-35 minutes over

30-40 minutes per ½ kg (1lb)

and 30-40 minutes over

15-20 minutes per ½ kg (1lb)

and 20 minutes over

Page 18

Use, tables and tips

Meat Temperature [°C] Cooking Time

Turkey/ Goose

Duck

Pheasant

Rabbit

160 - 180

Main Oven - Grilling

Adjust shelf position and grill pan grid to suit different thicknesses of food

15-20 minutes per ½ kg (1lb)

and 20 minutes over

25-35 minutes per ½ kg (1lb)

and 25-30 minutes over

35-40 minutes per ½ kg (1lb)

and 35-40 minutes over

20 minutes per ½ kg (1lb) and

20 minutes over

Food

Bacon Rashers 5- 6

Beefburgers 10 - 20

Chicken Joints 20 - 40

Chops

- Lamb 15 - 25

- Pork 20 - 25

Fish - Whole Trout/ Makarel

Fillets - Plaice/Cod 4 - 6

Kebabs 12 - 18

Kidneys - Lamb/Pig 6 - 10

Sausages 20 - 30

Steaks

- Rare 4 - 6

- Medium 6 - 8

- Well Done 12 - 15

Toasted Sandwiches 3 - 4

Main Oven - Rotitherm Roasting

Beef

Type of meat Quantity Heating Function Level Temperature

Pot roast 1 - 1.5 kg Conventional

Grill Time

(mins in total)

10 -12

Time (h:min)

(°C)

3 200 - 250 2:00 - 2:30

Cooking

Page 19

Use, tables and tips

Type of meat Quantity Heating Function Level Temperature

Topside beef or fillet per cm of

- rare

- medium per cm

- well done per cm

1) Pre-heat oven

per cm of thickness

of thickness

Rotitherm Roasting

3 190 - 200 0:05 - 0:06

3 180 - 190 0:06 - 0:08

3 170 - 180 0:08 - 0:10

(°C)

Time (h:min)

thickness

Pork

Type of meat Quantity Heating Function Level Temperature

Shoulder, neck, ham 1 - 1.5 kg Rotitherm

Pork chop 1 - 1.5 kg Rotitherm

Meatloaf 750 g - 1kgRotitherm

Knuckle of pork (precooked)

750 g - 1kgRotitherm

Roasting

3 160 - 180 1:30 - 2:00

3 160 - 180 1:00 - 1:30

3 160 - 170 0:45 - 1:00

3 150 - 170 1:30 - 2:00

(°C)

Time (h:min)

Veal

Type of meat Quantity Heating Function Level Temperature

Roast veal 1 kg Rotitherm

Roasting

Knuckle of veal 1.5 - 2 kg Rotitherm

Roasting

3 160 - 180 1:30 - 2:00

3 160 - 180 2:00 - 2:30

(°C)

Time (h:min)

Lamb

Type of meat Quantity Heating Function Level Temperature

Roast lamb, leg of lamb 1 - 1.5 kg Rotitherm

Roasting

Saddle of lamb 1 - 1.5 kg Rotitherm

Roasting

3 150 - 170 1:15 - 2:00

3 160 - 180 1:00 - 1:30

(°C)

Time (h:min)

Page 20

Care and cleaning

Game

Type of meat Quantity Heating Function Level Temperature

Saddle of hare, leg of

hare

Loin of Game 1.5-2 kg Rotitherm

Leg of Game 1.5 - 2 kg Rotitherm

1) pre-heat oven

Up to 1kgRotitherm

Poultry)

Type of meat Quantity Heating Function Level Temperature

Poultry pieces per

Half chicken per

Poultry 1 - 1.5 kg Rotitherm

Duck 1.5 - 2 kg Rotitherm

Goose 3.5 - 5 kg Rotitherm

Turkey 2.5 - 3.5kgRotitherm

Turkey 4 - 6 kg Rotitherm

200-250 g

400-500 g

Roasting

Rotitherm Roasting

Roasting

(°C)

Time (h:min)

3 220 - 250 0:25 - 0:40

1 210 - 220 1:15 - 1:45

1 200 - 210 1:30 - 2:15

Time (h:min)

(°C)

3 200 - 220 0:35 - 0:50

3 190 - 210 0:35 - 0:50

1 190 - 210 0:45 - 1:15

1 180 - 200 1:15 - 1:45

1 160 - 180 2:30 - 3:30

1 160 - 180 1:45 - 2:30

1 140 - 160 2:30 - 4:00

Main Oven - Fan Baking

Food Shelf Position Temperature [°C] Approx Cook Time (m)

Apple Pie 3 160 - 180 50 - 60

Plate Tart 3 180 - 200 25 - 50

Pizza 3 Follow manufacturer´s instructions

Quiches/Tarts 3 180 - 200 25 - 50

Care and cleaning

WARNING!

When cleaning, the appliance must be switched off and cooled down.

Page 21

Care and cleaning

WARNING!

Cleaning the appliance with a steam jet or high-pressure cleaner is prohibited for safety reasons.

CAUTION!

Do not use scourers, sharp tools or rinsing devices to clean the appliance. Do not use scourers or metal scrapers to clean the glass oven door, as these could scratch the surface. This could cause the glass to shatter.

The outside of the appliance

• Wipe the front of the appliance with a soft cloth and a solution of warm water and washing-up liquid.

• For metal surfaces use standard commercial cleaning products.

• Please do not use any scouring agents or abrasive sponges.

Clean the oven after every use. This is the easiest way to remove dirt which then cannot burn on.

Inside of the oven

1. When the oven door is opened, the oven light bulb automatically illuminates.

2. Wipe out the oven after every use with a solution of washing-up liquid and then dry

it.

Remove stubborn dirt with special oven cleaners.

Important: When using oven sprays, please follow the manufacturer's instructions exactly. Make sure that no visible remaining detergents are left after the cleaning with oven spray!

Accessories

• Clean and dry the oven accessories (shelf, tray, roasting pan, etc.) after each use. Soak the items to make cleaning easier.

Catalytic cavity cleaning (selected models only)

WARNING!

You must not wipe out the cavity side walls. It will damage the catalytic surface.

1. Remove all slide-in parts from the oven.

2. Wipe the floor of the oven clean with warm washing-up solution and dry.

3. Set the oven with max temp. of 275C for 30 min (use Conventional Cooking or True

Fan function).

4. Oven will switch off after one hour.

5. Wipe away any remaining a damp from the floor with soft sponge.

WARNING!

Before you wipe away wait until the cavity is cool.

WARNING!

Do not use oven spray or abrasive cleaning agents. Do not use soap or other cleansing agents. The catalytic coating may otherwise be damaged.

Page 22

Care and cleaning

After long periods of use, the catalytic coating may become slightly discoloured. This has no effect on the catalytic properties.

Shelf supports

The left and right-hand side rails can be removed from the oven, so that the side walls of the oven can be cleaned.

Removing the slide-in racks

First pull the front of the rails away from the oven wall (1),

and then unhook them at the back (2).

Inserting the side rails

Attention! The rounded ends of the guide bars must point to the front!

Page 23

To insert, first insert the rails in the holes at the back (1) and then lower into position at the front and press into place (2).

Care and cleaning

Replacing the side oven lamp/Cleaning the glass cover (for selected models only)

1. Take out the left side rail.

2. Remove the glass cover by using a narrow,

blunt object (e.g. a teaspoon) and clean it.

3. If necessary: Replace oven halogen light

bulb. Order a replacement bulb from customer

services (see "Service / Customer Service")

Always take hold of the halogen light bulb with a cloth to avoid burning on grease residues.

4. Re-fit the glass cover.

5. Replace the side rails.

Oven back lamp (for selected models only)

WARNING!

Risk of electric shock! Before replacing the oven light bulb:

– Switch off the oven! – Take the fuses out of the fuse box or switch off.

To protect the oven light bulb and the glass cover, lay a cloth on the floor of the oven.

Page 24

Care and cleaning

Replacing the oven light bulb/Cleaning the glass cover

1. Take off the glass cover by turning it anti-

clockwise and clean it.

2. If necessary:

Replace with a 40 Watt, 230V, 300°C heat-resistant oven light bulb .

3. Re-fit the glass cover.

Oven door

You can unhinge the oven door to clean it.

Removing the oven door from its hinges

1. Open the oven door as far as it will go.

90°

Undo the clamping levers (A) on both door hinges fully .

3. Close the oven door as far as the first po-

sition (approx. 45°).

45°

Page 25

4. Take hold of the sides of the oven door

with both hands and pull the door up and diagonally away from the oven ( cau- tion: The door is heavy).

Lay the oven door with the outer side facing downwards on something soft and level, for example, a blanket in order to prevent scratches.

Fitting the oven door

1. From the handle side take hold of the oven

door with a hand on each side and hold at an angle of approx. 45°. Align the slots on the bottom of the oven door with the oven tracks.

Let the door slide until it clicks in place.

2. Open the oven door as far as it will go.

Care and cleaning

90°

Page 26

Care and cleaning

3. Click the clamping levers (A) on both door

tracks back to their original position.

4. Close the oven door.

Oven door glass

The oven door is fitted with 2,3 or 4 panels of glass (depends of the model) mounted one behind the other. The inner glass panels can be removed for cleaning.

Attention: Rough handling, especially around the edges of the front panel, can cause the glass to break.

Removing door glass panels

1. Open the oven door as far as it will go.

Undo the clamping levers (A) on both door hinges fully .

90°

Page 27

3. Close the oven door as far as the first po-

sition (approx. 45°).

4. Take hold of the door cover (B) at the top

on both sides and push inwards to release the clip lock. Then remove the door trim by pulling it upwards.

5. Take hold of the door glass panels on their

upper edge one after the other and take them out of the guide by pulling them upwards.

Care and cleaning

45°

Cleaning the door glass panels

Clean the door glass panels thoroughly with soapy water. Then dry them carefully.

CAUTION!

Do not use abrasive substances or metal scrapers to clean the glass oven door, as this could scratch the surface. This could cause the glass to shatter.

Page 28

Care and cleaning

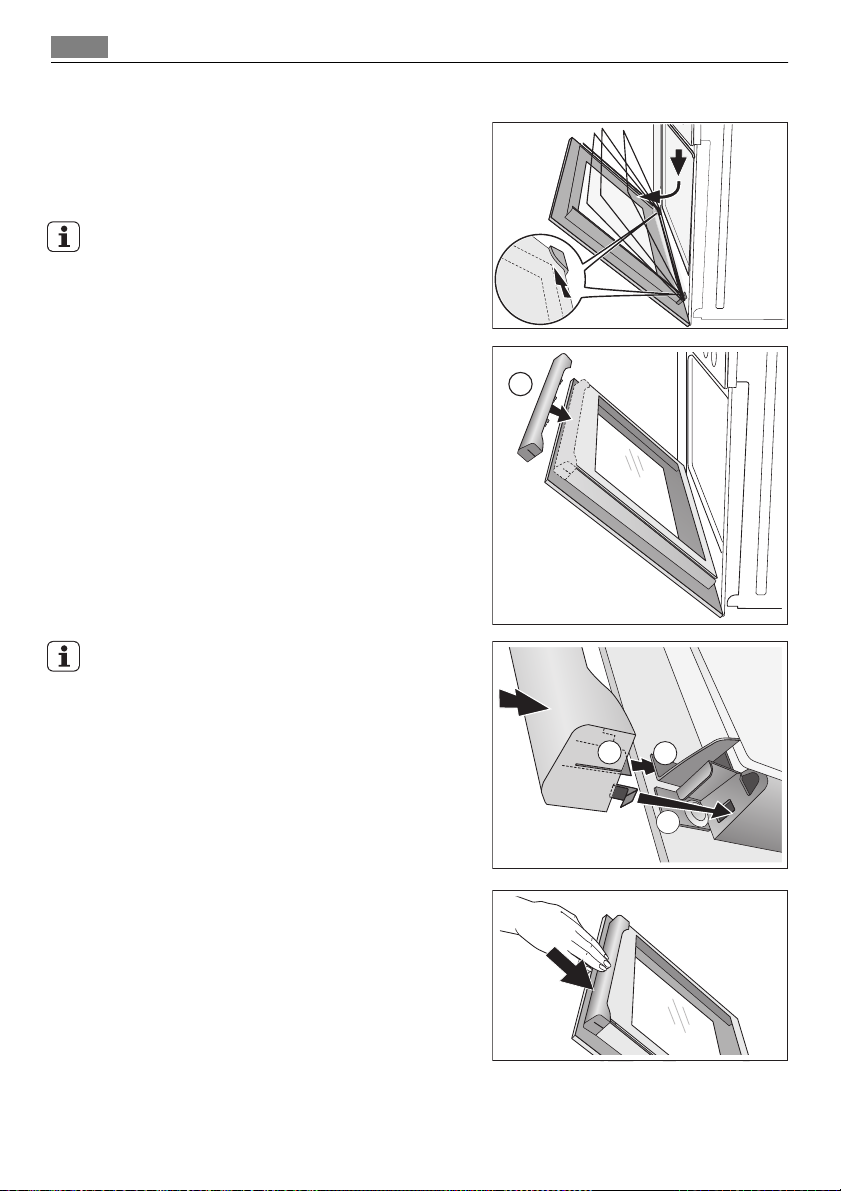

Putting the door glass panels back

1. Slide the door glass panels one by one at

an angle from above into the door panel at the bottom edge of the door and let them slide down.

Insert the two smaller panels first, followed by the largest.

2. Take hold of the door cover (B) on the

sides, place on the inside of the door edge and attach the door cover (B) to the door's upper edge.

There is a guiding track (C) on the open side of the door cover (B). Insert this between the outer door panel and the guiding bracket (D). The clip seal (E) must be snapped in.

Page 29

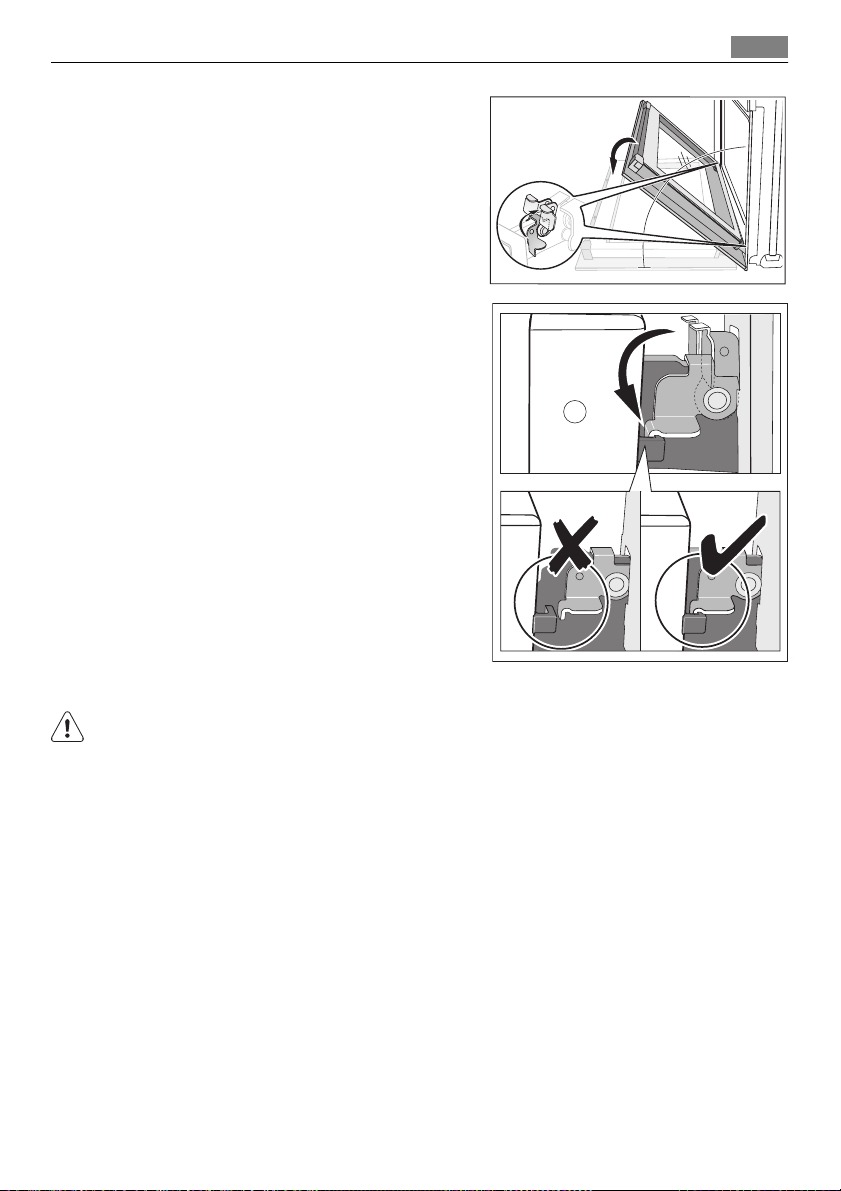

3. Open the oven door as far as it will go.

4. Click the clamping levers (A) on both door

tracks back to their original position.

Care and cleaning

90°

5. Close the oven door.

WARNING!

Before cleaning always allow the appliance to cool down before switching off at the electricity supply.

Cleaning materials

Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer. Cleaners that contain bleach should not be used as they may dull the surface finishes. Harsh abrasives and scourers should also be avoided.

Cleaning the outside of the appliance

Do not use abrasive cleaning materials e.g. abrasive cream cleaners, wire wool pads or scourers on painted or printed finishes as damage may occur. Regularly wipe over the control panel, control knobs, handles, doors and appliance sides using a soft cloth and hot soapy water. To prevent streaking, finish with a soft cloth. Stainless Steel cream cleaners are abrasive and should be avoided as they may dull the surface finish. Any spillage on the stainless steel finish must be wiped off immedi-

ately.

Page 30

What to do if…

WARNING!

Do not attempt to remove any of the control knobs from the appliance as this may cause damage and is a safety hazard.

Cleaning inside the grill and oven compartments

The vitreous enamel coating in the grill/top oven and main oven compartments can be cleaned using normal oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards.

WARNING!

Aerosol cleaners must not come into contact with elements, the door seal, or any painted finishes as this may cause damage.

Cleaning the door(s)

WARNING!

Under no circumstances should the door assembly be detached from the product for cleaning.

WARNING!

To prevent damaging or weakening the door glass panels avoid the use of the following:

• Household detergents and bleaches.

• Soap Impregnated pads unsuitable for non-stick saucepans.

• Abrasive cleaning pads, scorers and steel wool pads.

• Chemical oven pads or aerosols.

• Rust removers.

• Bath/Sink stain removers.

Cleaning between the outer and inner door glass

The door glass is removable for cleaning. Clean the outer and inner glass using hot soapy water or hob cleaner may be used. Do not use hob cleaner on the Stainless Steel or painted finishes. Ensure that all parts are well rinsed and thoroughly dried before attempting to replace the outer door.

What to do if…

WARNING!

Repairs to the appliance must only be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

In the case of misuse the visit by the Customer Care Department technician or the repair may be chargeable, even during the warranty period.

Information for appliances with metal fronts: Due to the appliance's cool front, when the door is opened during or shortly after baking or roasting, there may be condensation of the inner glass panel for a short while.

Page 31

Installation

Please carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a service call.

In-guarantee customers should make sure that the checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for in-guarantee service calls.

Problem Possible Solution

The grill, ovens and timer do not work.

Check that the main appliance fuse is working.

If you have checked the above: Allow the appliance to cool for

The grill does not work or cuts out after being used for a long period of time.

Leave the grill door open and allow the grill to cool. After a

The indicator neons are not working correctly.

The oven is not cooking evenly. Check that the appliance is correctly installed and is level.

Check that the recommended temperatures and shelf positions

The oven light fails to illuminate. The oven light bulb may need replacing.

The oven fan is noisy. Check that the oven is level.

Check that the shelves and bakeware are not vibrating in contact

The oven temperature is too high or too low.

Check that the appliance has been wired in to the appliance supply and is switched on at the wall.

a couple of hours. The appliance should now be working normally.

Ensure the cooling fan is running when the grill is on. If the cooling fan fails, the grill will not operate correctly. Contact your local service force centre.

couple of hours check that the grill works as normal

Check that you have selected only the function you require. Ensure all other controls are in the off position.

are being used.

with the oven back panel.

Check that the recommended temperatures and shelf positions are being used. Be prepared to adjust the temperature up or down slightly to achieve the results you want.

Installation Instructions

Installation

• The set-up of the electrical installation is arranged so that the appliance can be isolated from the mains with a minimum 3 mm all-pole contact separation.

Suitable isolation devices include, for example, circuit breakers, fuses (screw type fuses are to be removed from the holder), RCDs and contactors.

• Anti-shock protection must be provided by the installation.

• The built-in unit must meet the stability requirements of DIN 68930.

Page 32

Installation

• Built-in cookers and cooking surfaces are equipped with special attachment systems. For safety reasons, they must only be combined with appliances from the same manufacturer.

The use of heat protection strips is prohibited for cookers and ovens with Pyrolytic Cleaning, if the recess has a rear wall and closed ground-level compartment. However installation is possible with a ground-level compartment that has been shortened by at least 20 mm and which has base ventilation of the same cross-section.

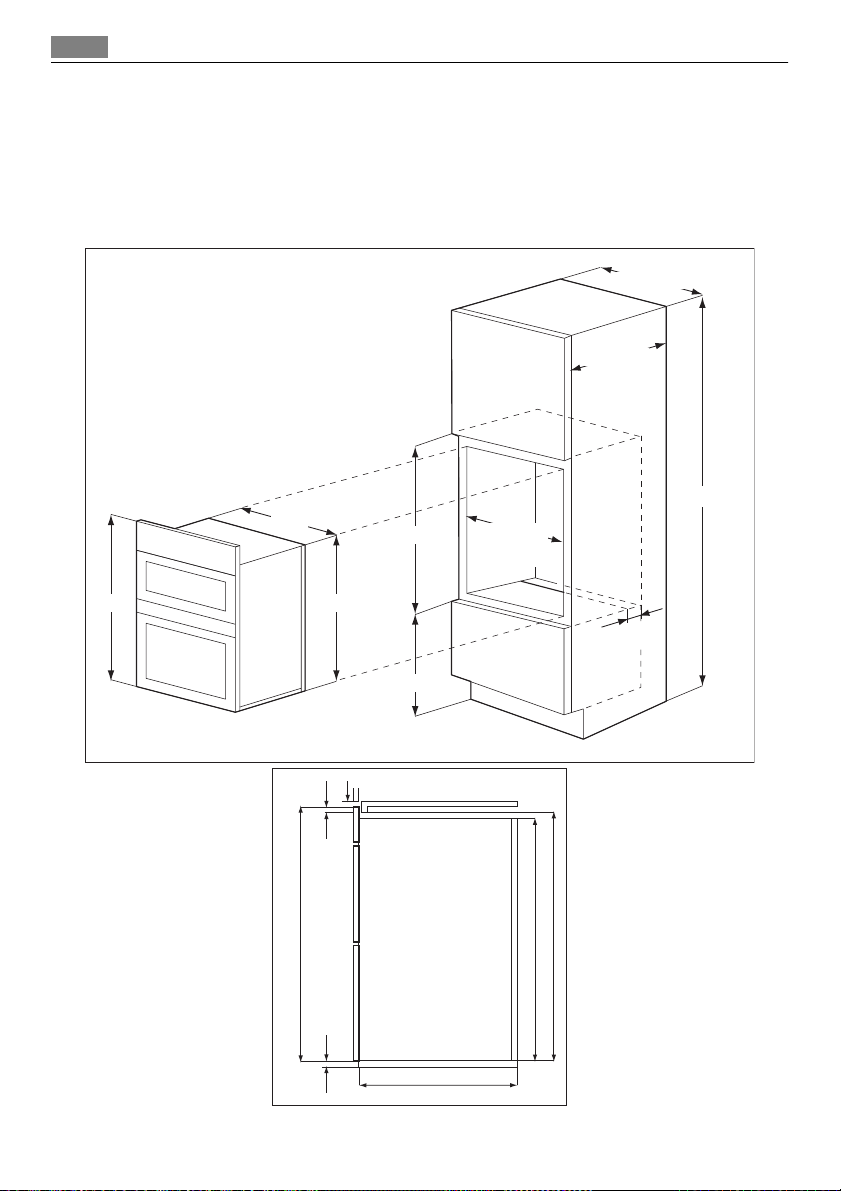

600 min

550 min

2000 min

538

907 min

560 min 570 max

888

866

300 min

866

874-879

548

Page 33

Installation

90°

Page 34

Installation

2x 3,5x25

Electrical Installation

• Enquiries regarding the installation of the cooker point, if required, should be made to your Regional Electricity Company to ensure compliance with their regulations.

• The appliance socket switch should be outside the cabinet but within 2m of the appliance to make it accessible to switch off the appliance in case of an emergency.

• To protect the hands, wear gloves when lifting the oven into its housing.

HOUSE CIRCUIT

Earth leakage and continuity tests must be carried out before the appliance is connected to the mains supply and re-checked after fitting.

GETTING THINGS READY CHOICE OF ELECTRICAL CONNECTION

There are three possible ways to connect your appliance. In each case the appliance should be operated using at least 6mm² twin core and earth PVC insulated multicore cable. Please choose from the most appropriate after reading the different methods : a) By connecting to a cooker point (having a double pole isolating switch with at least

3mm contact separation in all poles and neutral) and protected with a fuse or miniature circuit breaker at your mains fuse box.

b) By connecting the appliance together with a hob directly to a cooker point(s). Having

a double pole isolating switch with at least 3mm contact separation in all poles and neutral.

c) If you wish to connect an oven and a hob to a cooker point you can by connecting the

oven and hob separately to the cooker point. Oven and hob units should be separately connected to a cooker point. (See Picture)

Page 35

Disposal

1 Cooker Point 2 Hob 3 Oven

3 2

It is good practice to : – Fit an Earth Leakage Circuit Breaker to your house wiring. – Wire your appliance to the latest IEE regulations.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material The packaging material is environmentally-friendly and recyclable. Plastic parts are marked with the international abbreviations such as, e.g. >PE <, >PS< etc. Dispose of the packaging material in the containers provided for this purpose at your local waste management facility.

WARNING!

Your appliance should be made inoperable before it is disposed of, so that it does not constitute a danger. To do this, take the mains plug from the socket and remove the mains cable from the appliance.

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

This document sets out the terms and conditions of product warranties for Electrolux branded appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference

Page 36

Warranty

should you require service for your Electrolux appliance. General Terms and Conditions

1. In this warranty

– Electrolux' means Electrolux Home Products Pty Ltd ABN 51 004 762 341 in respect

of Appliances purchased in Australia and Electrolux (NZ) Limited in respect of Appliances purchased in New Zealand;

– 'Appliance' means any Electrolux product purchased by you accompanied by this

document;

– 'Warranty Period' means

i) where you use the Appliance for personal, domestic or household purposes in Australia the period of 24 months and in New Zealand the period of 24 months;

ii) where you use the Appliance for commercial purposes, in Australia the period of 0 months and in New Zealand the period of 0 months, (if the period stated is 0 months you are not covered by this product warranty) following the date of original purchase of the Appliance;

– 'you' means the purchaser of the Appliance not having purchased the appliance for

re-sale, and 'your' has a corresponding meaning.

2. This warranty only applies to Appliances purchased and used in Australia or New Zea-

land and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand.

3. Electrolux warrants that, when dispatched from an Electrolux warehouse, the Appli-

ance is free from defects in materials and workmanship for the Warranty Period.

4. During the Warranty Period Electrolux or its Authorised Service Centre will, at no extra

charge if your appliance is readily accessible without special equipment, and subject to these terms and conditions, repair or replace any parts which it considers to be defective. You agree that any replaced Appliances or parts become the property of Electrolux. This warranty does not apply to light globes, batteries, filters or similar perishable parts.

5. Parts and Appliances not supplied by Electrolux are not covered by this warranty.

6. Where you are within an Electrolux service area, this warranty covers the cost of

transport of the Appliance to and from Authorised Service Centres of Electrolux and travelling costs for representatives of the Authorised Service Centre to and from your home or business. If you are outside an Electrolux service area, you will bear these costs. For information about whether you are within an Electrolux service area, please phone 13 13 49 in Australia, or 0800 10 66 10 in New Zealand.

7. Proof of purchase is required before you can make a claim under this warranty.

8. You may not make a claim under this warranty unless the defect claimed is due to

faulty or defective parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

– The Appliance is damaged by

i) accident ii) misuse or abuse, including failure to properly maintain or service iii) normal wear and tear iv) power surges, electrical storm damage or incorrect power supply v) incomplete or improper installation

Page 37

Warranty

vi) incorrect, improper or inappropriate operation

vii) insect or vermin infestation. – The Appliance is modified without authority from Electrolux in writing. – The Appliance's serial number or warranty seal has been removed or defaced. – The Appliance was serviced or repaired by anyone other than Electrolux or its Au-

thorised Service Centres.

9. This warranty, the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable in the Australian State where the Appliance was purchased or the law applicable in New Zealand if the Appliance was purchased in New Zealand. Where the Appliance was purchased in New Zealand for business purposes the Consumer Guarantee Act does not apply.

Limitation of Liability

10. To the extent permitted by law: – Electrolux excludes all warranties other than as contained in this document;

– Electrolux shall not be liable for any loss or damage whether direct or indirect or

consequential arising from your purchase, use or non-use of the Appliance.

11. Provisions of the Trade Practices Act and State consumer legislation in Australia, and the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act in New Zealand, imply warranties or conditions, or impose obligations, upon Electrolux which cannot be excluded, restricted or modified. To the extent permitted by law, the liability of Electrolux (if any) arising out of or in relation to the Appliance or any services supplied by Electrolux shall be limited (where it is fair and reasonable to do so),:

– in the case of Appliances, at its option, to the replacement or repair of the Appliances

or the supply of equivalent products or the payment of the cost of replacing the Appliances or having the Appliances repaired or of acquiring equivalent Appliances. Upon being replaced, parts and Appliances become the property of Electrolux; or

– in the case of services, at its option, to the supply of the services again or the

payment of the cost of having the services re-supplied; and in the case of Appliances or services supplied in New Zealand, loss or damage whether direct or indirect or consequential that is reasonably foreseeable.

Privacy

You acknowledge that in the event that you make a warranty claim it will be necessary for Electrolux and its Authorised Service Centres to exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice

Before Calling a Service Technician please check carefully the operating instructions, service booklet and the warranty terms and conditions.

FOR SERVICE

OR TO FIND THE ADDRESS OF YOUR NEAREST STATE SERVICE CENTRE IN AUSTRALIA

Please call 13 13 4 9

For the cost of a local call (Australia

only)

SERVICE AUSTRALIA

ELECTROLUX HOME PRODUCTS

FOR SPARE PARTS

OR TO FIND THE ADDRESS OF YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA

Please call 13 13 50

For the cost of a local call (Australia

only)

Page 38

FOR SERVICE

OR TO FIND THE ADDRESS OF YOUR NEAREST AUTHORISED SERVICE CENTRE IN NEW ZEALAND

Free call 0800 10 66 10

(New Zealand only)

SERVICE NEW ZEALAND

ELECTROLUX HOME PRODUCTS

FOR SPARE PARTS

OR TO FIND THE ADDRESS OF YOUR NEAREST SPARE PARTS CENTRE IN NEW ZEALAND

Free call 0800 10 66 20

(New Zealand only)

Page 39

Page 40

www.electrolux.com

www.aeg-electrolux.com.au

892 937 912 - I - 122009
