AEG D4101-4-ME User Manual

COMPETENCE D4101-4-ME

Built-in Electric Multifunction Double Oven

Installation and Operating Instructions

100

250

150

200

240

100

200

150

PERFEKT IN FORM UND FUNKTION

IMPORTANT SAFETY INFORMATION

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the information in this book contact the Customer Care Department.

INSTALLATION

The appliance must be installed according to the instructions supplied. The installation work must be undertaken by a qualified electrician or competent person. The appliance should be serviced by an authorised Service Engineer and only genuine approved spare parts should be used. The appliance must be installed in an adequately ventilated room. It is imperative that the appliance is left in the base to protect both the appliance and the floor. This appliance is heavy and care must be taken when moving it. Do not attempt to lift or move this appliance by the handles. All packaging, both inside and outside the appliance must be removed before the appliance is used. It is dangerous to alter the specifications or modify the appliance in any way. After installation please dispose of the packaging with due regard for safety and the environment. Your local authority can arrange this.

CHILD SAFETY

Do not allow children to play with any part of the

packaging. Do not allow children to sit or climb on the drop down doors. This appliance is designed to be operated by adults. Young children must not be allowed to tamper with the controls or play near or with the appliance.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.

DURING USE

This appliance is not intended for use by young children or infirm persons without supervision.

This appliance is not intended to be operated by means of an external timer or separate remote control system. This appliance has been designed for domestic use to cook edible foodstuffs only and must not be used for any other purposes. Take great care when heating fats and oils as they will ignite if they become too hot. Never place plastic or any other material which may melt in or on the oven. Always use oven gloves to remove and place food in the oven.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Do not leave the grill pan handle in position when grilling as it will become hot. Always support the grill pan when it is in the withdrawn or partially withdrawn position. Ensure that all vents are not obstructed to ensure ventilation of the oven cavity.

Never line any part of the appliance with foil. Always stand back from the appliance when opening

the doors to allow any build up of steam or heat to release. Do not stand too close to the oven or grill while in use as warm air will exhaust from the grill cavity and the vents on the front frame of the appliance. Stand clear when opening the drop down doors. Support the doors using the handles until fully open.

Never leave the appliance unattended when the oven door is open.

Do not place sealed cans or aerosols inside the oven.

They may explode if they are heated. Ensure that all control knobs are in the OFF position when not in use. Do not stand on the appliance or on the open oven doors. Do not hang towels, dishcloths or clothes from the appliance or its handles. They are a safety hazard.

Do not use this appliance if it is in contact with water. Never operate it with wet hands.

CLEANING AND MAINTENANCE

For hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire especially in the grill pan.

Do not leave the cookware containing foodstuffs, e.g.

fat or oil in the appliance in case it is inadvertently switched on.

Always allow the appliance to cool before switching off at the wall prior to carrying out any cleaning / maintenance work.

Only clean this appliance in accordance with the instructions given in this book. Never use steam or high pressure steam cleaners to clean the appliance.

AT THE END OF THE APPLIANCE'S LIFE

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CONTENTS

Speedcook 26

Using Speedcook 26 Things To Note 26

FOR THE USER

Important Safety Information 2 Description of The Appliance 4

Getting To Know Your Appliance 5 Grill And Oven Furniture 6 Telescopic Runners 6 Before Using The Appliance 7 Rating Plate 7 Preparing To Use Your Appliance 7 When First Switching On 7 The Cooling Fan For The Controls 7 Control Panel Indicator Neon(s) 7 Pop In Pop Out Controls 7 Condensation And Steam 7 Cookware 7 Helpful Hints When Buying And Preparing Food 7

Electronic Timer 8 Full Width Dual Grill 11

Using Full Width Dual Grill 11 Things To Note 11 The Grill Pan and Handles 12 Hints And Tips 12 Grilling Chart 13

Second Oven 14 Using Second Oven 14 Things to Note 14 To Fit The Second Oven Shelf 14 Hints And Tips 15

Second Oven Cooking Chart 16

Ventitherm ® Fan Operated Cooking 17

Using Ventitherm ® Fan Operated Cooking 17 Things To Note 17 To Fit The Main Oven Shelves 17 Using the Telescopic Runners (Where Fitted) 18 Hints And Tips 18

Conventional Cooking 19 Using Conventional Cooking 19 Things To Note 19 Hints And Tips 20

Main Oven Cooking Chart 21 Roasting Chart 22

Main Oven Full Width Dual Grill 23

Hints And Tips 26

Rotitherm Roasting 27 Using Rotitherm Roasting 27 Things To Note 27 Hints And Tips 28

Rotitherm Roasting Chart 28 Fan Controlled Defrosting 29

Using Fan Controlled Defrosting 29 Things To Note 29 Hints And Tips 29

Care and Cleaning 30 Cleaning Materials 30 Cleaning The Outside Of The Appliance 30 Removing And Replacing Wirework Runners 30 Cleaning Inside The Ovens 31 Cleaning The Second And Main Oven Roof 31 Cleaning The Door(s) 31 Cleaning The Grill And Oven Furniture 32 Replacing An Oven Light Bulb 33

Something Not Working? 34 Zanussi Warranty Australia 35 Zanussi Warranty New Zealand 36

FOR THE INSTALLER

Technical Details 37 Installation Instructions 38

Warnings 38 Things To Note 38 Choice Of Electrical Connection 39 Preparing Cabinet For Fitting Of Oven 39 Recommended Cabinet Dimensions 40 How To Finish Unpacking 41 To Remove Cover Of Mains Terminal 41 Connecting To The Mains Terminal 42 Checking Electrical Connections 42 Connecting To A Hob Or Cooker Point 42 Fitting Into The Cabinet 43

To help you the following symbols will be found in the text.

Hints and Tips

Using Main Oven Full Width Dual Grill 23 Things To Note 23 Hints And Tips 24 Grilling Chart 24

Pizza 25 Using Pizza 25

Safety Instructions

Please read the instruction book carefully before use and retain for future reference.

Things To Note 25 Hints And Tips 25

DESCRIPTION OF THE APPLIANCE

BUILT-IN ELECTRIC MULTIFUNCTION DOUBLE OVEN

Your built-in oven comprises of a conventional second oven and dual grill in the top compartment. The multifunction oven can be automatically controlled by the electronic timer.

Electronic Timer

100

250

150

200

240

100

200

150

Control Panel

Second Oven/Grill

Main Oven

GETTING TO KNOW YOUR APPLIANCE

THE CONTROL PANEL

B A D H C G E F I

12.00

A - Multifunction Main Oven Selector

Oven Light

Rotitherm Roasting

Speedcook

Fan Controlled Defrosting

Pizza

Conventional Cooking

Ventitherm ® Fan Operated Cooking

Single Economy Grill

Full Width Dual Grill

- Main Oven Selector Indicator Neon

B C - Main Oven Temperature Control D - Main Oven Temperature Indicator Neon E - Electronic Timer F - Second Oven/Grill Selector G - Second Oven/Grill Selector Indicator Neon H - Second Oven/Grill Temperature Control I - Second Oven/Grill Temperature Indicator Neon

GRILL AND OVEN FURNITURE

The following items of oven furniture have been supplied with the appliance:-

1 grill pan

2 grill pan handles

1 grill pan grid

1 straight shelf (for grilling and second oven cooking)

2 straight shelves (for main oven cooking)

TELESCOPIC RUNNERS

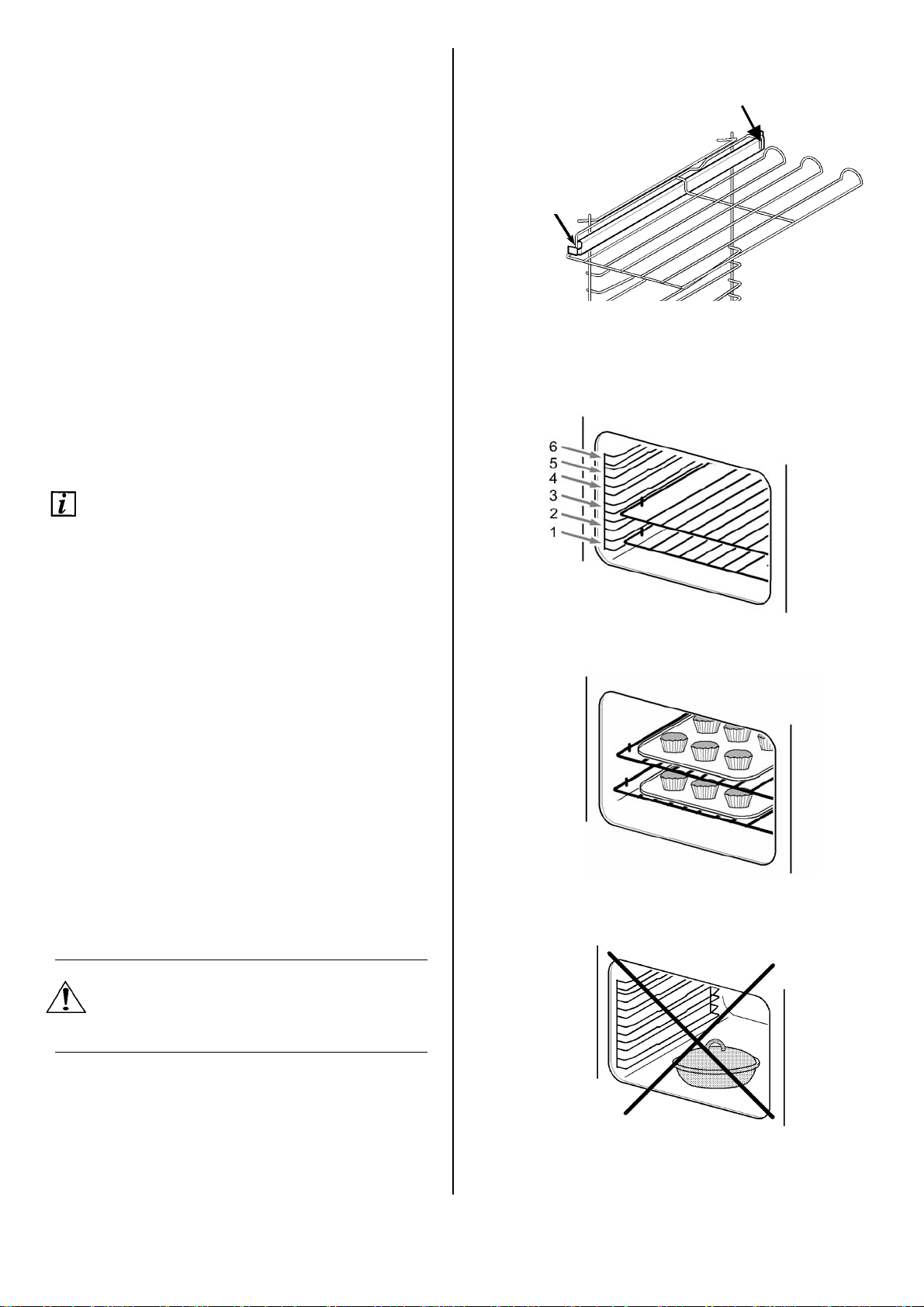

Your appliance may be fitted with telescopic runners in the grill and main oven. To fit the shelf into the telescopic runner,

1. Ensure the telescopic runners are pushed back into the oven cavity before fitting the shelf.

2. Holding the front edge of the shelf with both hands, place the rear shelf forms over the telescopic runners.

3. Slide the shelf into position, lifting slightly at the front so that the shelf locates into the retaining hooks.

To remove, raise the front edge and withdraw the shelf.

FORM

RETAINING HOOK

BEFORE USING THE APPLIANCE

RATING PLATE

POP IN POP OUT CONTROLS

This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable). The appliance must be protected by a suitably rated fuse or circuit breaker. The rating of the appliance is given on the rating plate.

Do not remove the rating plate from the appliance as this may invalidate the guarantee.

PREPARING TO USE YOUR APPLIANCE

Wipe over the base of the oven(s) with a soft cloth and hot soapy water and wash the furniture before use. We suggest that you run the oven elements for 10 – 15 minutes at 220°C to burn off any residue from their surfaces. The procedure should be repeated with the grill for approximately 5 – 10 minutes. During this period an odour may be emitted, it is therefore advisable to open a window for ventilation.

WHEN FIRST SWITCHING ON

The oven has a 24 hour clock. When the oven is first switched on at the wall the electronic display will automatically show 12.00, and the 'Time' ( ) neon will also flash.

THE COOLING FAN FOR THE CONTROLS

These control knobs can remain flush with the control panel when not in use, or pushed and released to stand out from the panel for easy operation.

CONDENSATION AND STEAM

When food is heated it produces steam similar to a boiling kettle. The vents allow some of this steam to escape. However, always stand back from the appliance when opening the door(s) to allow any build up of steam or heat to release. If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance. To prevent discolouration, regularly wipe away condensation and also soilage from surfaces.

COOKWARE

Baking trays, dishes etc., should not be placed directly against the grid covering the fan at the back of the oven.

Do not use baking trays larger than 30cm x 35cm (12” x 14”) as they will restrict the circulation of heat and may affect performance.

HELPFUL HINTS WHEN BUYING AND PREPARING FOOD

The cooling fan comes on immediately when the grill is switched on and after a short time when the oven is in use. It runs on after the controls are switched off until the appliance has cooled. During the initial period the cooling fan may turn ON and OFF, this is quite normal.

Always allow the cooling fan to cool the appliance down before switching off at the wall prior to carrying out any cleaning or maintenance work.

CONTROL PANEL INDICATOR NEON(S)

The indicator neon will operate when the grill (where applicable) or oven(s) is switched on. The indicator neon will glow. It may turn on and off during use to show that the setting is being maintained. If the neon does not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and reset following the instructions for the required setting.

Care must be taken when handling foods in the home. Always follow the basic rules of food hygiene to prevent bacterial and microbial growth and cross contamination when preparing, reheating, cooking, cooling, defrosting and freezing foods:-

1. Avoid buying chilled or frozen products if you cannot store them straight away. The use of an insulated container when shopping is advisable.

2. When you arrive home, place perishable foods in the refrigerator or freezer immediately. Ensure they are well covered to prevent them drying out and to prevent any possible cross contamination with bacteria from raw to cooked foods.

3. In the kitchen keep work tops, chopping boards and utensils clean with hot soapy water between preparation stages. Ideally, keep one chopping board for raw meat and another for other foods. Keep your dish cloths and tea towels clean.

ELECTRONIC TIMER

KEY

A COOK TIME

B END TIME

C COUNTDOWN

D TIME

E DECREASE CONTROL

F SELECTOR CONTROL

G INCREASE CONTROL

NOTE: The time of day must be set before the main oven

will operate manually.

1. HOW TO SET THE TIME OF DAY

The oven has a 24 hour clock. When the electricity supply is first switched ON, the

display will show 12.00 and the 'Time' ( ) indicator neon will flash as Fig. 1.

To set the correct time press the increase control button ( + ) and if necessary, the decrease control button ( - ) until the correct time on the 24 hour clock is reached, e.g. 10.00am as Fig.2. The 'Time' ( ) indicator neon will flash for 5 seconds and then go out.

Note: The increase and decrease control buttons operate slowly at first, and then more rapidly. They should be pressed separately.

2. HOW TO SET THE COUNTDOWN

The 'Countdown' gives an audible reminder at the end of any period of cooking. This cooking period may be up to 2 hrs 30 mins. It is not part of the automatic control.

To set, press the Selector Control button ( ) until the 'Countdown' indicator neon is illuminated ( ) the display reads 0.00 as Fig.3.

To set the correct time duration depress the increase control ( + ) until the display indicates the interval to be timed, e.g. 1hr 45 mins as Fig. 4. If necessary depress the decrease control ( - ) to achieve the correct time interval.

G F E

Fig.1.

Fig.2.

Fig.3.

NOTE: This must be completed within 5 seconds of first pressing the Selector Control button.

During the operation of the 'Countdown', the remaining time period will be shown in the display. The 'Countdown' will sound intermittently for up to 2 minutes at the end of the timed period. The sound can be stopped by pressing any button.

Fig.4.

TO CANCEL THE COUNTDOWN

If you change your mind and want to cancel the 'Countdown', press the Selector Control button until the 'Countdown' ( ) indicator neon flashes and then the decrease control ( - ) until 0.00 shows in the display as Fig. 5. The 'Countdown' ( ) indicator neon will continue to flash for a few seconds and then return to the time of day.

3. SETTING THE OVEN TIMER CONTROL

The main oven only can be automatically timed. When using the timer control for the very first time, it

is advisable to let it operate while you are at home. The displays can be checked to show that it is operating correctly and you will feel confident to leave a meal to cook automatically in the future.

A) TO SET THE TIMER TO SWITCH ON

AND OFF AUTOMATICALLY

i) Ensure the electricity supply is switched ON and

that the correct time of day is displayed, e.g.

9.am. as Fig. 6.

ii) Set the main oven controls to the required

function and temperature.

iii) Place food in the oven. iv) To set the length of cooking time, press the

Selector Control button until the 'Cook Time' indicator neon is illuminated ( ). Press the increase control ( + ) until the required length of cooking time is displayed, e.g. 2 hrs 15 mins as Fig. 7. If necessary depress the decrease control ( - ) until the correct time interval is achieved. The maximum cooking time is 10 hours.

v) Release the buttons. The 'Cook Time' indicator

neon ( ) will be illuminated.

Fig.5.

Fig.6.

Fig.7.

Remember, this must be completed within 5 seconds of first pressing the Selector Control

button.

vi) To set the 'End Time'. Press the Selector Control

button until the 'End Time' indicator neon ( ) flashes. Press the increase control ( + ) until the required stop time is displayed, e.g. 12.15 p.m. as Fig. 8. If necessary press the decrease control ( - ) until the correct time interval is achieved.

vii) Release the buttons. The time of day will be

displayed after 5 seconds. The 'Cook Time'

( ) and 'End Time' ( ) indicator neons will

be illuminated.

The 'End Time' must not be more than 23 hours

59 minutes from the time of day. For example, if the time of day is 09.00a.m., the latest 'End Time' would be 08.59a.m. the next day.

viii) The oven indicator neon should be OFF.

NOTE: When the automatic timed period starts, the oven indicator neon will glow. It may turn on and off during use to show that the setting is being maintained.

Fig.8.

B) TO SET THE TIMER TO SWITCH OFF

ONLY

i) Ensure the electricity supply is switched ON and

that the correct time of day is displayed, e.g.

10.00am as Fig. 9.

ii) Place food in the oven. iii) To set the length of cooking time, press the

Selector Control button until the 'Cook Time'

( ) indicator neon is illuminated. Press the

increase control ( + ) until the required length of cooking time is displayed, e.g. 2 hrs 15 mins as Fig. 10. Depress the decrease control ( - ) if necessary.

iv) Release the buttons. The 'Cook Time' indicator

neon ( ) will illuminate and the time of day will be displayed after 5 seconds.

v) Set the oven temperature. The oven indicator

neon should be ON.

vi) To check the 'End Time' during the cooking

period, simply press the Selector Control button once and the remaining time will be displayed, as Fig. 11.

4. TO CANCEL AN AUTOMATIC PROGRAMME

i) To cancel an automatic programme press the

Selector Control button until the 'Cook Time' indicator neon ( ) flashes. Pr ess the dec r ease control ( - ) until the display reads 0.00 as Fig.

12.

ii) Release the buttons. The 'Cook Time' indicator

neon ( ) will flash and after 5 seconds return to the time of day.

iii) Turn off the oven controls.

Fig.9.

Fig.10.

Fig.11.

5. TO RETURN THE APPLIANCE TO MANUAL

At the end of a timed cooking period, the indicator neon will flash and an alarm will sound for up to 2 minutes.

i) To stop the sound press any of the three buttons,

as Fig. 13.

ii) The display will return to the time of day. iii) Turn off the oven controls.

6. THINGS TO NOTE

• In the event of an interruption of the electricity

supply, the timer will reset itself to zero, and all programming will be cancelled.

7. AUTOMATIC COOKING

It is advisable to leave food in the oven for as

short a time as possible before automatic cooking. Always ensure commercially prepared food is well within its use by date and that home prepared food is fresh and of good quality.

When cooking is complete, do not leave food to

stand in the oven, but remove and cool it quickly if the food is not to be consumed immediately. Always ensure food in the oven has been covered before cooking if it is not possible to remove food immediately after cooking.

Fig.12.

Fig.13.

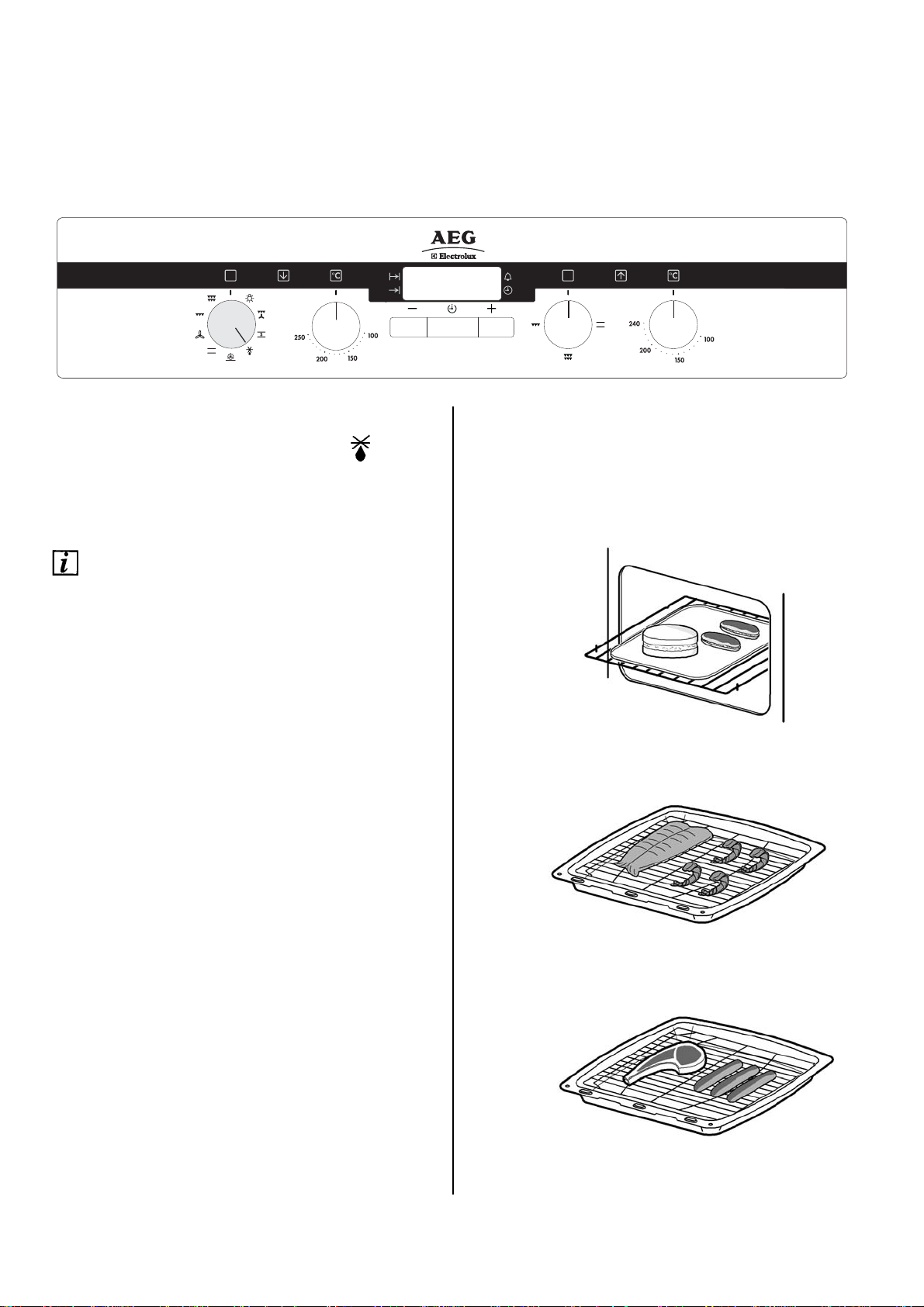

FULL WIDTH DUAL GRILL

CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. YOUNG CHILDREN SHOULD BE KEPT AWAY.

The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food.

USING FULL WIDTH DUAL GRILL

12.00

• Pop out and turn the second oven/grill selector

for full grill.

• Pop out and turn the second oven/grill function

selector to centre section only.

• Turn the temperature control knob to the right as

far as it will go. This is the hottest setting.

• To use the grill at lower settings, turn the

temperature control knob to 110°C or 150°C.

THINGS TO NOTE

• The indicator neon will glow. It may turn ON and

OFF during use to show that the setting is being maintained.

• The cooling fan for the controls may operate after

a time.

• Some smoke from fat splashes may be evident

as the grill cleans itself.

• The grill may be used with the door open or with

the door closed.

THE GRILL PAN AND HANDLES

The grill pan is supplied with removable handles.

1. To attach the handles, place the wirework

under the cut out in the pan so that the metal plate hooks over the top of the grill pan.

Ensure the handles are positively located.

2. To remove the handles, lift away from the cut

out on the grill pan.

Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill.

Protect your hands when removing the grill pan handles.

Always remove the grill pan handles during

grilling.

To check the progress of the food being grilled, the grill pan should be withdrawn to attend food during cooking. If your model is fitted with telescopic runners in position 3, the grill pan can be withdrawn on the shelf.

HINTS AND TIPS

• Most foods should be placed on the grid in the

grill pan to allow maximum circulation of air to lift the food out of the fats and juices.

• Adjust the grid and grill pan runner position to

allow for different thicknesses of food. Position the food close to the element for faster cooking and further away for more gentle cooking.

• Food should be thoroughly dried before grilling to

minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

• Accompaniments such as tomatoes and

mushrooms may be placed around the outer edges or underneath the grid when grilling meats.

• When toasting bread, we suggest that the top

runner position is used with the grid in its 'high' position.

• When using the centre section grill, ensure food

is placed centrally on the grilling grid directly beneath the grill element.

• Preheat the grill on full setting for a few minutes

to seal meat or for toasting. Adjust the heat setting and the shelf position as necessary during cooking.

• The food should be turned over during cooking

as required

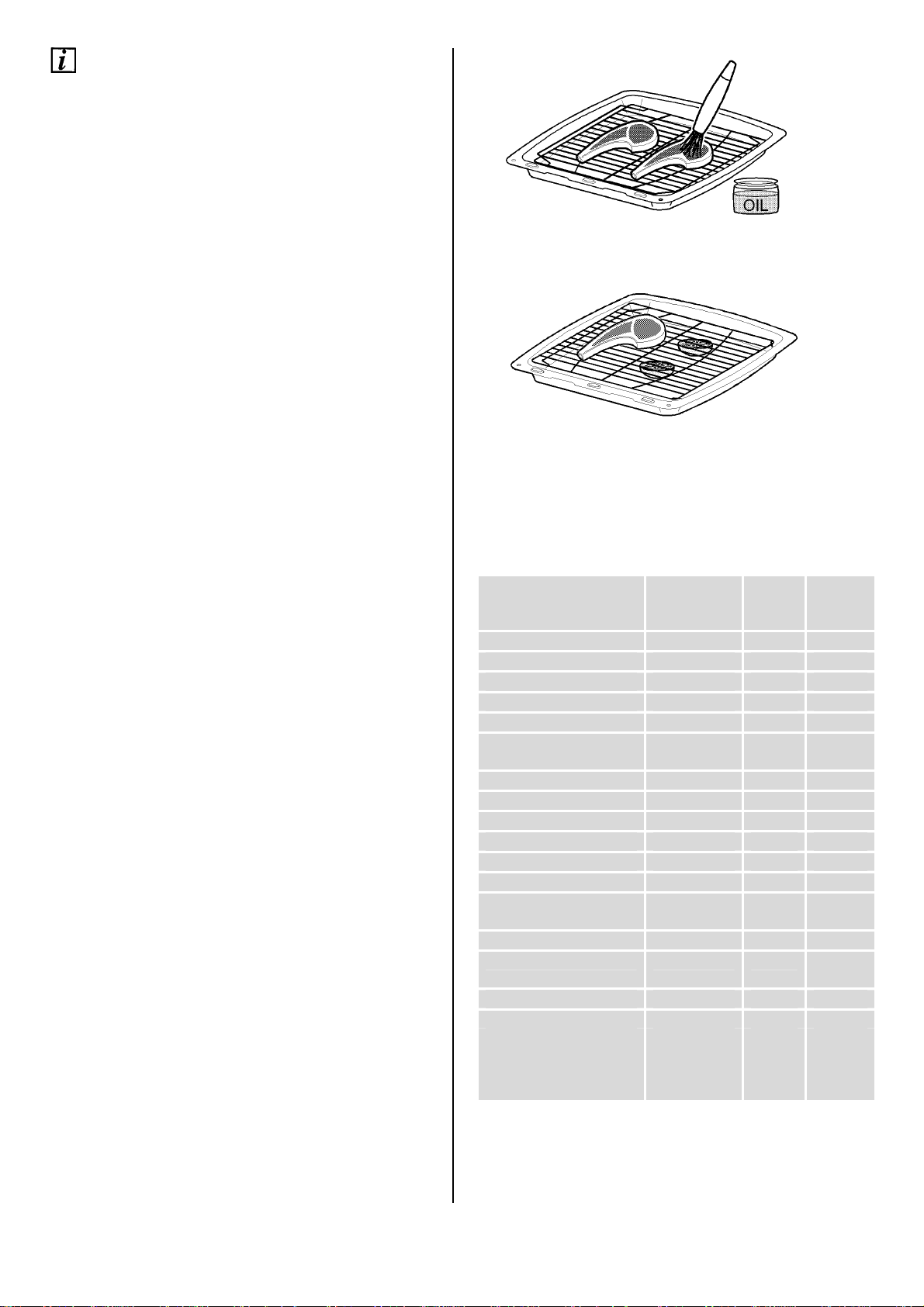

GRILLING CHART

FOOD POSITION GRILL TIME

(mins in total)

Bacon Rashers 5 - 6

Beefburgers 10 - 15

Chicken Joints 30 - 40

Chops – Lamb 15 - 20

Pork 20 - 30

Fish – Whole

Trout/Mackerel

Fillets -

Plaice/Cod

Kebabs 20 - 30

Kidneys –

Lamb/Pig

Liver –

Lamb/Pig

Sausages 20 - 30

Steaks – Rare 6 - 12

Medium 12 - 16

Well Done 14 - 20

Toasted

Sandwiches

Adjust

grill

setting

and

grill

pan

grid

suit

different

thicknesses

food

15 - 25

10 - 15

8 - 12

10 - 20

3 - 4

The times quoted above are given as a guide and should be adjusted to suit personal taste.

SECOND OVEN

The second oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet and savoury flans or quiche. The second oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use the second oven when you want to warm plates. Use the lowest setting on the top oven temperature control.

USING SECOND OVEN

12.00

• Pop out and turn the second oven/grill selector

to.

• Pop out and turn the second oven/grill

temperature control to the required setting.

THINGS TO NOTE

• The oven light will illuminate.

• The indicator neon will glow. It may turn ON and

OFF during use to show that the setting is being maintained.

• The cooling fan for the controls may operate after

a time.

Do not place dishes, tins and trays directly

onto the oven base as it becomes very hot and damage may occur.

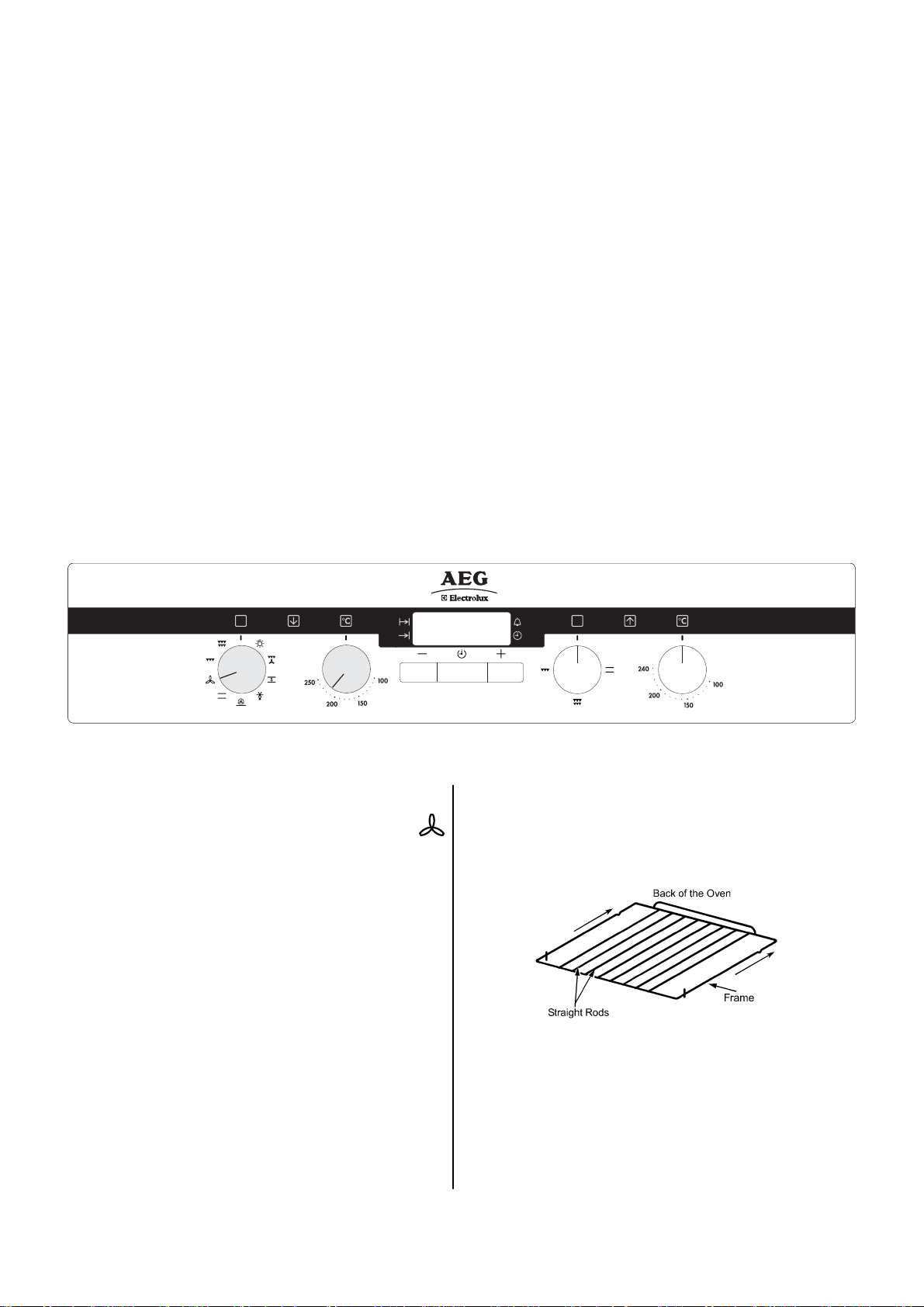

TO FIT THE SECOND OVEN SHELF

The shelf should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. To remove a shelf slide the shelf towards you until the shelf stop that the stops clear the side supports. Lift shelf clear. To install a shelf, reverse the above steps. shelf position has an upper and lower support wire, ensure the shelf is placed between these two support wires.

is reached. Tilt shelf up at the front so

Each

+ 30 hidden pages
