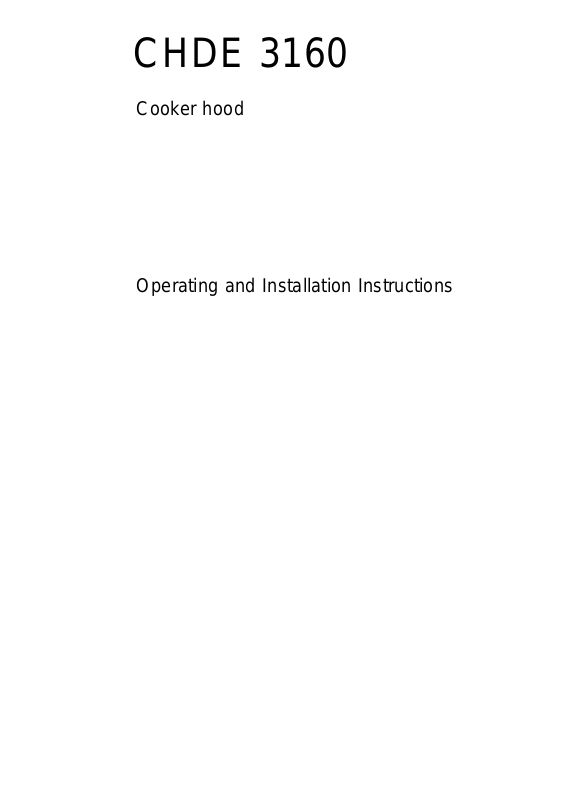

AEG CHDE3160ML User Manual

CHDE 3160

Cooker hood

Operating and Installation Instructions

Contents

Safety warnings 4

For the User 4
For the Installer 4

Description of the Appliance 6

Extractor version 6
Filter Version 7

Control Panel 8

Maintenance and care 9

Cleaning the hood 9
Metal grease filter 9
Removing the metal grease filter 9
Charcoal filter 10
Changing the light bulb 1 1

What to do if 12

Service and Spare Parts 13

Guarantee Conditions 14

T echnical Specifications 16

Mounting accessories included 16

Electrical connection 16

Installing the hood between cupboards with hanging rails 17
Installing the hood to the wall 18
Fixing a furniture door to the visor 19

Printed on recycled paper
AEG - putting words into action

2

Safety warnings

For the User

• The cooker hood is designed to extract unpleasant odours from the
kitchen, it will not extract steam.

• Always cover lighted elements, to prevent excess heat from
damaging the appliance. In the case of oil, gas and coal fired
cookers it is essential to avoid open flames.

• Also, when frying, keep the deep frying pan on the cooker top/
cooker under careful control.

• The hot oil in the frying pan might ignite due to overheating.

• The risk of self-ignition increases when the oil being used is dirty .

• It is extremely important to note that overheating can cause a fire.

• Never carry out any flambé cooking under the hood.

• Always disconnect the unit from the power supply before

carrying out any work on the hood, including replacing the
light bulb (take the cartridge fuse out of the fuse holder or switch

off the automatic circuit breaker).

• It is very important to clean the hood and replace the filter at

the recommended intervals. Failure to do so could cause
grease deposits to build up, resulting in a fire hazard.

For the Installer

• When used as an extractor unit, the hood must be fitted with a
120mm diameter hose.

• When installing the hood, make sure you respect the following

minimum distance from the top edge of the cooking hob/ring
surfaces:
electric cookers 600 mm
gas cookers 650 mm
coal and oil cookers 700 mm min.

• The national standard on fuel-burning systems specifies a maxi­mum depression of 0.04 bar in such rooms.

• The air outlet must not be connected to chimney flues or combus­tion gas ducts. The air outlet must under no circumstances be
connected to ventilation ducts for rooms in which fuel-burning
appliances are installed.

• It is advisable to apply for authorization from the relevant controlling
authority when connecting the outlet to an unused chimney flue or
combustion gas duct.
The air outlet installation must comply with the regulations laid down
by the relevant authorities.

3

• When the unit is used in its extractor version, a sufficiently large
ventilation hole must be provided, with dimensions that are
approximately the same as the outlet hole.

• National and regional building regulations impose a number of
restrictions on using hoods and fuel-burning appliances connected
to a chimney , such as coal or oil room-heaters and gas fires, in the
same room.

• Hoods can only be used safely with appliances connected to a
chimney if the room and/or flat (air/environment combination) is
ventilated from outside using a suitable ventilation hole approxi­mately 500-600 cm2 large to avoid the possibility of a depression
being created during operation of the hood.

• If you have any doubts, contact the relevant controlling authority or
building inspector’s office.

• Since the rule for rooms with fuel burning appliances is “outlet hole
of the same size as the ventilation hole”, a hole of 500-600 cm2,
which is to say a larger hole, could reduce the performance of the
extractor hood.

• If the hood is used in its filtering function, it will operate simply and
safely in the above conditions without the need for any of the
aforementioned measures.

• When the hood is used in its extractor function, the following rules
must be followed to obtain optimal operation:
— short and straight outlet hose
— keep bends in outlet hose to a minimum
— never install the hoses with an acute angle, they must
always follow a gentle curve only
— keep the hose as large as possible (preferably the same
diameter as the outlet hole).

• Failure to observe these basic instructions will drastically reduce the
performance and increase the noise levels of the extractor hood.

4

A

B

Description of the Appliance

• The hood is supplied as an extractor unit and can also be used with
a filtering function by fitting one charcoal filter.

• You will need an original AEG charcoal filter for this function
(Available from your local AEG Service Force Centre).

Extractor version

• In this version fumes are extracted to the outside via a hose
connected to the coupling ring A, placed in the outlet hole B. Fig. 1.

• In order to obtain the best performance the hose should have a
diameter equal to the outlet hole.

Fig. 1

• Depending on your installation the hose can be directed either
towards the ceiling or towards the walls. Fig. 2.

Fig. 2

5

E

E

E

Filter Version

• The air is filtered through a charcoal filter and returned to the
kitchen.

• You will need an original AEG charcoal filter for the filtering function.
(Available from your local AEG Service Force Centre).

• Remove the grease filters, first pull the handles upwards, then
extract the filter outwards. Fig. 3.

Fig. 3

• Fit the charcoal filter first in the upper hooks into the lower , then lock
in position using tabs E. Fig. 4.

• Refit the grease filters.

• The deflector F must be fitted over the hole B (Fig. 1) fixing it with

the screw provided. Fig. 5.

Fig. 4

F

Fig. 5
