AEG 96901K-MN User Manual

96901K-MN

Ceramic glass hob

Table de cuisson vitrocéramique

Glaskeramische kookplaat

Installation and Operating Instructions

Instructions de montage et mode d’emploi

Montage- en gebruiksaanwijzing

Dear Customer,

Please read these user instructions carefully and keep them to refer to
later.
Please pass the user instructions on to any future owner of the appli­ance.

The following symbols are used in the text:

1 Safety instructions

Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.

3 Useful tips and hints

2 Environmental information

2

Contents

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Description of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control panel layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Touch Control sensor fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Operating the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Switching the appliance on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting the heat setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Switching the outside ring on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Switching the STOP+GO function on and off. . . . . . . . . . . . . . . . . . . . . . . . . 10

Using the automatic warm-up function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Locking/unlocking the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the child safety device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Safety cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Power-Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Tips on Cooking and Frying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Examples of cooking applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Guarantee/Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Rating Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

3

Operating Instructions

1 Safety instructions

Please comply with these instructions. If you do not, any damage re-

3

sulting is not covered by the warranty.

5 This appliance conforms with the following EU Directives:

– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending

Directive 92/31/EEC

– 93/68/EEC dated 22.07.1993 CE Marking Directive

Correct use

• This appliance should be used only for normal domestic cooking and
frying of food.

• The appliance must not be used as a work surface or as a storage sur­face.

• Additions or modifications to the appliance are not permitted.

• Do not place or store flammable liquids, highly inflammable materials

or fusible objects (e.g. plastic film, plastic, aluminium) on or near the
appliance.

Children’s safety

• Small children must be kept away from the appliance.

• Only let bigger children work on the appliance under supervision.

General safety

• The appliance may only be installed and connected by trained, regis­tered service engineers.

• Built-in appliances may only be used after they have built in to suita­ble built-in units and work surfaces that meet standards.

• In the event of faults with the appliance or damage to the glass ce­ramic (cracks, scratches or splits), the appliance must be switched off
and disconnected from the electrical supply, to prevent the possibility
of an electric shock.

• Repairs to the appliance must only be carried out by trained regis­tered service engineers.

4

Safety during use

• Remove stickers and film from the glass ceramic.

• There is the risk of burns from the appliance if used carelessly.

• Cables from electrical appliances must not touch the hot surface of

the appliance or hot cookware.

• Overheated fats and oils can ignite quickly. When cooking with fat or
oil (e.g. chips) do not leave the appliance unattended.

• Switch the cooking zones off after each use.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.

• For safety reasons, the cleaning of the appliance with steam jet or

high-pressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.

• The edge of the glass ceramic can be damaged by being knocked by

the cookware.

• Cookware made of cast iron, cast aluminium or with damaged bot­toms can scratch the glass ceramic if pushed across the surface.

• Objects that melt and things that boil over can burn onto the glass
ceramic and should be removed straightaway.

• Do not use the cooking zones with empty cookware or without cook­ware.

5

Description of the Appliance

Cooking surface layout

Singlecooking zone

1200W

Triple ring cooking zone

1050/1950/2700W

Multi-purpose zone

1400/2200 W

Single cooking zone

1800W

Control panel layout

.................

On/Off
with power indicator

Display

Triple ring pilot light

6

Control panel Single cooking zone

Cooking zone indicators
Timer function

Outside/middle ring
On/Off

Timer display

STOP+GO

1800W

Heat setting selection

Double ring pilot
light

Lock

Outside

ring

On/Off

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions
are controlled by touching sensor fields and confirmed by displays and
acoustic signals.
Touch the sensor fields from above, without covering other sensor
fields.

Sensor field Function

On / Off To switch the appliance on and

off

Increase settings Increasing heat setting / time

Decrease settings Decreasing heat setting/ time

TIMER Timer Timer selection

Lock Locking/unlocking the control

panel

Stop+Go To switch the Keep Warm setting

on/off

Triple ring switch To switch outer rings

on and off

Multi-purpose zone
switch

To switch the outside ring on and
off

7

Displays

Display Description

¾ Cooking zone is switched off
u Keep warm setting Keep warm setting/STOP+GO

function is set

¿ - Ç Heat settings Heat setting is set
2 - 6 Heating setting plus

decimal point

a Automatic warm up

function

e Fault Malfunction has occurred
h Residual heat Cooking zone is still hot
l Child safety device Lock/child safety device is en-

_ Safety cut-out Safety cut-out has been activated

Intermediate heat setting is set

Automatic warm-up function is
activated

gaged

Residual heat indicator

1 Warning! Risk of burns from residual heat. After being switched off,

the cooking zones need some time to cool down. Look at the residual
heat indicator

h .

3 Residual heat can be used for melting and keeping food warm.

8

Operating the appliance

Switching the appliance on and off

Control panel Display Pilot light

Switch on Touch for 2 seconds ¾ / h lights up
Switch off Touch for 1 second h / none goes out

3 After switching on, within approx. 10 seconds a heat setting or a func-

tion must be set, otherwise the appliance automatically switches itself
off.

Setting the heat setting

Control panel Indicator

To increase Touch u to Ç
To decrease Touch Ç to ¾
To switch off Touch and at the same time ¾

9

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface
can be matched to the size of the cookware.

3 Before an outside ring can be switched on, the inside ring must be

switched on.

Triple cooking zone Sensor panel Power indicator

To switch on middle
ring

To switch on outside
ring

To switch off outside
ring

To switch off middle
ring

Roasting zone Sensor panel Power indicator

To switch on outside ring Touch for 1-2 seconds. is lit

To switch off outside ring Touch for 1-2 seconds. goes out

Touch for 1-2 seconds. One power indicator is lit.

Touch for 1-2 seconds. Two power indicators are lit.

Touch for 1-2 seconds. Second power indicator goes out.

Touch for 1-2 seconds. First power indicator goes out.

Switching the STOP+GO function on and off

The STOP+GO function simultaneously switches all cooking zones that
are switched on to the keep warm setting and then back to the heat
setting that was previously set. This function can be used to briefly in­terrupt and then continue the cooking process e.g. to take a telephone
call.

Control panel Display

To switch onTouch STOP+GO u

To switch
off

Touch STOP+GO heat setting that was previ-

ously set (not automatic
warm up function)

3 Timer functions are not stopped by STOP+GO.
3 STOP+GO locks the whole control panel except the sensor field .

10

Using the automatic warm-up function

All cooking zones are equpped with an automatic warm up function
When setting a heat setting using , when starting from
ing zone switches to full power for a certain amount of time and then
automatically switches back to the heat setting set.

¾, the cook-

Control
panel

possible
heat set-

Display

tings

Switch on
(only when starting at

Touch ¿ to Æ a (after 5 sec-

onds)

¾)

Switch off Touch Æ to ¿ / u Æ to u
Not used Touch Ç to u Ç to u

3 If during the automatic warm up a a higher heat setting is selected,

e.g. from

Á to Ã, the automatic warm up is adjusted.

3 If there is still residual heat on the cooking zone (display h), the auto-

matic warm up is not performed.

The length of time that the automatic warm up function operates de­pends on the heat setting selected.

Heat
setting

v 0:30

1 1:00

2 1:40 2. 2:40

3 4:50 3. 5:30

4 6:30 4. 8:10

5 10:10 5. 12:20

6 2:00 6. 2:30

7 3:30

8 4:30

9 ---

Length of the
automatic warm up
[min:sec]

Intermedi­ate
heat
setting

Length of the
automatic warm up
[min:sec]

11

Locking/unlocking the control panel

The control panel, with the exception of the “On/Off” sensor field, can
be locked at any time in order to prevent the settings being changed
e.g. by wiping over the panel with a cloth.

Control panel Display

Switch on Touch l (for 5 seconds)

Switch off Touch previously set heat setting

3 When you switch the appliance off, the locking function is automati-

cally switched off.

Using the child safety device

The child safety device prevents unintentional use of the appliance.

Setting the child safety device

Step Control panel Display/Signal

12

1. Switch on the appliance

(Do not set a heat setting)

2. Touch until the signal sounds Acoustic signal

3. Touch l

Appliance switches off. The child safety device is engaged.

Releasing the child safety device

Step Control panel Display/Signal

1. Switch on the appliance l

2. Touch until the signal sounds Acoustic signal

3. Touch

Appliance switches off. The child safety device is released.

¾

Overriding the child safety device

The child safety device can be released in this way for a single cooking
session; it remains activated afterwards.

Step Control panel Display/Signal

1. Switch on the appliance l

2. Touch and at the same time ¾ / acoustic signal

Until the appliance is next switched off, it can used as normal.

Using the timer

All cooking zones can use each use one of the two timer functions at
the same time.

Function Condition Outcome after the

time has elapsed

Automatic cut-out a heat setting is set acoustic signal

00 flashes

Cooking zone

switches off

Countdown timer cooking zones not in use acoustic signal

00 flashes

3 If a cooking zone is switched off, the timer function set is also switched

off.

3 If a heat setting is set on this cooking zone in addition to a countdown

timer, the cooking zone is switched off after the time set has elapsed.

13

Selecting a cooking zone

Step Control panel Indicator

1. Touch TIMER 1 x Pilot light for the first

cooking zone flashes

2. Touch TIMER 1 x Pilot light for the sec-

ond cooking zone flash­es

3. Touch TIMER 1 x Pilot light for the third

cooking zone flashes

4. Touch TIMER 1 x Pilot light for the

fourth cooking zone
flashes

5. Touch TIMER 1 x Pilot light for the fifth

cooking zone flashes

3 If the pilot light is flashing more slowly, the heat setting can be set or

modified.

3 If other timer functions are set, after a few seconds the shortest re-

maining time of all the timer functions is displayed and the corre­sponding pilot light flashes.

14

Setting the time

Step Control panel field Display

1. TIMER Select cook-

ing zone

2. Touch or for

the cooking zone se­lected

After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.

Pilot light of the cooking zone select­ed flashes

00 to 99 minutes

Switching off the timer function

Step Control panel field Display

1. TIMER Select cook-

ing zone

Pilot light of the cooking zone select­ed flashes faster
The time remaining is displayed

2. Touch for the

cooking zone select-

The time remaining counts down to

00.

ed

The pilot light goes out.
The timer function for the selected cooking zone is switched off.

Changing the time

Step Control panel field Display

1. TIMER Select cook-

ing zone

Pilot light of the cooking zone select­ed flashes faster
The time remaining is displayed

2. Touch or for

01 to 99 minutes
the cooking zone se­lected

After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.

Displaying the time remaining for a cooking zone

Step Control panel field Display

1. TIMER Select cooking

zone

After a few seconds the pilot light flashes more slowly.

Pilot light of the cooking zone select-

ed flashes faster

The time remaining is displayed

15

Switching off the acoustic signal

Step Control panel field Acoustic signal

1. Touch TIMER Acoustic signal to acknowledge.

Acoustic signal stops.

Safety cut-out

Cooking surface

• If after switching on the cooking surface, a heat setting is not set for
a cooking zone within approx. 10 seconds, the cooking surface auto­matically switches itself off.

• If one or more sensor fields are covered for longer than approx. 10
seconds, e.g. by a pan placed upon it, a signal sounds and the cooking
surface switches off automatically.

• If all cooking zones are switched off, the cooking surface automati­cally switches itself off after approx. 10 seconds.

Control panel

3 Moisture (e.g. a wet cloth) or liquid boiling over onto the control panel

immediately switches all cooking zones off.

16

Cooking zones

• If one of the cooking zones is not switched off after a certain time, or
if the heat setting is not modified, the relevant cooking zone switches
off automatically.

Heat setting Switches off after

V, 1 - 2

3 - 4

5

6 - 9

6 hours

5 hours

4 hours

1.5 hours

Power-Management

The three cooking zones front left,
front right and back right together
have a maximum possible power
available to them.
If it looks like the maximum power
of all three cooking zones is going
to be exceeded, for example by
turning on an additional cooking
zone or by turning up a heat setting, the Power Management automat­ically reduces the power of another cooking zone. The power of the
cooking zone that has been switched on for the longest time is re­duced. For two minutes the indicator for this cooking zone changes be­tween the previously set heat setting and the maximum possible heat
setting at this time. After two minutes the actual heat setting is dis­played.
The following table shows the distribution of the maximum possible
heat settings when all three cooking zones are on at the same time.

1st cooking zone 2nd cooking zone

1 - 6 8 9

7 7 9

8 8 8

17

Tips on Cooking and Frying

3

Information on acrylamides

According to the latest scientific knowledge, intensive browning of
food, especially in products containing starch, can constitute a health
risk due to acrylamides. Therefore we recommend cooking at the lowest
possible temperatures and not browning foods too much.

Cookware

• You can recognise good cookware from the bottoms of the pans. The
bottom should be as thick and flat as possible.

• Cookware made of enamelled steel or with aluminium or copper bot­toms can leave discolorations on the glass ceramic surface which are
difficult or impossible to remove.

Energy saving

2 Always place cookware on the cook-

ing zone before it is switched on.

2 If possible, always place lids on the

pans.

2 Switch cooking zones off before the

end of the cooking time, to take ad­vantage of residual heat.

2 Bottom of pans and cooking zones

should be the same size.

18

Examples of cooking applications

The information given in the following table is for guidance only.

Heat

Cooking-

set­ting

process

0 Off position

Keeping

V

1-2

2-3

3-4

4-5 Boiling

6-7

7-8

9

food

warm

Melting

Solidi-

fying

Simmer-

ing on

low heat

Steaming

Braising

Gentle

Frying

Heavy
Frying

Boiling

Searing

Deep

frying

suitable for

Keeping cooked foods

warm

Hollandaise sauce,

melting butter, chocolate,

gelatine

Fluffy omelettes, baked

eggs

Simmering rice and milk-

based dishes

Heating up ready-cooked

meals

Steaming vegetables, fish

braising meat

Steaming potatoes 20-60 mins.

Cooking larger quantities

of food, stews and soups

Frying escalopes, veal

cordon bleu, cutlets, ris-

soles, sausages, liver, roux,

eggs, pancakes, dough-

nuts

Hash browns, loin steaks,

steaks, Flädle (pancakes

for garnishing soup)

Boiling large quantities of water, cooking pasta, searing meat

(goulash, pot roast), deep frying chips

Cooking

time

as required Cover

5-25 mins. Stir occasionally

10-40 mins. Cook with lid on

25-50 mins.

20-45 mins.

60-150

mins.

Steady

frying

5-15 mins.

per pan

Tips/Hints

Add at least twice as

much liquid as rice, stir

milk dishes part way

through cooking

With vegetables add

only a little liquid (a

few tablespoons)

Use only a little liquid,

e. g.: max.

for 750 g potatoes

Up to 3 l liquid plus in-

Turn halfway through

Turn halfway through

¼ l water

gredients

cooking

cooking

19

Cleaning and Care

Take care! Risk of burns from residual heat.

1

Let the appliance cool down.

1 Warning! Sharp objects and abrasive cleaning materials will damage

the appliance. Clean with water and washing up liquid.

1 Warning! Residues from cleaning agents will damage the appliance.

Remove residues with water and washing up liquid.

Cleaning the appliance after each use

1.Wipe the appliance with a damp cloth and a little washing up liquid.

2.Rub the appliance dry using a clean cloth.

Removing deposits

1.Place a scraper on the glass ceramic surface at an angle.

2.Remove residues by sliding the blade over the surface.

3.Wipe the appliance with a damp cloth and a little washing up liquid.

4.Rub the appliance dry using a clean cloth.

Remove

Type of dirt

sugar, food containing sugar yes ---

plastics, tin foil yes ---

limescale and water rings --- yes

fat splashes --- yes

shiny metallic discolorations --- yes

*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops

imme-

diately

when the appliance has

cooled down

using

a scraper*

cleaner for glass ce-

ramic or stainless

steel*

3 Remove stubborn residues with a cleaner for glass ceramic or stainless

steel.

3 Scratches or dark stains on the glass ceramic that cannot be removed

do not however affect the functioning of the appliance.

20

What to do if …

Problem Possible cause Remedy

The cooking zones will not
switch on or are not func­tioning

The residual heat indicator
is not displaying anything

The automatic warm up
function is not switching
itself on

Acoustic signal sounds and
appliance switches itself on
and then off again; after 5
seconds another acoustic
signal sounds

Display changes between
two heat settings

More than 10 seconds have
passed since the appliance
was switched on

The child safety device is
switched on

Several sensor fields were
touched at the same time

The sensor fields are partly
covered by a damp cloth or
with liquid

Safety cut-out has been
triggered

STOP+GO is activated Switching off STOP+GO

The cooking zone was only
on for a short time and is
therefore not hot

There is still residual heat
on the cooking zone h

The highest heat setting is
set Ç

The heat setting was set
using the sensor field

The On/Off sensor field has
been covered up, e.g. by a
cloth

Power Management is re­ducing the power of this
cooking zone

l

Switch the appliance on
again.

Deactivate the child safety
device (See the section
“Child safety device”)

Only touch one sensor field

Remove the cloth or the
liquid.
Switch the appliance on
again.

Switch the appliance on
again

If the cooking zone is sup­posed to be hot, call the
Customer Service Depart­ment.

Let the cooking zone cool
down

The highest heat setting
has the same power as the
automatic warm up func­tion

1. Switching off the cook-

ing zone

1. Set the cooking zone us-

ing the sensor field

Do not place any objects
on the control panel

See section “Power Man­agement“ in the Operating
the Appliance chapter

21

Problem Possible cause Remedy

_ is lit Overheating protection for

the cooking zone has been
triggered

e and number are dis-

played

If you are unable to remedy the problem by following the above
suggestions, please contact your dealer or the Customer Care De­partment.

Electronics fault Disconnect the appliance

Switch off the cooking
zone. Switch the cooking
zone on again

from the electrical supply
for a few minutes (Take the
fuse out of the house’s wir­ing system)
If after switching on again,

e is displayed again, call

the customer service de­partment

1 Warning! Repairs to the appliance are only to be carried out by quali-

fied service engineers. Considerable danger to the user may result from
improper repairs.

3 If the appliance has been wrongly operated, the visit from the customer

service technician or dealer may not take place free of charge, even
during the warranty period.

Disposal

Packaging material

2

The packaging materials are environmentally friendly and can be recy­cled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.

2 Old appliance

The symbol
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec­trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed infor­mation about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.

22

W on the product or on its packaging indicates that this

Installation Instructions

Safety instructions

The laws, ordinances, directives and standards in force in the country of
use are to be followed (safety regulations, proper recycling in accord­ance with the regulations, etc.)
Installation may only be carried out by a qualified electrician.

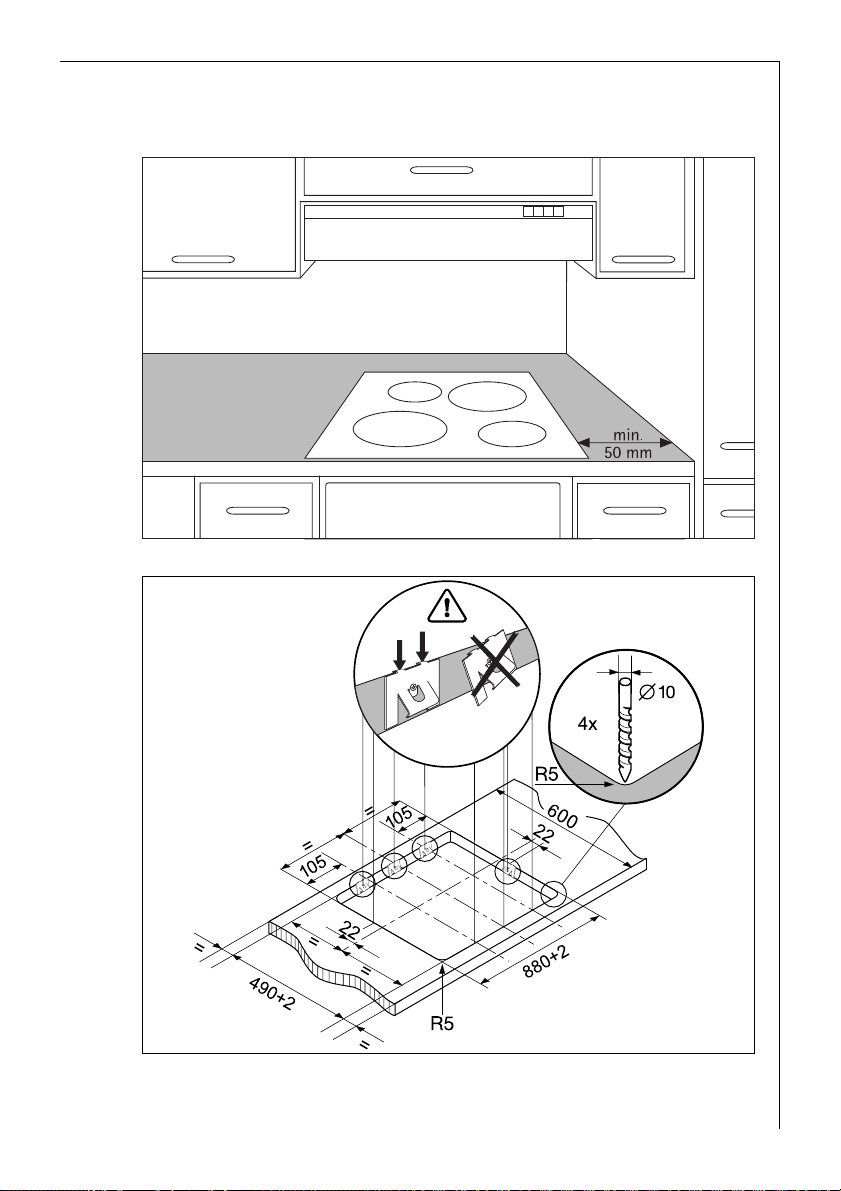

The minimum distances to other appliances are to be observed.

Drawers may only be installed with a with protective board directly
under the appliance.

The cut surfaces of the work top are to be protected against moisture
using a suitable sealant.
The sealant seals the appliance to the work top with no gap.
Do not use silicon sealant between the appliance and the work top.
Avoid installing the appliance next to doors and under windows. Other­wise hot cookware may be knocked off the rings when doors and win­dows are opened.

1 WARNING!

Risk of injury from electrical current.

• The electrical mains terminal is live.

• Make electrical mains terminal free of voltage.

• Observe connection schematic.

• Observe electrical safety rules.

• Ensure anti-shock protection through correct installation by a quali-

fied electrician.

• The appliance must be connected to the electrical supply by a quali­fied electrician.

1 IMPORTANT!

Risk of injury from electrical current.
Loose and inappropriate plug and socket connections can make the ter­minal overheat.

• Have the clamping joints correctedly installed by a qualified electri­cian.

• Use strain relief clamp on cable.

• In the event of single-phase or two-phase connection, the appropri-

ate mains cable of type H05BB-F Tmax 90° (or higher) must be used.

• If this appliance’s mains cable is damaged, it must be replaced by a
special cable (type H05BB-F Tmax 90°; or higher). The latter is availa­ble from the Customer Care Department.

23

A device must be provided in the electrical installation which allows the
appliance to be disconnected from the mains at all poles with a contact
opening width of at least 3 mm.
Suitable isolation devices include line protecting cut-outs, fuses (screw
type fuses are to be removed from the holder), earth leakage trips and
contactors.

Guarantee/Customer Service

Weitere Kundendienststellen im Ausland

In diesen Ländern gelten die Garantiebedingungen der örtlichen Part­ner. Diese können dort eingesehen werden.

Further after-sales service agencies overseas

In these countries our AEG agents’ own guarantee conditions are appli­cable. Please obtain further details direct.

Autres agences étrangères assurant le service après-vente

Dans ces pays, les conditions de garantie des concessionnaires de la ré­gion sont valables. Vous pouvez les consulter sur place.

Otros puntos de Postventa en el extranjero

En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.

24

Ulteriori uffici del servizio tecnico assistenza clienti all’estero

In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.

Serviços de assistência técnica no estrangeiro

Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.

További vevöszolgálati irodák külföldön

Ezekben az országokban a mi AEG vevöszolgálatainknál saját
jótállási feltételek alkalmazhatók. A további adatokat kérjük közvet­lenül szerezzék be.

Servisne službe

Na garancijskem listu boste našli seznam pooblašèenih servisnih
služb AEG.

U.A.E. Abu Dhabi

Universal Trading Company
P.O. Box 43 99
Tel.: [phone]
Service Center 6733974

Egypt

Middle East Commercial
Center
4 Salah El Dein St. - 2nd floor
Heliopolis, Kairo
Egypt
Tel.: [phone]

Australia

The Andi-Co Group
1 Stamford Road
Oakleigh VIC 3166
Tel.: [phone]
Fax: [phone]
www.andico.com.au

Bahrain/Arabian Gulf

A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel.: [phone]

Bulgaria

Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: [phone]
Fax. [phone]

Cyprus

Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Box 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699

Estonia

Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: [phone]
Fax: [phone]

Hong Kong

Dah Chong Hong Ltd.
20 Kai Cheung Road
Kowloon Bay
Kowloon - Hong Kong
Tel.: [phone]
Fax: [phone]

Jordan

Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50

Canada

EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: [phone]
Fax: [phone]

Korea (South)

Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku 135-010
Seoul
Telefon [phone]

Croatia

Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: [phone]
Fax: [phone]

Kuwait/Arabian Gulf

Ali Al-Ghanim Est.
P.O. Box 21540 - Safat
Tel.: [phone]
Fax: [phone]

Lebanon

Adib & Assaferi
P.O. Box 539
Tripoli

Latavia

Electrolux Latavia Ltd.
Terlaton Street 42/44
1011 Riga
Tel.: [phone]
Fax: [phone]

Lithuania

Electrolux Lithuania
Verkui 29
2600 Vilnus
Tel.: [phone]
Fax: [phone]

Malta

ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644

Mauritius

Happy World Centre Ltd.
P.O. 7 5 4
1 Chausee Street
Port Louis
Tel.: 25355

Namibia

AEG NAMIBIA (PTY)
LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: [phone]
Fax: [phone]

New Zealand

Monaco Corporation Ltd.
10 Rothwell Avenue
Albany - Auckland
4399 Auckland 1
New Zealand
Tel.: [phone]
Fax: [phone]

Syria

WATTAR CO.
P.O. Box 36109
Mazzeh - Damascus
Direct Phone: [phone]
Fax: [phone]

Iran

ARIAN International Develop­ment Co.
AEG Showroom
Shariati, Balatar as Safar
Teheran / Iran
Phone No. Showroom:
021 / 285 513 / 4
Phone No. Service:
021 / 312 27 67 / 8

Poland

Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: [phone]
fax: [phone]

Russia

Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: [phone]
Fax: [phone]

25

Israel

Evis Ltd.
Tadiran-Ampa Service
10 Gibonay Israel Street
New Industrial Zone
Netanya, 42504
Israel

Japan

Electrolux Japan Ltd.
Domestic Appliances
Department
Maruzen Showa Warehouse
Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: [phone]
Fax: [phone]

Thailand

Olympia Thai Tower, 444
Rachadapiser Road
Samsennok- Huaykwang
10320 Bangkok
Thailand
Tel.: [phone]
Fax: [phone]

Hungary

Electrolux Lehel KFT
Erzsébet Királyné útja 87.
1142 Budapest
Tel.: [phone]

Malaysia

Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: [phone]
Fax: [phone]

Singapore

Group Pte Ltd.
833 Bukit Timah Road
Unit no. 01-11 Royalville
279887 Singapore
Tel.: [phone]
Fax: [phone]

Slovakia Rep.

Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: [phone], 4355
Fax: [phone]

Saudi Arabia

Alia Trading Corporation
P.O. Box 4101
Meccak Street
Riyadh
Tel.: [phone]
Al Nahas Est.
Al Sitteeng Street
P.O. Box 1 15 29
Jeddah
Tel.: [phone]
Service center 6646583

Slovenia

Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: [phone]
Fax: [phone]

South Africa

AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: [phone]

26
