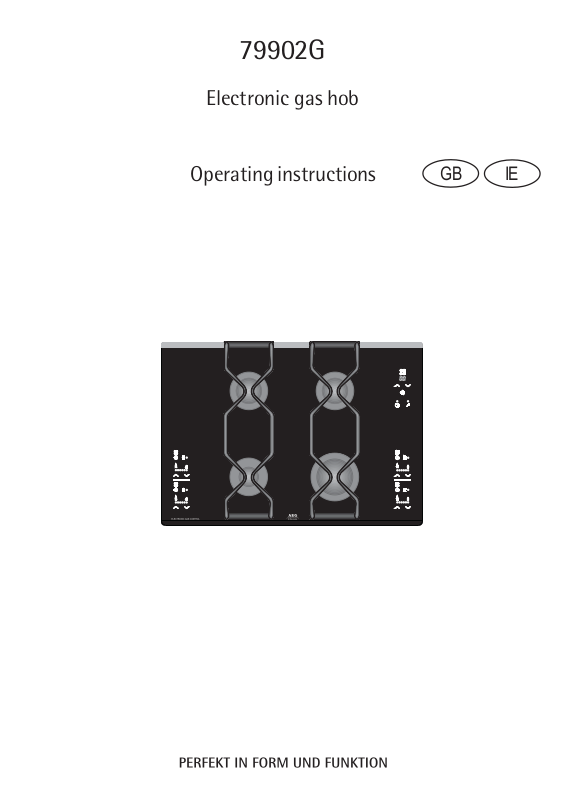

AEG 79902G-M User Manual
79902G
Electronic gas hob
Operating instructions
GB
IE
The
The innovative features of your gas hob
Your new gas hob offers several innovative
functions that distinguish it from conventional
gas hobs.
Electronic control of all functions.
Touch controls to activate the hob
functions simply by touching them with a
finger.
Electronic Timer to programme your
cooking.
Automatic reignition of the burners if
the flame is accidentally extinguished.
Residual heat indicator to advise that
the pan supports and the burners are still
hot.
2
Children safety device to prevent the
controls from being accidentally operated.
General shutdown to turn off all the
burners at once for an emergency.
Safety device in case of power failure or
burner ignition failure.
Contents
For the User
The innovative features of your gas hob ................................................................................2
For your safety ................................................................................................................................... 4
Description of the hob .................................................................................................................... 6
Operating instructions ....................................................................................................................7
Touch controls .............................................................................................................................. 7
How to light a burner ...............................................................................................................8
How to turn off a burner ......................................................................................................... 9
In case of ignition failure ........................................................................................................ 9
In case of accidental extinguishing (automatic reignition) ...................................... 10
How to turn off all the burners at once ............................................................................ 11
Burner Safety Cut-off Function ............................................................................................ 11
Hob Safety Cut-off Function .................................................................................................. 11
Protection against overheating ............................................................................................12
Child Safety Function ................................................................................................................ 1 2
The Electronic Timer ................................................................................................................... 1 3
How to programme a burner to switch off ...................................................................... 14
How to set the Minute Minder Function .......................................................................... 16
Safety and energy-saving advice ...............................................................................................17
Cooking Table .................................................................................................................................... 1 8
Cleaning and maintenance ...........................................................................................................19
Something not working? ...............................................................................................................21
Service and Spare Parts...................................................................................................................23
Customer Care ....................................................................................................................................23
Guarantee Conditions ..................................................................................................................... 2 4
For the installer
Instructions for the Installer .........................................................................................................2 5
Important safety requirements ....................................................................................................2 6
Electrical connections......................................................................................................................29
Wiring diagram ............................................................................................................................ 31
Conversion to LPG ............................................................................................................................32
Building In ........................................................................................................................................... 36
Installation possibilities ...........................................................................................................38
3
For your safety
This new appliance is easy to use. Nevertheless, it is important to carefully read this booklet
before installing or using the appliance for the first time. This will allow you to obtain best
performance, avoid improper actions, use the appliance in complete safety and also respect the
environment.
If you need assistance, contact our Customer Care Department on
08705 350350.
Installation
This appliance must be installed and serviced
by a competent person as stated in the Gas
Safety ( Installation and Use) Regulations
Current Editions and the IEE Wiring
Regulations.
For appliances installed in the Republic of
Ireland please refer to NSAI-Domestic Gas
Installations I.S.813 Current Editions and the
ETCI Rules for Electrical Installations.
Installation of the appliance and connection
to the power supply must only be carried
out by QUALIFIED PERSONNEL. Before any
intervention, make sure the appliance is
DISCONNECTED from the power supply.
Ensure that air can freely circulate around
the appliance. Poor ventilation produces a
lack of oxygen.
Ensure that the gas and electrical supply
complies with the type stated on the rating
plate, located below the front edge of the
glass top.
This appliance is not connected to a
combustion products evacuation device. It
must be installed and connected in accordance
with current installation regulations. Particular
attention shall be given to the relevant
regulations regarding ventilation.
When in use a gas cooking appliance will
produce heat and moisture in the room in
which it has been installed. Ensure there is a
continuous air supply, keeping air vents in
good condition or installing a cooker hood
with a venting hose.
When using the hob for a long period time,
the ventilation should be improved, by
opening a window or increasing the
extractor speed.
After unpacking the appliance, make sure
the product is not damaged and that the
power cable is in perfect condition.
Otherwise, contact the dealer before
installing the appliance.
The manufacturer declines any liability
should these safety measures not be
observed.
Child Safety
This hob is designed to be operated by
adults. Do not allow children to play near or
with the hob. It is highly recommended
to activate the child safety function every
time the hob is not operated.
The hob gets hot during use and some time
after it is switched off. The hob is supplied
with special indicators for the residual heat
(see chapter “How to light a burner”).
Children should be kept away from the
appliance until it has cooled down and the
residual heat indicators are off.
During use
This instruction booklet must be kept with
the appliance for any future reference. If the
appliance is sold or transferred to another
person, ensure the booklet is passed on to
the new user.
This hob is intended for domestic cooking
only. It is not designed for commercial or
industrial purposes.
It is dangerous to modify or try to modify
the characteristics of this product.
4
Keep the appliance clean. Food residuals
increase the risk of fire.
This appliance cannot be cleaned with steam
or with a steam cleaning machine.
In case of malfunctions, never attempt to
repair the appliance on your own. Repairs
carried out by unqualified persons can cause
damage and accidents. Refer to the contents
of this booklet (see chapter “Something not
working”). If you do not find the information
required, contact the nearest Service Force
Centre. Servicing of this appliance must be
carried out by an authorised Service
Engineer.
Always insist on genuine spare parts.
After using the appliance, deactivate it by
using the main ON/OFF touch control and
make sure the relevant red indicator is off.
Then, lock all the hob controls by touching
the “Lock” Control .
When using other electrical appliances,
ensure the cable does not come into contact
with the hot surfaces of this cooking
appliance.
Environmental Information
All the materials used are environment
friendly and recyclable. Please make your
contribution to safeguarding the
environment by using the special
differentiated collection channels.
Dismantled or no longer used appliances are
not worthless waste. Through ecological
disposal, various materials used in the
production of your appliance can be
recycled.
Find out about the current possibilities of
disposal from your specialised dealer, or from
your local Council.
When disposing of an old appliance, make
it unusable, by cutting off the cable.
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
Guide to Use the instructions
The following symbols will be found in the text
to guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental Information
These instructions are only valid for countries
whose identification symbols are given on the
cover of the instruction booklet and on the
appliance.
5
Description of the hob
Timer control
zone
Rear left
burner
control
zone
Front left
burner
control zone
Semirapid
burner
Auxiliary
burner
Semirapid
burner
Rapid
burner
Child
Safety
Control
Main
ON/OFF
switch
Rear right
burner
control
zone
Front right
burner
control zone
6
Operating instructions
Before using the appliance, remove all
packaging, including the advertising
labels and any protective film.
Touch Controls
The hob is supplied with special Touch Controls.
To operate your hob, simply touch the required
control with a fingertip.
Ensure to only touch one control at a time during
use.
Here follow the symbols for the main Touch
Controls, and the relevant indicators
Main ON/OFF Touch Control
Burner Ignition Touch Control
Flame level indicators
Increasing Touch Control for the flame
level
Decreasing Touch Control for the
flame level
Residual heat indicator
Burner
control zone
7
How to light a burner
1. Touch the main ON/OFF Control for
about 3 seconds to switch on the hob. The
red indicator above the touch control lights
up, an acoustic signal sounds and the hob
is ready to use.
2. Touch the Burner Ignition Touch Control
of the required burner. The flame level
indicators located right above the symbols
and illuminate.

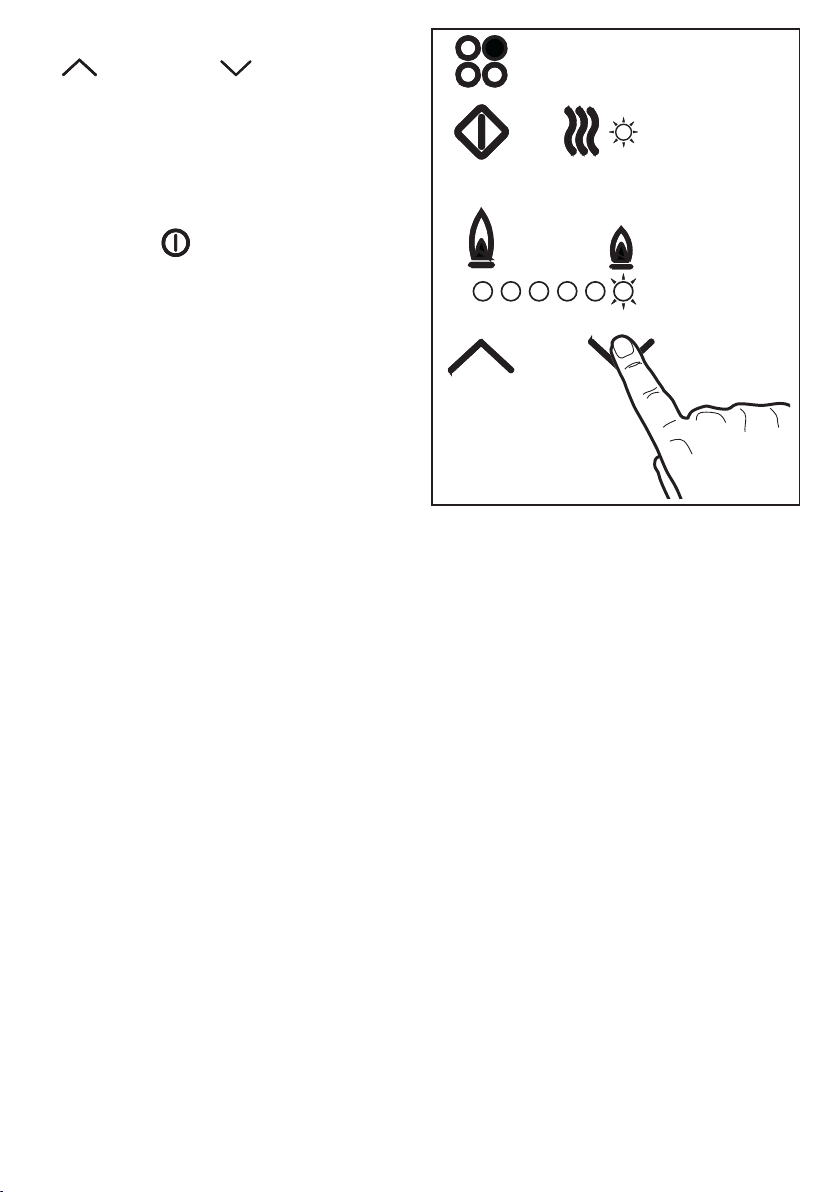

3. Within about 3 seconds, touch the
Increasing or Decreasing Touch
Control to light the burner.
- If touch control is selected, the burner
automatically lights at maximum flame level
(all the flame level indicators illuminate).
8
- If touch control is selected, the burner
automatically lights at medium flame level
(three flame level indicators illuminate).
4. To adjust the burner flame level, use the
Increasing or Decreasing Touch
Control.
The residual heat indicator lights up
immediately after the burner is lit.
This means that the cooking zone is getting
hot: the indicator remains on until the pan
support and the burner have cooled down.
How to turn off a burner
1. To turn off a burner press the relevant Burner
Ignition Touch Control . All the flame
level indicators go off.
The residual heat indicator remains on until
the pan support and the burner have cooled
down.
In case of ignition failure
The hob ignition device generates a series of
small sparks for about 6 seconds.
If the flame does not light during this period,
the gas flow to the burner is interrupted. After
3 seconds, the ignition device automatically
repeats the ignition procedure for another 6
seconds.
After three failed ignition attempts, a safety
device is set on the burner. The flame level
indicators flash.
Caution! When the safety device is set
on a burner, the burner controls cannot
be operated for about 60 seconds.
9
After 60 seconds, you can remove the safety
device on the burner by touching both the
Increasing Controls and the Decreasing
Control at the same time.
Then, follow the instructions given in the
paragraph “How to light a burner”.
Caution! Check that the burner cap and
crown are correctly positioned (see
diagram).
If the ignition problem persists, refer to
chapter “Something not working”.
Never use a manual spark gas-lighter if
the burner ignition device does not work
correctly. If necessary, use a match.
In case of accidental
extinguishing (automatic
reignition)
If the burner flame is accidentally extinguished
(draughts, spilling of liquids, etc.), the gas flow is
immediately interrupted.
After about 20 seconds,
automatically repeats the ignition procedure
Upon reignition, the burner flame is first set at
maximum level, then it is automatically adjusted
to the level set before it was accidentally
extinguished.
If three consecutive reignition attempts fail, a
safety device is set on the burner. The flame
level indicators and the residual heat indicator
flash.
Caution! When the safety device is set
on a burner, the burner controls cannot
be operated for about 60 seconds.
the ignition device
Burner
Cap
Burner
crown
.
Spark
plug
Thermocouple
After 60 seconds, you can remove the safety
device on the burner by touching both the
Increasing Controls and the Decreasing
Control at the same time.
Then, follow the instructions given in the
paragraph “How to light a burner”.
10
How to turn off all the
burners at once
In case of unexpected safety hazard (spilling of
liquids, children hazard, etc.), you can
immediately turn off all the hob burners at once
by touching the main ON/OFF Control .
Burner Safety Cut-off
Function
If you leave one or more burners lit and
unattended for a long time (that is, you don’t
touch any control for at least 4 hours), each lit
burner is automatically turned off and a safety
device is set on it.
If you select the burner that doesn’t work
with the Timer Control Code number
10 flashes in the cooking time display.
Caution! When the safety device is set
on a burner, the burner controls cannot
be operated for about 60 seconds.
After 60 seconds, you can remove the safety
device on the burner by touching both the
Increasing Controls and the Decreasing
Control at the same time.
Then, follow the instructions given in the
paragraph “How to light a burner”.
Hob Safety Cut-off
Function
If no burner is on but the hob is activated (the
red indicator above the main ON/OFF touch
control is on), the hob is automatically
switched off if no control is operated within 30
minutes.
11
Protection against
overheating
If the hob is used intensively, e.g. several burners
at maximum level for a long time, a temperature
sensor detects possible overheating and
automatically adjusts all the lit burners to
minimum.
If the hob temperature keeps rising although
the flame level has been reduced, all the lit
burners are automatically turned off and a safety
device is set on all the four burners.
If you select all the burners with the Timer
Control (one at a time) Code number
9 flashes in the cooking time display.
Caution! When the safety device is set
on all the burners, their controls cannot
be operated for about 60 seconds.
After the 60 seconds, you can reactivate all the
burners by touching the Increasing Control
and the Decreasing Control of one of the
four burners at the same time.
Once the safety device has been removed, wait
until the hob has cooled down before using it
again.
Child Safety Function
To avoid children operating the hob controls, it
is possible to lock them.
1. Touch the “Lock” Control for about 3
seconds. The red indicator next to the “Lock”
symbol lights up and an acoustic signal
sounds.
Now all the hob controls are locked, except the
main ON/OFF Touch Control.
Any lit burner keeps operating, but cannot be
adjusted.
12
Loading...
