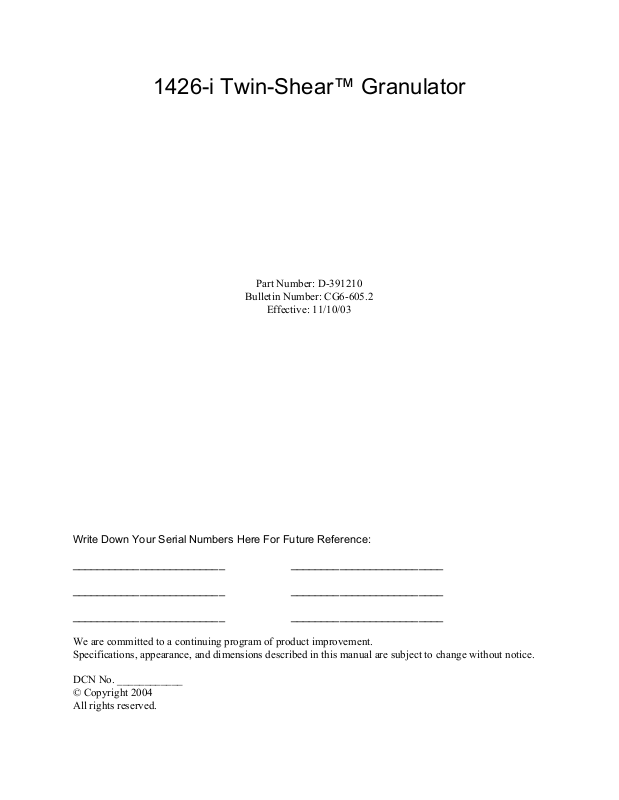

AEC Granulator User Manual

1426-i Twin-Shear™ Granulator

Part Number: D-391210

Bulletin Number: CG6-605.2

Effective: 11/10/03

Write Down Your Serial Numbers Here For Future Reference:

_________________________ _________________________

_________________________ _________________________

_________________________ _________________________

We are committed to a continuing program of product improvement.
Specifications, appearance, and dimensions described in this manual are subject to change without notice.

DCN No. ____________
© Copyright 2004
All rights reserved.

Please note that our address and phone information has changed.
Please reference this page for updated contact information.

These manuals are obsolete and are provided only for their technical information, data and capacities.
Portions of these manuals detailing procedures or precautions in the operation, inspection, maintenance
and repair of the products may be inadequate, inaccurate, and/or incomplete and shouldn’t be relied
upon. Please contact the ACS Group for more current information about these manuals and their
warnings and precautions.

Parts and Service Department

The ACS Customer Service Group will provide your company with genuine OEM quality parts manufactured to engineering
design specifications, which will maximize your equipment’s performance and efficiency. To assist in expediting your phone
or fax order, please have the model and serial number of your unit when you contact us. A customer replacement parts list
is included in this manual for your convenience. ACS welcomes inquiries on all your parts needs and is dedicated to
providing excellent customer service.

For immediate assistance, please contact:

• North, Central and South America, 8am – 5pm CST [phone] for drying, conveying, heating and cooling
and automation. For size reduction: [phone].
North America, emergencies after 5pm CST [phone]

North America email: [e-mail]

• Mexico, Central & South America
Email: [e-mail]

• Europe, Middle East & Africa [phone]

Email: [e-mail]

• India [phone]

Email: [e-mail]

• Asia/Australia [phone]

Email: [e-mail]

Sales and Contracting Department

Our products are sold by a worldwide network of independent sales representatives. Contact our Sales Department for the
name of the sales representative nearest you.

Let us install your system. The Contract Department offers any or all of these services: project planning; system packages
including drawings; equipment, labor, and construction materials; and union or non-union installations.

For assistance with your sales or system contracting needs please Call:

North, Central and South America [phone] or [phone] Monday–Friday, 8am–5pm CST

Europe/Middle East/Africa [phone]
India [phone]
Asia/Australia [phone]

Facilities:

ACS offers facilities around the world to service you no matter where you are located. For more information, please visit us at
www.acscorporate.com

United States:

ACS Schaumburg – Corporate Offices

1100 E. Woodfield Road
Suite 588
Schaumburg, IL 60173
Phone: + 1 847 273 7700
Fax: + 1 847 273 7804

ACS New Berlin – Manufacturing Facility

2900 S. 160th Street
New Berlin, WI 53151
Phone : [phone]
Fax: + 1 262 641 8653

Asia/Australia:

ACS Suzhou

109 Xingpu Road SIP
Suzhou, China 215126
Phone: + 86 8717 1919
Fax: [phone]

Europe/Middle East/Africa:

ACS Warsaw

Ul. Działkowa 115
02-234 Warszawa
Phone: + 48 22 390 9720
Fax: [phone]

India

ACS India

Gat No. 191/1, Sandbhor Complex
Mhalunge, Chakan, Tal Khed,
Dist. Pune 410501, India
Phone: [phone]
Fax: + 91 20 40147576

1426-i Granulator ii

Shipping Info

Unpacking and Inspection

You should inspect your granulator for possible shipping damage.

Thoroughly check the equipment for any damage that might have occurred in transit, such as
broken or loose wiring and components, loose hardware and mounting screws, etc.

In the Event of Shipping Damage

According to the contract terms and conditions of the Carrier, the responsibility of the
Shipper ends at the time and place of shipment.

Notify the transportation company’s local agent if you discover damage.

Hold the damaged goods and packing material for the examining agent’s inspection. Do not

return any goods before the transportation company’s inspection and authorization.

File a claim with the transportation company. Substantiate the claim by referring to the
agent’s report. A certified copy of our invoice is available upon request. The original Bill of
Lading is attached to our original invoice. If the shipment was prepaid, write us for a
receipted transportation bill.

Advise customer service regarding your wish for assistance and to obtain an RMA (return
material authorization) number.

If the Shipment is Not Complete

Check the packing list as back-ordered items are noted on the packing list. You should have:

˛ Granulator

˛ Bill of lading

˛ Packing list

˛ Operating and Installation packet

˛ Electrical schematic and panel layout drawings

˛ Component instruction manuals

Re-inspect the container and packing material to see if you missed any smaller items during
unpacking.

If the Shipment is Not Correct

If the shipment is not what you ordered, contact the shipping department immediately. For
shipments in the United States and Canada, call 1 [phone]; for all other countries, call
our international desk at [phone]. Have the order number and item number available.
Hold the items until you receive shipping instructions.

Returns

Do not return any damaged or incorrect items until you receive shipping instructions from the
shipping department.

1426-i Granulator iii

Table of Contents

CHAPTER 1: SAFETY.................................................................. 5

1-1 How to Use This Manual ............................................................................................ 5

Safety Symbols Used in this Manual.....................................................................5

1-2 General Safety Regulations........................................................................................ 6

1-3 Responsibility............................................................................................................. 6

1-4 Warnings and Precautions .........................................................................................7

CHAPTER 2: FUNCTIONAL DESCRIPTION............................... 9

2-1 Models Covered in This Manual .................................................................................9

2-2 General Description ................................................................................................... 9

2-3 Typical Features and Components ........................................................................... 10

Hopper...............................................................................................................10

Cutting Chamber ................................................................................................10

Drive System...................................................................................................... 10

Discharge System ..............................................................................................10

Base ..................................................................................................................10

2-4 Safety Features ....................................................................................................... 11

Motor Starter ...................................................................................................... 11

Safety Switches..................................................................................................11

Safety Tags........................................................................................................11

CHAPTER 3: INSTALLATION.................................................... 12

3-1 Uncrating the Equipment.......................................................................................... 12

3-2 Belt Tensioning ........................................................................................................ 12

3-3 Electrical Connections.............................................................................................. 13

3-4 Accessing the Cutting Chamber ...............................................................................14

3-5 Closing the Cutting Chamber ...................................................................................14

3-6 Initial Start-up........................................................................................................... 15

CHAPTER 4: OPERATION......................................................... 16

4-1 Start-up.................................................................................................................... 16

4-2 Feeding the Granulator ............................................................................................ 16

4-3 Clearing a Jammed Cutting Chamber....................................................................... 16

4-4 Shut-down ............................................................................................................... 17

CHAPTER 5: MAINTENANCE ................................................... 18

5-1 Preventative Maintenance Schedule......................................................................... 18

5-2 Lubrication ...............................................................................................................18

5-3 Interlock Switches .................................................................................................... 19

5-4 Replacing and Adjusting the Knives ......................................................................... 20

Rotor Knives ......................................................................................................20

Bed Knives.........................................................................................................21

5-5 Sharpening the Knives ............................................................................................. 22

Rotor Knife Sharpening ...................................................................................... 22

Bed Knife Sharpening ........................................................................................ 22

1426-i Granulator iv

5-6 Adjusting Belt Tension ............................................................................................. 23

5-7 Motor Drive Belt Replacement.................................................................................. 24

CHAPTER 6: TROUBLESHOOTING ......................................... 25

6-1 Introduction.............................................................................................................. 25

6-2 Electrical Faults ....................................................................................................... 26

6-3 Processing Faults .................................................................................................... 27

6-4 Mechanical Faults .................................................................................................... 28

CHAPTER 7: APPENDIX............................................................ 29

7-1 Customer Satisfaction Warranty Program................................................................. 29

7-2 Drawings and Specifications (including Options)....................................................... 30

Features ............................................................................................................30

Specifications.....................................................................................................30

Dimensions ........................................................................................................ 31

Vertical Cross Section ........................................................................................ 33

Longitudinal Cross Section.................................................................................34

7-3 Spare Parts List ....................................................................................................... 35

7-4 Typical Wiring Diagram ............................................................................................ 36

7-5 Technical Assistance ............................................................................................... 37

Parts Department ...............................................................................................37

Service Department............................................................................................37

Sales Department ..............................................................................................37

1426-i Granulator Chapter 1: Safety 5 of 37

Chapter 1: Safety

1-1 How to Use This Manual

Use this manual as a guide and reference for installing, operating, and maintaining your
granulator. The purpose is to assist you in applying efficient, proven techniques that enhance
equipment productivity.

This manual covers only light corrective maintenance. No other maintenance should be
undertaken without first contacting a service engineer.

The Functional Description section outlines models covered, standard features, and safety
features. Additional sections within the manual provide instructions for installation, pre­operational procedures, operation, preventive maintenance, and corrective maintenance.

The Installation chapter includes required data for receiving, unpacking, inspecting, and setup
of the granulator. We can also provide the assistance of a factory-trained technician to help
train your operator(s) for a nominal charge. This section includes instructions, checks, and
adjustments that should be followed before commencing with operation of the granulator.
These instructions are intended to supplement standard shop procedures performed at shift,
daily, and weekly intervals.

The Operation chapter includes a description of electrical and mechanical controls, in
addition to information for operating the granulator safely and efficiently.

The Maintenance chapter is intended to serve as a source of detailed assembly and
disassembly instructions for those areas of the equipment requiring service. Preventive
maintenance sections are included to ensure that your granulator provides excellent, long
service.

The Troubleshooting chapter serves as a guide for identification of most common problems.
Potential problems are listed, along with possible causes and related solutions.

The Appendix contains technical specifications, drawings, schematics, parts lists, and
available options. A spare parts list with part numbers specific to your machine is provided
with your shipping paperwork package. Refer to this section for a listing of spare parts for
purchase. Have your serial number and model number ready when ordering.

Safety Symbols Used in this Manual

The following safety alert symbols are used to alert you to potential personal injury hazards.
Obey all safety messages that follow these symbols to avoid possible injury or death.

DANGER! DANGER indicates an imminently hazardous situation that, if not avoided,

will result in death or serious injury.

WARNING! WARNING indicates a potentially hazardous situation or practice that, if

not avoided, could result in death or serious injury.

Caution! CAUTION indicates a potentially hazardous situation or practice that, if

not avoided, may result in minor or moderate injury or in property damage.

1426-i Granulator Chapter 1: Safety 6 of 37

1-2 General Safety Regulations

This machine uses knives for the performance of its intended use. Consequently, it can be a
dangerous machine to operate and maintain unless these safety regulations are followed.

These regulations should be read, understood and periodically reviewed by all personnel
involved in any way with this machine.

Never operate or remove any machine components that are secured by wrench-type fasteners
unless the motor is electrically locked out and the rotor is motionless.

Never operate the machine or jog the rotor unless the cutting chamber covers, discharge
chute, or any guards or covers are in place and secure. Do not circumvent the safety
interlocks.

Prior to clearing a jam or performing any maintenance, the motor should be turned off and
electrically locked out. Be sure that the rotor has come to a stop. Hands must not be inserted
into the machine to clear the jam.

Do not extend any part of the body into feed roll openings or discharge area unless the motors
are electrically locked out and the rotor and feed rolls are motionless.

Never extend fingers through holes in screen.

Be sure that the v-belts are properly aligned and that tension is at its maximum.

Extreme care should be taken to see that all bolts are properly tightened at all times. During
the operation of the machine, rotor knife bolts may come loose. Although fine threads are
used on the rotor knife bolts because vibration does not easily loosen them, you should
inspect the tightness of the bolts frequently.

This machine is designed for the granulation of plastic materials. Do not feed any other
materials into the machine.

1-3 Responsibility

These machines are constructed for maximum operator safety when used under standard
operating conditions and when recommended instructions are followed in the maintenance
and operation of the machine.

All personnel engaged in the use of the machine should become familiar with its operation as
described in this manual.

Proper operation of the machine promotes safety for the operator and all workers in its
vicinity.

Becoming familiar with materials, inspection, speed limitations, screens, and guard
maintenance and total user responsibility will assist you in learning potential areas in need of
observation for danger.

Each individual must take responsibility for observing the prescribed safety rules as outlined.
All caution, warning and danger signs must be observed and obeyed. All actual or potential
danger areas must be reported to your immediate supervisor.

1426-i Granulator Chapter 1: Safety 7 of 37

1-4 Warnings and Precautions

Our granulators are designed to provide safe and reliable operation when installed and
operated within design specifications, following national and local safety codes.

To avoid possible personal injury or equipment damage when installing, operating, or
maintaining this granulator, use good judgment and follow these safe practices:

˛ LEARN AND OBEY your company’s safety policy regarding granulating

equipment.

˛ MOVING OR LIFTING THE GRANULATOR: Although our equipment is built

and engineered for great ruggedness in operation, care must be taken when moving
the machine along the floor or lifting it. Damage may occur to sheet metal covers,
electrical cabinets, or small brackets if pressure is applied to them when moving the
granulator. When lifting the granulator, be certain of total machine weight and the
capability of the lifting equipment. (See the Granulator Specification Sheets for
machine weights and dimensions.)

˛ GRANULATOR LOCATION: Adequate area for routine maintenance should be

provided in order to open the machine for knife, screen, or cleanout service. Proper
service area clearances also should allow people who are working on the machine to
be clearly visible to others, thereby reducing the potential safety hazards.

˛ SAFE HOUSEKEEPING: The work area must be kept clean and uncluttered during

periods of operation or maintenance. No hand tools or other metal objects should be
left on or around the machine. Any tools or other metal objects that mistakenly fall
into the hopper feed opening can cause severe damage to internal cutting chamber,
rotor and screen components.

˛ SAFETY GLASSES OR A FACE SHIELD MUST ALWAYS BE WORN when

servicing or operating the machine. Although our machines are designed for the
maximum in flyback control, caution must be used when operating near the hopper
feed opening in order to guard against unexpected material flyback.

˛ EAR PROTECTION may be required when operating the machine during

granulation of very hard or noisy materials. The Occupational Safety and Health Act
of 1970 has established guidelines for Permissible Noise Exposures (OSHA 1910.95)
that should be followed.

˛ NEVER attempt to operate the granulator unless it is fully assembled with all guards

and interlocks in place and functional.

˛ OBSERVE all danger, warning, caution and safety labels on the equipment.

˛ Upon completion of any machine maintenance, be certain ALL SAFETY GUARDS

AND COVERS are securely and properly fastened prior to resuming machine
operation. All fasteners must be in place and properly tightened. ANY

SHORTCUTS MAY RESULT IN INJURY TO PERSONNEL OR DAMAGE
TO EQUIPMENT.

˛ NEVER wear any loose fitting clothes, neckties, or dangling items such as earrings,

belts, or shoestrings. Jewelry, such as wristwatches, bracelets, or rings should
NEVER be worn. Long hair must be tied back or placed in a tight fitting hairnet.
NEVER lean against or rest hands or feet on the granulator when it is in operation or
open for maintenance. NEVER stand on the granulator when it is in operation.

1426-i Granulator Chapter 1: Safety 8 of 37

˛ ROTATION OF MOTORS: The correct rotating direction for the granulator motor

is clearly marked on the machine. Always check for proper rotation of motors.
Incorrect rotation direction can cause severe damage.

˛ ELECTRICAL GROUNDING: All electrical equipment on the granulator must be

grounded in accordance to all local codes and Article 250 of the National Electric
Code.

˛ ALWAYS DISCONNECT AND LOCKOUT the main electrical power to the

granulator before performing any service.

˛ SAFETY INTERLOCKS MUST NOT BE BYPASSED. The mechanical and

electrical safety interlocks ensure the safety of personnel. They should never be
tampered with or removed for ANY reason. They should be checked frequently by a
qualified mechanic for proper operation.

˛ NEVER modify the machine configuration or any individual component without

written notice from the factory.

For further information on granulator safety, installation, and operation, see the American

National Standard for Plastics MachineryæGranulators, Pelletizers, and Dicers Used for
Size Reduction of PlasticsæConstruction, Care, and Use. ANSI B151.11-1982.

We have long recognized the importance of safety and have designed and manufactured our
equipment with operator safety as a prime consideration. We expect you, as a user, to abide
by the foregoing recommendations in order to make operator safety a reality.

1426-i Granulator Chapter 2: Functional Description 9 of 37

Chapter 2: Functional Description

2-1 Models Covered in This Manual

This manual provides the necessary instructions for the installation, set-up, and maintenance
of our 14 x 26 granulator.

2-2 General Description

This granulator is a rugged, rotary-cutting machine specifically designed to cut, chip, and
granulate the toughest plastic materials with a minimum expenditure of horsepower.

A massively built, low RPM, high inertia rotor with chevron knives accepts large parts with
ease and assures long, trouble-free service. The bed knife block is made of heavy steel, and
the cutting chamber is made of a thick steel plate with integral oversize bearing housings.

The hopper is designed to tilt back, and the screen cradle to swing down for quick access into
the cutting chamber.

Reclamation of sprues, runners, and small parts for inclusion and application in any type of
molding or extrusion equipment is designed-in capability and depending on screen size used,
this machine will provide pellets or chips to meet most requirements.

With no enclosures, this granulator sets the industry standard for noise reduction with 85
DBA or less in almost all applications.

1426-i Granulator Chapter 2: Functional Description 10 of 37

2-3 Typical Features and Components

Hopper

The hopper is a hinged, upright, tray-feed enclosure with sound dampening. It tilts
completely out of the way for unobstructed access to the cutting chamber. It is designed to
facilitate feeding of material to the rotary knives and to prevent chips thrown from the cutting
chamber from reaching the operator.

Cutting Chamber

The cutting chamber is a rectangular enclosure comprising the main frame, the bed knives,
the bed knife shields, a balanced rotor, and a screen.

The main frame of the cutting chamber carries the bed knives and the bed knife shields. Both
the bed knives and shield are adjustable, and the bed knives have reversible cutting edges for
extended life.

The internal surfaces of the solid steel cutting chamber are machined to an exceptionally
smooth finish for ease of clean-out. The scissor-type cutting action of the chevron rotary
knives gives optimum cutting efficiency with low power consumption.

The screen is mounted in a swing-down cradle, positioned just below the rotor and acts as a
separating barrier to the granulated material, retaining the material in the cutting chamber
until the particle size is such that it will pass through the screen holes.

The open-type, high-alloy steel rotor carries the rotary knives. High-strength alloy steel
screws are used for attachment of all knives.

Drive System

The drive system consists of a drip-proof 1800 RPM motor set on an adjustable sliding base
that is mounted below the granulator cutting chamber. The motor drives the rotor with banded
V-belts for insured RPM control. Safety guards shield the motor shaft pulley, V-belts and the
rotor shaft pulley for complete operator safety.

Discharge System

The granulated material that falls through the screen is collected by a discharge chute beneath
the cutting chamber and directed into a bin. The bin can be removed from the front or left
side of the granulator for emptying.

On models fitted with an airveying system (optional), the granulated material that has fallen
through the screen is collected in a transition piece located beneath the cutting chamber. The
transition piece is connected to a blower, which conveys the granulated material through
ducting to the cyclone separator. The cyclone separator allows the granulated material to drop
out of the air system into a container.

Base

The base is a tube-mounted, bin-type construction with tubes located for forklift pick-up.

1426-i Granulator Chapter 2: Functional Description 11 of 37

2-4 Safety Features

Motor Starter

A magnetic motor starter with control transformer must be used when safety switches are
installed. Manual starters should not be used under any conditions.

Safety Switches

Safety switches at all access covers are wired into the starter control circuit. The machine
cannot be started when these parts are open. However, for safety purposes, the machine
should be disconnected from the power lines by a disconnect switch or by removing the plug
from its receptacle. Check all safety switches periodically for proper operation.

Safety Tags

A set of metal plates is attached to the machine to warn of potential danger.

1426-i Granulator Chapter 3: Installation 12 of 37

Chapter 3: Installation

3-1 Uncrating the Equipment

The complete granulator, including accessory and auxiliary equipment, is skidded for
shipment. Refer to the Appendix for detailed dimensional data and pertinent weights.

Prepare in advance the site you have selected for installation of the granulator. Be certain
that the area to be occupied by the machine is clean, level, and free of obstructions. The
machine should be set on a concrete floor, and care must be taken when moving the machine
across a hollow timber floor, so that the point loading of the casters does not cause damage.
The site you have selected must have a floor rating to adequately support the weight of the
machine. If necessary, use steel shims to level the machine.

Locate the machine so that access is given to electrical components, screen, and hopper.
Maintenance personnel should have unobstructed access to the units on which they will be
working.

To avoid squeezing people working near a machine, there should be adequate clearance
maintained between machines, walls, or partitions. Hinged doors and covers should have full
swing. Restrictions may force work in cramped quarters. An off-balance operator with an
awkward reach into a partially obscured area is unsafe.

If inspection after shipment has revealed no shipping damage, unpack the unit by removing
all hold-downs, tie-downs, bolts, nuts, etc. Remove the envelope with the electrical
schematics and instruction manual from the base evacuation area.

You can now have the machine lifted from the skid. To lift and move the granulator safely
and correctly, cover any sharp corners or edges, and use the type of equipment that has the
most appropriate features and capacity. Use the designated lifting points, and do NOT lift the
machine by the hopper handles or guards.

3-2 Belt Tensioning

Belt drives should initially be tensioned at the “run-in” recommended force. Check the
tension at least twice during the first two days of operation. After the belts have seated
themselves in the sheave grooves and the initial stretch is removed, re-tension the belts to
“normal running” and check periodically to maintain tension at the recommended value. See
Section 5-6 on page 22 for the belt tensioning procedure.

1426-i Granulator Chapter 3: Installation 13 of 37

3-3 Electrical Connections

Granulator controls (if ordered) are pre-wired before shipment. The customer is required to
provide a suitable fused supply with a disconnect switch and a cable for the incoming line to
the starter.

Refer to the technical specifications in the Appendix for horsepower, voltage, phase, and
frequency requirements to determine the size and rating of the supply cable required.

If optional controls are required, an electrical wiring diagram will be provided with the
machine in addition to the basic electrical diagram.

When the customer is providing either the motor or the starter, the machine must be wired in
accordance with the basic electrical diagram and the starter manufacturer’s instructions.

Use the following procedure to complete the electrical connections:

1. Check to be certain that the starter heater elements correspond with the motor

requirements. If controls are not supplied, the limit switches supplied on the machine
must be wired into the circuit at the common terminal box.

2. Check that the limit switches are closed.

3. Turn switch ON at main power supply.

4. Jog motor by pressing the START and then the OFF button. This starts and stops the

motor.

5. With the electrical power ON, check that the motor rotates in a clockwise direction at

the viewing port in the belt guard. If motor rotation is correct, continue to the next
step. If rotation is incorrect, complete the following procedure:

a. Shut power OFF and disconnect incoming power supply.

b. Reverse any two of the three power line connections to the machine.

c. Re-connect the incoming power supply line and turn ON the main power

switch to recheck motor drive rotation.

1. If Airveying system (optional) is fitted, press the Airveyor START button, and check

the blower motor rotation. The blower motor should rotate in a counterclockwise
direction. If blower motor rotation is correct, continue to step 6. If blower motor
rotation is incorrect, complete the following procedure:

d. Shut power OFF and disconnect incoming power supply line.

e. Reverse any two of the three power line connections to the blower motor.

f. Re-connect the incoming power supply line, and recheck the blower motor

rotation.

6. Allow all motors to run up to speed for at least 30 seconds.

1426-i Granulator Chapter 3: Installation 14 of 37

3-4 Accessing the Cutting Chamber

You will need to access the cutting chamber before initial startup and for various
maintenance procedures. Use the following procedure to access the cutting chamber:

1. Turn the main power off, remove the line fuses, and tag the machine as out of

service.

2. Unscrew the front cover interlock screw. This operates a limit switch, preventing the

machine from being started.

3. Lift off the front cover to gain access to the hopper crank mechanism.

4. At the rear of the hopper near the bottom, remove the cover that provides access to

the downstroke shield, and loosen the five shield hold-down screws. The four
remaining side screws are more easily loosened from the top.

5. Unscrew the hopper clamp screw. This operates a limit switch, preventing the

machine from being started.

6. Tilt back the hopper (using the hand crank provided) by turning the pivot screw in the

top front of the left hand guard. This permits access to the cutting chamber.

7. Remove the screws holding the screen cradle and carefully lower the cradle and

screen. Remove the screen from the front.

3-5 Closing the Cutting Chamber

After completing any maintenance or adjustments inside the cutting chamber, use the
following procedure to close the cutting chamber and resume use of the granulator:

1. Replace the screen in the cradle, making sure that the far edge is trapped beneath the

bed knife block. Tighten the cradle screws.

2. If the front shield was removed, replace it and tighten the screws.

3. Check that the cutting chamber is clear of any parts or materials.

4. Close the hopper and tighten down the clamp screw.

5. Check that the gaps between the seal strips and cutting chamber are less than 0.15mm

(0.006”). Release the screws to make any adjustment and retighten when adjustment
is complete.

6. Replace the front cover and tighten the interlock screw.

7. Replace line fuses, turn power on, and remove the out of service tag from the

machine.

1426-i Granulator Chapter 3: Installation 15 of 37

3-6 Initial Start-up

This machine has been run under power and tested at the factory prior to shipment. The
necessary settings and adjustments have been made so that a minimum amount of setting up
or re-adjustment is required when starting up the machine in its new location.

With all electrical, mechanical connections and lubrication requirements having been
attended to, the following start-up steps should be carefully carried out before attempting to
place any material into the infeed hopper. Use the following procedure to prepare the
machine for initial start-up:

WARNING! Before operating the granulator, insure that the granulator has been

correctly assembled and wired.

1. Access the cutting chamber as described in Section 3-4 on page 14.

2. Thoroughly clean the rust preventative materials or grease from the hopper, the inside

of the cutting chamber, knives, rotor, screen, discharge system, and exterior of the
machine. Do not use solvent on any of the painted areas, as solvent may damage the
paint.

3. Check all rotor knives to make sure they are properly seated on the rotor and securely

fastened. Although they are ground as a set, one knife will probably be .001” to .002”
higher than the others. This should be marked and used when adjusting the bed
knives for proper clearance.

4. Use a feeler gauge to check the clearance between the rotor and the bed knives by

turning the rotor backwards. Rotating the rotor backwards gives a better feel and does
not cut the gauge, should the knives be too close. Check the knives on each end only.
Proper clearance is 0.10 mm (0.004”) to 0.15 mm (0.006”). This clearance is slightly
greater at the center of the knives.

Note: Recheck knife clearance after the first 24 to 36 hours of operation.

5. To make the adjustment on the bed knives, the bed knife bolts should be hand

tightened to hold the knife firmly against the knife seat while adjusting the knife
forward using push and pull screws. After the clearance is set, torque the 16 mm
screws to 266 Nm (196 ft. lbs.).

Note: All screw tightening torque figures are for un-lubricated thread conditions.

Screw threads should be wiped with an oil-dampened cloth before installation
to prevent galling.

6. With the exposed parts of the machine thoroughly clean, and all knife clamping bolts

securely fastened, close the cutting chamber as described in Section 3-5 on page 14.

Note: After initial start-up, the rotor knife retaining screws should be

checked after 8 hours running to be assured that 266 Nm (196 Ft. lbs.).
Of torque is maintained. Thereafter, rotor knife retaining screws
should be checked weekly.

Note: The rotor must be rotated at least two rotations every 30 days to prevent

brinnelling and corrosion of raceways.

1426-i Granulator Chapter 4: Operation 16 of 37

Chapter 4: Operation

4-1 Start-up

Before starting the machine, check that the rotor rotates freely by rotating it by hand from
outside the machine using either the coupling or the sheave depending on the type of drive.
Inspect the cutting chamber carefully to insure that nothing has fallen into it. Make sure all
screws and bolts are properly secured. Check all electrical connections and motor rotations.
See Chapter 3 on pages 12-15 for detailed set-up instructions. Allow all motors to run up to
speed for at least 30 seconds.

4-2 Feeding the Granulator

Feed the granulator through the opening in the hopper. The method of feeding the granulator
depends on the physical form and nature of the material being processed.

For maximum efficiency, the granulator should be fed at a rate that is consistent with its
capacity; i.e., if the granulator is rated at 60 kg/hr (132 lbs./hr.), then the general feed rate is 1
kb/min. (2.2 lbs./min.). Under these operating conditions, the correct proportions of cut and
uncut particles will be present in the cutting chamber.

WARNING! Under no circumstances should the operator attempt to reach into the

hopper to dislodge any bridged or jammed material while the granulator is
in operation. To clear the hopper of bridged or jammed material, the
machine main power must be turned off and the machine isolated.

4-3 Clearing a Jammed Cutting Chamber

Never attempt to free a jammed machine by placing hands on the rotor, rotor knives, or inside
the cutting chamber. Hands must be kept clear of the rotational path of the rotor knives.

Good footing on a clean floor is essential and the body should be well braced to guard against
loss of balance should the jam suddenly come free.

Use the following procedure to clear a jammed cutting chamber:

1. Disconnect and lock out power.

2. Be certain that the rotor is motionless.

3. Open the machine as instructed in Section 3-4 on page 14.

4. Use a pry bar to exert force on the rotor, usually in the direction opposite normal

rotation. A leather mallet and a block of wood of sufficient length to keep hands
away from path of knives can be used if necessary.

5. Use pliers to remove material from the cutting chamber, keeping in mind that the

removal of material may cause rotation of the rotor and rotor knives.

6. After clearing the jam, be certain that the screen and all guards and covers are

secured in place before connecting power and starting the machine.

1426-i Granulator Chapter 4: Operation 17 of 37

4-4 Shut-down

Use the following procedure to properly and safely shut down the machine:

1. Stop all feeding of material.

2. Allow the granulator to run until the cutting chamber is completely empty.

3. Press the drive motor “stop” button. This shuts off the rotor drive motor.

4. After the granulator has stopped, press the airveyor stop button (if applicable) located

at the blower motor.

5. Turn the main power switch to off.

1426-i Granulator Chapter 5: Maintenance 18 of 37

Chapter 5: Maintenance

5-1 Preventative Maintenance Schedule

Check

Frequency

Operation of safety interlock switches

Daily

Knife clearance (0.10 mm – 0.15 mm; 0.004” – 0.006”)

Weekly

Knife retaining screws for tightness (266 Nm; 196 Lb. Ft.)

Weekly

Knife exposure (1.6 mm; 0.062”)

Weekly

Shield retaining screws for tightness (266 Nm; 196 Lb. Ft.)

Weekly

Lubrication of drive motor bearings

Monthly

Lubrication of rotor bearings (2 ounces of a lithium-based grease,
such as Sunoco Prestige 741EP, Mobilux EP-2, or equivalent)

Monthly

Belt tension

Monthly

5-2 Lubrication

When the machine is shipped, the bearings are filled with grease. The bearings should require
no lubrication for a month under usual operating conditions. If the machine is operated
continuously, it may be desirable to lubricate the machine every two or three weeks. This
machine should be lubricated with a high temperature bearing grease. We suggest Alemite
#38, Sun Oil #844, Sunoco Prestige 741EP, Sovarex #2, Shell EP Grease #1, Mobilux EP-2,
or Esso Multi-purpose Grease H.

1426-i Granulator Chapter 5: Maintenance 19 of 37

5-3 Testing the Interlock Switches

Test the proper operation of interlock switches daily, or at least weekly, depending on
machine usage. Two- or three-shift operations require daily testing of the interlock switches.

Because granulate material or dust can collect or build up inside the belt guard, periodic
cleaning and removal of material may be required to maintain proper operation of interlock
switches and the belt drive. An inspection port is provided on the belt guard to observe the
belt movement and rotation. Depending on plant operating conditions, a flashlight may be
required to observe the movement.

Always be sure that the tapped holes for the interlock actuator bolts are free of dirt, plastic
dust, or particles before replacing the actuator bolt.

Do not use air wrenches to remove or install interlock switch actuator bolts. The time
required to un-thread the actuator bolts with conventional manual wrenches should allow the
rotor to come to a complete stop.

WARNING! Always be sure the rotor has come to a complete stop before opening any

cover, guard, or hopper.

If testing determines that an interlock switch is not working, be sure to shut down the
granulator, pull it out of service, and lock out the main power before removing the front
cover, opening the hopper, or attempting to gain access to the interlock switches. The
interlock switches and mechanisms can be accessed by removing the belt guard on the right
side of the granulator. In some cases, it may be necessary to remove or slide back the
flywheel to completely remove the interlock switch assemblies.

Use the following procedure to test the interlock switches:

1. Press the Stop/Start Button to shut down the granulator.

2. Disconnect and lock out main power supply to the granulator.

3. Using the wiring diagram supplied with your granulator or by tracing the wires from

the interlock switches, locate the interlock switch wire numbers on the terminal strip
in the control panel. They will usually be marked #1 & #3, #3 & #4, and #4 & #5,
etc. depending on how many switches are used on your machine.

4. Connect the leads of an ohmmeter across each interlock switch or across all interlock

switches (wires #1 & #5). Set the ohmmeter on the lowest resistance scale. When the
interlock actuator bolts are in place and properly activating the switch, the ohmmeter
will read zero resistance.

5. Loosen the actuator bolt of each interlock switch (usually about 3 or 4 turns) one at a

time, until the ohmmeter reads infinite resistance. If the meter reads infinity before
the bolt can be completely removed, the interlock is working. If the actuator bolt can
be completely removed and the resistance does not read infinity, the interlock is NOT
working, and the complete mechanism, including the switch, must be removed and
disassembled to determine the cause of the malfunction.

If an ohmmeter is not available, the interlock switches can be checked by loosening the
actuator bolt while the machine is running, until the power to the motor disconnects and shuts
down the machine. The indicator light on the Stop/Start Button will go out or you may be
able to hear a change in sound when the power disconnects. If the actuator bolt can be
completely removed and the power does not disconnect, the interlock switch is not working
and the complete mechanism needs to be removed and disassembled to determine the cause
of malfunction.

1426-i Granulator Chapter 5: Maintenance 20 of 37

5-4 Replacing and Adjusting the Knives

During use, the clearance between the rotor knives and the bed knives will increase due to
wear. This is a normal condition that requires re-setting this clearance once or twice before it
is necessary to remove the knives for regrinding. Check the knives weekly for wear,
clearance, exposure, and screw tightness.

When new knives are fitted to the machine, adjustment after eight hours of running time may
be required.

Before assembling a new or reground set of knives, make sure the knife seats and mounting
holes are clean. Do not use grease or oil on screws or tapped holes when assembling the
knives.

Knives must be replaced in complete sets, otherwise it will not be possible to obtain even
clearance between the rotor knives and bed knives.

WARNING! Before applying a wrench to any knife bolt, be certain that the rotor is

blocked to prevent rotation. One such method is to use a block of wood at
least 1 1/2” thick between a knife and a fixed portion of the frame.

Rotor Knives

We recommend that the rotor knife screws be replaced with new screws every sixth knife
change to reduce the risk of screw failure due to overstretching. Screws must be replaced
with the type specified in the spare parts list. Use the following procedure to replace or adjust
the rotor knives:

Caution! Rotor knives should be changed one seat at a time to prevent rotor from

being rotated in an out-of-balance condition.

1. Access the cutting chamber as directed in Section 3-4 on page 14.

2. Remove the bed knife shield screws and lift off the bed knife shield.

3. Remove the screws holding the bed knives, and remove the bed knives.

4. Remove the screws holding the knives to the rotor and remove the rotor knives.

5. Thoroughly clean the knife seats, and replace the knives.

6. Lightly tighten the screws and check that a 0.04 mm (0.0015”) feeler gauge will not

pass between the back of the knife and the knife seat. Tap the knife gently with a
rawhide hammer if necessary to close the gap.

7. Tighten the screws evenly and torque the high tensile 16 mm screws to 266 Nm (16

ft. lbs.)

Note: Bolt threads should not be oiled. Wipe thread with and oil-dampened cloth.

8. Re-check the gap between the back of the knife and the knife seat. If necessary,

readjust the knife.

9. Adjust the clearance between the bed knives and rotor knives. (See “Bed Knives” on

page 21.)

1426-i Granulator Chapter 5: Maintenance 21 of 37

Bed Knives

We recommend that the same screws and washers be re-used only when the bed knives have
been repositioned or re-ground. When blunt knives are discarded and replaced with new
knives, use new screws and washers. This will reduce the risk of screw failure due to their
overstretching. Screws and washers must be replaced with the type specified in the Spare
Parts List. Use the following procedure to replace or adjust the bed knives:

1. Access the cutting chamber as directed in Section 3-4 on page 14.

2. Remove the bed knife shield screws and lift off the bed knife shield.

3. Remove the screws holding the bed knives, and remove the bed knives.

4. Before installing and adjusting the bed knives, check all rotor knives to make sure

they are properly seated on the rotor and securely fastened.

5. Thoroughly clean the knife seats.

6. Replace the bed knives on the bed knife seat and tighten the screws until they are

finger-tight.

7. Use the adjustment screws to set the knife clearance to 0.10 mm – 0.15 mm (0.004” –

0.006”). The clearance should be measured with a feeler gauge at the ends of the
knife, by rotating the rotor sheave backwards by hand. The clearance is slightly
greater at the center of the knives.

8. Tighten the bed knife screws evenly and torque the 16 mm screws to 266 Nm (196 ft.

lbs.).

9. Replace the bed knife shield and adjust the shield using its push and pull screws so

that its front edge is within 1.6 mm (0.062”) of the bed knife edges. The downstroke
shield is adjusted with shims that are placed under the side tabs. Unused shims are
stored under the head of the screws on top of the tabs.

10. Make sure all screws, bolts, and nuts are properly tightened.

1426-i Granulator Chapter 5: Maintenance 22 of 37

Grind these
surfaces only

32

35°

Std. Bed Knife

3.129 (min.)

3.566 (new)

1.756 (min.)

2.756 (new)
32

Grind these
surfaces only

32

35°

Landed (55°)
Std. Bed Knife

1.756 (min.)

2.756 (new)
323220°

3.466 (new)

3.029 (min.)

Keen Edge
Rotor Knife

5-5 Sharpening the Knives

Under normal operating use, the cutting edge of the knives will eventually become dulled,
resulting in reduced cutting efficiency. The blunt knives may either be re-ground to restore
the cutting edge, or replaced with new knives when regrinding is not possible.

Rotor Knife Sharpening

The rotor knife can be re-sharpened to the diagram below. The three knives must be
sharpened to within 0.076 mm (0.003”) of each other. Greater dimensional variations will
cause difficult when setting the knife gap and create other serious complications.

When sharpening, it is not harmful to allow a few small nicks to remain in the cutting edge.
Grinding the cutting edge until perfectly clean can sometimes be wasteful.

Do not install rotor knives that are smaller than the minimum dimension shown, because the
fasteners that secure these knives will interfere with the cutting circle. If the rotor cannot turn,
the bed knives will be damaged.

Bed Knife Sharpening

Each bed knife is provided with four cutting edges. When the exposed edges become blunt,
the knives can be turned and repositioned to present the new cutting edges. When re­sharpening is necessary, refer to the diagram below.

It is not necessary to grind bed knives to the closely matched tolerance of rotor knives. As
with rotor knives, small nicks in the cutting edges will not seriously affect knife cutting
efficiency. Bed knives smaller than the minimum dimensions shown must be replaced along
with the fasteners that secure them.

5-6

Figure 1: Knife Sharpening Specifications

1426-i Granulator Chapter 5: Maintenance 23 of 37

Adjusting Belt Tension

For continuous reliable operation of the granulator, it is important that the belt tension is
correct. Correct tension reduces wear on rotor and motor bearings and keeps belt slip to a
minimum. Figure 2 gives the recommended force to deflect each belt by an amount equal to
the belt span divided by 64. A gauge is available through the sales department to measure the
deflection and force. Use the following procedure to adjust the belt tension:

Note: The deflection force value shown must be multiplied by the number of V-belt

elements.

1. Turn off the granulator at the main isolator switch and remove fuses.

2. Remove the cover to gain access to the belts, and remove the right side and rear base

panels to gain access to the motor base.

3. Turn the adjusting screw on the motor slide base to tension the belts as required (See

Figure 2).

4. Re-tighten the screws, making sure the pulleys are in correct alignment.

5. Replace the covers.

Figure 2: Belt Tensioning Information

Belt Cross Section

Standard Motor Sheave

Deflection Force,
Lbs./V-Belt Element*

5 V Banded

8.5 O.D.

16 Min.

*This deflection force value relates to a single V-belt element. Therefore, if the belt is a 3-V
element (3V-banded), this value must be multiplied by 3.

Deflection = Belt Span = 0.58”
64

Belt Span=37”

1426-i Granulator Chapter 5: Maintenance 24 of 37

5-7 Motor Drive Belt Replacement

Use the following procedure to replace the drive belts:

1. Turn off the main power and remove fuses.

2. Remove the right hand guard, bottom side and back base panels to gain access to the

belts and pulley.

3. Turn the adjusting screw on the motor slide base to release all tension from the belts.

4. Remove the belts

5. Install the banded V-belts and proceed to adjust the belt tension as instructed in

Section 5-6 on page 22.

6. Replace base panels and guards.

7. Replace the line fuses and turn main power on.

1426-i Granulator Chapter 6: Troubleshooting 25 of 37

Chapter 6: Troubleshooting

6-1 Introduction

The utmost in safety precautions should be observed at all times when working on or around
the machine and the electrical components. All normal trouble-shooting must be
accomplished with the power off, line fuses removed, and with the machine tagged as out of
service.

The use of good quality test equipment cannot be over-emphasized when troubleshooting is
indicated. Use a good ammeter that can measure at least twice the AC and DC current that
can be encountered for the machine. Be sure that the voltmeter has at least minimum
impedance of 5,000 OHMS-per-volt on AC and 20,000 OHMS-per-volt on DC scales.
Popular combination meters, VOM and VTVM can be selected to provide the necessary
functions.

Before making haphazard substitutions and repairs when defective electrical components are
malfunctioning, we recommend that you check the associated circuitry and assemblies for
other defective devices. It is common to replace the obviously damaged component without
actually locating the real cause of the trouble. Such hasty substitutions will only destroy the
new component. Refer to wiring diagrams and schematics.

Locating mechanical problems, should they occur, is relatively straightforward. When
necessary, refer to the parts catalog section.

1426-i Granulator Chapter 6: Troubleshooting 26 of 37

6-2 Electrical Faults

Problem

Possible Cause

Possible Remedy

Supply failure

Check fuses

Starter inoperative

Check main supply

Starter overloads or cuts out

Check motor requirements
and adjust accordingly

Motor Fails to Start

Safety switches inoperative

Check and adjust as needed

Too much belt tension

Check belt tension and adjust
as necessary

Incorrectly connected motor

Check terminal connection
with manufacturer’s
connection diagram and
adjust as necessary

Motor starts but will not take
load

Defective starter winding

Check current in each phase
with ammeter, if there is a
marked difference in current
in one phase, contact motor
manufacturer

Motor will start when
disconnected from load but
not when connected

Worn bearings

Check and replace if
necessary according to
manufacturer’s literature

1426-i Granulator Chapter 6: Troubleshooting 27 of 37

6-3 Processing Faults

Problem

Possible Cause

Possible Remedy

Overfeeding

Reduce feed rate

Partial or complete screen
blockage

Remove screen, clear and
inspect for damage

Insufficient tension on v-belt
drive causing belt slip and
burning

Check tension of the belt and
adjust as necessary

Check that the motor slide
base screws are secure

Badly blunted or damaged
knives

Fit re-sharpened or new
knives as required

Knife setting too wide

Check clearances given and
adjust as required

Installation fault; motor
running in reverse direction

Check with direction arrow
and re-fit electrical
connections to give the
correct direction

Stalling

Safety switch cut out where
fitted

Tighten safety switch setting
screw

Check all possible causes
under “stalling”

Remedy as shown above

Screen size too small

Increase screen size

When granulating rubber,
insufficient talc causes
freshly cut surfaces to re­adhere

Increase talc percentage rate
of infeed

Material overheating

Blockage in aiveyor

Check direction of fan
rotation, check venturi and
line or chute for blockage

1426-i Granulator Chapter 6: Troubleshooting 28 of 37

6-4 Mechanical Faults

Problem

Possible Cause

Possible Remedy

Excessive tension on the belt
drive

Check tension of belt and
adjust as necessary

Bearing overheating

Lubrication fault

Check lubrication frequency
and recommended lubricant

Visible cracks in knife

Incorrect grinding or
grinding procedure

Check method of grinding
and contact our technical
sales department

Uneven knife seat surfaces

Clean up to provide
maximum bearing surface

Knives moving on knife
seats

Loose knife screws

Knife screws should not be
used more than six times.
Replace if there is evidence
of stretch

Knives breaking

Cracks caused by incorrect
grinding

Contact our technical sales
department

Excessive knife wear

Open knife setting

Re-set knives

Screen breakage

Incorrectly seated screen

Check that the screen is
seated correctly and fully in
its cradle

1426-i Granulator Chapter 7: Appendix 29 of 37

Chapter 7: Appendix

7-1 Customer Satisfaction Warranty Program

The terms and conditions of the warranty set forth are for one (1) year from the original date
of purchase by the original purchaser.

The manufacturer warrants to the original purchaser the product and/or goods to which this
disclaimer is attached, and manufactured by us, to be free from defects in material and
workmanship under normal use and service. THIS WARRANTY IS EXPRESSLY IN LIEU
OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANT ABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, AND ALL OTHER OBLIGATIONS AND LIABILITIES ON OUR PART.

This warranty shall not apply to any goods or product manufactured by us which has been
subject to accident, negligence, alteration of any kind, abuse, or misuse. We further make no
warranty whatsoever in respect to accessories or parts not supplied by us. Any warranty of
any nature shall apply only to an “original purchaser” which shall be deemed to mean that
person or entity for whom the goods and/or product were originally ordered and installed.

We neither assume nor authorize any person to assume for us any liability in connection with
the sale or use of the products and goods sold hereunder, and shall not be responsible for
damages for which a purchaser may be liable to other persons, damages to property, or
injuries to any other persons.

Our sole obligation under this warranty shall be limited to replacing, repairing, or exchanging
any part or parts of goods and/or products sold which we determine are defective under
normal use and service within one (1) year of date of installation by the original purchaser.
We shall not be liable for any loss or damage resulting directly or indirectly from the use or
loss of the goods and/or products purchased. In no event shall we be liable for any general,
direct, consequential, incidental, or special damages of any kind.

We do not warrant any of our products that are installed in other machines or apparatus as
meeting requirements of any safety code of any nature. The purchaser assumes all risks and
liabilities resulting from the installation and use of product sold by us in combination with
other machines or apparatus.

We warrant our product to be of the kind and quality quoted, and no other warranty except of
title shall be implied. Our company shall repair or replace, at our discretion, any
manufactured item on your granulator without charge FOB factory, within one (1) year after
date of original purchase, which is proved to be defective when shipped. Claims for labor or
consequential damages are not allowed.

Excluded from the above are knives, screens, and belts. Purchased items, including electrical
components, motors, etc., shall carry the warranty of the supplier and no extension of that
warranty is allowed.

Refer to this manual for assistance in installing and maintaining a highly efficient machine.
Questions regarding areas that are not covered in the manual should be referred to the
customer service manager at the factory at [phone].

1426-i Granulator Chapter 7: Appendix 30 of 37

7-2 Drawings and Specifications (including Options)

Features

• Throat size: 14” x 26” (356 x 660 mm)

• Cutting circle diameter: 16.5” (419 mm)

• Throughput: up to 1200 lbs./hr. (544 kg)

• Approximate weight: 5,750 lbs. (2609 kg)

Specifications

Standard

Standard Options

Infeed

Tray Feed

Tray & Sheet feed, Tray & 6” pipe feed, Tray &
26” feed rolls, Conveyor feed, Side feed, Tray feed
w/flange, Box hopper

Cutting

Chamber

2-Bed Knife, Twinshear

Rotor

3-knife Twinshear, Knife

Rotor Knives

HCHC, 55°, steep angle

HCHC, keen edge, Cecoloy 3, HCHC w/TCSC

Bed Knives

HCHC, 4-edge

Cecoloy 3, HCHC w/TCSC

Screen

3/8” diameter, swing down

3/16” to 3” diameter, Heat treated, perforated,
stainless steel

Base

Airveyor (fork lift)

Drum/Gaylord

Discharge

Airveyor Chute - 6” O.D.

Airveyor Chute – 7” or 8”

Motor

100HP, 1200 RPM, TEFC,
3/60/230/460

50HP-75HP, TEFC, Special voltage (e.g. 208, 380,
415, 575), Magnetic Disc Brake

Drive Parts

V-belt

To suit motor, Customer supplied

Electrical

Components

NEMA 12 with safety
interlocks

Controls

Customer supplied

230 or 460 volt, NEMA 12, Special voltage,
Energy saver

Labels

Safety labels/English

French/Spanish

Accessories

Blower, Separator, Common stand, Sound Proofed
(80 dbA), Integral blower

1426-i Granulator Chapter 7: Appendix 31 of 37

Dimensions

1426-i Granulator Chapter 7: Appendix 32 of 37

Illustrated Parts Breakdown (Cutting Chamber)

Key

Part Number

Part Name

1

E-391530

End Plate – L.H.

39

B-39946

Bracket – Hopper Limit Switch
2

E-39153

End Plate – R. H.

40

15134-9

Lockwasher, M10
3

E-291518

Bed Knife Block – Downstroke

41

15008-317

Screw, Sock. Hd. Cap, M10 x 1.5-6g x 40 Lg.
4

A-291519

Bed Knife Block – Upstroke

42

12668-10

Limit Switch
5

C-91018

Cross Member

43

12008-140

Screw, Sock. Hd. Cap, #10-32 x 2” Lg.
6

BM-291546

Rotor44D-421283

Spacer – Front Cover Limit Switch
7

15033-451

Screw – Hex. Hd. Cap, M16 x 2 – 6g x 50 Lg.

45

B-421256

Bracket – Front Cover Limit Switch
8

15153-87

Dowel, 16 mm Dia x 50 Lg.

46

Optional

Rotor Knife – L.H.
9

15033-161

Screw – Hex. Hd. Cap M10 x 1.5-6g x 40 Lg.

47

Optional

Rotor Knife – R.H.
10

15153-111

Dowel, 10 mm Dia x 40 Lg

48

15030-86

Bolt, Rotor Knife
11

B-291285

Bearing Housing

49

15088-8

Screw, Headless set – dog point, M16 x 2-6g x 70 Lg.
12

12406-80

Bearing

50

15115-21

Nut, Hex., M16 x 2-6h
13

12595-20

Retaining Ring

51

Optional

Bed Knife
14

C-291291

Cover, Bearing – R.H.

52

15030-86

Bolt, Bed Knife
15

15033-463

Screw, Hex. Hd. Cap, M1 x 2-6g x 90 Lg.

53

BM-391521

Shield, Upstroke
16

C-291292

Cover, Bearing – L.H.

54

BM-391336

Shield, Downstroke
17

A-291289

Sheave, Flywheel

55

15141-16

Washer, Plain, M16 x 2
18

B-291314

Taper Bushing

57

C-421282

Screw
19

D-291297

Key, Bushing

58

BM-421279

Pivot Block – Threaded
20

15019457

Screw, Hex. Hd. Cap – MS-M16-2 x 70 mm

59

15111-112

Roll Pin
21

BM-291290

Cradle, Screen

60

12376-127

Collar
22

D-421020

Pin, Cradle Pivot

61

(include. # 59)

Set Screw
23

D-421021

Strap, Pivot Pin

62

12410-60

Bearing
24

15033-437

Screw, Hex. Hd. Cap, M16 x 2-6g x 20 Lg.

63

C-421277

Pivot Block
25

15033-149

Screw, Hex. Hd. Cap, M10 x 1.5-6g x 20 Lg.

64

D-421285

Mount Spacer – Pivot Block
26

Optional

Screen65C-421276

Cap – Screw Pivot
27

C-1757-21

Washer6615134-16

Lockwasher, M16
28

15019-455

Screw, Hex. Hd. Cap, M16 x 2-6g x 55 Lg.

67

15033-447

Screw, Hex. Hd. Cap, M16 x 2-6g x 35 Lg.
29

C-335082-1

Angle, Mounting

68

15029-108

Screw, Hex. Hd. Cap, M16 x 2-6g x 100 Lg.
30

15148-16

Washer, Vavy, M16

69

C-421275

Crank Handle
31

15033-447

Screw, Hex. Hd. Cap, M16 x 2-6g x 35 Lg.

70

B-291296

Flywheel Rotor
32

C-335082-2

Angle, Mounting

71

15019-465

Screw, Hex. Hd. Cap, M16 x 2-6g x 100 Lg.
33

15008-499

Screw, Soc. Hd. Cap, M16 x 2-6g x 50 Lg.

72

D-391584

Shim
34

D-421101

Washer, Mounting

73

D-391511

Shim
35

D-421102

Bushing, Mounting

74

12173-6

Fitting – Lub.
36

D-421100

Spacer, Mounting

75

12303-10

Fitting Pipe – Nipple
37

D-421250

Pad, Mounting

76

12293-4

Fitting Pipe Plug 1/8
38

D-421255

Spacer – Hopper Limit Switch

1426-i Granulator Chapter 7: Appendix 33 of 37

Vertical Cross Section

1426-i Granulator Chapter 7: Appendix 34 of 37

Longitudinal Cross Section

1426-i Granulator Chapter 7: Appendix 35 of 37

7-3 Spare Parts List

Item

Qty

Material

Part Number

R.H. Rotor
Knives –55º

3

HCHC

B-291547-1

L.H. Rotor
Knives – 55º

3

HCHC

B-291547-2

Bed Knives

4

HCHC

B-291479

Rotor Knife
Screws

18

Heat Treated

15036-234

Bed Knife
Screws

12

Heat Treated

15036-234

Bed Knife
Washers

12

D-1757-21

Screens

1

Mild Steel or
Stainless Steel

Optional

Rotor Bearings

2

12406-80

Drive Belts

1426-i Granulator Chapter 7: Appendix 36 of 37

7-4 Typical Wiring Diagram

1426-i Granulator Chapter 7: Appendix 37 of 37

7-5 Technical Assistance

Parts Department

Call Spare Parts Express toll-free 8am-8pm EST [phone]. OEM quality replacement
and spare parts ensure operation at design specifications. Please have the model and serial
number of your equipment when you call. Consult the Customer Parts List included in your
information packet for replacement part numbers.

Service Department

Call toll free [phone] 8am-8pm EST – Emergency service available 24 hours a day.
We have a qualified service department ready to help. Service contracts are available for most
of our products.

Sales Department

Call [phone] Monday through Friday 8am-5pm EST. Our products are sold by a
worldwide network of independent sales representatives. Contact our sales department for the
name of the sales representative nearest you.
