Advantech AIMB-258 User Manual

User Manual

AIMB-258

Intel® GM45 µFC-PGA 478
TM
Core Motherboard with VGA, DVI, LVDS, 6 COM, Dual GbE, 8 USB, 2 SATA II, PCIe x 16 Ver.1.00
2 Duo Mini ITX
Safety Information
Electrical safety
! To prevent electrical shock hazard, disconnect the power cable from the electri-
cal outlet before relocating the system.
! When adding or removing devices to or from the system, ensure that the power
cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
! Before connecting or removing signal cables from the motherboard, ensure that
all power cables are unplugged.
! Seek professional assistance before using an adapter or extension cord. These
devices could interrupt the grounding circuit.
! Make sure that your power supply is set to the correct voltage in your area. If
you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
! If the power supply is broken, do not try to fix it by yourself. Contact a qualified
service technician or your retailer.
Operation safety
! Before installing the motherboard and adding devices on it, carefully read all the
manuals that came with the package.
! Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer immediately.
! To avoid short circuits, keep paper clips, screws, and staples away from connec-
tors, slots, sockets and circuitry.
! Avoid dust, humidity, and temperature extremes. Do not place the product in
any area where it may become wet.
! Place the product on a stable surface. ! If you encounter technical problems with the product, contact a qualified service
technician or your retailer.
Caution! The symbol of the crossed out wheeled bin indicates that the product
(electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
Part No. 2006025801 Edition 2 Printed in Taiwan
AIMB-258 User Manual ii
June 2009
Certifications
This device complies with the requirements in part 15 of the FCC rules: Operation is subject to the following two conditions:
! This device may not cause harmful interference, ! This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A dig­ital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro­vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Opera­tion of this device in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. The user is advised that any equipment changes or modifications not expressly approved by the party responsible for compliance would void the compliance to FCC regula­tions and therefore, the user's authority to operate the equipment.
Caution! There is a danger of a new battery exploding if it is incorrectly installed.
Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man­ufacturer. Discard used batteries according to the manufacturer's instructions.
iii AIMB-258 User Manual
Technical Support
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the Advantech web­site for FAQ, technical guide, BIOS updates, driver updates, and other information:
http://support.advantech.com.tw/Support/default.aspx
Packing List
Before you begin installing your single board, please make sure that the following materials have been shipped:
! 1 x AIMB-258 Intel® µFC-PGA 478 Core 2 Duo Mini ITX Motherboard ! 2 x SATA HDD cable ! 2 x SATA Power cable ! 1 x Serial port cable 1 to 4 ! 1 x I/O port bracket ! 1 x Startup manual ! 1 x Driver CD ! 1 x Warranty card
If any of the above items is damaged or missing, please contact your retailer.
AIMB-258 User Manual iv

Contents

Chapter 1 Product Introduction ...........................1
1.1 Before You Proceed.................................................................................. 2
1.2 Motherboard Overview.............................................................................. 2
1.2.1 Placement Direction...................................................................... 2
1.2.2 Screw Holes.................................................................................. 3

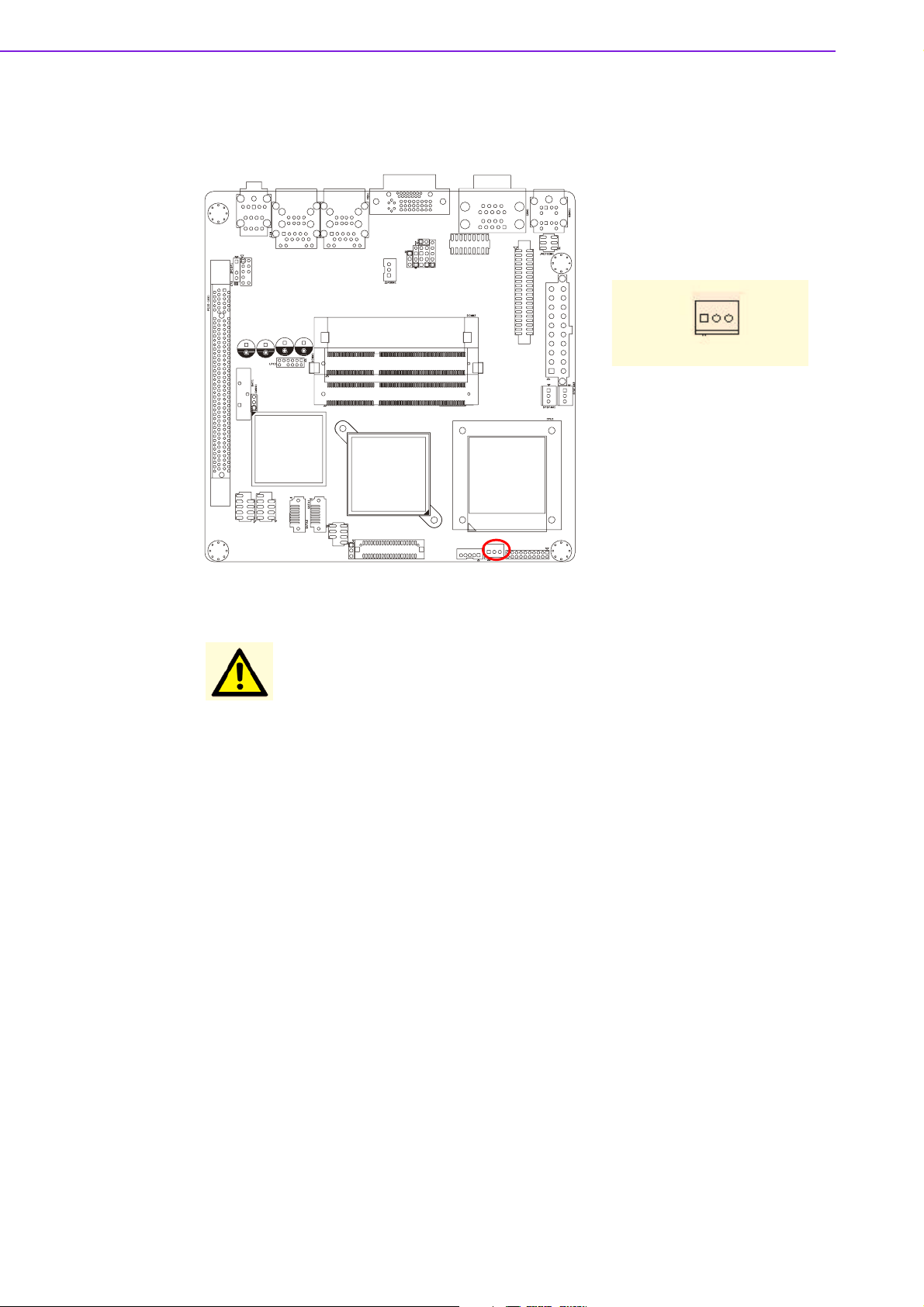

1.3 Motherboard Layout .................................................................................. 4
Figure 1.1 Motherboard Layout ................................................... 4
1.4 Specifications ............................................................................................ 5
1.5 Operating System support list ................................................................... 6
1.6 Board Diagram .......................................................................................... 7
1.7 Ordering Information ................................................................................. 8
1.8 Riser Card ................................................................................................. 8
1.9 Bracket View ............................................................................................. 8
1.10 Accessories............................................................................................... 8
1.11 Layout Content List ................................................................................... 9
Table 1.1: Jumper Setting List..................................................... 9
Table 1.2: JSETCOM1: COM1/+5 V/+12 V Selection ................. 9
Table 1.3: JSETCOM2: COM2 RS232/422/485 Mode Selection 9
Table 1.4: CMOS1: Clear CMOS .............................................. 10
Table 1.5: J1:LCD Power 3.3 V/5.5 V Selection........................ 10
Table 1.6: PSON1: ATX, AT Mode Selection............................ 10
Table 1.7: JWDT1: Watchdog Timer Output Option.................. 11
Table 1.8: JOBS: HW monitor ................................................... 11
1.12 Central Processing Unit (CPU) for AIMB-258 ......................................... 11
1.12.1 Installing the CPU .......................................................................12
1.12.2 Installing the CPU Heatsink and Fan .......................................... 14
1.12.3 Uninstalling the CPU Heatsink and Fan...................................... 16
1.13 System Memory ...................................................................................... 17
1.13.1 DIMM Sockets Location .............................................................. 17
1.13.2 System Memory .......................................................................... 17
1.13.3 Memory Support List................................................................... 18
Table 1.9: SODIMM DDR3........................................................ 18
1.14 Connectors.............................................................................................. 19
1.14.1 Rear Panel Connectors............................................................... 19
Table 1.10:Rear Panel Connectors ............................................ 19
Table 1.11:LEDs......................................................................... 19
1.14.2 CPU Fan Connector (CPUFAN1) ............................................... 20
1.14.3 System Fan Connector (SYSFAN1, SYSFAN2) ......................... 21
1.14.4 Serial Port Connector 3456 (COM3456)..................................... 22
1.14.5 Front Headphone Connector (HD1)............................................ 22
1.14.6 Front Panel Connector (JFP1/JFP2/JFP3) ................................. 23
1.14.7 ATX soft power switch (JFP1 / PWR_SW) ................................. 23
1.14.8 Reset (JFP1 / RESET)................................................................ 23
1.14.9 HDD LED (JFP2 / HDDLED)....................................................... 23
1.14.10External speaker (JFP2 / SPEAKER) ......................................... 23
1.14.11Power LED and keyboard lock connector
(JFP3 / PWR_LED&KEY LOCK) ................................................ 24
Table 1.12:ATX power supply LED status
(No support for AT power)........................................ 24
1.14.12USB 2.0 Connector (USB56, USB78)......................................... 24
1.14.13ATX Power Connector (ATX1).................................................... 25
1.14.14LCD Inverter Connector (VP1).................................................... 26
1.14.15LVDS Connector (LVDS1) .......................................................... 26
1.14.16Digital I/O Connector (DIO_CN1)................................................ 27
v AIMB-258 User Manual
1.14.17Serial ATA Connector 1 & 2 (SATA1, SATA2) ........................... 27
1.14.18PCIe x 16 Slot (PCIE X 16)......................................................... 28
1.14.19SPI Flash Connector(SPI_CN1) ................................................. 28
1.14.20Memory Connector Channel A/B(DIMM1/2)............................... 29
1.14.21SPDIF1 out connector(SPDIF1) ................................................. 29
1.14.22CF connector .............................................................................. 30
Chapter 2 BIOS Operation ................................. 31
2.1 BIOS Introduction.................................................................................... 32
2.2 BIOS Setup ............................................................................................. 32
2.2.1 Main Menu.................................................................................. 33
2.2.2 Standard CMOS Features .......................................................... 34
2.2.3 Advanced BIOS Features........................................................... 35
2.2.4 Advanced Chipset Features ....................................................... 36
2.2.5 Integrated Peripherals ................................................................ 37
2.2.6 USE Device Setting .................................................................... 39
2.2.7 Power Management Setup ......................................................... 40
2.2.8 PnP/PCI Configurations.............................................................. 42
2.2.9 PC Health Status ........................................................................ 42
2.2.10 Load Setup Defaults ................................................................... 43
2.2.11 Set Password.............................................................................. 43
Chapter 3 Chipset Software Install Utility ........ 45
3.1 Before you Begin .................................................................................... 46
3.2 Introduction ............................................................................................. 46
3.3 Windows Vista/XP Driver Setup.............................................................. 47
Chapter 4 VGA Setup ......................................... 49
4.1 Introduction ............................................................................................. 50
4.2 Windows Vista/XP Driver Setup.............................................................. 50
Chapter 5 LAN Configuration ............................ 51
5.1 Introduction ............................................................................................. 52
5.2 Features.................................................................................................. 52
5.3 Installation............................................................................................... 52
5.4 Windows Vista/XP Driver Setup (Realtek RTL8111C)............................ 52
Appendix A Programming the Watchdog Timer .55
A.1 Programming the Watchdog Timer ......................................................... 56
A.1.1 Watchdog timer overview ........................................................... 56
A.1.2 Programming the Watchdog Timer............................................. 56
Table A.1: Watchdog Timer Registers....................................... 58
A.1.3 Example Program ....................................................................... 59
Appendix B Pin Assignments............................... 63
B.1 USB Connector (USB56,USB78)............................................................ 64
Table B.1: USB5/USB6 Connector (USB56) ............................. 64
B.2 VGA Connector (VGA1A) ....................................................................... 64
Table B.2: VGA Connector (VGA1A)......................................... 64
AIMB-258 User Manual vi
B.3 DVI Connector (VGA1B) ......................................................................... 64
Table B.3: DVI Connector (VGA1B)........................................... 64
B.4 RS-232 Serial Port (COM1~COM2)........................................................ 65
Table B.4: RS-232 Serial Port (COM1~COM2) ......................... 65
B.5 RS-232 Serial Port (COM3 ~ COM6)...................................................... 66
Table B.5: RS-232 Serial Port (COM23).................................... 66
B.6 PS/2 Keyboard/ Mouse Connector (KBMS1) .......................................... 67
Table B.6: PS/2 Keyboard/ Mouse Connector (KBMS1) ...........67
B.7 CPU Fan Power Connector (CPUFAN1) ................................................ 67
Table B.7: CPU Fan Power Connector (CPUFAN1).................. 67
B.8 Power LED & Keyboard Lock Connector (JFP3) .................................... 68
Table B.8: Power LED and Keylock Connector (JFP3) ............68
B.9 HDD LED and External Speaker Connector
(JFP2/HDD LED and SPEAKER)............................................................ 68
Table B.9: External Speaker Connector (JFP2/SPEAKER)....... 68
B.10 ATX Soft Power Switch and Reset Connector
(JFP1/ PWR-SW and RESET) ................................................................ 69
Table B.10:Audio Front Panel Connector (JFP1/ RESET) ......... 69
B.11 Audio Front Panel Connector (FPAUD1) ................................................ 69
Table B.11:Audio front panel connector (FPAUD1) .................... 69
B.12 GPIO Pin Header (GPIO1)...................................................................... 70
Table B.12:GPIO Pin Header (GPIO1) .......................................70
B.13 LVDS Connector (LVDS1) ...................................................................... 71
Table B.13:LVDS Connector (LVDS1)........................................ 71
B.14 LVDS Power Jumper (J1) ....................................................................... 72
Table B.14:LVDS Power Jumper (J1)......................................... 72
B.15 LVDS Invert (VP1)................................................................................... 72
Table B.15:LVDS Invert (VP1) .................................................... 72
B.16 System I/O Ports ..................................................................................... 73
Table B.16:System I/O Ports ...................................................... 73
B.17 DMA Channel Assignments .................................................................... 73
Table B.17:DMA Channel Assignments...................................... 73
B.18 Interrupt Assignments ............................................................................. 74
Table B.18:Interrupt Assignments............................................... 74
B.19 1st MB Memory Map ............................................................................... 74
Table B.19:1st MB Memory Map ................................................ 74
vii AIMB-258 User Manual
AIMB-258 User Manual viii
Chapter 1

1 Product Introduction

This chapter describes the main board features and the new tech­nologies it supports.

1.1 Before You Proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.
Caution!
!
Unplug the power cord from the wall socket before touching any component.
!
Use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, before handling com­ponents to avoid damaging them due to static electricity
!
Hold components by the edges to avoid touching the ICs on them.
!
Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.
!
Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

1.2 Motherboard Overview

Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Refer to the chassis documentation before installing the motherboard.
Warning! Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so can cause you physical injury and dam­age motherboard components.
1.2.1 Placement Direction
When installing the motherboard, make sure that you place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis.
AIMB-258 User Manual 2
1.2.2 Screw Holes
Place four (4) screws into the holes indicated by circles to secure the motherboard to the chassis.
Caution! Do not over tighten the screws! Doing so can damage the motherboard.
Chapter 1 Product Introduction
Place this side towards the rear of the chassis.
3 AIMB-258 User Manual

1.3 Motherboard Layout

57
PWR-SW RESET
SPEAKER
1234 2468 13
12 345
Figure 1.1 Motherboard Layout
AIMB-258 User Manual 4

1.4 Specifications

Chapter 1 Product Introduction
CPU (45 nm µFC-PGA 478)
Max. Speed T9400 2.53 GHz 575 2.0 GHz
Processor Sys­tem
Expansion Slot
Memory
Graphics
Ethernet
SATA
SSD Compact Flash Compact Flash Supports compact flash type I/II
Rear I/O
Internal Connector
Watchdog Timer
Front Side Bus 667/800/1066 MHz 667 MHz L2 Cache 6 MB 1 MB Chipset GM45 + ICH9M BIOS Award 16 Mbit, SPI PCI ­Mini-PCI ­PCIe x 16 4 GB/s per direction, 1 slot Technology DDR3 800/1066 MHz SDRAM Max. Capacity 4 GB Socket 2 x 204-pin SODIMM Controller Intel GM45 GMCH integrated Graphics Media Accelerator X4500 VRAM Shared system memory up to 384 MB video memory LVDS Single channel 18/24-bit/Dual channel 36/48-bit LVDS DVI-D Yes (if DVI is used, PCIe x16 is automatically disable) Dual Display VGA + DVI; VGA + LVDS; DVI + LVDS *Dual Display
Mode Interface 10/100/1000Base-T Controller GbE LAN1: Realtek RTL8111C; GbE LAN2: Realtek RTL8111C Connector RJ-45 x 2 Max Data Trans-
fer Rate Channel 2
VGA 1 DVI 1 Ethernet 2 USB 4 (USB 2.0 compliant) Serial 2 (1 of RS-232, 1 of RS-232/422/485) PS/2 2 (1 x keyboard and 1 x mouse) LVDS 1 USB 4 (USB 2.0 compliant) Serial 4 (RS-232) IDE ­SATA 2 Audio 3 (Mic-in, Line-in, Line-out) Compact Flash 1 Parallel ­IrDA ­FDD ­DIO 16-bit General Purpose I/O for digital signal input/output Output Interrupt, system reset Interval Programmable 1 ~ 255 sec/ min
Intel® Core™2 Duo Intel Celeron M
Extended Mode, Clone Mode, Twin Mode
300 MB/s
5 AIMB-258 User Manual
Power Requirement
Environment
Physical Characteristics
Power On 5 V 3.3 V 12 V 5 Vsb -12 V
0 . 9 9 A 2 . 6 7 A 2 . 0 7 A 0 . 1 7 A 0 . 0 8 A
Operating Non-Operating Temperature 0 ~ 60°C (32 ~ 140°F) -20 ~ 70°C (-4 ~ 158°F) Dimensions 170 mm x 170 mm (6.69’ x 6.69’)
*Dual Display Clone uses both display pipes to drive the same content at the same resolution and color depth to two different displays. This configuration allows for dif­ferent refresh rates on each display.
Dual Display Twin uses one of the display pipes to drive the same content, at the same resolution, color depth, and refresh rates to two different displays.
Extended Desktop uses both display pipes to drive different content, at potentially different resolutions, refresh rates, and color depths, to two different displays. This configuration allows for a larger Windows desktop by using both displays as one work surface.

1.5 Operating System support list

Operation System AIMB-258
Windows Vista Ultimate edition (32-bit/64-bit)
Windows XP professional edition (32-bit/64-bit)
XP embedded Support Linux (Fedora) Only OS installation and limited I/O functionality are
QNX Only OS installation and limited I/O functionality are
WinCE 6.0 Require OEM BIOS. Please contact with Advantech
Support
Support
validated
validated
FAE
AIMB-258 User Manual 6

1.6 Board Diagram

Intel Socket 478
Core 2 Duo Processor
7 6 6
B
/
S
0
F
0
z
8
/
H
6
M
6 0 1
Chapter 1 Product Introduction
CRT
LVD S
DVI
PCI3 x 16 slot
CF
IDE
JMB368
2SATAports
VGA
Dual Channel
24-bit LV DS
PCI3 x 16
PCIe x 1
300MB/s
Intel GM45n
GMCH
Direc t Medi a Inter face
Channel A
ChannelA
2GB/s bandwidth
PCIe x 1
DDR3 800/1066
DDR3 800/1066
GbE-LAN 1:R ealtek 8111C
ICH9M
8USBPorts
Realtek ALC888
2
B
S
U
.
HD Audio
NXP 9555
16-bit GPI O
.
0
1
1
/
SM Bus
PCIe x 1
SPI
LPC
GbE-LAN2:Realtek 8111C
Super IO
BIOS
Winbond
W83627UHG
7 AIMB-258 User Manual

1.7 Ordering Information

Part Number Display GbE SATA Serial CF
AIMB-258G2-00A1E VGA/ DVI/ LVDS Dual 2 6 1

1.8 Riser Card

Part Number Description
AIMB-R430P-03A1E 2U riser card with 3 PCI slot expansion

1.9 Bracket View

1.10 Accessories

Part Number Description
1700003195 USB cable with four ports, 17.5 cm 1700002204 USB cable with four ports, 27 cm 1700002314 USB cable with four ports, 30.5 cm
AIMB-258 User Manual 8

1.11 Layout Content List

Table 1.1: Jumper Setting List
Label Function
JSETCOM1 COM1/+5 V/+12 V Selection JSETCOM2 COM2 RS232/422/485 Mode Selection CMOS1 Clear CMOS J1 LCD Power 3.3 V/5.5 V Selection PSON1 ATX, AT Mode Selection JWDT1 Watchdog Timer Output Option JOBS1 Hardware Monitor
Table 1.2: JSETCOM1: COM1/+5 V/+12 V Selection
COM1 (Default)
Chapter 1 Product Introduction
+5 V
+12 V
Table 1.3: JSETCOM2: COM2 RS232/422/485 Mode Selection
Users can use JSETCOM2 to select among RS 232/422/485 modes for COM2. The default setting is RS 232.
9 AIMB-258 User Manual
Table 1.3: JSETCOM2: COM2 RS232/422/485 Mode Selection
RS-232 Configuration (default)
RS-422 Configuration
RS-485 Configuration
Table 1.4: CMOS1: Clear CMOS
Pins Result
1-2* Keep CMOS data* 2-3 Clear CMOS data *Default
1
Keep CMOS data Clear CMOS
Table 1.5: J1:LCD Power 3.3 V/5.5 V Selection
Closed Pins Result
1-2* 3.3 V* 2-3 5 V *Default
1
3.3 V, 1-2 closed 5 V, 2-3 closed
Table 1.6: PSON1: ATX, AT Mode Selection
Closed Pins Result
1-2 AT Mode 2-3* ATX Mode* *Default
1
1
1
1
AT Mode, 1-2 closed ATX Mode, 2-3 closed
AIMB-258 User Manual 10
Table 1.7: JWDT1: Watchdog Timer Output Option
Closed Pins Result
1-2 NC 2-3* System Reset* *Default
NC, 1-2 closed System Reset, 2-3 closed
1
Table 1.8: JOBS: HW monitor
Closed Pins Result
1-2* Close: Enable OBS Alarm [Default] 1-2 Open: Disable OBS Alarm *Default
Close Open
12
Chapter 1 Product Introduction
1
12

1.12 Central Processing Unit (CPU) for AIMB-258

The motherboard AIMB-258 comes with a surface mount 478-pin Zero Insertion Force (ZIF) socket designed for the Intel® Pentium® M / Celeron® M processor (Supports mPGA478M, Micro-FCPGA).
Take one of the marked corner (with gold triangle) on the CPU. This mark should match a specific corner on the socket to ensure correct installation.
Note!
!
Make sure the AC power is off before you install the CPU.
!
If installing a dual-core CPU, connect the CPU fan cable to the CPUFAN1 connector to ensure system stability.
Gold Mark
11 AIMB-258 User Manual
Caution!
!
Intel® socket 478 Pentium M/ Celeron M CPU with 90nm process package should come with installation instructions for the CPU, heatsink, and the retention mechanism. If the instructions in this section do not match the CPU documentation, follow the latter.
!
Upon purchase of the motherboard, make sure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. Your place of purchase or local distributor will shoulder the cost of repair only if the damage is shipment/transit-related.
!
Keep the cap after installing the motherboard. Your place of pur­chase or local distributor will process Return Merchandise Authori­zation (RMA) requests only if the motherboard comes with the cap on the socket.
!
The product warranty does not cover damage to the socket con­tacts resulting from incorrect CPU installation/removal, or misplace­ment/loss/ incorrect removal of the PnP cap.
1.12.1 Installing the CPU
1. Locate the CPU socket on
the motherboard.
Note!
AIMB-258 User Manual 12
Before installing the CPU, make sure that the socket box is facing towards you.
2. The processor socket comes with
a screw to secure the processor, please unlock the screw first.
Chapter 1 Product Introduction
3. Position the CPU above the
socket and the gold triangular mark on the CPU must align with pin 1 of the CPU socket.
4. Carefully insert the CPU into the
socket until it fits in place ‘Gold mark’.
5. Turn the screw to the lock
position.
Warning! The CPU fits in only one correct orientation. DO NOT force the CPU into
the socket to prevent bending the connectors on the socket and damag­ing the CPU.
13 AIMB-258 User Manual
Warning! After installation, make sure to plug-in the ATX power cable to the moth-
erboard.
1.12.2 Installing the CPU Heatsink and Fan
The Intel® Pentium® M / Celeron® M processor (supports mPGA478M, Micro­FCPGA) requires a specially designed heatsink and fan assembly to ensure optimum thermal condition and performance.
Caution! If you purchased a separate CPU heatsink and fan assembly, make
sure that you have properly applied Thermal Interface Material to the CPU heatsink or CPU before you install the heatsink and fan assembly.
Motherboard Hole
1. Place the heatsink on top of the
installed CPU, making sure that the four screws match the holes on the motherboard.
Note! Orient the heatsink and fan assembly such that the CPU fan cable is
closest to the CPU fan connector.
2. Connect the CPU fan cable to the connector on the motherboard labelled
CPUFAN1.
AIMB-258 User Manual 14
Chapter 1 Product Introduction
Caution!
!
Do not forget to connect the fan cables to the fan connectors. Insuf­ficient air flow inside the system may damage the motherboard components, and hardware monitoring errors can occur if you fail to plug this connector.
!
These are not jumpers! DO NOT place jumper caps on the fan con­nectors.
15 AIMB-258 User Manual
1.12.3 Uninstalling the CPU Heatsink and Fan
1. Disconnect the CPU fan cable
from the connector on the motherboard.
2. Rotate each screw counter- clock-
wise.
3. Carefully remove the heatsink and
fan assembly from the mother­board.
Note! Refer to the documentation in the boxed or stand-alone CPU fan pack-
age for detailed information on CPU fan installation.
AIMB-258 User Manual 16

1.13 System Memory

1.13.1 DIMM Sockets Location
The motherboard comes with two 204-pin Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) sockets. The following figure illustrates the location of the sockets:
Chapter 1 Product Introduction
1.13.2 System Memory
The AIMB-258 has two sockets for 204-pin SODIMMx2. All these sockets use 1.5 V unbuffered double data rate synchronous DRAMs (DDR
SDRAM). They are available in capacities of 256, 512, and 1024 MB. The sockets can be filled in any combination with SODIMMs of any size, giving a total memory size between 256 MB and 2 GB. AIMB-258 does NOT support ECC (error checking and correction).
1.13.2.1 Memory Installation Procedures
To install SODIMMs, first make sure the two handles of the SODIMM socket are in the.open. position. i.e., the handles lean outward. Slowly slide the SODIMM module along the plastic guides on both ends of the socket. Then press the SODIMM module right down into the socket, until you hear a click. This is when the two handles have automatically locked the memory module into the correct position of the SODIMM socket. To remove the memory module, just push both handles outward, and the memory module will be ejected by the mechanism.
1.13.2.2 Cache Memory
The AIMB-258 supports a CPU with one of the following built-in full speed L2 caches: 2048 MB for Intel Core 2 Duo CPU The built-in second-level cache in the processor yields much higher performance
than conventional external cache memories.
17 AIMB-258 User Manual
1.13.3 Memory Support List
Table 1.9: SODIMM DDR3
SODIMM DDR3 Brand Size Speed Type ECC Vendor PN AdvantechPNMemory
Transcend 1GB DDR3
1066
2GB DDR3
1066
Apacer RAM
Apacer 1GB DDR3
1066
2GB DDR3
1066
SODIMM DDR3
SODIMM DDR3
SODIMM DDR3
SODIMM DDR3
NTS128MSK
64V1U
NTS256MSK
64V1U
N NA NA ELPIDA J1108BABG-
N NA NA ELPIDA J1108BABG-
96SD3­1G1066NN­TR
96SD3­2G1066NN­TR
SEC K4B1G0846D­HCF8(128x8)
SEC K4B1G0846D­HCF8(128x8)
DJ-E 084909DE7
DJ-E 084909D8T
AIMB-258 User Manual 18

1.14 Connectors

1.14.1 Rear Panel Connectors
Chapter 1 Product Introduction
1
2, 3
7
8
4, 5 6
Table 1.10: Rear Panel Connectors
No. Label Function Description 1 KBMS1 PS/2 mouse connector The standard PS/2 mouse DIN connec-
tor is for a PS/2 mouse. 2 COM1(Top) Serial port connector x 1 D-sub 9-pin, male 3 COM2(Bottom) Serial port connector x 1 D-sub 9-pin, male 4,5 LAN1_USB12/
LAN2_USB34
6 Audio1 3 ports audio connector Mic-in, Line-in, Line-out 7 VGA VGA port Analog graphical output 8 DVI-D DVI port Digital graphical output
LAN (RJ-45) connector This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table 1.11 for
the LAN port LED indications. The
optional 10/100 Mbps LAN controller
allows 10/100 Mbps connection to a
Local Area Network (LAN) through a
network hub.
Table 1.11: LEDs
ACT / LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection Green Linked ORANGE 100 Mbps connection Blinking Data activity GREEN 1 Gbps connection
19 AIMB-258 User Manual
1.14.2 CPU Fan Connector (CPUFAN1)
Caution!
!
Do not forget to connect the fan cables to the fan connectors. Insuf­ficient air flow inside the system may damage the motherboard components, and hardware monitoring errors can occur if you fail to plug this connector.
!
These are not jumpers! DO NOT place jumper caps on the fan connectors.
AIMB-258 User Manual 20
1.14.3 System Fan Connector (SYSFAN1, SYSFAN2)
Chapter 1 Product Introduction
Caution!
!
Do not forget to connect the fan cables to the fan connectors. Insuf­ficient air flow inside the system may damage the motherboard components, and hardware monitoring errors can occur if you fail to plug this connector.
!
These are not jumpers! DO NOT place jumper caps on the fan con­nectors.
21 AIMB-258 User Manual
1.14.4 Serial Port Connector 3456 (COM3456)
1.14.5 Front Headphone Connector (HD1)
This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio. Connect one end of the front panel audio I/O module cable to this connector.
AIMB-258 User Manual 22
Note! For motherboards with the optional HD Audio feature, we recommend
that you connect a high-definition front panel audio module to this con­nector to avail of the motherboard’s high definition audio capability.
1.14.6 Front Panel Connector (JFP1/JFP2/JFP3)
Chapter 1 Product Introduction
There are several external switches to monitor and control the AIMB-258.
1.14.7 ATX soft power switch (JFP1 / PWR_SW)
If your computer case is equipped with an ATX power supply, you should connect the power on/off button on your computer case to (JFP1/PWR_SW). This connection enables you to turn your computer on and off.
1.14.8 Reset (JFP1 / RESET)
Many computer cases offer the convenience of a reset button. Connect the wire for the reset button.
1.14.9 HDD LED (JFP2 / HDDLED)
You can connect an LED to connector (JFP2/HDDLED) to indicate when the HDD is active.
1.14.10 External speaker (JFP2 / SPEAKER)
(JFP2 / SPEAKER) is a 4-pin connector for an external speaker. If there is no exter­nal speaker, the AIMB-258 provides an onboard buzzer as an alternative. To enable the buzzer, set pins 3-4 as closed.
23 AIMB-258 User Manual
1.14.11 Power LED and keyboard lock connector (JFP3 /
PWR_LED&KEY LOCK)
(JFP3 / PWR_LED&KEY LOCK) is a 5-pin connector for the power on LED and Key Lock function. Refer to Appendix B for detailed information on the pin assignments. The Power LED cable should be connected to pin 1-3. The key lock button cable should be connected to pin 4-5.
There are 3 modes for the power supply connection. The first is “ATX power mode”, system is on/off by a tentative power button. The second is “AT Power Mode”, system is on/off by the switch of the Power supply. The third is another “AT Power Mode” which is using the front panel power switch. The power LED status is indicated as fol­lowing table:
Table 1.12: ATX power supply LED status (No support for AT power)
Power Mode LED (ATX Power Mode)
(On/Off by tentative button)
PSON1 (On Back plane) Jumper Setting
System On On On On System Status Fast flashes Fast flashes Fast flashes System Off Slow flashes Off Off
2-3 pin closed 1-2 pin closed Connect 1-2 pin cable
LED (AT Power Mode) (On/Off by switching power supply)
1.14.12 USB 2.0 Connector (USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 480 Mbps connection speed.
LED (AT Power Mode) (On/Off by front panel switch)
with switch
USB56
AIMB-258 User Manual 24
USB78
Caution! Never connect a 1394 cable to the USB connectors. Doing so will dam-
age the motherboard!
Note! The USB module is purchased separately.
1.14.13 ATX Power Connector (ATX1)
This connector is for an ATX Micro-Fit power supply. The plugs from the power sup­ply are designed to fit these connectors in only one orientation. Find the proper orien­tation and push down firmly until the connectors completely fit.
Chapter 1 Product Introduction
Important notes on the Motherboard Power Requirements
Note!
!
Make sure that your ATX 12 V power supply can provide 6 A on the +12 V lead and at least 1A on the +5-volt standby lead (+5 VSB). The minimum recommended wattage is 180 W for a fully config­ured system. The system can become unstable and might experi­ence difficulty powering up if the power supply is inadequate.
!
You must install a Power Supply with a higher power rating if you intend to install additional devices.
25 AIMB-258 User Manual
1.14.14 LCD Inverter Connector (VP1)
1.14.15 LVDS Connector (LVDS1)
VDDSAFE_1
GND_1 GND_7
VDDSAFE_3
OD0-
OD0+
GND_2
OD1-
OD1+
GND_3
OD2-
OD2+
GND_4
OCK-
OCK+
GND_5
DDC_CLK
GND_6
NC NC HPLG
VDDSAFE_2
VDDSAFE_4 ED0­ED0+
GND_8
ED1-
ED1+ GND_9 ED2­ED2+ GND_10 ECK­ECK+ GND_11
DDC_DAT GND_12
NC
NC
VCON
AIMB-258 User Manual 26
1.14.16 Digital I/O Connector (DIO_CN1)
Chapter 1 Product Introduction
1.14.17 Serial ATA Connector 1 & 2 (SATA1, SATA2)
SATA1
SATA2
Note! AIMB-258 features a high performance serial ATA interface (up to 300
MB/s) which eases cabling to hard drives with thin and long cables.
27 AIMB-258 User Manual
1.14.18 PCIe x 16 Slot (PCIE X 16)
1.14.19 SPI Flash Connector(SPI_CN1)
Note! This connector is for factory use only.
AIMB-258 User Manual 28
1.14.20 Memory Connector Channel A/B(DIMM1/2)
Chapter 1 Product Introduction
1.14.21 SPDIF1 out connector(SPDIF1)
1
2
3
4
29 AIMB-258 User Manual
1.14.22 CF connector
AIMB-258 User Manual 30
Chapter 2

2 BIOS Operation

2.1 BIOS Introduction

Advantech provides full-featured AwardBIOSes, which deliver the superior perfor­mance, compatibility, and functionality that today’s manufacturers of industrial PCs and embedded boards demand. The many options and extensions let you customize your products to a wide range of designs and target markets.
The modular, adaptable AwardBIOS 6.0 supports the broadest range of third-party peripherals and all popular chipsets, plus Intel
CPUs from 386 through Pentium and AMD Geode, K7 and K8 (including multiple pro­cessor platforms), and VIA Eden C3 and C7 CPU.
You can use Advantech’s utilities to select and install features to suit your exclusive designs.

2.2 BIOS Setup

The AIMB-258 Series system has built-in AwardBIOS with a CMOS SETUP utility which allows user to configure required settings or to activate certain system fea­tures.
The CMOS SETUP saves the configuration in the CMOS RAM of the motherboard. When the power is turned off, the battery on the board supplies the necessary power to the CMOS RAM.
When the power is turned on, pressing the <Del> button during the BIOS POST (Power-On Self Test) will take you to the CMOS SETUP screen.
®
, AMD, nVidia, VIA, and compatible
CONTROL KEYS
>< >< >< >
< <Enter> Select Item <Esc> Main Menu - Quit and not save changes into CMOS
<Page Up/+> Increase the numeric value or make changes <Page Down/-> Decrease the numeric value or make changes <F1> General help, for Setup Sub Menu <F2> Item Help <F5> Load Previous Values <F7> Load Optimized Default <F10> Save all CMOS changes
Move to select item
Sub Menu - Exit current page and return to Main Menu
AIMB-258 User Manual 32
2.2.1 Main Menu
Press <Del> to enter AwardBIOS CMOS Setup Utility, the Main Menu will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
Chapter 2 BIOS Operation
! Standard CMOS Features
This setup page includes all the items in standard compatible BIOS.
! Advanced BIOS Features
This setup page includes all the items of Award BIOS enhanced features.
! Advanced Chipset Features
This setup page includes all the items of Chipset configuration features.
! Integrated Peripherals
This setup page includes all onboard peripheral devices.
! Power Management Setup
This setup page includes all the items of Power Management features.
! PnP/PCI Configurations
This setup page includes PnP OS and PCI device configuration.
! PC Health Status
This setup page includes the system auto detect CPU, and reports system tem­perature, CPU temperature, fan speeds, and system voltages.
! Load Setup Defaults
This setup page includes Load system optimized value, and the system would be in best performance configuration.
! Set Password
Establish, change or disable password.
! Save & Exit Setup
Save CMOS value settings to CMOS and exit BIOS setup.
! Exit Without Saving
Abandon all CMOS value changes and exit BIOS setup.
33 AIMB-258 User Manual
2.2.2 Standard CMOS Features
! Date
The date format is <weekday>, <month>, <day>, <year>.
Weekday From Sun to Sat, determined and display by BIOS only Month From Jan. to Dec. Day From 1 to 31 Year From 1999 through 2098
! Time
The times format in <hour> <minute> <second>, based on the 24-hour time
! IDE Channel 0/1/2, Master
IDE HDD Auto-Detection Press "Enter" for automatic device detection.
! Video
Select EGA or VGA display.
! Halt on
The item determines whether the computer will stop if an error is detected dur­ing power up.
No Errors The system boot will not stop for any error All Errors Whenever the BIOS detects a non-fatal error the system will be
stopped.
All, But Keyboard The system boot will not stop for a keyboard error; it will stop for
all other errors. (Default value)
All, But Diskette The system boot will not stop for a disk error; it will stop for all
other errors.
All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will
stop for al other errors.
! Base Memory
The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system.
! Extended Memory
The POST of the BIOS will determine the amount of extended memory (above 1MB in CPU’s memory address map) installed in the system.
! Total Memory
This item displays the total system memory size.
AIMB-258 User Manual 34
2.2.3 Advanced BIOS Features
! CPU Feature
This item allows user to adjust CPU features, CPU ratio, VID and thermal and special feature like XD flag.
! Hard Disk Boot Priority
This item allows user to select boot sequence for system device HDD, SCSI, RAID.
! Virus Warning [Disabled]
Enables or disables the virus warning.
! CPU L3 Cache
This item allows users to enable CPU L3 cache.
! Quick Power On Self Test [Enabled]
This field speeds up the Power-On Self Test (POST) routine by skipping retest­ing a second, third and forth time. Setup setting default is enabled.
! First / Second / Third / Other Boot Drive
BIOS attempts to load the operating system from the boot devices in the order assigned.
Chapter 2 BIOS Operation
Hard Disk Assign this boot device priority to Hard Disk. CDROM Assign this boot device priority to CDROM. USB-FDD Assign this boot device priority to USB-FDD. USB-ZIP Assign this boot device priority to USB-ZIP. USB-CDROM Assign this boot device priority to USB-CDROM. LAN Assign this boot device priority to LAN. Disabled Do not attempt to boot from this device.
! Boot Other Device
Use this to boot another device. The options are "Enabled" and "Disabled".
! Boot Up NumLock Status [Enabled]
This item enables users to activate the Number Lock function upon system boot
! Gate A20 Option [Fast]
This item enables users to switch A20 control by port 92 or not.
! Typematic Rate Setting
This item enables users to set the two typematic controls items.
35 AIMB-258 User Manual
Typematic Rate (Chars/Sec)
This item controls the speed at which the system registers repeated key-
strokes. The eight settings are 6, 8, 10, 12, 15, 20, 24 and 30.
Typematic Delay (Msec)
This item sets the keypress delay before typematic repetition kicks in. The
four delay options are 250, 500, 750 and 1000.
! Security Option [Setup]
System System requires password both for bootup and for access to the
Setup page.
Setup Setup requires password only for access to the Setup page, not for
bootup. (Default value)
! APIC Mode [Enabled]
This item allows user to enabled of disabled “Advanced Programmable Interrupt Controller”. APIC is implemented in the motherboard and must be supported by the operating system, and it extends the number of IRQ's available.
! Show summary screen
This item is allowed you to decide if to show the system configuration table.
2.2.4 Advanced Chipset Features
Note! This “Advanced Chipset Features” screen controls the configuration of
the board’s chipset for fine-tuning system performance. Screen options depend on the specific chipset. It is strongly recommended that only technical users make changes to the default settings.
! PCI Express Root port Func [Press Enter]
This item allows the user to adjust PCIE port on, off or auto.
! VT-d (Intel(R) Virtualization Tech)
Virtualization enhanced by Intel Virtualization Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple “virtual” sys-
tems.
! PEG / Onchip VGA Control
Use this field to select PEG or Onchip VGA. The default is AUTO.
AIMB-258 User Manual 36
! PEG Force x1
Enabled or Disabled.
! On-Chip Frame Buffer Size
The On-Chip Frame Buffer Size can be set to 1 MB or 8 MB. This memory is shared with the system memory.
! DVMT Mode
Intel's Dynamic Video Memory Technology (DVMT) allows the system to dynam­ically allocate memory resources according to the demands of the system at any point in time. The key idea in DVMT is to improve the efficiency of the memory allocated to either system or graphics processor.
! Total GFX Memory
When "Enable" DVMT Mode, the graphics driver will allocate a fixed amount of memory as dedicated graphics memory, as well as allow more system memory to be dynamically allocated between the graphics processor
and the operating system.
! PAVP Mode
This setting enables/disables the Protected Audio/Video Path (PAVP) mode.
! Boot Display
Use the field to select the type of device you want to use as the display(s) of the system.
! Panel type
Select panel resolution.
Chapter 2 BIOS Operation
2.2.5 Integrated Peripherals
Note! This “Integrated Peripherals” option controls the configuration of the
board’s chipset, includes IDE, ATA, SATA, USB, AC97, MC97 and Super IO and Sensor devices; this page this page depends on the par­ticular chipset installed.
! OnChip IDE Device
This item enables users to set the OnChip IDE device status, includes enable IDE devices and setting PIO and DMA access mode, and some of new chipset also support for SATA device (Serial-ATA)
37 AIMB-258 User Manual
! Onboard Device
This item enables users to set the Onboard device status; it includes enable LAN1 and LAN2 devices.
! Super IO Device
This item enables users to set the Super IO device status; it includes enabling COM1~COM6.
AIMB-258 User Manual 38
! Onboard Serial port 1 [3F8 / IRQ4]
This item allows user to adjust serial port 1 address and IRQ.
! Onboard Serial port 2 [2F8 / IRQ3]
This item allows user to adjust serial port 2 address and IRQ.
! Onboard Serial port 3 [3E8 / IRQ4]
This item allows user to adjust serial port 3 address and IRQ.
! Onboard Serial port 4 [2E8 / IRQ3]
This item allows user to adjust serial port 4 address and IRQ.
! Onboard Serial port 5 [4F8 / IRQ5]
This item allows user to adjust serial port 5 address and IRQ.
! Onboard Serial port 6 [4E8 / IRQ7]
This item allows user to adjust serial port 6 address and IRQ.
2.2.6 USE Device Setting
Chapter 2 BIOS Operation
! USB 1.0 Controller
Select “Enabled” if your system contains a Universal Serial Bus (USB) controller and you have USB peripherals. The choices are "Enabled" and "Disabled".
! USB 2.0 Controller
This entry is used to disable/enable the USB 2.0 controller only. The BIOS itself may or may not have high-speed USB support. If the BIOS has high speed USB support built in, the support will automatically turn on when a high speed device is attached. The choices are "Enabled" or "Disabled".
! USB Operation Mode
Set the USB 2.0 controller to Hi Speed (480 Mbps) or Full Speed (12 Mbps).
! USB Keyboard / Mouse Function
Select Enabled. if you plan to use a USB keyboard/Mouse. The choices are "Enabled" and "Disabled".
! USB Storage Function
Select "Enabled" if you plan to use an external USB storage device to boot the system under DOS mode. The choices are "Enabled" and "Disabled".
39 AIMB-258 User Manual
2.2.7 Power Management Setup
Note! Use this "Power Management Setup" screen to configure the system for
most effective power management while still operating in a manner con­sistent with intended computer use.
! PCI Express PM Function
This allows you to enable or disable system wake up via PCI Express PME (Power Management Event).
! Power-Supply Type [ATX]
This item allows user to set power-supply type, ATX or AT mode.
! ACPI Function [Enabled]
This item defines the ACPI (Advanced Configuration and Power Management) feature that makes hardware status information available to the operating sys­tem, and communicate PC and system devices for improving the power man­agement.
! ACPI Suspend Type [S3 (STR)]
This item allows user to select sleep state when suspend.
S1(POS) The suspend mode is equivalent to a software power down; S3(STR) The system shuts down with the exception of a refresh current to
the system memory.
! Run VGA BIOS if S3 Resume [Auto]
This item allows system to reinitialize VGA BIOS after system resume from ACPI S3 mode.
AIMB-258 User Manual 40
! Power Management [User Defined]
This item allows user to select system power saving mode.
Min Saving Minimum power management. Suspend Mode=1 hr. Max Saving Maximum power management. Suspend Mode=1 min. User Define Allows user to set each mode individually. Suspend Mode= Dis-
abled or 1 min ~1 hr.
! Video Off Method [DPMS]
This item allows user to determine the manner is which the monitor is blanked.
V/H SYNC+Blank This option will cause system to turn off vertical and horizontal syn-
chronization ports and write blanks to the video buffer. Blank Screen This option only writes blanks to the video buffer. DPMS Initial display power management signaling.
! Video Off In Suspend [Yes]
This item allows user to turn off Video when the system enters suspend mode.
! Suspend Type [Stop Grant]
This item allows user to determine the suspend type.
! Modem use IRQ [3]
This item allows user to determine the IRQ which the MODEM can use.
! Suspend Mode [Disabled]
Shows the time of system inactivity before all devices except the CPU will be shut off.
! HDD Power Down Mode [Disabled]
This item allows user to determine the time of system inactivity, the hard disk drive will be powered down.
! Soft-Off by PWR-BTTN [Instant-Off]
This item allows user to define function of power button.
Chapter 2 BIOS Operation
Instant-Off Press power button then Power off instantly. Delay 4 Sec Press power button 4 sec. to Power off.
! PWRON After PWR-Fail [ON/Off/Former-Sts]
Use this to set up the system after power failure. The “Off” setting keeps the sys­tem powered off after power failure, the “On” setting boots up the system after failure, and the “Former-Sts” returns the system to the status before power fail­ure.
! PowerOn by LAN [Enabled]
This item allows users to power on the system via LAN. The choices are “Enabled” and “Disabled”.
! PowerOn by Modem [Enabled]
This item allows users to power on the system by Modem. The choices are “Enabled” and “Disabled”.
! USB KB Wake_Up From S3 [Disabled]
This item allows user to set USB keyboard wake up system from S3 Enable or Disable.
! PowerOn by Alarm [Disabled]
The choices are “Enabled” and “Disabled”. If enabled, the fields that follow indi­cate dates and times of alarm settings.
41 AIMB-258 User Manual
2.2.8 PnP/PCI Configurations
! Reset Configuration Data [Disabled]
The default is Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) if you have installed a new add-on card, and system configuration is in such a state that the OS cannot boot, enable this.
! Resources Controlled By [Auto(ESCD)]
The commands here are “Auto(ESCD)” or “Manual”. Choosing “Manual” requires you to choose resources from the following sub-menu. ”Auto(ESCD)” automatically configures all of the boot and Plug and Play devices, but you must be using Windows 95 or above.
! Maximum Payload Size [128]
This allows you to set the maximum TLP payload size for PCI Express devices.
2.2.9 PC Health Status
! ACPI Shutdown Temperature [Disabled]
The system will shut down automatically if the CPU temperature goes over the selected setting.
AIMB-258 User Manual 42
! CPU Warning Temperature
The system will give an automatic warning if the CPU temperature goes over the selected setting.
! Current System Temperature
This shows you the current temperature of system.
! Current CPU Temperature
This shows the current CPU temperature.
! VCORE and Other Voltages
This shows the voltage of VCORE, +12 V, +3 V, +5 V, VBAT (V), and 5 VSB (V).
2.2.10 Load Setup Defaults
Chapter 2 BIOS Operation
Note! Load Setup Defaults loads the default system values directly from ROM.
If the stored record created by the Setup program should ever become corrupted (and therefore unusable), these defaults will load automati­cally when you turn the AIMB-258 Series system on.
2.2.11 Set Password
43 AIMB-258 User Manual
Note! To enable this feature, you should first go to the Advanced BIOS Fea-
tures menu, choose the Security Option, and select either Setup or Sys­tem, depending on which aspect you want password protected. Setup requires a password only to enter Setup. System requires the password either to enter Setup or to boot the system. A password may be at most 8 characters long.
To Establish Password
1. Choose the Set Password option from the CMOS Setup Utility main menu and
press <Enter>.
2. When you see “Enter Password”, enter the desired password and press
<Enter>.
3. At the “Confirm Password” prompt, retype the desired password, then press
<Enter>.
4. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
To Change Password
1. Choose the Set Password option from the CMOS Setup Utility main menu and
press <Enter>.
2. When you see “Enter Password”, enter the existing password and press
<Enter>.
3. You will see “Confirm Password”. Type it again, and press <Enter>.
4. Select Set Password again, and at the “Enter Password” prompt, enter the new
password and press <Enter>.
5. At the “Confirm Password” prompt, retype the new password, and press
<Enter>.
6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
To Disable Password
1. Choose the Set Password option from the CMOS Setup Utility main menu and
press <Enter>.
2. When you see “Enter Password”, enter the existing password and press
<Enter>.
3. You will see “Confirm Password”. Type it again, and press <Enter>.
4. Select Set Password again, and at the “Enter Password” prompt, please don’t
enter anything; just press <Enter>.
5. At the “Confirm Password” prompt, again, don’t type in anything; just press
<Enter>.
6. Select Save to CMOS and EXIT, type <Y>, then <Enter>.
AIMB-258 User Manual 44
Chapter 3
3 Chipset Software
Install Utility

3.1 Before you Begin

To facilitate the installation of the enhanced display device drivers and utility soft­ware, you should read the instructions in this chapter carefully before you begin. The device drivers for the AIMB-258 board are located on the software installation CD. The auto-run function of the driver CD will guide you to the utilities and device drivers
required for a Windows system. The Intel® Chipset Software Installation Utility is not required on any systems running Windows NT 4.0. Updates are provided via Service
®
Packs from Microsoft
Note! The files on the software installation CD are compressed. Do not
attempt to install the drivers by copying the files manually. You must use the supplied SETUP program to install the drivers
Before you begin, it is important to note that most display drivers need to have the relevant software application already installed in the system prior to installing the enhanced display drivers. In addition, many of the installation procedures assume that you are familiar with both the relevant software applications and operating sys­tem commands. Review the relevant operating system commands and the pertinent sections of your application software's user's manual before performing the installa­tion.
.

3.2 Introduction

The Intel® Chipset Software Installation utility installs to the target system the Win­dows INF files that outline to the operating system how the chipset components will be configured. This is needed for the proper functioning of the following features:
! Core PCI and ISA PnP services ! IDE Ultra ATA 100/66/33 and Serial ATA interface support ! USB 1.1/2.0 support ! Identification of Intel® chipset components in the Device Manager ! Integrates superior video features. These include filtered sealing of 720 pixel
DVD content, and MPEG-2 motion compensation for software DVD
Note! This utility is used for the following versions of Windows system, and it
has to be installed before installing all the other drivers: Windows XP Windows Vista
AIMB-258 User Manual 46

3.3 Windows Vista/XP Driver Setup

Insert the driver CD into your system's CD-ROM drive. You can see the driver folders items. Move the mouse cursor over the folder "Drv_INF". In Drv_INF folder, you can click "infinst_autol.exe" to complete the implement of the driver.
Chapter 3 Chipset Software Install Utility
47 AIMB-258 User Manual
AIMB-258 User Manual 48
Chapter 4

4 VGA Setup

4.1 Introduction

The Intel GM45 integrated graphics controller provides an analog display port. You need to install the VGA driver to enable the function.
Intel Graphics Media Accelerator 4500MHD: Incorporating the latest Microsoft* DirectX*10 support capabilities and Shader Model 4.0 features., it allows software developers to create lifelike environments and characters. Dual independent display, enhanced display modes for widescreen flat panels, and optimized 3D support deliver an intense and realistic visual experience without requiring a separate graph­ics card. @ 75 Hz refresh rate) and Intel GMA 4500MHD provides Intel® Clear Video Technology, and graphics core speeds up to 533 MHz improve graphics and 3D ren­dering performance, and enable high-definition video playback.

4.2 Windows Vista/XP Driver Setup

Note! Before installing this driver, make sure the CSI utility has been installed
in your system. See Chapter 3 for information on installing the CSI util­ity.
Insert the driver CD into your system's CD-ROM drive. In a few seconds, the software installation main menu appears, as shown in the following figure.
The following installation procedure is for Windows XP. For other operating systems, please do a manual installation.
Move the mouse cursor over the folder "Drv_VGA". In Drv_VGA folder, you can click Installshield Wizard under folders named Vista, Vista64, XP64, or XP to automatically complete driver installation.
AIMB-258 User Manual 50
Chapter 5

5 LAN Configuration

5.1 Introduction

The AIMB-258 features single/dual Gigabit Ethernet network interface. With the Realtek RTL8111C GbE controller designed-in, AIMB-258 implements the PCI Express host interface (PCI-E X1) in LAN connection with the maximum throughput of 2Gbps for heavy-duty industrial network application.

5.2 Features

Integrated 10/100/100 BASE-T transceiver
1. 10/100/1000 BASE-T triple-speed MAC
2. High-speed RISC core with 24-KB cache
3. On-chip voltage regulation
4. Supporting Wake-on-LAN (WOL) function
5. PCI Express X1 host interface

5.3 Installation

Note! Before installing the LAN drivers, make sure the CSI utility has been
installed on your system. See Chapter 3 for information on installing the CSI utility.
The AIMB-258's Realtek RTL8111C Gigabit integrated controller supports all major network operating systems. However, the installation procedure varies with different operating systems. In the following sections, refer to the one that provides driver setup procedure for the operating system you are using.
5.4 Windows Vista/XP Driver Setup (Realtek
RTL8111C)
Insert the driver CD into your system's CD-ROM drive. Select the Drv_LAN folder.
AIMB-258 User Manual 52
Select the subdirectory based OS version; install the appropriate LAN driver.
Chapter 5 LAN Configuration
53 AIMB-258 User Manual
AIMB-258 User Manual 54
Appendix A
A Programming the
Watchdog Timer

A.1 Programming the Watchdog Timer

The AIMB-258's watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function after the programmed period. This section describes the operation of the watchdog timer and how to pro­gram it.
A.1.1 Watchdog timer overview
The watchdog timer is built into the super I/O controller W83627UHG. It provides the following functions for user programming:
! Can be enabled and disabled by user's program. ! Timer can be set from 1 to 255 seconds or 1 to 255 minutes. ! Generates an interrupt or resets signal if the software fails to reset the timer
after time-out.
A.1.2 Programming the Watchdog Timer
The I/O port address of the watchdog timer is 2E(hex) and 2F(hex). 2E (hex) is the address port. 2F(hex) is the data port. You must first assign the address of register by writing address value into address
port 2E(hex), then write/read data to/from the assigned register through data port 2F (hex).
AIMB-258 User Manual 56
Appendix A Programming the Watchdog Timer
57 AIMB-258 User Manual
Table A.1: Watchdog Timer Registers
Address of register (2E) Attribute
Read/Write Value (2F) and description
87 (hex) - Write this address to I/O address port 2E
(hex) twice to unlock the W83627UHG
07 (hex) write Write 08 (hex) to select register of
watchdog timer.
30 (hex) write Write 01 (hex) to enable the function of
the watchdog timer. Disabled is set as default.
F5 (hex) write Set seconds or minutes as units for the
timer. Write 0 to bit 3: set second as counting unit. [default] Write 1 to bit 3: set minute as counting unit. F6 (hex) write 0: stop timer [default]
01~FF (hex): The amount of the count,
in seconds or minutes, depends on the
value set in register F5 (hex). This num-
ber decides how long the watchdog
timer waits for strobe before generating
an interrupt or reset signal. Writing a
new value to this register can reset the
timer to count with the new value. F7 (hex) read/write Bit 6: Write 1 to enable keyboard to reset
the timer, 0 to disable.[default]
Bit 5: Write 1 to generate a timeout sig-
nal immediately and automatically
return to 0. [default=0]
Bit 4: Read status of watchdog timer, 1
means timer is ""time out""." AA (hex) - Write this address to I/O port 2E (hex)
to lock the watchdog timer.2.
AIMB-258 User Manual 58
A.1.3 Example Program
1. Enable watchdog timer and set 10 sec. as timeout interval ;----------------------------------------------------------­Mov dx,2eh ; Unlock W83627UHG Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------­Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------­Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------­Dec dx ; Set second as counting unit Mov al,0f5h Out dx,al Inc dx In al,dx And al,not 08h Out dx,al ;----------------------------------------------------------­Dec dx ; Set timeout interval as 10 seconds and start counting Mov al,0f6h Out dx,al Inc dx Mov al,10 Out dx,al ;----------------------------------------------------------­Dec dx ; lock W83627UHG Mov al,0aah Out dx,al
2. Enable watchdog timer and set 5 minutes as timeout interval ;----------------------------------------------------------­Mov dx,2eh ; unlock W83627UHG Mov al,87h Out dx,al Out dx,al
Appendix A Programming the Watchdog Timer
59 AIMB-258 User Manual
;----------------------------------------------------------­Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------­Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------­Dec dx ; Set minute as counting unit Mov al,0f5h Out dx,al Inc dx In al,dx Or al,08h Out dx,al ;----------------------------------------------------------­Dec dx ; Set timeout interval as 5 minutes and start counting Mov al,0f6h Out dx,al Inc dx Mov al,5 Out dx,al ;----------------------------------------------------------­Dec dx ; lock W83627UHG Mov al,0aah Out dx,al
3. Enable watchdog timer to be reset by mouse ;----------------------------------------------------------­Mov dx,2eh ; unlock W83627UHG Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------­Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;-----------------------------------------------------------
AIMB-258 User Manual 60
Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------­Dec dx ; Enable watchdog timer to be reset by mouse Mov al,0f7h Out dx,al Inc dx In al,dx Or al,80h Out dx,al ;----------------------------------------------------------­Dec dx ; lock W83627UHG Mov al,0aah Out dx,al
4. Enable watchdog timer to be reset by keyboard ;----------------------------------------------------------­Mov dx,2eh ; unlock W83627UHG Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------­Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------­Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------­Dec dx ; Enable watchdog timer to be strobed reset by keyboard Mov al,0f7h Out dx,al Inc dx In al,dx Or al,40h Out dx,al
Appendix A Programming the Watchdog Timer
61 AIMB-258 User Manual
;----------------------------------------------------------­Dec dx ; lock W83627UHG Mov al,0aah Out dx,al
5. Generate a time-out signal without timer counting ;----------------------------------------------------------­Mov dx,2eh ; unlock W83627UHG Mov al,87h Out dx,al Out dx,al ;----------------------------------------------------------­Mov al,07h ; Select registers of watchdog timer Out dx,al Inc dx Mov al,08h Out dx,al ;----------------------------------------------------------­Dec dx ; Enable the function of watchdog timer Mov al,30h Out dx,al Inc dx Mov al,01h Out dx,al ;----------------------------------------------------------­Dec dx ; Generate a time-out signal Mov al,0f7h Out dx,al ;Write 1 to bit 5 of F7 register Inc dx In al,dx Or al,20h Out dx,al ;----------------------------------------------------------­Dec dx ; lock W83627UHG Mov al,0aah Out dx,al
AIMB-258 User Manual 62
Appendix B

B Pin Assignments

B.1 USB Connector (USB56,USB78)

75
10864
Table B.1: USB5/USB6 Connector (USB56)
Pin USB1 Signal Pin USB2 Signal
1+5 V 2+5 V 3 LP5- 4 LP5+ 5 LP5+ 6 LP5­7 GND 8 GND 9NC 10GND

B.2 VGA Connector (VGA1A)

5 10 6
15
3
1
2
1
11
Table B.2: VGA Connector (VGA1A)
Pin Signal Pin Signal
1RED 9VCC 2 GREEN 10 GND 3BLUE 11N/C 4N/C 12SDAT 5 GND 13 H-SYNC 6 GND 14 V-SYNC 7GND 15SCLK 8GND

B.3 DVI Connector (VGA1B)

Table B.3: DVI Connector (VGA1B)
Pin Signal Pin Signal
1RED 11NC 2 GREEN 12 VGADATA 3 BLUE 13 VHSYNC 4 N/C 14 VVSYNC 5 GND 15 VGACLK
AIMB-258 User Manual 64
Table B.3: DVI Connector (VGA1B)
6GND 16GND 7GND 17GND 8GND 9+5V_VGA 10 GND

B.4 RS-232 Serial Port (COM1~COM2)

1
6
Table B.4: RS-232 Serial Port (COM1~COM2)
Pin Signal
1 DCD/TX_422N/TX_485N 2 RXD/TX_422P/TX_485P 3 TXD/RX_422P 4 DTR/RX_422N 5GND 6DSR 7RTS 8CTS 9 RRI
Appendix B Pin Assignments
65 AIMB-258 User Manual

B.5 RS-232 Serial Port (COM3 ~ COM6)

Table B.5: RS-232 Serial Port (COM23)
Pin Signal Pin Signal
1 COM3_#DCD 2 COM3_#DSR 3 COM3_SIN 4 COM3_#RTS 5 COM3_SOUT 6 COM3_#CTS 7 COM3_#DTR 8 COM3_#RI 9GND 10GND 11 COM4_#DCD 12 COM4_#DSR 13 COM4_SIN 14 COM4_#RTS 15 COM4_SOUT 16 COM4_#CTS 17 COM4_#DTR 18 COM4_#RI 19 GND 20 GND 21 COM5_#DCD 22 COM5_#DSR 23 COM5_SIN 24 COM5_#RTS 25 COM5_SOUT 26 COM5_#CTS 27 COM5_#DTR 28 COM5_#RI 29 GND 30 GND 31 COM6_#DCD 32 COM6_#DSR 33 COM6_SIN 34 COM6_#RTS 35 COM6_SOUT 36 COM6_#CTS 37 COM6_#DTR 38 COM6_#RI 39 GND 40 GND
AIMB-258 User Manual 66

B.6 PS/2 Keyboard/ Mouse Connector (KBMS1)

Appendix B Pin Assignments
12
10
11
9
87
6
4
5
3
12
Table B.6: PS/2 Keyboard/ Mouse Connector (KBMS1)
Pin Signal Pin Signal
1 KB DATA 2 NC 7MS DATA 6NC 3GND 8NC 4VCC 9GND 5 KB CLOCK 10 VCC 11 MS CLOCK 12 NC

B.7 CPU Fan Power Connector (CPUFAN1)

1
2
3
Table B.7: CPU Fan Power Connector (CPUFAN1)
Pin Signal
1GND 2+12 V 3DEC
67 AIMB-258 User Manual

B.8 Power LED & Keyboard Lock Connector (JFP3)

You can use an LED to indicate when the single board computer is on. Pin 1 of JFP3 supplies the LED's power, and Pin 3 is the ground.
Table B.8: Power LED and Keylock Connector (JFP3)
Pin Function
1 LED power (+5 V) 2NC 3GND 4 KEYLOCK# 5GND
B.9 HDD LED and External Speaker
Connector(JFP2/HDD LED and SPEAKER)
The single board computer has its own buzzer. You can also connect it to the external speaker on your computer chassis.
Table B.9: External Speaker Connector (JFP2/SPEAKER)
Pin Signal Pin Signal
1 SPK+ 2 HDDLED+ 3 NC 4 HDDLED­5 SPK_IN 6 SMB_DAATA 7 SPK- 8 SMB_CLK
AIMB-258 User Manual 68
B.10 ATX Soft Power Switch and Reset Connector
(JFP1/ PWR-SW and RESET)
1
2
3
4
Table B.10: Audio Front Panel Connector (JFP1/ RESET)
Pin Signal
1PWR_BTN# 2GND 3 RESET 4GND
Appendix B Pin Assignments

B.11 Audio Front Panel Connector (FPAUD1)

Table B.11: Audio front panel connector (FPAUD1)
1 MIC-IN 2 GND 3 MIC_VCC 4 VCC 5 LRR 6 LOUT_R 7 JDO 8 NC 9 LRL 10 LOUT_L
69 AIMB-258 User Manual

B.12 GPIO Pin Header (GPIO1)

1 3
17 19
2 4
18
20
Table B.12: GPIO Pin Header (GPIO1)
Pin Signal Pin Signal
1 DIO_GP20 2 DIO_GP10 3 DIO_GP21 4 DIO_GP11 5 DIO_GP22 6 DIO_GP12 7 DIO_GP23 8 DIO_GP13 9DIO_GP24 10DIO_GP14 11 DIO_GP25 12 DIO_GP15 13 DIO_GP26 14 DIO_GP16 15 DIO_GP27 16 DIO_GP17 17 SMBCLK_PCI 18 SMBDATA_PCI 19 GND 20 VCC5_DIO
AIMB-258 User Manual 70

B.13 LVDS Connector (LVDS1)

438
2
Table B.13: LVDS Connector (LVDS1)
Pin Signal Pin Signal
1 VDDSAFE_1 2 VDDSAFE_2 3 GND_1 4 GND_7 5 VDDSAFE_3 6 VDDSAFE_4 7OD0- 8 ED0­9OD0+ 10ED0+ 11 GND_2 12 GND_8 13 OD1- 14 ED1­15 OD1+ 16 ED1+ 17 GND_3 18 GND_9 19 OD2- 20 ED2­21 OD2+ 22 ED2+ 23 GND_4 24 GND_10 25 OCK- 26 ECK­27 OCK+ 28 ECK+ 29 GND_5 30 GND_11 31 DDC_CLK 32 DDC_DAT 33 GND_6 34 GND_12 35 OD3- 36 ED3­37 OD3+ 38 ED3+ 39 HPLG 40 VCON
Appendix B Pin Assignments
40
71 AIMB-258 User Manual

B.14 LVDS Power Jumper (J1)

Voltage
*3.3V
*default setting
Table B.14: LVDS Power Jumper (J1)
Pin Signal
1 VCC3 2 VDD_LCD 3VCC

B.15 LVDS Invert (VP1)

5V
Jumper Setting
1
2
3
1
2
3
Table B.15: LVDS Invert (VP1)
Pin Signal
1 VCC12 2GND 3 BKLTEN 4 VBR 5VCC
AIMB-258 User Manual 72

B.16 System I/O Ports

Table B.16: System I/O Ports
Addr. range (Hex) Device
000-01F DMA controller 020-021 Interrupt controller 1, master 022-023 Chipset address 040-05F 8254 timer 060-06F 8042 (keyboard controller) 070-07F Real-time clock, non-maskable interrupt (NMI)
mask 080-09F DMA page register 0A0-0BF Interrupt controller 2 0C0-0DF DMA controller 0F0 Clear math co-processor 0F1 Reset math co-processor 0F8-0FF Math co-processor 1F0-1F8 Fixed disk 200-207 Game I/O 290-29F On-board hardware monitor 2F8-2FF Serial port 2 300-31F Prototype card 360-36F Reserved 380-38F SDLCm bisynchronous 2 3A0-3AF Bisynchronous 1 3C0-3CF Reserved 3D0-3DF Color/graphics monitor adapter 3F0-3F7 Diskette controller 3F8-3FF Serial port 1 3E8-3EF Serial port3 2E8-2EF Serial port4 4F8-4FF Serial port5 4E8-4EF Serial port6
Appendix B Pin Assignments

B.17 DMA Channel Assignments

Table B.17: DMA Channel Assignments
Channel Function
0 Available 1 Available 2 Floppy disk (8-bit transfer) 3 Available 4 Cascade for DMA controller 1 5 Available 6 Available 7 Available
73 AIMB-258 User Manual

B.18 Interrupt Assignments

Table B.18: Interrupt Assignments
Priority Interrupt# Interrupt Source
1 NMI Parity error detected 2 IRQ0 Interval timer 3 IRQ1 Keyboard
- IRQ2 Interrupt from controller 2 (cascade) 4 IRQ8 Real-time clock 5 IRQ9 Cascaded to INT 0A (IRQ 2) 6 IRQ10 Available 7 IRQ11 Available 8 IRQ12 PS/2 mouse 9 IRQ13 INT from co-processor 10 IRQ14 Primary IDE Channel 12 IRQ3 Serial communication port 2/4 13 IRQ4 Serial communication port 1/3 14 IRQ5 Serial communication port 5 15 IRQ6 Diskette controller (FDC) 16 IRQ7 Serial communication port 6

B.19 1st MB Memory Map

Table B.19: 1st MB Memory Map
Addr. range (Hex) Device
E0000h - FFFFFh BIOS CC000h - DFFFFh Unused C0000h - CBFFFh VGA BIOS A0000h - BFFFFh Video Memory 00000h - 9FFFFh Base memory
AIMB-258 User Manual 74
Appendix B Pin Assignments
75 AIMB-258 User Manual
