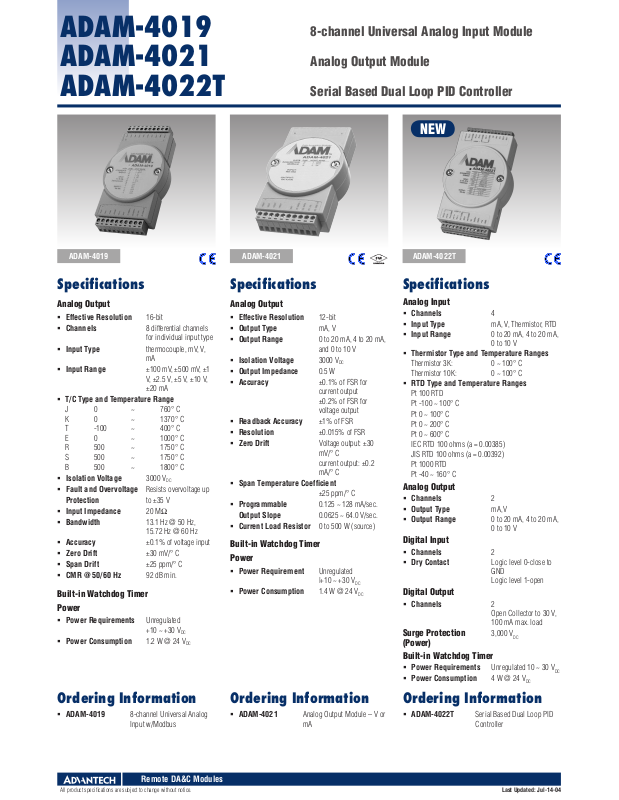

Advantech ADAM-4019, ADAM-4021, ADAM-4022T Data Sheet
www.advantech.com/products
Online Download
Last Updated: Jul-14-04
All product specications are subject to change without notice.
ADAM-4019
8-channel Universal Analog Input Module
ADAM-4021
ADAM-4022T
ADAM-4019 ADAM-4021
Specications
Analog Output
§ Effective Resolution 16-bit
§ Channels 8 differential channels
§ Input Type thermocouple, mV, V,
§ Input Range ±100 mV, ±500 mV, ±1
§ T/C Type and Temperature Range
J 0 ~ 760° C
K 0 ~ 1370° C
T -100 ~ 400° C
E 0 ~ 1000° C
R 500 ~ 1750° C
S 500 ~ 1750° C
B 500 ~ 1800° C
§ Isolation Voltage 3000 V
§ Fault and Overvoltage Resists overvoltage up
Protection to ±35 V
§ Input Impedance 20 MΩ
§ Bandwidth 13.1 Hz @ 50 Hz,
§ Accuracy ±0.1% of voltage input
§ Zero Drift ±30 mV/° C
§ Span Drift ±25 ppm/° C
§ CMR @ 50/60 Hz 92 dB min.
Built-in Watchdog Timer
Power
§ Power Requirements Unregulated
§ Power Consumption 1.2 W @ 24 V
for individual input type
mA
V, ±2.5 V, ±5 V, ±10 V,
±20 mA
DC
15.72 Hz @ 60 Hz
+10 ~ +30 V
DC
DC
Specications
Analog Output
§ Effective Resolution 12-bit
§ Output Type mA, V
§ Output Range 0 to 20 mA, 4 to 20 mA,
§ Isolation Voltage 3000 V
§ Output Impedance 0.5 W
§ Accuracy ±0.1% of FSR for
§ Readback Accuracy ±1% of FSR
§ Resolution ±0.015% of FSR
§ Zero Drift Voltage output: ±30
§ Span Temperature Coefcient
§ Programmable 0.125 ~ 128 mA/sec.
Output Slope 0.0625 ~ 64.0 V/sec.
§ Current Load Resistor 0 to 500 W (source)
Built-in Watchdog Timer
Power
§ Power Requirement Unregulated
§ Power Consumption 1.4 W @ 24 V
Analog Output Module
Serial Based Dual Loop PID Controller
NEW
ADAM-4022T
Specications
Analog Input
§ Channels 4
§ Input Type mA, V, Thermistor, RTD
and 0 to 10 V
DC
current output
±0.2% of FSR for
voltage output
mV/° C
current output: ±0.2
mA/° C
±25 ppm/° C
|+10 ~ +30 V
DC
DC
§ Input Range 0 to 20 mA, 4 to 20 mA,
§ Thermistor Type and Temperature Ranges
Thermistor 3K: 0 ~ 100° C
Thermistor 10K: 0 ~ 100° C
§ RTD Type and Temperature Ranges
Pt 100 RTD
Pt -100 ~ 100° C
Pt 0 ~ 100° C
Pt 0 ~ 200° C
Pt 0 ~ 600° C
IEC RTD 100 ohms (a = 0.00385)
JIS RTD 100 ohms (a = 0.00392)
Pt 1000 RTD
Pt -40 ~ 160° C
Analog Output
§ Channels 2
§ Output Type mA,V
§ Output Range 0 to 20 mA, 4 to 20 mA,
Digital Input
§ Channels 2
§ Dry Contact Logic level 0-close to
Digital Output
§ Channels 2
Surge Protection 3,000 V
(Power)
Built-in Watchdog Timer
§ Power Requirements Unregulated 10 ~ 30 V
§ Power Consumption 4 W @ 24 V
0 to 10 V
0 to 10 V
GND
Logic level 1-open
Open Collector to 30 V,
100 mA max. load
DC
DC
DC
Ordering Information
§ ADAM-4019 8-channel Universal Analog
Input w/Modbus
All product specications are subject to change without notice.
Remote DA&C Modules
Ordering Information
§ ADAM-4021 Analog Output Module – V or
mA
Ordering Information
§ ADAM-4022T Serial Based Dual Loop PID
Controller
Last Updated: Jul-14-04
