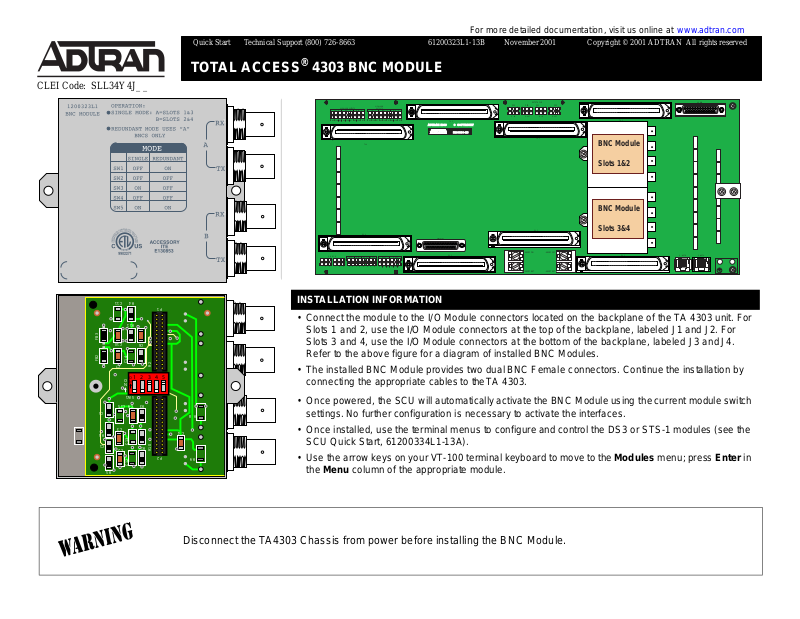

ADTRAN Total Access 4303 BNC Module Quick Start Guide
COPYRIGHT
CLEI Code: SLL34Y4J_ _
For more detailed documentation, visit us on line at www.adtran.com
Quick Start Technical Support (800) 726-8663 61200323L1-13B
TOTAL ACCESS® 4303 BNC MODULE
AUD. ALARM OUTPUTS
CRI - A MAJ - A MIN - A
NO COM NC NO COM NC NO COM NC
VIS. ALARM
OUTPUTS
CRI - V MAJ - V MIN - V
NO COM NC NO COM NC NO COM NC
TX 4
TX 3
ADTRAN 1999 © COPYRIGHT
5200330-1B
November 2001
EXT STA CLK
P50 P52 P51
+_s
+_s+_s
A - IN A - OUT B - IN
TX 2
+_s
Copyright © 2001 ADTRAN All rights reserved
P53
B - OUT
TX 1
ADMIN
BNC Module
Slots 1&2
BNC Module
Slots 3&4
RX 1
E - NET B E - NET A
-48 VDC PRI
-48 VDC RET
RX 2
-48 VDC SEC
-48 VDC RET
RX 4
A MISC B
TRS
C11
R4
P1
R11
INSTALLATION INFORMATION
• Connect the module to the I/O Module connectors located on the backplane of the TA 4303 unit. For
AUX1 AUX2
ACO RMT
TRS ABABA BAB
AUX1 AUX2
NOCOM NC
NOCOM NC
NTWK MGMT
RX 3
Slots 1 and 2, use the I/O Module connectors at the top of the backplane, labeled J1 and J2. For
C10
C6
FB2 FB3
C14
C7
O
1 2 3 4 5
O
N
N
SW1
C15
R3
C9
C5
C3
R6
C13
C1
R5
R1
C2
R10 R2
C12
P2
R 8
C 4
R9
Slots 3 and 4, us e the I/O Module connectors at the bott om of the backplane, labeled J3 and J4.
Refer to the above figure for a diagram of installed BNC Modules.
• The installed BNC Module provides two dual BNC Female connect ors. C ontinue the installation by
connecting the appropriate cables to the TA 4303.
• Once powered, the SCU will automatically activate the BNC Module using the current module switch
settings. No further configuration is necessary to activate the interfaces.
• Once insta l led, use the terminal me nus to configure and c ontrol the DS3 or STS-1 modules (see the
SCU Quick Start, 61200334L1-13A).
• Use the arrow keys on your VT-100 terminal keyboard to move to the Modules menu; press Enter in
the Menu column of the appropriate module.
Disconnect the TA4303 Chassis from power before installing the BNC Module.
Quick Start Technical Support (800) 726-8663 61200323L1-13B
TOTAL ACCESS 4303 BNC MODULE
MODES OF OPERATIO N
SINGLE REDUNDANT
SW1 OFF ON
SW2 OFF OFF
SW3 ON OFF
SW4 OFF OFF
SW5 ON ON
• For single mode operation use BNC pair ‘A’ for Slots 1 and 3 and BNC
pair ‘B’ for Slots 2 and 4.
• For the TA 4303 to function properly in DS3 or STS-1 redundant mode, only
BNC pair ‘A’ may be used.
November 2001
Copyright © 2001 ADTRAN All rights reserved
