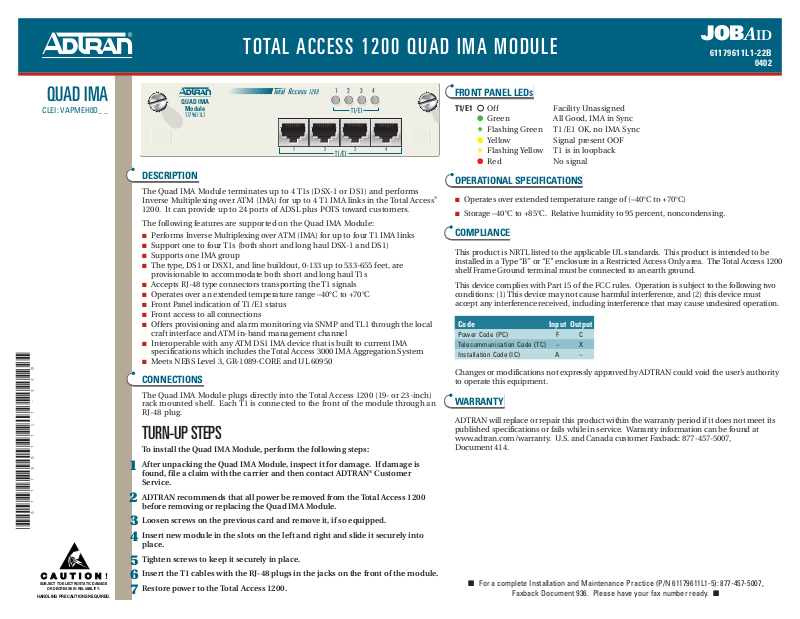

TOTAL ACCESS 1200 QUAD IMA MODULE
JOBAID
61179611L1-22B
0402
QUAD IMA
CLEI: VAPMEH0D_ _
DESCRIPTION
The Quad IMA Module terminates up to 4 T1s (DSX-1 or DS1) and performs Inverse Multiplexing over ATM (IMA) for up to 4 T1 IMA links in the Total Access
®
1200. It can provide up to 24 ports of ADSL plus POTS toward customers.
The following features are supported on the Quad IMA Module:
Performs Inverse Multiplexing over ATM (IMA) for up to four T1 IMA links
Support one to four T1s (both short and long haul DSX-1 and DS1)
Supports one IMA group
The type, DS1 or DSX1, and line buildout, 0-133 up to 533-655 feet, are
provisionable to accommodate both short and long haul T1s
Accepts RJ-48 type connectors transporting the T1 signals
Operates over an extended temperature range –40°C to +70°C
Front Panel indication of T1/E1 status
Front access to all connections
Offers provisioning and alarm monitoring via SNMP and TL1 through the local
craft interface and ATM in-band management channel
Interoperable with any ATM DS1 IMA device that is built to current IMA
specifications which includes the Total Access 3000 IMA Aggregation System
Meets NEBS Level 3, GR-1089-CORE and UL 60950
CONNECTIONS
The Quad IMA Module plugs directly into the Total Access 1200 (19- or 23-inch) rack mounted shelf. Each T1 is connected to the front of the module through an RJ-48 plug.
TURN-UP STEPS
To install the Quad IMA Module, perform the following steps:
After unpacking the Quad IMA Module, inspect it for damage. If damage is found, file a claim with the carrier and then contact ADTRAN®Customer Service.
ADTRAN recommends that all power be removed from the Total Access 1200 before removing or replacing the Quad IMA Module.
Loosen screws on the previous card and remove it, if so equipped.
Insert new module in the slots on the left and right and slide it securely into place.
Tighten screws to keep it securely in place.
Insert the T1 cables with the RJ-48 plugs in the jacks on the front of the module.
Restore power to the Total Access 1200.
C A U T I O N
For a complete Installation and Maintenance Practice (P/N 61179611L1-5): 877-457-5007, Faxback Document 936. Please have your fax number ready.
1
2
3
FRONT PANEL LEDS
T1/E1 Off Facility Unassigned
Green All Good, IMA in SyncFlashing Green T1/E1 OK, no IMA Sync
Yellow Signal present OOFFlashing Yellow T1 is in loopback
Red No signal
OPERATIONAL SPECIFICATIONS
Operates over extended temperature range of (–40°C to +70°C)
Storage –40°C to +85°C. Relative humidity to 95 percent, noncondensing.
COMPLIANCE
This product is NRTL listed to the applicable UL standards. This product is intended to be installed in a Type “B” or “E” enclosure in a Restricted Access Only area. The Total Access 1200 shelf Frame Ground terminal must be connected to an earth ground.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by ADTRAN could void the user’s authority to operate this equipment.
WARRANTY
ADTRAN will replace or repair this product within the warranty period if it does not meet its published specifications or fails while in service. Warranty information can be found at www.adtran.com/warranty. U.S. and Canada customer Faxback: 877-457-5007, Document 414.
#61179611L1-22B#
4
5 6 7
Code Input Output
Power Code (PC) F C Telecommunication Code (TC) – X Installation Code (IC) A
QUAD IMA
C A U T I O N
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
!
Module
1179611L1
T1/E1
1234
T1/E1
TOTAL ACCESS 1200 QUAD IMA MODULE
PRICING AND AVAILABILITY 800.827.0807
TECH SUPPORT 800.726.8663
RETURN FOR REPAIR 256.963.8722
www.adtran.com
61179611L1-22B
PROVISIONING
The Total Access 1200 has a front panel mounted DB-9 connector that supplies an RS-232 interface for connection to a controlling terminal. The supported terminal type is VT100 or compatible and is set for 9600 baud, 8 data bits, no parity, and 1 stop bit.
At the Total Access 1200 Login screen, enter the account name and password. Note that the default login is “ADMIN” and the password is “PASSWORD” and can be changed upon initial login. The login and password are case sensitive.
NOTE: To traverse through the menus, select the desired entry, and press Enter. To work backward in the
menus, press the Escape key.
PROVISIONING OPTIONS
Upon initial installation, the Quad IMA Module will be provisioned according to factory default settings as shown in the table below.
Provisioning Option Settings (Defaults in Bold)
PVCs User definable (Each ADSL connection must have at least one PVC/PVP for
proper operation (No default) Traffic Descriptors UBR; CBR; VBR-rt; VBR-nrt Subtend Configuration, Mode Enabled (Master); Disabled (Slave)
T1 Provisioning Options
T1 Type DSX; T1 T1 Framing ESF; SF T1 Line Code B8ZS; AMI T1 Line Build Out
DSX Type: 0-133 ft; 133-266 ft; 266-399 ft; 399-533 ft; 533-655 ft T1 Type: 0 dB; –7.5 dB; –15 dB; –22.5 dB
IMA Options
IMA Facility (1-4) IMA_Group; Pass-through; Unassigned IMA Transmit ID 0-255 (1 default) IMA Transmit Frame Length 32; 64; 128; 256 Minimum TX Active Links 1-4 Minimum RX Active Links 1-4 Maximum Link Diff Delay 0-100 Group Operation Mode In Service; Out of Service – Maintenance; Out of Service – Unassigned
ADSL Options
Card Service State In Service; Out of Service – Maintenance; Out of Service – Unassigned Line Service State In Service; Out of Service – Maintenance; Out of Service – Unassigned Service Mode Multimode; T.413, G.dmt; G.liet Link Down Alarm Disabled; Enabled Rate Mode Fixed, Rate Adaptive Line Type Interleave; Fast Target SNR Margin 0 – 15 dB (6 dB default) Max SNR Margin 0 – 31 dB (9 dB default) Min SNR Margin 0 – 31 dB Fast Max TX Rate 32 – 8160 kbps Downstream Fast Min TX Rate 32 – 896 kbps Upstream Interleave Max TX Rate 32 – 7616 kbps Downstream Interleave Min TX Rate 32 – 896 kbps Upstream Interleave Max Delay 5 – 255 ms (5 ms default) LOS Secs 0 – 900 with 0 = Disabled ES Secs 0 – 900 with 0 = Disabled
