ADS Technologies NetDSL 800 User Manual
ARESCOM
NetDSL 800 ADSL
Modem
version 5.2b1
User’s Guide
Published April 2000
Copyright
© Copyright 1996, 1997, 1998, 1999, 2000 ARESCOM, Inc. All rights reserved.
No part of this documentation or software may be reproduced or distributed in
any form without prior written permission from ARESCOM, Inc.
ARESCOM, Inc. has the right to make revisions and to change the contents of
this document without any obligation to provide prior notice of such revisions
and changes.
ARESCOM, Inc. provides this documentation without any kind of warranty,
either expressed or implied, including but not limited to the implied warranties of
merchantability and fitness for a specific purpose. ARESCOM has the right to
make improvements or changes in the product(s) and/or software(s) described in
this documentation.
Address inquiries to: ARESCOM, Inc.
3541 Gateway Blvd.
Fremont, California 94538
phone: (510) 445-3638
fax: (510) 445-3636
customer service: (510) 445-3638
e-mail: support@arescom.com
URL: http://www.arescom.com
Trademark
ARESCOM, ARESCOM NetDSL are trademarks of ARESCOM, Inc. Microsoft
and Windows 95/98 are registered trademarks of Microsoft Corporation. Pentium
is a registered trademark of Intel Corporation. All other trademarks and
registered trademarks belong to their respective companies.
Table of Contents
1. Before You Begin
1.1 Hot Features ......................................................... 1-1
1.2 Package Includes ................................................. 1-1
1.3 Minimum System Requirements ........................ 1-2
1.4 Information You Will Need .................................. 1-2
2. Hardware Installation
2.1 Diagram of the NetDSL ........................................ 2-1
2.2 Safety First ........................................................... 2-3
2.3 Setup Instructions ............................................... 2-3
2.4 Connect to the Ethernet ...................................... 2-4
2.5 Connect to the ADSL Interface ........................... 2-6
2.6 Connect to the USB Interface ............................. 2-7
2.7 Connect to Power ................................................ 2-8
3. Software Installation
3.1 About TCP/IP ........................................................ 3-1
3.2 Detecting TCP/IP in Windows® 95/98 ................ 3-1
3.3 Installing TCP/IP in Windows® 95/98 ................. 3-2
3.4 Configuring TCP/IP in Windows® 95/98 ............ 3-2
3.5 Detecting TCP/IP in Windows® 2000 ................. 3-3
3.6 Installing TCP/IP in Windows 2000 ..................... 3-3
3.7 Configuring TCP/IP in Windows® 2000 ............. 3-4
3.8 Detecting TCP/IP in Windows® NT 4.0 .............. 3-4
3.9 Installing TCP/IP in Windows® NT 4.0 ............... 3-5
3.10 Configuring TCP/IP in Windows® NT 4.0 .......... 3-5
3.11 Installing the Software Drivers ........................... 3-6
4. NetDSL Manager
4.1 Installing the NetDSL Software ........................... 4-1
4.2 Launching the NetDSL Manager ......................... 4-1
i
Table of Contents
5. Configuration
5.1 Configuration ....................................................... 5-1
5.2 Outline of Configuration ...................................... 5-2
5.3 General Configuration ......................................... 5-3
5.4 LAN Configuration ............................................... 5-6

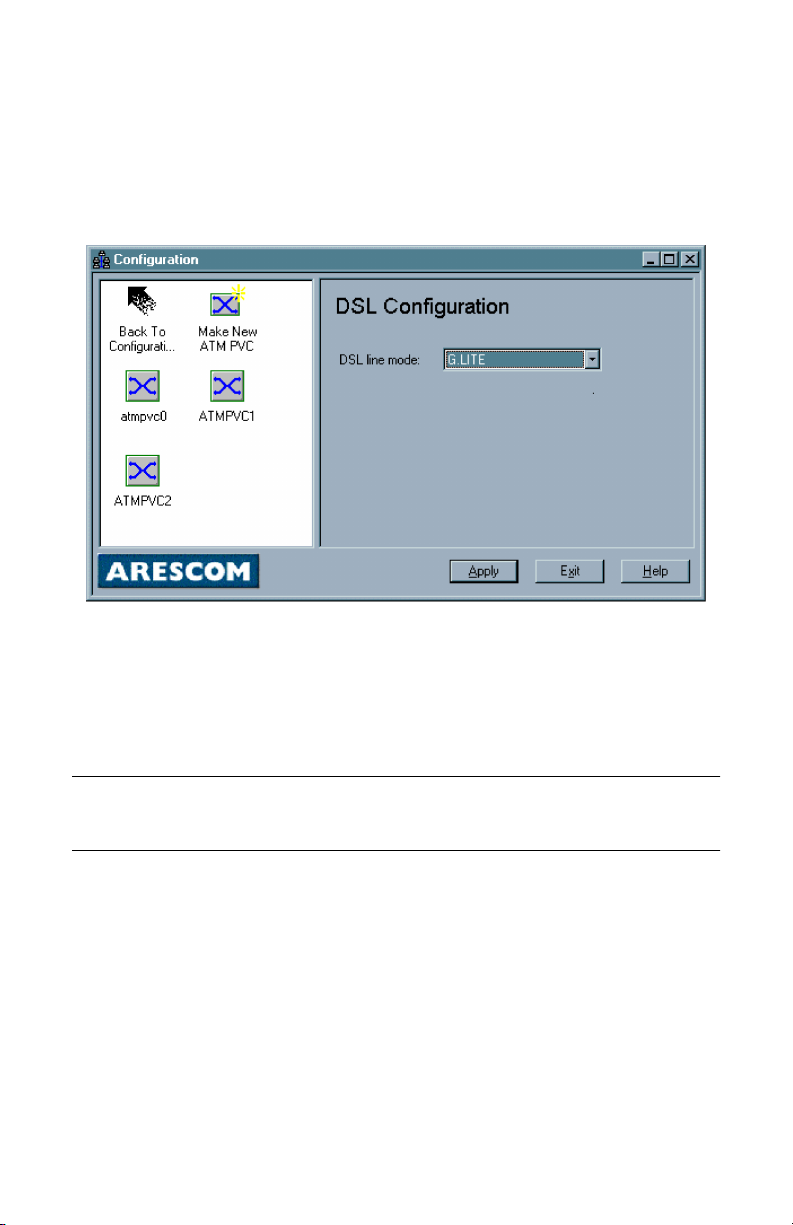

5.5 DSL Configuration ............................................... 5-8
5.6 Configuration File .............................................. 5-11
6. Status Feature

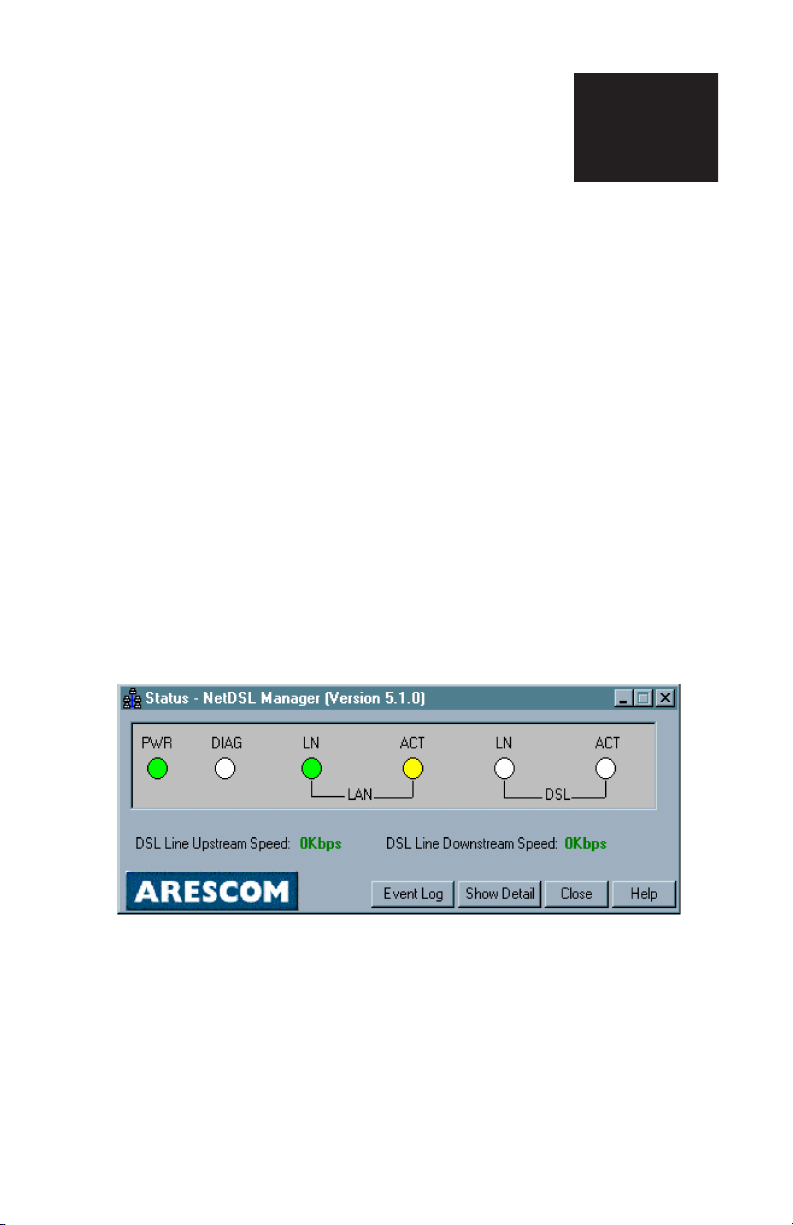

6.1 Main Status Panel ................................................ 6-1
6.2 LED Panel ............................................................. 6-3
6.3 Traffic Counter ..................................................... 6-4
6.4 DSL Status Table ................................................. 6-5
7. Tools Feature
7.1 Upgrade Firmware ............................................... 7-1
7.2 Reset Router/Bridge ............................................ 7-3
8. Troubleshooting
8.1 Cannot Detect the Modem ................................... 8-1
8.2 Modem and PC are Not in the Same Subnet ..... 8-2
8.3 Cannot Upgrade the Firmware ............................ 8-2
Appendices
A. About Configuration Parameters .......................A-1
B. Ethernet Cable Pinout .........................................B-1
C. Warranty Information ...........................................C-1
D. Declaration of Conformity ...................................D-1
ii
NetDSL Software User’s Guide
Before You Begin 1
This Chapter Includes:
1.1 Hot Features........................................... 1-1
1.2 Package Includes ................................... 1-1
1.3 Minimum System Requirements............. 1-2
1.4 Information You Will Need ...................... 1-2
1
11
1.1 Hot Features
Bridge Packet Filtering Table
You can monitor and restrict the traffic flow through your NetDSL modem. This
is useful for protecting your network from undesired intrusion, and for
preventing selected local network traffic from exiting through the NetDSL.
NetDSL can be set to use up to 32 sequential criteria (filters) by which to check
each packet as it enters or leaves your network. Each filter can be set to check
source Mac packets, destination Mac packets, or both. You can also set each
packet to be passed, discarded, or passed to the next filter, depending on whether
or not a packet matches a filter.
Multiple PVC
The NetDSL supports up to 8 ATM PVC interfaces. In each interface, you have
the option to set the Virtual Path Identifier (VPI), Virtual Channel Identifier
(VCI), Unspecified Bit Rate (UBR), Constant Bit Rate (CBR), Peak Cell Rate
(PCR), and the Operations And Maintenance (OAM) F5 virtual channel timer.
1.2 Package Includes
• One NetDSL modem
• Power cord and adapter
• Get Started User’s Guide
• Software CD-ROM (contains Arescom Installation software, Software
User’s Guide, optional Web browser software, and third-party
applications/utilities)
• One RJ-11 to RJ-11 ADSL phone cable (7ft)
• One RJ-45 to RJ-45 straight Ethernet cable (7ft)
• One detachable USB cable
1-1
Minimum System Requirements
1.3 Minimum System Requirements
• ADSL line
• 10BaseT Ethernet or USB interface
•CD-ROM drive
NetDSL gives you the option of configuring the modem using the Arescom
NetDSL Manager. The system requirements for each are listed below:
Using the NetDSL Manager:
• Ethernet card
®
• PC* with at least a 486 microprocessor (Pentium
•CD-ROM drive
• At least 4 MB of space available on the hard disk drive
®
• Microsoft
System
* You may configure the NetDSL from any PC attached to the Local
Area Network (LAN) with the requirements listed above.
Windows® 95/98/2000 or Windows® NT 4.0 Operating
recommended)
1.4 Information You Will Need
To configure your modem, you will need to receive information from the remote
network to which you will connect, such as an Internet Service Provider (ISP) or
a company server. Consult the section below for a detailed list of information on
utilizing the Ethernet interface and the DSL interface. If you are unfamiliar with
any of the terms listed, refer to Appendix A, “About Configuration Parameters.”
The following information should be obtained from your ISP or company server.
•VPI
•VCI
• DSL line code
You MAY need the following information from your ISP or company server
based on your network setup:
•IP Address
• Subnet Mask
• Gateway IP Address
• PPP User name & Password
• DNS Address
1-2
NetDSL Software User’s Guide
Hardware
Installation 2
This Chapter Includes:
2.1 Diagram of the NetDSL .......................... 2-1
2.2 Safety First ............................................. 2-3
2.3 Setup Instructions................................... 2-3
2.4 Connect to the Ethernet.......................... 2-4
2.5 Connect to the ADSL Interface............... 2-6
2.6 Connect to the USB Interface................. 2-7
2.7 Connect to Power................................... 2-8
2
22
2.1 Diagram of the NetDSL
Back Panel Interfaces
Figure 2.1 Back Panel Interfaces for NetDSL
On/Off
Select the On/Off switch to turn the NetDSL on or off.
Power
The power interface connects to the power adapter.
Ethernet
The Ethernet interface connects the NetDSL to a 10BaseT network.
USB
The USB interface allows you to connect your NetDSL to your PC using an USB
detachable cable.
DSL
The ADSL interface connects the NetDSL to an ADSL line.
2-1
Hardware Installation
Front Panel Interfaces
Figure 2.2 Front Panel Interfaces for NetDSL
PWR (Power)
A green LED is ON when power is supplied to the NetDSL.
DIAG (Diagnostic)
The yellow DIAG LED is an indicator that shows the NetDSL modem has been
successfully booted up and the software is functional. When NetDSL is powered
on, the DIAG LED flashes while the router is booting up. After 10 to 15 seconds,
the DIAG LED stops flashing and remains off.
LAN
The LAN LED displays the LAN connection between the modem and your
Ethernet network. The green LED remains solid while there is a connection to the
10BaseT system. The green LED flashes when data is being transmitted between
the modem and the Ethernet system.
USB
The USB LED displays the USB connection between the modem and your PC.
The yellow LED flashes slowly if the USB line is being trained. The yellow LED
remains solid if the USB line is trained and ready between the PC and the
modem. A flashing yellow LED indicates data activity between your PC and the
modem. If the data traffic is heavy, the frequency of the flashing yellow LED
becomes higher and will appear solid.
WAN LINK
Displays the connection between the modem and the remote DSL network. The
green LED flashes slowly if the DSL line is not connected or is being trained.
The green LED remains solid if the DSL line is trained and ready between the
modem and the remote switch.
WAN ACT (Activity)
A flashing yellow LED indicates data activity between the DSL network and the
modem. If the data traffic is heavy, the frequency of the flashing yellow LED
becomes higher and will appear to be solid.
2-2
NetDSL Software User’s Guide
2.2 Safety First
Personal Safety
• In case of emergency, locate the closest electricity power-off switch.
• Refrain from touching any active wires or terminals.
• Remove jewelry before working on equipment connected to
electricity.
• Keep cables away from walkways.
• Dispose of this product in accordance with national laws and
regulations.
Product Handling
• Keep ventilation slots clear.
• Operate in a clean and dust-free location.
• Cables must be attached to the correct interfaces; to do otherwise may
result in damaging the modem or produce hazardous voltage.
• Do not operate or store the product in an environment that surpasses
temperature or humidity specifications.
2.3 Setup Instructions
Hardware Installation
Step 1. Choose a location for the NetDSL close to a power outlet and a
telephone line outlet. Preferably select a convenient location that does
not experience too much foot traffic and is away from sunlight.
Step 2. Choose a level surface for the NetDSL – such as a desk top, shelf, or
table.
Step 3. Place the NetDSL on the predetermined surface, so you can see the back
panel.
2-3
Hardware Installation
2.4 Connect to the Ethernet
Step 1. Locate your Ethernet cable (included).
Step 2. Attach the Ethernet cable to the Ethernet interface of your NetDSL.
Step 3. Plug in the loose end of the Ethernet cable to your Ethernet network.
Option 1. Attach the included Ethernet cable to the Ethernet port on a
PC.
Figure 2.3 Connecting to a Ethernet Port on a PC
2-4
Option 2. Attach the included Ethernet cable to the uplink port on a
hub.
Figure 2.4 Connecting to the Uplink Port on a
Network Hub
Option 3. If the uplink port is unavailable, then you can use a crossover
Ethernet cable (Not included) and attach it to the non-uplink
NetDSL Software User’s Guide
Hardware Installation
ports on a hub.
Figure 2.5 Connecting to the Non-Uplink Port on a
Network Hub
Step 4. The LAN LINK LED on the front panel should be lit green to indicate a
valid Ethernet connection. If the LAN LINK LED is not lit, then repeat
steps 1 through 3.
Note:
differences between a straight-through cable and a crossover cable.
See Appendix B Ethernet Cable Pinout for further information about the
2-5
Hardware Installation
2.5 Connect to the ADSL Interface
Step 1. Plug the RJ-11 connector end of the ADSL phone cable (included) in
the DSL interface of the modem. The ADSL phone cable is provided
(RJ-11 to RJ-45).
Step 2. Connect the RJ-45 connector end of the ADSL phone cable to the
ADSL outlet on the wall.
2-6
Figure 2.6 Connecting the DSL Interface
NetDSL Software User’s Guide
Hardware Installation
2.6 Connect to the USB Interface
Step 1. Plug the Type-B (square-shaped) end of the USB detachable cable
(included) into the USB port of the modem.
Step 2. Plug the Type-A (flat-shaped) end of the USB detachable cable into the
USB port of your PC.
Step 3. Do not turn on the power switch until software installation is
complete. Proceed to Section 3.11 “Installing the Software Drivers.”
Figure 2.7 Connecting to the USB Interface
2-7
Hardware Installation
2.7 Connect to Power
Step 1. Plug the power adapter in the Power interface of the NetDSL.
Step 2. Connect one end of the power cord to the power adapter, and insert the
other end of the power cord to the power outlet on the wall.
Step 3. To activate the NetDSL, turn the ON/OFF switch to ON.
Figure 2.8 Connecting to a Power Supply
2-8
NetDSL Software User’s Guide
f
Software
Installation 3
This Chapter Includes:
3.1 About TCP/IP.......................................... 3-1
3.2 Detecting TCP/IP in Windows® 95/98.... 3-1
3.3 Installing TCP/IP in Windows® 95/98..... 3-2
3.4 Configuring TCP/IP in Windows® 95/98 3-2
3.5 Detecting TCP/IP in Windows® 2000..... 3-3
3.6 Installing TCP/IP in Windows 2000 ........ 3-3
3.7 Configuring TCP/IP in Windows® 2000 . 3-4
3.8 Detecting TCP/IP in Windows® NT 4.0.. 3-4
3.9 Installing TCP/IP in Windows® NT 4.0... 3-5
3.10 Configuring TCP/IP in Windows® NT 4.03-5
3.11 Installing the Software Drivers................ 3-6
3
33
3.1 About TCP/IP
To gain high-speed and shared access to the Wide Area Network (WAN), your
Local Area Network (LAN) needs to be configured for the modem. Each network
node on your LAN must install a network protocol so that they can communicate
with the modem. The modem requires the TCP/IP network protocol. The TCP/IP
Properties window in Windows
Ethernet information to the network’s protocol data. Make sure that each network
node on your LAN has TCP/IP available. To ensure smooth setup, you must
install the TCP/IP network protocol on the PCs before you install the modem.
®
95/98/2000 or NT 4.0 connects the node’s
Note:
is configured with the default IP address of 192.168.1.1 and subnet mask of
255.255.255.0.
We have already configured your NetDSL prior to shipping. The NetDSL
3.2 Detecting TCP/IP in
Windows® 95/98
Step 1. Turn on your computer and start Windows® 95/98.
Step 2. Click the Start button and then select Settings.
Step 3. Choose Control Panel and double click Network icon.
Step 4. Click the Configuration tab.
3-1
Installing TCP/IP in Windows® 95/98
A. If you see TCP/IP listed under Network Components, you already
have TCP/IP on your Windows
directions for Windows
B. If you do not see TCP/IP listed under Network Components, you do
not have TCP/IP on your Windows
section, “Installing TCP/IP in Windows
®
®
95/98. Proceed to configuration
95/98 in Section 3.4.
®
95/98. Proceed to the next
®
95/98.”
3.3 Installing TCP/IP in
Windows® 95/98
Step 1. From the Configuration tab in the Network window, click Add.
Step 2. Select Protocol for the type of network component, and click Add.
Step 3. Choose Microsoft for Manufacturers list box and TCP/IP for Network
Protocols list box, then click OK.
Step 4. Check to see TCP/IP is listed under Network Components.
A. If you do not see TCP/IP listed under Network Components, you
have not installed TCP/IP. Repeat Steps 1 - 4.
B. If you see TCP/IP listed under Network Components, you already
have TCP/IP on your Windows
directions for Windows
®
®
95/98. Proceed to configuration
95/98 in Section 3.4.
3.4 Configuring TCP/IP
in Windows® 95/98
Step 1. From the Configuration tab, select TCP/IP (for Ethernet adapters) listed
under Network Components and then click Properties.
Step 2. Select the IP Address tab.
You now have the option of using either dynamic or static IP addressing.
To enable dynamic IP addressing
Step 1. Click Obtain an IP Address automatically.
Step 2. OPTIONAL* Click the DNS Configuration tab and select Disable
DNS. If you previously entered any parameters, clear all pre-existing
settings.
Step 3. Select the Gateway tab and then click Remove to clear all pre-existing
settings.
Step 4. Click OK to exit TCP/IP Properties window and click OK to exit
Network window. When prompted, restart Windows
not prompted to restart Windows
Chapter 4, “NetDSL Manager.”
* If specifically required by your ISP, you may need to enter DNS
information.
3-2
NetDSL Software User’s Guide
®
95/98, do so manually. Proceed to
®
95/98. If you are
Detecting TCP/IP in Windows® 2000
To enable static IP addressing
Step 1. Click Specify an IP Address and then type the IP Address and Subnet
Mask (for your PC).
Step 2. Click the Gateway tab.
Step 3. Type in your Gateway IP Address (the LAN IP address for the NetDSL)
from your ISP and then click Add.
Step 4. Click the DNS tab. Enter the Host name, Domain name, and DNS
Service Search Order (for your LAN) and then click Add.
Step 5. Click OK to exit TCP/IP Properties window and click OK to exit
Network.
Step 6. When prompted, restart Windows
restart Windows
“NetDSL Manager.”
®
95/98, please do so manually. Proceed to Chapter 4,
®
95/98. If you are not prompted to
3.5 Detecting TCP/IP in Windows®
2000
Step 1. Turn on your computer and log-in to Windows 2000.
Step 2. Click the Start button and select Settings.
Step 3. Choose Control Panel, and then double click Network and Dial-up
Connections icon
Step 4. Double click on the Local Area Connection icon. In the Local Area
Connection Status window, click on the Properties button.
Step 5. In the Local Area Connection Properties window:
A. If you see the Internet Protocol (TCP/IP) listed, you already have
TCP/IP on your Windows 2000. Proceed to configuration directions
for Windows 2000 in Section 3.6.
B. If you do not see Internet Protocol (TCP/IP), you do not have TCP/
IP on your Windows 2000. Proceed to the next section, “Installing
TCP/IP in Windows 2000.”
3.6 Installing TCP/IP in Windows
2000
Step 1. From the General tab in the Local Area Connection Properties window,
click Install.
Step 2. In the Internet Protocol (TCP/IP) Properties window, select the Protocol
icon for the type of network component and click Add.
Software Installation
3-3
Configuring TCP/IP in Windows® 2000
Step 3. Choose the Internet Protocol (TCP/IP) icon from the Network Protocol
list box, then click OK.
Step 4. Check to see if Internet Protocol (TCP/IP) is listed under Network
Components.
A. If you do not see TCP/IP listed under Network Components, you
have not installed TCP/IP. Repeat steps 1 - 4.
B. If you see TCP/IP listed under Network Components, you already
have TCP/IP on your Windows 2000. Proceed to “Configuring
TCP/IP in Windows 2000” in the next section.
3.7 Configuring TCP/IP in Windows®
2000
Step 1. From the General tab in the Local Area Connection Properties window,
select Internet Protocol (TCP/IP) listed under Network Components
and click Properties.
To enable static IP addressing:
Step 1. Click Use the following IP Address and then type the IP Address, Subnet
Mask, and Default gateway.
Step 2. Enter the Preferred and Alternate DNS server IP addresses.
Step 3. Click OK to exit the Internet Protocol (TCP/IP) Properties window.
Proceed to Chapter 4 “NetDSL Manager.”
3.8 Detecting TCP/IP
in Windows® NT 4.0
Step 1. Turn on your computer and log-in to Windows® NT 4.0.
Step 2. Click the Start button and select Settings.
Step 3. Choose Control Panel, and then double click Network icon.
Step 4. Click the Protocols tab.
3-4
A. If you see TCP/IP listed under Network Protocols, you already have
TCP/IP on your Windows
for Windows
B. If you do not see TCP/IP listed under Network Protocols, you do
not have TCP/IP on your Windows
section, “Installing TCP/IP in Windows
NetDSL Software User’s Guide
®
NT 4.0 in Section 3.7.
®
NT. Proceed to configuration directions
®
NT. Proceed to the next
®
NT 4.0.”
Installing TCP/IP in Windows® NT 4.0
3.9 Installing TCP/IP
®
in Windows
NT 4.0
Note:
change settings for your PC.
Step 1. From the Protocols tab in the Network window, click Add.
Step 2. Select TCP/IP Protocol listed under Network Protocols, Click OK.
Step 3. Check to verify that TCP/IP is listed under Network Protocols, then
Consult your Network Administrator if you do not have authorization to
Click OK.
A. If you do not see TCP/IP listed under Network Protocols, you have
not installed TCP/IP. Repeat steps 1 - 3.
B. If you see TCP/IP listed under Network Protocols, then you have
successfully installed TCP/IP. Proceed to configuration directions
for Windows
®
NT 4.0 in Section 3.7.
3.10Configuring TCP/IP in
Windows® NT 4.0
Step 1. From the Protocols tab, select TCP/IP (for Ethernet adapters) listed
under Network Protocol and then click Properties.
Step 2. Select the IP Address tab.
You now have the option of using either dynamic or static IP addressing.
To enable dynamic IP addressing
Step 1. Click Obtain an IP Address from DHCP Server.
Step 2. OPTIONAL* Click the DNS tab and select Disable DNS. If you
previously entered any parameters, clear all pre-existing settings.*
Step 3. Click OK to exit Network Properties window. Proceed to Chapter 4
“NetDSL Manager.”
* If specifically required by your ISP, you may need to enter DNS information.
To enable static IP addressing
Step 1. To enable static addressing, click Specify an IP Address and then type
the IP Address, Subnet Mask, and Gateway IP Address(for your PC).
Step 2. Click the DNS tab. Enter the Host name, Domain name, and DNS
Service Search Order (for your LAN).
Step 3. Click OK to exit Network Properties window. Proceed to Chapter 4
“NetDSL Manager.”
Software Installation
3-5
Loading...
