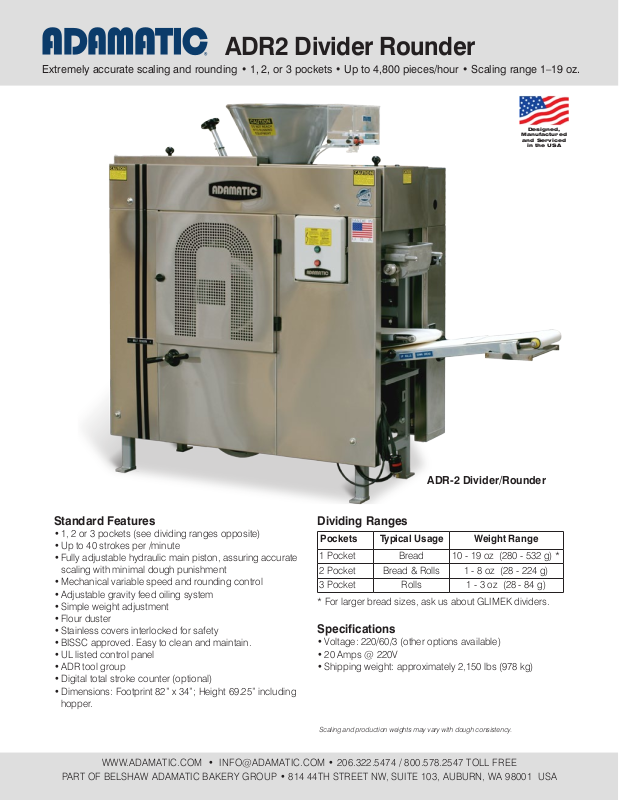

Adamatic ADR2 User Manual

ADR2 Divider Rounder

Extremely accurate scaling and rounding • 1, 2, or 3 pockets • Up to 4,800 pieces/hour • Scaling range 1–19 oz.

Designed,

Manufactured

and Serviced

in the USA

ADR-2 Divider/Rounder

Standard Features

• 1, 2 or 3 pockets (see dividing ranges opposite)

• Up to 40 strokes per /minute

• Fully adjustable hydraulic main piston, assuring accurate scaling with minimal dough punishment

• Mechanical variable speed and rounding control

• Adjustable gravity feed oiling system

• Simple weight adjustment

• Flour duster

• Stainless covers interlocked for safety

• BISSC approved. Easy to clean and maintain.

• UL listed control panel

• ADR tool group

• Digital total stroke counter (optional)

• Dimensions: Footprint 82” x 34”; Height 69.25” including hopper.

WWW.ADAMATIC.COM • INFO@ADAMATIC.COM • 206.322.5474 / 800.578.2547 TOLL FREE

PART OF BELSHAW ADAMATIC BAKERY GROUP • 814 44TH STREET NW, SUITE 103, AUBURN, WA 98001 USA

Dividing Ranges

Pockets Typical Usage Weight Range

1 Pocket Bread 10 - 19 oz (280 - 532 g) * 2 Pocket Bread & Rolls 1 - 8 oz (28 - 224 g) 3 Pocket Rolls 1 - 3 oz (28 - 84 g)

* For larger bread sizes, ask us about GLIMEK dividers.

Specifications

• Voltage: 220/60/3 (other options available)

• 20 Amps @ 220V

• Shipping weight: approximately 2,150 lbs (978 kg)

Scaling and production weights may vary with dough consistency.
