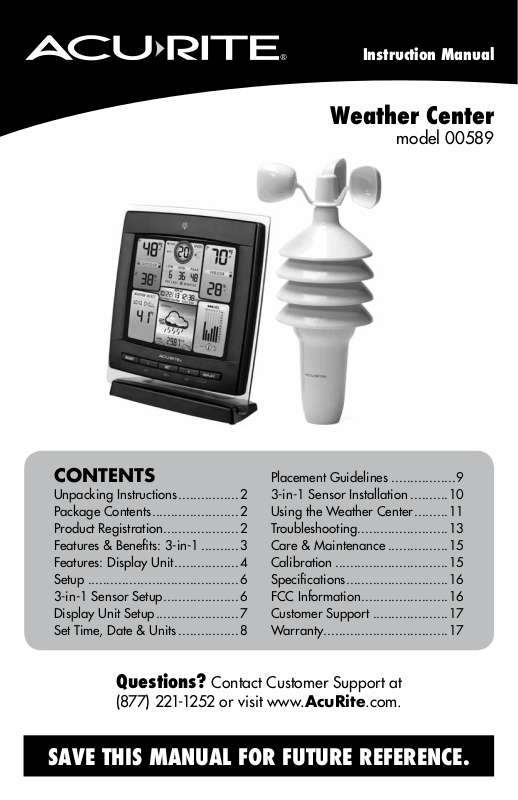

Acu-Rite 589 User Manual
Instruction Manual
Weather Center
model 00589
CONTENTS
Unpacking Instructions ................2
Package Contents .......................2
Product Registration ....................2
Features & Benefits: 3-in-1 ..........3
Features: Display Unit .................4
Setup ........................................6
3-in-1 Sensor Setup ....................6

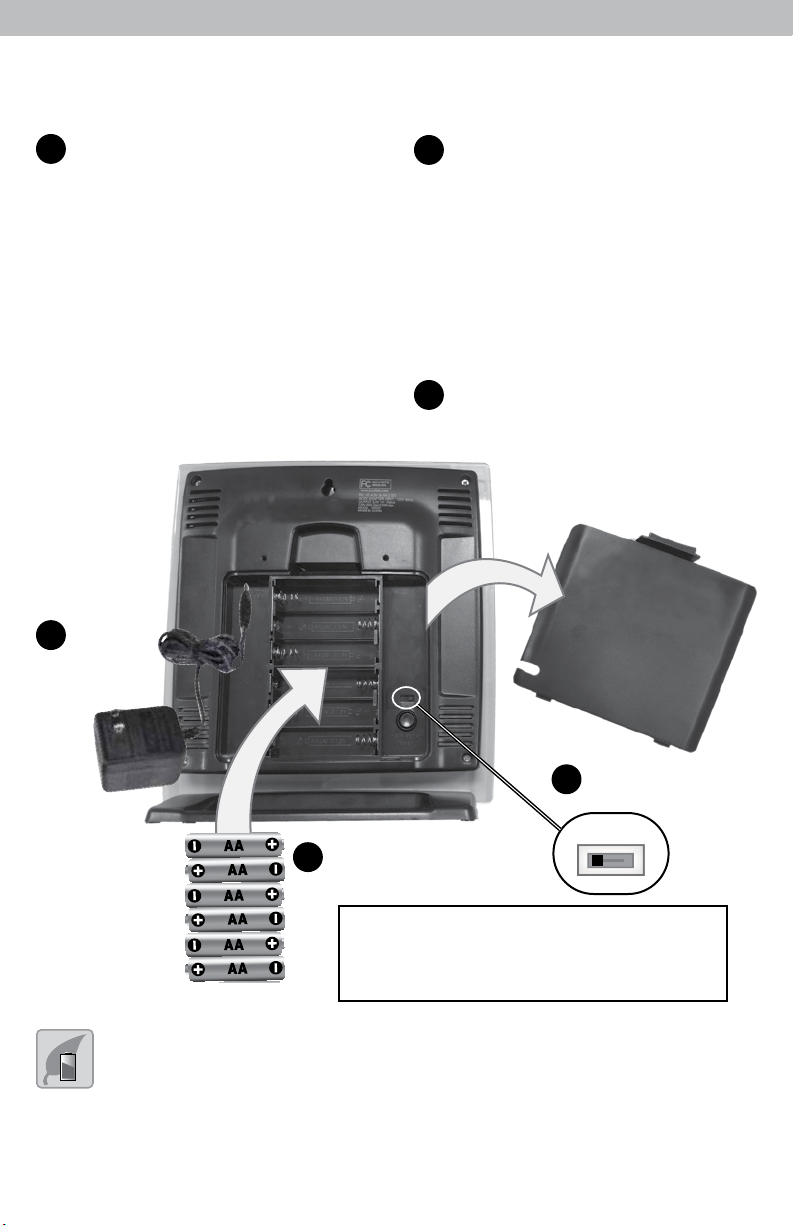

Display Unit Setup ......................7
Set Time, Date & Units ................8
Placement Guidelines .................9

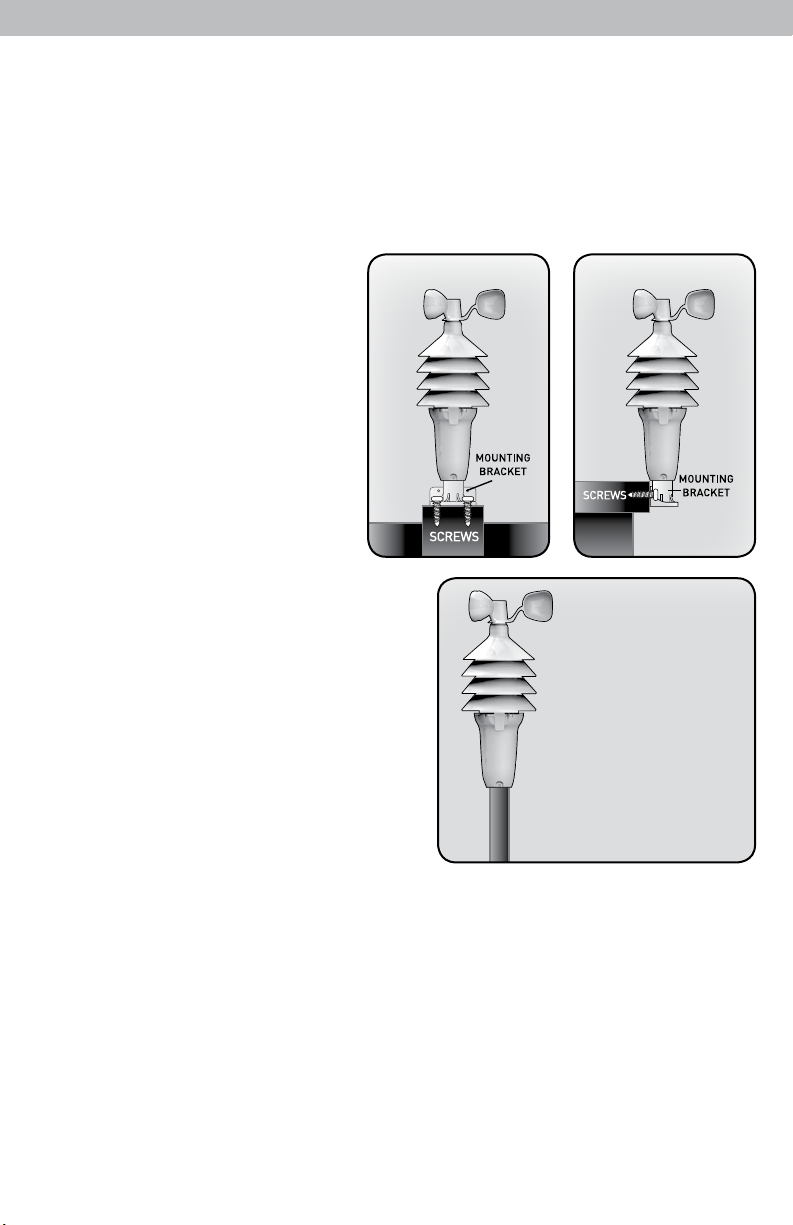

3-in-1 Sensor Installation ..........10
Using the Weather Center .........11
Troubleshooting ........................ 13
Care & Maintenance ................15
Calibration ..............................15
Specifications ...........................16
FCC Information ....................... 16
Customer Support ....................17
Warranty .................................17
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective film that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Display unit with tabletop stand
2. 3-in-1 sensor
3. Sensor mounting bracket
4. Mounting hardware
5. Power adapter
6. Instruction Manual
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
Register a Product
►
2
Features & Benets
1
4
2
5
3-in-1 SENSOR
1. Temperature & Humidity Sensors
(internal)
2. Release Lever for Battery Access
3. Mounting Point
4. Wind Speed Anemometer
6
3
5. Mounting Hardware
Includes anchors and screws.
Qty Diameter Length
4 #4 1”
1 #6 or #8 1/4” or 3/8”
6. Mounting Bracket
7. A-B-C Switch (not shown)
ID code that must match display’s
A-B-C switch to ensure units
synchronize.
3
Features & Benets
Display Unit
1 2 3 4 5 6 7
8
28
29
30
27
26
25
24
23
22
21
9
10
11
12
13
14
15
17 16181920
33
31
32
34
4
DISPLAY UNIT
1. Current Outdoor Temperature
Arrow icon indicates direction
temperature is trending.
2. Sensor Low Battery Indicator
3. Average Wind Speed
Average of all speeds over last
30 minutes or calibrated 30 minute
interval.
4. Backlight Button
5. Current Wind Speed
6. Wind Gust Icon
7. Peak Wind Speed
Highest speed from last 30 minutes or
calibrated 30 minute interval.
8. Current Indoor Temperature
Arrow icon indicates direction
temperature is trending.
9. Display Low Battery Indicator
10. Current Indoor Humidity
Arrow icon indicates direction
humidity is trending.
11. Clock
12. Date
13. REPLAY and LIVE Icons
REPLAY indicates historical data is
being displayed. LIVE icon is shown
while exiting REPLAY function.
14. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls data
from the outdoor sensor to generate
your personal forecast.
15. Multi-Variable History Chart
Displays the past 12 hours of data for
pressure, temperature and humidity.
16. REPLAY Button
For displaying historical data.
17. + Button
For setup preferences.
18. SET Button
For setup preferences.
19. – Button
For setup preferences.
20. SELECT Button
Press to change the Weather Select
(#23) category being displayed.
21. Barometric Pressure
Arrow icon indicates direction
pressure is trending.
22. Learning Mode Icon
Disappears after weather forecast
self-calibration is complete.
23. Weather Select
Displays heat index, dew point or wind
chill, daily, monthly, all time high & low
records indoor/outdoor temperatures
and humidity and high for wind speed.
24. AUTO DIM Indicator
25. Current Outdoor Humidity
Arrow icon indicates direction
temperature is trending.
26. Low Wind Speed
Lowest speed from past 30 minutes or
calibrated 30 minute interval.
27. Outdoor Sensor Signal Strength
BACK OF DISPLAY UNIT
28. Integrated Hang Hole
For easy wall mounting
29. Plug-in for Power Adapter
30. Battery Compartment
31. A-B-C Switch
ID code that must match sensor’s A-B-C
switch to ensure units synchronize.
32. CLEAR RECORD/RESET Button
Press to clear record currently being
viewed. Press and HOLD for full reset
to factory defaults.
33. Battery Compartment Cover
34. Power adapter
5
SETUP
3-IN-1 Sensor Setup
Set the A-B-C Switch
1
The A-B-C switch is located inside
the battery compartment. It can be
set to A, B or C. However, you must
select the same letter choices for
both the sensor and the display unit
in order for the units to synchronize.
2
Install or Replace Batteries
AcuRite recommends high quality
alkaline or lithium batteries for the
best product performance. Heavy
duty or rechargeable batteries are
not recommended.
The 3-in-1 sensor requires lithium
batteries in low temperature
conditions. Cold temperatures can
cause alkaline batteries to function
improperly. Use lithium batteries in
the 3-in-1 sensor for temperatures
below -4ºF / -20ºC.
1. Press the release lever and pull
off the lower housing of the
sensor.
2. Remove the battery compartment
cover. Take note of the A-B-C
switch setting inside the battery
compartment.
3. Insert 4 x AA batteries into the
battery compartment, as shown.
Follow the polarity (+/-) diagram
in the battery compartment.
4. Replace the battery cover and
lower housing of the sensor.
A B C
A-B-C Switch
1
set to match
display unit
2
6
