AcuRite 13022 User Manual
Instruction Manual
Atomic Dual Alarm Clock
model 13022
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: Sensor ..... 2
Features & Benets: Clock ...... 3
Setup .................................... 5
Outdoor Sensor Setup ............ 5
Clock Setup ........................... 6
Atomic Clock ......................... 7
Set the Time & Date ............... 7
Placement Guidelines ............. 8
Using the Clock...................... 9
USB Charging ........................ 9
Troubleshooting ....................10
Care & Maintenance ............. 11
Specications ........................11
FCC Information ................... 11
Customer Support ................. 12
Warranty..............................12
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Alarm clock
2. Outdoor sensor
3. Power adapter
4. Instruction Manual
PRODUCT MUST BE REGISTERED
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
TO RECEIVE WARRANTY SERVICE
Register a Product
►
Features & Benets
1
2
3
4
OUTDOOR SENSOR
1. Integrated Hanger
for easy placement.
5
2. Wireless Signal Indicator
Flashes when data is being
sent to the clock.
3. Battery Compartment
4. A-B-C Switch
ID code that must match clock’s
A-B-C switch to ensure units
synchronize.
5. Battery Compartment Cover
2
DIMMER
+
-
VOLUME
ALARM
+
-
DC 4.5 v
CHARGE
USB DEVICE
DIMMER
+
-
VOLUME
ALARM
DC 4.5 v
CHARGE
USB DEVICE
Features & Benets
1
2
4
FRONT OF CLOCK
1. Snooze Button/Night Light
2. Alarm #1 ON/OFF Switch
3. Alarm #1 Setup Button
4. DOWN & SET Buttons
for setup preferences.
5. UP Button
Toggles between displaying
indoor & outdoor temperature
and used for setup
preferences.
6. Alarm #2 Setup Button
7. Alarm #2 ON/OFF Switch
73 65
8 9
11 1210
13 14 15 16
BACK OF CLOCK
8. + Brightness Button
Increases display brightness.
9. +/— Alarm Volume
Adjusts alarm volume.
10. — Brightness Button
Decreases display brightness.
11. USB Charging
for compatible smartphones.
12. DC 5v Power Input
BOTTOM OF CLOCK
(inside battery compartment)
13. A-B-C Switch
ID code that must match
sensor’s A-B-C switch to
ensure units synchronize.
14. RCC ON/OFF Switch
Controls synchronization with
the atomic signal.
15. ºF/ºC Temperature Units
16. Reset Button
Full reset to factory defaults.
3
Features & Benets
1 2 3 4 5
11
6 7 89 10
1. Date
2. Atomic Clock
Sets itself to the correct time and
automatically updates for Daylight
Saving Time.
3. Atomic Signal Strength
4. Outdoor Sensor Low Battery Icon
5. Outdoor Sensor Signal Strength
6. Alarm #1 Time
7. Alarm #1 Days Active
Indicates weekday, weekend or every
day alarm.
8. Alarm #2 Time
9. Alarm #2 Days Active
Indicates weekday, weekend or every
day alarm.
10. Alarm Volume
11. Indoor or Outdoor Temperature
4
SETUP
Sensor Setup
Set the A-B-C Switch
1
The A-B-C switch is located inside
the battery compartment. It can
be set to A, B or C. However,
you must select the same letter
choices for both the sensor and
the clock in order for the units to
synchronize.
Install or Replace Batteries
2
AcuRite recommends high quality
alkaline or lithium batteries for
the best product performance.
Heavy duty or rechargeable
batteries are not recommended.
The sensor requires lithium
batteries in low temperature
Install Batteries
2
2 AA batteries
conditions. Cold temperatures
can cause alkaline batteries
to function improperly. Use
lithium batteries in the sensor for
temperatures below -4ºF / -20ºC.

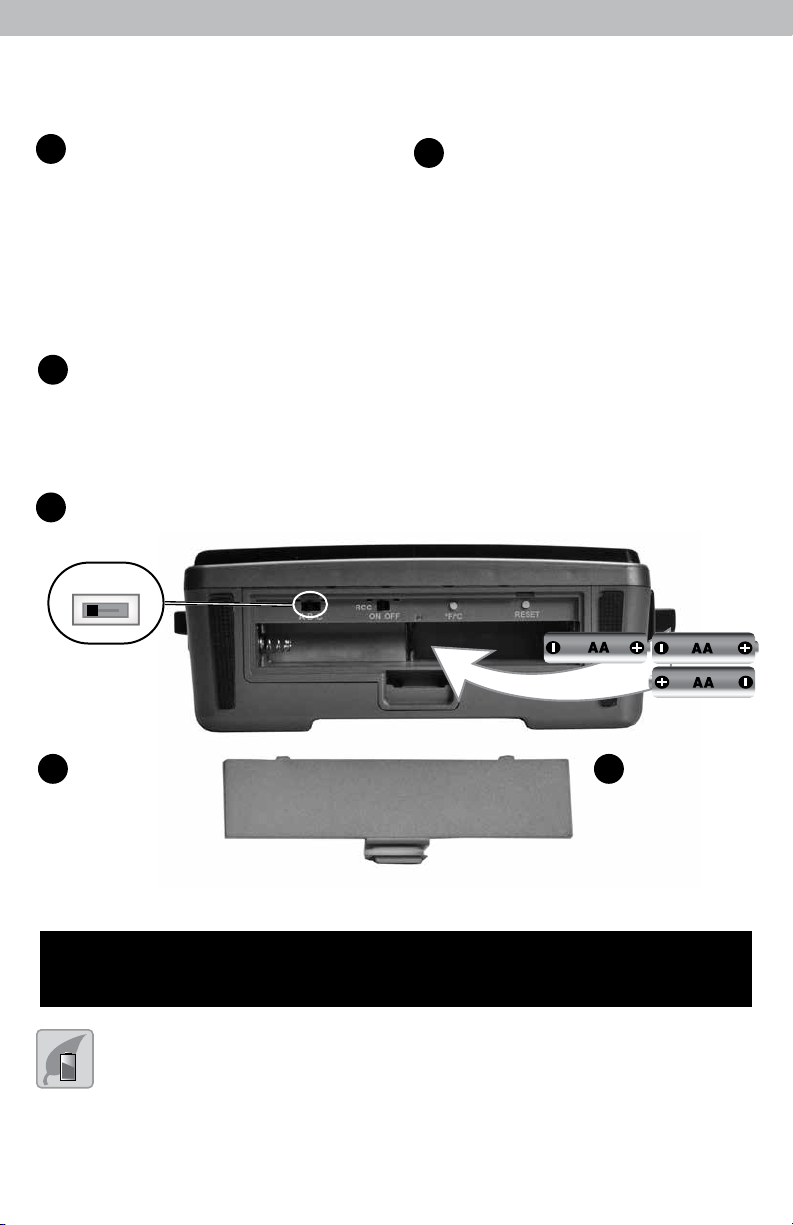

1. Slide off the battery
compartment cover. Take
note of the A-B-C switch
setting inside the battery
compartment for clock setup.
2. Insert 2 x AA batteries into
the battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
A-B-C Switch
1
set to match
clock
A B C
5
