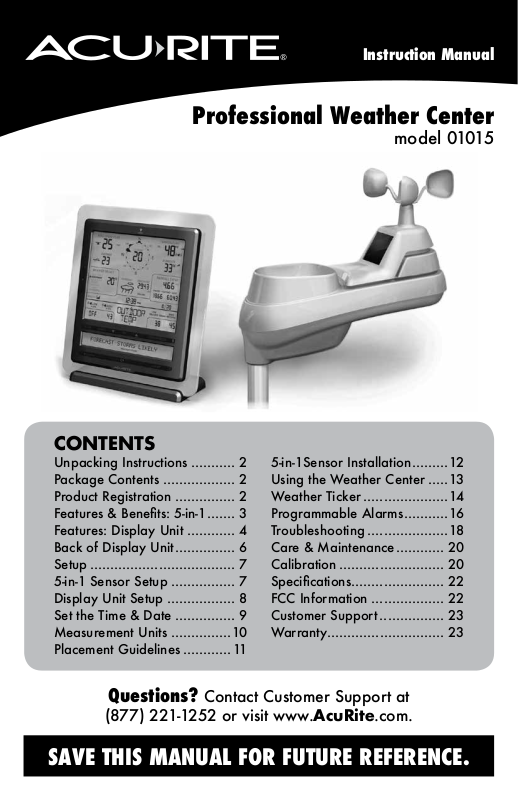

Acu-Rite 1015 User Manual

Instruction Manual
Professional Weather Center
model 01015
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: 5-in-1 ....... 3
Features: Display Unit ............ 4
Back of Display Unit ............... 6
Setup .................................... 7
5-in-1 Sensor Setup ................ 7
Display Unit Setup ................. 8
Set the Time & Date ............... 9
Measurement Units ...............10
5-in-1Sensor Installation ......... 12
Using the Weather Center .....13
Weather Ticker .....................14
Programmable Alarms ........... 16
Troubleshooting ....................18
Care & Maintenance ............ 20
Calibration .......................... 20
Specications ....................... 22
FCC Information .................. 22
Customer Support ................ 23
Warranty............................. 23
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove.
Package Contents
1. Display unit with tabletop stand
2. 5-in-1 sensor
3. Sensor mounting bracket
4. Mounting hardware
5. Snap-in debris lter for rain collector
6. Power adapter
7. Instruction Manual
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE
Register a Product
2
Features & Benets
1
11
6
7
2
9
5
43
8
10
5-IN-1 SENSOR
1. Rainfall Collector Funnel
2. Solar Cell Panel
Converts sunlight into power to run internal aspirating fan.
Internal Aspirating Fan (not shown) Draws ambient air into
sensor to reduce solar radiation heating, resulting in more accurate
temperature measurement.
3. A-B-C Switch
ID code that must match display’s A-B-C switch to ensure units synchronize.
4. Battery Compartment
5. Temperature & Humidity Sensors (internal)
6. Mounting Point
7. Wind Speed Anemometer
8. Wind Direction Vane
9. Mounting Bracket
10. Mounting Hardware
Qty Diameter Length
4 #4 1” 2 #6 ½”
11. Debris Filter
Snaps into rain collector to lter out twigs, leaves, etc.
3
Features & Benets
Display Unit
36
37
39
3835
10
11
1
2
3
4
5
6
7
8
9
19 20
21 22 23
24 25
26 27 28
29 30
31 32
33
34
12
12 161514 14 1713 18
4
1. Peak Wind Speed Highest speed from past 60 minutes.
2. Average Wind Speed of all speeds from past 2 minutes.
3. Learning Mode Icon Press to change the Weather Select
category data being displayed.
4. Weather Select Heat index, dew point, wind chill,
indoor temperature / humidity, rainfall rate (rain per hour)
5. Weather Select Button Press to change the Weather Select
category data being displayed.
6. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls
data from the outdoor sensor to
generate your personal forecast.
7. 5-in-1 Sensor Signal Strength
8. Alarm On/Off Indicator for Selectable Category (#31).
9. Programmable Alarm Settings
10. Indicates Active Weather Ticker Message During ticker customization mode.
11. Indicates Deactivated Weather Ticker Message During ticker customization mode.
12. ALARM On/Off Button
Activate alarm; press and hold to adjust alarm values.
13. Deactivate Weather Ticker Message
14. ▲/▼ to Select Category (shown in #31) & Adjust Settings
15. SET Button
16. Weather Ticker Manual Cycle
Press to advance through messages.
17. All-Time Records Button Press for all-time low and date
recorded for current category selected on display (#31). Press twice for all-time high and date
recorded.
18. Activate Weather Ticker Message
19. Current Outdoor Temperature Arrow icon indicates direction
temperature is trending.
20. Outdoor Temperature Alarm On Indicator
21. Current Outdoor Humidity
Arrow icon indicates direction humidity is trending.
22. Outdoor Humidity Alarm On Indicator
23. Storm Alert Alarm On Indicator
24. Current Rainfall
Accumulates data during rainfall.
25. Rain Alarm On Indicator
26. Current Barometric Pressure
Arrow icon indicates direction
pressure is trending.
27. All-Time Rainfall
28. Current Month Total Rainfall
29. Date
30. Clock
31. Selectable Category
32. Record Highs
Shown for current category selected on the display (#31).
33. Record Lows
Shown for current category selected on the display (#31).
34. Weather Ticker™
35. Current Wind Direction
36. Previous 2 Wind Directions
37. Touch Activated Backlight
Momentary during battery power,
always on/off for power adapter
38. Current Wind Speed
39. Wind Speed Alarm On Indicator
5
Back of Display Unit
3
4
5
6
12
BACK OF DISPLAY UNIT
1. Integrated Hang Hole
For easy wall mounting
2. Plugin for Power Adapter
3. A-B-C Switch ID code that must match 5-in-1
sensor’s A-B-C switch to ensure units synchronize
4. Clear Today
Clears data recorded since 12:00am
7
8
5. Clear All
Clears all recorded data without having to reset time and date
6. Reset
Full reset to factory defaults
7. Battery Compartment
8. Power Adapter
9. Battery Compartment Cover
(not shown)
6
SETUP
5-IN-1 Sensor Setup
Set the A-B-C Switch
1
Locate the A-B-C switch inside the battery compartment. Set the A-B-C switch to A, B or C. You must select the same letter choices for both the sensor and the display unit in order for the units to synchronize.
Install or Replace Batteries
2
Batteries MUST be installed for this product to operate. AcuRite recommends high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not
recommended.
The 5-in-1 sensor requires lithium batteries in low temperature conditions. Cold temperatures can
cause alkaline batteries to function improperly. Use lithium batteries in
the 5-in-1 sensor for temperatures
below -4ºF / -20ºC.
1. Slide off the battery
compartment cover.
2. Insert 4 x AA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery
compartment.
3. Replace the battery cover.
3
Remove Rain Gauge Stabilizer
Locate and remove the rain gauge stabilizer (plastic tab) taped into
the bottom of the sensor. The rain
gauge will not function until this is
removed.
A-B-C Switch
1
Set to match
display unit
2
A B C
Install Batteries
4 AA Batteries
Rain Gauge Stabilizer
3
Remove and discard
7
Display Unit Setup
The display unit operates with batteries and/or power adapter. Regardless of the power source, it is recommended that batteries always be installed to
ensure continuous operation (and retain records) in case of a power outage.
Set the A-B-C Switch
1
The A-B-C switch is located inside the battery compartment. It can be set to A, B or C. However, you must select the same letter
choices for both the sensor and
the display unit in order for the units to synchronize.
A B C
A-B-C Switch
1
set to match sensor
Install or Replace Batteries
2
Insert 6 x AA alkaline batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery
compartment.
Plug Power Adapter into
3
Electric Outlet (optional)
Install Batteries
2
6 AA Batteries
Momentary backlight
Plug in Power
3
Adapter
(optional)
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.
LIGHT
during battery power. Backlight can always
remain on (or off) when power adapter
is plugged in.
8
