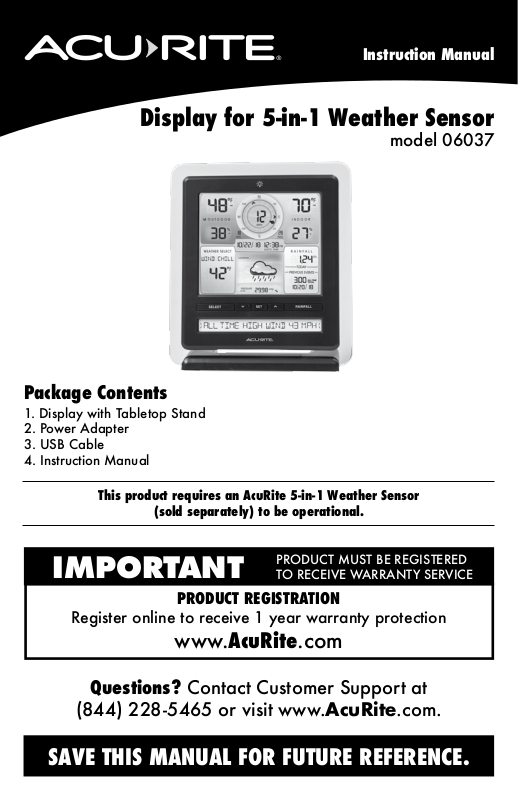

Acurite 06037 User Manual

Display for 5-in-1 Weather Sensor

Package Contents

1. Display with Tabletop Stand

2. Power Adapter

3. USB Cable

4. Instruction Manual

Instruction Manual

model 06037

This product requires an AcuRite 5-in-1 Weather Sensor

(sold separately) to be operational.

PRODUCT MUST BE REGISTERED

IMPORTANT

PRODUCT REGISTRATION

TO RECEIVE WARRANTY SERVICE

www.AcuRite.com

Questions? Contact Customer Support at

(844) 228-5465 or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Features & Benets

Display

33 32

31 30 29

27 26

1 32 5

6 7 8

9 10 11 12

13 14

15 16

1819202122

1. Previous 2 Wind Directions

2. Backlight Button

For momentary backlight and dimmer settings.

3. Current Wind Speed

4. Current Wind Direction

5. Current Indoor Temperature

Arrow icon indicates direction temperature is trending.

6. Display Low Battery Indicator

7. Peak Wind Speed

Highest speed from the last 60 minutes.

8. Current Indoor Humidity

Arrow icon indicates direction humidity is trending.

9. Wind Speed Alert Indicator

Activates when wind speed is over 50 mph.

10. Clock

11. Heavy Rainfall Warning Icon

Activated when over 1 inch of rainfall is recorded in 2 hours or less.

12. AUTO DIM Indicator

Indicates display is in auto-dimming brightness mode (see page 6).

13. Current Rainfall

Rainfall recorded since 12:00am.

14. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls data from your 5-in-1 sensor to generate your personal forecast.

15. Storm Alert Indicator

Activates when barometric pressure drops.

16. Month/Year/All-Time Rainfall

17. Current Barometric Pressure

Arrow icon indicates direction pressure is trending.

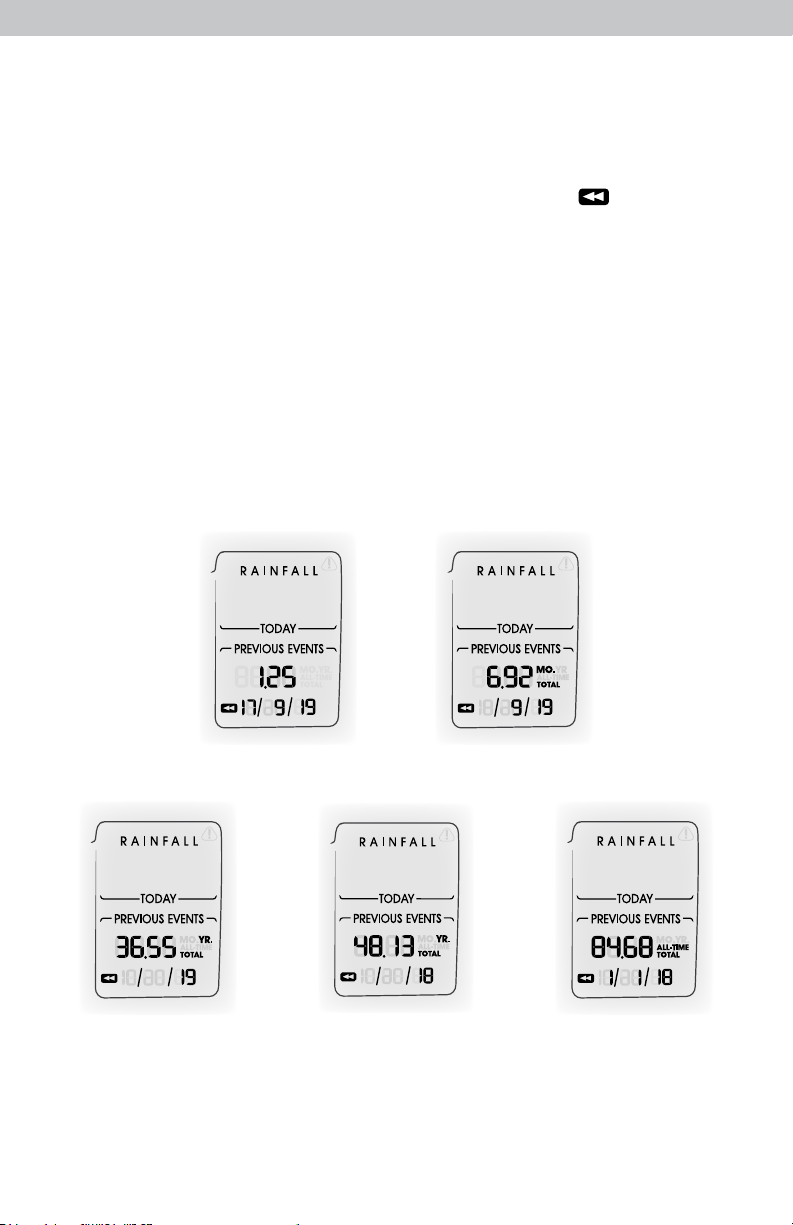

18. RAINFALL Button

Press to change the RAINFALL data being displayed (Month, Year, All-Time).

19. Button For setup preferences.

20. SET Button

For setup preferences.

21. Button

For setup preferences.

22. SELECT Button

Press to change the WEATHER SELECT category data being displayed.

23. Weather TickerTM

24. Heat Index/ Wind Chill Alert Indicator

Activates when heat index rises over 90ºF (32ºC) or when wind chill drops below -17ºF (-27ºC).

25. Learning Mode Icon

Disappears after weather forecast self-calibration is complete.

26. WEATHER SELECT

Displays heat index, dew point, wind chill, feels like, days with rain this month, and days since last recorded rainfall.

27. Date

28. Current Outdoor Humidity

Arrow icon indicates direction humidity is trending.

29. Average Wind Speed

Average wind speed over the past 2 minutes.

30. 5-in-1 Sensor Signal Strength

31. Sensor Low Battery Indicator

32. Current Outdoor Temperature Arrow icon indicates direction

temperature is trending.

33. Calibration Indicator

Appears next to calibrated values.

Back of Display

############

DEVICE ID

BACK OF DISPLAY

1. Plug-in for Power Adapter

2. Plug-in for USB Cable

3. Integrated Hang Hole

For easy wall mounting.

4. DEVICE ID 12 digit unique ID required for

online connectivity functions.

5. Backup Battery Compartment

6. A-B-C Switch ID code that must match 5-in-1

 sensor’sA-B-Cswitchtoensure

units synchronize.

7. CLEAR RECORD/ RESET BUTTON

Press and release to clear data recorded since 12:00 am. Press and HOLD for full reset to factory defaults.

8. Power Adapter

9. USB Cable for PC Connection

10. Battery Compartment Cover

(not shown)

SETUP

Display Setup

Set the A-B-C Switch

The A-B-C switch is located inside the battery compartment. It can be set to A, B or C. However, you must select the same letter choices for both the sensor and the display in order for the units to synchronize.

Plug Power Adapter into

Electric Outlet

A-B-C Switch

set to match sensor

A B C

Write Down the DEVICE ID

12 digit unique ID needed for online connectivity functions.

24 C8 6E

Install or Replace Backup Batteries (optional)

Insert 3 x AA alkaline batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.

Write Down

DEVICE ID

12 digit number

Install Backup

Batteries

3 AA Batteries

Plug in Power

Adapter

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries

in re, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT

recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

IMPORTANT: Batteries are a backup power source to preserve records in the event of a power outage. Power adapter is the recommended primary power source to enjoy the full functionality of this product.

Set the Time, Date & Units

Press the “SET” button, located on the front of the display, to enter SET MODE. Once in set mode, the preference you are currently setting will blink on the display.

Toadjustthecurrentlyselected(ashing)item,pressandreleasethe“T“ or

“V“ buttons (press and HOLD to fast adjust). To save your adjustments, press and release the “SE T ” button again to adjust

the next preference. The preference set order is as follows: TOP DISPLAY:

CLOCK HOUR CLOCK MINUTE CALENDAR MONTH CALENDAR DATE CALENDAR YEAR TEMPERATURE UNITS (ºF or ºC) WIND SPEED UNITS (MPH, KPH, Knots) RAINFALL UNITS (in or mm) PRESSURE UNITS (inHg or hPa)

TICKER DISPLAY: LANGUAGE (English, French, Spanish) WEATHER TICKER SPEED (SLOW, MEDIUM, FAST) PC CONNECT MODE (1, 2, 3, 4)

You will automatically exit SET MODE if no buttons are pressed for 20 seconds. Enter setup mode at any time by pressing the “SET ” button.

Display Backlight Settings

Thisweatherstation’scolordisplayfeaturesthreedifferentlightingsettings:

High (100%) brightness, Medium (60%) brightness and Low (30%) brightness. Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the “ ” button. When display is powered with the power adapter, backlight remains on at

100% brightness. Press “ ” button once to dim to 60% brightness; press again to dim to 30%, press a 3rd time to enter “AUTO DIM” mode. “AUTO DIM” will appear below the time.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day & year.

MARCH 11- NOVEMBER 4

NOVEMBER 5 - MARCH 10

6:00 a.m. - 9:00 p.m. = 100% brightness 9:01 p.m. - 5:59 a.m.= 30% brightness 7:30 a.m. - 7:00 p.m.= 100% brightness 7:01 p.m. - 7:29 a.m. = 30% brightness
