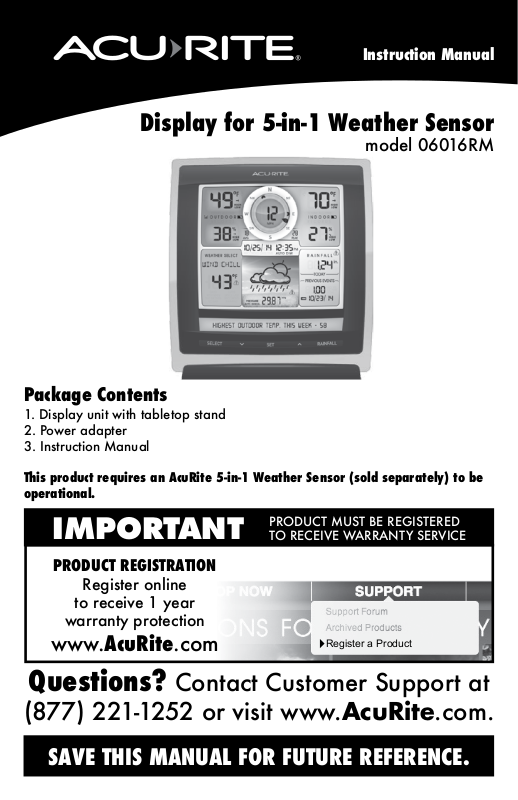

Acu-Rite 06016RM User Manual

Display for 5-in-1 Weather Sensor

Package Contents

1. Display unit with tabletop stand

2. Power adapter

3. Instruction Manual

Instruction Manual

model 06016RM

This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be
operational.

IMPORTANT

PRODUCT REGISTRATION

Register online

to receive 1 year

warranty protection

www.AcuRite.com

PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE

Register a Product

►

Questions? Contact Customer Support at

[phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Features & Benets

Display Unit

30
29

28
27

26

25
24

23

22

1 32 41

5
6

7

8
9

10
11

12
13

14

15

21

1617181920

2

1. Previous 2 Wind Directions

2. Current Wind Speed

3. Current Wind Direction

4. Current Indoor Temperature
Arrow icon indicates direction

temperature is trending.

5. Display Low Battery Indicator

6. Peak Wind Speed
Highest speed from the last 60

minutes.

7. Current Indoor Humidity
Arrow icon indicates direction

humidity is trending.

8. Clock

9. Rainfall Alert Indicator
Indicates rainfall of more than 1” of

rain in 2 hours or less.

10. AUTO DIM Indicator

11. Current Rainfall
Accumulates data during rainfall.

12. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls
data from your 5-in-1 sensor to
generate your personal forecast.

13. Storm Alert Indicator

14. Month/Year/All-Time Rainfall

15. Current Barometric Pressure

Arrow icon indicates direction
pressure is trending.

16. RAINFALL Button
Press to change the RAINFALL

data being displayed (Month, Year,
All-Time).

17. T Button
for setup preferences.

18. SET Button
for setup preferences.

19. V Button
for setup preferences.

20. SELECT Button
Press to change the WEATHER

SELECT category data being
displayed.

21. Weather Ticker

TM

22. Heat Index/ Wind Chill Alert
Indicator

23. Learning Mode Icon

Disappears after weather forecast
self-calibration is complete.

24. WEATHER SELECT
Displays heat index, dew point, wind

chill, feels like, days with rain this
month, and days since last recorded
rainfall.

25. Date

26. Current Outdoor Humidity
Arrow icon indicates direction

humidity is trending.

27. Average Wind Speed

of all speeds from past 2 minutes.

28. 5-in-1 Sensor Signal Strength

29. Sensor Low Battery Indicator

30. Current Outdoor Temperature
Arrow icon indicates direction

temperature is trending.

3

1

2

3

6

5

4

BACK OF DISPLAY UNIT

1. Integrated Hang Hole

for easy wall mounting.

2. Backlight Button
Dimmer control while using power

adapter. Activates momentary
backlight while on battery power.

3. Plug-in for Power Adapter

4. Removable Tabletop Stand

5. CLEAR RECORD / RESET Button

Press to clear record currently being

viewed. Press AND HOLD for more
than 10 seconds for
reset to factory defaults.

full

7

6. A-B-C Switch

ID code that must match 5-in-1

 sensor’sA-B-Cswitchtoensure

units synchronize.

7. Power adapter

8. Battery Compartment Cover

(not shown)

4
