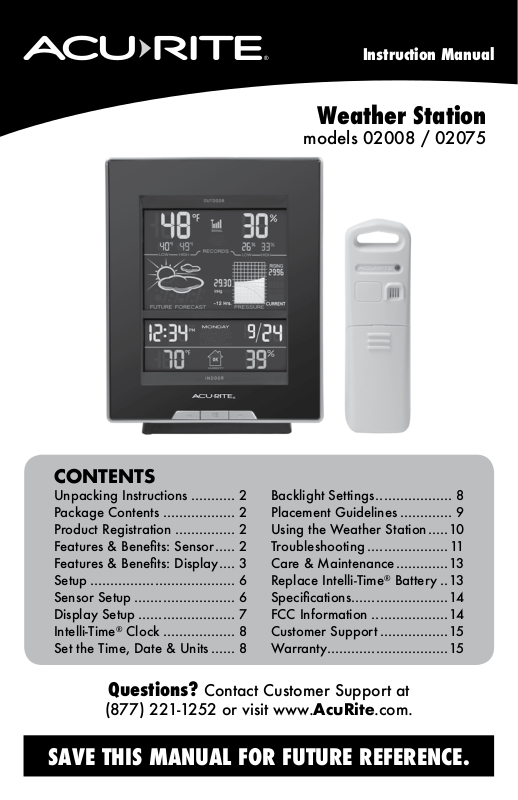

AcuRite 02075 User Manual
Instruction Manual
Weather Station
models 02008 / 02075
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: Sensor ..... 2
Features & Benets: Display .... 3
Setup .................................... 6
Sensor Setup ......................... 6
Display Setup ........................ 7
Intelli-Time® Clock .................. 8
Set the Time, Date & Units ...... 8
Backlight Settings ................... 8
Placement Guidelines ............. 9
Using the Weather Station .....10
Troubleshooting ....................11
Care & Maintenance .............13
Replace Intelli-Time® Battery ..13
Specications ........................14
FCC Information ...................14
Customer Support ................. 15
Warranty..............................15
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Display unit with tabletop stand
2. Power adapter
3. Outdoor sensor
4. Instruction Manual
PRODUCT MUST BE REGISTERED
IMPORTANT
PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
TO RECEIVE WARRANTY SERVICE
Register a Product
►
Features & Benets
1
2
3
4
OUTDOOR SENSOR
1. Integrated Hanger
For easy placement.
5
2. Wireless Signal Indicator
Flashes when data is being sent
to the display unit.
3. Battery Compartment
4. A-B-C Switch
ID code that must match display’s
A-B-C switch to ensure units synchronize.
5. Battery Compartment Cover
2
Features & Benets
1
LOW
5
6
7
8
9
10
11
2 3 4
FRONT OF DISPLAY UNIT
1. Backlight Button
(top of display unit)
2. “ “ Arrow
for setup preferences.
3. “ “ Button
for setup preferences.
4. “ “ Arrow
for setup preferences.
12
BACK OF DISPLAY UNIT
5. Integrated Hang Hole
For easy wall mounting.
6. Intelli-Time® Battery Compartment
7. Reset
Full reset to factory defaults.
8. A-B-C Switch
ID code that must match 5-in-1sensor’s
A-B-C switch to ensure units
synchronize.
9. Battery Compartment
10. “LIGHT” Switch
Controls the display’s backlight and
brightness: Off, Low, Medium, High
11. Plugin for Power Adapter
12. Battery Compartment Cover
3
1920
1
2
18
17
3
16
15
4
14
5
6
7
13
12
8
LOW
11109
4
DISPLAY UNIT FRONT
1. Current Outdoor Temperature
2. Outdoor Low Temperature Record
Lowest temperature recorded since
midnight.
3. Outdoor High Temperature Record
Highest temperature recorded since
midnight.
4. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls data
from the outdoor sensor to generate
your personal forecast.
5. Learning Mode Icon
Disappears after weather forecast
self-calibration is complete.
6. Intelli-Time® Clock
Automatically updates for
Daylight Saving Time.
7. Time Zone
8. Current Indoor Temperature
9. Humidity Level Icon
Indicates a high, low or ideal
indoor humidity level.
15. Current Barometric Pressure
FALLING, STEADY or RISING
indicates the direction pressure is
trending.
16. Outdoor Low Humidity Record
Lowest humidity recorded since
midnight.
17. Outdoor High Humidity Record
Highest humidity recorded since
midnight.
18. Current Outdoor Humidity
19. Outdoor Sensor Signal Strength
20. Sensor Low Battery Indicator
10. Display Unit Low Battery Indicator
11. Current Indoor Humidity
12. Date
13. Day of the Week
14. Pressure History Chart
Displays the past 12 hours of data for
barometric pressure.
5
