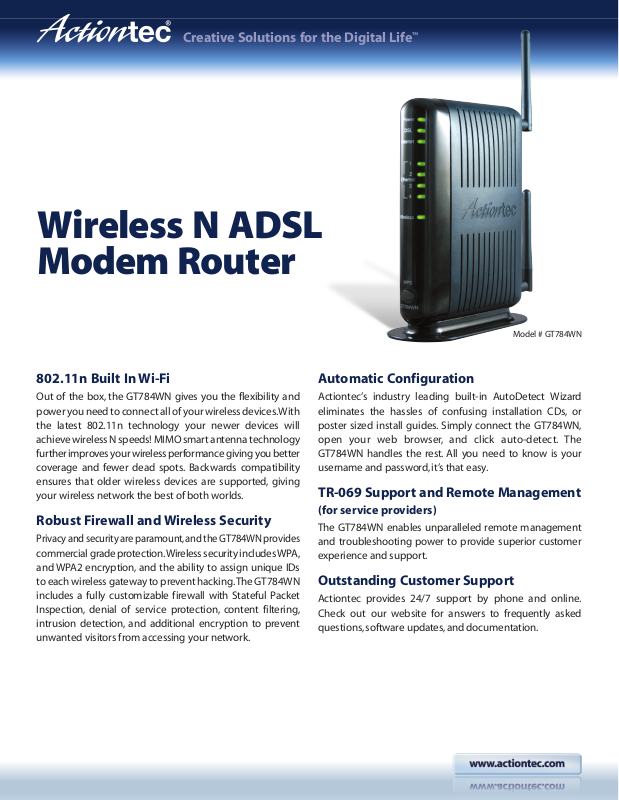

Actiontec GT784WN Datasheet

Creative Solutions for the Digital Life

Wireless N ADSL
Modem Router

™

802.11n Built In Wi-Fi

Out of the box, the GT784WN gives you the flexibility and
power you need to connect all of your wireless devices. With
the latest 802.11n technology your newer devices will
achieve wireless N speeds! MIMO smart antenna technology
further improves your wireless performance giving you better
coverage and fewer dead spots. Backwards compatibility
ensures that older wireless devices are supported, giving
your wireless network the best of both worlds.

Robust Firewall and Wireless Security

Privacy and security are paramount, and the GT784WN provides
commercial grade protection. Wireless security includes WPA,
and WPA2 encryption, and the ability to assign unique IDs
to each wireless gateway to prevent hacking. The GT784WN
includes a fully customizable firewall with Stateful Packet
Inspection, denial of service protection, content filtering,
intrusion detection, and additional encryption to prevent
unwanted visitors from accessing your network.

Model # GT784WN

Automatic Configuration

Actiontec’s industry leading built-in AutoDetect Wizard
eliminates the hassles of confusing installation CDs, or
poster sized install guides. Simply connect the GT784WN,
open your web browser, and click auto-detect. The
GT784WN handles the rest. All you need to know is your
username and password, it’s that easy.

TR-069 Support and Remote Management

(for service providers)

The GT784WN enables unparalleled remote management
and troubleshooting power to provide superior customer
experience and support.

Outstanding Customer Support

Actiontec provides 24/7 support by phone and online.
Check out our website for answers to frequently asked
questions, software updates, and documentation.

Wireless N ADSL
Modem Router

Ethernet LAN Ports

Creative Solutions for the Digital Life

Power Switch

Power Port

Reset Button

Phone Port

Model # GT784WN

™

Features

Interfaces

– Four 10/100 BaseT Ethernet LAN
– One RJ-11 ADSL Line
– One RJ-11 Phone Port

Wireless

– 802.11n
– 802.11 b/g
– External RADIUS Server Support
– Multiple SSID
– WPS
– WMM, WMM PowerSave (available upon

request)

– Wireless Security

Wi-Fi Protected Access (WPA, WPA2)
TKIP & AES encryption

802.1x authentication
Pre-Shared Key (PSK)
MAC Address Filtering

Remote Management

– User-enable Remote Management
– TR069 Carrier Remote Management
– TR064 Local Management

Advanced Security

– Firewall
– Stateful Packet Inspection
– NAT
– Website Blocking
– Web Service Blocking
– URL Keyword-Based Filtering
– Customizable Filtering Policies per

Computer
– Internet Traffic Logging
– Denial of Service (DOS) Protection
– Demilitarized Zone (DMZ)
– Intrusion Detection
– IP Protocol Filtering

QoS Support

– Diffserv
– 802.1p/q Prioritization
– Random Early Detection
– Pass-through of WAN-side DSCPs,

PHBs & Queing to LAN-side devices
– Prioritization via DHCP options

Advanced Features

– DHCP Server Option
– DHCP Server/PPPoE Server Auto

Detection
– DNS Server
– Full Bridge Device Control
– LAN IP & WAN IP Address Selection
– MAC Address Cloning
– Port Forwarding
– PPPoE Support
– IGMP v1, v2, v3 (available soon)
– MAC Address Filtering
– IGMP proxy and snooping

Min. Sys. Requirements

– PC or Macintosh with Ethernet or

802.11b/802.11n wireless connection.

– Internet Explorer 7.0+, Safari, Firefox

© 2010 Actiontec Electronics, Inc. Actiontec, Actiontec Installation Buddy, Creative Solutions for the Digital Life, and the
Actiontec logo are registered trademarks or trademarks of Actiontec Electronics, Inc. Incorporated in the U.S. or other countries.
All other names are properties of their respective owners.
Product photo may differ from actual product, however functionality remains as stated above.
Specifications are subject to change without notice DS1136/0710
