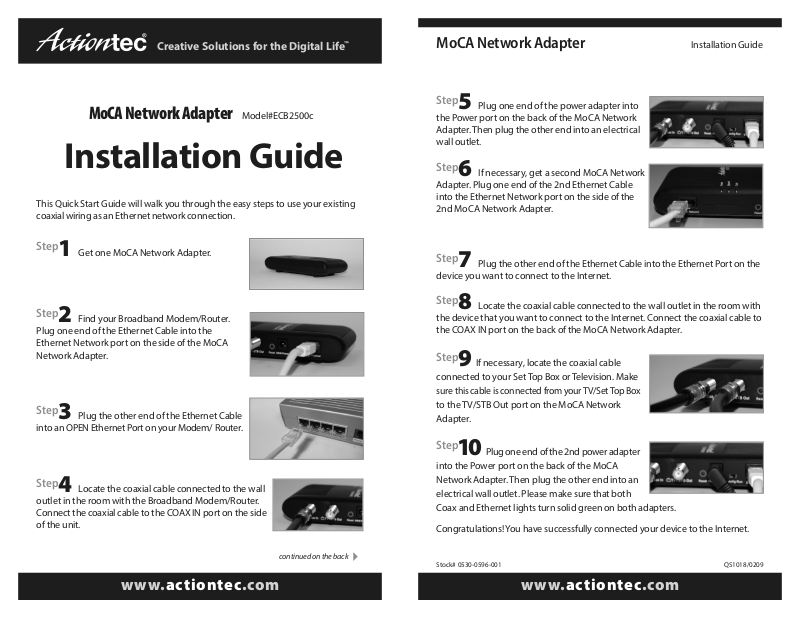

Actiontec ECB2500C Installation Guide

Creative Solutions for the Digital Life

MoCA Network Adapter Model#ECB2500c

™

MoCA Network Adapter Installation Guide

Step

5 Plug one end of the power adapter into

the Power port on the back of the MoCA Network
Adapter. Then plug the other end into an electrical
wall outlet.

Installation Guide

This Quick Start Guide will walk you through the easy steps to use your existing
coaxial wiring as an Ethernet network connection.

Step

1 Get one MoCA Network Adapter.

Step

2 Find your Broadband Modem/Router.

Plug one end of the Ethernet Cable into the
Ethernet Network port on the side of the MoCA
Network Adapter.

Step

3 Plug the other end of the Ethernet Cable

into an OPEN Ethernet Port on your Modem/ Router.

Step

4 Locate the coaxial cable connected to the wall

outlet in the room with the Broadband Modem/Router.
Connect the coaxial cable to the COAX IN port on the side
of the unit.

Step

6 If necessary, get a second MoCA Network

Adapter. Plug one end of the 2nd Ethernet Cable
into the Ethernet Network port on the side of the
2nd MoCA Network Adapter.

Step

7 Plug the other end of the Ethernet Cable into the Ethernet Port on the

device you want to connect to the Internet.

Step

8 Locate the coaxial cable connected to the wall outlet in the room with

the device that you want to connect to the Internet. Connect the coaxial cable to
the COAX IN port on the back of the MoCA Network Adapter.

Step

9 If necessary, locate the coaxial cable

connected to your Set Top Box or Television. Make
sure this cable is connected from your TV/Set Top Box
to the TV/STB Out port on the MoCA Network
Adapter.

Step

10 Plug one end of the 2nd power adapter

into the Power port on the back of the MoCA
Network Adapter. Then plug the other end into an
electrical wall outlet. Please make sure that both
Coax and Ethernet lights turn solid green on both adapters.

Congratulations! You have successfully connected your device to the Internet.

www.ac tiontec.com

continued on the back

4

Stock# 0530-0596-001 QS1018/0209
