1. Overview
Introduction
This material covers ACTi NVR overview on the overall framework, architecture, deployment and
functions.
This section introduces ACTi NVR functionalities, architecture and the relationship between modules,
so that user may have better understanding how to fully utilize its functions and deploy with right
solution
NVR Edition Motice
This section describes the differences between Enterprise edition and Professional edition. This
materials cover both edition. User need to check the related section for these editions.
12
Application Modules
ACTi NVR Server is consist of following application modules: ACTi NVR Server, ACTi NVR
Workstation, ACTi Web Client and ACTi Utility suite.
NVR license is mandatory in NVR Server if there are more than 16 channels. Valid license number
is 32, 48 and 64. There is no limitation on the number of ACT NVR Web Client and ACTi NVR
Workstation installed.
ACTi NVR Server
ACTi NVR Server is consist of Win32 Service, running in the background of the operating system.
Win32 Services start running when the system boot up even Administrator has not login to Windows
system. ACTi NVR Server’s configuration is done by ACTi NVR Workstation or ACTi NVR Web
Client Setup program.
ACTi NVR Server Components:
Icon Name Description
ActiveEventManager.exe
ActiveMessageEntine.exe
ActiveScheduleService.exe
ActiveServiceManager.exe
ActiveStorageManager.exe
ActiveStreamingService.exe
Event handling and management, running as
Win32 Service
Message engine handles messages and pass to
multiple clients running message client
Scheduler handling system and recording
schedules, running as Win32 Service
Service manager manages ACTi NVR Server’s
services, acting Watch Dog. Service Manager
will starts other Win32 Service if those services are
down. Running as Win32 Service
Storage manager manages many hard-disk
capacities in the system, running as Win32 Service
Streaming engine handles connection to ACTi IP
devices and copy video stream to multiple clients
13
ACTi NVR Workstation
ACTi NVR Workstation is consist of ActiveMonitor, ActivePlayer, ActivMap and ActiveSetup.
ACTi NVR Workstation can be installed in the same machine with ACTi NVR Server or installed and
running on another computer and control different ACTi NVR Server.
ACTi NVR Workstation Components:
Icon Name Description
ActiveMonitor.exe
ActivePalyer.exe
ActivMap.exe
ActiveSetup.exe
Live view, PTZ, IP Joystick, system log monitor,
event panel, Pre-defined layout, Tour
NOTE: ACTi NVR Workstation is free and can be installed on multiple machines.
14
ACTi NVR Web Client
ACTi NVR Web Client is running with web browser and does not have to install any program on
local machine. ACTi ActiveX Control will be downloaded to the local machine when connected to
the ACTi NVR Server at the first time.
ACTi NVR Workstation Components:
Icon Name Description
Live view, PTZ, IP Joystick, system log monitor,
event panel, Pre-defined layout, Tour
IExplorer.exe
NOTE: ACTi NVR Web Client only supports Microsoft Internet Explorer v6.0 and v7.0.
Please upgrade Internet Explorer v6.0 to SP2.
NOTE: ACTi ActiveX Control include nvUnifiedControl.ocx and nvUtility.dll.
ACTi Utility Suite is consist of IP Utility, Streaming Explorer, Archive Player, Backup Wizard,
Media Converter and FFDShow.
ACTi Utility Suite Components:
Icon Name Description
IPUtility.exe
Explorer.htm
Search and manage ACTi devices, firmware
upgrade, configuration backup and restore
Web browser application to configure PTZ
settings.
Standalone archive player, create snapshots,
ArchivePlayer.exe
BackupWizard.exe
display time code on the video window directly.
Able to play
.RAW format
Backup and restore ACTi NVR v2.0, NVR v2.1
Converts .RAW data format to .AVI format. Note
MediaConverter.exe
that in order to play the
Microsoft Windows Media Player, user need to
.AVI file converted with
install FFDShow on the client machine.
MPEG-4 DirectShow filter. This is necessary if
FFDShow.exe
user wants to play
.AVI file with Microsoft
Windows Media Player.
16
Architecture
The role of ACTi NVR Server is a non-stop Win32 Service connecting to IP cameras and devices;
while ACTi NVR Workstation and ACTi Web Client connecting to ACTi NVR Server to operate.
Single Site Deployment
With single site deployment, cameras are all located in one site, NVR Server and NVR Workstation
can be run at the same PC machine as well; NVR Web Client can be executed on any other machines
that may connect to the NVR Server.
Figure 1-1 Single Site Deployment
17
Multiple Site Deployment
When there are multiple camera sites, server-to-server backup features may let you deploy a
multiple-site architecutre; camera sites may record in full frame rate while control center site may
connect to the NVR located in camera sites and record in lesser frame rate.
With multiple site configuration, user may setup ACTi NVR Server in camera sites, and setup ACTi
NVR Server on the Control Center site connecting to other ACTi NVR Server in camera sites; it
may backup video streams from camera sites to the NVR Server in Control Center site. Users in
Control Center may just login to the NVR Server in Control Center site as well. In this way, the
bandwidth between camera site and control center site can be minimized.
ACTi NVR Workstation may connect to different NVR Servers on different site with IP address or
host name specified.
Figure 1-2 Multiple Site Deployment
18
System Requirements
Supported Operating System and Browser
Operating System Supported
Operating System Comments
Windows XP
Windows 2003
Windows Vista
Web Browser Supported
Windows XP SP2 or most updated patch
Windows 2003 Server, WSS 2003
Windows Vista Business Edition and Enterprise
Edition
Operating System Comments
Microsoft Internet Explorer
v6.0 SP2
Microsoft Internet Explorer
v7.0
IE 6.0 with most updated service pack. IE 6.0
with SP2 is minimal requirement
IE 7.0 with most updated service pack
Operating System not Supported
Operating System Comments
Windows XP Home Edition
Windows 2000
Windows Vista Home Edition
Windows XP Home Edition not supported
Windows 2000 not supported
Windows Vista Home Edition not supported
NOTE: Windows 2000 are not supported.
19
Recommended PC Specification – 16 channels
Supported PC Specification with 16-channel:
Item. Specification
CPU
Memory
HDD
Intel Core 2 Duo 2.4 GHz
1 GB
250 GB
Recommended PC Specification – 32 channels
Supported PC Specification with 32-channel:
Item. Specification
CPU
Memory
HDD
Intel Core 2 Duo 2.66 GHz
2 GB
250 GB
Recommended PC Specification – 48 channels
Supported PC Specification with 48-channel:
Item. Specification
CPU
Memory
HDD
Intel Core 2 Quad 2.66 GHz
4 GB
250 GB
Recommended PC Specification – 64 channels
Supported PC Specification with 64-channel:
Item. Specification
CPU
Memory
HDD
NOTE: AMD chip and X64 series are note tested.
Intel Core 2 Quad 2.66 GHz
4 GB
250 GB
20
Keyboard Shortcuts
ACTi NVR v2.1 supports keyboard shortcuts to increase security operator’s productivity. These
keyboard shortcuts apply to all applications, including Active Monitor, Active Player, Active Map
and Active Setup.
Refresh. This will restart the application session, and starts
from login page.
Create snapshot
Toggle start / stop tour.
Show / hide left tree panel
Cancel auto-logn mode
Show / hide title bar
Toggle full-screen mode
Cancel full-screen mode; return to normal mode. This function
key only valid under full-screen mode
NOTE: When running ACTi NVR Web Client, some shortcut key does not work
properly.
21
Technical Support
Please refer to following mechanism to contact with ACTi:
E-Mail:
MSN Messenger:
When contacting ACTi Technical Support, please provide following information:
1. ACTi NVR version number: Please refer to
2. ACTi Devices Model Number and Firmware Version
3. ACTi NVR log and database information: Please use Backup Wizard to backup the database
customer.service@acti.com
customer.service@acti.com
Check Version section for detail
22
What’s New in v2.0
System Enhancements
The following lists the enhancements in current version
1. Supports 64-channel with D1@30 FPS with 3 Mbps
2. Tree directory
3. Client / Server architecture
4. Supports NVR Server, NVR Workstation and Web Client
23
Active Monitor Enhancements
The following lists the enhancements in current version
4. Remote Setup: Functionalities are the same as ActiveSetup.
Figure 1-8 NVR Web Client Features
32
What’s New in v2.1
System Enhancements
The following lists the enhancements in current version
1. Supports Windows Vista Business and Enterprise Edition
2. Supports SQL 2005 SP2
3. Supports ACTi Megapixel IP Camera
NOTE: NVR v2.1 supports Windows XP SP2, Windows 2003, Windows Vista. NVR
v2.1 does not support Windows 2000.
33
Active Monitor Enhancements
The following lists the enhancements in current version
1. New ActiveX Control
2. Supports Megapixel MPEG-4
3. Supports Digital Zoom function
4. Auto login and load first pre-defined layout
5. Change language setting on login page
6. Supports Absolute Position (on CAM-6500, CAM-6600 series with Dynacolor protocol)
Figure 1-9 New ActiveX Control
34
Figure 1-10 Manual Record
NOTE: Manual Record function records video archives on local PC, and cannot be
searched via NVR.
35
Figure 1-11 Auto login and Change Language
TIP: With auto-login mode, NVR Workstation or NVR Web Client login with current
login account/password if login successfully. First pre-defined layout will be bring up
automatically.
TIP: Press CTRL+F10 to cancel auto-login mode.
36

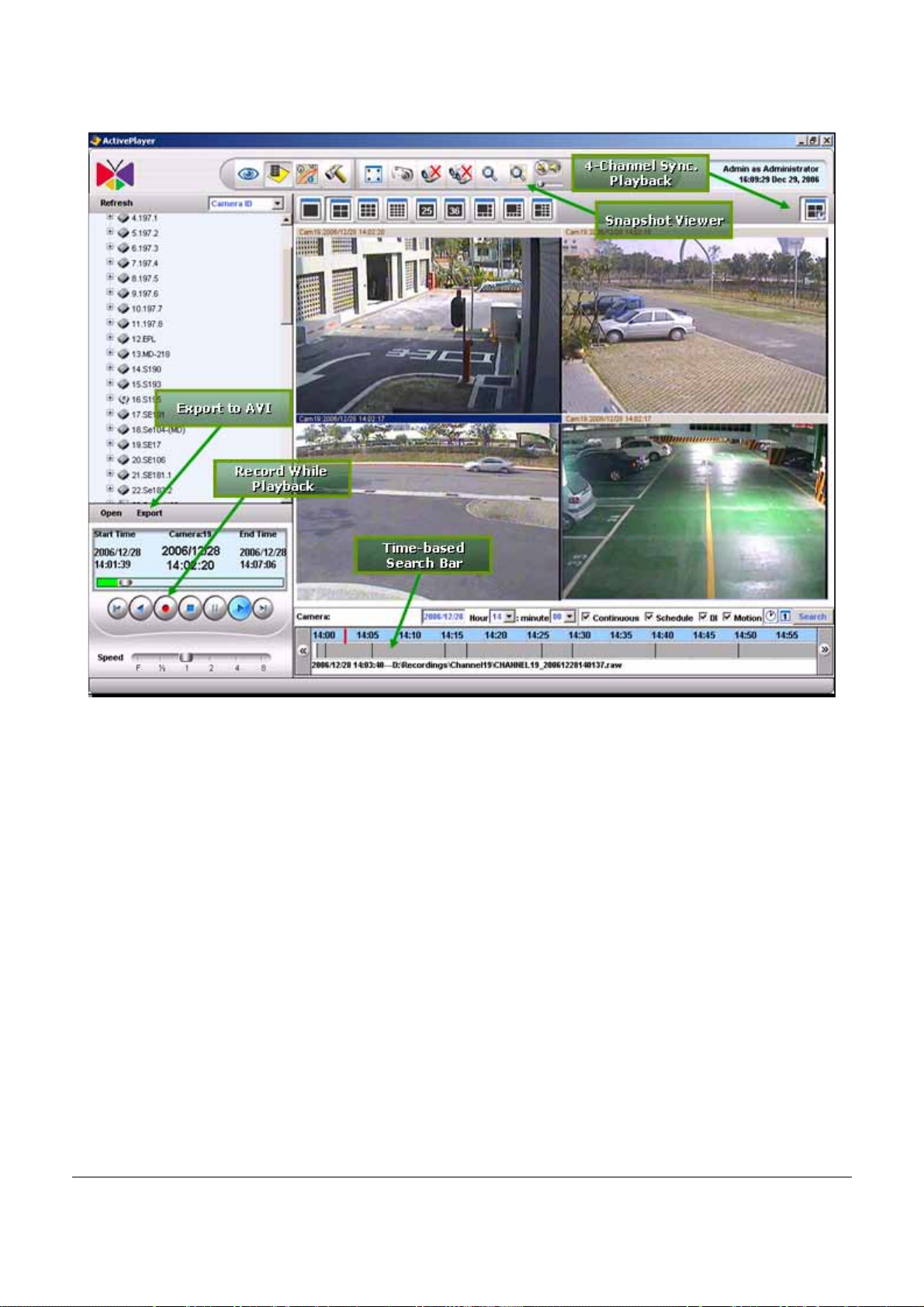

Active Player Enhancements
The following lists the enhancements in current version
1. New ActiveX Control
2. Supports Megapixel MPEG-4
3. Supports Digital Zoom function
4. Download video archive
Figure 1-12 Download video archive
37
Active Map Enhancements
The following lists the enhancements in current version
1. 3 preview window size
2. Mini-preview with PTZ function
Figure 1-13 3 Preview Window size and PTZ function enabled automatically
38
Active Setup Enhancements
The following lists the enhancements in current version
1. Simplified camera setup flow
Event Management Enhancements
The following lists the enhancements in current version
1. Event will be passed to NVR Workstation and NVR Web Client installed on other machine
39
NVR Web Client Enhancements
The following lists the enhancements in current version
1. Advanced Mode
Figure 1-14 NVR Web Client Advanced Mode
40
Function Mapping in NVR v2.1
Figure 1-15 NVR Workstation and NVR Web Client Function Mapping
41
2. Getting Started
Administrator’s Check List
Objective: To guide the administrator through the system setup.
Description: Please go through the checklist below for what items should be set.
NOTE
of the package.
No Status Description Main Category Reference
Pre-install
1
Check PC requirement
□
: You can find the Quick Installation Guide and User Manual in the CD
Quick Installation
To ensure the software running well, please make sure the PC
spec is compatible with the software.
Guide
Ch 1-Administrator’s
Check List
2
Install
1
2
Setup
1
Prepare Software license
□
Install Software
□
Check installation
□
Create Camera Group
□
and add cameras
Our software has 16CH/32CH/48CH/64CH packages. Our
software is free for 16CH. For 32CH/48CH/64CH please refer
to license section for details.
Please follow the installation guide step by step to install the
software.
After installation, please also check the below items before
you move to next step.
1. License input
NVR camera channel management is based on camera groups.
Start by creating camera groups and adding cameras.
Ex: There are 4 floors in this system. You can start by creating
1F, 2F, 3F, 4F, 4 groups. When adding every single camera,
you can select the group which it belongs to.
Quick Installation
Guide
Ch 1-Administrator’s
Check List
Quick Installation
Guide
Ch 2-Installing the
Software
Quick Installation
Guide
Quick Installation
Guide
Ch 3-License
Management
User Manual
Ch 7 ActiveSetup
2
3
Configure Camera Setup Set some camera settings, like PTZ setting, bit rate.
□
Configure Scheduling Set the recording schedule for every single camera.
□
User Manual
Ch 7 ActiveSetup
User Manual
Ch 7 ActiveSetup
42
4
5
6
7
8
Configure Event handling Set the action related to different events
□
Configure Storage Set the HD arrangement and recording delete rule for storage
□
Configure Preview layout Set the preview layout during preview
□
Configure E-map
□
(Option)
Configure Accounts Set the you accounts and select authentication level
□
Set the E-map.
User Manual
Ch 7 ActiveSetup
User Manual
Ch 7 ActiveSetup
User Manual
Ch 7 ActiveSetup
User Manual
Ch 7 ActiveSetup
User Manual
Ch 7 ActiveSetup
43
Operator Check List
Objective: To guide the operator through the operation.
Description: Please go through the checklist below for what items should operator know.
NOTE
package of the CD.
No Status Main Category Description Reference
Setup
: You can find the Quick Installation Guide and Operation Manual in the
1
2
3
4
5
Live Preview
□
PTZ control
□
E-map Preview
□
Search & Playback Set the action related to different events
□
Web-client Access
□
operation
Operator should be able to see the live
preview and to do basic operations.
Operator should be able to control the
PTZ
Operator should be able to launch the
E-map preview and to do basic
operations.
Set the action related to different events
User Manual
Ch 3 Active Monitor
User Manual
Ch 3 Active Setup
User Manual
Ch 5 Active MAP
User Manual
Ch 4 Active Player
User Manual
Ch 6 Web-Client
44
Start ACTi NVR
To start ACTi NVR v2.1, simply click on the desktop.
ACTi NVR Workstation Components:
Icon Name Description
ActiveMonitor.exe
ActivePalyer.exe
ActivMap.exe
ActiveSetup.exe
Live view, PTZ, IP Joystick, system log monitor,
event panel, pre-defined layout, layout tour
When starting ACTi NVR, a login message box prompts as follow:
Figure 2-1 NVR Login
1. User Accoun t: Type in user’s account
2. Password: Type in user’s password
3. Server IP Address: Type in NVR Server’s IP Address. The format can be IP address or host
name.
4. Language: You may change desired local language immediately.
5. Auto login with this account: When this option is checked, this PC will use the account /
password to login automatically. There will be no user login prompt appear.
6. Use CTRL+F10 to cancel auto-login mode: In order to cancel auto-login mode, user has to
use CTRL+F10 key. Next time, when user open NVR Workstation, user need to key in
account / password again.
7. Login: Click Login button to login to NVR Workstation system.
46
Default Administrator Account / Password
Default Administrator Account: Admin
Default Administrator Password: 123456
Default Server: localhost
NOTE: In the Server fiel d, the user may type in different IP addresses or hostname; in
this case, the NVR Workstation will connect to the IP address or hostname specified.
NOTE: If the IP address is not valid, the login page might hang for a period of time,
could be 5 seconds to 30 seconds.
TIP: When user login successfully with correct account and password, following
fields will be remembered in the PC, and next time when user use the same PC to
login, these fields will be brought up automatically. This may save some repeat
key-in efforts. These fields are: User Account, Server IP Address, Language
47
Change Password
Clicking on the profile section brings up the Personal Setting page. The user may easily change the
password and preferred Language. Click Apply to confirm the setting.
Figure 2-2 Change User’s Password
1. Personal Profile: Click on this section brings up Personal Profile setting; user may change
password and select preferred Language.
2. Password Button: Click on this button to change user’s password.
3. Language Button: Click on this button to select preferred Language.
4. Apply Button: Apply this setting.
5. Old Password: Input old password.
6. New Password: Input new password.
7. Re-Type Password: Re-type new password.
48
Start a Camera Live View
Select a Camera from Camera Tree

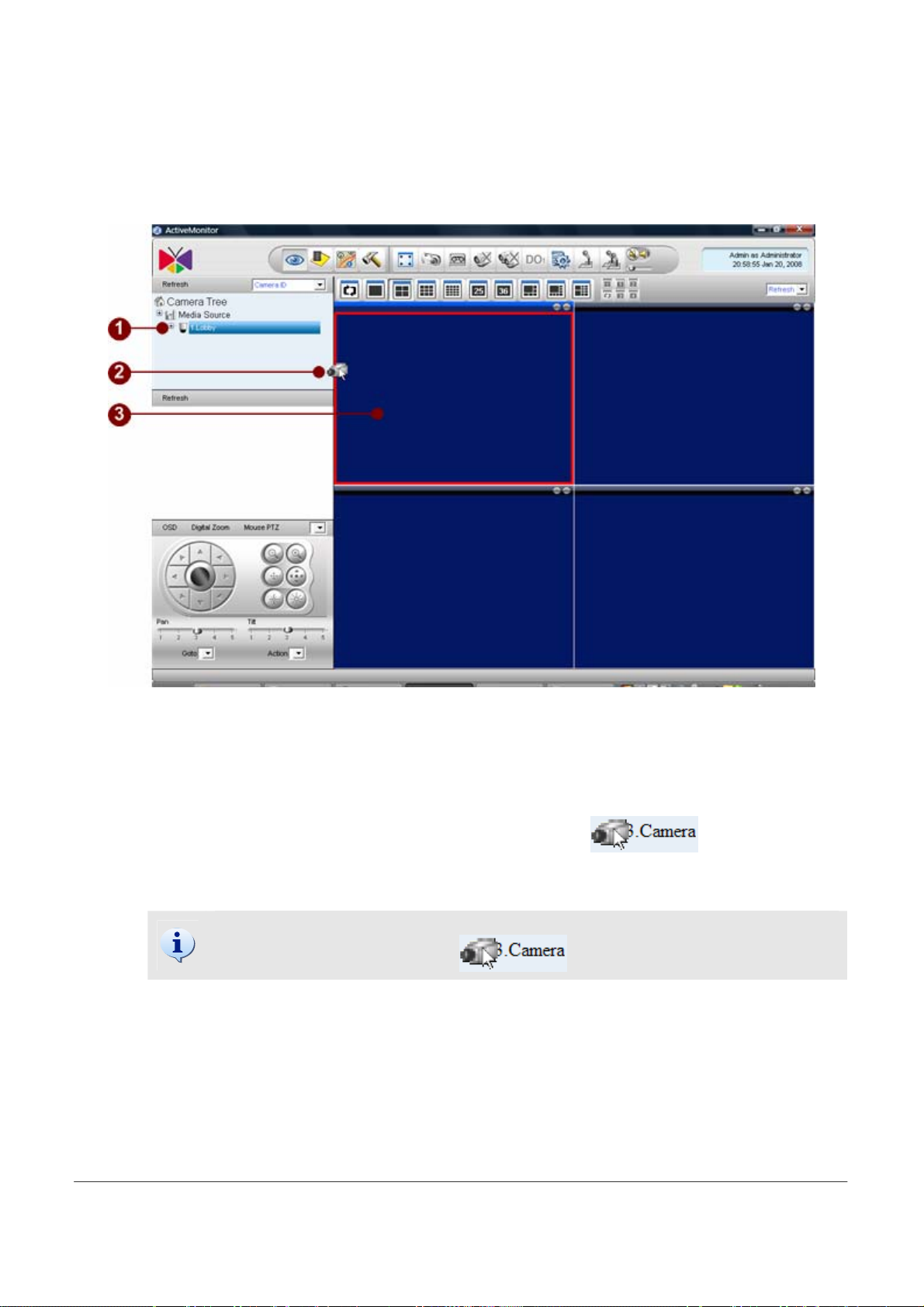

Figure 2-3 Preview Window
1. Camera Tree: Choose a Camera from camera tree. When you click on the camera name, the
blue bar will be displayed
2. Active Window: Click on any window, the active window will contain blue title bar, like the
following picture:
49
Double Click on the Camera
Figure 2-4 Double click on a camera to preview
1. Camera Tree: Double click on the camera icon that user wants to preview.
2. Active Preview window: User can see t h e video screen on the active preview window.
50
Drag-n-Drop a Camera
Figure 2-5 Drag and Drop a camera
1. Camera Icon: Click on the camera icon to be previewed with left mouse key, then hold left
mouse key and drag the camera to the desired display window.
2. Drag icon: When dragging a camera, the icon display as
3. Display window: The window with red bar will display video on the camera selected
.
TIP: When you drag the camera icon, a new cursor (with camera name) will be
displayed. The cursor looks like:
51
Stop a Camera Live View
Close Camera Live View
1
Figure 2-6 Disconnect a Channel
1.Disconnect A Channel: Click once to stop video streaming for the selected window.
TIP: The selected window is the active window which display with blue title bar like
follow:
52
Start Other Application
Start Active Player, Active Map and Active Setup
Figure 2-7 Active Program Tool Bar
1. Active MonitorButton: Click this button to start Active Monitor program.
2. Active Player Button: Click this button to start Active Player program.
3. Active Map Button: Click this button to start Active Map program.
4. Active Setup Button: Click this button to start Active Setup program.
5. System Setup Button: Click this button to start System Setup program.
6. Camera Setup Button: Click this button to start Camera Setup program.
7. MAP Setup Button: Click this button to start Map Setup program.
53
Start Utility
You can go to “STARTÎProgram FilesÎ NVR” to find ACTi’s Utility Suite.
ACTi Utility Suite Components:
Icon Name Description
IPUtility.exe
Explorer.htm
Search and manage ACTi devices, firmware
upgrade, configuration backup and restore
Web browser application to configure PTZ
settings.
Standalone archive player, create snapshots,
ArchivePlayer.exe
BackupWizard.exe
MediaConverter.exe
display time code on the video window directly.
Able to play
.RAW and .MP4 format
Backup and restore ACTi NVR v2.1
Converts .RAW data format to .AVI format
MPEG-4 DirectShow filter. This is necessary if
FFDShow.exe
user wants to play
.AVI file with Microsoft
Windows Media Player.
54
Quit ACTi NVR
Simply click on to quit ACTi NVR v2.1.
Figure 2-8 Quit ACTi NVR
55
Check Version
Clicking on the logo section will bring the About Us dialog box. The user may easily review the
current software version and system information.
Figure 2-9 Check Version
TIP: When you want to report any issues, please use this function to report System
Information, Software Version and ActiveX Control Version
56
3. Active Monitor
Introduction
The Monitor Console (Active Monitor) is the application designed to perform live preview for
installed ACTi devices. It allows up to 36 concurrent video preview windows, including a variety of
preview modes.
Advanced features of the Monitor Console include event logs, talk, broadcast, manual digital output to
device, automatic layout touring, PTZ control, system monitor and many more. This section
explains the interface in detail, as well as gives instructions for using these advanced functions.
57
Overview
The section describes ACTi NVR Active Monitor functions, including camera preview

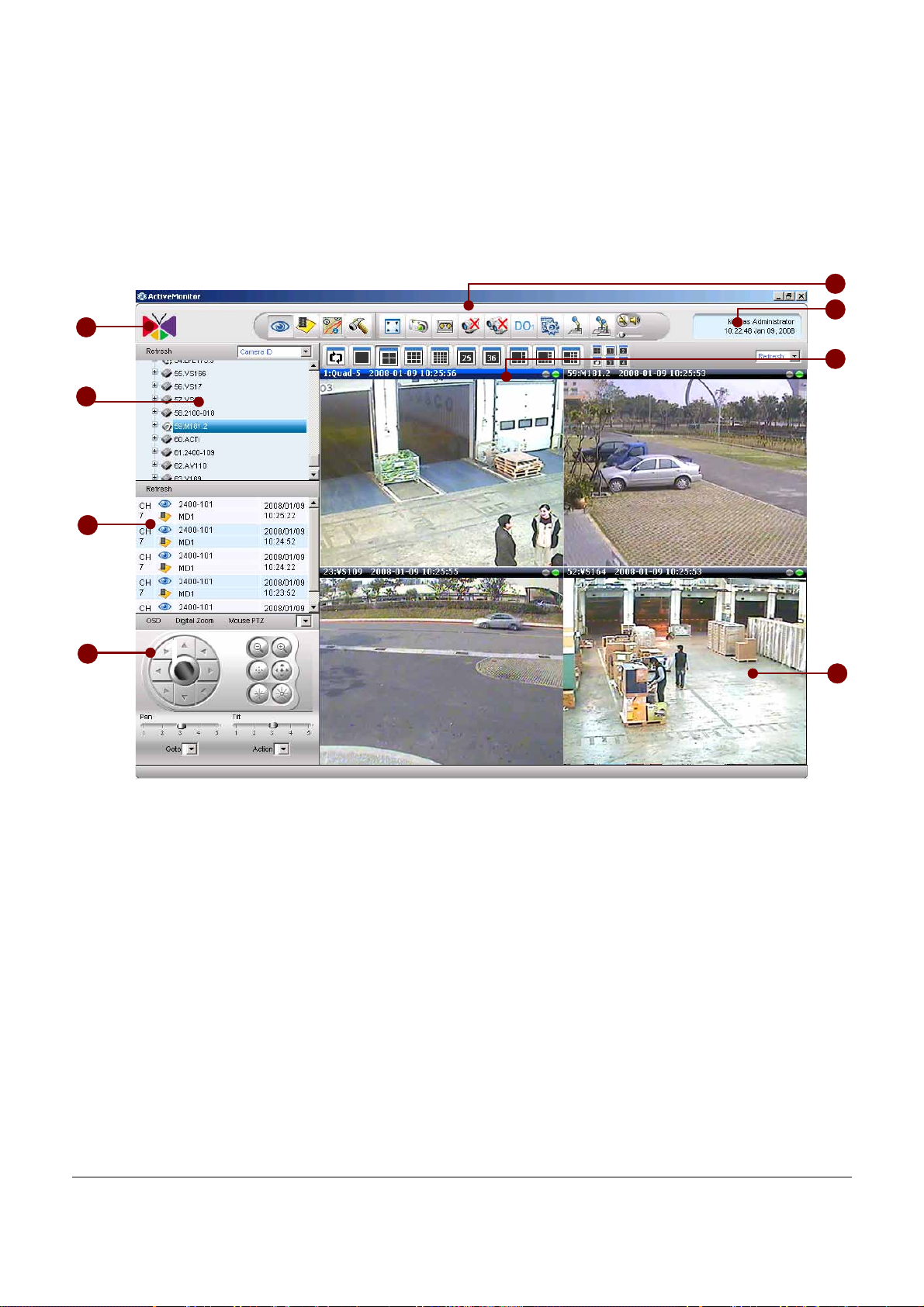

Figure 3-1 User Interface
1. Logo: Click on the logo to bring up the About Us dialog box which contains software version,
system version and company information.
2. Active Monitor Toolbar: Contains buttons to operate in Active Monitor application
3. Personal Profile: Click on this section brings up Personal Profile setting; user may change
password and select preferred Language.
4. Camera Panel: Displays camera tree.
5. Event Panel: Displays event generated, including motion detection, alarm input, camera
date/time is not correct and video loss events. User may click on each item to see further
details.
6. PTZ Panel: PTZ operations
7. Layout Manager: Controls the various window layout
58
8. Video Window: Each video window displays live view from one video source from camera
panel.
59
Live View Operation
Channel Live View
1
2
Figure 3-2 Preview Window

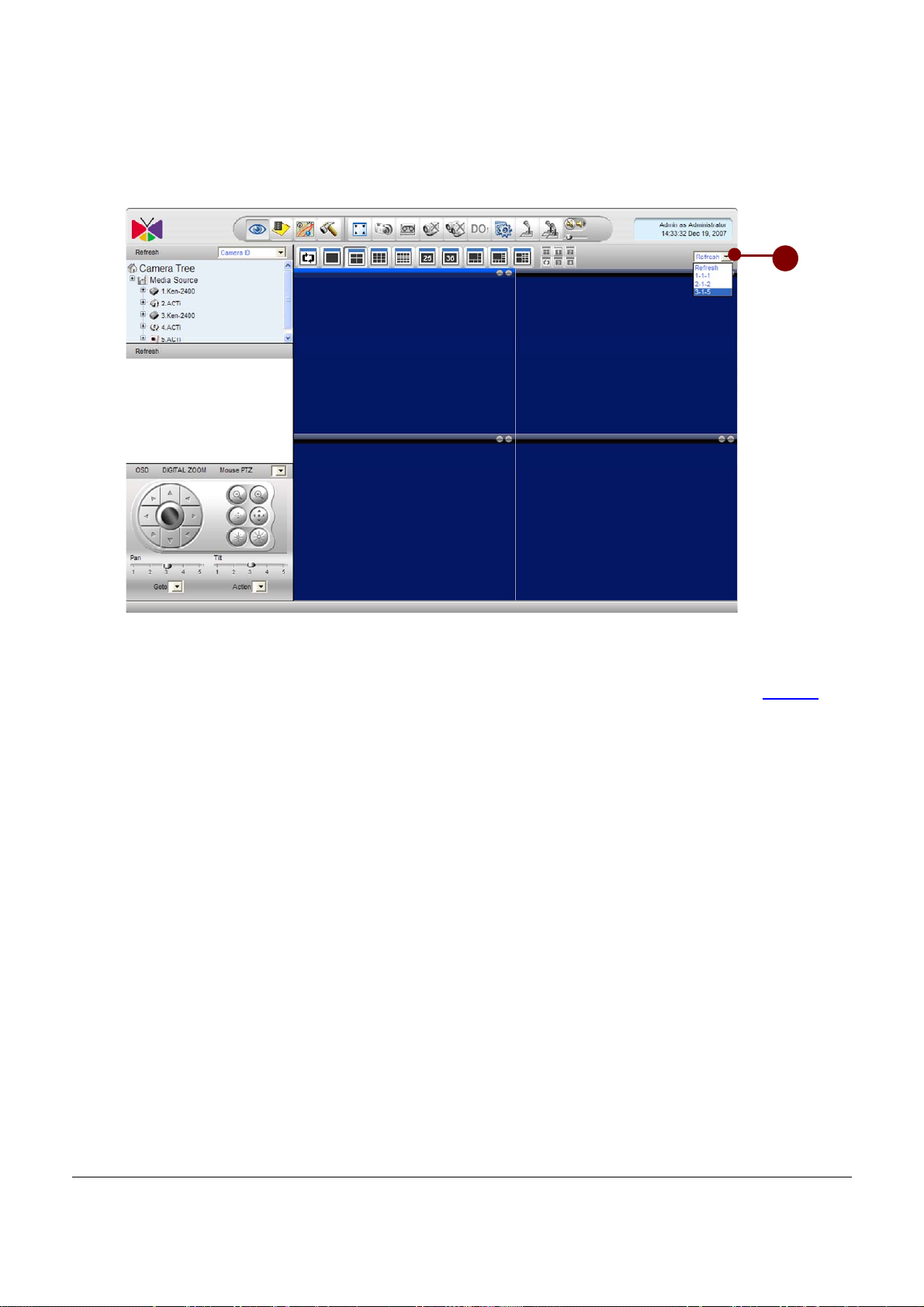

1. Camera Panel: Displayed camera information in tree directory.
2. Preview Window: Click on any window once to select it and enable functions for this specific
camera (PTZ, snapshot, close camera, etc.)
TIP: To preview a channel, first click on a video window in layout manager, then
double-click on the camera in the Camera panel, or drag the camera into the video window
in the layout manager.
60
Double Click on the Camera
Figure 3-3 Double click on a camera to preview
1. Camera Tree: Double click on the camera icon that user wants to preview.
2. Active Preview window: User can see t h e video screen on the active preview window.
61
Drag-n-Drop a Camera
Figure 3-4 Drag and Drop a camera
1. Camera Icon: Click on the camera icon to be previewed with left mouse key, then hold left
mouse key and drag the camera to the desired display window.
2. Drag icon: When dragging a camera, the icon display as
3. Display window: The window with red bar will display video on the camera selected
.
TIP: When you drag the camera icon, a new cursor (with camera name) will be
displayed. The cursor looks like:
62
Active Monitor Toolbar
1. Active Monitor: Click on this button to go to the Active Monitor application.
2. Archive Player: Click on this button to go to the Archive Player application.
3. Active Map: Click on this button to go to the Active E-Map application.
Figure 3-5 Active Monitor Toolbar
4. Active Setup: Setup the System, Camera and E-Map.
5. Full Screen: Click to bring the video into full-screen mode. To bring the controls back, press
ESC.
6. Create Snapshot: Takes a single screenshot at maximum resolution for the selected video only.
The screenshot is saved as an JPG file in the Recording Path defined in the Recording of
Camera Setup. Please refer to the Recording
stored on local machine and cannot be searched by NVR Server.
7. Manual Record: Click on this button will create recording immediately. The recording will
be stored on local machine and cannot be searched by NVR Server.
8. Disconnect A Camera: Click once to stop video streaming for the selected window.
9. Disconnect All Camera: Click once to stop video streaming for all preview windows.
10. Trigger DO1:
11. System Monitor: Click on this button to brings up system log.
12. Speak: Pressing this icon enables audio transmission to the selected video device; un-pressing
it disables the transmission.
13. Broadcast: Pressing this icon enables audio transmission to all video devices that appear in
this layout; un-pressing it disables the transmission.
14. Volume Control: turn on/off and adjust the volume.
Click once to trigger DO1 of the selected camera.
section for details. The snapshots will be
NOTE: If you start another application from the toolbar, say Active Map, and you
cannot find it, please go check the task bar.
63
Full Screen Mode (CTRL+F12)
Figure 3-6 Full screen button
1.Full-screen: Click to bring the video into full-screen mode. To bring the controls back, press
ESC or press CTRL+F12 again.
NOTE: Full-screen maximizes the entire layout of videos instead of just the selected
window. It will also not expand the video should the size of the window exceeds the
maximum resolution of the video.
TIP: The user can also use CTRL+12 to invoke this function. To show/hide the toolbar,
user can press FTRL+F11 function key to toggle this function.
64

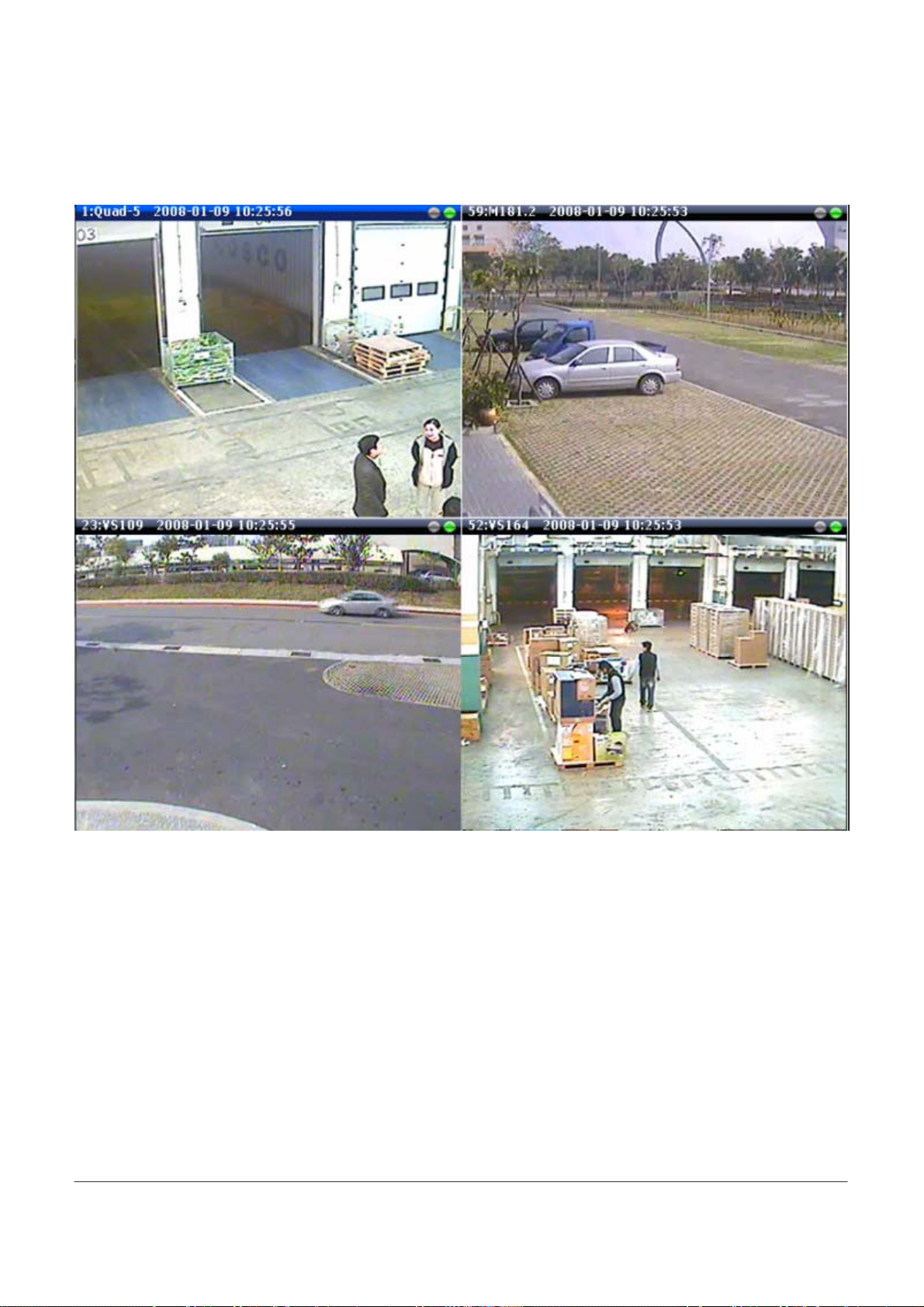

Figure 3-7 Full Screen Mode
TIP: When in full screen mode, Preview tour and Mouse PTZ can still operate properly.
Digital Zoom is disabled.
65
Create Snapshot (CTRL+F7)
Figure 3-8 Create Snapshot
1. Snapshot: Takes a single screenshot at maximum resolution for the selected video only. The
screenshot is saved as an JPG file in the Recording Path defined in the Recording of Camera
Setup. Please refer to Recording
NOTE: The snapshot taken will be stored in local PC, and cannot be searched by NVR
Server.
section for details.
66
Manual Record
Figure 3-9 Create Snapshot
1. Manual Record: Click on this button to start manual record. Please refer to Recording
section for details.
2. Manual Record Indicator: When the video channel is under manual recording mode, the red
light will flashing.
NOTE: Video archive is recorded on local PC, and cannot be searched via NVR.
67
Disconnect a Channel
Figure 3-10 Disconnect a Channel
1.Disconnect A Channel: Click the button to stop video streaming on the active window.
TIP: The selected window is the active window which display with blue title bar like
follow:
68
Disconnect All Channels
Figure 3-11 Disconnect all Channel
1. Disconnect All Channels: Click once to stop video streaming for all preview windows.
69
Trigger DO1 (Toggle)
Figure 3-12 Trigger DO1
1. Trigger DO1: Click this button to trigger DO1 of selected camera.
NOTE: Note that, when you click on this button, the DO will be triggered to high until
you click this button again to trigger the DO status to low.
70
System Monitor
Figure 3-13 System Monitor Button
1. System Log: Click on button brings up system log.
71
System Monitor Listing
System Monitor contains the following information:
1. Recorded: Recording information
2. Deleted: Deletion information, including database and archive file
3. Alarm: Alarm information, including digital input 1 and 2
4. Motion: Motion detection information
5. Network Loss/Recovery: Network loss or recovery information
6. Video Loss/Recover: Video loss or recovery information
7. User Ope ration: User login/logout and operation information
NOTE: System monitor display with a pop-up window; this may not work under NVR
Web Client if the pop-up window is blocked by Microsoft Internet Explorer pop-up
window setup.
72
System Monitor - Recorded
Figure 3-14 System Monitor - Recorded
1. Camera: Camera Name
2. Stream: Recording type, including Continuous, EventWith Streaming and Schedule
3. File: File location on the disk
4. Start Time: Stat time
5. End Time: End time
6. Duration: Length of the recorded archive
7. Page Indicator: Traverse to first, last, previous or next page
73
System Monitor - Deleted
Figure 3-15 System Monitor - Deleted
1. Camera: Camera Name
2. Stream: Recording type, including Continuous, EventWith Streaming and Schedule
3. File: File location in the disk
4. Start Time: Stat time
5. End Time: End time
6. Duration: Length of the recorded archive
7. Page Indicator: Traverse to first, last, previous or next page
74
System Monitor - Alarm
1. Camera: Camera Name
2. Event: Alarm ty pe
3. Event Time: The time of the occurrence of the event
4. Page Indicator: Navigate through the record set, including first page, last page, previous page,
next page
Figure 3-16 System Monitor - Alarm
75
System Monitor - Motion
Figure 3-17 System Monitor - Motion
1. Camera: Camera Name
2. Event: Motion type
3. Event Time: The time of the occurrence of the event
4. Page Indicator: Navigate through the record set, including first page, last page, previous page,
next page
76
System Monitor – Network Loss/Recovery
Figure 3-18 System Monitor – Network Loss/Recovery
1. Camera: Camera Name
2. Event: Network status, including Network Loss and Network Recovery
3. Event Time: The time of the occurrence of the event
4. Page Indicator: Navigate through the record set, including first page, last page, previous page,
next page
77
System Monitor – Video Loss/Recovery
Figure 3-19 System Monitor – Video Loss/Recovery
1. Camera: Camera Name
2. Event: Network status, including Network Loss and Network Recovery
3. Event Time: The time of the occurrence of the event
4. Page Indicator: Navigate through the record set, including first page, last page, previous page,
next page
78
System Monitor – User Operation
Figure 3-20 System Monitor – Video Loss/Recovery
1. Date Time: Display date time
2. Who: Which user’s operation
3. CH: Channel number operated
4. Catalog: User operation type
5. Category: User operation sub-type
6. Description: User operation description
79
Talk and Broadcast
12
Figure 3-21 Talk and Broadcast button
1. Talk: Pressing this icon enables audio transmission to the selected video device; un-pressing it
disables the transmission.
2. Broadcast: Pressing this icon enables audio transmission to all video devices that appear in
this layout; un-pressing it disables the transmission.
IMPORTANT: Note that, in order to enable this function, make sure the device is
equipped with 2-way audio function. Talk is a 1-to-1 communication while Broadcast
will transmit the audio to all clients that are connected with live video feed.
80
Volume Control
1
Figure 3-22 Volume Control
1. Volume Control: turn on/off and adjust the volume.
81
Mute On
Mute Off
Figure 3-23 Mute On
Figure 3-24 Mute Off
Adjust Volume
Figure 3-25 Adjust Volume
82
Camera Panel
Camera List
Figure 3-26 Camera List
1. Refresh button: Pressing this button reveals the newest changes made with Active Setup.
Closing and re-opening the Active Monitor will have the same effect.
2. Sort selection: Sorts the tree in different categories and priorities. User has a choice of
Camera ID, Model Name, Group, Resolution, and IP Address.
3. Camera list: The Ca mera List serves two functions:
i. Expanding each device shows Camera Information, including Camera ID, Name, Channel
ID, FPS, Resolution and Bit-Rate.
ii. Clicking and dragging the device icon to a video window on the right shows video from
that device.
83
Channel Layout Manager
Window Layout Selection
Figure 3-27 Layout bar
1. Layout selection bar: These icons manage how the user would like the different video
channels to be viewed.
Figure 3-28 Layout Select bar
1. Patrol: See Layout Tour for details.
2. 1-Window View: Shows a single channel; video is not expanded if maximum resolution of the
source video is reached.
3. 4-Window View: Shows a maximum of 2x2 video channels at once.
84
4. 9-Window View: Shows a maximum of 3x3 video channels at once.
5. 16-Window View: Shows a maximum of 4x4 video channels at once.
6. 25-Window View: Shows a maximum of 5x5 video channels at once.
7. 36-Window View: Shows a maximum of 6x6 video channels at once.
8. 6-Window View: Shows one video channel with a larger view, and 5 others at a lower
resolution.
9. 8-Window View: Shows one video channel with a larger view, and 7 others at a lower
resolution.
10. 10-Window View: Shows two video channels with a larger view, and 8 others at a lower
resolution.
11. Quad setting: Controls layouts within the Quad Video Server if using one such as SED-2310
or SED-2320.
12. Pre-Defined Layout: Choose the layout that user wants to preview.
NOTE: The Quad setting buttons will only become active if the selected channel is
defined as a quad in the camera settings.
85
Pre-defined Layout
1
Figure 3-29 Select Predefined Layout
1. Pre-defined layout options: If User has pre-defined layouts in System Setup (See Layout for
details), user will find them here. Selecting any one of them automatically brings up the
layout as well as all video channels. Selecting “Refresh” will refresh the list should any
layouts has been changed with Active Setup.
86
Hot-spot Window
The hot-spot window is designed to alert security officer for certain events. The security officer may
simply double-click on any video window, that window will then be switched over with the one in
hot-spot window. Also, user may setup the action to display video on the hot-spot window when
certain event occurs.
1
Figure 3-30 Hot-Spot Window
1. Hot-spot Window: The upper left window in the Window Layout Manager is defined as the
Hot-Spot Window.
NOTE: Double-clicking on another video window swaps video between the hot-spot
window and the indicated window.
NOTE: Please refer to [Active Setup] -> [Camera Setup] -> [Event Manager] on how
to setup hot-spot window as the event display video window.
87
Layout Patrol
Figure 3-31 Patrol button
1. Patrol: Clicking on this icon runs a pre-defined layout patrol sequence. This setting can be
found in Active Setup. Clicking on the Patrol button once brings up a sub-menu, which
allows user to choose any particular sequence to patrol. Selecting “Cancel” in the sub-menu
stops the patrol.
NOTE: Depending on the power of the computer used, patrolling between each layout
takes a certain amount of time. While the video channels still load, user will not have
access to much of the control, including the ability to Cancel the layout patrol. Please
make sure the period between each layout is sufficient for all channels to complete
loading, especially when the number of channels in a single layout is large.
88
Layout Patrol with Full Screen Mode
Figure 3-32 Full Screen Mode with Layout Patrol Function
The user may also perform layout patrol while in full screen mode. To do so, the user simply needs
to:
1. Select and run layout patrol by clicking on the patrol button
2. Wait until all channels have completed loading, but before the next layout begins loading
3. Click on the full screen button.
To bring the user interface back out from full screen mode, simply press the ESC key.
89
Event List Panel
Event List
User may find the Event List on the left hand side of the Active Monitor. Events due to
different events are displayed on that list: they are Motion detection event, Alarm event,
Video Loss event, Video Recovery event, Network Loss event and Network Recovery event
Figure 3-33 Event List
90
Check Event Status
1. Event Status: The events are listed by Channel Number, Type and Time. To view a video
clip related to a particular event, click on the “Eye” icon.
Figure 3-34 Event Status
Clicking on the
Clicking on the
has been recorded and saved, the video archive will also be played on a pop-up mini-playback
window.
icon brings up video on a pop-up mini-preview window
icon brings up file information associated with that particular event. If the file
NOTE: User may click on icon to bring up archive player accordingly. Note
that, if you cannot start playback, it might because the file is still under recording.
Default recording period is 10 minutes.
91
PTZ Panel
PTZ Operation

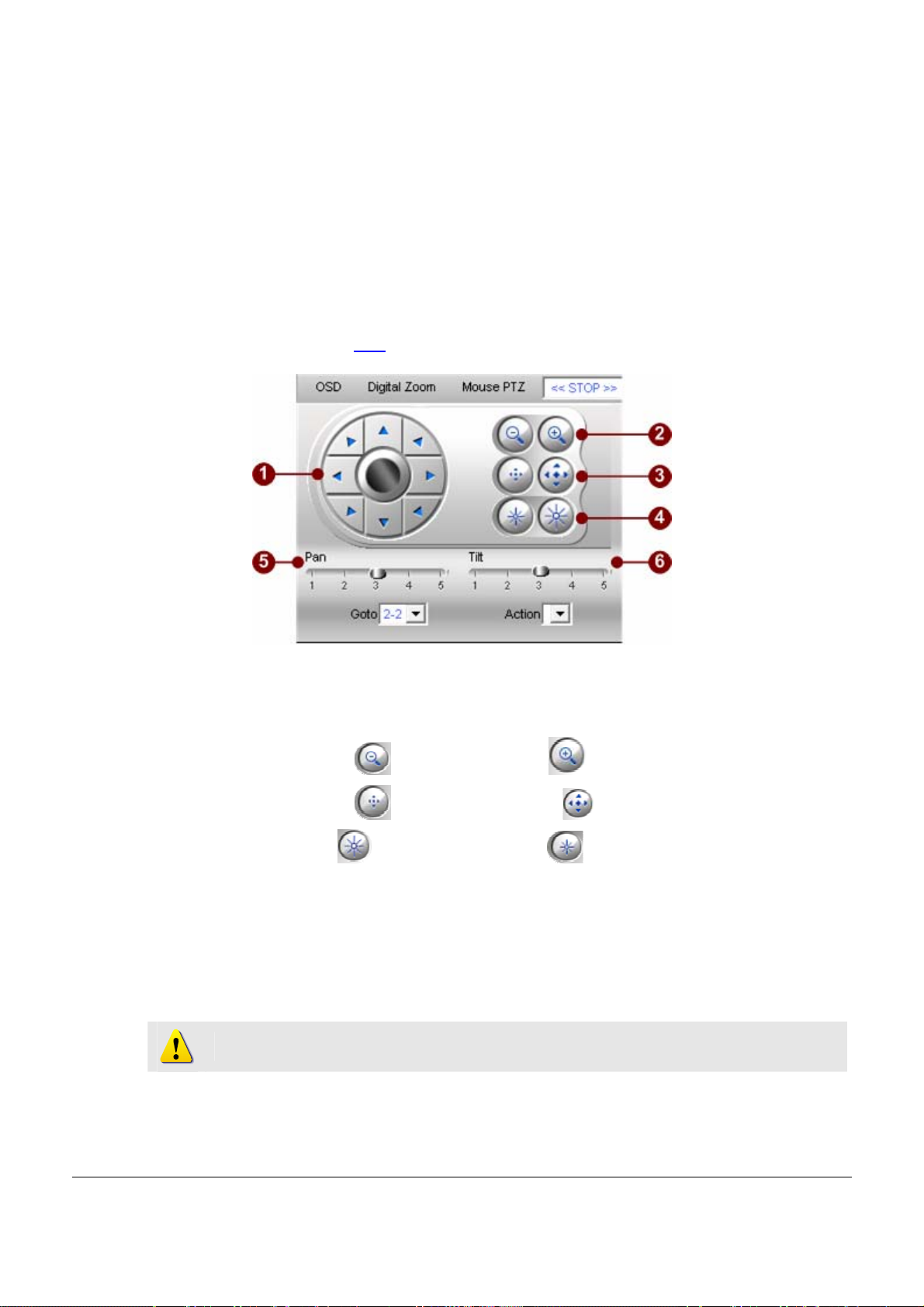

PTZ controls can be found on the bottom left hand side of the Active Monitor. Most of functions
seen below are disabled until PTZ control setup for the particular camera or video server is completed
and enabled. Please consult PTZ
The actual angular speed varies from protocol to protocol. Click on a number on the bar to
select the desired speed
to zoom out. Click to zoom in
to focus near. Click to focus far.
to set open iris. Click to set close iris.
NOTE: Different speed dome protocol may vary on the 8-way Pan-Tilt operation.
92
OSD Operation
Figure 3-36 OSD Operation
1. OSD: Click to enable or disable on-screen menu of the PTZ camera, if applicable. Button
appears pressed when enabled, and appears released when OSD is disabled. Once enabled,
use the arrow keys to operate the menu.
IP Joystick Support
ACTi NVR v2.1 also supports IP Joystick connected on the USB port by default. Please refer to
Joystick
section on IP Joystick button setup. The option is turned on by default.
IMPORTANT: Note that the IP Joystick needs to be plugged into the USB port before
ACTi NVR v2.1 starts.
93
Digital Zoom
Figure 3-37 Control Panel Operation
1. Digital Zoom: Click to enable or disable digital zoom function. When this function is
enabled, use mouse wheel to zoom in (by scrolling forward) or zoom out (by scrolling
backward). When the video is in zoom in mode, you can click left mouse key, hold the key
and drag the video around.
94
Mouse PTZ
Figure 3-38 Start Mouse PTZ Operation
1. Mouse PTZ: Click to enable or disable mouse PTZ for the selected the camera.
Button appears pressed when enabled, and appears released when mouse PTZ is
disabled. Once enabled, use the arrow keys to operate the menu.
TIP: Mouse PTZ works under full-screen mode as well. Press CTRL+F12 may enable
full screen mode.
95
Mouse PTZ Operation on Screen
Figure 3-39 Mouse PTZ Operation on Screen
With mouse PTZ function, you can click on the video screen directly to operate PTZ functions.
TIP: Mouse PTZ functions come with speed control as well. If you move the PTZ
cursor near the edge of the window, the speed will be 5 (fastest). If you move the PTZ
cursor near the center of the window, the speed will be 1 (slowest).
96
PTZ Preset Tour and Scan
Figure 3-40 PTZ Preset Tour and Scan
1. PTZ Preset Tour and Scan: Click to select the PTZ Preset Tour user would like the PTZ to
cycle through. Selecting “STOP” as shown in the dropdown menu stops the tour. Please see
Preset Tour
and off as well.
for setting up Preset Tours. Under this selection, user can find Auto Scan on
TIP: You can also start or stop scan by clicking this option.
97
Goto Preset Position
Figure 3-41 Goto Preset Position
1. Goto: This moves the PTZ camera to a preset point. User may set up the preset points by
going to the PTZ Preset page. See PTZ Preset
for more details.
NOTE: The preset position is listed in preset ID + description in the combo box.
NOTE: User may setup up to 32 preset positions.
98
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
