ACTi Mobile Client Installation Guide for Android V1.0.08

ACTi Mobile Client for Android
User’s Manual
Version 1.0.08
2014/11/17
www.acti.com
ACTi Mobile Client for Android V1.0.08
Important Notice
Tip
The content within this box is a tip. A tip gives you an alternative method to easily or quickly achieve an objective, usually for specific conditions.
The content within this box is an important notice. This notice is important for you to get certain function to work properly, or to prevent from certain potential problems that may damage your system. Make sure you read this notice and follow the instructions.
Note
The content within this box is a note. A note is some necessary information you need to know about the action you are currently taking, like what will happen after you follow or don’t follow certain procedure.
Conventions Used in This Manual
The following are typographic conventions used in this manual: Bold: Bold typeface is used for a keyword, major functions of NVR, or a title of a
section/column.
Italic: Italic typeface is used for a filename or location path. Underlined: Underlined typeface is used for a document name or hyperlink. Bold: Bold interface enclosed in double quotation marks indicates the name of a button or
a choice item.
Some notices are placed within the following boxes; each type of the box indicates different purposes or levels of importance for system:
2
www.acti.com
ACTi Mobile Client for Android V1.0.08
Table of Contents
Conventions Used in This Manual .................................................. 2
1 Overview 5
Introduction ....................................................................................... 5
Network Architecture ...................................................................... 5
2 Setup 6
Pre-requisites .................................................................................... 6
Download & Installation ................................................................... 7
Add a Server / Camera ..................................................................... 8
Manage Sites ................................................................................... 10
Enter Edit Mode ........................................................................... 10
Delete/Modify a Site ..................................................................... 10
3 Connect a Site / Device 11
4 Operation Instructions 12
View Screen ..................................................................................... 12
Live View Single Channel Screen .................................................. 13
On-screen Alerts .......................................................................... 14
On-screen Controls ...................................................................... 15
Operate PTZ Functions ................................................................ 17
Optical PTZ 17 Digital PTZ 18 Go to Preset Points 19
Accessing E-Map ............................................................................ 20
Playback Single Channel Screen .................................................. 23
On-screen Controls ...................................................................... 24
Perform Playback Search .............................................................. 27
3
www.acti.com
ACTi Mobile Client for Android V1.0.08
Send To TV Wall .............................................................................. 30
4
www.acti.com
ACTi Mobile Client for Android V1.0.08
Mobile Client
CMS Server
Software
NVR Server
Standalone NVR Server
1
2
3
3G / WiFi
Camera
4
Overview
Introduction
ACTi Mobile Client is a free app running on mobile Android devices, allowing you to remotely monitor camera live view output from ACTi video management system.
This app can manage up to 256 sites, and can provide 6-grid live view, single channel live view, and screen snapshots on mobile devices.
ACTi Mobile Client is ready to connect with an ACTi central management system server, an ACTi software network video recorder server, an ACTi standalone network video recorder and an ACTi camera without further configuration or installation.
Network Architecture
The service architecture is described in the following figure. Please note that the architecture may change to fit different applications.
Scenario 1 ACTi Mobile Client connects with software NVR server. Scenario 2 ACTi Mobile Client connects standalone NVR server. Scenario 3 ACTi Mobile Client connects central management system server. Scenario 4 ACTi Mobile Client connects with a camera.
5
www.acti.com
ACTi Mobile Client for Android V1.0.08
Setup
Pre-requisites
Before using ACTi Mobile Client, please make sure pre-requisites below are fulfilled:
1. Your server sites (software NVR servers, CMS servers or standalone NVR servers)
have been upgraded to compatible versions. Please refer to ACTi Mobile Client Release Notes on
http://www.acti.com/product/detail/Video_Management_System/ACTi_Utility_Suite
for compatible version information.
2. Your Android device has been upgrade to firmware version 2.3 or later.
6
www.acti.com
ACTi Mobile Client for Android V1.0.08
Download & Installation
To start using ACTi Mobile Client, please download and install this app in your device.
In Google play”, search the keyword ACTi Mobile Client” and install the app directly. It requires Internet access for the mobile device.
After installation is complete, the application icon will appear on main
screen.
7
www.acti.com
ACTi Mobile Client for Android V1.0.08
Add a Server / Camera
Tap on to execute ACTi Mobile Client.
1
SStteepp 1
The Sites list is empty when you first enter ACTi Mobile Client. Tap the Add button “ + to start editing a new site/camera.
SStteepp 22
On “Choose Type” window, select the video source type.
Select “Device” for a camera or a video encoder; select “Server” for a CMS server, a software NVR server or a standalone NVR server.
8
www.acti.com
ACTi Mobile Client for Android V1.0.08
Note
The permission to see certain views or devices on an NVR / CMS server is defined by the access level of the User Group your account belongs to. If you cannot see certain views or devices, ask the system administrator to modify your user group settings.
SStteepp 33
Enter Edit page to fill in the connection properties for ACTi Mobile Client to connect the site, and then click to save this site.
Name: Server site name
Host: Server ip / domain name address
Port: Server port number
Account: Server site account
Password: The password for this
account
If this is a camera, please click the “Get Device Setting” button before saving to make sure this device is accessible.
To test whether your mobile client app is working correctly, you can connect to ACTi’s test
server for mobile clients. The connection properties to be filled in are shown below. Please make sure your mobile device has access to the Internet before performing this test.
Type: Server
Host: mobile.acti.com
Port: 80
Account: guest
Password: guest
9
www.acti.com
ACTi Mobile Client for Android V1.0.08
Note
On ACTi Mobile Client interface, you can always tap on title bar to return to the upper layer. The title bar will only reveal when the device screen is in Portrait orientation mode.
Manage Sites
Every time you execute ACTi Mobile Client, you will first enter the Sites list.
Enter Edit Mode
To edit the existing server sites, tap on the bottom to enter the edit screen.
Delete/Modify a Site
In edit mode, select a site, tap to delete it or tap on to modify the site’s properties.
10
www.acti.com
ACTi Mobile Client for Android V1.0.08
Note
ACTi Mobile Client will display each view in 6-grid layout despite the original view layout.
Note
Please make sure your site is accessible via Internet, and that your Android device is connect to the Internet.
Server Site Type
NVR Server
CMS Server
Camera / Video Encoder
View/Source Type
All Cameras
NVR Source
Customized View
Connect a Site / Device
1
SStteepp 1
Tap on execute ACTi Mobile Client. Tap a server site on Sites list.
If you are connecting to a camera / video encoder site, you will directly enter the live view.
SStteepp 22
After successfully connecting to a site, you, will enter View Selection screen. The User Defined Views and NVR Sources (on CMS server only) on this site will be listed here. You may tap any view to enter the live view, or choose
All Camera” to see all camera’s live
view.
If there are numerous views, you can input the view name in Search Source / View bar to find it.
11
www.acti.com
ACTi Mobile Client for Android V1.0.08
View Name
Page Indicator
Previous Page Next Page
SSiinnggllee CChhaannnneell
Operation Instructions
View Screen
Upon entering a View, you will be provided with a 6-grid layout screen despite the original layout style presented on original interface; each mini channel will display continuous live snapshots at 1 frame per second.
To enter a Live View Single Channel Screen, tap the channel, and tap “Live View” on the popup window. To enter a Playback Single Channel Screen, tap on a channel select Playback” on the popup window. If there are more than six camera channels in this view, the page indicator will appear on the bottom, and you may swipe horizontally to navigate other pages.
12
www.acti.com
ACTi Mobile Client for Android V1.0.08

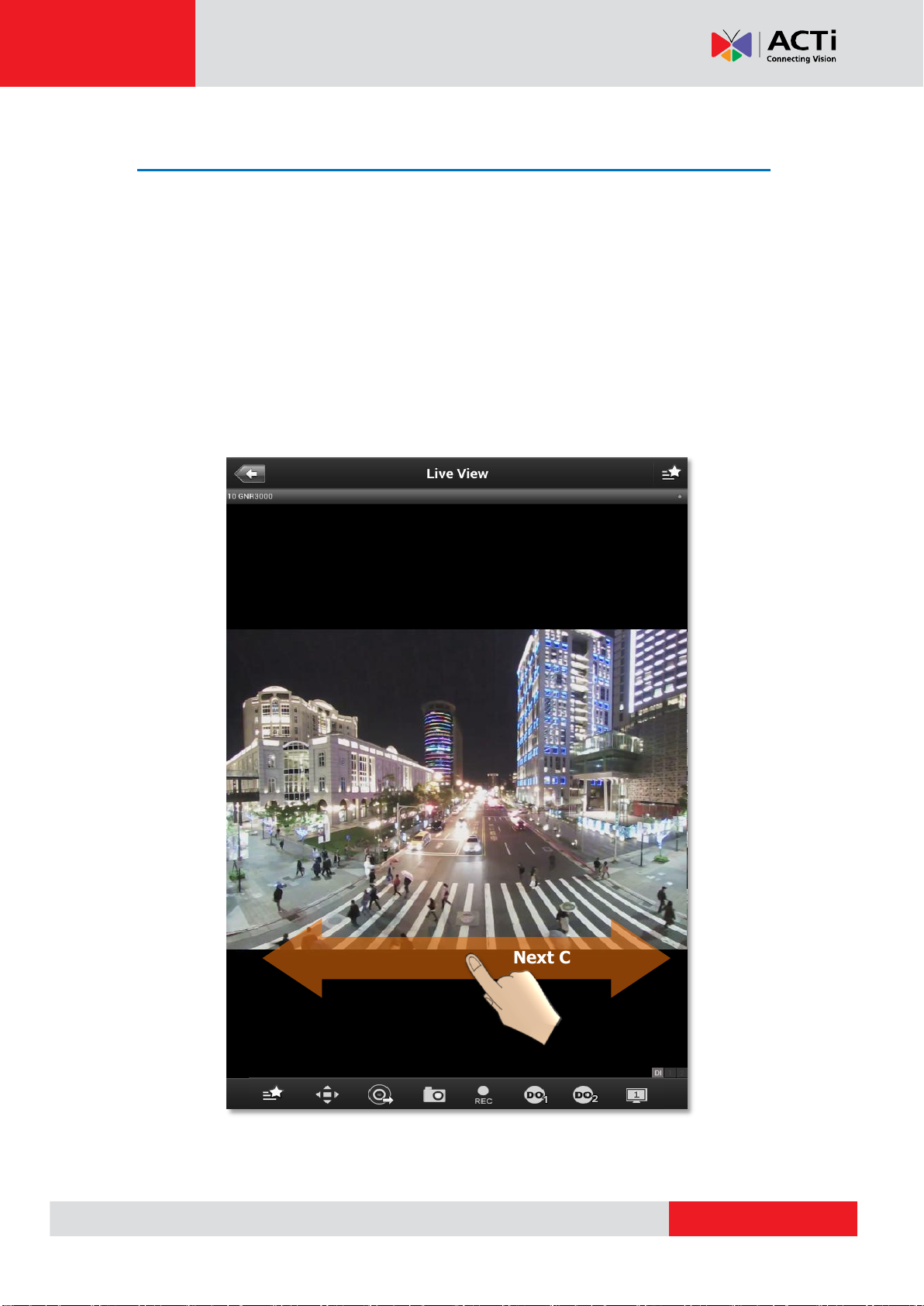

Previous Channel Next Channel
Live View Single Channel Screen
On a single channel screen displays the camera’s live streaming. You may:
Watch live streaming of a camera by its original resolution.
Switch to another camera channel or another View at ease.
Observe triggered motion/DI indications.
Take a snaphot of live view.
Manipulate digital/optical PTZ operation
Perform manual-recording
Manually trigger DO device.
13
www.acti.com
ACTi Mobile Client for Android V1.0.08
If the digital input connected with this camera is triggered, the icon will turn red from gray.
2
1
If you have set motion regions for this camera (has to be Stream 1), the red frame will appear when this motion region is detected.
On-screen Alerts
You may observe two kinds of event alerts: detected motion and triggered digital input.
14
www.acti.com
ACTi Mobile Client for Android V1.0.08
Take
Snapshot
Stream
Switcher
Manual
Recording
Manual
DO Trigger
Preset
Points
Enable
PTZ
Navigation
Menu
On-screen Controls
15
www.acti.com
ACTi Mobile Client for Android V1.0.08

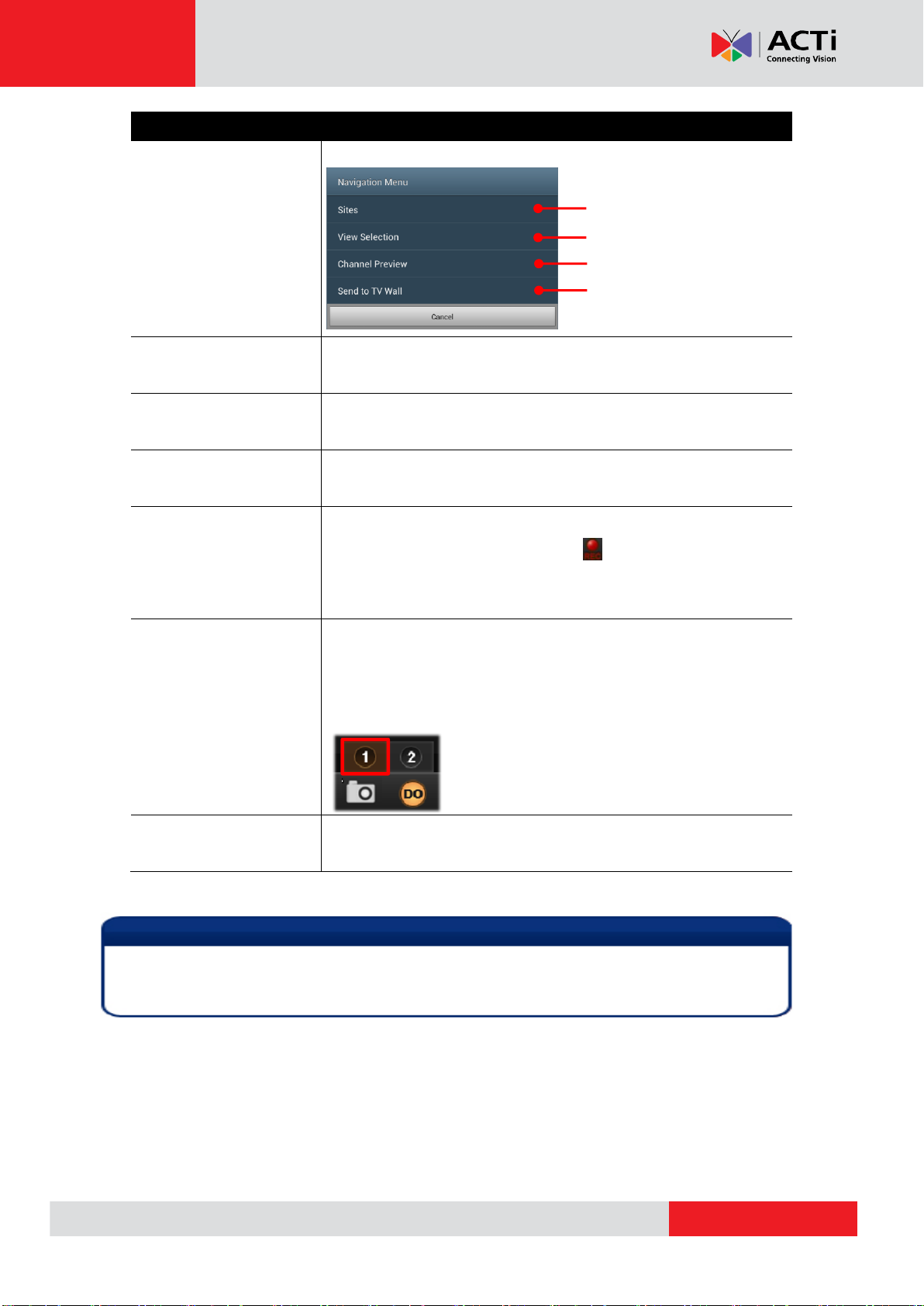

Function
Description
Navigation Menu
The Navigation Menu offers shortcuts to other screens:
Enable PTZ
Tap to enable PTZ manipulation. For detailed instructions, please refer to the Operate PTZ Functions section in this document.
Preset Points
Tap to see list of Preset Points available. For detailed instructions, please refer to the Go To Preset Points section in this document.
Take Snapshot
The snapshot will be saved as *.JPEG file to the default photo album on your device.
Manual Recording
Click to start / stop manual recording. As the video is being recorded, this button will appear red until you click it again to stop recording, and the recording is saved on your NVR server site.
Manual DO Trigger
Tap it to bring up the DO buttons. If the DO device is connected, the button will be enabled, and you may tap it to trigger the device. You have to make sure the DO device has been well connected and configured with the camera first.
Stream Switcher
Click to switch between showing Stream 1 or Stream 2 of your device or server.
6-grid View screen
Sites list
Source/View list
Send View to TV Wall
Note
Some icons, including “Preset Points”, “Manual DO Trigger”, and “Stream Switcher” may only
appear if related settings are supported or have already been set in your device / NVR / CMS server.
16
www.acti.com
ACTi Mobile Client for Android V1.0.08
Function
Zoom in
Zoom out
Pan / Tilt
Hand
Gesture
Spread
Pinch
Swipe
PTZ Mode Switch
PTZ Switch Status
Optical PTZ
(PTZ device only)
Digital PTZ
Operate PTZ Functions
You may control Optical PTZ functions (for models with Pan/Tilt/Zoom capabilities) or Digital PTZ Functions (with all camera models) on the single channel screen.

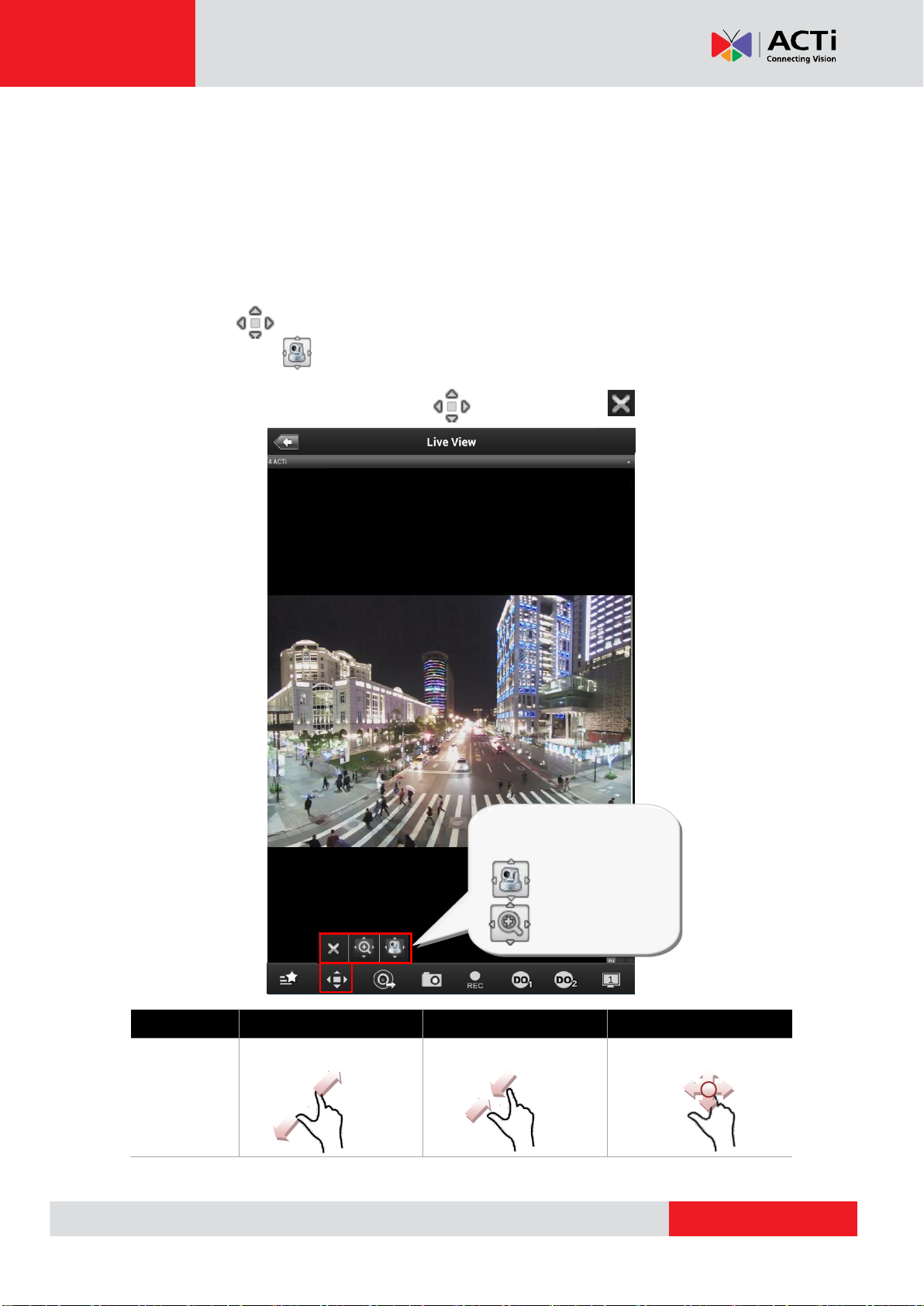

Optical PTZ
To manipulate the Optical PTZ function, please make sure the PTZ functions have been successfully enabled and properly set on the NVR server. To start,
1. Tap to enable PTZ manipulation.
2. Select the icon to enter Optical PTZ mode. You can use hand gestures to manipulate the movements and zoom levels.
3. To return to normal live view, tap again and click on .
17
www.acti.com
ACTi Mobile Client for Android V1.0.08
Function
Zoom in
Zoom out
Pan / Tilt
Hand
Gesture
Spread
Double-tap
Pinch
Double-tap
Swipe
PTZ Mode Switch
PTZ Switch Status
Optical PTZ
(PTZ device only)
Digital PTZ
Digital PTZ
ACTi Mobile Client supports Digital PTZ operation by hand gestures on screen for all camera
models. To start,
1. Tap to enable PTZ manipulation.
2. Select the icon to enter Digital PTZ mode. Use hand gestures to perform digital zooming, panning or tilting.
3. To return to normal live view, tap again and click on .
18
www.acti.com
ACTi Mobile Client for Android V1.0.08
Close Button
Preset Point List
Preset Point Icon
Note
NVR v3.0.08 and previous versions do not support ePTZ operation of 6VGA streaming mode. If camera is 6VGA mode, please operate the PTZ function through camera web configurator.
Go to Preset Points
If you have previously set the preset points for a PTZ device through an NVR interface, you can tap on the icon to go to a Present Point. Once you tap on it, a list of pre-defined preset points will be shown. Tap on a present point to make the device go to this point.
19
www.acti.com
ACTi Mobile Client for Android V1.0.08
Accessing E-Map
If you have already set up an E-Map in your NVR or CMS server, you can access it through ACTi Mobile Client. To access your E-Maps, follow the steps below:
1. On your View Selection Screen, select the User Defined View that contains your E-map
2. After selecting your User Defined View, find and select the Single Channel Screen that shows the E-map you wish to browse. If the view you selected contains more than 6 channels, you may need to swipe horizontally to view more channels.
20
www.acti.com
ACTi Mobile Client for Android V1.0.08
Device Icon
Event Icon
Event Description
Motion Detected
Digital Input Detected
Passive Infrared Event Detected
N/A
Network Connection Lost
N/A
Video Loss
Function
Zoom in
Zoom out
Pan / Tilt
Hand
Gesture
Spread
Double-tap
Pinch
Double-tap
Swipe
Event Icon
Device Icon

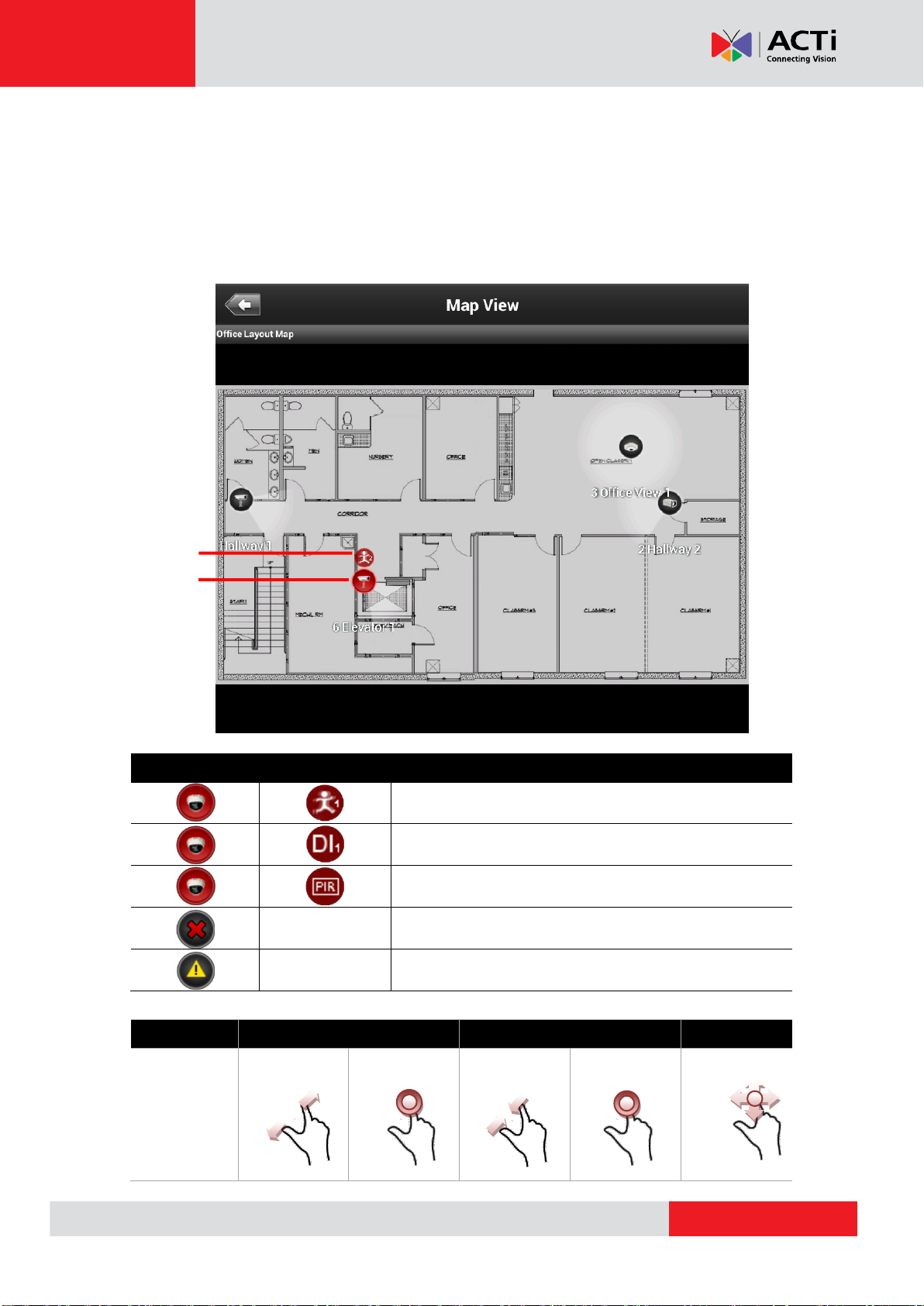

3. Once you have selected your Single Channel Screen that contains your E-map, you will be taken to the Map View screen, where you will see your selected map along with the cameras that you have set up to appear on the map. Your cameras will be represented by Device Icons, and any event detected from a specific camera will be represented by Event Icons which will appear around the Device Icon. You may also use hand gestures to perform digital zooming, panning or tilting.
21
www.acti.com
ACTi Mobile Client for Android V1.0.08
4. To access the live view or playback function of a specific camera, tap the camera and select either Live View or Playback
22
www.acti.com
ACTi Mobile Client for Android V1.0.08
Playback Single Channel Screen
A playback channel screen displays previous recordings captured by the camera . You may:
Playback previous recordings captured by the camera and saved in the NVR
Switch to another camera channel or another View at ease
Control the speed of the footage being played
Observe triggered motion/DI indications
Observe video recorded at a specific time
Take a snaphot of current view
Manipulate digital PTZ operation
Perform playback search
23
www.acti.com
ACTi Mobile Client for Android V1.0.08
Navigation
Menu
Live
View
Digital
PTZ
Take
Snapshot
Date/Time
Picker
Time Track
Event
Filter
Playback
Search
Speed Control
Playback Control
Time
Track
On-screen Controls
24
www.acti.com
ACTi Mobile Client for Android V1.0.08
Function
Description
Speed Control
Tap to select between 4 dfiferent playing speeds. By default, the player will play at normal speed (x1).
Playback Control
Tap to play/pause the video.
Time Track
Time track shows the time frame of the video you are viewing. The current time of the video will always be marked by the red line in the center. Toggle the time track to move forward or backward in the video footage.You can use the icon to jump to a previous block of recording, or the icon to jump to the next block of recording. Events that arerecorded will be represented by different colors, as follows:
Navigation Menu
The Navigation Menu offers shortcuts to other screens:
Live View
Tap to see Live View of the current device.
Digital PTZ
Tap to enable digital PTZ manipulation. For detailed instructions, please refer to the Digital PTZ section in this document.
Take Snapshot
The snapshot will be saved as *.JPEG file to the default photo album on your device.
Manual Recording
Sites list
Source/View list
6-grid View screen
Send View to TV Wall
Motion Detection
DI
Scheduled Recording
25
www.acti.com
ACTi Mobile Client for Android V1.0.08
Date/Time Picker
Select the year, month and day you would like to see and click , Continue by selecting the hour, and minute you would like to view and click .
Event Filter
Tap to select which events you want to be highlighted in the Time Track. As default, all captured events will be highlighted.
Playback Search
Allows you to perform playback search for events detected, including motion detection, digital inputs, video status changes, network status changes and manual recordings. For more instructions on how to perform Playback Searches on page 27.
Time Track Scale
Allows you to adjust time frame displayed on the Time Track from 6 options.
26
www.acti.com
ACTi Mobile Client for Android V1.0.08
Select Starting Date
Select Starting Time
Perform Playback Search
ACTi MobileClients Playback Search allows you to quickly find events that were captured by your camera devices. To access this function, follow the steps below:
1. Go the Playback Single Channel Screen of your selected camera, and select the Playback Search function
2. Select the starting date and time in which you would like to start performing the search. The search will be performed from the selected starting date and time to your current time.
27
www.acti.com
ACTi Mobile Client for Android V1.0.08

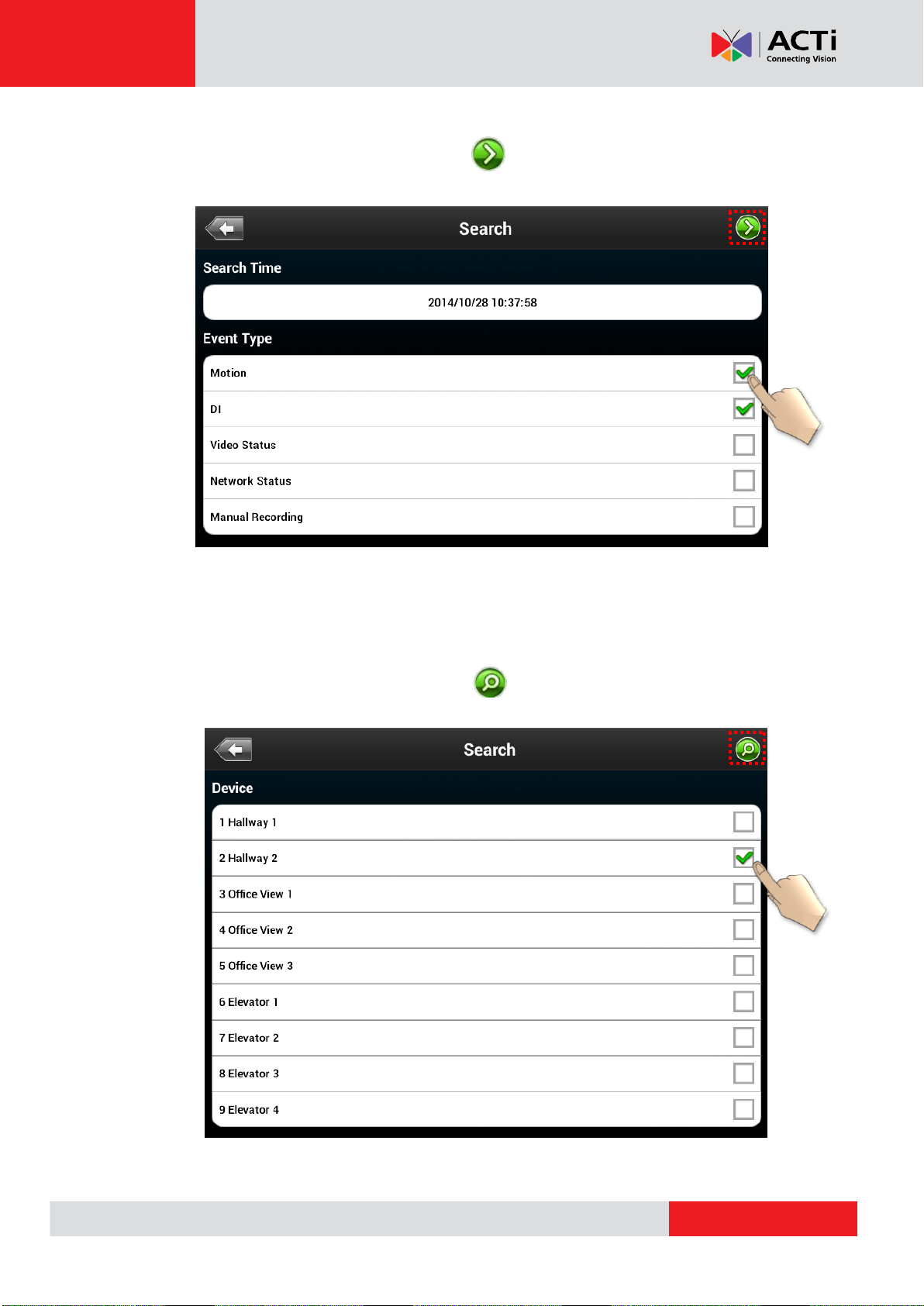

3. Select the Event Types you would like to search for. The ones you have selected will be marked with a green check. Click on to continue.
4. Select the Devices on which you would like to apply your search. By default, the camera you chose in Step 1 will already be selected. The ones you have selected will be marked with a green check. Click on to start the search.
28
www.acti.com
ACTi Mobile Client for Android V1.0.08

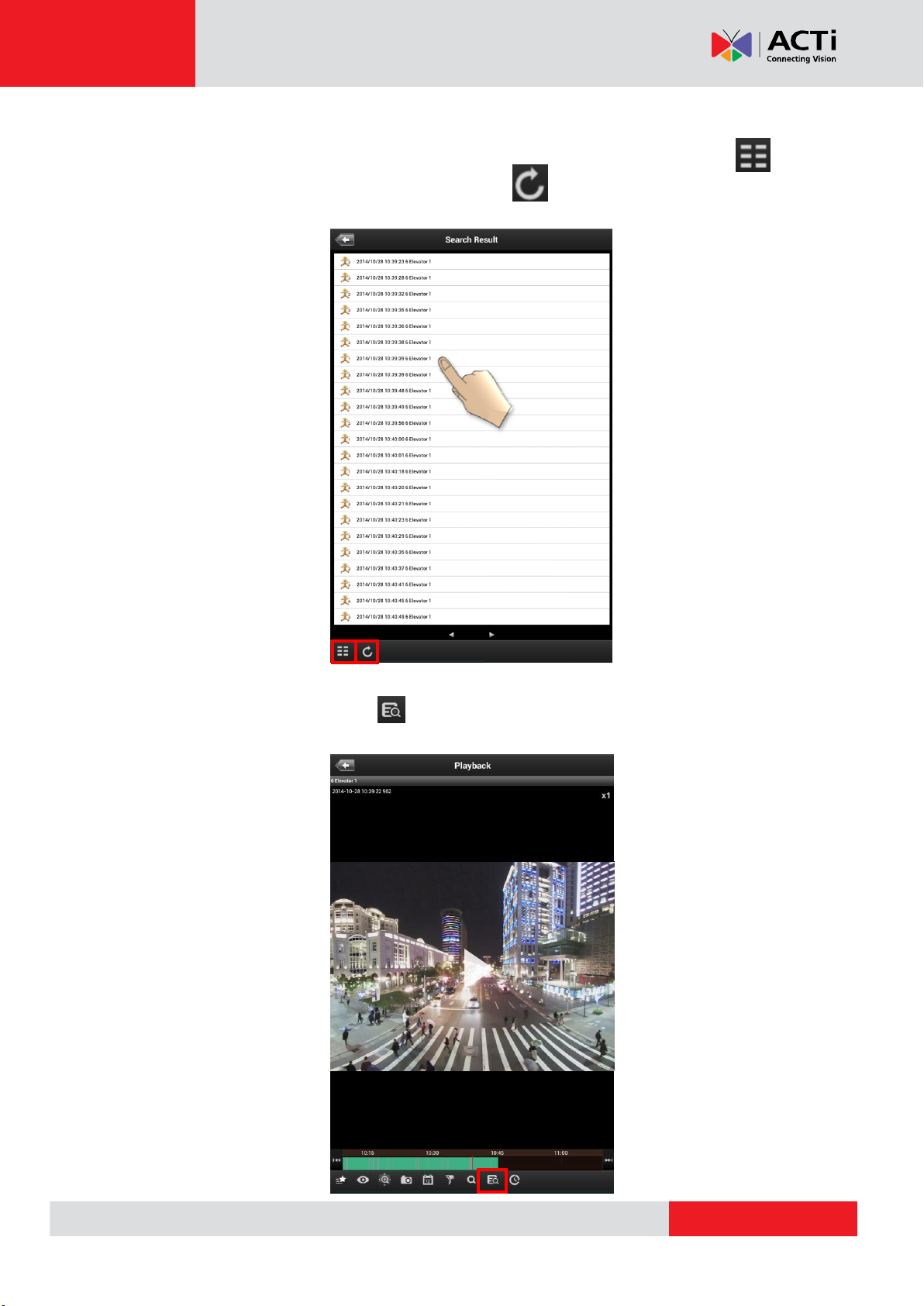

5. The Search Result page will show you all the events that fit your search criteria. You can choose to view the search results in list-mode or tile-mode by toggling the button. To refresh your search results, tap the button. Tap on any single search result to review the event.
6. Once on the Playback Screen, you can view your video, or select to go back to your Search Results using the button. Note that this button will only appear when a search has already been performed.
29
www.acti.com
ACTi Mobile Client for Android V1.0.08
Send To TV Wall
To be able to send a camera view to a TV Wall, please make sure the TV Wall has been set up to work with the CMS server you are connecting to.
To send a camera view to a TV wall, follow these steps:
1) Click on the “Send to TV Wall” function. There are two ways to access the “Send To TV Wall” function: a) You can tap on a channel in the View Screen, and select “Send to TV Wall”.
b) You can click on the Navigation Menu in the Single Channel Screen, and select
Sent to TV Wall”.
30
www.acti.com
ACTi Mobile Client for Android V1.0.08
2) After clicking on “Send to TV Wall”, you will be taken to the TV Wall List. If your CMS server is connected to more than 1 TV Wall Server, you can select which server you would like to use by clicking on it.
3) After selecting a TV Wall Server, you will be taken to Screen Selection. If your TV Wall Server is composed of more than 1 screens/monitors, you can select the screen/monitor that you would like to send your camera view to.
4) After choosing a screen/monitor, you will be taken to Layout Selection. The screen/monitor your chose may have layouts with multiple channels. Select the channel on the layout that you would like to send your camera view to.
31
Loading...
