A. FRU Board

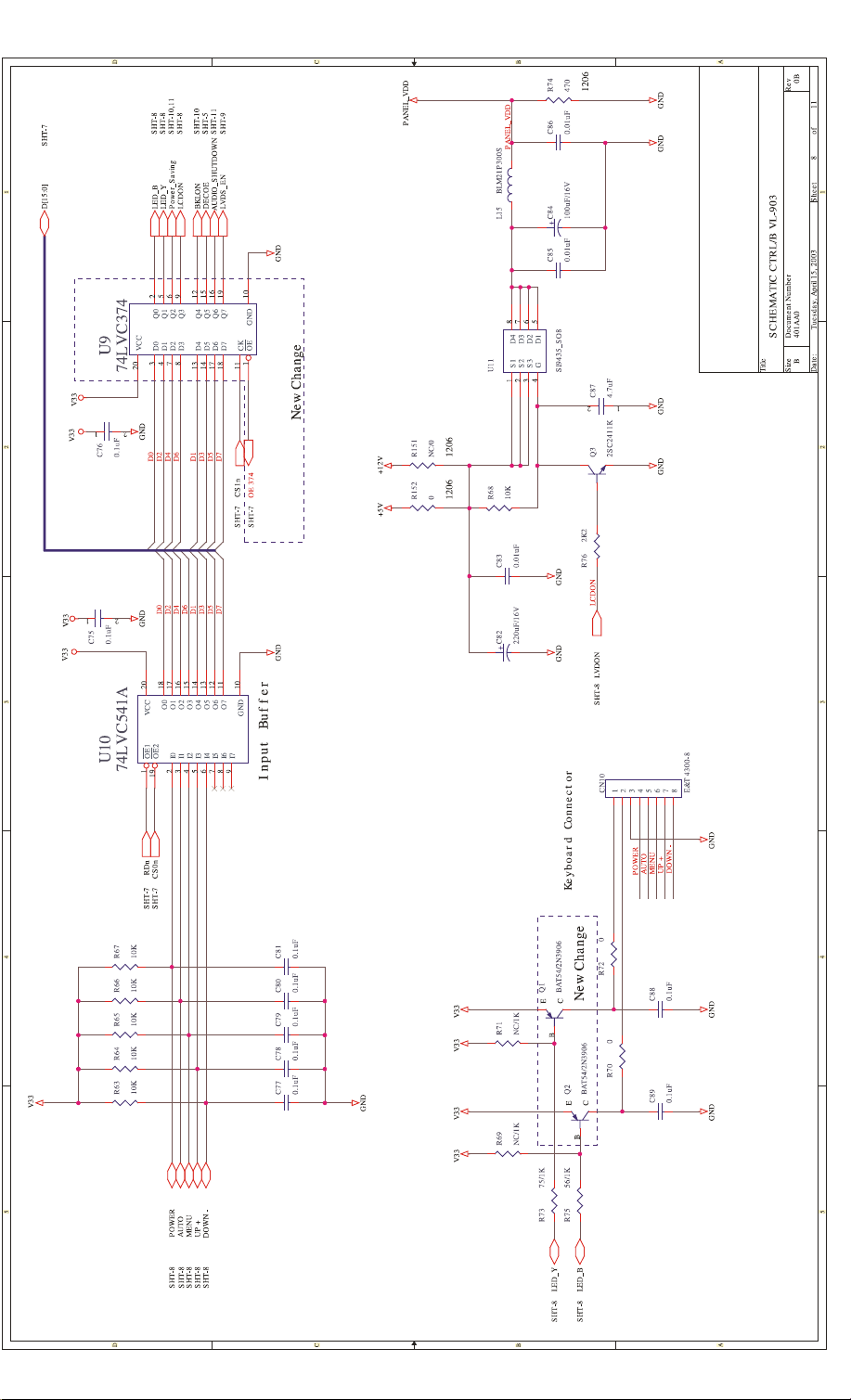

A-1 454AA030001 –PCBA Key Board (VK-903)
5
![](/html/20/20b7/20b7b6ccfce621a907d78fda0fb43a69ecad701148152c95c1d04c47c5519e10/bg3.png)

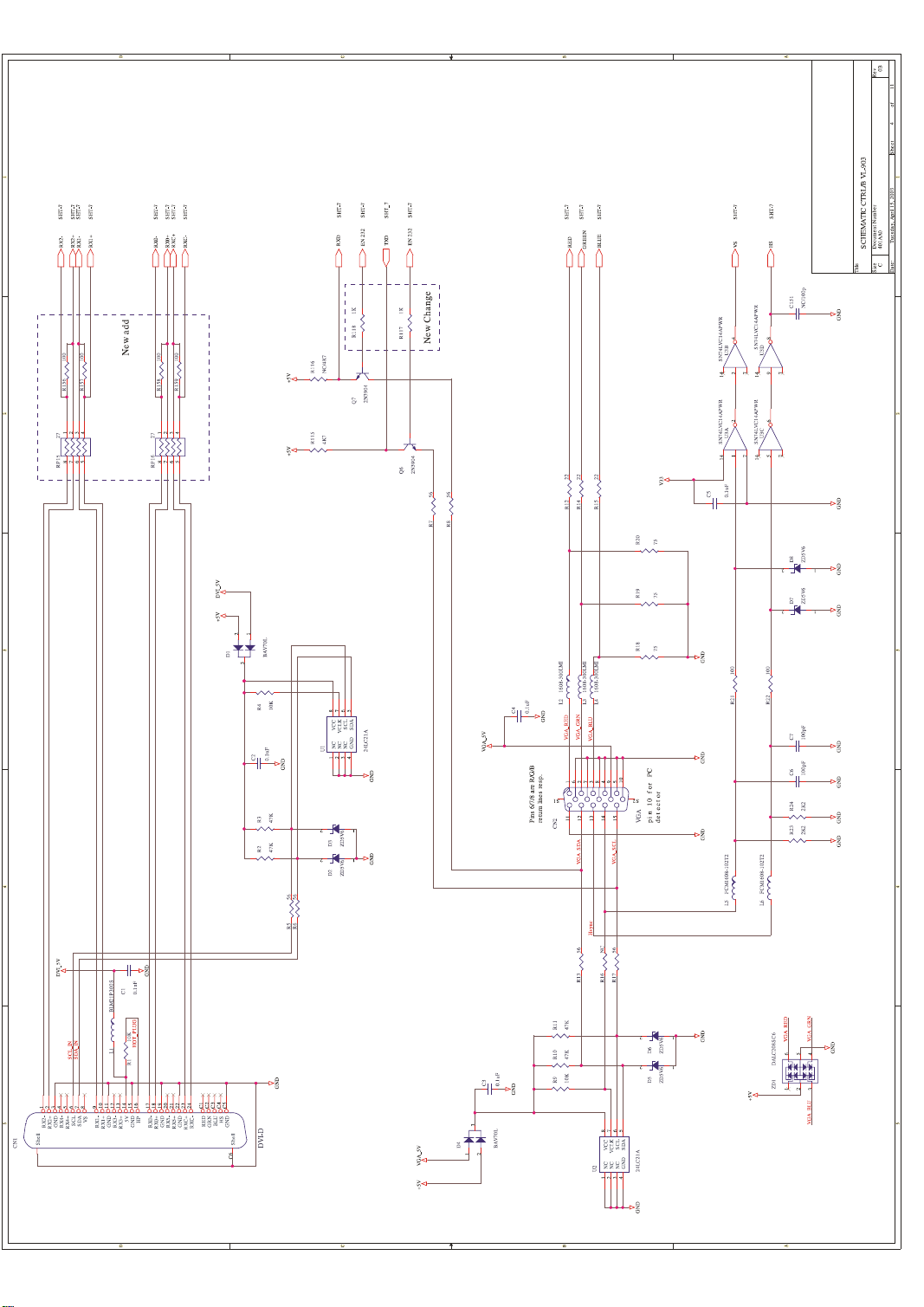

A-2 461AA030001–Firmware CTRL Board (VL-903)
51
![](/html/20/20b7/20b7b6ccfce621a907d78fda0fb43a69ecad701148152c95c1d04c47c5519e10/bg4.png)

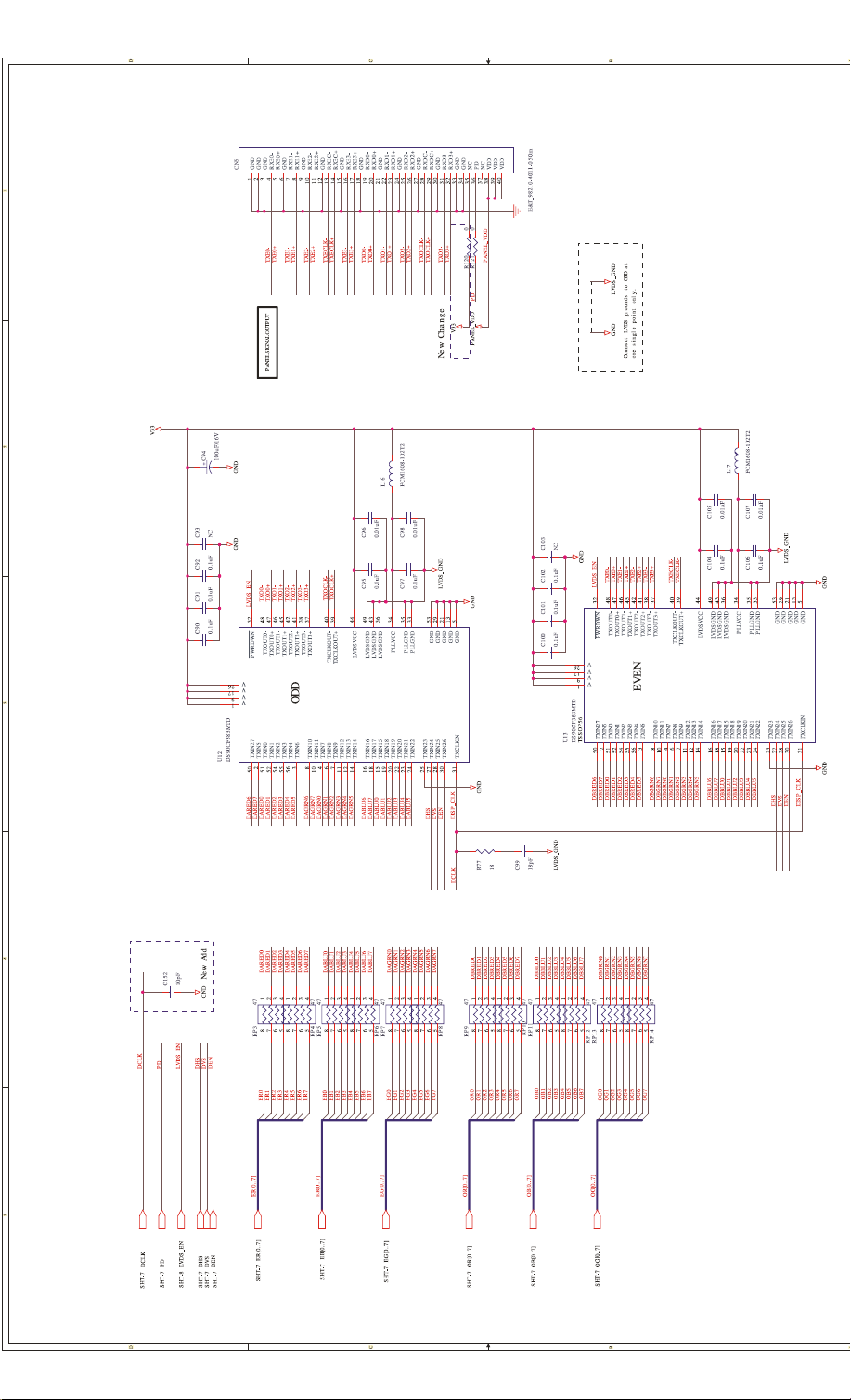

A-3 455AA030001–PCBA D/D-INV Board (Vp- 903)
5
![](/html/20/20b7/20b7b6ccfce621a907d78fda0fb43a69ecad701148152c95c1d04c47c5519e10/bg5.png)
!
Appendix B: DISPLAY Assembly!
!
64!
![](/html/20/20b7/20b7b6ccfce621a907d78fda0fb43a69ecad701148152c95c1d04c47c5519e10/bg7.png)
!
=========================================================================================================================
==========
QUANTITY REQUIRED DWG.NO. LAM939 REV. 0A
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ------------------------------------- F0
001 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- ----- ----- ----- ---- # LAM939F0001 LAM939F ABO UR+TCO99 MCG28/MSV16 19"FUJ
1 GA050000400 POWER CORD SET SP305X1.8MXIS14 SVT BLK 1 - - - - 302
2 DC190021010 CB ASY AM939 SIG LIMPID 1.8M DVI-DVI 1 - - - - 303
3 DC190021020 CB ASY AM939 AUDIO LIM 1.8M BLU-GRN 1 - - - - 304
4 DC190021030 CB ASY AM939 RCA LIM 1.8M V/T-R/A RWY 1 - - - - 305
5 DC190021040 CB ASY AM939 SIG LIMPID 1.8M BLUSCREW 1 - - - - 306
6 PK100005000 AC ADAP LSE SLS9901B12320 12V/5A 1 - - - - 307
7 58290530001 DIS UNIT ABO LAM939F TCO99 19"FUJ 1600X1200 1 - - - - 351
8 68008930001 PACKING ABO (AL932) LAM939F UR+TCO99 1 - - - - 352
9 X66AN430001 MEC PACKING ABO LAM939F MSV16 1 - - - - 353
End of Report
!
!
!
!
!
==================================================================================================================
==================
QUANTITY REQUIRED DWG.NO. 680089
REV. 0A
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ------------------------------------- 30
001 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- ----- ----- ----- ---- # 68008930001 PACKING ABO (AL932) LAM939F UR+TCO99
1 EJ4AM939000 RATING NP N-AM939-ABO UFGC 99 WW 1 - - - - 001
2 HB4AM939000 CARTON C-AM939-ABO W/W 1 - - - - 002
3 HDABOAM3900 USER'S MANUAL U-AM939-ABO EFGSIDPJC/CS 99 1 - - - - 003
4 HF6TCO99000 TCO99 (NOTICE SHEET) FOR TCO99 1 - - - - 004
5 HGTCO990000 TCO99 LABEL TCO99 FOR BEZEL/MANUAL 1 - - - - 006
6 HGTCO990400 TCO99 LABEL TCO99 FOR CARTON 40X40 1 - - - - 007
7 HK3CM870100 PE BAG CM870-K001 FOR MAC LCDMONITOR 1 - - - - 008
8 FCTLP2S0116 HANDLE FOR CARTON 1 - - - - 009
End of Report
!
!
!
!
!
66!
![](/html/20/20b7/20b7b6ccfce621a907d78fda0fb43a69ecad701148152c95c1d04c47c5519e10/bg8.png)
!
==================================================================================================================
==================
QUANTITY REQUIRED DWG.NO. X66AN4
REV. 0A
C NO. PART NO. DESCRIPTION SPECIFICATION ------------------ ------------------------------------- 30
001 REMARKS
- ---- ----------- ------------------------ ------------------------------ --- --- --- --- --- ----- ----- ----- ----- ----- ---- # X66AN430001 MEC PACKING ABO LAM939F MSV16
1 FJAM9318000 EPS FOAM(L) POLYLON 1 - - - - 201
2 FJAM9319000 EPS FOAM(R) POLYLON 1 - - - - 202
3 EBAM9321000 STAND BASE(ASSY) AM9321 BASE+SCREW+MSV16 1 - - - - 203
!
!
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!End of Report
!!
