Acer AL1717X Schematic

Acer Service Manual

Service Manual

LCD Monitor Acer AL1717

- 0 -

1

Service Manual Versions and Revision

No. Version Release Date Revision

1

1.0

2006/03/23

Initial Release

Copyright

Copyright 2006 InnoLux Tech. Corp. Ltd

All Rights Reserved

This manual may not, in whole or in part, be copied, Photocopied, reproduced, translated, or converted to any
electronic or machine readable form without prior written permission of InnoLux Tech. Corp. Ltd.

Acer AL1717 Service Manual

1

Acer Service Manual

Table of Contents

CHAPTER 1- PRECAUTIONS & SAFETY NOTICES ..................................................................................................................... 3

1. SAFETY PRECAUTIONS ............................................................................................................................................................ 3

2. PRODUCT SAFETY NOTICE...................................................................................................................................................... 3

3. SERVICE NOTES.......................................................................................................................................................................... 3

CHAPTER 2- SERVICE TOOLS & EQUIPMENT REQUIRED ..................................................................................................... 4

CHAPTER 3- CIRCUIT THEORY ...................................................................................................................................................... 5

2. INTERFACE BOARD DIAGRAM ................................................................................................................................................... 5

3. ELECTRONIC CIRCUIT THEORY.......................................................................................................................................................... 6

CHAPTER 4- DISASSEMBLY & ASSEMBLY .............................................................................................. 錯誤! 尚未定義書籤。

1. EXPLODED DIAGRAM ....................................................................................................................................錯誤! 尚未定義書籤。

2. DISASSEMBLY BLOCK ...................................................................................................................................錯誤! 尚未定義書籤。

3. ASSEMBLY BLOCK.........................................................................................................................................錯誤! 尚未定義書籤。

CHAPTER 5- TEST AND ADJUSTMENT ........................................................................................................................................ 13

1. GENERAL POINTS............................................................................................................................................................... 13

1.1 TEST EQUIPMENT OR TOOL................................................................................................................................................ 13

1.2 PRESET TEST PATTERN ....................................................................................................................................................... 13

1.3 AC INPUT............................................................................................................................................................................. 13

1.4 OBSERVATION DISTANCE .................................................................................................................................................... 13

1.5 KEY FUNCTION DESCRIPTION ............................................................................................................................................ 13

1.6 BURN-IN (AGING) PATTERN ................................................................................................................................................ 14

1.7 WARM UP ............................................................................................................................................................................ 14

2. INPUT SIGNAL...................................................................................................................................................................... 14

2.1 VIDEO SIGNAL INPUT .......................................................................................................................................................... 14

3. FUNCTION CHECK ............................................................................................................................................................. 15

3.1 OSD FUNCTION TEST ......................................................................................................................................................... 15

3.2 SCREEN PICTURE CHECK ................................................................................................................................................... 15

3.3 AUTO COLOR BALANCE...................................................................................................................................................... 15

3.4 TIMING CHECK ................................................................................................................................................................... 15

3.5 POWER CONSUMPTION FUNCTION TEST............................................................................................................................ 15

3.6 VGA CABLE DETECT TEST................................................................................................................................................. 16

3.7 HI-POT TEST........................................................................................................................................................................ 16

3.8 GROUNDING TEST ............................................................................................................................................................... 16

3.9 BUMPING TEST .................................................................................................................................................................... 16

4. DISPLAY CHECK.................................................................................................................................................................. 16

4.1 PANEL FLICKER CHECK...................................................................................................................................................... 16

4.2 PANEL DEFECT INSPECTION ............................................................................................................................................... 16

5. PICTURE CHECK................................................................................................................................................................. 17

5.1 CHECK BRIGHTNESS UNIFORMITY...................................................................................................................................... 17

5.2 COLOR TEMPERATURE CHECK .......................................................................................................................................... 18

5.3 BRIGHTNESS OUT (VIDEO SIGNAL INPUT 700MV ± 2%).................................................................................................... 18

5.4 DDC DATA CHECK .............................................................................................................................................................. 18

6. AUDIO CHECK.......................................................................................................................................................................... 19

6.1 AUDIO SOUND CHECK......................................................................................................................................................... 19

6.2 AUDIO CONTROL TEST......................................................................................................................................................... 19

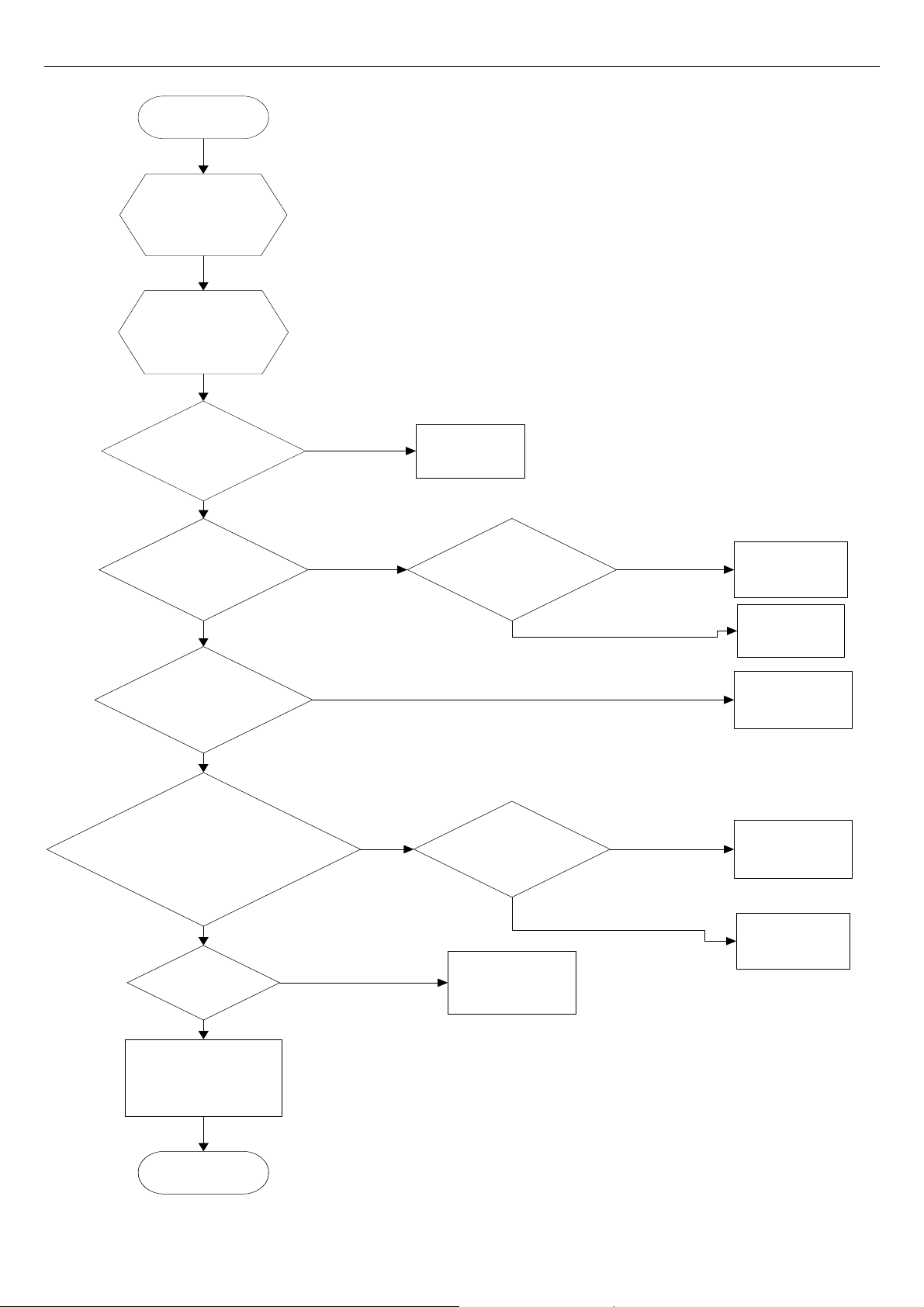

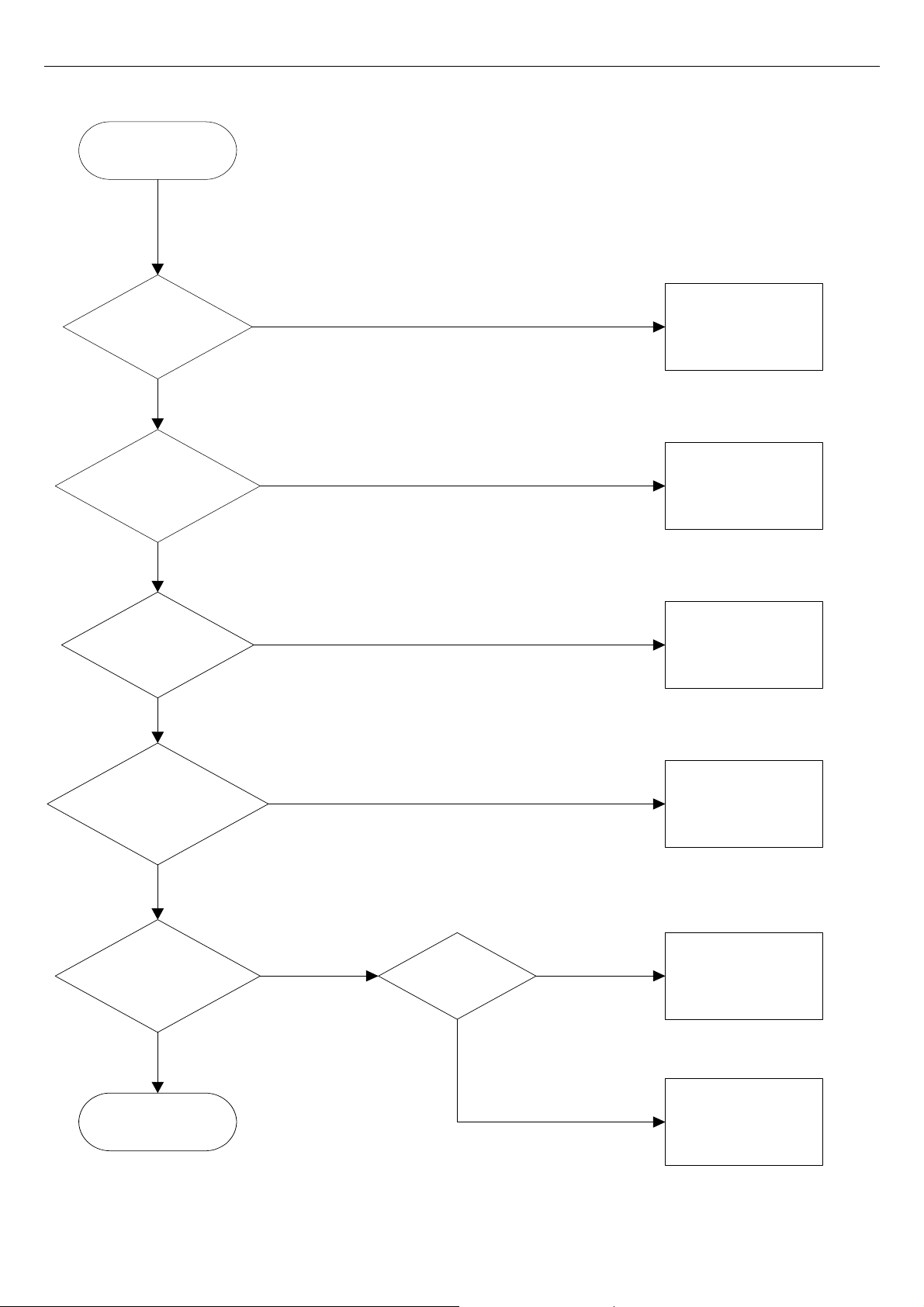

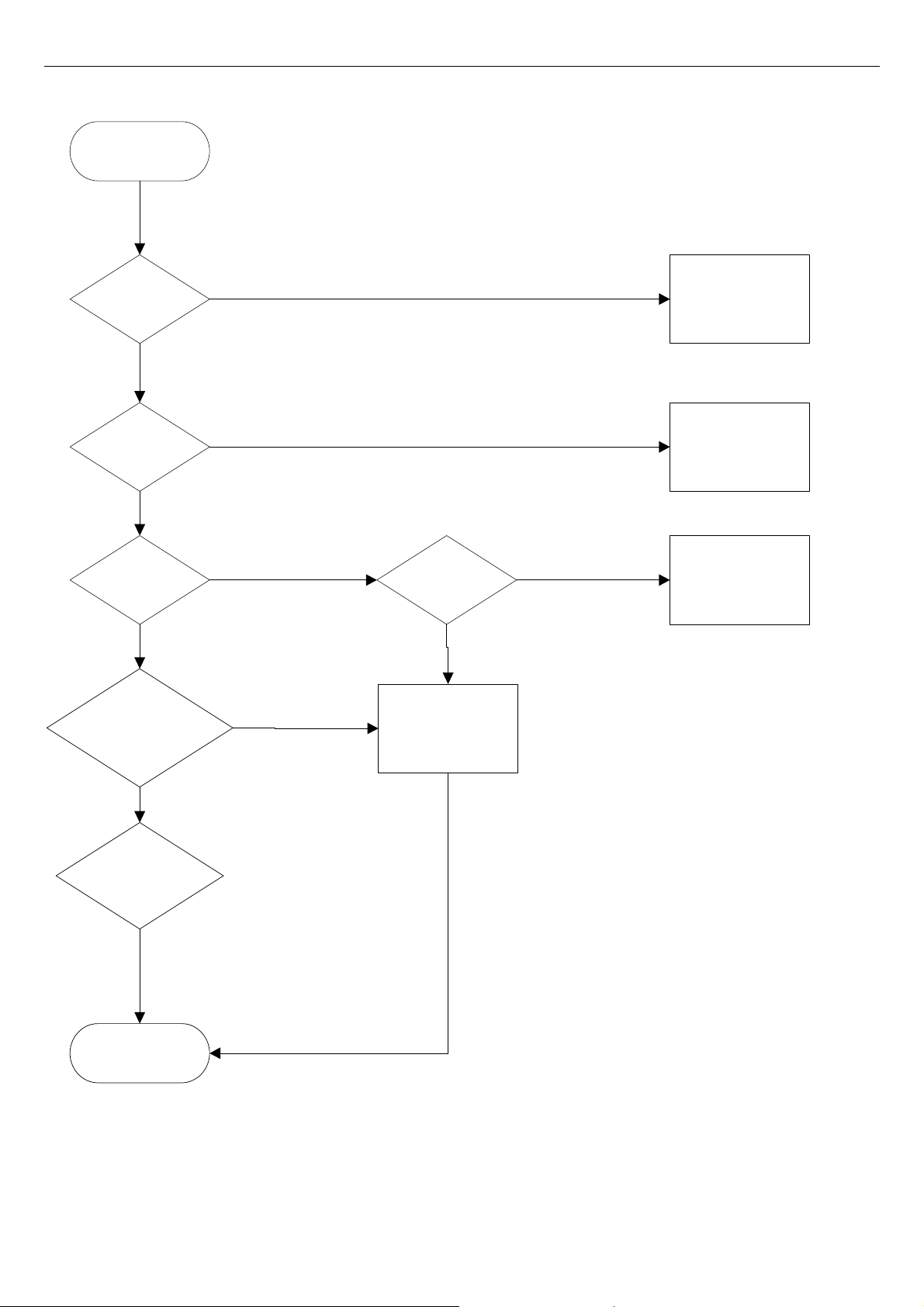

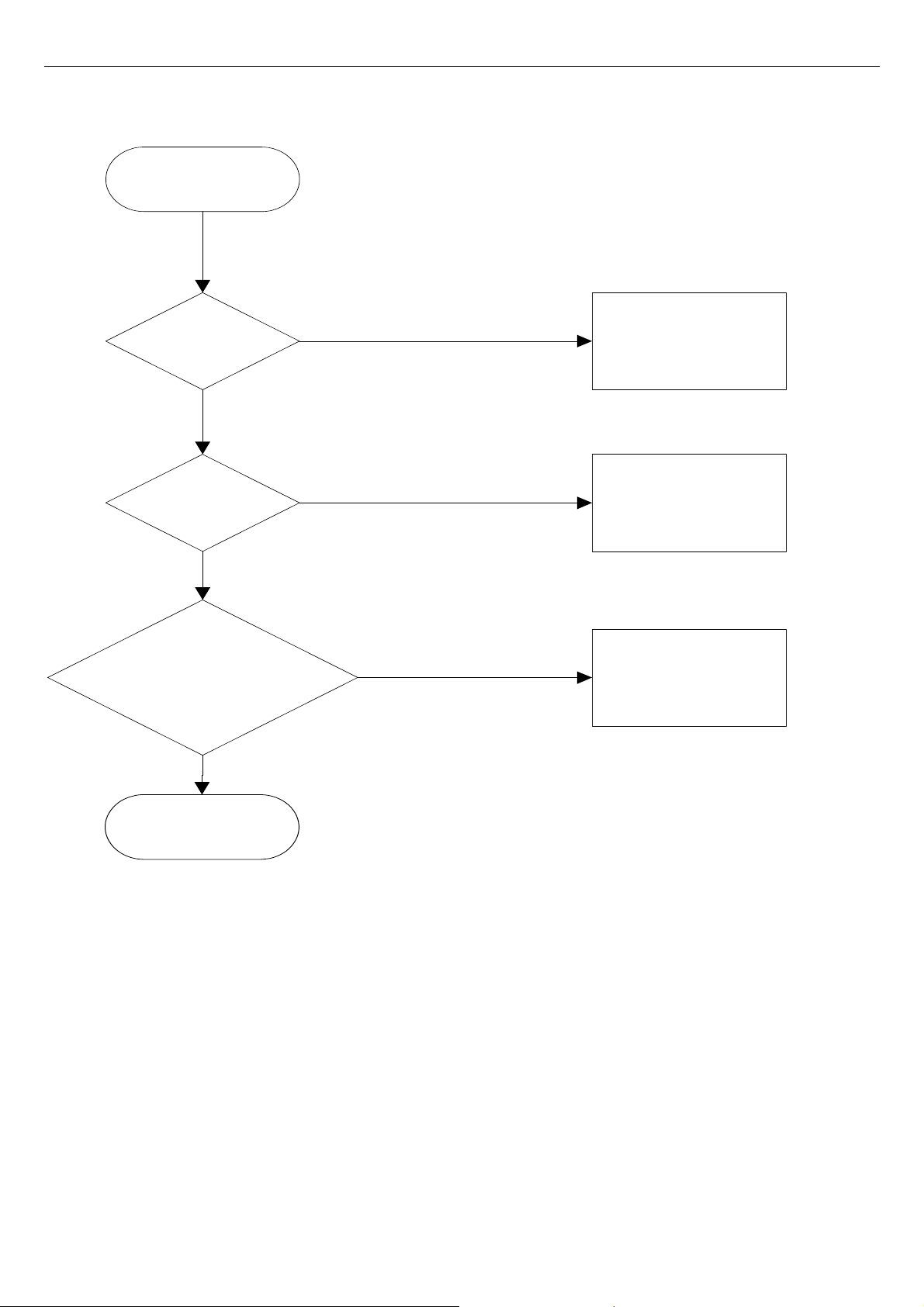

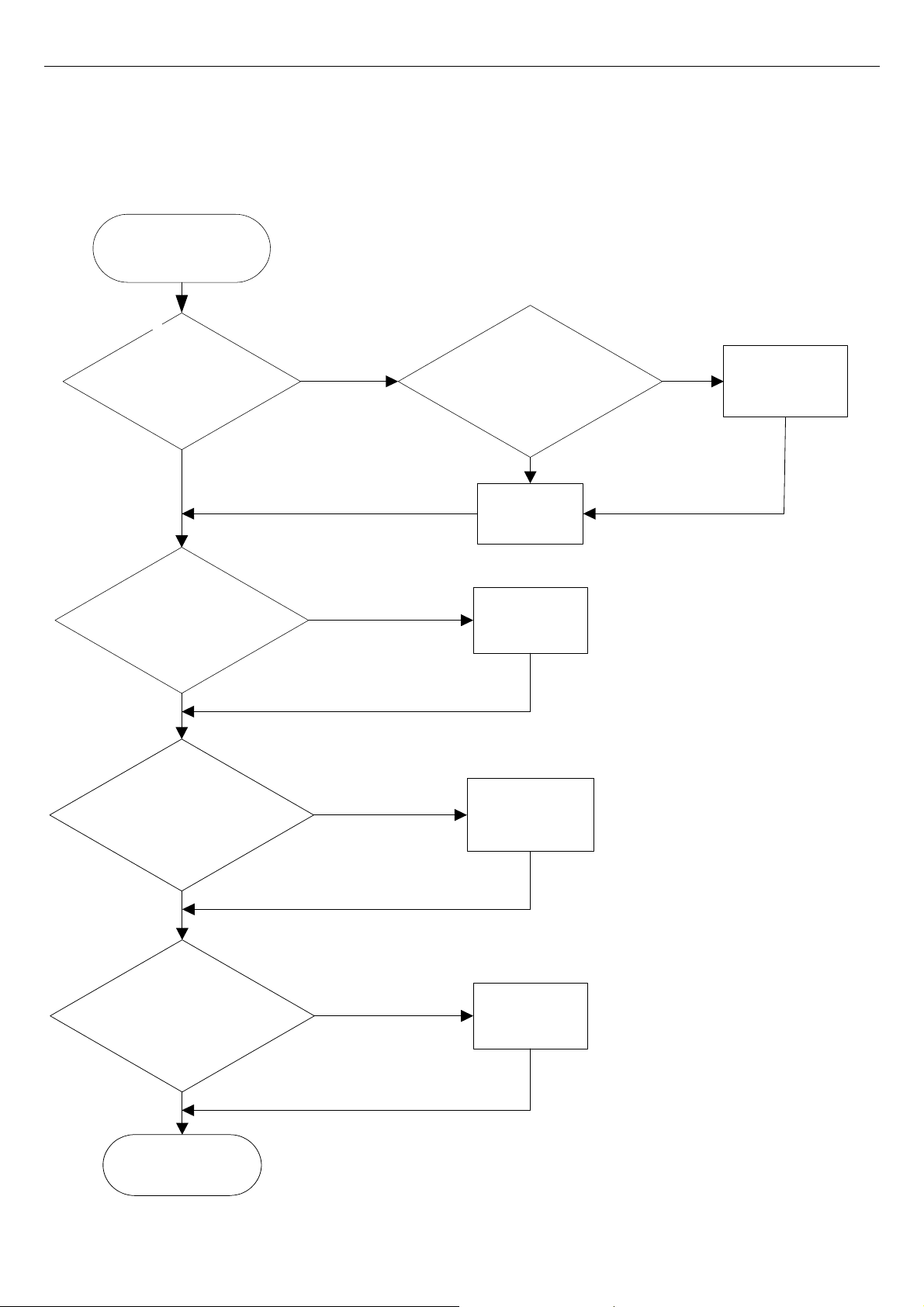

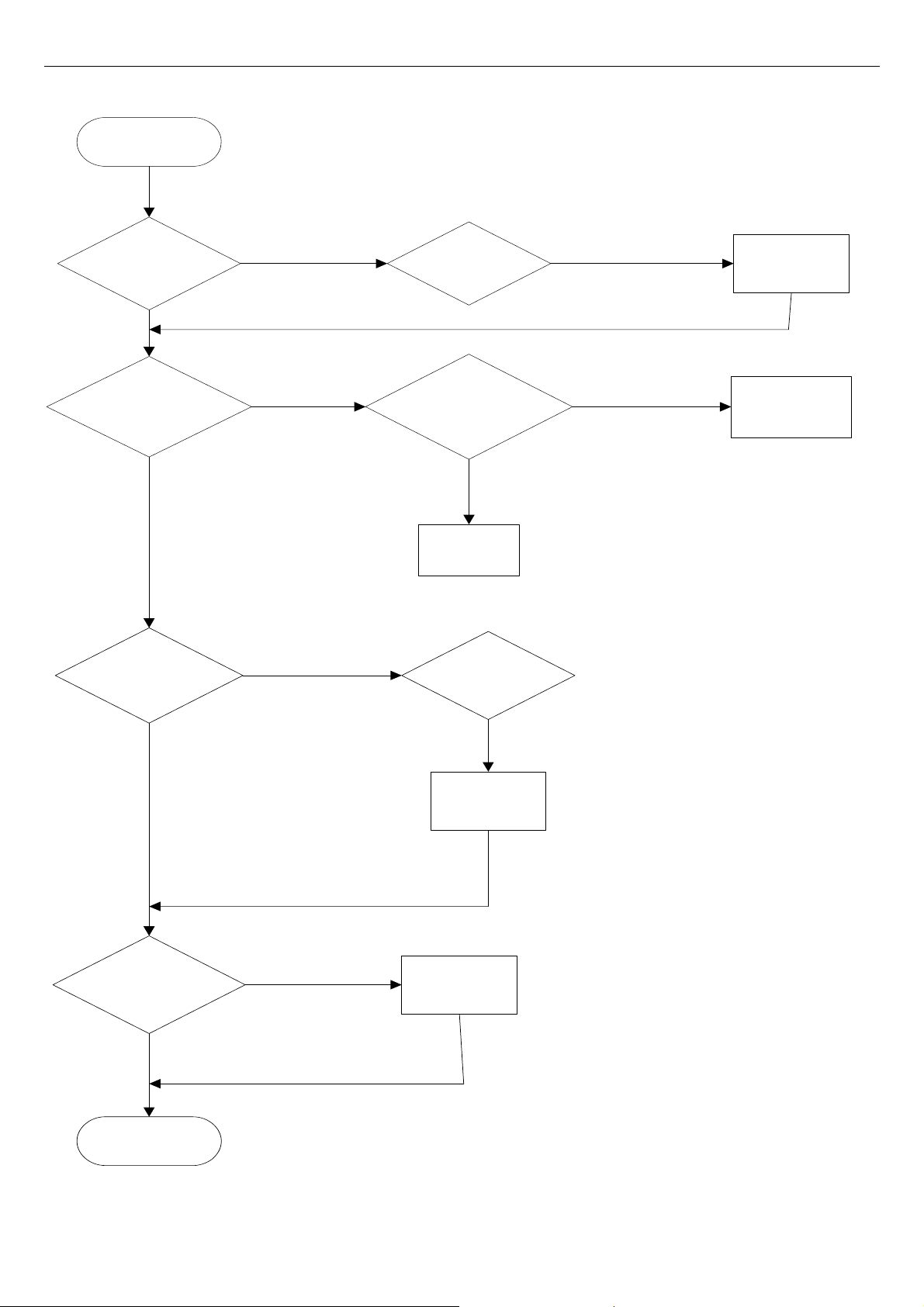

CHAPTER 6- TROUBLE SHOOTING.............................................................................................................................................. 20

ATTACHMENT 1- BILL OF MATERIAL......................................................................................................................................... 26

ATTACHMENT 2- SCHEMATIC....................................................................................................................................................... 31

ATTACHMENT 3- PCB LAYOUT ..................................................................................................................................................... 40

2

Acer Service Manual

Chapter 1- PRECAUTIONS & SAFETY NOTICES

1. SAFETY PRECAUTIONS

This monitor is manufactured and tested on a ground principle that a user’s safety comes first.
However, improper used or installation may cause damage to the monitor as well as to the user.

WARNINGS:

z This monitor should be operated only at the correct power sources indicated on the label on the rear

of the monitor. If you’re unsure of the power supply in you residence, consult your local dealer or
Power Company.

z Do not try to repair the monitor by yourself, as it contains no user-serviceable parts. This monitor

should only be repaired by a qualified technician.

z Do not remove the monitor cabinet. There are high-voltage parts inside that may cause electric

shock to human bodies.

z Stop using the monitor if the cabinet is damaged. Have it checked by a service technician.
z Put your monitor only in a lean, cool, dry environment. If it gets wet, unplug the power cable

immediately and consult your closed dealer.

z Always unplug the monitor before cleaning it. Clean the cabinet with a clean, dry cloth. Apply

non-ammonia based cleaner onto the cloth, not directly onto the class screen.

z Do not place heavy objects on the monitor or power cord.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety visual inspections and the
protection afforded by them cannot necessarily be obtained by using replacement components rated
for higher voltage, wattage, etc. Before replacing any of these components read the parts list in this
manual carefully. The use of substitute replacement parts, which do not have the same safety
characteristics as specified in the parts list, may create shock, fire, or other hazards.

3. SERVICE NOTES

z When replacing parts or circuit boards, clamp the lead wires around terminals before soldering.
z Keep wires away from high voltage, high temperature components and sharp edges.
z Keep wires in their original position so as to reduce interference.
z Adjustment of this product please refers to the user’ manual.

3

Acer Service Manual

Chapter 2- SERVICE TOOLS & EQUIPMENT REQUIRED

1. SIGNAL GENERATOR

2. MULTIMETER

3. SCREW DRIVER

4. OSCILLOSCOPE

5. Soldering IRON

6. SOLDER

7. VGA Cable (15pins point to point)

8. DVI Cable(DVI-D 24+1 pin)

9. Color Analyzer

10. Myson412 ISP Board

11. EDID Board

12. EDID program file

4

Acer Service Manual

Chapter 3- CIRCUIT THEORY

1. Monitor Block Diagram

The LCD Monitor contains an interface board, and inverter/power/Audio board, keypad board and flat
panel. In Inverter/power/Audio board, power section supplies +14V & +5V for Inverter/Audio and
Interface board used. The inverter section drives the backlight of panel and the DC-DC conversion. The

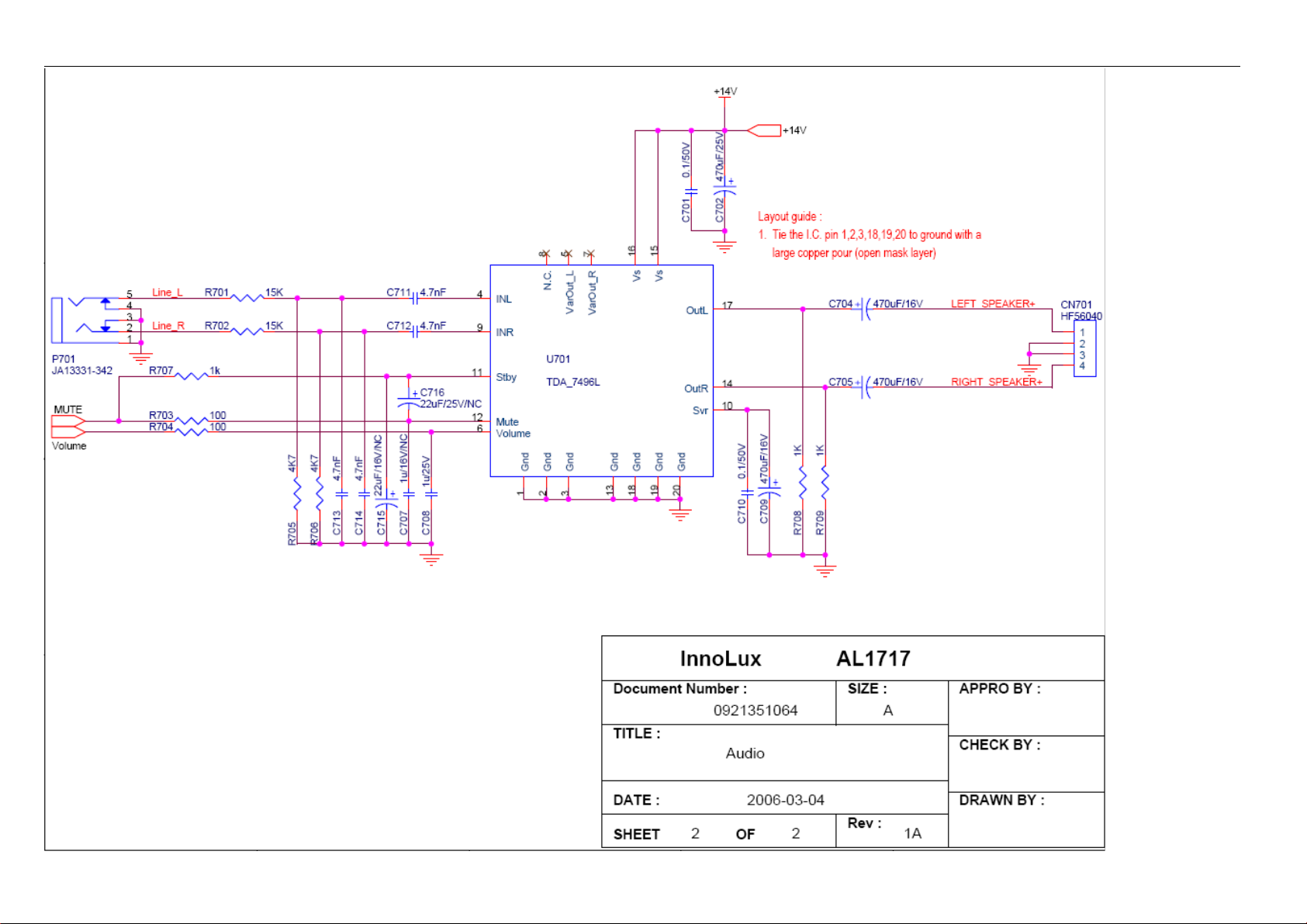

Audio section drives speaker (2 x1W).

Flat panel (LVDS interface) and CCFL

Inverter/Power/Audio BD

(Including AC/DC Power

Supply , Inverter and
Audio)

AC input

Range 100V~240V

2. Interface BOARD DIAGRAM

Interface Board

Interface Board (VGA input)

Keypad BD

Host computer

(VGA signal input and DDC)

Red

Green

Blue

A/D

&

Scaling

&

Vsync

OSD

Hsync

SCL

MCU

EEPROM

SDA

DDC

5

To

LCD

module

Acer Service Manual

3. Electronic Circuit Theory

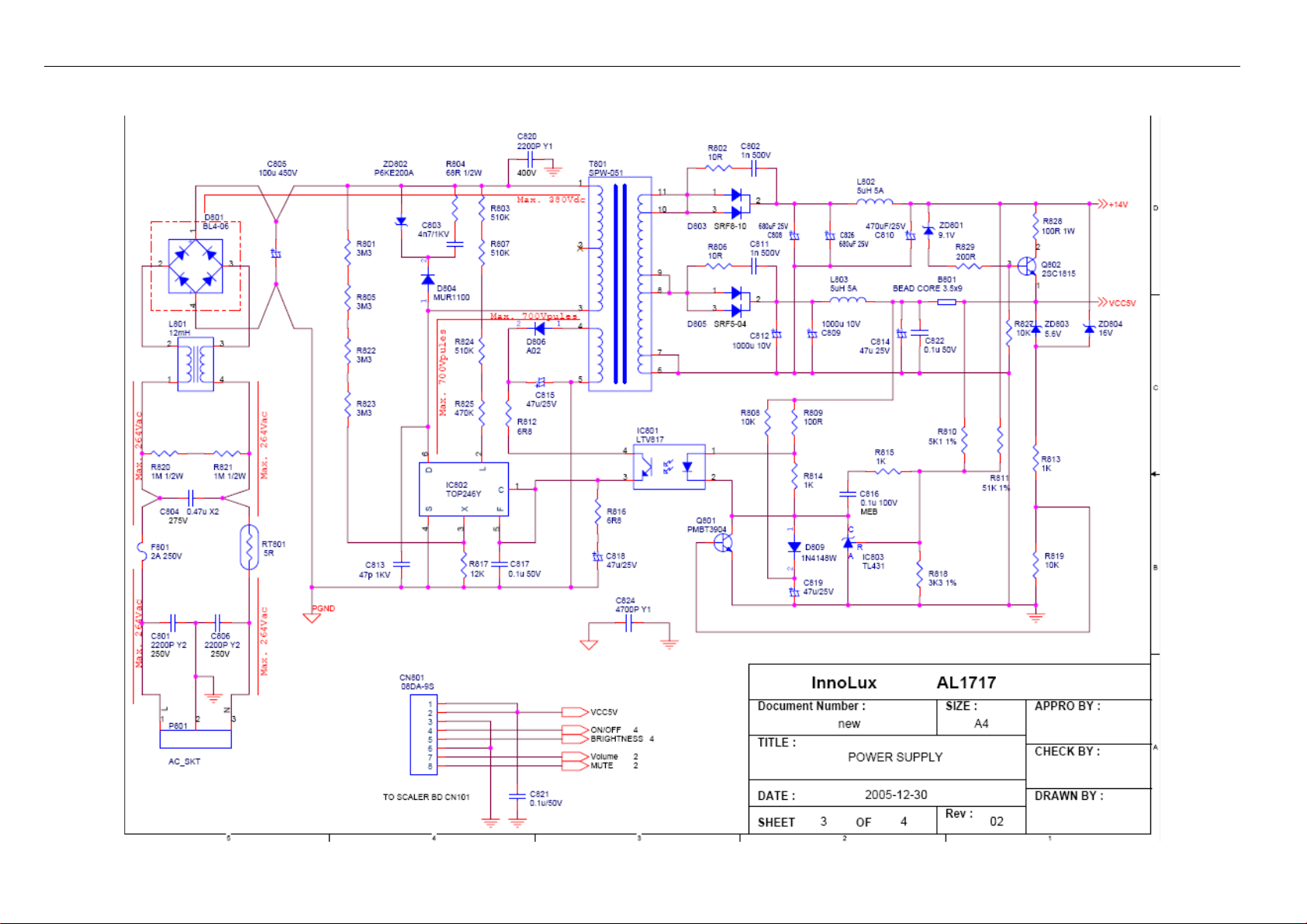

3.1 Switching Mode Power Supply

3.1.1 AC Current Input Circuit
P801 is a connector for connecting AC Power. F801 is a fuse to protect all the circuit. AC input

voltage is from 90v to 264V. R820 and R821 joined between two inputting main circuit to prevent
man from shock. L801 is used to clear up low frequency wave. C801 and C806 are used to discharge
the waves that L801 produced. High frequency waves are damped by C801 and C806. D801 is a
rectifier which composed of 4 build-in diodes, it inverts AC to DC.

3.1.2 High Voltage to Low Voltage Control Circuit
C805 is used to smooth the wave from rectifier. IC802 is a highly integrated PWM controller

which build-in power MOSFET. When rectified DC high voltage is applied to the DRAIN pin during
start-up, the MOSFET is initially off, and the CONTROL pin capacitor is charged through a switched
high voltage current source connected internally between the DRAIN and CONTROL pins. When the
CONTROL pin voltage Vc reaches approximately 5.8V, the control circuitry is activated and the
soft-start begins. The soft-start circuit gradually increases the duty cycle of the MOSFET from zero to
the maximum value over approximately 10ms. If no external feedback/supply current is fed into the
CONTROL pin by the end of the soft-start, the high voltage current source is turned off and the
CONTROL pin will start discharging in response to the supply current drawn by the control circuitry.

Resistor R803, R807, R824 and R825 are for line over voltage shutdown(OV) and line

under-voltage detection(UV).

Resistors R801, R805, R822, R823 are for external current limit adjustment. And used to reduce

the current limit externally to a value close to the operating peak current of primary about 1.35A. The
mean is power will protected when the primary current over about 1.35A.

When PWM is turned off, the main current flow will be consumed through D804, and ZD802,

This will prevent MOSFET which built-in IC802 from being damaged under large current impulse and
voltage spike.

D806 and C815 to provide internal Auxiliary current to CONTROL pin during normal operation.

Otherwise, error amplifier and feedback current input the CONTROL pin for duty cycle control.

3.1.3 DC_5V and DC_14V Output Circuit
For DC 5V, D805 is used to rectify the inducted current. R806 and C811 are used to store energy

when current is reversed. The parts including C814, C814, C822, C821, B801 and L803 are used to
smooth the current waves.

For DC 14V, D803 is used to rectify the inducted current. R802 and C802 are used to store

energy when current is reversed. The parts including C808, C810 and L802 are used to smooth the
current waves.

3.1.4 Feedback and OVP Protect Circuit
Pin R of IC803 is supplied 2.5-v stable voltage. It connects to 5V and 14V output through R811,

R810 and R818. R811, R810 and R818 are output sampling resistor. When the sampling voltage more
than 2.5V or less than 2.5V, current of FB IC802 will change, this can change the voltage from T801.

For 5VDC output OVP, ZD803 is a Zener Diode, when 5 voltage up to 5.6V, the zener current

cause R819 voltage to ground is up to 0.7V, Q801 being triggered and OVP working. For 14VDC
output OVP, ZD804 is a Zener Diode, when 14 voltage up to 18V, the Zener current cause R819
voltage to groung is up to 0.7V, Q801 being triggered and OVP working. The current of potential is
used to make build-in diode light. Current of FB to IC802 will be changed, this can change the voltage
from T801.

Q802, R827, R828 and ZD801 make up of dummy loading circuit. For start-up sequence, during

5V output take place high loading first, this dummy loading circuit operated to insure 14V not be
increased.

3.2 I/F Board Circuit

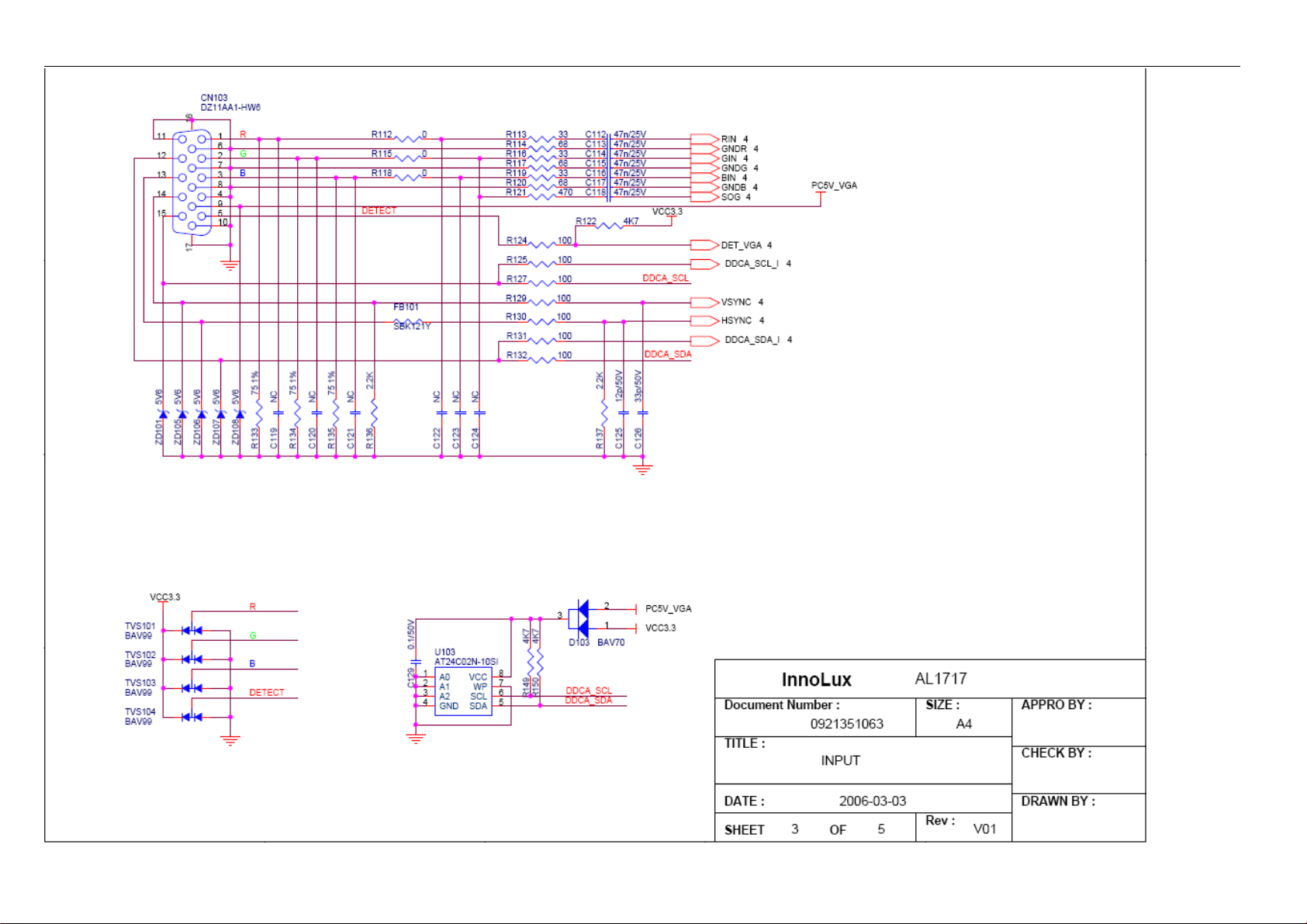

3.2.1 RGB CAPTURE

- Signal RED,GREEN,BLUE input through CN103 #1,#2,#3, Stop DC via C112, C114 and C116,
and then enter into U105 (TSUM56AL) analog input terminal #18,#20,#23, and then

6

Acer Service Manual

TSUM56AL deals with signal internally. TVS101, TVS102, TVS103 are ESD protector to
prevent U105 from ESD.

- Signal DDC_SCL (series clock) inputs via CN103#15, and then passes through ZD101 Zener for
ESD protection, goes into U105 #31.

- Signal DDC_SDA (series data) inputs via CN103#12, and then passes through ZD107 Zener for
ESD protection, goes into U105 #30.

- Signal TTL vertical sync. (Vsync) inputs via CN103 #14, and then clamped by ZD105 Zener,
passes through R129, and then goes into IC U105 (TSUM56AL) #28.

- Signal TTL horizontal sync. (Hsync) inputs via CN103 #13, and then clamped byZD106 Zener,
passes through FB101,R130, and then goes into IC U105 (TSUM56AL) #27.

- CN103#5 is defined as cable detect pin, this detector realize passes through R122 Pull hight, go

into U105#35.

- U103 power is supplied by PC via CN103#9, or supplied by Monitor self via D103.

- U103 is an EEPROM IC which is memory and EDID data saved in it.

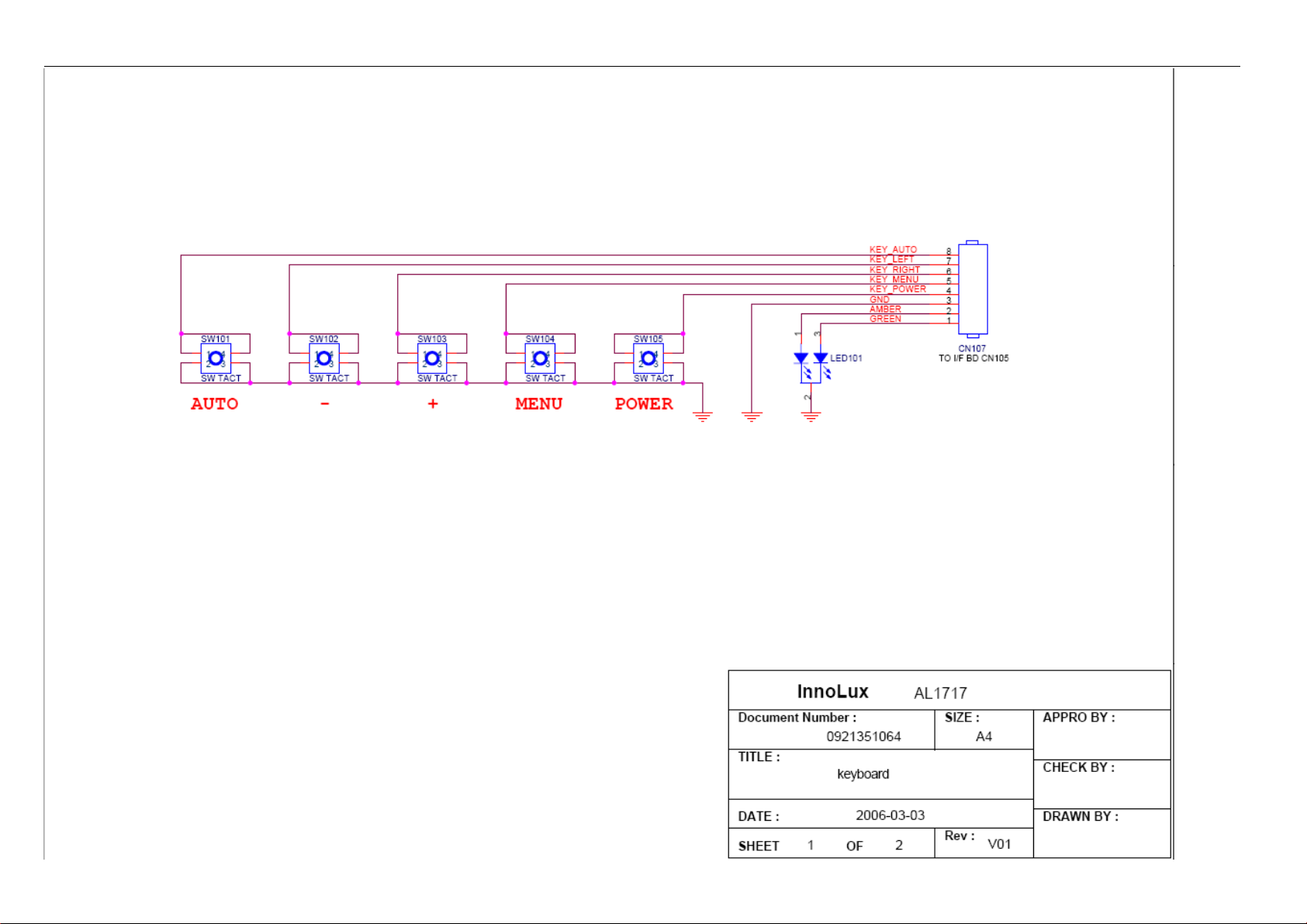

3.2.2 Buttons Control

- Button “Power” on right side bezel connects to U105 (TSUM56AL) #88 through R161, via
CN105#4.

- Button “UP” “DOWN ““MENU” “AUTO” on right side bezel connects to U105 (TSUM56AL)
#91,#90,#89,#92 through R158,R159,R160,R157,via CN105 #7, #6, #5, #8.

- U108 is an EEPROM IC which memory OSD setting and save the value adjusted by user.

- LED Indicator on Front Bezel

a. When press button “power”, U105 (TSUM56AL) #42 sends out a low potential, via R188,

flow to CN105 #2 on keypad, LED Blue ON.

b. When in “Suspend” mode, U105 (TSUM56AL) #41 sends out a low potential, via R189, flows

to CN105 #1 on keypad, LED Amber ON.

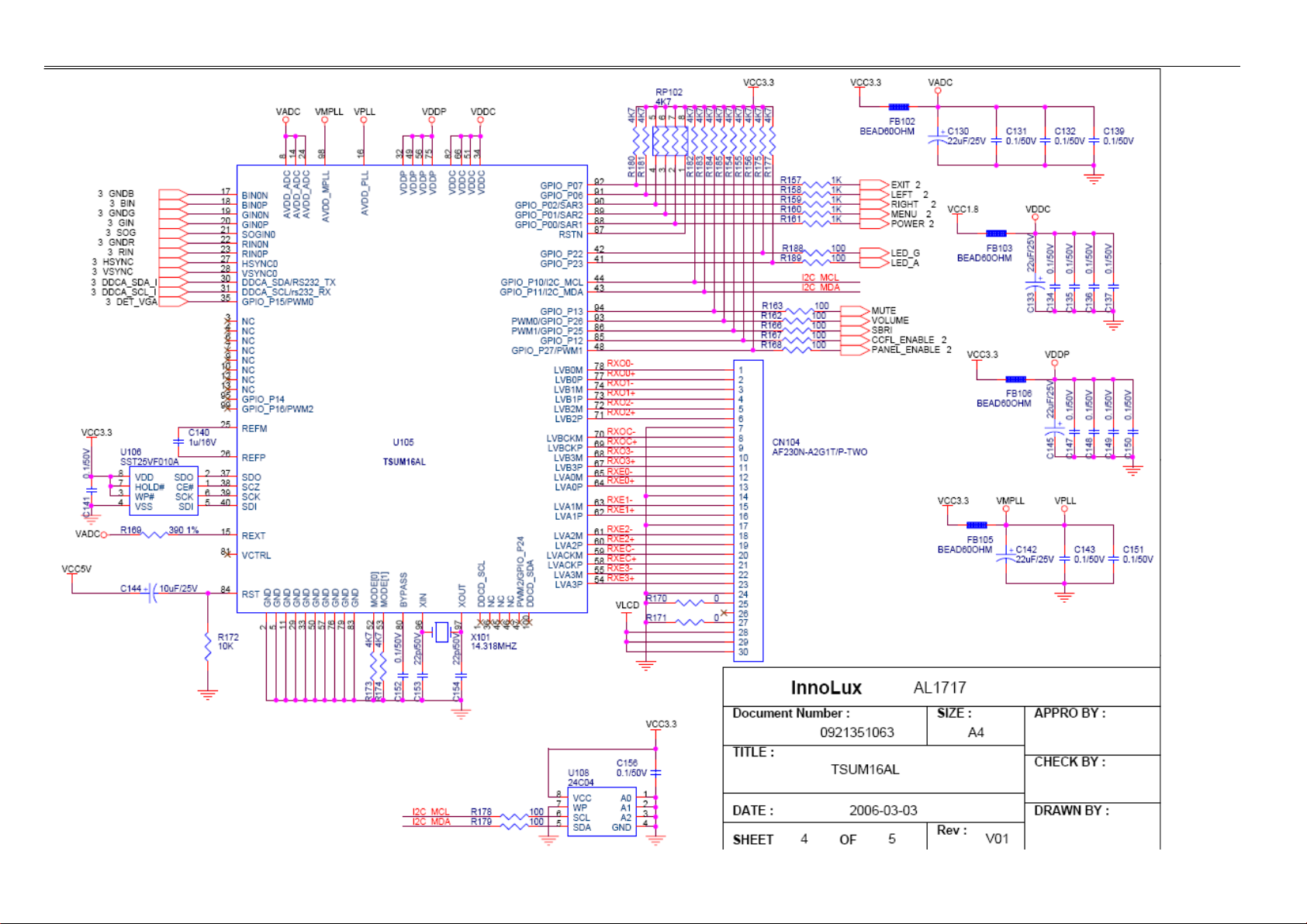

3.2.3 Mstar CHIP U105 (TSUM56AL)

- U105 (TSUM56AL) #54. #55. #58~#65 output 8 bit even LVDS digital data to panel control
circuit through CN104.

- U105 (TSUM56AL) #67~#74. #77. #78 output 8 bit odd LVDS digital data to panel control
circuit through CN104.

- U105 (TSUM56AL) #86 outputs Brightness “PWM” signals to control CCFL brightness.

- U105 (TSUM56AL) #48 output PPWR ”H” potential to make Q103 conducted, and then make
Q101 conducted, +5V flow to CN104#1~#3 as Panel VDD .

- U105 (TSUM56AL) #85 output CCFL_ON/OFF ”H” potential to control Inverter on/off.

- TCLK by Crystal 14.318MHz input to U105 (TSUM56AL) #96,#97.

Please refer to TSUM56AL Pin Assignments table in page

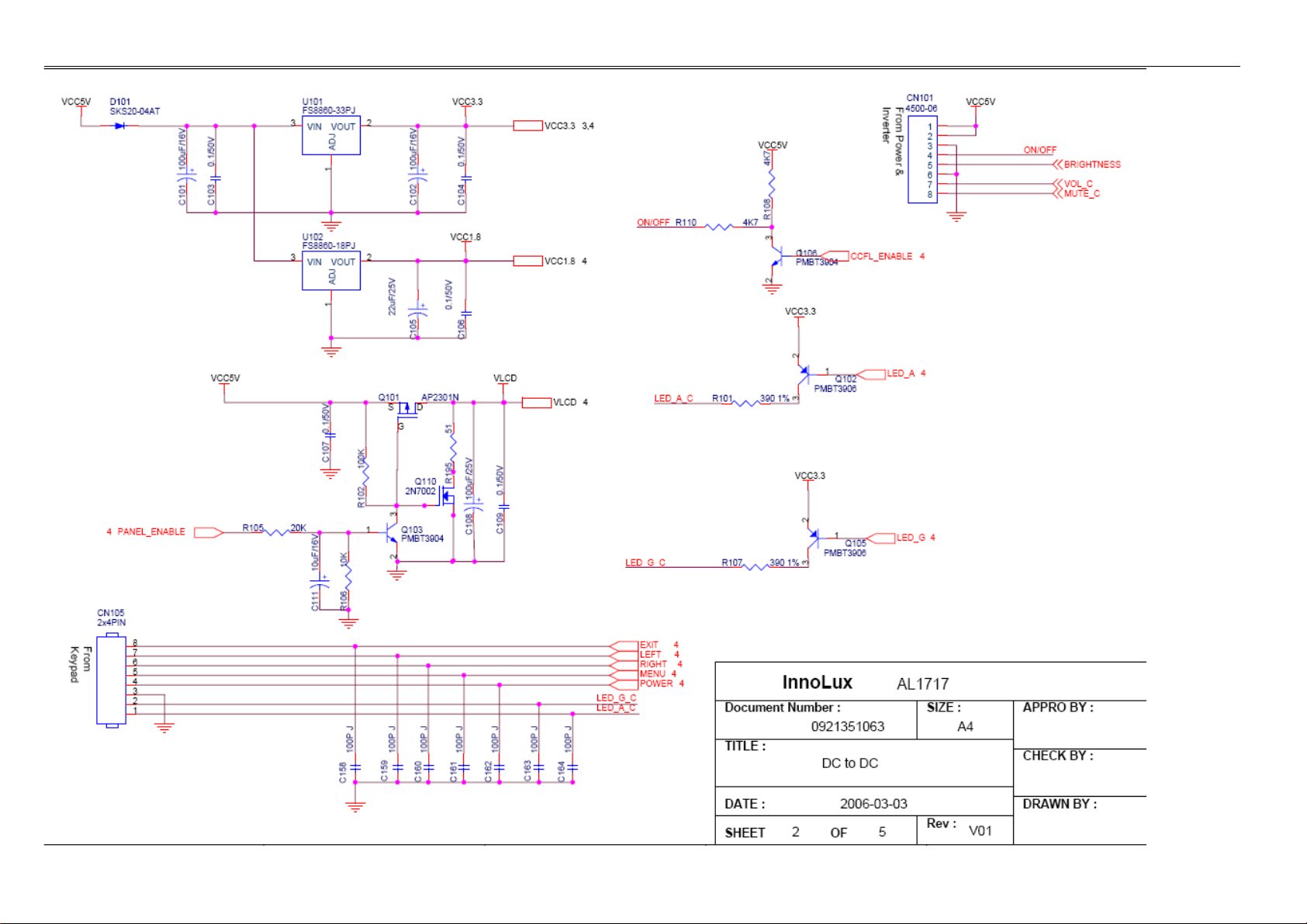

3.2.4 Regulator Circuit

- +5V is from switching mode power supply for Panel used.

- +3.3V generates from +5V through C101 and C103 filtering and U101 which is output +3.3V
LDO for U103, U106,U108 and U105 used.

- +1.8V generates from +5V through C101 and C103 filtering and U102 which is output +1.8V
LDO, for U105 used.

3.2.5 Audio circuit

- Audio Signal R,L,GND input through P701,#2,#5,#1, Stop DC via C711, C712, and then enter
into U701 (TDA7496L) analog input terminal #4,#9.

- U701 (TDA7496L) #14,#17 output R,L audio data to Speaker through CN701.

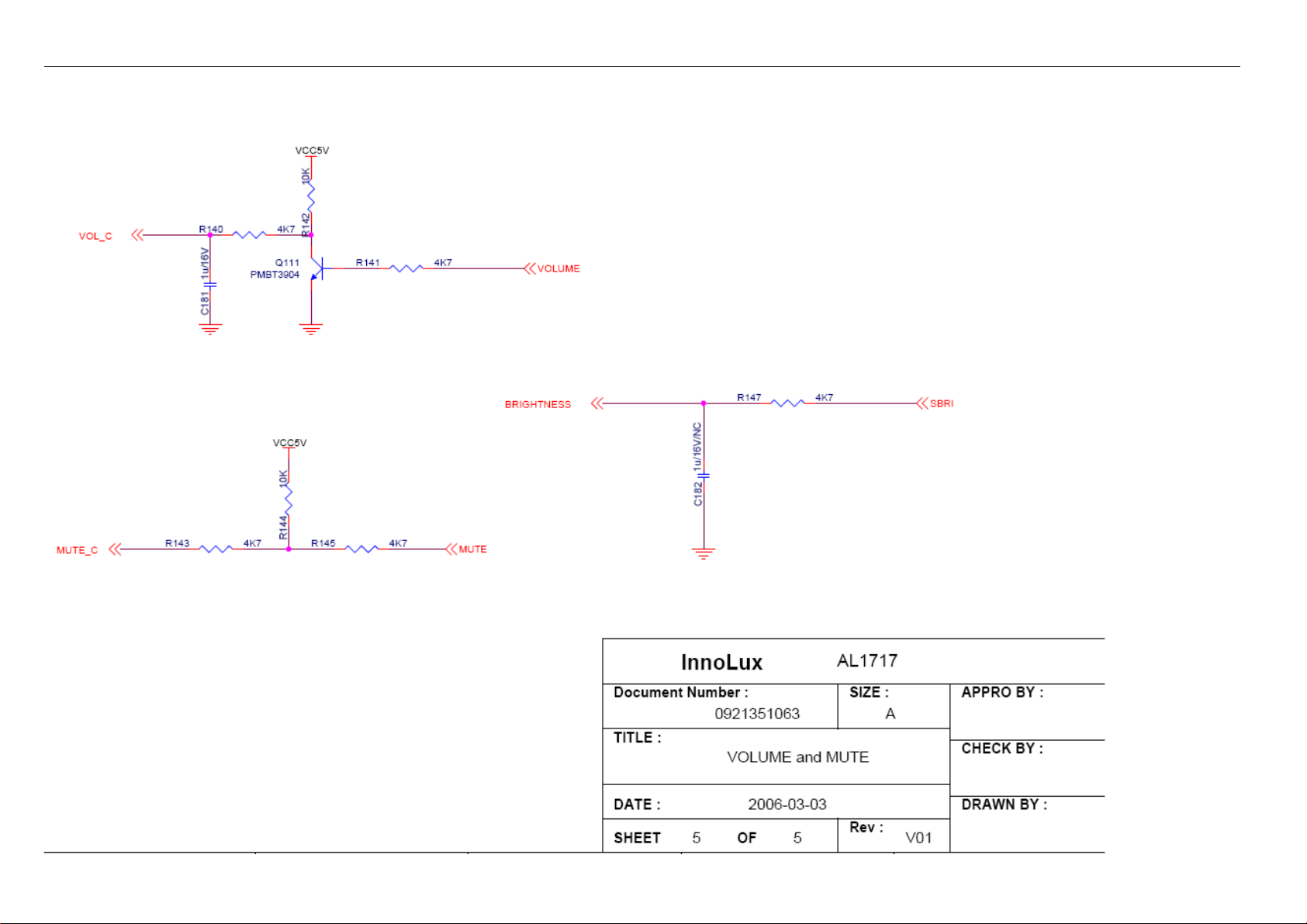

- U105 (TSUM56AL) #94 output MUTE “H” potential to control U701on/off.

- U105 (TSUM56AL) #93 outputs Volume “PWM” signals to control U701 Volume.

4. Inverter circuit

4.1 Low voltage to high voltage circuit

7

Acer Service Manual

14VDC provides the power for IC501; the control signals Brightness and ON/OFF come from I/F
board. ON/OFF signal connect to pin8 of IC501 and makes IC501 enable. Brightness signal connect to
pin7 of IC501 and regulates the panel brightness, R526, D515, R529, C505 make up a network of
delaying time circuit and R523, R524 make up a divided voltage network, C504 is used to dump noise.
The operation frequency is determined by the external Resistor R522 and capacitor C529 connected to
pin5 of IC501. BURST MODE dimming pulse frequency and duty is regulated by I/F board. C503 is
used for soft start and compensation, C502, C528 are used for dump noise.

The output drives, include NDR4, NDRV2, PDRV3, PDRV1 (pins1, 3, 15, 16 respectively) output
square pulses to drive MOSFET U501, U502, and each of U501, U502 is consist of a N channel
MOSFET and a P channel MOSFET. U501 and U502 work as full-bridge topology, it is high efficient,
zero voltage switching.

During start up, VSEN (pin9) senses the voltage at the transformer secondary. When VSEN reaches

3.0V, the output voltage is regulated. If no current is sensed approximately 1.5 seconds IC501 shunt off.

The current flowing through CCFL is sensed and regulated through sense resistor R509, R511. The
feedback voltage through R506, R507, C508 connected to Pin11 (ISEN), then compared with a
reference voltage (1.5V) via a current amplifier, resulting in PWM drive outputs to full-bridge switches.

4.2 Protection circuit

Over Voltage Protection: R501and R502 are connected in high voltage output connector, the
divided AC voltage is inverted DC voltage through D508, R505 and C507are used to rectify wave &
dump noise. Then the voltage signal reaches Pin9 VSEN of IC501, when the voltage changes, build-in
PWM of IC501 will adjust output voltage.

Open Lamp Protection: In normal operation, the resistors R510, R511, R512, R509 are sensed a
high level AC voltage, the AC signal OP1 invert DC voltage through D509, R515, C533, and the high
level DC voltage reaches the gate pin of Q502, similarly, the gate pin of Q503, Q504, Q505 has high
level DC voltage. So the gate pin of Q501 has a low level voltage, and the IC501 is normal operation.
Once one of signal OP1, OP2, OP3, and OP4 is low, the voltages of Q501 gate pin is high level, and
make the voltage of ISEN low level, the IC501 will be shunt down.

8

Acer Service Manual

Chapter 4- Disassembly & Assembly

1. Exploded Diagram

9

Acer Service Manual

2. Disassembly Block

LE 1717

LCD Monitor

ASSY, BASE

HINGE COVER*1

ASSY STAND

M4*6,Black Zn,NL ROHS *4

ASSY FRONT BEZEL

SCREW,,CROSS, T3*8,Zn, *2

BACK COVER

SPEAKER*1

Keypad*1

BASE*1
RUBBER FOOT *4
GASKET*1
PLATE,BASE*1
SCREW,,CROSS,T4*6,Zn, *1

BRACKET FINGER *1
HINGE *1
STAND
M4*20,Zn ROHS *3

FRONT BEZEL *1
FUNCTION KEY *1
POWER BUTTON *1
LED LENS

PANEL INNOLUX

Assy Panel*1

PCBA I/F BOARD *1

PCBA INV.&DC-DC *1

HRN ASS'Y 8P

CABLE 30 PIN FFC

SCREW,,CROSS,M3*6,Zn *4

SCREW,P,CROSS W/W-SPR,M3*6,Zn*1

Chassis*1

SCREW,,CROSS, M3*5,Zn *4

BOLT,#4-40x11.8,Ni ROHS *2(DVI)

BOLT,#4-40x11.8,Ni ROHS *2(VGA)

Note:

The DIS assembly direction please following direction of arrowhead

10

Acer Service Manual

L

3. Assembly Block

PCBA INV.&DC-DC *1

SCREW,,CROSS,M3*6,Zn *3
SCREW,P,CROSS W/W-SPR,M3*6,Zn*1

PCBA I/F BOARD *1
CABLE 30 PIN FFC
SCREW,,CROSS,M3*6,Zn *1

KEY PAD*1
HRN ASS'Y 8P

STAND*1
HINGE*1
BRACKET FINGER*1
SCREW,,CROSS,M4*20,Zn *3

ASSY PANEL*1

BACK COVER*1
SPEAKER*1

SCREW,,CROSS,T.T-3*8,Zn*2

ASSY BEZEL*1

ASSY STAND*1

SCREW,,CROSS,M4*6,Black Zn,NL *4

PANEL INNOLUX

CHASSIS *1
SCREW,,CROSS, M3*5,Zn *4

BOLT,#4-40x11.8,Ni ROHS *2(DVI)

T,#4-40x11.8,Ni ROHS *2(VGA)

BO

BEZEL1
BUTTON,POWER KEY*1
BUTTON,FUNCTION*1
LENS*1

BASE*1
RUBBER*4
GASKET*1
PLATE,BASE*1
SCREW,,CROSS,T4*6,Zn, *1

ASSY BASE*1

LE 1717

LCD Monitor

HINGE COVER*1

11

Acer Service Manual

Process To Access Factory Mode

Power Off

Press “AUTO＂& ＂MENU＂button at

the same time

Power On

Release the “AUTO＂& ＂MENU＂

button

Press “MENU＂ Button

Press “<＂ Button

Press “Menu＂ Button

Enter the factory Mode

12

Acer Service Manual

R

Chapter 5- TEST AND ADJUSTMENT

1. GENERAL POINTS

1.1 Test Equipment or Tool

1.1.1 Test pattern generator: PC or video pattern generator (Chroma-2326/2160/2130)

1.1.2 Color analyzer: Chroma-7120

1.1.3 Power meter: AC Source Chroma-6408

1.1.4 Electrical safety tester: Chroma (Zentech) 9032A

1.1.5 Stereo source: Music or signal generator input

1.1.6 Auto shock fixture

1.1.7 Temperature and humidity sensor

1.1.8 DDC interface card and EDID file

1.2 Preset Test Pattern

1.2.1 Crosshatch (General-1)

1.2.2 Gray Bar (16 & 32 levels)

1.2.3 Full White

1.2.4 Aging (Burn-in) Pattern: Full Red, Green, Blue, White, and Black

1.3 AC input

All measurements mentioned hereafter are carried out at a normal mains voltage (90 - 264 VAC for the
model with full range power supply, unless otherwise stated)

1.4 Observation Distance

1.4.1 Observation distance from eyes to panel is defined as 50cm

1.4.2 Visual distance from instrument to panel is defined as 20cm

1.5 Key Function Description

1.5.1 Control buttons on the front bezel

CONTROL

KEY

[AUTO]

[MENU]

[►], [◄]

[POWER] Power on or power off the monitor

A. When OSD un-displays, press [AUTO] to perform auto-adjustment
B. When OSD displays, press [AUTO] to return to previous level menu

A. When OSD isn’t shown on screen, press [MENU] to enter OSD interface
B. When OSD displays, press [MENU] to perform function of menu icon that is

highlight or enter next level menu

A. When “MENU OSD” displays, press these keys to change the contents of an

adjustment item, or change an adjustment value
B. When “MENU OSD” un-displays, press [►],adjust volume high;
press [◄]adjust volume low

KEYS FUNCTION

1.5.2 Hot Key Operation

HOT KEY OPERATION

FUNCTION

AUTO ◄ ► MENU POWE

Press [AUTO] & [MENU] at the same

FACTORY
MODE

● ● ON

13

time, and then press [POWER] for DC
power on. OSD menu will be shown
with “F” on the left top. Select “F” for
entering factory mode.

DESCRIPTION

Acer Service Manual

1.6 Burn-in (Aging) Pattern

1.6.1 Burn-in patterns are: full Red, Green, Blue, White and Black

1.6.2 Stop burn-in pattern by providing with video signal from D-sub or DVI-D connector

1.6.3 Enter or exit burn-in mode by setting “burn-in” to be “on” or “off” in the factory mode

1.7 Warm Up

All test units have to be done warm up after at least 2 hours in a room with temperature of 40±5°C.
(Except particular requirement)

2. INPUT SIGNAL

2.1 Video Signal Input

2.1.1 VESA Analog

The video input consists of red, green, and blue signals. The video signals are analog levels, where
0V corresponds to black and 700mV is the maximum signal amplitude. Input impedance of video
pins is 75 ohm ±1%.
Sync signal input
The capability of sync signal inputs shall include separate sync. Input impedance: 2k2 ohms the
signals are defined as follow:
Separate sync TTL level, Positive/Negative

2.1.2 Input signal mode

PRESET TEST MODE TIMING

Resolution H-Freq. (kHz) V-Fre q . (H z ) Dot Clock (MHz) Mode

31.5 60.0 25.175

640 x 480

800 x 600

1024 x 768

1280 x 1024

640 x 350 31.5 70.0 25.175
720 x 400 31.5 70.0 28.322
832 x 624 49.7 74.6 57.283

1024 x 768

37.9 72.0 31.500

37.5 75.0 31.500

35.1 56.0 36.000

37.9 60.0 40.000

48.1 72.0 50.000

46.9 75.0 49.500

48.4 60.0 65.000

56.5 70.0 75.000

60.0 75.0 78.750

64.0 60.0 108.000

80.0 75.0 135.000

60.2 75.0 80.000

48.8 60.0 64.000

VESA
IBM-AT
Compatible
machine
PC-9800 series

US/IBM Text

Power Macintosh

series

2.1.3 VGA signal cable

15 pin D-sub VGA connector of signal cable.

2.1.4 Interface

Analog signal: The input signals are applied to display through D-sub cable.
Length: 1.8 m +/- 50 mm (fixed)
Connector type: D-sub male.
With DDC_2B pin assignments.

14

Acer Service Manual

Blue connector thumb-operated jack screws

Pin Assignment:

PIN

1 Red video input 9 VGA +5V

2 Green video input 10 GND

3 Blue video input 11 GND

4 GND 12

5 Cable detect 13 H. Sync / H+V

6 Red video GND 14 V. Sync

7 Green video GND 15 Data clock line (SCL)

8 Blue video GND

3. FUNCTION CHECK

3.1 OSD Function Test

3.1.1 Test mode: 1280x1024 @ 60 Hz

3.1.2 Test pattern: pattern #1 of crosshatch (GENERAL-1)

3.1.3 Check single key function and hot key function about key “Power”, “Menu”,” ►”, “◄ “,

“Exit/Auto”, it should operate normally

SIGNAL PIN No. SIGNAL

Serial data line

3.2 Screen Picture Check

3.2.1 Test mode: 1280x1024 @ 60 Hz

3.2.2 Test pattern: pattern #1 of crosshatch (GENERAL-1)

3.2.3 Select OSD menu to execute ‘Auto’ function, screen picture shouldn’t appear abnormal

phenomenon and picture on screen should fit in with active display screen.

3.3 Auto Color Balance

3.3.1 Test mode: 640x480 @ 60 Hz

3.3.2 Test pattern: pattern #42 of 5-MOSAIC

3.3.3 Enter "Factory Mode" pressing "Auto color" key, and execute "AUTO".

3.4 Timing Check

3.4.1 Test mode: Refer to preset timing table and power saving mode

3.4.2 Test pattern: pattern #1 of crosshatch (GENERAL-1)

3.4.3 After change above timing and execute “Auto” function automatically, picture should fit in with

active display screen.

3.4.4 Under power saving mode, LED lamp on the key board should be orange

3.5 Power Consumption Function Test

3.5.1 Test mode: 1280x1024 @ 60 Hz

3.5.2 Test pattern: pattern #41 of “WHITE”

3.5.3 Adjusting both brightness value to maximum,

3.5.4 Measure power consumption as the following

Status Power Consumption LED Display

Normal < 42W(with audio) Green

Standby (No H/V

sync)

Power off < 1W No display

< 1W Orange

15

Acer Service Manual

3.6 VGA Cable Detect Test

If VGA cable of LCD monitor isn’t connected to video pattern generator or PC, “NO SIGNAL” should
be shown on screen.

3.7 Hi-Pot test

Test condition:

a. high voltage 2.3KV(DC)
b. leakage current 10mA
c. rising time 1 sec.
d. test time 3 sec.

3.8 Grounding Test

Test condition:

a. test current 30A / 2 sec

b. impedance < 0.1Ω

3.9 Bumping Test

3.9.1 Test mode: 1280x1024 @ 60 Hz;

3.9.2 Test pattern: pattern #1 of crosshatch (GENERAL-1)

3.9.3 To shock LCD monitor lightly at the center of rear cover and edges with 1~2kg/cm2 force for

three times, no abnormal phenomenon is found on panel screen.

4. DISPLAY CHECK

4.1 Panel Flicker Check

Connect LCD monitor to PC, set LCD monitor to be timing of 1280x1024@60 Hz, adjust brightness to
be default value (brightness at maximum), execute “Auto” function, and then check picture of shut
down under windows 98 operating system, or flicker-pattern of pixel on-off. It should be that no flicker
be found on panel screen.

4.2 Panel Defect Inspection

4.2.1 Test mode: 1280 x 1024@60Hz

4.2.2 Test pattern: Crosshatch/Full white/Red/Green/Blue/Black/16 color bar/64 gray bars

4.2.3 Display quality must be (according to DIN 13406-2 pixel fault class II)

Defect Type Specification Major Minor

Bright dot defect

Dark dot defect

Total bright and dark dots

Bright Dots – 2 Adjacent B
Bright Dots – 3 or more

Black Dots – 2 Adjacent B

THD

THD

THD

THD

THD

THD

․

․

․

․

․

․

Black Dots – 3 or more Adjacent

Distance between defect dots

Distance between Dark dots

Note 1: Dot defect is defined as the defective area is not larger than 50% of the dot area. Bright Dot is

defined 5% transmission ND filter.

Note 2: Light Leakage: There shall not be visible light around the customer’s bezel after assembly in

normal View angle.

THD

THD

THD

16

․

․

․

Acer Service Manual

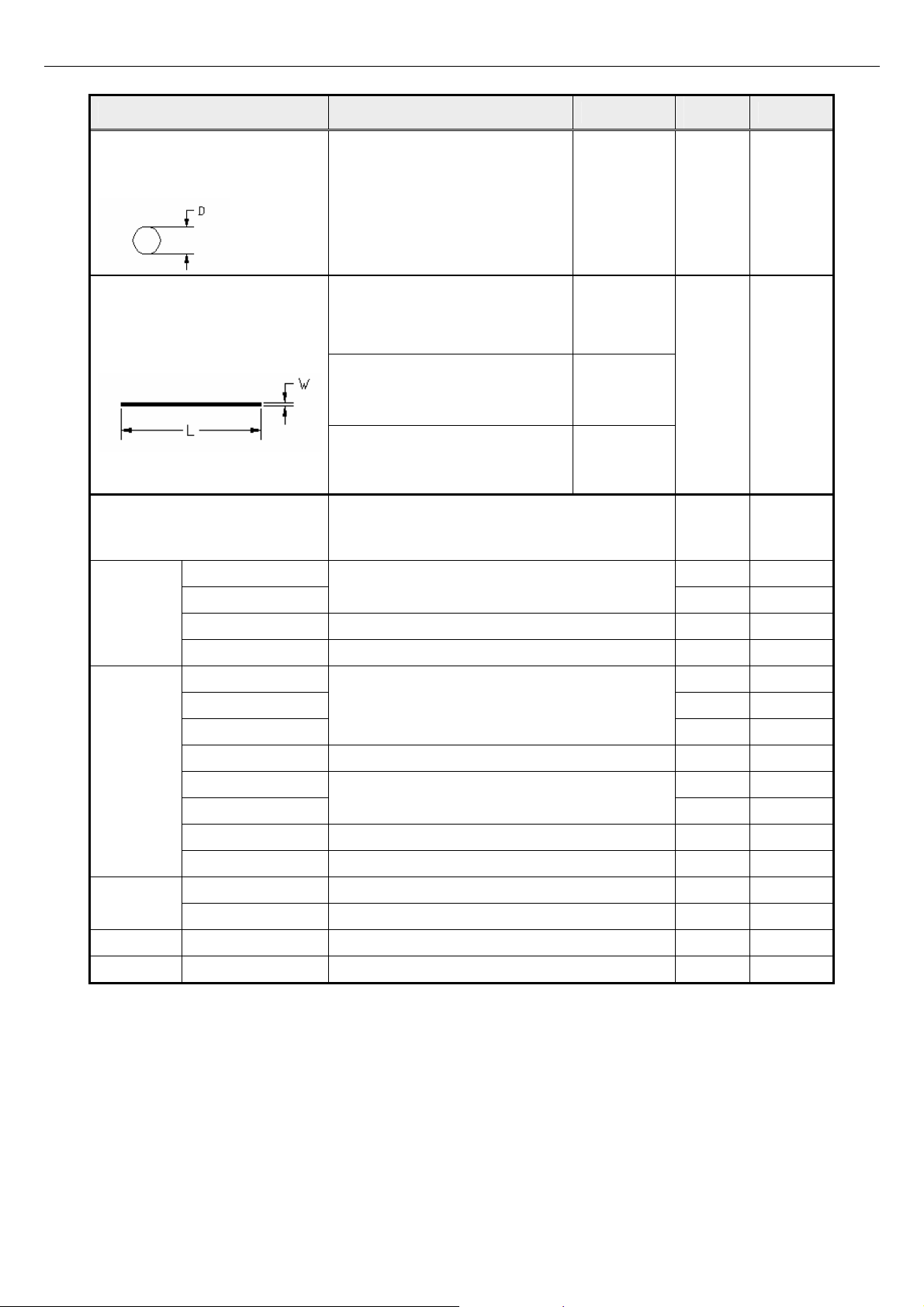

Defect Type Specification Size Count (N)

Dot Shape(Particle、Scratch
and Bubbles in Display area

or on The Polarizer)

Line Shape
(Particles、Scratch、Fiber and

Bubbles in display area or on
The Polarizer)

Display non-uniformity

Scratch ●

Dirt

Bezel

Wrap No harm ●

Black spots which appear
when B/L operating

0.15mm ≤ D ≤ 0. 5 mm

L ≤ 0.5mm and W ≤ 0.05 mm Ignored

0.5mm < L ≤ 5mm and

0.05mm < W ≤ 0.1mm

L > 5mm or W > 0.1mm N = 0

There should be non-uniformity through
5% transparency of filter or judge by limit
sample if necessary.

No harm

N ≤ 3

N ≤4

Majo

●

●

Minor

●

●

Sunken No harm ●

No label ●

Invert label ●

Broken

Label

Screw

Connecto

FPC/FFC Broken No ●

Dirt Word can be read. ●

Not clear ●
Word out of

Mistake No ●

Position Be attached on right position ●

Not enough No ●

Limp No ●
Connection

5. PICTURE CHECK

5.1 Check brightness uniformity

5.1.1 Test mode: 1280x1024 @ 60 Hz

5.1.2 Test pattern: pattern #41 of “WHITE”

5.1.3 Test tool: Color Analyzer Chroma7120

No

●

●

No bend on pins and damage ●

17

Acer Service Manual

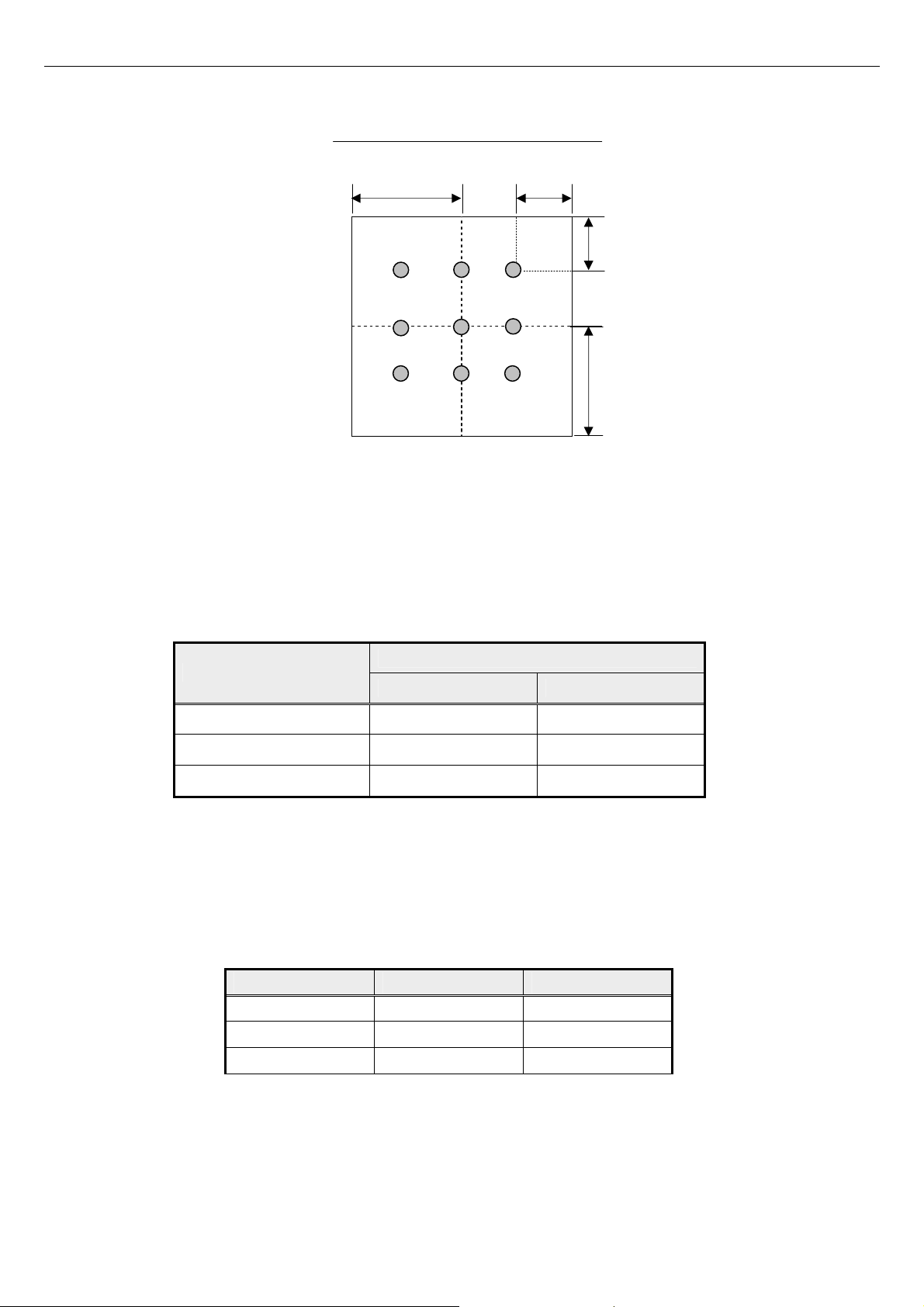

5.1.4 Set brightness and contrast to be maximum, apply pattern as Fig.3, it should be the following

requirement:

L/2 L/4

1

2

45

7

8

Fig. 3

5.2 Color Temperature Check

5.2.1 Test mode: 1280x1024 @ 60 Hz

5.2.2 Test pattern: pattern #41 of “WHITE”

5.2.3 Test tool: Color Analyzer Chroma7120

5.2.4 Set brightness to be maximum and contrast to be 50%, measure color coordinate and luminance by

color analyzer as the following:

)(backlight points nine of luminance Min.
)(backlight points nine of luminance Max.

W/4

3

6

9

W/2

%≥ 75

Mode

Chromaticity Coordinate

x y

9300K 0.283 ± 0.030 0.298 ± 0.030

USER / /

6500K 0.313 ± 0.030 0.329 ± 0.030

5.3 Brightness Out (Video signal input 700mV ± 2%)

5.3.1 Test mode: 1280x1024 @ 60 Hz

5.3.2 Test pattern: pattern #41 of “WHITE”

5.3.3 Test tool: Color Analyzer Chroma7120

Set brightness and contrast to be maximum with white pattern, to measure the screen center, the
light output shall be >= BL cd/m2

Mode BL (cd/cm2) Remark

MT170EN01 V7 300 TYP

5.4 DDC Data Check

5.4.1 EDID program

5.4.2 Execute main program for EDID writing (refer to model type), using scanner for barcode

download.

5.4.3 If writing EEPROM is successful, and then shows text "PASS" on screen; if writing EEPROM is

failure, then shows text "FAIL".

18

Acer Service Manual

5.4.4 EDID data: (For example)

For InnoLux MT170EN01_ V7 Panel
0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 04 72 46 AD 00 00 00 00
1 01 0F 01 03 08 22 1B 78 E8 DC 55 A3 59 48 9E 24
2 11 50 54 BF EF 00 01 01 01 01 01 01 01 01 01 01
3 01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
4 13 00 52 0E 11 00 00 1E 00 00 00 FD 00 38 4B 1E
5 53 0E 00 0A 20 20 20 20 20 20 00 00 00 FF 00 30
6 30 30 30 30 30 30 30 30 30 30 30 0A 00 00 00 FC
7 00 41 4C 31 37 31 37 0A 20 20 20 20 20 20 00 CS

6. AUDIO CHECK

6.1 Audio Sound Check

6.1.1.1. Apply audio source of test program, (1)voice ”LEFT” and “RIGHT” ;(2)500mVrms sine wave

that sweep from 200Hz to 20 KHz, into audio input (light blue), it should be that L speaker sounds
while “LEFT” and R speaker sounds while “RIGHT”

6.1.1.2. Set the volume control (on OSD) at max (100%). It should be that no buzz or rattling sound

occurs over the sweep frequency range.

6.2 Audio control test

6.2.1.1 When OSD is not on screen, press key ” ►”or “◄ “, volume adjustment bar appears on screen

and value will grow or decrease and sound volume of speakers should be changed.
If the functional test had been passed, adjust volume bar to be at 90% before exit OSD.
After inspection, set the audio control out of OSD.

19

Acer Service Manual

Chapter 6- TROUBLE SHOOTING

1. No Power & LED Off

No po wer
&LED off

YES

Check primary
rectifier voltage

YES

Check pin3 of IC802
voltage about 1V

YES

Check pin2 of IC802
voltage about 2V

NO NO

Che ck c irc u i t if short

YES

Check
F801, F802,
P801, D801

NO

NO

Check R801,
R805, R822,
R823, R817

Check R803,
R807, R824,

R825

Check IC802,
C805, T801

YES

Check pin1 of IC802
voltage is 5.8V

YES

END

NO

Check R812,
R816, C818

20

Acer Service Manual

2. Unstable Power

U n s ta b le p o wer

C h e c k
sa mplin g

C irc u it

YES

C h e c k th e R p in
voltage of IC803
ab ou t 2 .5V

YES

Check pin1 of
IC802 voltage is

5.8 V

NO

Check R810,
R 8 1 1,R8 18

NO NO

C h e c k th e C p in
vo lta g e o f IC80 3
if 3V

YES

Check
R809, R808,
R814, D809

NO

C h e c k D8 06 ,
C815 if short

NO

Change R810,
R811, R818

Change IC803

YES

C h e c k p in 3 o f
IC 8 0 2 v o lta g e
ab ou t 1 V

YES

END

Change
D806,
C815

NO

Change R801,
R805, R822,
R823, R817

21

Acer Service Manual

3. No raster

No raster

YES

LED G reen?

YES

Backlight can

not be turned on

YES

Is there 14Vdc

voltage on pin13 of
IC5 0 1 ?

YES

Is there high-level
voltage on pin8 of
IC5 0 1

YES

Check CN 501, CN502,
CN503 and CN504?

YES

Is there pulse waveform on pin1,
pin3, pin15 and pin16 of IC501 at the
mo men t o f re s ta rt?

NO

NO

NO

NO

Check power
supply

Is R5 2 6 Ok ?

NO

Is Ok IC501 ?

YES

YES

Check I/F board

R526 open

Connecting the
output connector
again

U501, U502 fail

NO

YES

NO

Is ok T501, T502?

YES

Check protected
circ u it Q50 1 , Q50 2 ,
Q 5 0 3 , Q50 4

END

T501, T502 fail

22

IC 50 1 fa il

Acer Service Manual

4. Black screen

Black screen

Check power

supply:pin 1,2 of

CN101

YES

Check power supply

for U105

YES

Check reset (pin84) of

U105

YES

NG

Power fail

NG

Check FB102,FB103,

FB105,FB106

NG

Check C144,R172

Check crystal (pin 96,97)

waveform of U105

YES

Check CCFL-

Enable(pin 85)

of U105

NG

U105 FAIL

NG

Check pin4 of

CN101

NG

Check

X101,C153,C154

YESYES

Inverter Fail

Check R167,Q106,

R108,R110

23

Acer Service Manual

5. Bad Screen

Bad Screen

OK

LVDS Cable

Reinsert

NG

OK

Change LVDS

Cable

Workmanship

LVDS Cable NG

NG

Check Crystal:

pin96,97 of U105

OK

Check the pins of

U105

NG

CheckX101, C153,

C154

24

Acer Service Manual

6. White screen

White screen

OK

LVDS Cable

Reinsert

NG

OK

Change

LVDSCable

NG

Workmanship

LVDS cable NG

Check VLCD

is 5V

NG

Check Panel-Enable of

U105(pin48)

OK

Check

Q101,Q103,Q110,

C108,

C109

OK OK

Check LVDS

signal

NG

U105 Fail

NG

Panel Fail

END

25

Acer Service Manual

Attachment 1- Bill of Material

PCBA P+I

Item Component Component Description Quantity Un Installation Point
10 430637020020R WFR. 2P P=3.5mm 90°4100-D02 RoHS 4 PC CN501,CN502,CN503,CN504,
20 410500072270R XSTR AOP605 N&P-CH PDIP-8(AOS RoHS 0 PC
20 410500076270R XSTR AOP604 N&P-CH PDIP-8(AOS) RoHS 0 PC
20 410500069290R XSTR AP4501GSD N&P-CH PDIP-8(A DVANCED P 2 PC U501,U502,
30 426000090490R XFMR SW 93uH EEL19 DIP SPW-049 RoHS 2 PC T501,T502,
40 418110058560R CAP CD SL 10pF 3KV J,ST,RoHS CC45SL3FD10 2 PC C524,C526,
50 418105058960R CAP CD SL 5pF 3KV D,ST, RoHS CC45SL3FD05 2 PC C525,C527,
60 502040604500R SHIELD,EMI, LE1915 ROHS 1 PC H501,
70 412140001390R IC EL817M-B(EVERLIGHT)RoHS 0 PC
70 412140002380R IC LTV817M-PR VDE (LITE-ON) P=10mm RoHS 1 PC IC801,
80 411050007010R DIO BRDG KBL405G 600V/4A(TSC) RoHS 0 PC
80 411050006041R DIO BRDG KBL06M 600V/4A(MOSPEC RoHS 0 PC
80 411050005020R DIO BRDG BL4-06-BF52-LF 600V/4A(FRONTIER 1 PC D801,
90 420431014082R CAP SEK 100uF/450V M,105℃ CF 18x40(2.5) 1 PC C805,
100 420421020102R CAP EC 1000uF/10V M,105℃ N-F 10x16(L-ES 2 PC C809,C812,
110 420426810210R CAP SD 680uF/25V M 105℃ F 10x20 RoHS 2 PC C808,C826,
120 416202223610R CAP MEY 2200pF 250V M Y2 Y5V P=7.5mm RoH 2 PC C801,C806,
130 416202224610R CAP MEY 2200pF 400V M Y,F10mm RoHS 1 PC C820,
140 416204724610R CAP MEY 4700pF 400V M Y,F10mm RoHS 1 PC C824,
150 416194743011R CAP MEX 0.47uF 275V K X2,F15 RoHS 1 PC C804,
160 425000010530R COIL CHK 5uH 7.8X10 CHK-053 0 181085R0L 2 PC L802,L803,
170 426000050070R CHOKE L-FILTER 12mH LIN-007 ET-20,RoHS 1 PC L801,
180 426000090510R XFMR 750u@1K,+-8%,3m,113m,SPW- 051,DIP-1 1 PC T801,
190 432009400701R NTC 5Ω 4A 10ψ P=5mm, F RoHS 1 PC RT801,
200 430613420290R FUSE SLOW 2,250,Axial Lead,3.6 x10mm RoH 1 PC F801,
210 440149000230R SKT AC 10A/250V U/C/V,G/Y=45mm TU-301-SP 1 PC P801,
220 430300800410R HRN ASS'Y 8P 60mm UL1007#24, RoHS 1 PC CN801,
230 418247233020R CAP CD X7R 4700pF 1KV K,W/O FO RMING,RoH 1 PC C803,
240 735100005400R ASSY,H/S SRF5-04CT/8-10CT, LE1700 ROHS 1 PC
250 735100005900R ASSY,H/S TOP246Y, LE1X09 ROHS 1 PC
260 412000225020R IC TDA7496LK DIP-20(UTC)RoHS 0 PC
260 412000225280R IC TDA7496L AMPLIFIER(ST)RoHS W/DC VOLUM 1 PC U701,
270 430631040080R WFR. 4P 2.0mm R/A HF5604E RoHS 1 PC CN701,
280 442299001110R CON,PHONE JACK R/A,1P,CJ363P00 US0PS4,Ro 1 PC P701,
290 511130000300R SOLDER WIRE,Sn96.5/Ag3.0/Cu0.5/Ni0.06/Ge 0.003 G
300 511130001200R SOLDER BAR,Sn96.5/Ag3.0/Cu0.5/Ni0.06/Ge0 0.0048 G
310 790571440600R PCBA,PWR&INV/B,SMD,LE1718 ROHS 1 PC
10 411090025040R SCHTKY SRF1045CM 45V/10A ITO22 OAB(MOSPE 0 PC
10 411090015020R SCHTKY SRF5-04CT-LF ITO-220AB (FEC) RoHS 0 PC
10 411090024040R SCHTKY SRF1040CM 40V/10A ITO22 OAB(MOSPE 1 PC D805,
20 411090016020R SCHTKY SRF8-10CT-LF ITO-220AB (FEC) RoHS 0 PC
20 411090009040R SCHTKY SRF10100C 100V/10A(MOSP EC)ITO-22 1 PC D803,
30 507200003800R HEATSINK,56x20xt10mm LE1904/05 1 PC
40 509112306100R SCREW,P,CROSS,T.T-3*6,Zn 2 PC
10 419342253670R C SMD(0805) Y5V 2.2uF/25V Z RoHS 2 PC C502,C511,
20 419311040060R C SMD(0603) X7R 0.1uF/50V K RoHS 8 PC C509,C531,C532,C533,C534,C701,C710,C821,
30 419311020060R C SMD(0603) X7R 1000PF/50V K RoHS 1 PC C504,
40 419341053670R C SMD(0805) Y5V 1uF/25V Z RoHS 3 PC C505,C528,C708,
50 419314720060R C SMD(0603) X7R 4700PF/50V K RoHS 5 PC C506,C711,C712,C713,C714,
60 419312220060R C SMD(0603) X7R 2200PF/50V K RoHS 1 PC C507,
70 419311030060R C SMD(0603) X7R 0.01uF/50V K RoHS 1 PC C508,
80 419316820070R C SMD(0805) X7R 6800PF/50V K RoHS 2 PC C523,C530,
90 419301810560R C SMD(0603) NPO 180PF/50V J RoHS REV:A 1 PC C529,
100 419314710070R C SMD(0805) X7R 470PF/50V K RoHS 2 PC C535,C536,
110 419316830060R C SMD (0603) X7R 0.068uF 50V,K RoHS 1 PC C503,
120 414916604310R RES SMD (0603) 604KΩ F,RT RoHS 1 PC R539,
130 414916000050R RES SMD (0603) 0Ω J,RT RoHS 1 PC R537,
140 414916010350R RES SMD (0603) 10KΩ J,RT RoHS 4 PC R532,R533,R534,R535,
150 414916590010R RES SMD (0603) 590Ω F,RT RoHS 2 PC R530,R531,
160 414916330410R RES SMD (0603) 3.3M F RT RoHS 1 PC R527,
170 414916180310R RES SMD (0603) 180KΩ F,RT RoHS 2 PC R523,R526,
180 414916012250R RES SMD (0603) 1.2KΩ J,RT RoHS 2 PC R510,R512,
190 414916010410R RES SMD (0603) 100K F,RT RoHS 2 PC R508,R524,
200 414916390110R RES SMD (0603) 3.9KΩ F,RT RoHS 2 PC R506,R507,
210 414916010550R RES SMD (0603) 1MΩ J,RT RoHS REV:A 6 PC R505,R515,R517,R519,R521,R529,
220 414908360110R RES SMD (0805) 3.6KΩ F,RT RoHS 2 PC R502,R504,
230 414916487010R RES SMD (0603) 487Ω F,RT RoHS 2 PC R509,R511,
240 414916110310R RES SMD (0603) 110KΩ F,RT RoHS REV:A 1 PC R522,
250 414904010050R RES SMD (1206) 10Ω J,RT RoHS 2 PC R802,R806,
260 414904100010R RES SMD (1206) 100Ω F,RT RoHS 1 PC R809,
270 414908010250R RES SMD (0805) 1KΩ J,RT RoHS REV:A 5 PC R813,R814,R815,R708,R709,
280 414908010350R RES SMD (0805) 10KΩ J,RT RoHS REV:A 3 PC R808,R819,R827,
290 414908120210R RES SMD (0805) 12K F RT RoHS REV:A 1 PC R817,
300 414908020150R RES SMD (0805) 200Ω J,RT RoHS 1 PC R829,
310 414908330110R RES SMD (0805) 3.3KΩ F,RT RoHS REV:A 1 PC R818,
320 414908033550R RES SMD(0805) 3.3MΩ J,RT,RoHS 4 PC R801,R805,R822,R823,
330 414908047450R RES SMD (0805) 470KΩ J,RT RoHS 1 PC R825,

26

Acer Service Manual

340 414908510110R RES SMD (0805) 5.1KΩ F,RT RoHS 1 PC R810,
350 414916510210R RES SMD (0603) 51KΩ F,RT RoHS 1 PC R811,
360 414908051450R RES SMD (0805) 510KΩ J,RT RoHS 3 PC R803,R807,R824,
370 414908068950R RES SMD (0805) 6.8Ω J RT RoHS 2 PC R812,R816,
380 414916010150R RES SMD (0603) 100Ω J,RT RoHS REV:A 2 PC R703,R704,
390 414916015350R RES SMD (0603) 15KΩ J,RT RoHS 2 PC R701,R702,
400 414916047250R RES SMD (0603) 4.7KΩ J,RT RoHS 2 PC R705,R706,
410 414916100110R RES SMD (0603) 1KΩ F,RT RoHS REV:A 1 PC R707,
420 414916047150R RES SMD (0603) 470Ω J,RT RoHS REV:A 4 PC R540,R541,R542,R543,
430 410500050130R XSTR SN7002N N-CH SOT-23(INFINEON),RoHS 0 PC
430 410500050210R XSTR 2N7002,N-CH FET SOT-23 (PHILIPS)RoH 5 PC Q501,Q502,Q503,Q504,Q505,
440 412000354630R IC OZ9910GN SOP16 (O2 MICRO) RoHS 1 PC IC501,
450 411020026020R DIO BAV99-LF 350mW 70V SOT-23 (FEC)RoHS 0 PC
450 411020026210R DIO BAV99 350mW 70V SOT-23(PHI RoHS 8 PC D501,D502,D503,D504,D505,D506,D507,D508,
460 411020046090R DIO 1N4148W 75V/0.15A(PEC)RoHS SOD-123 0 PC
460 411020046310R DIO 1N4148W-F 75V/0.15A(DIODES RoHS,SOD- 0 PC
460 411023004021R DIO SN4148-LF 75V/0.15A SMD 1206 (FEC)Ro 5 PC D509,D510,D511,D512,D515,
470 410500045130R XSTR MMBT3904 NPN SOT-23(INFIN EON)RoHS 0 PC
470 410500045140R XSTR MMBT3904LT1G NPN 200MA 40V SOT23(ON 0 PC
470 410500045210R XSTR PMBT3904 NPN 200MA,40V SOT23(PHILIP 1 PC Q801,
480 411100991920R ZENER 9.1V MMSZ5239A SOD123(PE C)RoHS 0 PC
480 411131591952R ZENER 9.1V 0.5W DDZ9V1C-F,SOD1 23(DIODES 0 PC
480 411150391950R ZENER 9.1V MTZS05-9.1-G SOD-123 (MITSUBI 1 PC ZD801,
490 411100956920R ZENER 5.6V MMSZ5232A SOD123(PE C)RoHS 0 PC
490 411131556920R ZENER 5.6V 0.5W DDZ5V6B-F,SOD1 23(DIODES 0 PC
490 411150356950R ZENER 5.6V MTZS05-5.6-G,SOD-12 3(MMC)RoH 1 PC ZD803,
500 411131516052R ZENER 16V 0.5W DDZ16-F,SOD123(DIODES)RoH 0 PC
500 411150316050R ZENER 16V MTZS05-16-G SOD-123 (MITSUBISH 0 PC
500 411100916020R ZENER 16V MMSZ5246A SOD123(PEC RoHS 1 PC ZD804,
510 790571410600R PCBA,PWR&INV/B,AI,LE1718 ROHS 1 PC
10 790571450600R PCBA,PWR&INV/B,AI/A, LE1718 ROHS 1 PC
20 790571460600R PCBA,PWR&INV/B,AI/R, LE1718 ROHS 1 PC
10 415020330540R RES CF 1/4W 33Ω J,AT MINI RoHS 2 PC R536,R538,
20 414870305540R RES MG HV 1/2Ws 3MΩ 3KV J,AT RoHS 2 PC R501,R503,
30 415130680540R RES CF 1/2W 68Ω J,AT RoHS REV:A 1 PC R804,
40 415340101540R RES MOF 1W 100Ω J,AT MINI RoHS 1 PC R828,
50 411032006020R DIO FR10-10-LF 1000V/1A AT(FRO NTIER)RoH 0 PC
50 411020055330R DIO MUR1100ERL AXIAL LEAD(ON) RoHS 1 PC D804,
60 411030003040R DIO FR103 200V/1A DO-41(MOSPEC RoHS 0 PC
60 411020052020R DIO A02-LF 200V/1A R1(FEC)RoHS 1 PC D806,
70 411022020090R DIO P6KE200A 600W/100A,DO-15(P ANJIT)RoH 0 PC
70 411022020330R DIO P6KE200ARL 600W/100A AT(ON RoHS 1 PC ZD802,
80 411022003020R DIO 1N4148-LF 75V/0.15A AT (FEC)RoHS 0 PC
80 411022003210R DIO 1N4148 75V/0.2A AT (PHIL) RoHS 1 PC D809,
90 506140005700R LABEL,BARCODE,BLANK,33x7mm, ROHS,FOR PCB 1 PC
100 432002200160R BEAD CORE BF30TA-3.5x9x0.8 AT 1 PC B801,
110 415030105540R RES CF 1/2W 1MΩ J,AT MINI RoHS 2 PC R820,R821,
120 430405000000R JMPR ROLL/KG D=0.6mm,AT,RoHS 7.5MM 520 mm J501,J502,J511,J512,J516,J701,J702,J803,J805,J806,
130 430405000000R JMPR ROLL/KG D=0.6mm,AT,RoHS 10MM 312 mm J503,J506,J703,J804,J807,J808,
140 430405000000R JMPR ROLL/KG D=0.6mm,AT,RoHS 12.5MM 364 mm J505,J507,J508,J509,J510,J514,J515,
150 430405000000R JMPR ROLL/KG D=0.6mm,AT,RoHS 15MM 156 mm J513,J801,J802,
160 430405000000R JMPR ROLL/KG D=0.6mm,AT,RoHS 20MM 52 mm J504,
170 490571400100R PCB,PWR&INV./B, LE1718-XE0 ROHS 1 PC
10 420424710260R CAP SD 470uF/25V M 105℃ ST 10x16,RoHS 3 PC C522,C702,C810,
20 418210227030R CAP CD X7R 1000pF 500V K VT RoHS 2 PC C802,C811,
30 418310413630R CAP CD Y5V 0.1uF 50V Z,VT RoHS 2 PC C817,C822,
40 416231041530R CAP MEB 0.1uF 100V J,(RSB),VT RSBEC3100D 1 PC C816,
50 418147038530R CAP CD NPO 47pF 1KV J,VT RoHS 1 PC C813,
60 420264700230R CAP SH 47uF 25V M,125℃,VT, 6.3x11,RoHS 4 PC C814,C815,C818,C819,
70 410072013150R XSTR UTC2SC1815L-GR NPN TO92 (UTC)RoHS 0 PC
70 410072013210R XSTR 2PC1815GR*I VT (PHILIPS) RoHS REV: 0 PC
70 410072013370R XSTR 2SC1815-GR (T2SPF.T) VT (TOSHIBA)Ro 1 PC Q802,
80 412022002240R IC KA431AZ 1%,VT (FAIRCHILD) RoHS 0 PC
80 412022002300R IC AP431VL TO-92 1% VT (ATC) RoHS 0 PC
80 412022002840R IC TLV431ALP TO-92 1%,VT (ON) RoHS 1 PC IC803,
90 420434710431R CAP EC 470uF 16V M,105℃ VT 8x12,RoHS 3 PC C704,C705,C709,

PCBA IF

Quantit

Item Component Rev Component Description

79057132060

10

1R
79057134060

20

1R
62903000530

30

1R
43063108007

10

0R
44081901503

20

0R

30 43063108013 A WAFER 2x4P 2.0mm,200PHD-2*4ST RoHS 1 PC CN105,

PCBA,IF
BOARD(EMEA),OTHRS,LE1718-6E0

PCBA,IF BOARD(EMEA),SMD,LE1718 -6 1 PC

PROGRAM(EMEA),LE1718-6E0 ROHS 1 PC

A WFR 2.0mm 8P 180°4500-08 RoHS 1 PC CN101,

CON,D-SUB,FEM.15P RA W/O SCREW

A

DZ11AA1-H

Un Installation Point

y

1 PC

1 PC CN103,

27

Acer Service Manual

0R
42043101046

40

1R
42043220046

50

0R
42043100026

60

0R
43200801027

70

0R
41050004427

10

0R
41050006829

10

0R
41050004513

20

0R
41050004514

20

0R
41050004521

20

0R
41050004618

30

0R
41050004613

30

0R
41050004621

30

0R
41050005013

40

0R
41050005021

40

0R
41102002602

50

0R
41102002639

50

0R
41102002621

50

0R
41102004702

60

0R
41102004721

60

0R
41109000531

70

1R
41109002041

70

0R
41110115695

80

0R
41115035695

80

0R
41110065695

80

1R
41200037202

90

0R
41200037283

90

0R
41200033002

100

0R
41200033083

100

0R
41200036199

110

0R
41200001028

110

0R
41200043548

110

0R
41200043619

120

0R
41200035831

130

0R
41200027928

140

0R
41200027999

140

0R
41200027948

140

0R
41491600005

150

0R
41491675091

160

0R
41491601015

170

0R
41491639001

180

0R
41491604715

190

0R

200 41491602225 A RES SMD (0603) 2.2KΩ J,RT RoHS 2 PC R136,R137,

CAP EC 100uF 16V M,105℃ ST 5x11(SK)

A

RoH

A CAP EC 22uF 16V M,105℃ ST, 5x11,RoHS 5 PC C130,C133,C142,C145,C105,

A CAP EC 10uF 25V M,105℃ ST 5x11 RoHS 2 PC C111,C144,

XTAL 14.31818MHz HC-49US DIP 16pF

A

30PPM
XSTR AO3401L P-CH(ALPHA-OMEGA)

A

SOT23 RoH

A XSTR AP2305GN P-CH SOT23(APEC) RoHS 1 PC Q101,

XSTR MMBT3904 NPN SOT-23(INFIN

A

EON)RoHS
XSTR MMBT3904LT1G NPN 200MA 40V

A

SOT23(ON
XSTR PMBT3904 NPN 200MA,40V

A

SOT23(PHILIP
XSTR MMBT3906LT1G PNP 200mA 40V

A

SOT23(ON
XSTR MMBT3906 PNP SOT-23(INFIN

A

EON)RoHS
XSTR PMBT3906 PNP 200MA,40V

A

SOT23(PHILIP
XSTR SN7002N N-CH

A

SOT-23(INFINEON),RoHS
XSTR 2N7002,N-CH FET SOT-23

A

(PHILIPS)RoH
DIO BAV99-LF 350mW 70V SOT-23

A

(FEC)RoHS

A DIO BAV99,SOT-23(INFINEON)RoHS 0 PC

A DIO BAV99 350mW 70V SOT-23(PHI RoHS 4 PC TVS101,TVS102,TVS103,TVS104,

A DIO BAV70-LF 70V SOT23 (FEC) RoHS 0 PC

A DIO BAV70 85V SOT23 (PHILIPS) RoHS 1 PC D103,

SCHTKY B240A 40V/2A SMA(DIODES

A

RoHS
SCHTKY SKS20-04AT-G 40V/2A THIN SMA

A

(MMC
ZENER BZV55-C5V6 SOD80C(PHILIP S)

A

RoHS
ZENER 5.6V MTZS05-5.6-G,SOD-12

A

3(MMC)RoH
ZENER 5.6V ZMM5232B-LF DO213AA

A

(FRONTIER

A IC LD1117AL-3.3V-A SOT-223(UTC RoHS 0 PC

IC AS1117L-3.3TR-LF,SOT223(A1S

A

EMI)RoHS

A IC LD1117AL-1.8V-A SOT223(UTC) RoHS 0 PC

IC AS1117L-1.8/TR-LF,SOT223(A1

A

SEMI)RoHS
IC CAT24WC02W-TE13 SOIC-8 RoHS

A

(CATALYST

A IC M24C02-WMN6TP SO8 2K (ST) RoHS 0 PC

IC AT24C02BN-10SU-1.8 SOIC8 2K

A

(ATMEL)Ro

A IC TSUM16AL-LF PQFP100(MSTAR)R oHS 1 PC U105,

A IC PM25LV010-25SCE SOIC8(PMC) RoHS 1 PC U106,

A IC M24C04-WMN6TP4K SOP8 (ST) RoHS 0 PC

A IC CAT24WC04W-TE13 (CATALYST) RoHS 0 PC

IC AT24C04N-10SU-2.7 SOP8 4K(A

A

TMEL)RoHS

A RES SMD (0603) 0Ω J,RT RoHS 3 PC R112,R115,R118,

A RES SMD (0603) 75Ω F,RT RoHS REV:A 3 PC R133,R134,R135,

A RES SMD (0603) 100Ω J,RT RoHS REV:A 22 PC

A RES SMD (0603) 390Ω F,RT RoHS 3 PC R101,R107,R169,

A RES SMD (0603) 470Ω J,RT RoHS REV:A 1 PC R121,

3 PC C101,C102,C108,

1 PC X101,

0 PC

0 PC

0 PC

3 PC Q106,Q103,Q111,

0 PC

0 PC

2 PC Q102,Q105,

0 PC

1 PC Q110,

0 PC

0 PC

1 PC D101,

0 PC

0 PC

5 PC ZD101,ZD105,ZD106,ZD107,ZD108,

1 PC U101,

1 PC U102,

0 PC

1 PC U103,

1 PC U108,

R113,R116,R119,R130,R129,R114,R117,R120,R124,R125,R127,R131,R132,R162,R163,R167,R168,R166,R17
8,R179,R188,R189,

28

Acer Service Manual

0R

210

220

230

240

250

260

270

280

290

300

310

320

330

340

350

360

370

380

390

41491604725
0R
41491601035
0R
41491602035
0R
41491601045
0R
41575472508
0R
41491600005
0R
41491605105
0R
41491601025
0R
41930101056
0R
41930220056
0R
41930330056
0R
41930221056
0R
41931473006
0R
41931104006
0R
41934105467
0R
43200236001
2R
43200231211
1R
44409903003
0R
49057130010
0R

A RES SMD (0603) 4.7KΩ J,RT RoHS 22 PC

A RES SMD (0603) 10KΩ J,RT RoHS 4 PC R106,R142,R144,R172,

A RES SMD (0603) 20KΩ J,RT RoHS REV:A 1 PC R105,

A RES SMD (0603) 100KΩ J,RT REV:A RoHS 1 PC R102,

RP(0612)4.7KΩx4 1/16W J 8P4R RoHS

A

REV:A

A RES SMD (0603) 0Ω J,RT RoHS 2 PC R170,R171,

A RES SMD (0603) 51Ω J,RT,RoHS REV:A 1 PC R195,

A RES SMD (0603) 1KΩ J,RT RoHS REV:A 5 PC R157,R158,R159,R160,R161,

A C SMD(0603) NPO 100PF/50V J RoHS 7 PC C158,C159,C160,C161,C162,C163,C164,

A C SMD(0603) NPO 22PF/50V J RoHS 2 PC C153,C154,

A C SMD(0603) NPO 33PF/50V J RoHS 1 PC C125,

A C SMD(0603) NPO 220PF/50V J RoHS 1 PC C126,

A C SMD (0603) X7R 0.047uF 50V,K RoHS 7 PC C112,C113,C114,C115,C116,C117,C118,

A C SMD(0603) X7R 0.1uF/50V K RoHS 22 PC

A C SMD(0805) Y5V 1uF/16V Z RoHS REV:A 2 PC C140,C181,

BEAD CORE SMD(0805)60Ω 800mA

A

GBK201209T

A BEAD CORE SMD(0805)120Ω 300mA RoHS 1 PC FB101,

CON, SMD 1.0mm 30PIN RoHS

A

AL2309-A0G1Z

PCB,INTERFACE, LE1718-XE0 ROHS 1 PC

1 PC RP102,

4 PC FB102,FB103,FB105,FB106,

1 PC CN104,

R108,R110,R122,R140,R141,R143,R145,R147,R149,R150,R154,R155,R156,R173,R174,R175,R177,R180,R18
1,R182,R183,R185,

C103,C104,C106,C107,C109,C129,C156,C131,C132,C134,C135,C136,C137,C139,C141,C143,C147,C148,C14
9,C150,C151,C152,

PCBA KEY PAD

Item Component Component Description Quantity Un Installation Point

1 411070054990R LED G/Y∮3x5mm L-115VCGKSYKW-L 5.33-SZ(K 0 PC

1 411070053990R LED G/Y∮3x5mm 1259-7SYGUYW/S5 30-A3/F14 1 PC LED101,

2 430602980120R SW TACT 160gf 1P,H=4.3mm,DIP SFKHHAL2420 5 PC SW101,SW102,SW103,SW104,SW105,

3 430631080030R WFR 2.0mm 8P R/A HF5608E RoHS 1 PC CN107,

4 490571500100R PCB,KEY PAD, LE1718 1 PC

Lev Phant.item Item Component no. RevLev Object description Quantity Un

.1 0010 506431000300R A FILM,PE 500mmx900M ROHS 0.190 ROL
.1 0020 506380001000R A TAPE,WRAPPING TYPE,ACER LOGO 50000x72mm, 1.560 ROL
.1 0030 506040007200R A CUSHION,EPS-L, LE1718 ROHS 100 PC
.1 0040 506040007210R A CUSHION,EPS-R, LE1718 ROHS 100 PC
.1 0050 506020009100R A CARTON,ACER, LE1718 100 PC
.1 0060 506150004900R A PALLET,L1060xW1060xH120mm,LE1922 1.250 PC
.1 0070 506431001200R A FILM,PE 1335x1120xT0.1mm 1.250 PC
.1 0080 506039004800R A CORNER PAPER,1770x50x50xT5mm,LE1909 ROHS 5 PC
.1 0090 506039005000R A CORNER PAPER,870x50x50xT5mm,ROHS LE1918 5 PC
.1 0100 506120000200R B BAG,PE AS 480x590xT0.05(PRINTED),ROHS LE 100 PC
.1 0110 506120002510R A BAG,PLASTIC,W220xL280xT0.05mm,CYCLE PRIN 100 PC
.1 x 0120 714075160110R A ASSY,FINAL(S,V4/G3),W/SPK,LE1718-6E0(EME 100 PC
..2 0010 618100101100R A SPEAKER 1.5W 16Ω 250mm,R/B,W/CASE,X3516 100 PC
..2 x 0020 714085160110R A ASSY,PANEL(V4/G3),W/SPK,LE1718-6E0(EMEA/ 100 PC
...3 0010 430303000360R A HRN LVDS FFC 30P 214mm,RoHS,ACCP30214KU2 100 PC
...3 0020 790571300601R 2A PCBA,IF/BOARD(EMEA),LE1718-6E0 ROHS 100 PC
...3 0030 790571400600R 2A PCBA,PWR&INV/B, LE1718 ROHS 100 PC

29

Acer Service Manual

...3 0040 790571500000R 2A PCBA,KEYPAD BOARD, LE1718 ROHS 100 PC
...3 0050 631102071170R A LCD PANEL 17" MT170EN01-V4-G3,AM17000054 100 PC
...3 0060 509146306100R A SCREW,P,CROSS W/WAS,M3*6,Zn ROHS 500 PC
...3 0070 509000000700R A BOLT,#4-40x11.8,Ni FOR D-SUB/DVI CONN.RO 200 PC
...3 0080 509146305300R A SCREW,PW,CROSS,W/WAS,M3*5,NI 400 PC
...3 0090 509112308100R A SCREW,P,CROSS,T.T-3*8,Zn ROHS REV:A 200 PC
...3 0100 502090302710R A CHASSIS,W/O DVI, LE1718 ROHS 100 PC
...3 0110 505040202800R A INSULATOR,MYLAR,L150xW72xT0.4mm, LE1718 100 PC
...3 0120 509116606510R A SCREW,P,CROSS,M4*6,BLACK,NL ROHS (NYLOK) 400 PC
...3 0130 430300800380R B HRN ASS'Y 8P 160mm UL2651#28,RoHS 100 PC
...3 0140 505040503000R A INSULATOR,PP,15x9x6.5X0.3mm,GLUE(3M), LE 100 PC
...3 0150 505040503100R A INSULATOR,PP,22x20x12X0.3mm,GLUE(3M), LE 200 PC
..2 0030 714010004900R A ASSY,STAND, LE1718 ROHS 100 PC
...3 0010 501260200500R A STAND, LE1710 100 PC
...3 0020 502060001700R A HINGE, LE1718 ROHS 100 PC
...3 0030 509446620101R A SCREW,B,CROSS,W/W-SPR,M4*20,Zn ROHS 300 PC
...3 0040 502020101600R A BRACKET,FINGER, LE1710 ROHS 100 PC
..2 0040 501020206800R A COVER,HINGE, LE1718 ROHS 100 PC
..2 0050 714020004900R A ASSY,BASE, LE1718 ROHS 100 PC
...3 0010 501240202800R A BASE, LE1718 100 PC
...3 0020 502170101300R A PLATE,BASE, LE1718 ROHS 100 PC
...3 0030 503020002700R A RUBBER,FOOT,L14.8*W9.6*T3.5mm,ROHS LE171 400 PC
...3 0040 503060004000R A GASKET,EMI,W11xH8xL15mm(TWO-SIDED ADHESI 100 PC
...3 0050 509112606100R A SCREW,P,CROSS,T.T-4*6,Zn 100 PC
..2 0060 714030004900R A ASSY,BEZEL, LE1718 ROHS 100 PC
...3 0010 501010204900R A BEZEL,FRONT, LE1718 ROHS 100 PC
...3 0020 501030202600R A BUTTON,POWER KEY, LE1918 ROHS 100 PC
...3 0030 501030202500R A BUTTON,FUNCTION KEY, LE1918 ROHS 100 PC
...3 0040 501120102000R A LENS, LE1918 ROHS 100 PC
..2 0070 501020206710R A COVER,BACK,W/O DVI, LE1718 ROHS 100 PC
.1 0130 453070800210R A PWR CORD 16A/250V BLK 6FT VDE,H05VV-F 3G 100 PC
.1 0140 453010100150R A CABLE,D-SUB 15P MALE 6FT BLACK,SZ4120955 100 PC
.1 0150 453030300120R A CABLE,AUDIO 1P 6FT BLACK/GREEN CP03B06P0 100 PC
.1 0160 506038002900R A CARDBOARD,L1050xW1050xT7mm, LE1922 1.250 PC
.1 0170 506431001000R B FILM,PROTECTION,PRINTED(E),LE1701 100 PC

30

Acer Service Manual

Attachment 2- Schematic

31

Acer Service Manual

32

Acer Service Manual

33

Acer Service Manual

34

Acer Service Manual

35

Acer Service Manual

36

Acer Service Manual

37

Acer Service Manual

38

Acer Service Manual

39

Acer Service Manual

Attachment 3- PCB Layout

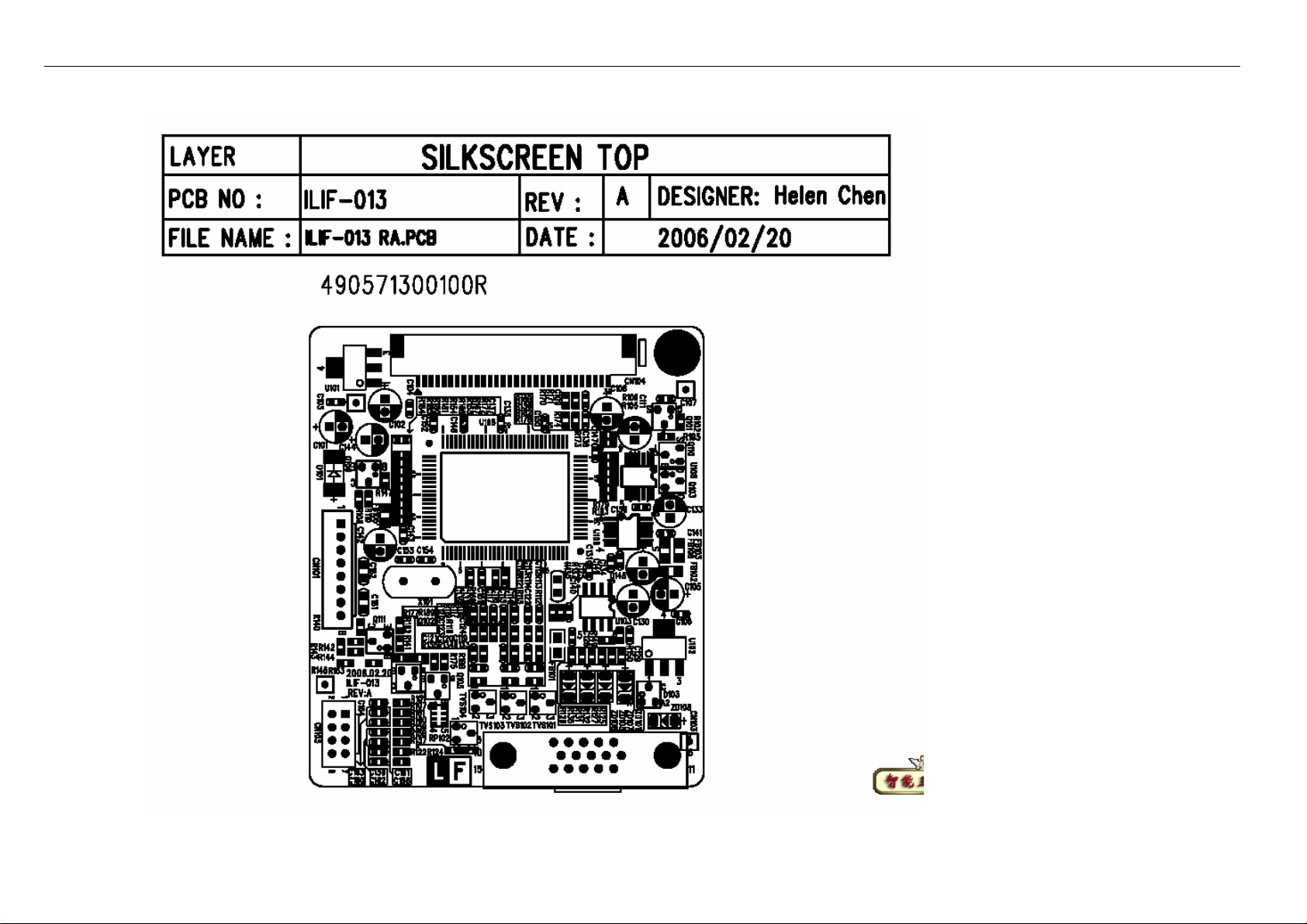

40
