Chapter 1

Monitor Feature

INTRODUCTION

Scope

This specification defines the requirements for the 17” MICRO-PROCESSOR based Multi-mode

supported high resolution color LCD monitor. This monitor can be directly connected to general 15

pin D-sub VGA connector and eliminates the requirement of optional special display card. It also

supports VESA DPMS power management and plug & play function. There is a build-in stereo

audio amplifier with volume control to drive a pair of speakers.

Description

The LCD monitor is designed with the latest LCD technology to provide a performance oriented product with no

radiation. This will alleviate the growing health concerns. It is also a space saving design, allowing more desktop space,

and comparing to the traditional CRT monitor, it consumes less power and gets less weight in addition MTBF target is

20k hours or more.

Comparison Chart of AA677

Panel

Signal Interface DSUB
Sync Type for analog
input

Color Temp user adjust

DDC
Speaker 0.5W+0.5W
Headphone Jack NO
Microphone Jack No
USB Hub Not support
Tilt / Swivel Yes / No
Height Adjust

AA677

Normal 17” panel

LG HT17E01-A5

TOPPOLY TD170WGCB2

Separate / compatible /

Support

DDC2B

Option

- 8 -

ELECTRICAL REQUIREMENTS

Standard Test Conditions

All tests shall be performed under the following conditions, unless otherwise specified.

Ambient light

Viewing distance

Warrn up time

All specifications : 30 minutes

Fully functional : 5 seconds

Measuring Equipment

Connected to the monitor under test.

Minolta CA100 photometer, or equivalent

Control settings

User brightness control : Maximum (unless otherwise specified )

User contrast control: Typical (unless otherwise specified )

User red/white balance,

Green/white balance and

Blue/white balance control : In the center (unless otherwise specified )

: 225 lux

: 50 cm in front of LCD panel

: Chroma 2250 signal generator or equivalent, directly

Power input

Ambient temperature

Analog input mode

: 110Vac or 230Vac

: 20 ± 5 ˚C ( 68 ± 9 ˚ F)

: 1280 x1024 /60 Hz

MEASUREMENT SYSTEMS

The units of measure stated in this document are listed below:

1 gamma = 1 nano tesla

1 tesla = 10,000 gauss

cm = in x 2.54

lb = kg x 2.2

degrees F = [°C x 1.8] + 32

degrees C = [°F - 32]/1.8

u' = 4x/(-2x + 12y + 3)

v' = 9y/(-2x + 12y + 3)

x = (27u'/4)/[(9u'/2) - 12v' + 9]

y = (3v')/[(9u'/2) - 12v' + 9]

nits = cd/(m2) = Ft-L x 3.426

lux = foot-candle x 10.76

- 9 -

LCD monitor General specification

Panel Type: 17 “ active matrix color TFT LCD

1). LG HT17E01-A05

2). Toppoly TD1402

Display size: 37.92mm (H) × 270.34mm(V)

Display mode: VGA 720 × 400 (70 Hz)

VGA 640 × 480 (60/66/70/72/75 Hz)

SVGA 800 × 600 (60/70/72/75 Hz)

XGA 1024 × 768 (60/70/75 Hz)

SXGA 1280 × 1024 (60/70/75 Hz) standard resolution

Pixel pitch: 0.264mm(H) × 0.264mm(V)

Display Dot: 1280 x (RGB) × 1024

Pixel Clock: 25.2 – 135.0MHz

Contrast ratio:

Brightness: LG:250, TOPPOLY 260(typical)

Response time (Tr/Tf): LG(16), TOPPOLY (12)

Display color: 16.2M(6 bit color+FRC)

Viewing angle: LG L / R ≧ 70 / ≧ 70 (≧ 140 degrees horizontal typical)

U / D ≧ 60 / ≧ 60(≧ 120 degrees vertical typical)

TOPPOLY L / R ≧ 75 / ≧ 75

U / D ≧ 75 / ≧ 60

Luminance Uniformity: > 75 % (typical)

Pc interface: 1).Video: RGB analog 0.7V peak to peak

Sync: TTL positive or negative

Signal connector: 15 pin Mini D type, (standard VGA video)

3.5 mm stereo audio jack (Audio) (For AR577 only)

Audio power: 0.5Wrms + 0.5Wrms (300Hz – 10kHz (S.P.L. – 10 dB))(AA677 only)

θ

= 0˚ LG 450 : 1 , TOPPOLY 450 :1

Front control: power on/off with LED select adjustment (+,-)

Interface frequency

Horizontal Frequency 24KHz --80KHz

Vertical Frequency 49Hz ------75Hz

Plug & play: Support VESA DDC2B functions

Power Input voltage: Single phase, 50/60HZ, 100 VAC to 240VAC ±10%

Total output power: 40 Watt max.

- 10 -

LCD Panel Specification

LCD Panel Model (LG LT17E01-A05)

• Display Type active matrix color TFT LCD

• Resolution 1280x1024 pixels

• Display Dot 1280x (RGB) x 1024

• Display Area 337.92mm(H) x 270.34mm(V)

• Pixel Pitch 0.264mm(H) x 0.264mm(V)

• Display Color 16M (6 bite color+FRC)

• Lamp Voltage 650 Vrms (typ)

• Lamp Current 6.5 mArms (typ)

• Weight 1890g (typ)

• Optical Specifications

= 6.5mA (RMS) Ta = 25 ± 2°C VDD = 5V FV = 60Hz F

I

L

ITEM Symbol Condition MIN. TYP. MAX. UNIT

Contrast Ratio

(Center of screen)

Response

Time at Ta

Luminance of white

(Center of screen)

Color

Chromaticity

(CIE)

CR

Rising T

Falling T

Red

Green

Blue

White

WX 0.283 0.313 0.343

W

R

F

Y

L

R

X

R

Y

G

X

G

0.581 0.611 0.641

Y

BX 0.117 0.147 0.177

B

0.038 0.068 0.098

Y

Y

θL

φ=0,

θ=0

Normal

Viewing

Angle

350

- 16 -

-

0.611 0.641 0.671

0.312 0.342 0.372

0.262 0.292 0.322

0.299 0.329 0.359

- 70 -

430

250

= 54MHz

DCLK

-

(total)

msec

-

cd/m

2

Viewing

Angle

Hori.

Vert.

Brightness Uniformity B

Flicker F - - 5 %

Cross talk C

θ

φ

φ

R

H

L

UNI

T

CR≥10

- 70 -

- 60 -

- 60 -

Degrees

- - 1.7

- - 2.0 %

- 11 -

LCD Panel Model (ToppolyTD170WGCB2)

• Display Type active matrix color TFT LCD

• Resolution 1280x1024 pixels

• Display Dot 1280x (RGB) x 1024

• Display Area 337.92mm(H) x 270.34mm(V)

• Pixel Pitch 0.264mm(H) x 0.264mm(V)

• Display Color 16M (6 bite color+FRC)

• Lamp Voltage 655 Vrms (typ)

• Lamp Current 7 mArms (typ)

• Weight 1850g (typ)

• Optical Specifications

= 7mA (RMS) Ta = 25 ± 2°C VDD = 5V FV = 75Hz F

I

L

Item Symbol Condition Min. Typ. Max. Unit

65 75 -

65 75 -

65 75 -

50 60 -

300 450 -

- 4 5

- 12 15

Viewing Angle

Contrast Ratio

(Center point)

Response time

Luminance of White

(Center point)

Color

Chromaticity

(CIE1931)

Hor.

Ver.

CR

Rising T

Falling T

Wx 0.622 0.652 0.682

White

Wy 0.303 0.333 0.363

Red

Green

θL

θ

R

θH

θ

L

R

F

YL 200 260 -

Rx 0.247 0.277 0.307

Ry 0.599 0.629 0.659

Gx 0.111 0.141 0.171

Gy 0.024 0.054 0.084

CR=10 At

center point

θ

= 0˚

θ=0,

φ=0

Normal

Viewing

Angle

= 135MHz

DCLK

degree

2

cd/m

Blue

9 Points White Variation

Cross Talk CT

Bx 0.28 0.31 0.34

By 0.30 0.33 0.36

δ

L

0.7 0.8 -

- - 2.0 %

- 12 -

Note 1) Definition of Viewing Angle: Viewing angle range (10≤CR)

Note 2) Definition of Contrast Ratio (CR): Ratio of gray max(Gmax),gray min(Gmin) at the center point of

panel.

Luminance with all pixels white (Gmax)

CR= 

Luminance with all pixels black (Gmin)

Note 3) Definition of Response time: Sum of T

, TF

R

- 13 -

Note 4) After stabilizing and leaving the panel alone at a given temperature for 30 min, the measurement

should be executed .Measurement should be executed n a stable, windless ,and dark room.30 min

after lighting the back-light. This should be measured in the center of screen. Dual lamp

current :13.0mA(6.5mA x2)(Refer to the note(1) in the page 14 for more information ).

Environment condition :Ta=25±2°C

Optical characteristics measurement setup

- 14 -

Notes 5) Definition of Luminance of White : measure the luminance of white at center point.

Notes 6)Definition of 5 points brightness uniformity (Measuring points: Refer to the Note 5)

Bmax

B

= 

UNI

Bmin

Bmax: Maximum brightness

Bmin: Minimum brightness

Notes 7) Definition of Flicker level

Flicker Voltage

pp

F =  x 100 %

LMD Voltage

dc

♦ One maximum value of three estimated values.

♦ For this test ,an LMD(Light Measurement Device)is needed with adequate response time to track any

visible rate flicker component and with a voltage level output proportional

To luminance intensity.

♦ Test Pattern: For dot inversion Driving(Gray levels of foreground dots on the test panel

Are G22,G32,and G45)

♦ Test Point :Center point of the display area

- 15 -

Note 8) Definition of Crosstalk (Refer to the VESA STD)

The calculation for shadowing is made from the 2 luminance measurements Gbkg and Lsh, as follows:

Lmax -Lmin

C

T

=  x100 %

Lmin

Where Lmax is the larger value of Gbkg or Lsh , and Lmin is the smaller of the two.

♦ To determine background and foreground levels (colors),first set the background to any gray scale or

color level suitable for shadowing determination.(Note that it may take several iterations of adjusting

background level and box levels to determine the proper value for the background .Next display the box

levels to determine the proper value for the background level. Look for shadowing in any direction from box E.

Independently vary the gray level (or color) of the background and box E until the worst case shadowing is

observed. This defines the background (Gbkg) and foreground (Gfg) levels to be maintained for the

remainder of the test.

♦ One point only (the target) will be measured. To determine that point proceed as follows

Using the background and foreground gray levels of step1 (Gbkg and Gfg). Turn on each box at a time. Look

for the case with the worst shadowing. The box causing the worst case is the shadowing source, or Bsrc. Use

Bsrc and the box opposite from it that lies directly in the shadow path. That is the target box, or Btgt. Note that

box Eight be either Bsrc or Btgt, depending on the shadowing conditions, but typically Bsrc and Btgt will be a

pair of opposite boxes, A&C or B&D. Btgt will only be displayed for aligning the LMD. It will be turned off for

the actual measurement.

♦ The target box point (Btgt) will be measured with the source box (Bsrc) turned on then off. (Btgt is for

alignment purpose only) Display the background only at level Gbkg. Display Btgt determined in step 2 above.

Using the correct distance, angle, and measurement aperture, align the LMD to the center of the Btgt. Turn

off Btgt. With Gbkg set to its proper level, measure the luminance (or color). Next,turn on the source box Bsrc.

Again measure at the center point of Btgt (without Btgt present.). In this case the LMD will be measuring the

shadowing level, Lsh.

- 16 -

Panel Relative Humidity

Input Signals

Video input

• Type Analog R, G, B.

• Input Impedance 75 ohm +/- 2%

• Polarity Positive

• Amplitude 0 - 0.7 +/- 0.05 Vp

• Display Color same as LCD panel

Sync input

• Signal separate horizontal and vertical sync, or composite sync

• Polarity positive and negative.

Interface frequency

The following frequency range is generalized by supported timing. If the entered

JP777-E02

which are TTL compatible

mode does not match the supported timing the display optimization will not be

assured.

• Horizontal Frequency 24KHz --80KHz

• Vertical Frequency 49Hz -------75Hz

- 17 -

Supported Timing

TIMING
FV(HZ) POLARITY (DOT/LINE) (DOT/LINE) WIDTH PORCH PORCH FOREQ.(MHZ

(DOT/LINE) (DOT/LINE) (DOT/LINE)
640x350 31.469 + 800 640 96 16 48 25.175
VGA-350 70.087 – 449 350 2 37 60
640x400 24.83 – 848 640 64 64 80 21.05
NEC PC9801 56.42 – 440 400 8 7 25
640x400 31.469 – 800 640 96 16 48 25.175
VGA-GRAPH 70.087 + 449 400 2 12 35
640x400 31.5 – 800 640 64 16 80 25.197
NEC PC9821 70.15 – 449 400 2 13 34
640X480 31.469 - 800 640 96 16 48 25.175
VESA-PAL 50.030 - 629 480 2 62 85
640x480 31.469 – 800 640 96 16 48 25.175
VGA-480 59.94 – 525 480 2 10 33
640x480 35.00 – 864 640 64 64 96 30.24
APPLE MAC-480 66.67 – 525 480 3 3 39
640x480 37.861 – 832 640 40 16 120 31.5
VESA-480-72Hz 72.809 – 520 480 3 1 20
640x480 37.5 – 840 640 64 16 120 31.5
VESA-480-75Hz 75 – 500 480 3 1 16
720x400 31.469 – 900 720 108 18 54 28.322
VGA-400-TEXT 70.087 + 449 400 2 12 35
832x624 49.725 – 1152 832 64 32 224 57.2832
APPLE MAC-800 74.55 – 667 624 3 1 39
800x600 35.156 + 1024 800 72 24 128 36
SVGA 56.25 + 625 600 2 1 22
800x600 37.879 + 1056 800 128 40 88 40
VESA-600-60Hz 60.317 + 628 600 4 1 23
800x600 48.077 + 1040 800 120 56 64 50
VESA-600-72Hz 72.188 + 666 600 6 37 23
800x600 46.875 + 1056 800 80 16 160 49.5
VESA-600-75Hz 75 + 625 600 3 1 21
1024x768 48.363 – 1344 1024 136 24 160 65
XGA 60.004 – 806 768 6 3 29
1024x768 53.964 + 1328 1024 176 16 112 71.664
COMPAQ-XGA 66.132 + 816 768 4 8 36
1024x768 56.476 – 1328 1024 136 24 144 75
VESA-768-70Hz 70.069 – 806 768 6 3 29
1024x768 60.023 + 1312 1024 96 16 176 78.75
VESA-768-75Hz 75.029 + 800 768 3 1 28
1024x768 60.24 – 1328 1024 96 32 176 80
APPLE MAC-768 75.02 – 803 768 3 3 29
1152x864 54.054 + 1480 1152 96 40 192 80
(60Hz) 59.270 + 912 864 3 13 32
1152x864 63.851 + 1480 1152 96 32 200 94.499
(70Hz) 70.012 + 912 864 3 1 44
1152x864 67.50 + 1600 1152 128 64 256 108.00
(75Hz) 75.00 + 900 864 2 2 32
1280x960 60.00 + 1800 1280 112 96 312 108.00
(60Hz) 60.00 + 1000 960 3 1 36
1280x960 70.00 + 1800 1280 112 96 312 126.00
(70Hz) 70.00 + 1000 960 3 1 36
1280x960 75.00 + 1800 1280 112 96 312 135.00
(75Hz) 75.00 + 1000 960 3 1 36
1280x1024 64 + 1688 1280 112 48 248 108
VESA-1024-60H
z
1280x1024 80 + 1688 1280 144 16 248 135
VESA-1024-75H
z

FH(KHZ) SYNC TOTAL ACTIVE SYNC FRONT BACK PIXEL

)

60 + 1066 1024 3 1 38

75 + 1066 1024 3 1 38

Note: Mode 640x350, 640x400 and 720x400 will locate on middle position but cannot be expanded to full screen

on vertical direction

- 18 -

Support Modes

There will be 28 total support modes to accommodate the above mode and other video modes within the
frequency range of the monitor.

85Hz refresh rate Support

Monitor should display 85Hz refresh rate mode as emergency mode.

Monitor should display “Out of Range” warning menu at this mode.

Video input Connector

Analog Video input Connector: 15pins mini D-Sub

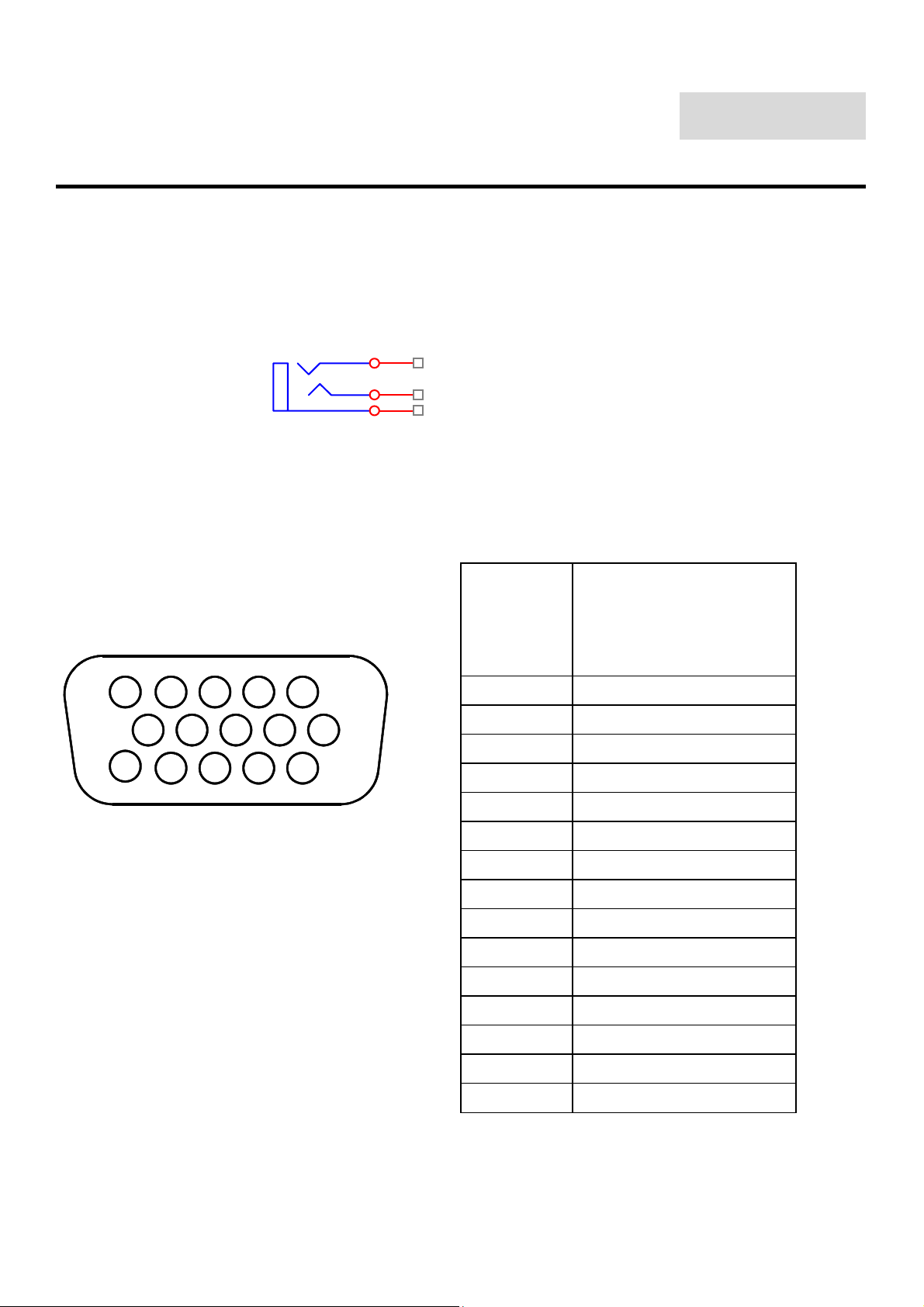

Table 2.4.5. Pin assignment for D-sub connector

PIN NO. Separate Sync

1 RED VIDEO

2 GREEN VIDEO

3 BLUE VIDEO

4 GROUND

5 GROUND

6 RED GROUND

7 GREEN GROUND

8 BLUE GROUND

9 PC5V (+5V DDC)

10 CABLE DETECTION

11 GROUND

12 SDA

13 H.SYNC

14 V.SYNC

15 SCL

Color of plastic parts: Blue (PC99)

5 1

10

15

D-sub connector

6

11

- 19 -

Monitor Block Diagram

The LCD monitor will contain an main board, an inverter/ power board, key board and internal adapter which house the

flat panel control logic, brightness control logic and DDC.

The inverter board will drive the backlight of panel and the DC-DC conversion.

Power board

(include: AC/DC,inverter)

- 20 -

BLOCK DIAGRAM

System Block Diagram

24LC02B

LV D S Si gn a ls

Including ADC,

Scaling LVDS

And OSD function

TPA6019 Audio

MCU

24LC16
(24LC02B)

Power Amplifier

with DC volume

control

- 21 -

Monitor board layout

CN5

CN3

CM6

J502

J501

LABEL Component LABEL Component

U1 24LVC2B CN1 D-SVB 15 PIN

U3 TSU16AJ CN6 E&T 4501-19

U6 24LC16B(24LVO2B) CN3 E&T 4501-09

U5 MX810 J502 E&T 4501-05

U7 APM4461 J501 E&T 4501-03

U4 PMX10E8D50I CN5 P-TWO AFN300 30P

U8 APL1085-3.3 CE

U9 APL1117-2.5 VC

U501 ATPA6019

- 22 -

Software flow chart

- 23 -

Software Flow Chart

1. MCU initialize

2. Is the eeprom blank?

3. Program the eeprom by default values.

4. Get the PWM value of brightness from eeprom.

5. Is the power key pressed?

6. Clear all global flags.

7. Are the “<” and “>” (Adjust key) and power key.

8. Enter factory mode

9. Save the power key status into eeprom.

Turn on the LED and set it to green color.

Scalar initialize.

10. In standby mode?

11. Update the lift time of back light.

12. Check the analog port, are there any signals coming?

13. Does the scalar send out a interrupt request?

14. Wake up the scalar

15. Are there any signal coming from analog port?

16. Display “Cable Not Connected” message, and go into standby mode after the message disappear.

17. Program the scalar to be able to show the coming mode.

18. Process the OSD display.

19. Read the key board. Is the power key pressed?

- 24 -

General Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor.

By changing these settings, the picture can be adjusted to your personal preferences.

z The power cord should be connected.

z Connect the video cable from the monitor to the video card.

z Press the power button to turn on the monitor position. The power indicator will light up.

AA677

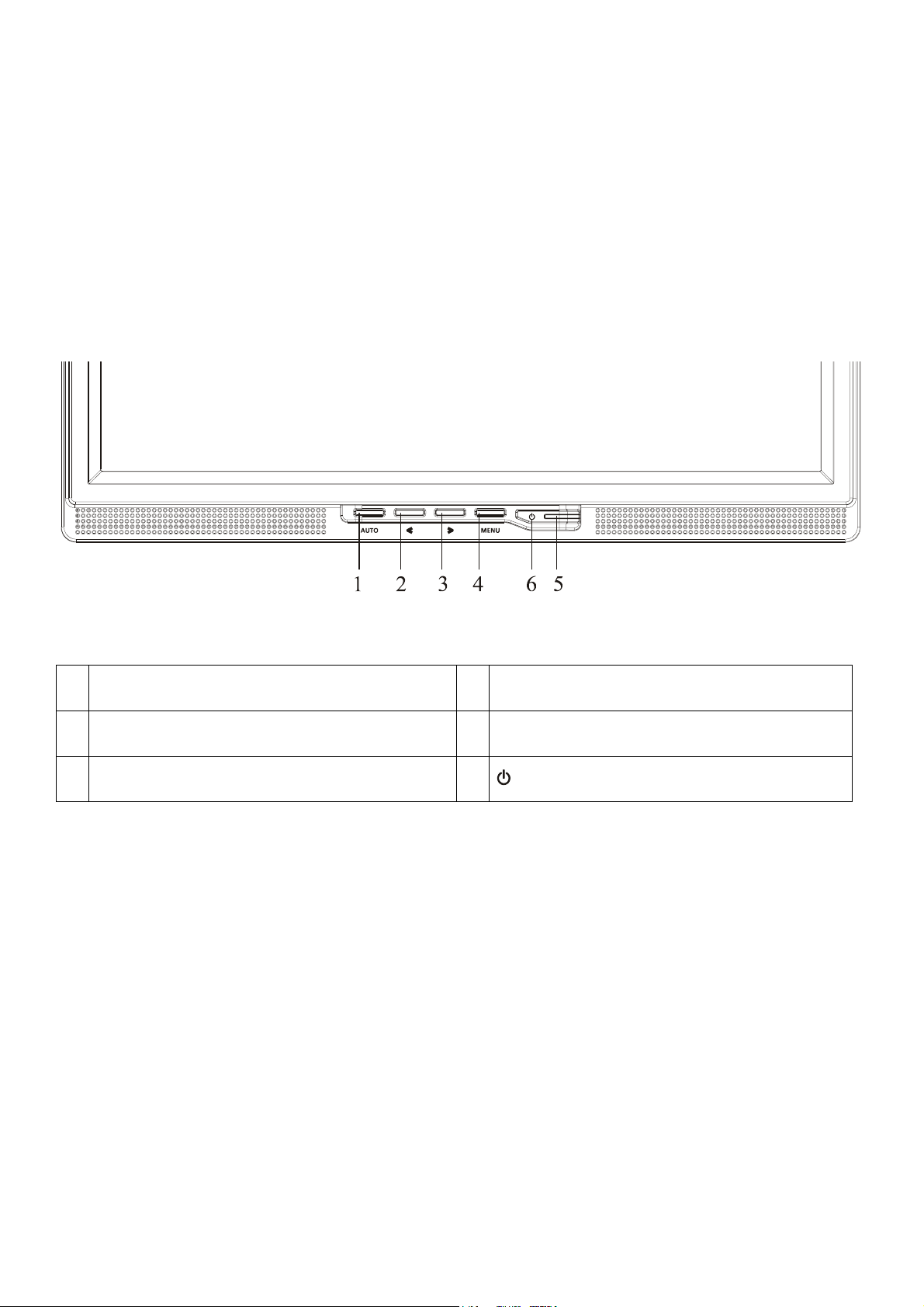

External Controls

1 Auto Adjust Key/Exit 4 MENU/ENTER

2 </ Volume 5 LED

3 >/ Volume 6

/ Power Key

- 25 -

System Installation

Connecting the Display

z Power off your computer.

z Connect one end of the signal cable to the LCD Monitor’s VGA port.

z Connect the other end of the signal cable to the VGA port on your PC.

z Make sure connections are secure.

Connecting the AC Power

z Connect the power cord to the LCD Monitor.

z Connect the power cord to an AC power source.

Connecting the Audio Cable (For AL1717Ams)

z Connect the audio cable to the " LINE OUT " jack on your PC's audio card or to the front panel's “AUDIO OUT” jack

of your CD ROM drive.

z Connect the other end of the audio cable to the LCD Monitor's " AUDIO IN " jack.

- 26 -

Chapter 2

Operating Instructions

CONTROLS

Control panel (monitor front panel)

1. Power ON/OFF switch, push to ON and push to OFF. (Toggle switch)

2. Power LED will be blue when monitor is on; be amber when in power saving mode.

3. Menu.

4. Adjust increase (Function select).

Adjust decrease (Function select).

5. Auto adjustment Buttons.

Note:

1. Press button 4 (plus +) or (minus -) at the same time can activate “Volume Adjustment”.

2. When OSD Menu is off, press button 5 (auto) at the same time can activate “Auto Adjustment” immediately.

3. When into Factory mode press 4 (plus +),(minus -) and 1 (power) together 2 seconds at same time.

5. When into Burning mode press 5 (menus), 1 (power) together 2 second at same time.

- 27 -

Main OSD Menu:

Outline:

The description for control function :

Main Menu

Icon

Sub Menu

Item

Contrast

Brightness

Focus

Clock

H. Position

V. P o sit i on

Sub Menu

Icon

Description Adjustment

Contrast from Digital-register. 0-100 Recall Cool

Backlight Adjustment 0-100 Recall Cool

Adjust Picture Phase to reduce

Horizontal-Line noise

Adjust picture Clock to reduce

Vertical-Line noise.

Adjust the horizontal position of the

picture.

Adjust the verticalposition of the

Reset Value

Range

Contrast Value

Brightness Value

0-100 Do Auto Config

0-100 Do Auto Config

0-100 Do Auto Config

0-100 Do Auto Config

picture.

Warm N/A Recall Warm Color Temperature

from EEPROM.

Cool N/A Recall Cool Color Temperature from

EEPROM.

- 28 -

N/A

N/A

The Color

Temperature will be

set to Cool.

User / Red

Red Gain from Digital-register. 0-100 100

User / Green

User / Blue

English N/A Set OSD display language to

繁體中文

Deutsch N/A Set OSD display language to

Français N/A Set OSD display language to

Español N/A Set OSD display language to Spain. N/A

Italiano N/A Set OSD display language to Italian. N/A

简体中文

N/A Set OSD display language to

N/A Set OSD display language to

Green Gain Digital-register. 0-100 100

Blue Gain from Digital-register. 0-100 100

English.

Tranditional Chinese.

German.

French.

Simplified Chinese.

N/A

N/A

N/A

N/A

N/A

The Language will

be set to English.

日本語

H. Position

V. P o sit i on

OSD Timeout

Auto Config N/A Auto Adjust the H/V Position, Focus

Information N/A Show the resolution, H/V frequency

Reset N/A Clear each old status of

N/A Set OSD display language to

Japanese.

Adjust the horizontal position of the

OSD.

Adjust the verticalposition of the

OSD.

Adjust the OSD timeout. 10-120 10

and Clock of picture.

and input port of current iput timing.

Auto-configuration and set the color

temperature to Cool.

N/A

0-100 50

0-100 50

N/A N/A

N/A N/A

N/A N/A

Exit N/A Exit OSD N/A N/A

- 29 -

Hot-Key Menu:

Outline:

The description for Hot-Key function :

Item Operation Icon

Volume When the OSD is closed, press

Left or Right button will be Volume

Hot-Key Function

OSD Message:

Outline:

Description

Volume of Audio adjustment. The

Audio will be Mute when volume=0.

Adjustment

Range

0-100 50

Reset

Val u e

The description for OSD Message :

Item Description

Auto Config

Please Wait

Input Not

Supported

Cable Not

Connected

No Signal When the video cable is connected, but the is no active signal input, will show this message, then

When User Press Hot-Key “Auto”, will show this message, and the monitor do the auto config

function.

When the Hsync Frequency, Vsync Frequency or Resolution is out of the monitor support range,

will show this message. This message will be flying.

When the video cable is not connected, will show this message. This message will be flying.

enter power saving.

- 30 -

LOGO:

When the monitor is power on, the LOGO will be showed in the center.

Item of Factory menu

Vendor may customize design and add adjustment items Factory menu as far as all required items are included.

1) Bright

Adjust Brightness and Contrast value to Max.

2) Auto Balance

Adjust each R, G, B contrast (gain) and offset.

Method of auto adjust is depends on hardware.

Adjusted value of R, G, B gain shall be used for initial value of Contrast in user menu.

All value shall be adjustable manually.

This function shall be located in 3. tag of Factory menu.

3) Factory color temp data edit

Following data for color temp shall be editable manually.

-color temp default preset No.

- 31 -

Plug and play

Plug & play DDC2B feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor

to inform the host system of its identity and, depending on the level of DDC used, communicate additional information

about its display capabilities. The communication channel is defined in two levels, DDC2B.

The DDC2Bis a bidirectional data channel based on the I

DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER

FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association(VESA) and/or

the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees (NUTEK). This

feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal

present. When there is no video input signal this monitor, following a time-out period, will automatically switch to an

OFF mode. This reduces the monitor’s internal power supply consumption. After the video input signal is restored, full

2

C protocol. The host can request EDID information over the

power is restored and the display is automatically redrawn. The appearance is similar to a “Screen Saver” feature

except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse.

Using The Right Power Cord

The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL listed

and CSA labeled. The voltage rating for the power cord shall be 125 volt AC.

Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of a

minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type

attachment plug, rated 10A, 250V,CEE-22 male configuration. The other end terminates with a molded-on type

connector body, rated 10A, 250V, having standard CEE-22 female configuration.

Please note that power supply card needs to use VDE 0602, 0625, 0821 approval power cord in European counties.

- 32 -

White Color Temperature

White color temperature is 4 preset as 9300, 7500,6500 and User,

Default value of user color should be user which is maximum setting for panel.

Target of color setting

Color

Tem p.

x y u’ v’

9300K 0.283 0.297 +0.03 0.189 0.446 　u’v’ < 0.01*

6500K 0.313 0.329 +0.03 0.198 0.469

User - - - - -

*) TCO’0X A.2.6.1 requirement

User should follow “Microsoft Windows Color Quality Specification for Liquid Crystal Display OEM’s”.

(http://www.microsoft.com/hwdev/tech/color/ColorTest.asp)

Color Coordinate Tolerance Color Coordinate Tolerance

　u’v’ <

0.01*

Power Management

1. Meet VESA DPMS proposal

2. Power Consumption

Meet VESA DPMS Proposal

On mode 48Wmax Green
DPMS 2Wmax Amber
DC power off 1Wmax Dark

disconnection 2Wmax

1. Amber (stand-by; suspend; off mode)

2. Dark (DC power off)

 Measured from AC input end of AC power and don’t include audio at power-saving state

 The stand-by, suspend and off mode recover to on mode about 3 seconds.

Plug & Play (EDID)

The monitor will be capable of sending a VESA standardized EDID file through the DDC (pins 12, 15

of the VGA connector).

Audio Technical specification

General Description:

Output power : 1W + 1W maximum

Total harmonic distortion : Less than 1 % (except speakers distortion)

Input signal sensitivity : 0.5 Vrms for full output

Input impedance : 47 Kohm +/- 5 %

Frequency response range : 20Hz – 20kHz (except speakers response)

Difference of L and R output : Less than 2 dB

- 33 -

Electrical characteristics (Tamb=25°)

Audio amplifier(USE Panasonic VP-7723A Audio Analyzor. )

Item Audio Input Freq.

Min. Typ. Max.

Input Voltage(V) - 0.5Vm

Input Current(m A) - 500 800

Audio Voltage Gain 500m Vrms 1KHz - - 6 d B Volume Max.,load 4 Ω

Frequency Response 500m Vrms 300Hz-20KHz -10dB - +10d B Volume Max.,load 4 Ω

Signal to Noise ratio 500m Vrms 1KHz - - -40dB Volume Max.,load 4 Ω

Total harmonic distortion 500m Vrms 1KHz 1% except speakers distortion

Cross talk 500m Vrms 1KHz - - -30dB Volume Max.,load 4 Ω

Output Watt. 500m Vrms 1KHz - - 0.5W Volume Max.,load 4 Ω

Volume Control - - - Analog

Spec.

-

s

Comment

Speakers

Maximum power : 2 W per speaker(max)

Impedance : 4 ohm +/- 15 % @ 1kHz 1.0Hz

Frequency response range : 300 Hz – 20 kHz (S.P.L. – 10 dB)

Total harmonic distortion : Less than 5 % @ 0.125 W 1kHz

- 34 -

Chapter 3

Machine Disassembly and Replacement

Vibration and Shock

All testing shall be done in each of three mutually perpendicular axes, referenced to the position of the system

as it is in front of the user (i.e., front-to back, side-to-side, and top-to-bottom).

Non-Operating

The unit should suffer minimal visible cosmetic damage or damage that presents a safety hazard, or impairs

the setup and operation of the system after testing.

Sinusoidal Vibration: 0.75 G zero-to-peak, 10 to 500Hz, 0.5 octave / minute sweep rate. This requires one

sweep, 10 to 500 to 10Hz, along each of the three axes.

2

Random Vibration: 0.008 G

the three axes.

Half Sine Wave Shock: 120 G peak, half sine pulse, 2 ms pulse duration. Testing shall consist of one shock

/Hz, 10 to 500 Hz, nominal 2 GRMS. The test shall be for one hour for each of

in each direction in each axis, for a total of 6 shock inputs.

Square Wave Shock: 40 G peak acceleration, 160 inches / second velocity change. There shall be one

shock in each direction in each axis, for a total of 6 shock inputs.

Package Drop Specification

Listed below are standards of drop heights for monitor product

Product Weight height Specs

<9.1 kg 0.76 m

9.2~18.2 kg 0.66 m

18.3~27.2 Kg 0.61 m

27.3~45.4 Kg 0.46 m

- 35 -

Drop Test Sequence

Drop Order Drop point Drop Times

1 Right Front Bottom Corner 1

2 Right Bottom Edge 1

3 Right Front Edge 1

4 Front Bottom Edge 1

5 Bottom Side 1

6 Top Side 1

7 Front Side 1

8 Back Side 1

9 Left Side 1

10 Right Side 1

Dimension Size and Weight

Dimension size 377 (W) x 389 (H) x 163 (D)

Net Weight 4.5±0.5Kg

Gross Weight 6.5±0.5Kg

- 36 -

Gap Spec.

The gap & step between front bezel and back cover shall be within specification.

Top and Bottom Left and Right

Back cover & Bezel concavity Back cover & Bezel concavity

0.8mm ≤ A ≤ 1.3 mm 0.8mm ≤ A ≤ 1.3 mm

LAA677-E02

Back Cover & Hinge Cover concavity

0.2mm ≤ B ≤ 0.8mm

- 37 -

Base & Neck concavity

0mm ≤ C ≤ 0.8mm

LAA677-E03

LAA677-E04

Top and Bottom Left and Right

Back cover & Bezel step Back cover & Bezel step

0mm ≤ D ≤ 0.8 mm 0mm ≤ D ≤ 0.8 mm

- 38 -

LAA677-E05

LCD Horizontally

The angle between front bezel and LCD unit in bottom side should not large than 1.0mm.

- 39 -

LAA677-E06

The distance of the LCD display unit from left side to right should not large than 4.0mm.

Tilt Base Rotation

Tilt up 15 ± 2°/ down 5 ±2°

Plastic Material

For TCO99

Front Bezel PC+ABS

Back Cover PC+ABS

The Others ABS 94HB

For MPRII

Front Bezel ABS 94V-0

Back Cover ABS 94V-0

The Others ABS 94HB

LAA677-E07

- 40 -

GAP Spec.

Gap between panel with bezel is 0 mm < gap < 1.2 mm

Swivel Title noise spec.

When adjust the monitor angle, the range should be limited between -5º~ +15º and it

should not have any noise.

- 41 -

Machine assembly


DESCRIPTION

Connect the FPC line on panel.

Assemble the chassis onto panel.

Firmly secure the Panel with 4 screws.

AA677

Plug two speakers to put on bezel.

1. Connect the 13P line with VK board.

2. Firmly secure the VK board with 4 screws.

42

Connect speaker wires on VK board.

Connect the bezel with monitor.

AA677

To reverse the monitor.

Assemble the power board onto chassis.

43

AA677

AA677

Firmly secure the power board with 5 screws.

Firmly secure the power cable with screws.

Connect four panel voltage line on power board.

44

1. Assemble the VL board onto chassis.

2. Firmly secure the VlL board with 3 screws.

Firmly secure the VlL board and line with screws.

Connect the FPC on VL board.

Connect the power line on VL board.

Connect the VL-VK line on VL board.

AA677

45

Connect the audio line on power board. (For AR577 only)

AA677

Firmly secure the line and chassis with 4 screws.

Check it.

Put the EMI cover on monitor..

Put the screws on EMI cover with monitor.

46

Put the screws on EMI cover with monitor.

1. Connect the back cover with monitor.

2. Firmly secure the back cover with 4 screws.

1. Assemble the neck bracket onto neck.

2. Firmly secure the neck bracket with 4 screws.

1. Connect the hinge with neck.

2. Firmly secure the hinge with 3 screws.

1. Assemble the neck with back cover.

2. Firmly secure the neck with 4 screws.

Assemble the base with monitor

47

Chapter 4

Troubleshooting

Main Procedure

Connect all of the

Devices to

AA677

48

Power Circuit and Backlights Troubleshooting

49

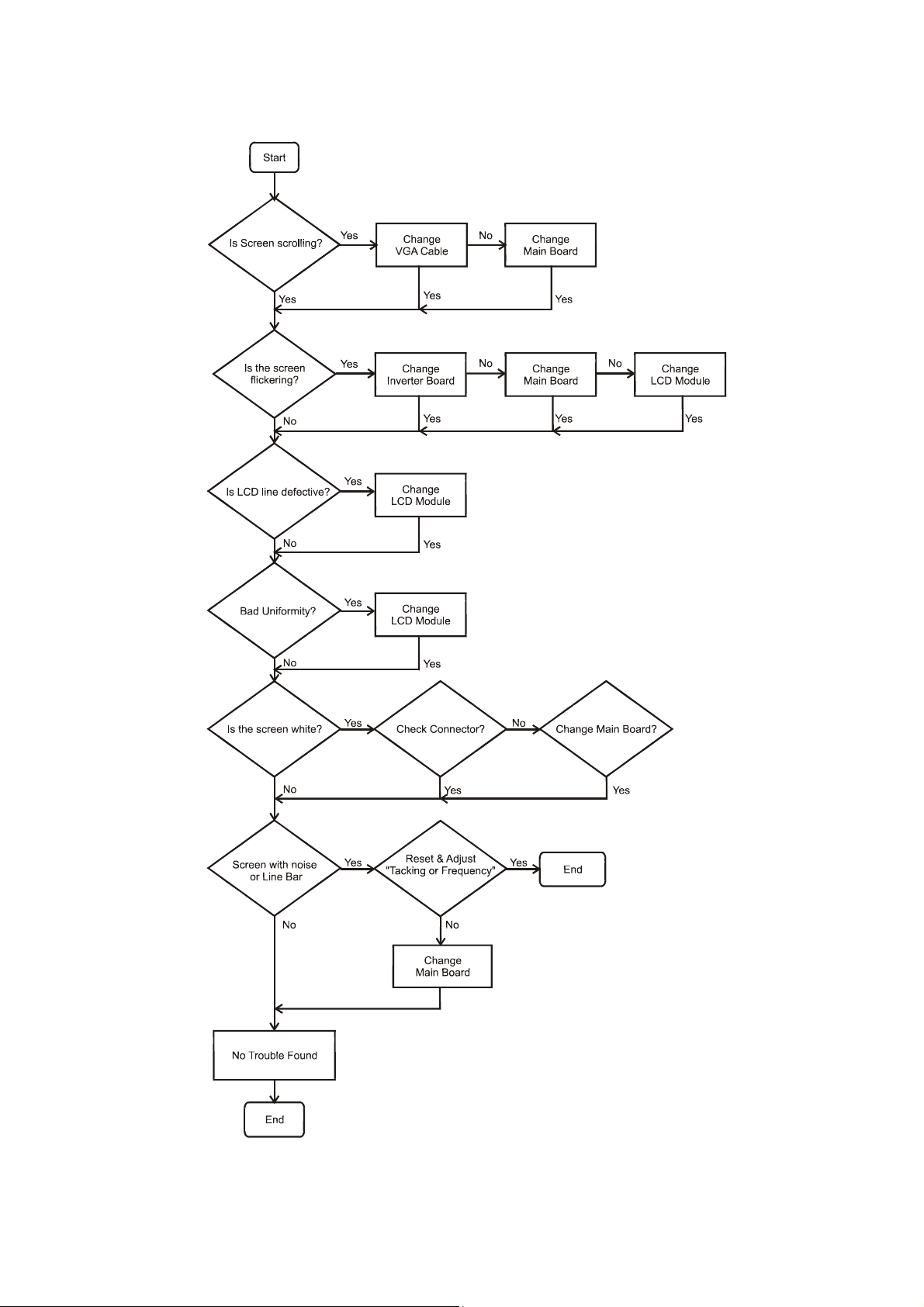

Performance Troubleshooting

50

Function Troubleshooting

51

Chapter 5

Connector Information

Phonejack stereo

PIN1. right : CEE22 typed connector

PIN2. Left

PIN3. Gnd : Line-in receptacle

J1

1

2
3

PHONEJACK STEREO

Video input Connector

Analog Video input Connector: 15pins mini D-Sub

Table 2.4.5. Pin assignment for D-sub connector

5 1

10

15

6

11

Separate Sync

PIN NO.

1 RED VIDEO

2 GREEN VIDEO

3 BLUE VIDEO

4 GROUND

5 GROUND

52

6 RED GROUND

7 GREEN GROUND

8 BLUE GROUND

9 PC5V (+5V DDC)

10 CABLE DETECTION

11 GROUND

12 SDA

13 H.SYNC

14 V.SYNC

15 SCL

Chapter 6

FRU (Field Replaceable Unit) list

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of AL1712. Refer to this

chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

NOTE : Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available

on your regional web or channel(http://aicsl.acer.com.tw/spl/

made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED CERVICE PROVIDERS, your

Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts repair and

service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on

how best to dispose it, or follow the rules set by your regional Acer office on how to return it.

). For whatever reasons a part number change is

53

Model: AA677

54

Part list

A. For AA677 (Acer model:AL1717 Ams )

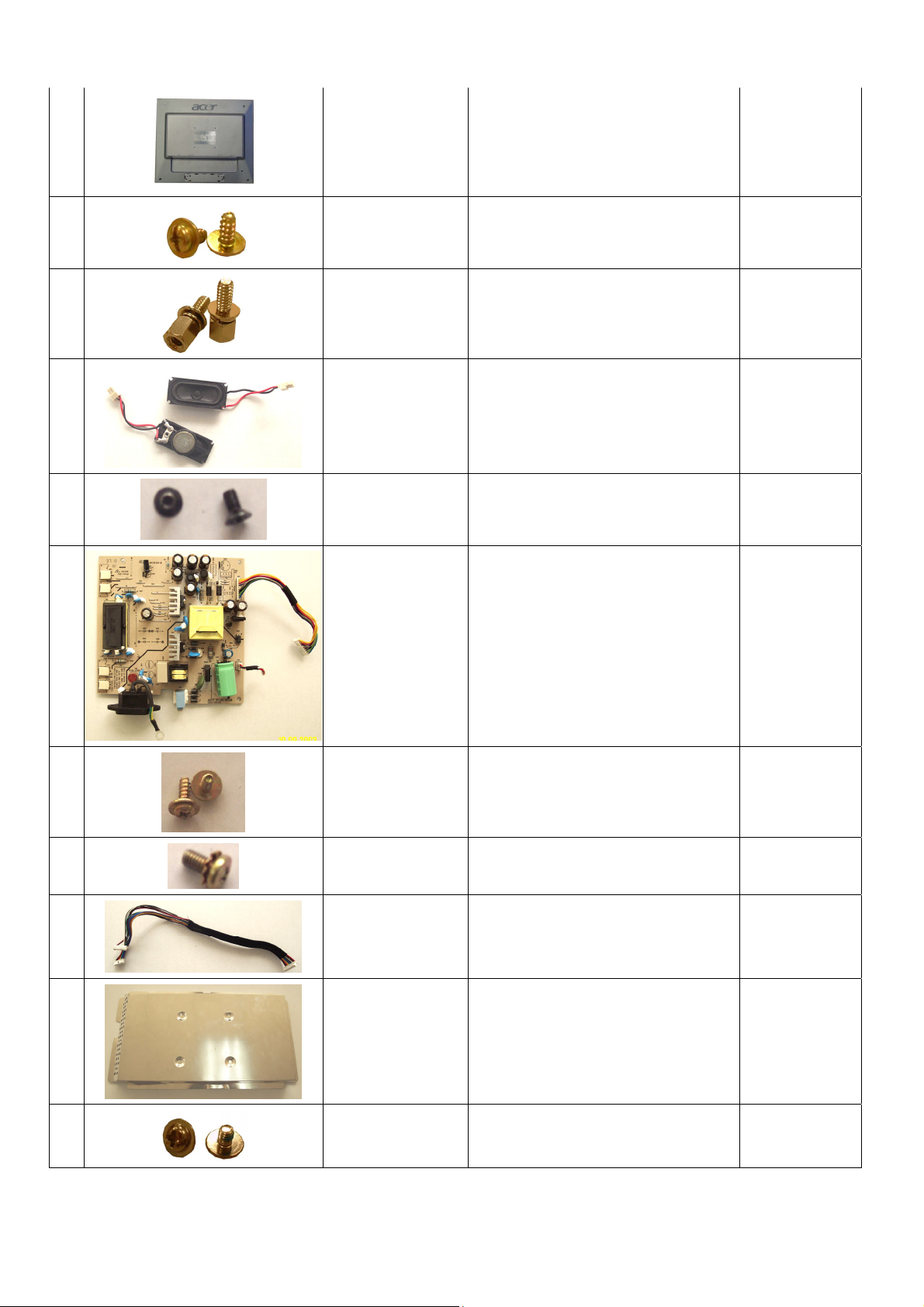

No. Photo Part Name Description Part No.

1

2

3

4

6

Back Cover Screws

BaseASSY(FOOT)

Stand Screws

NECK COVER

NECK BRACKET

M4X0.7+6P-ZK
M4X0.7+6P-ZK(GP)

AA671D(ABS94HB,MBK56)
AA671D(ABS94HB,MBK56)GP

M4X0.7+11P-MC
WASHER DIM 8.0 (GP)

AA6732(ABS94HB MBK56)
AA6732(ABS94HB MBK56)GP

AA6731(SECC 0.8)
AA6731(SECC 0.8)GP

MAA20093300
MAA2009330I

FAAA671D000
FAAA671D00I

MAA7000240I

FAAA6732000
FAAA673200I

ECAA6731000
ECAA673100I

7

8

9

10

11

HINGE ASSY

NECK

SCREWS

AA671E
AA671(GP)

AA6721(ABS94HB MBK56)
AA6721(ABS94HB MBK56)GP

M3X0.5+5I-ZN
M3X0.5+5I-ZN(GP)

ECAA671E000
ECAA671E00I

FAAA6721000
FAAA672100I

MAA00001260
MAA0000126I

Function Board VK-583 LAR577Y 454AAP30001

BACK COVER,
Neck & Neck
Bracket, Chassis &
Bezel

TPP-4.0+10P-ZK
TPP-4.0+10P-ZK(GP)

MAB20074202
MAB2007422I

55

12

Back Cover ASM

AA6714(PC+ABS,MBK56)
AA6714(PC+ABS,MBK56)GP

FAAA6714000
FAAA671400I

13

14

15

16

17

Hinge Screws

Mainboard &
Chassis

TPP-4+12B-MC
TPP-4+12B-MC(GP)

4#40UNCX12.7 PLS-WASHER
4#40UNCX12.7 PLS-WASHER(GP)

Speaker (R/L) 2W 40HM 37.5X17X9.5mm 50mm

POWER SOCKET
&CHASSIS

Power&Inverter
Board

M3x0.5+6F-ZK
M3X0.5+9F-ZK(GP)

VP-768 LAA677

MAB80002401
MAB8000240I

MAAA0019400
MAAA001940I

CG10021V920
CG10021V930

MAA10022007
MAA1002200I

453AC930001

18

19

20

21

22

Key/B & Bezel

TPP2X3+10B-MC
TPP2X3+10B-MC(GP)

MAB800014400
MAB80001440I

POWER BOARD
&CHASSIS(EARTH
)

Function board to
Mainboard cable

EMI

Mainboard and
Power Board
Screws

M4.0X0.7+8BTF-MC
M4.0X0.7+8BTF-MC(GP)

MAA80014400
MAA8001440I

AR577 CTRL-KEY 13P DC020162300

AA678(TIN 0.3t)
AA678(TIN 0.3t)GP

M3X0.5+4C-NI(NL)
M3X0.5+4C-NI(GP)

ECAA6718000
ECAA671800I

MAA70003100
MAA7000310I

56

23

Mainboard VL-731 LAR577Y 461AAI300E1

24

25

26

27

ASM

Main Frame/CHASSIS

Mainboard to LCD
Cable

AA6712(PC+ABS,MCG28+MSV41)
AA6712(PC+ABS,MCG28+MSV41)GP

AA6716(SECC,1mm)
AA6716(SECC,1mm)

JP577 PANEL-CTRL 30P DC020160700

FAAA6712000
FAAA671200I

ECAA6716000
ECAA671600I

LCD Panel(F) HT17E12-200 17”(HYDIS) AC6V0000200

28

57

LCD Panel(B) HT17E12-200 17”(HYDIS) AC6V0000200

POWER/Inverter Board

Description

This specification defined the performance and characteristic of power/inverter board.

It supplies the following outputs :

1). 5Vdc: Logic power.

2). 5Vaudio: Audio power.

3). 15Vinv: Inverter power.

Features

Input Voltage: 100 ~ 240 ±10％Vac

Input Frequency: 47 ~ 63Hz

Input power consumption: Less than 1.2W @ minimum load

Total output power: 40Wmax

Inverter brightness adjustment: Burst mode

Protection function: auto-recovery type

Interface Signals

Input

1. AC Inlet: HUAJIE SA-4S-066 or compatible.

2. J701: SC SCJ-0345-1-X-9 3.6D BLU 3P or compatible.

Output Connector & Pin Assignment:

1. The connecter was pitch 2.0mm

PIN NO. Function Function

1 +5Vaudio Audio power (optional).

2 GND Audio ground

3 GND Ground

4 GND Ground

5 Vbri Brightness control from logical board (0.4V to 3.3V)

6 ---- -----

7 Ven Inverter enable signal from logical board (high active , >3V)

8 +5Vdc +5Vdc supply for logical board

9 +5Vdc +5Vdc supply for logical board

10 +5Vdc +5Vdc supply for logical board

58

2.Inverter-side connecter : SM02B-BHSS-1-TB(JST) for AA677

PIN NO. Function Comment

1 Cth VBLH(High voltage)

2 Ctl VBLL(Low voltage)

Electrical Specification:

AC-DC Electrical specification

Input Specification

No Item Condition Min. Typ. Max. Unit

1 Input Voltage ----- 100 --- 240 Vac

2 Input Frequency ----- 47 --- 63 Hz

3 Input Current ----- --- --- 1.0 Arms

Cold Start @Vin=100Vrms --- 30 A

4 Inrush Current

Cold Start @Vin=240Vrms

5 Hold Up Time @full load & 100Vac input 10 --- --- ms

6 Turn on time Vin =110Vac --- 1.0 --- S

7 Efficiency Full load --- 70 --- %

8 Consumption Vin=240Vac,@ no load --- --- 1 W

---

--- 50 A

0-P

0-P

AC-DC Output Specification

Tolerance Output Current

Output Voltage --- MIN MAX

+5Vdc +5 /-3 % 0.05A 1.5A 4.85~5.25V dc

+15Vinv +35/-5 % 0A 2A 20~14.3Vdc

+5Vaudio

Ripple --- 1%

Noise

Dynamic Load

Regulation

Over / Under

1. Measured at DC output terminals
which are paralleled with a 10uf
Ecap &0.1uf Ceramic cap.

2.Band width is limited within

20MHz.

50~100% or 100~50% load change

of any DC output @50% duty of

1MHz (min.)

@ Power line on/off ---

*+5Vdc load regulation test: the +15Vinv loading at 2.0A

±5%

0A 0.6A 4.75~5.25Vdc

--- 3%

---

±5%

±5%

Voltage Tolerance

+5Vdc:50mVp-p

+15Vinv:150mVp-p

+5Vdc:150mVp-p

+15Vinv:450mVp-p

---

---

59

*+15Vinv load regulation test: the +5Vdc loading at 1.5A

Protection function

1) SCP: Short circuit protection must be acted on both outputs

2) OPP: Should be protected when output power consumption is within 60W ~ 75W

Inverter Electrical Specification:

For LPL LM170E01-TLB3

Condition Min. Typ. Max. Unit

Input Voltage --- --- 15 --- V

Input Current --- --- 1.5 --- A

ON 3.3 V Backlight ON/OFF

Control

Min. Luminance / Max.

Brightness Adjust

Luminance

Output Voltage Vin=15V, Iout=6.5mA 640 650 745 Vrms

Brightness lamp current in 6.5mA 300 Cd/m²

Output Current(Each

connector)

Frequency --- 40 --- 70 KHz

Lamp start voltage

Striking Time --- 1 --- S

Lamp Current Balance --- --- ±0.3 --- mA

Efficiency Vin=15V --- 80 --- %

Operating Life Time --- 50000 --- --- Hr

OFF 0 V

--- 30% --- ---

Vbri=0.45V~3.6V 3 6.5 7 mA

@0℃

--- 1000 1250 Vrms

60

For TOPPOLY TD170WGCB2

Condition Min. Typ. Max. Unit

Input Voltage --- --- 15 --- V

Input Current --- --- 1.5 --- A

ON 3.3 V Backlight ON/OFF

Control

Min. Luminance / Max.

Brightness Adjust

Luminance

Output Voltage Vin=15V, Iout=6.5mA --- 655 --- Vrms

Brightness lamp current in 6.5mA 300 Cd/m²

Output Current(Each

connector)

Frequency --- 40 --- 60 KHz

Lamp start voltage

Striking Time --- 1 --- S

Lamp Current Balance --- --- ±0.3 --- mA

Efficiency Vin=15V --- 80 --- %

Operating Life Time --- 40000 --- --- Hr

OFF 0 V

--- 30% --- ---

Vbri=0.45V~3.6V 3 7 8 mA

@0℃

--- 1120 1460 Vrms

SAFETY

Leakage Current: 0.25mA @ 100Vac

Insulation Resistance: more than 3M ohms while withstanding a voltage of 500Vac

Hi-Pot: 3Kvac with using 3mA cut off current

61

Power Consumption

The monitor is equipped with a power-management according to the below.

There is a delay of 5s … 7s before the transition from On-state to any power saving state to avoid

unintentionally entering of a power saving stage during display resolution and timing mode changes.

Transition from any power saving state to another can be instantaneous.

The recovery from Off-state requires no manual power on.

Mode H-Sync. V-Sync. Video Pw-cons. Indicator Rec. time*

Power-On on on active < 40W Green LED --

Dpus off off blanked < 2W Orange LED < 5S

DC Switch-off < 1W Dark LED

SYNC. On means: Normal operation

SYNC. Off means: H sync. F < 10KHz duty cycle > 25%

V sync. F < 10Hz duty cycle > 25%

CONNECTORS / CONTROLS

Connectors

-

-

- Audio : Monitor rear side :

Power : Monitor rear side : AC Inlet

Analog RGB : Monitor rear side / Data Cable : 15-pin D-sub female / male

Pin – Assignment of 15-pin D-sub:

1 Red Video 9 +5V FOR DDC

2 Green Video 10 Detect

3 Blue Video 11 Serial Data for ISP

4 Serial Clock for ISP 12 Serial Data for DDC

5 Ground 13 H-Sync.

6 Red Ground 14 V-Sync.

7 Green Ground 15 Serial Clock for DDC

8 Blue Ground

-PC I/P for PC : 3.5mm Stereo female

Monitor Control Keys

KEY :

Power , Menu , Adjust +/- , Vol +/-, Auto

Position Of Controls

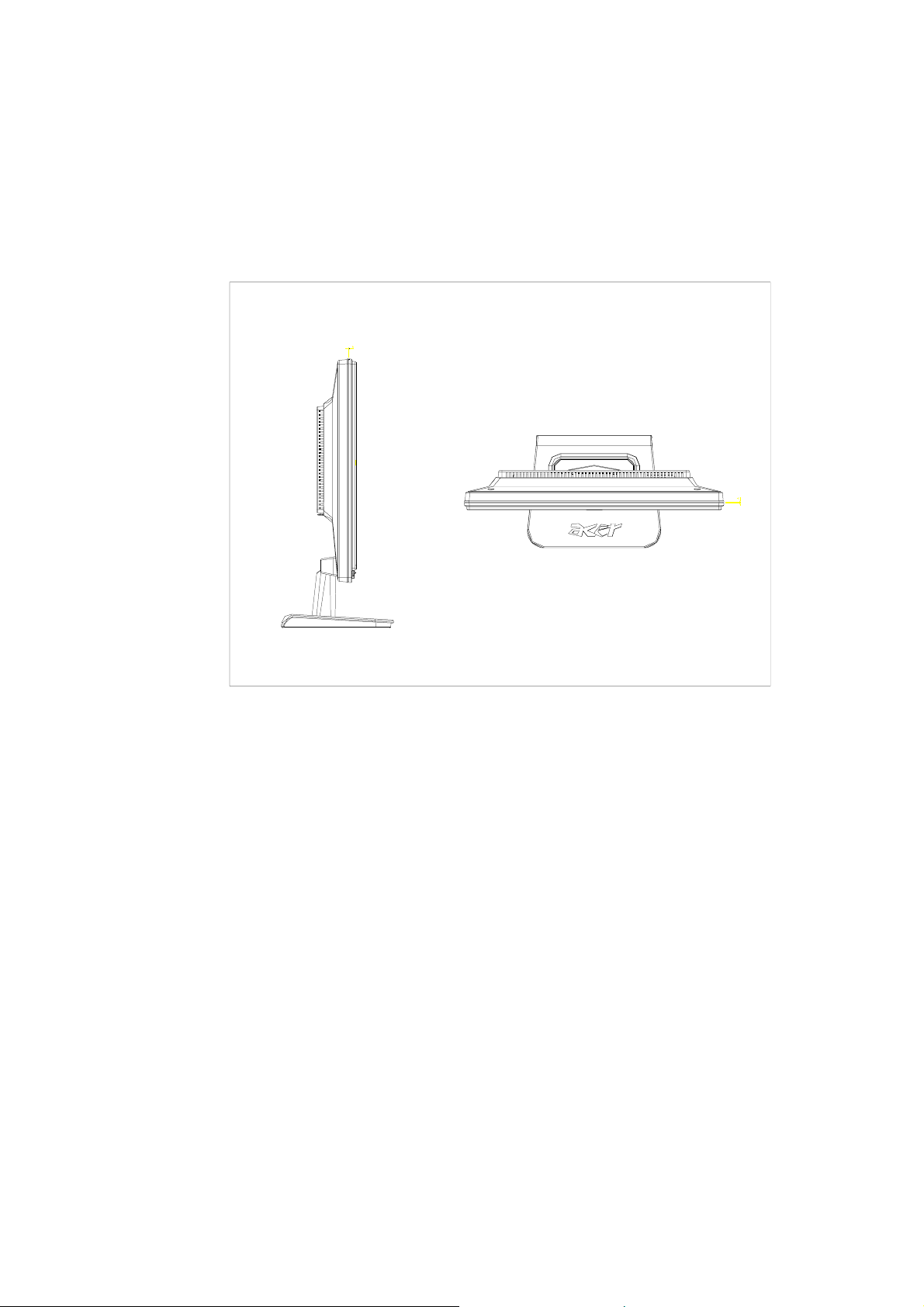

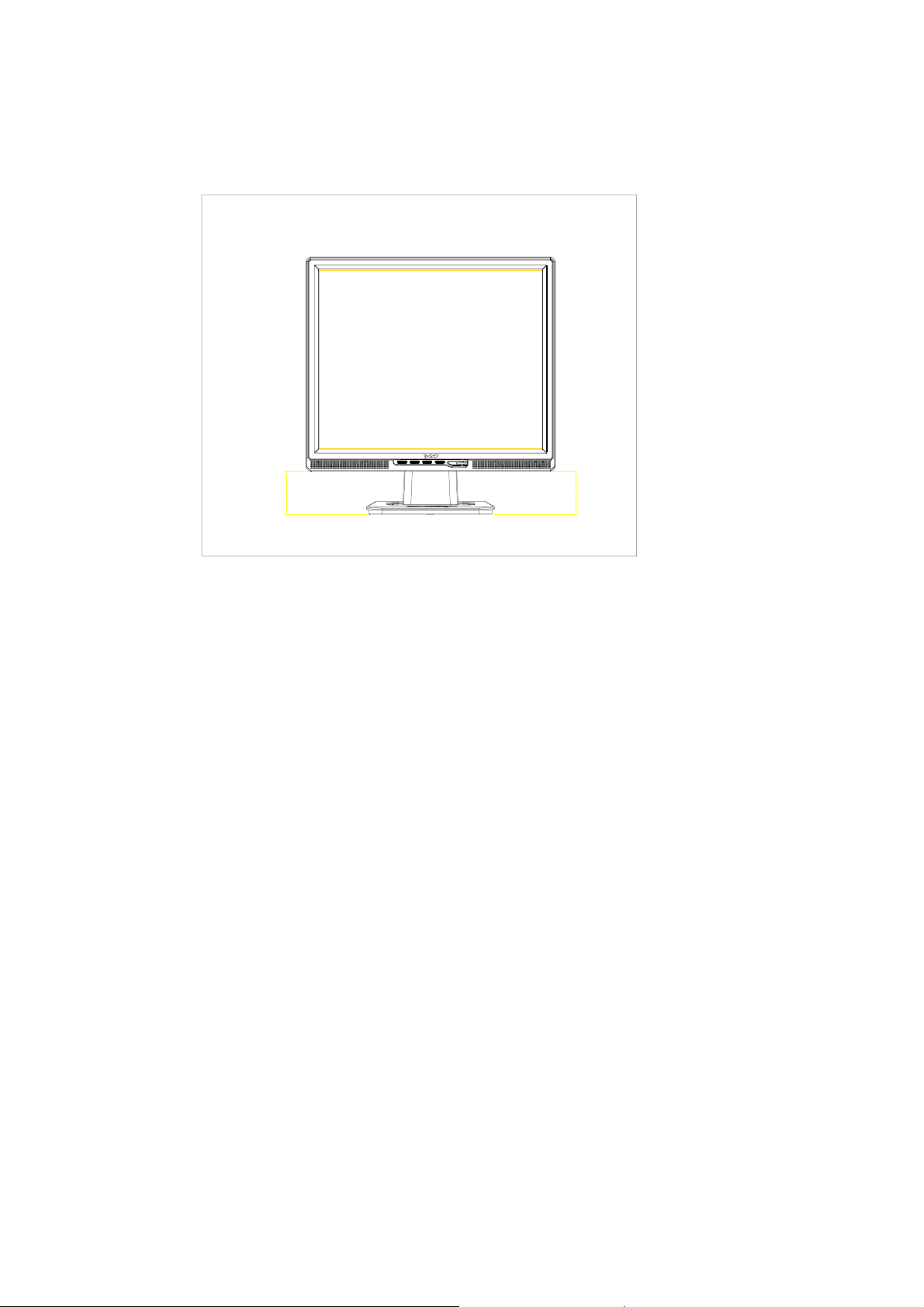

Position of all switches : Bottom side of front bezel

Position of LED : Bottom side of front bezel

62

Chapter 7

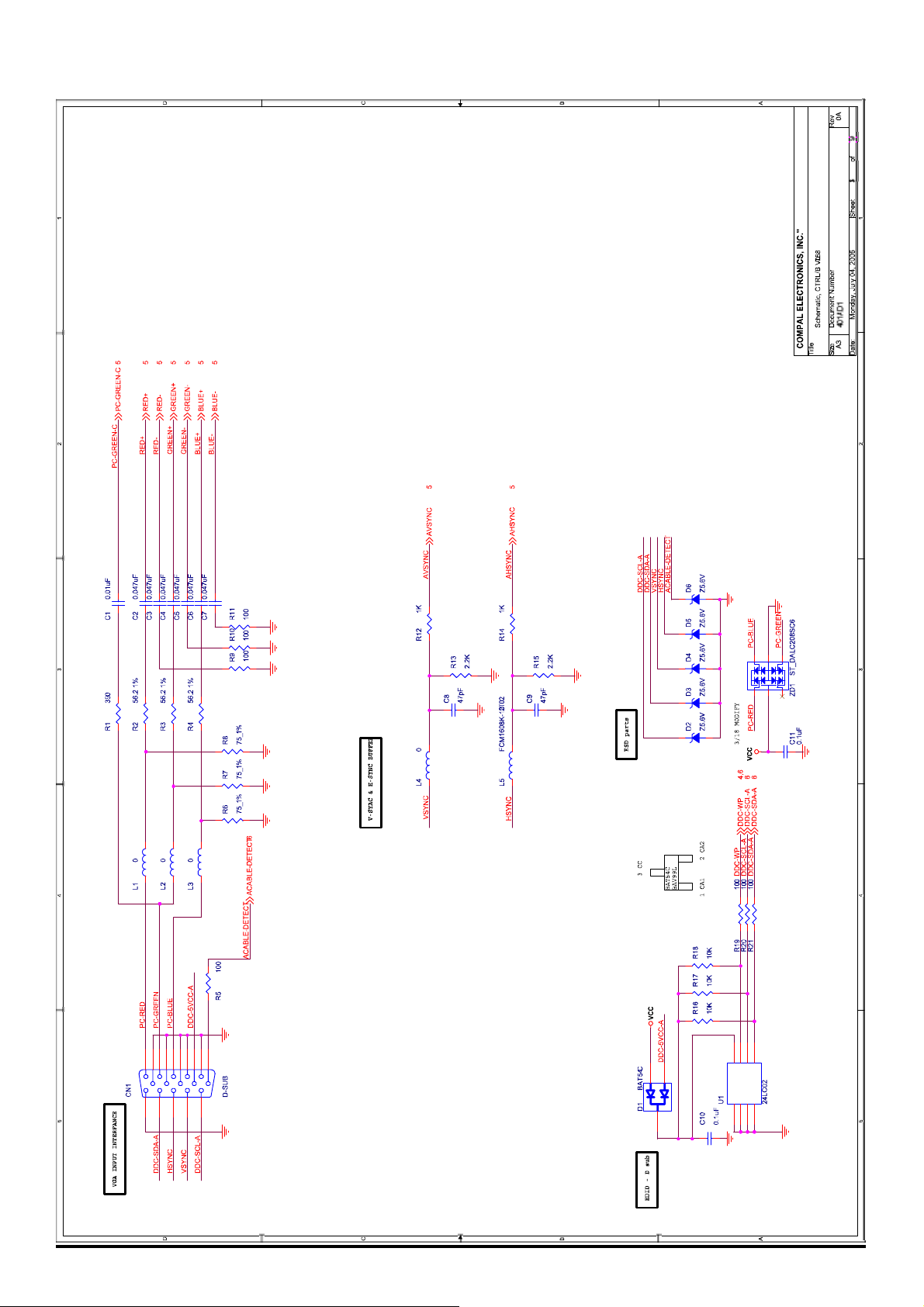

Schematic Diagram

63

64 65 66 67 68 69 70 71 72

73
