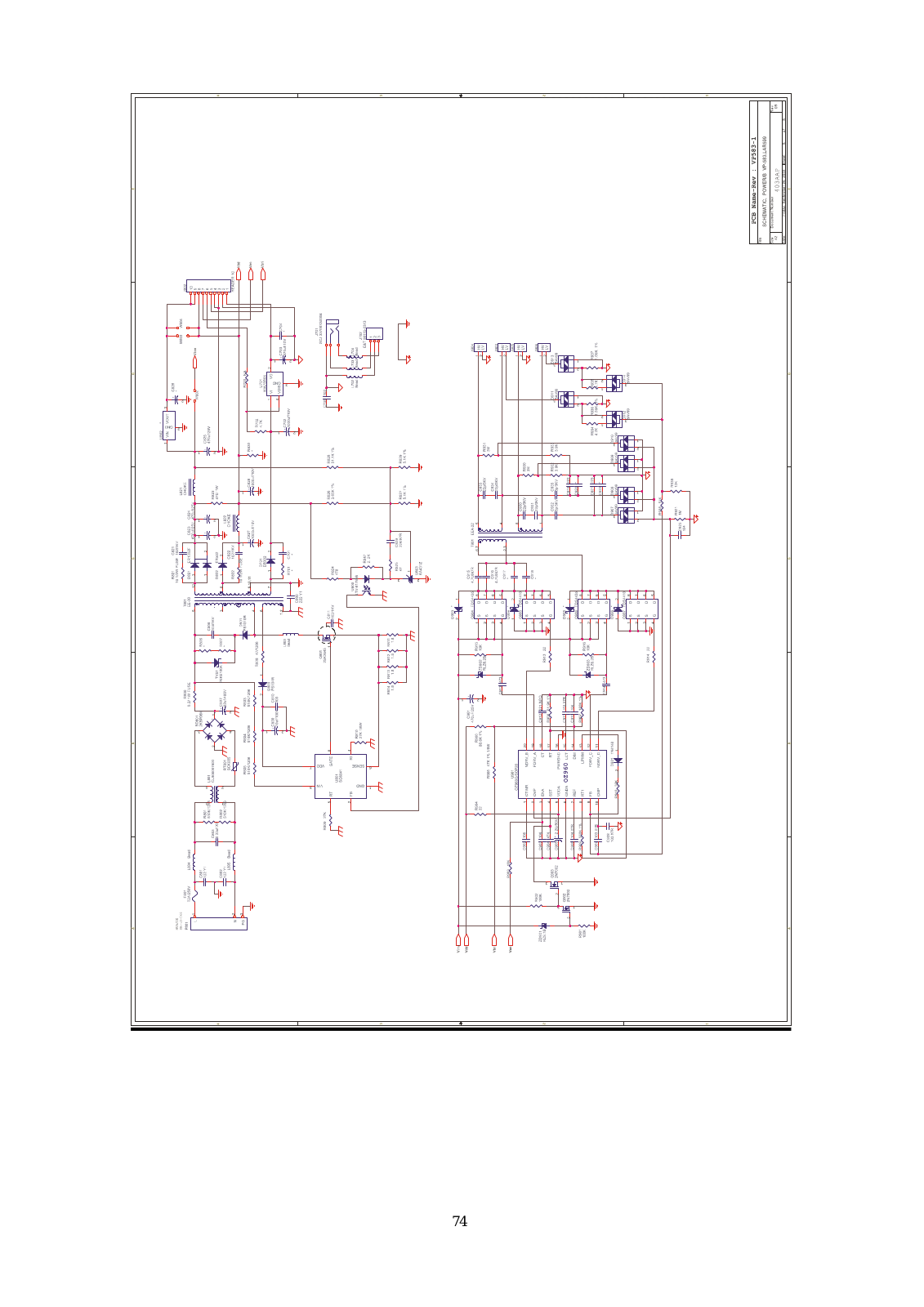

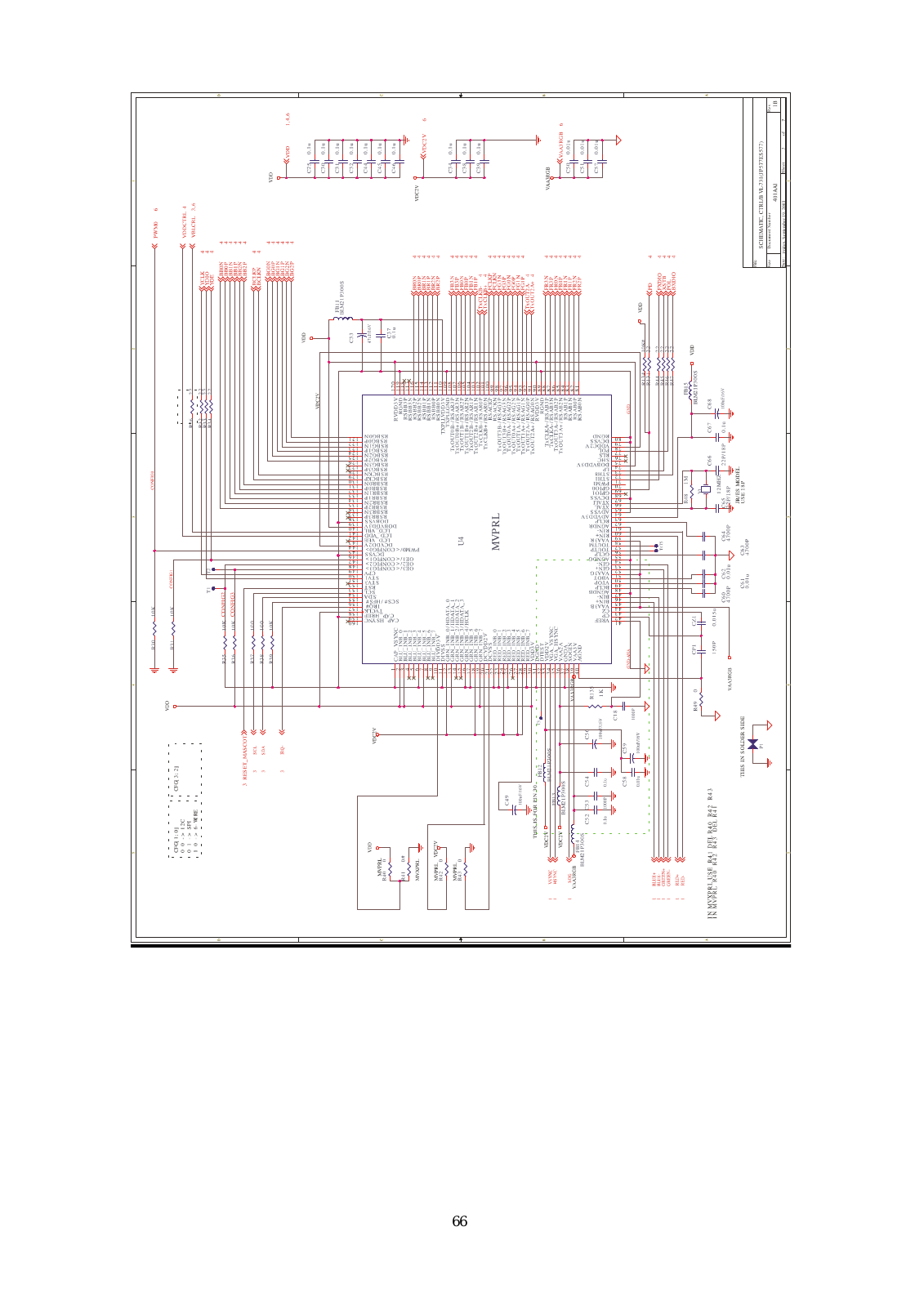

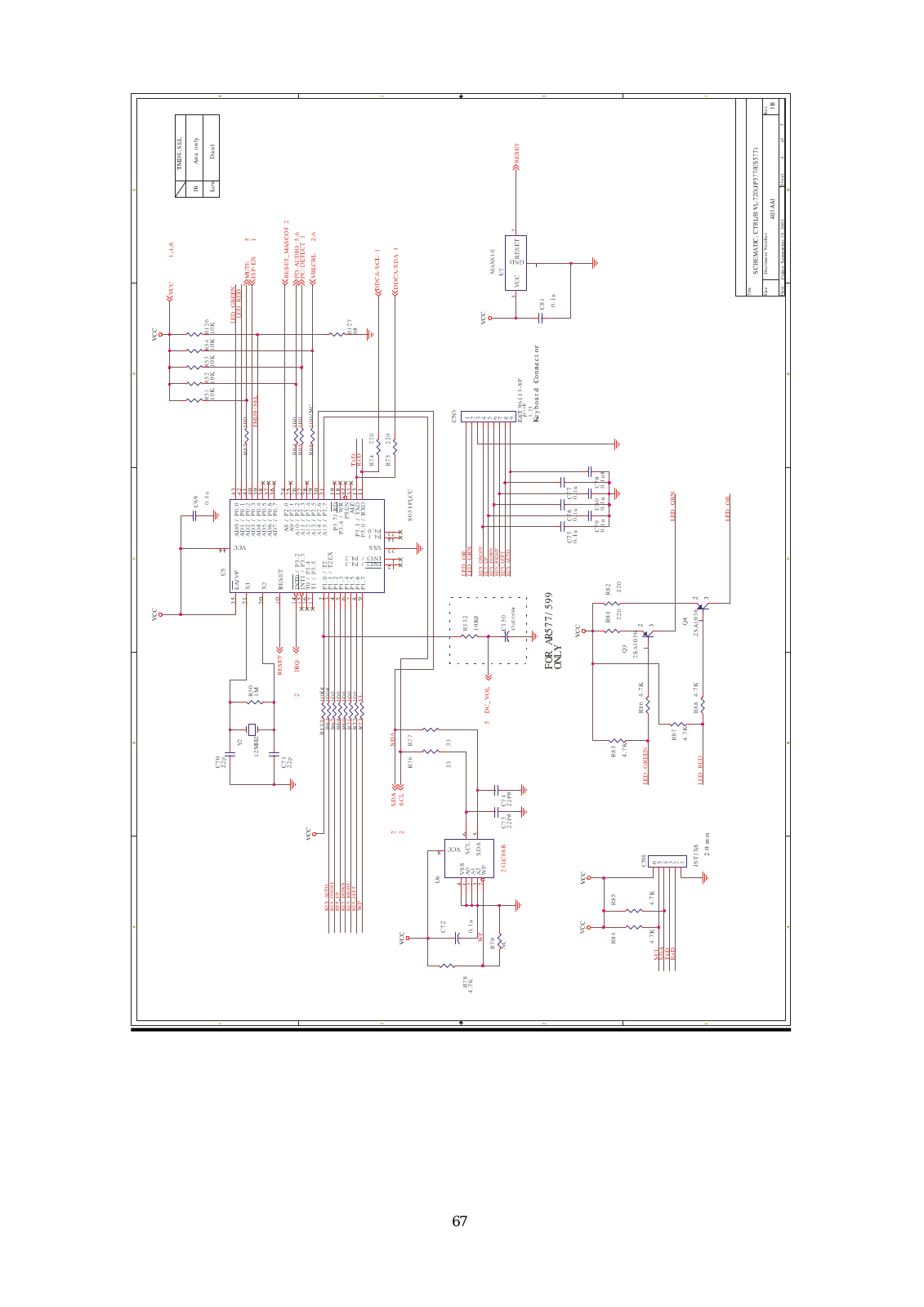

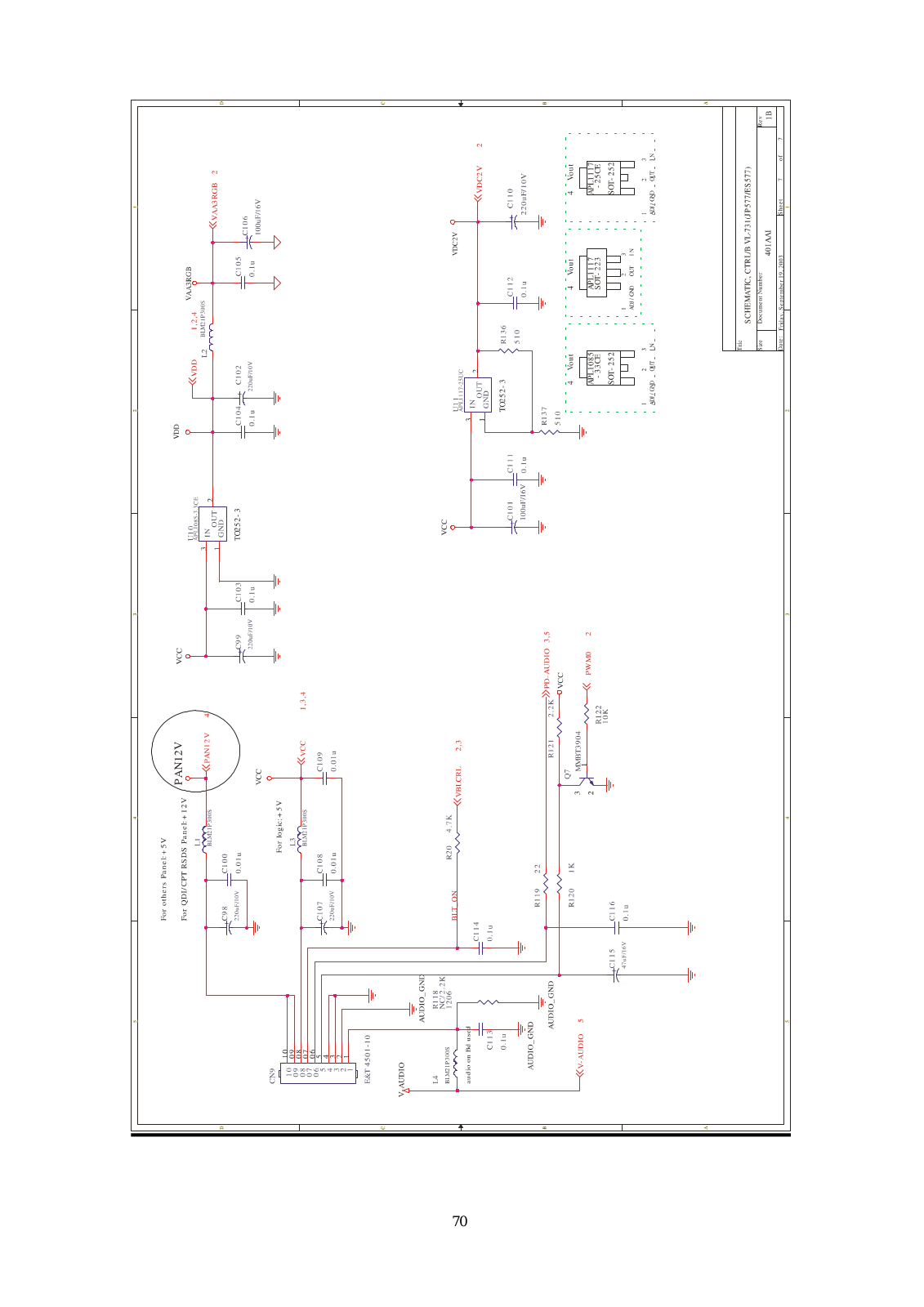

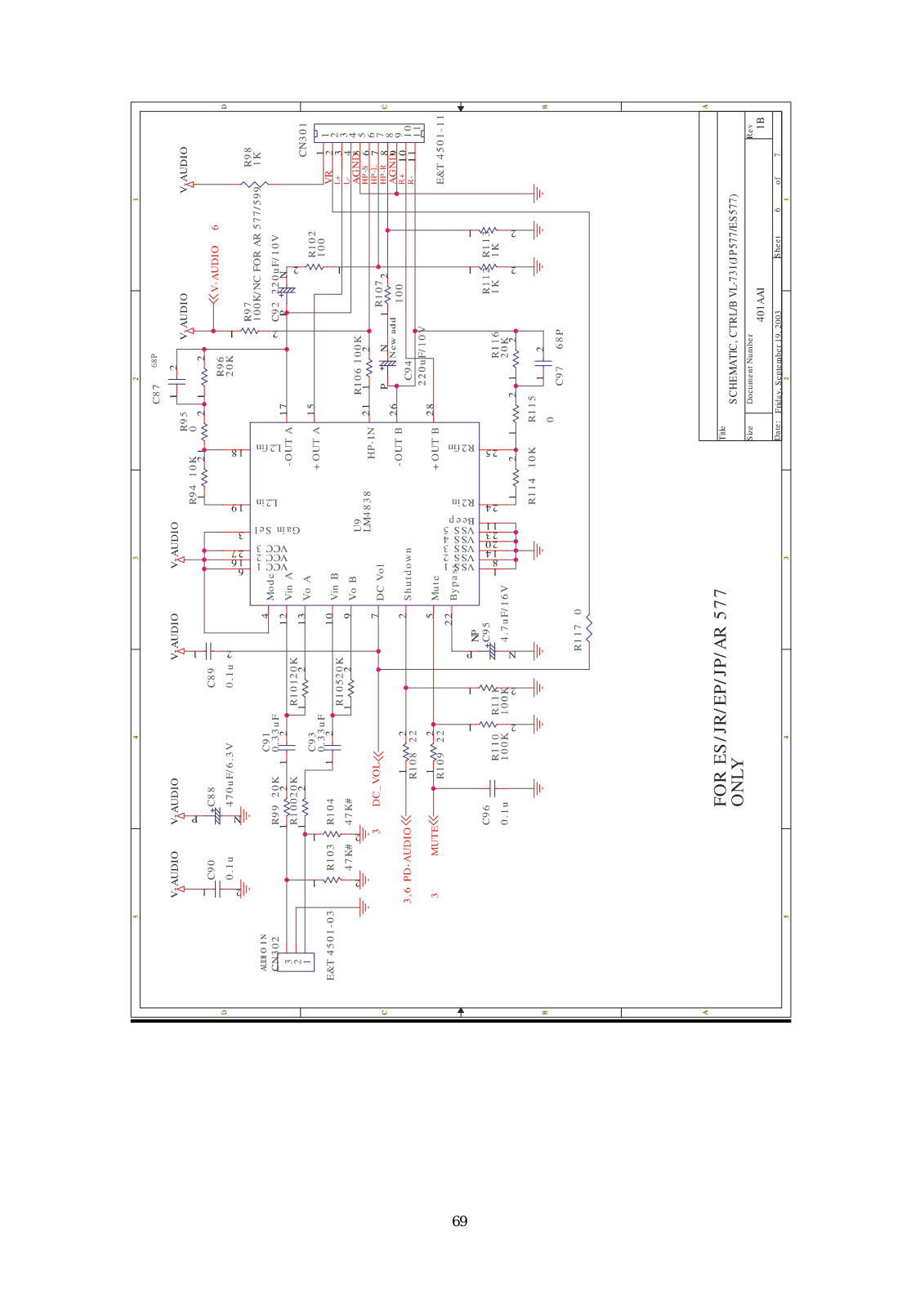

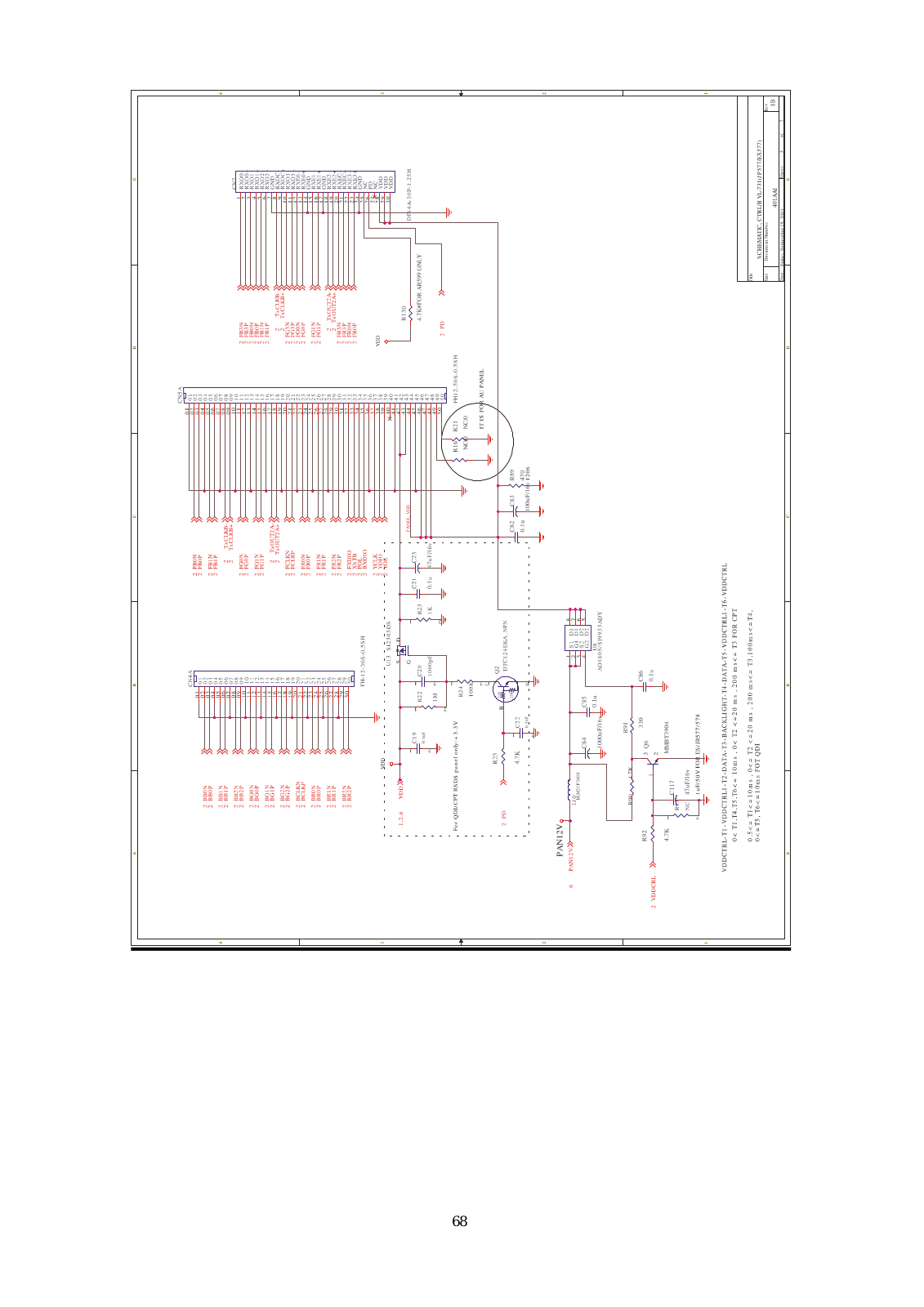

Acer AL1715b Schematic

Chapter 6

FRU (Field Replaceable Unit) list

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of AL1715. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

NOTE : Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel(http://aicsl.acer.com.tw/spl/). For whatever reasons a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED CERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how best to dispose it, or follow the rules set by your regional Acer office on how to return it.

45

Model:AR578

47

D. For AR578 (Acer model:AL1715 b)

No.


Part Name

Description

Part No.

1

M4X0.7+6P-ZK

MAA20093300

Back Cover Screws

2

BaseASSY(FOOT)

AR7714A(ABS94HB,MBK24)

FAAR7714A00

M4X0.7+11P-MC

3

Stand Screws

MAA70002400

WASHER DIM 8.0

4

NECK COVER

AR7721(ABS94HB,MBK24)

FAAR7721000

5

NECK BRACKET

AR7722(SECC1.0)

ECAR7722000

ECAR7717000

6

HINGE ASSY

AR7717(SK-7,T=22)

7

NECK

AR7713(ABS94HB.MBK24)

FAAR7713000

8

Panel & Chassis

M3X0.5+4I-NI

MAA00001240

9

Function Board

VK-583 LAR578Y

454AAP30011

10

BACK COVER, Neck

& Neck Bracket,

TPP-4.0+10P-ZK

MAB20074202

Chassis & Bezel

11

Back Cover

AR7812A(PC+ABS,MBK24)

FAAR7812A00

57

12

Hinge Screws

TPB-4+8C-MC

MAB7T002401

4#40UNCX12.7

13

Mainboard & Chassis

MAAA0019400

PLS-WASHER

POWER BOARD

14

M3x0.5+6F-ZK

MAA10022007

&CHASSIS

15

Invertor Board

VP-583 LAR578Y

453AAP30011

16

Key/B & Bezel

TPP2X3+12B-MC

MAB80007400

POWER BOARD

17

M4.0X0.7+8BTF-MC

MAA80014400

&CHASSIS

Function board to

18

AR578 CTRL-KEY 13P

DC020162500

Mainboard cable

19

Main Shield

AR7816(TIN0.3)

ECAR7816000

20

Mainboard and

M3X0.5+4C-NI

MAA70003100

Invertor Board Screws

21

Mainboard

VL-731 LAR578Y ABO

461AAI300E2

22

Frame(BEZEL)

AR7811A (PC+ABS,MBK24)

FAAR7811A00

58

23

Main Frame/CHASSIS

AR7715(SECC1.0)

ECAR7715000

Mainboard to LCD

24

JP577 PANEL-CTRL 30P

DC020160700

Cable

25

LCD Panel(F)

HT17E12-200 17”(HYDIS)

AC6V0000200

26

LCD Panel(B)

HT17E12-200 17”(HYDIS)

AC6V0000200

59
