OWNER'S MANUAL
MODEL:AD-N820B
POWER
ON OFF
PROGRESSIVE SCAN DVD PLAYER AD-N820B
DVD/CD/MP3/CD-R/CD-RW/JPEG/KODAK PICTURE CD PLAYER
OPEN/CLOSE
TABLE OF CONTENTS
BEFORE USE
Safety Precautions
Important Safety Instructions
Notice
Disc Protection
Playable Discs
Accessories
CONTROL and CONNECTION
Panel
Basic connection
Remote control
BASIC PLAYBACK
Preparations
Basic Playback
Stop Playback
Previous and Next
Fast forward and Fast reverse
Pause/Step Playback
Advanced Playback
SUBTITLE
TITLE
ANGLE
01
SEARCH
03
VOLUME and MUTE
04
REPEAT
04
MENU
05
ZOOM
05
PROGRAM
AUDIO
A-B REPEAT
06
07
SPECIAL FUNCTION PLAYBACK
08
JPEG Disc Playback
MP3 Playback
Kodak Picture Disc Playback
09
09
09
09
09
09
REFERENCE
System Setup
Trouble Shooting
DVD Characteristics
Special Function of DVD
Function
Specification
Supported by DVD Discs
10
10
10
10
10
10
10
10
10
11
11
11
11
11
12
17
18
19
19
20
OSD
V.MODE
10
10
SAFETY PRECAUTIONS
The lightning flash with arrowhead symbol, within an equila-
teral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage " within the product's en-
closure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
The symbol for CLASS II (Double Insulation).
WARNING:
CAUTION:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET, REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
When replace the direct plug in power supply or a separable, cord-connected power
supply, the replacement must be exact duplicate, or one recommended by the manu-
facturer.
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
This Digital Video Disc player employs a laser System.
Use of controls, adjustments or the performance of procedures other than those
specified may result herein hazardous radiation exposure. To prevent direct expo-
sure to laser beam, do not try to open the enclosure. Visible laser radiation when
open and interlocks defeated.
DO NOT STARE INTO BEAM.
01
SAFETY PRECAUTIONS
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital part 15 of the FCC Rule. These limits are designed to
device, pursuant to
provide reasonable interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed accordance with the instructions, may cause harmful interference to radio However, these is no guarantee that interference
will not occur in a
If this equipment does cause harmful interference to radio or television reception,
which can turning the equipment off and on, the user is encouraged to try to correct following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is
- Consult the dealer or an experienced radio/TV technician for help.
This product incorporates copyright protection technology that is protected by
method claims of certain U. S. Patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
Consumers should note that not all high definition television sets are fully compatible
with this product and may cause artifacts to be displayed in the picture.
In case of 525 or 625 progressive scan picture problems, it is recommended that he
used switch the connection to the "standard definition" output. If there are questions
regarding our TV set compatibility with this model 525p and 625p DVD player, please
contact our customer service centre.
and used in
be determined by
protection against harmful
communications.
particular installation.
the inter-ference by one or more of the
connected.
NOTE:
Manufactured under license from Dolby Laboratories. " Dolby " and the double-D
symbol are trademarks of Dolby Laboratories. Confidential unpublished works.
Copyright 1992-1997 Dolby Laboratories. All rights reserved.
There are a clear film on the front panel in order to prevent panel from scratch and dirt.
If no need, just tear it out from the corner.
02

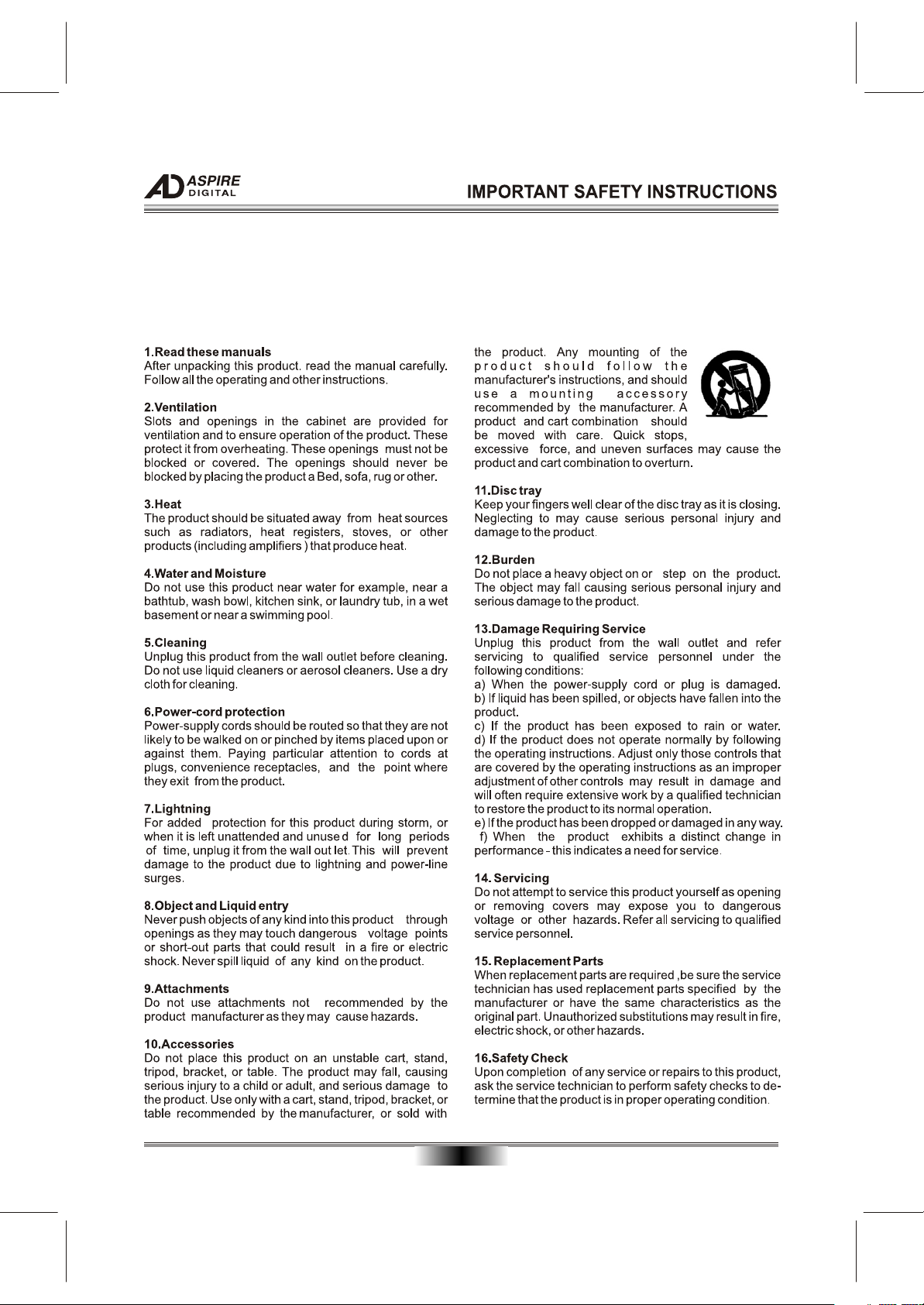

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS MANUAL AND
THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire
hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation,
use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
03

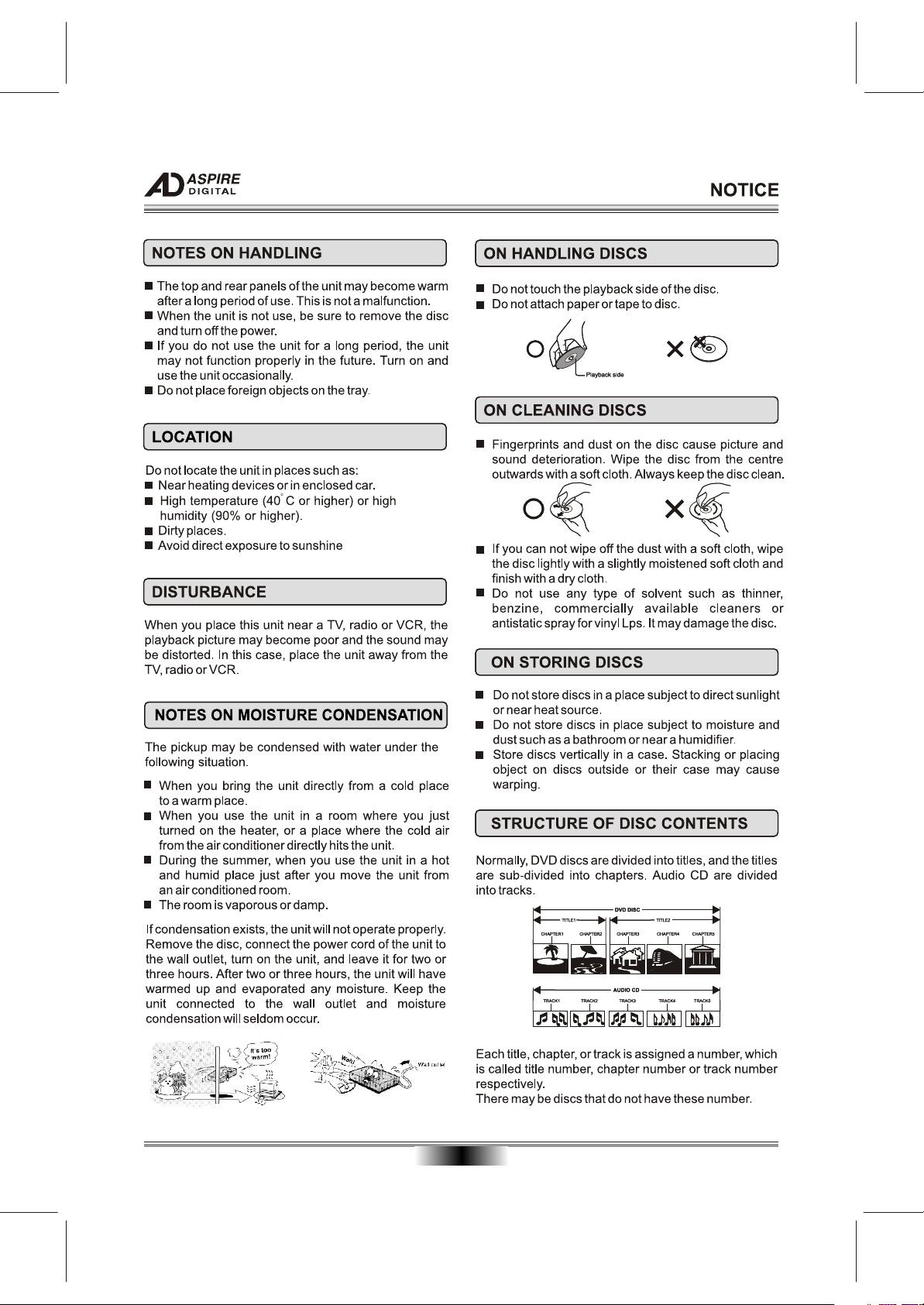

The pickup may be condensed with water under the
following situation.
04
PLAYABLE DISCS and ACCESSORIES
The following discs can be played:
Designed for
Windows
TM
TM
Media
Discs than those listed above can not be played.
Non-standardized discs, even if they may be labeled as above can not be played.
The performance of recorded disc is depend on the method and quality of disc-burning. In some cases,
the disc may not be played.
ACCESSORIES
Audio/Video cable ...................
Remote control ........................
Owner's manual ......................
1
1
1
OPEN/CLOSE
STANDBY MENU
OSD
V.MODE
3
1 2
SUBTITLE
5
6
4
TITLE/PBC
7
8 9
SEARCHANGLE
0 10+
ZOOMSETUP
F.REV
F.FWD
STOP
PAUSE/STEP
MUTE AUDIO
REPEAT A-B RPT
PROG
PREV
NEXT
VOLUME
OWNER'S MANUAL
MODEL:AD-N820B
DVD/CD/MP3/CD-R/CD-RW/JPEG/KODAK PICTURE CD PLAYER
PROGRESSIVE SCAN DVD PLAYER AD-N820B
ONOFF
Owner's manual
OPEN/CLOSEPOWER
05

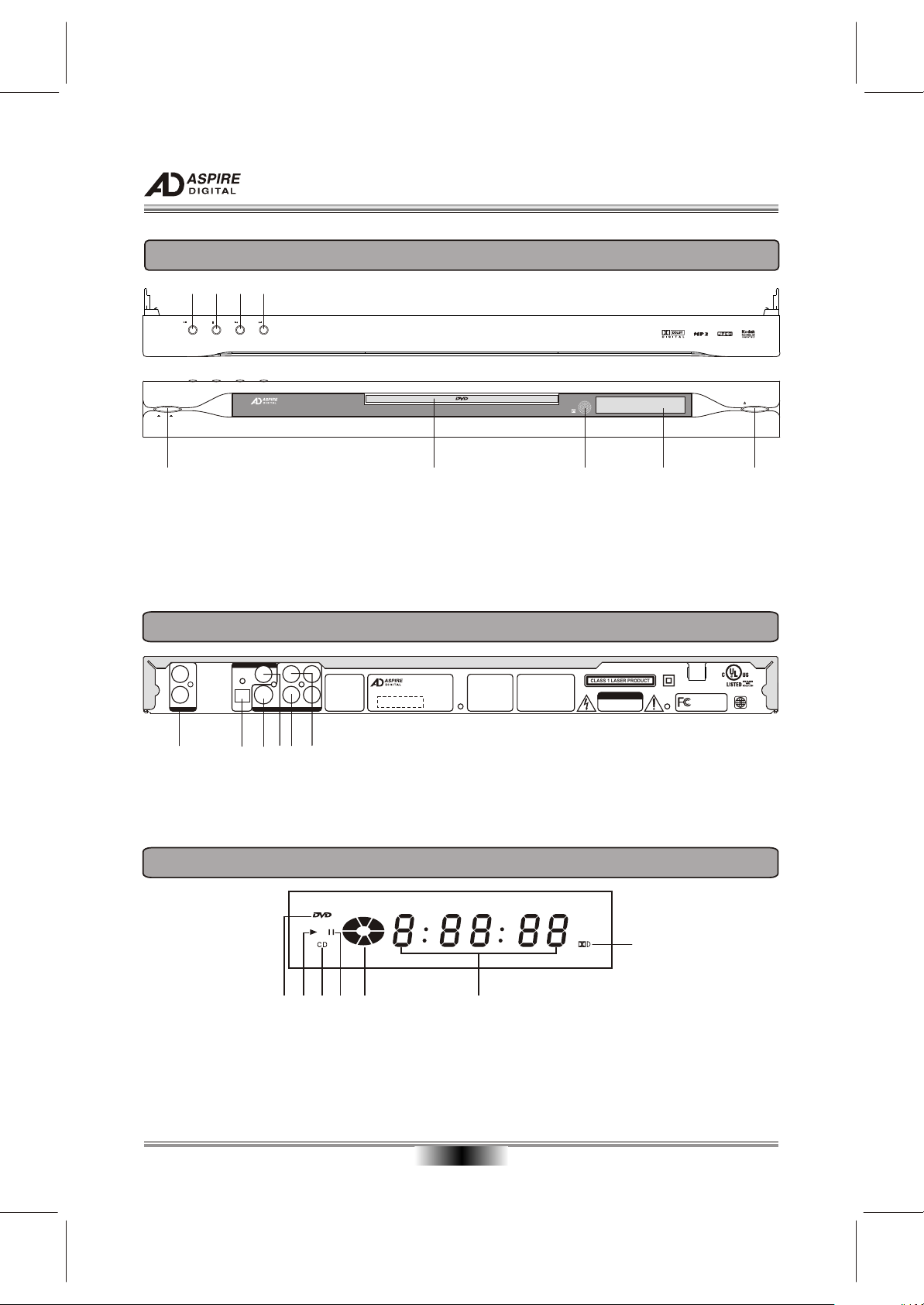

FRONT PANEL
PANEL
STOP
3
4
PREV NEXT
PROGRESSIVE SCAN DVD PLAYER AD-N820B
1 2
PLAY/PAUSE
POWER
ON OFF
5
1.PLAY/PAUSE
2.STOP
3.PREVIOUS
4.NEXT
5.POWER SWITCH
REAR PANEL OUTPUT
C / PBB
Y
Apparatus Claims of
U.S. Patent Nos.
4,631,603; 4,577,216;
4,819,098 and 4,907,093
for
VIDEO C / PRR
licensed limited
viewing uses
S-VIDEO
VIDEO OUT
2-CH AUDIO OUT
DIGITAL AUDIO OUT
L
R
COAXIAL
OPTICAL
DVD/CD/MP3/CD-R/CD-RW/JPEG/KODAK PICTURE CD PLAYER
6
8
OPEN/CLOSE
97
6.TRAY
7. REMOTE CONTROL SENSOR
8.LED SCREEN
9. OPEN/CLOSE
Manufactured under license from
Dolby Laboratories. "Dolby" and the
double-D symbol are trademarks
of Dolby Laboratories. Confidential
unpublished works. Copyright 19921997 Dolby Laboratories. All rights
reserved.
CLASS 1 LASER PRODUCT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
110V-240V~ 50/60Hz
Tested To Comply
With FCC Standards
For Home or Office Use
POWER: 15W
PRODUCT IS CERTIFIED BY
THE MANUFACTURER TO
COMPLY WITH DHHS RULES
21 CFR, SUBCHAPTER J
APPLICABLE AT THE DATA
OF MANUFACTURE
DVD PLAYER
MODEL: AD-N820B
S/N:
only.
AC:110V-240V~ 50/60Hz
1
2
5
4
3
1. 2 CHANNELS OUTPUT
2. OPTICAL FIBRE OUTPUT
3. S-VIDEO OUTPUT
LED DISPLAY of DVD
1 23 4
1. DVD
disc indicator
2. Play discplay
3. CD in
4. Pause display
5.
display
Dolby flag
6
4. COAXIAL OUTPUT
5. VIDEO OUTPUT
6. Y, CB/PB, CR/PR OUTPUT
5
6
7
6.Rotate playback indicator
7.Multi-functional indicator
(indicates operating status
or messages, etc.)
06

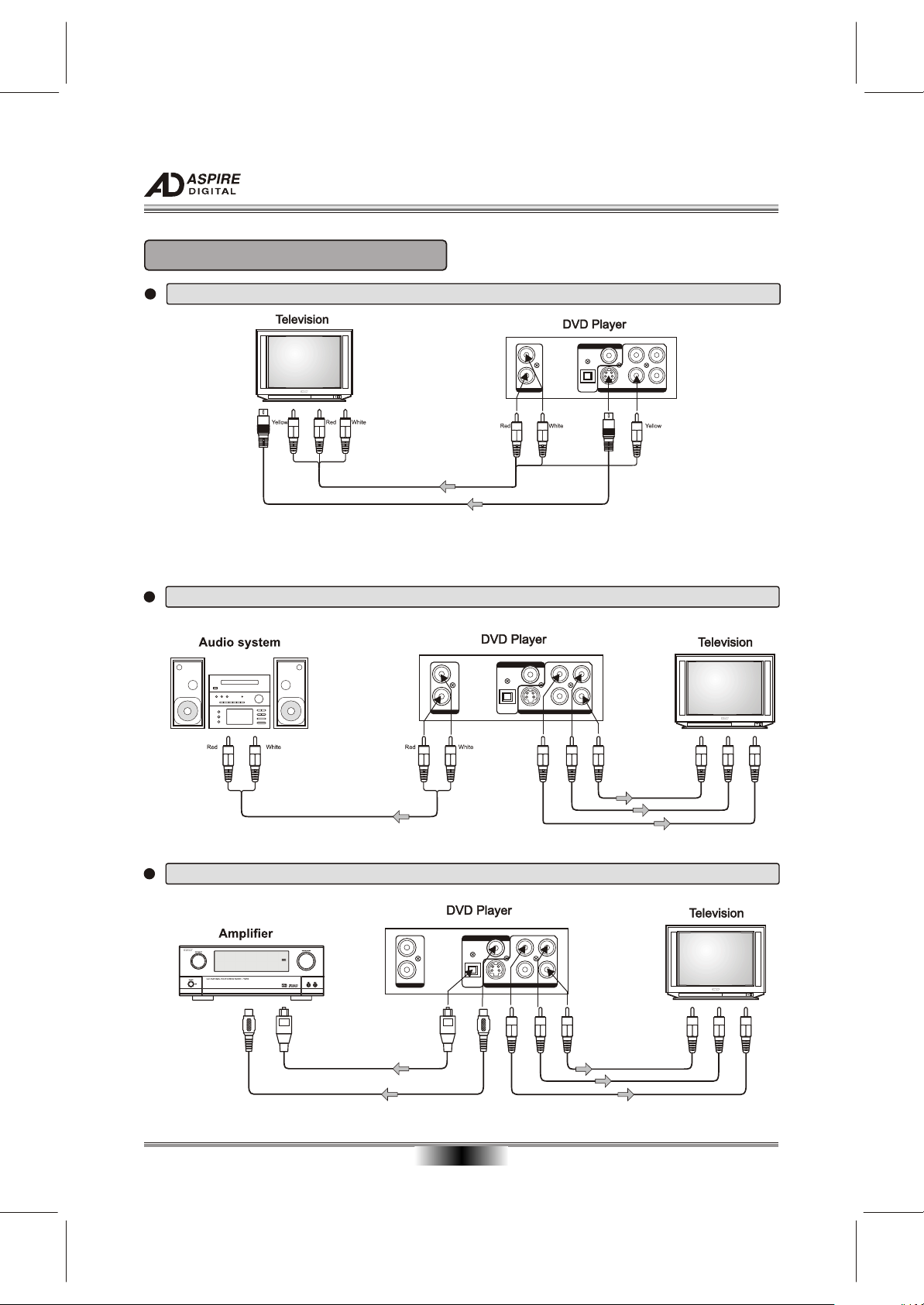

BASIC CONNECTION
BASIC CONNECTION
Connecting to a TV with Audio/Video cable
S-VIDEO
VIDEO OUT
To S-video output
Y
VIDEO C / PRR
DIGITAL AUDIO OUT
L
COAXIAL
R
OPTICAL
To video input(yellow)
To audio inputs(red, white)
2-CH AUDIO OUT
To S-video input
If the TV has an S-video input, connect the DVD player with an S-video cable.
When using an S-video cable, do not connect the yellow video cable.
Connecting to a audio system and TV equipped with YUV video input
C / PBB
C / PBB
Y
S-VIDEO
VIDEO C / PRR
VIDEO OUT
To Y video output
To CR/PR video output
To CB/PB video output
2-CH AUDIO OUT
DIGITAL AUDIO OUT
L
R
COAXIAL
OPTICAL
To CR/PR video input
To audio inputs of the amplifier
To CB/PB video input
To Y video input
Connecting to an amplifier equipped with a digital audio input and TV
C / PBB
Y
S-VIDEO
VIDEO C / PRR
VIDEO OUT
To Y video output
To CB/PB video output
To CR/PR video output
To CR/PR video input
To CB/PB video input
To Y video input
To COAXIAL
type digital
audio input
To OPTICAL
type digital
audio input
Optical digital cable
Coaxial cable
2-CH AUDIO OUT
DIGITAL AUDIO OUT
L
R
COAXIAL
OPTICAL
Connect either
07
REMOTE CONTROL
1
STANDBY MENU
2
3
4
5
V.MODE
SUBTITLE
TITLE/PBC
6
7
8
9
10
11
12
13
14
15
F.REV
STOP
PAUSE/STEP
MUTE AUDIO
OSD
1 2
4
7
SEARCHANGLE
ZOOMSETUP
F.FWD
REPEAT A-B RPT
OPEN/CLOSE
5
8 9
0 10+
VOLUME
3
6
PROG
PREV
NEXT
16
1. OSD(On Screen Display)
17
2. STANDBY
3. V.MODE
18
4. SUBTITLE
5. TITLE/PBC
19
6. ANGLE
20
7. SEARCH
21
22
8. SETUP
23
9. ENTER/PLAY
24
25
10. CURSOR
26
11. FAST REVERSE
12. STOP
13. PAUSE/STEP
REMOTE CONTROL
Function Function
14. MUTE
15. REPEAT
16. MENU
17. OPEN/CLOSE
18. DIGITS AND 10+ BUTTONS
19. ZOOM
20. PROGRAM
21. PREVIOUS
22. FAST FORWARD
23. NEXT
24. VOLUME+/-(Volume control)
25. AUDIO
26. A-B REPEAT
Loading Batteries
STANDBY MENU
OSD
V.MODE
1 2
SUBTITLE
4
TITLE/PBC
7
SEARCHANGLE
F.REV
STOP
PAUSE/STEP
MUTE AUDIO
REPEAT A-B RPT
Distance: About 7m (23 feet) from the
OPEN/CLOSE
3
5
6
8 9
0 10+
ZOOMSETUP
PROG
PREV
F.FWD
NEXT
VOLUME
front of the remote sensor.
Angle: About 30 in each direction
of the front of the remote
sensor.
0
08
BASIC PLAYBACK
Preparations
When you want to view a disc, turn on the TV and
select the video input connected to the DVD player.
Basic playback
1. Press POWER switch on the front panel to ON,
the DVD player turns on, the TV screen will display
the start logo and DVD indicator light. If a disc is
already in the tray, it will begin to play once the
power is on.
2. Press OPEN/CLOSE to open the disc tray,
place a disc on the disc tray.
There are two different disc sizes. Place the
disc in the correct guide on the disc tray. If the
disc is out of the guide, it may damage the disc
and cause the DVD player to malfunction.
Do not place a disc which is unplayable in this
DVD player.
3. Press OPEN/CLOSE to close the disc tray, the
playback will automatically start.
Some discs may not playback automatically,
you can press ENTER/PLAY button to start
playback.
4. Some discs may start playback with a menu,
use the cursor button on the remote control to
select menu options and press ENTER/PLAY to
start, or press digits to select a menu options
directly.
Previous and Next
During playing, press PREV key can back to start
of this chapter, then each press this key will skip a
chapter still the start of the disc.
Each press of NEXT during playing will skip
the current chapter and play the next one.
key
Fast forward and Fast reverse
1. Press F.FWD to fast forward through the disc.
Each time the F.FWD button is pressed, the
fast forward motion speed changes.
2. Press ENTER/PLAY to resume normal playback.
3. Press F.REV to fast reverse through the disc.
Each time the F.REV button is pressed, the
fast reverse motion speed changes.
4. Press ENTER/PLAY to resume normal playback.
Pause/Step playback
1. Press PAUSE/STEP first time to pause play-
back (still mode). The sound will be muted during
still mode.
2. Press PAUSE/STEP continuous to single step
forward to the next frame in the video.
3. Press ENTER/PLAY resume normal playback.
Stop playback
1. Press STOP button to go to stop mode, the TV
screen will show the start logo. As some disc the
player can recall the location where stopped, such
as DVD.
2. Press ENTER/PLAY to playback to resume play back from the location where playback is stopped
or from the beginning of the disc.
3. Press STOP twice to stop completely.
NOTES:
1.
2.
09
ADVANCED PLAYBACK
IMPORTANT NOTE:
ALL DESCRIBING FUNCTION IS FOR DVD DISCS. IF YOU PLAY OTHER FORMAT DISC, THE OPERATION
AND DISPLAY ON SCREEN WILL BE DIFFERENT.
OSD
Press this button and the screen will display some
information about disc, such as : " Title Elapsed " ,
" Title Remain ", " Chapter Elapsed ", " Chapter
Remain " and " Display Off ".
V.MODE
This button can set VIDEO output among "CVBS",
"YUV" or "P-Scan".
Note: The screen disappear when press this button,
press this button continuously until the screen turn
normal.
SUBTITLE
Press this button and the screen will display "SUBTITLE 01/XX XXXXX", "01" indicates the ordinal
number of this language; "XX" indicates total number
of language; "XXXXXX" indicates the language of
country. (the number of language depends on disc).
TITLE
According to some DVD discs, press this button will
display "Title Menu", the unit will play from the disc
head or you can use digits to select tracks preferred.
(Depending on DVD)
SEARCH
Follow this operation :
first Title 02/10 Time : :
twice Title 02/10 Chapter /32
third Chapter 01/32 Time : :
According to operation, you could choose point that
you want to play.
VOLUME and MUTE
Press " + " at the right of VOLUME to increase
volume, " - " to decrease to volume. The first press
of MUTE will display MUTE (no voice), the second
press will return to normal playback.
REPEAT
Follow this operation :
first Chapter
twice Title
third All
the fourth pressed will cancel repeat.
MENU
Press this button and the screen will display " Root
Menu ", select item according to your preference.
(This key is valid to DVD disc possessing multi-layer
menu.)
ANGLE
For discs with this feature, pressing this key to view
action from different angles.(Depending on the DVD)
ZOOM
Each time pressed, the picture enlarges.
In this mode, you can move the picture with CURSOR
button.
PROGRAM
Press this button and the screen will display info
window , press digits button to input the program
number what you want, when finished, move the
cursor to select the " Start " logo, at this time the unit
will start program playback and the screen will display
"Program" logo.
If you want to cancel this function, press " STOP "
and then press "ENTER/PLAY" .
10
Loading...
