1 First things first

This chapter describes the contents of your computer package and also provides important tips on how to take care of your computer.

Package contents

Before you unpack your computer, make sure that you have enough space to set up your computer.
Carefully unpack the carton and remove the contents. If any of the following items are missing or damaged, contact your dealer immediately:
•AcerPower Sd
Items contained in the accessory box
USB or PS/2 keyboard
USB or PS/2 mouse
User’s guide
Other user documentation and third-party software
3
4
1 First things first

Taking care of your computer

Please read the important instructions listed in this section. Following these instructions will help you maximize the durability of your computer.

Important tips

Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
Do not subject the computer to magnetic fields.
Do not expose the computer to rain or moisture.
Do not spill water on the computer.
Do not subject the computer to heavy shock or vibration.
Do not expose the computer to dust and dirt.
Never place the system on uneven surfaces.
Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from personal traffic.
When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
The total ampere rating of the equipment plugged in should not
exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.
Check the documentation that came with your software programs
to see if you can select other combinations of resolution and color. These adjustments could make viewing the screen more comfortable.

Cleaning and servicing

To clean your computer and keyboard
1. Turn off the computer and unplug the power cord.
2. Use a soft cloth moistened with water and gently wipe the exterior
of the computer and the keyboard. Do not use liquid or aerosol cleaners.
To clean your pointing device
To clean your regular mouse (with rubber ball)
1. Open the circular cover underneath the mouse.
2. Take out the rubber ball and wipe it with a soft, damp cloth.
3. Put the ball back and close the cover.
To clean your optical mouse
For users of an optical mouse, refer to the documentation that came
with your mouse for maintainance instructions.
To clean your monitor
Make sure that you keep your screen clean. For cleaning instructions, refer to the documentation that came with your monitor.
When to contact a service technician
If you dropped and damaged the computer.
If liquid has been spilled into the computer.
If the computer is not operating normally.
5

Asking for technical assistance

For technical assistance, contact your local dealer or distributor. You may also access the Acer Web site (www.acer.com how and where to contact the service centers available in your area.
) for information on
6
1 First things first

Accessing the online guide

You may also refer to the AcerPower Sd online guide for information about your computer.
To access the online guide (for Windows XP)
1. On the Windows XP taskbar, click on the Start button, higlight and
select Help and Support Center.
2. On the Help and Support Center home page, double-click the
AcerPower Sd Online icon.
To access the online guide (for Windows 2000)
1. Double-click on the AcerPower Sd Online icon on your Windows
desktop.

2 System tour

This chapter discusses the features and components of your computer.

Features

Here are just a few of your computer’s many features:

Performance

Intel Pentium® 4 processor
System memory expandable to a maximum of 2GB using DDR (Double Data Rate) SDRAM (Synchronous Dynamic Random Access Memory) DIMM modules
Note: To capitalize on the system memory capacity mentioned above, you must use 1-GB capacity memory modules which are not yet available in the market. The biggest capacity memory module type currently available is 512-MB which allows a maximum of 1GB.
Power management function
3.5-inch floppy drive
DVD-ROM, CD-ROM or CD-RW drive
High-capacity, Enhanced-IDE hard disk
9

Multimedia

Integrated 256-bit graphics accelerator
3-D quality audio system via onboard audio controller
Audio-in/Line-in, Audio-out/Line-out, Headphone-out, Mic-in, and Game/MIDI interfaces
Note: The system has two microphone-in jacks (front and rear). However, you can not use both of them at the same time. By default, your system enables the microphone-in jack in front and disables the one at the back.

Connectivity

Two PS/2 interfaces for mouse and keyboard
One serial and one parallel interfaces
10
2 System tour
One VGA port
Universal Serial Bus (USB) ports (two on the front and two on the rear panel)
High-speed fax/data PCI modem (optional)
10Base-T/100Base-TX network support with remote wake-up function

Front panel

Your computer’s front panel consists of the following:
11
Label Icon Component
1 CD-ROM/DVD-ROM/CD-RW tray
2 Stop/Eject button
3 Play/Forward button
4 3.5-inch floppy drive
5 Floppy drive eject button
6 Hard disk activity light-emitting diode (LED)
12
Label Icon Component
7 LAN activity LED
8Power LED
9Power switch
10 Speaker-out/Line-out port
2 System tour
11
Microphone-in jack (front)
see note
12 USB ports
13 Floppy drive LED
14 5.25-inch drive bays
15 Volume control button
16 CD-ROM/DVD-ROM/CD-RW Headphone/Earphone
port
17 CD-ROM/DVD-ROM/CD-RW emergency eject hole
18 CD-ROM/DVD-ROM/CD-RW LED
Note: The system has two microphone-in jacks (front and rear). However, you can not use both of them at the same time. By default your system enables the microphone-in jack in front and disables the one at the back.

Rear panel

Your computer’s rear panel consists of the following:
13
Label Icon Color Component
1Power supply
2 Network port
3 Burgundy Parallel/Printer port
4 Gold Game/MIDI port
5 Expansion slots
6 Pink Microphone-in jack (rear)
14
Label Icon Color Component
7 Light blue Audio-in/Line-in jack
8 Lime Audio-out/Line-out jack
9 Blue VGA port
2 System tour
10 Teal or
Tur quoi se
11 Black USB ports
12 Purple PS/2 keyboard port
13 Green PS/2 mouse port
14 Voltage selector switch
15 Power cord socket
Serial port
For information on how to connect the peripherals, see “Connecting peripherals” on page 29 and “Connecting options” on page 38.
15

Keyboard

The keyboard has full-sized keys that include separate cursor keys, two Windows keys, and twelve function keys.
No. Description
1 Function keys
2Caps lock
3 Windows logo key
4 Application key
5 Cursor keys
6 Palm rest
7 Num lock key
8 Scroll lock key
9 Volume control/Mute knob
10 Multimedia keys
16
No. Description
11 Internet/Suspend keys
12 Programmable keys
2 System tour

Function keys

The function keys, F1 - F12, lets you perform specific functions, depending on the application that uses them.

Lock keys

The keyboard has three lock keys which you can toggle on and off to switch between two functions.
Lock key Description
Caps Lock When activated, all alphabetic characters typed
appear in uppercase (same function as pressing Shift + <letter>).
Num Lock When activated, the keypad is set to numeric
mode; i.e., the keys function as a calculator (complete with arithmetic operators such as +, -, * and /).
Scroll Lock When activated, the screen moves one line up
or down when you press the up arrow or down arrow respectively. Take note that Scroll Lock may not work with some applications.

Windows keys

The keyboard has two keys that perform Windows-specific functions.
Key Description
Windows logo key Start button. Combinations with this key
perform special functions, such as:
Windows + Tab: Activate the next Taskbar button
Windows + E: Explore My Computer
Windows + F: Find Document
Windows + M: Minimize All
Shift + Windows + M: Undo Minimize All
Windows + R: Display Run dialog box
Application key Opens the applications context menu (same
function as clicking the right button of the mouse).
17

Cursor keys

The cursor keys, also called the arrow keys, let you move the cursor around the screen. They serve the same function as the arrow keys on the numeric keypad when the Num Lock is toggled off.

Palm rest

The detachable palm rest provides you a comfortable place to rest your hands while typing.
18

Volume control/Mute knob

The volume control/mute knob controls the speaker volume. Turn it clockwise or counterclockwise to adjust the volume. Press it to toggle between mute and sound.
2 System tour

Multimedia keys

Allow you to conveniently play, pause, stop, step forward, or step back a song or movie using your keyboard.
Icon Key Description
Play/Pause Press to start playing the audio track or
video file. Press again to pause.
Stop Press to stop playing the audio track or
video file.
Forward Press to skip forward to the next track or
video file and start playing.
Icon Key Description
Backward Press to skip backward to the previous
track or video file and start playing.

Internet/Suspend keys

The Internet/Suspend keys consist of three buttons:
Icon Key Description
Email Launches your email application.
19
Web browser
Suspend Press this button to put system to sleep.
Launches your current default browser.

Programmable keys

The programmable keys help you directly access a URL (Web site) or launch any program, files, or application in your system. The fifth key is set to launch the Windows Media Player. If you want to configure the settings of each key, right click on the Magic Keyboard icon located on the desktop.
20
2 System tour

Mouse

Your mouse has one ratchet wheel and two buttons: a left button and a right button. Quickly pressing and releasing the buttons is called clicking. Sometimes, you will need to do a double-click (clicking the same button twice quickly) or a right-click (clicking the right button quickly).
The ratchet wheel in between the two buttons is added to provide easier scrolling capability. By simply moving the wheel with your index finger, you can quickly move through multiple pages, lines, or windows. The wheel may also function as a third button allowing you to quickly click or double-click an icon or a selected item.
For information on how to clean your mouse, see “To clean your pointing device” on page 5.
PS/2 Mouse
USB Mouse
Note: If you are left-handed, refer to your Windows manual for instructions on how to set up your mouse for left-handed use.

Disk drives

Your computer comes with the following disk drives:

Floppy drive

Your computer’s 3.5-inch floppy drive accepts 720-KB and 1.44-MB capacity diskettes.
The floppy diskettes are compact, lightweight, and easy to carry around. Here are some tips on how to take care of your diskettes:
Always make backup copies of the diskettes that contain important data or program files.
Keep diskettes away from magnetic fields and sources of heat.
Avoid removing a diskette from a drive when the floppy drive activity light is on.
Write-protect your diskettes to prevent accidental erasure. To do this, slide the write-protect tab to the write-protect position.
21
1-Write-protected
When you put a label on a 3.5-inch diskette, make sure that the label is properly attached (flat on the surface) and within the labeling area (area with a slight surface depression) on the diskette. An improperly attached label may cause a diskette to get stuck in a drive when you are inserting or removing it.
2-Not Write-protected
22
2 System tour

CD-ROM/DVD-ROM/CD-RW drive

Your computer may come with a CD-ROM, DVD-ROM or a CD-RW drive. This drive is located on the front panel of your computer. The CD-ROM drive allows you to play different types of compact discs (CDs). The DVD-ROM drive allows you to play not only old CD-ROMs, CD-I discs, and video CDs, but new digital video discs (DVDs) as well. The CD-RW drive allows you to record or burn CD-RW (recordable or rewritable) discs. DVD or DVD-ROM is a type of disc media that holds a minimum of 4.7-GB (gigabytes), enough for a full-length movie. It may eventually replace CD-ROMs, as well as VHS video cassettes and laser discs.
CDs and DVDs, like diskettes, are also compact, lightweight, and easy to carry around. However, they are more delicate than diskettes and must be handled with extra care.
To insert a CD or DVD into your computer’s CD-ROM or DVD drive:
1. Gently push the eject button located on the front panel.
2. When the disc tray slides open, insert the CD or DVD. Make sure that the label or title side of the disc is facing upward. When holding a disc, hold it by the edges to avoid leaving smudges or fingerprints.
23
3. Push the eject button again to close the tray.
To take care of your CDs and DVDs
Keep your disc in its case when not in use to avoid scratches or other damage. Any kind of dirt or damage can affect the data on the disc, impair the disc lens reader on the CD or DVD drive, or stop the computer from successfully reading the disc.
When handling discs, always hold them by the edges to avoid smudges or fingerprints.
When cleaning discs, use a clean, dust-free cloth and wipe in a straight line from the center to the edge. Do not wipe in a circular motion.
Clean your CD or DVD drive periodically. You may refer to the Cleaning kit for instructions. Cleaning kits can be purchased in any computer or electronics shop.
24
2 System tour

Hard disk

Your computer is preinstalled with a high-capacity Enhanced-IDE (E­IDE) hard disk. If you want to replace your hard disk or upgrade it, contact your dealer or a qualified service technician for support.
3 Setting up your
computer
This chapter contains step-by-step instructions on how to set up your computer and connect additional peripherals.
27

Arranging a comfortable work area

Working safely begins with the arrangement of your work space and the proper use of equipment. For this reason, it is very important to take time and think about how you are going to arrange your work area.
Here are some points to consider:

Adjusting your chair

Having the right kind of chair does not necessarily mean that you’ll be properly supported. It is necessary to adjust your chair to fit your body. Proper body posture will make you more comfortable and productive.
Avoid tilting your chair. If you have a chair that tilts, lock the tilt knobs so that your chair will not tilt forward or backward while you are using your computer.
Adjust your chair height in such a way that you can sit on it with your thighs parallel to the floor and your feet resting flat on the floor.
Rest your body on the chair back. Your torso works harder to maintain balance if you do not rest your body on the chair back.

Positioning your PC

Take note of the following when selecting a location for your computer:
Do not put your computer near any equipment that might cause electromagnetic or radio frequency interference such as radio transmitters, televisions, copy machines, or heating and air­conditioning equipment.
Avoid dusty areas and extremes of temperature and humidity.
You may place your computer beside your desk or under your table, as long as it does not block the space that you need for working and moving.
28
3 Setting up your computer

Positioning your monitor

Place your monitor at a comfortable viewing distance, usually 50 to 60 centimeters away. Adjust the display in such a way that the top of the screen is at or slightly below eye level.

Positioning your keyboard

The location of the keyboard is a very important factor to your posture. Placing it too far away will make your body lean forward forcing you to sit in an unnatural position. Placing it too high will add tension to your shoulder muscles.
The keyboard should be placed just above your lap. Adjust the keyboard height by flipping the folding stands located under the keyboard.
Keep your lower arms parallel to the floor as you type. Your upper arms and shoulders should be relaxed. Then try typing with a light touch. If you feel any shoulder or neck strain, stop for a while and check your posture.
Position your keyboard in front of your monitor. Putting your keyboard beside your monitor will make you turn your head while you type which could add tension to your neck muscles that may later result in neck strain.

Positioning your mouse

The mouse should be placed on the same surface as your keyboard so that you can reach it with ease.
Adjust its position to allow enough space for movement without making you stretch or lean over.
Use your arm to move the mouse. Do not rest your wrist on the table when moving the mouse.
29

Connecting peripherals

Setting up your computer is easy. For the most part, you only have four things to connect: the mouse, the keyboard, the monitor, and the power cable.

Mouse

Plug the mouse cable into the the USB port (black port) or the
PS/2 mouse port (green port) located on the rear panel of your computer.
Connecting the USB mouse
30
Connecting the PS/2 mouse
3 Setting up your computer
31

Keyboard

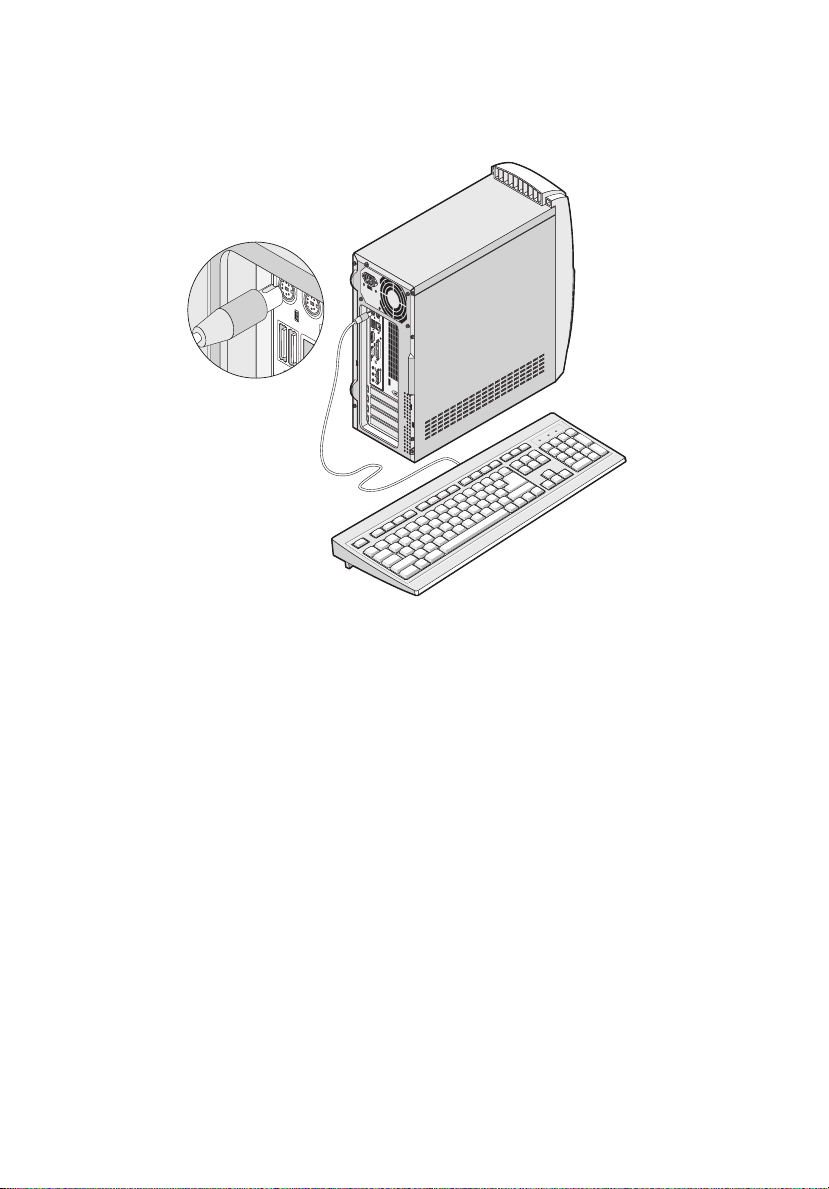

Plug the keyboard cable into the USB port (black port) or the
PS/2 keyboard port (purple port) located on the rear panel of your computer.
Connecting the USB keyboard
32
Connecting the PS/2 keyboard
3 Setting up your computer
33

Monitor

To connect a monitor, simply plug the monitor cable into the VGA port
(blue port) located on the rear panel of your computer.
Note: Refer to the monitor manual for additonal instructions and information.
34
3 Setting up your computer

Power cable

Caution: Before you proceed, check the voltage range in your area. Make sure that it matches your computer’s voltage setting (refer to page 13 for the location of the voltage selector switch on the rear panel of your computer). If they don’t match, change your computer’s voltage setting according to your area’s voltage range.
Plug the power cable into the power cable socket located on the rear panel of your computer. Then plug the other end of the power cable into a power outlet.
35

Turning on your computer

After connecting the necessary peripherals and plugging in the power cable, you are now ready to turn the computer on and get to work.
To turn on your computer:
1. Turn on all peripherals connected to your computer such as the monitor, printer, fax, speakers, etc.
2. On the rear panel of your computer, set the voltage selector switch to the voltage range applicable to your area. Refer to page 13 for the location of the voltage selector switch on the rear panel of your computer.
Note: The illustration of the computer's rear panel shown below may be different from your computer model. If your computer model comes with a main power switch located above the voltage selector switch, first set the voltage selector switch to the voltage range applicable to your area before turning on the main power switch.
36
3 Setting up your computer
3. On the front panel of your computer, press the power button.
Important: Make sure that the power cable is properly plugged into an electrical outlet. If you are using a power strip or an AVR (Auto-Voltage Regulator), make sure that it is plugged in and turned on.
37

Turning off your computer

To turn off your computer, on the Windows taskbar click on the Start button, highlight Shut Down, select Shut down; then click on OK. You can then turn off all peripherals connected to your computer.
If you cannot shut down your computer normally, press the power button for at least four seconds. Quickly pressing the button may put the computer in Suspend mode only.
Note: You do not need to turn off the main power switch every time you turn off your computer. Turn off the main power switch only if:
- you will not use your computer for a long time or
- your computer needs servicing.
38
3 Setting up your computer

Connecting options

Printer

Your computer supports parallel, USB and serial printer.
Note: The printers shown below are for your reference only. Actual device model may vary in select countries.
Parallel printer
To connect a printer, plug the printer cable into the parallel port (burgundy port) located on the rear panel of your computer.
USB printer
To connect a printer, plug the printer cable into the USB port (black port) located on the rear panel of your computer.
39
Serial printer
To connect a printer, plug the printer cable into the serial port (teal or turquiose) located on the rear panel of your computer. See “Rear panel” on page 13 for the location of the serial port.
40
3 Setting up your computer

Serial mouse

To connect a serial mouse, plug the serial mouse cable into the serial
port (teal or turquiose port) located on the rear panel of your computer.
41

LCD Monitor

To connect an LCD monitor, plug the LCD monitor's VGA cable into the
VGA port (blue port) located on the rear panel of your computer.
42
3 Setting up your computer

Network

You can connect your computer to a Local Area Network (LAN) using a network cable. To do so, simply plug the network cable into the
network port on the rear panel of your computer.
Note: Consult your operating system manual for information on how to configure your network setup.
43

Multimedia devices

You can connect multimedia devices such as microphone, earphone or headphone, external speakers, audio line-in device and a joystick (for games). These devices will allow you to take advantage of your computer’s multimedia features.
Note: The multimedia devices shown below are for your reference only. Actual device models may vary in select countries.
Plug the devices in as follows:
Note: For information on how to configure multimedia devices, consult the documentation that came with each device.
microphone: connects to the Microphone-in jack (pink jack) located on the front and rear panel of your computer.
Note: The system has two microphone-in jack (front and rear). However, you cannot use both of them at the same time. By default, your system enables the microphone-in jack in front and disables the one at the back
.
44
3 Setting up your computer
earphones, headphones: connect to the Headphone-out jack (lime jack) located on the front panel of your computer
Note: To adjust the volume of the headphones, click on the Volume icon located on the taskbar at the bottom of your screen. When the volume control pops up, drag the Volume control lever to the desired level. You can also use the Volume control button on the keyboard.
external speakers: connect to the Audio-out/Line-out jack (lime jack) located on the rear panel of your computer.
audio line-in device: connects to the Audio-in/Line-in jack (light blue jack) located on the rear panel of your computer.
45
46
3 Setting up your computer

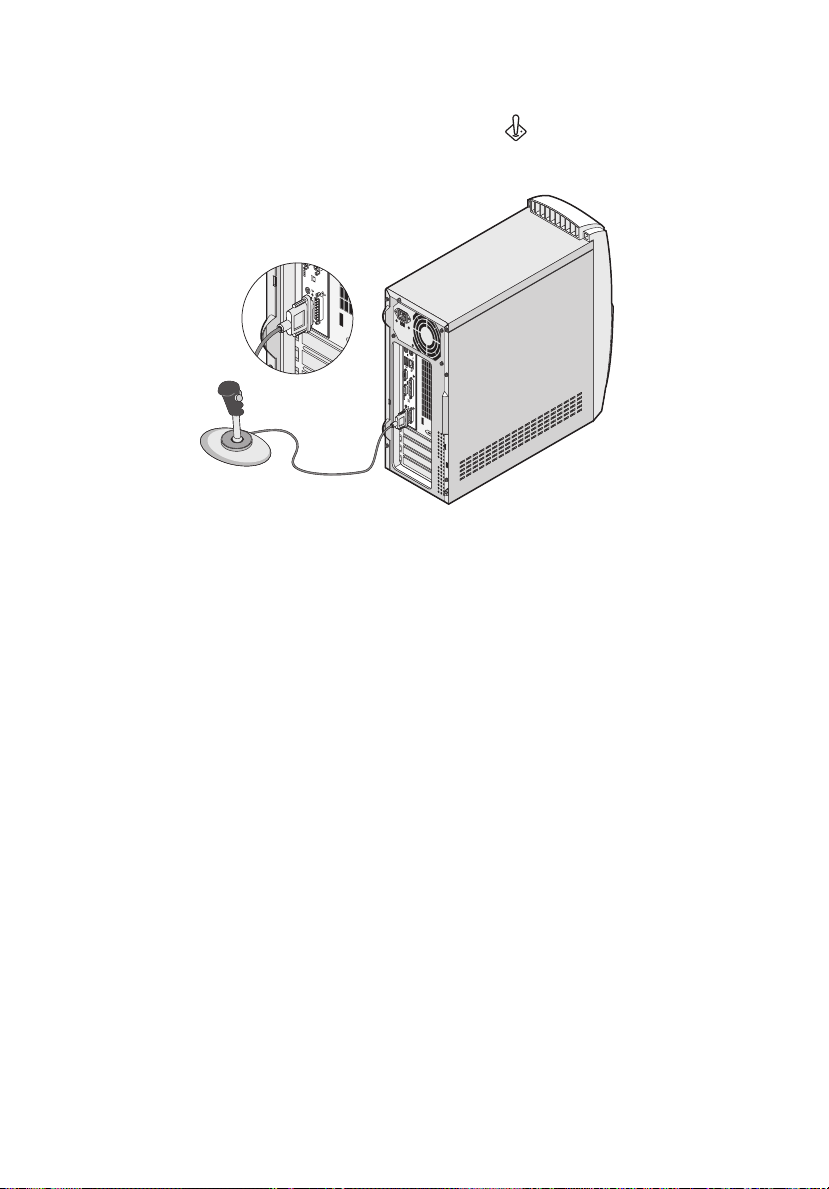

joystick: connects to the Game/MIDI port (gold port) located on the rear panel of your computer.
47

USB devices

Universal Serial Bus (USB) is a new serial bus design that is capable of cascading peripherals such as a digital camera, keyboard, mouse, joystick, scanner, printer and modem. With USB, complex cable connections can be eliminated.

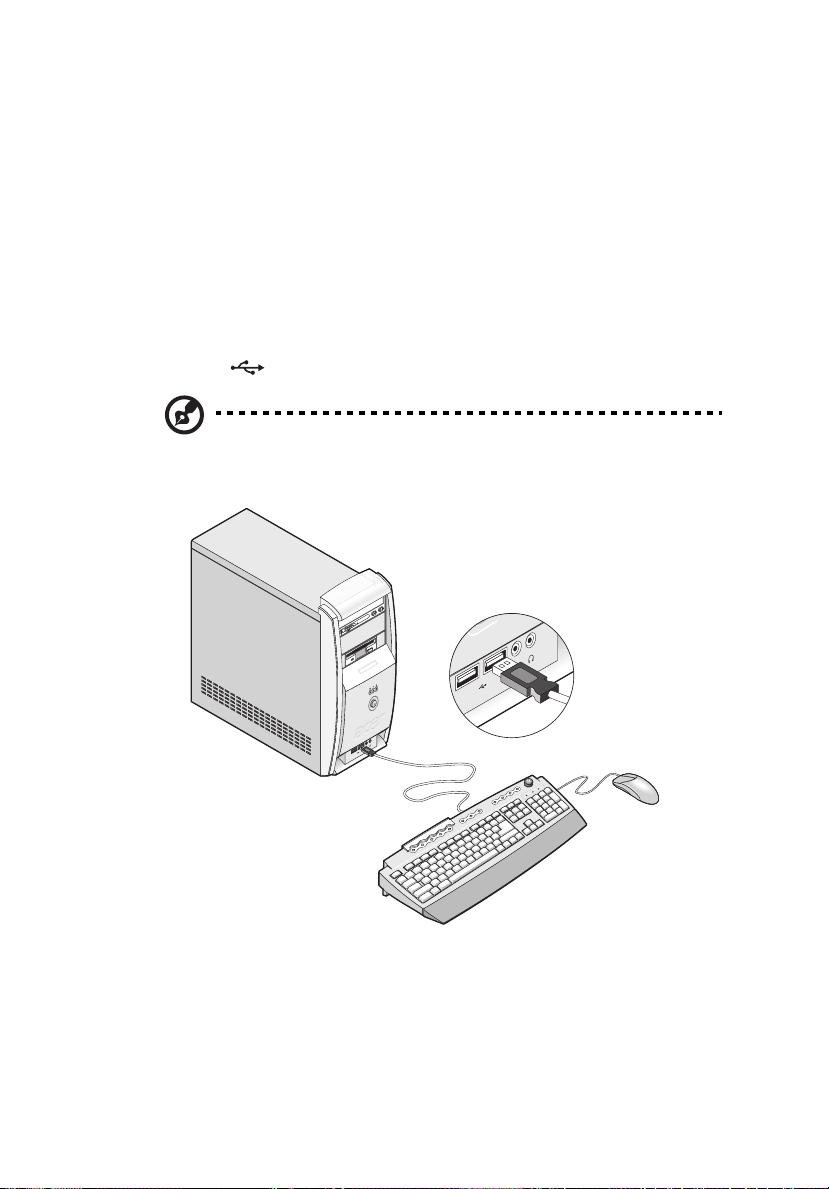

Your computer comes with four USB ports: two each on both the front and rear panels. These ports allow you to connect additional serial devices to your computer without using up its system resources.
To connect a USB device, simply plug the device cable into any of the
USB ports (black port).
Note: The USB devices shown below are for your reference only. Actual device models may vary in select countries.
48
3 Setting up your computer
Note: Most USB devices have a built-in USB port which allows you to connect or daisy-chain more USB devices.
4 Upgrading your
computer
This chapter contains instructions on how to upgrade your computer and basic information about your system boards that you will find helpful when performing the upgrade process.

Installation precautions

Before you install any computer component, we recommend that you read the following sections. These sections contain important ESD precautions along with preinstallation and post-installation instructions.

ESD precautions

Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a computer component:
1. Do not remove a component from its protective packaging until you are ready to install it.
2. Wear a wrist grounding strap and attach it to a metal part of the computer before handling components. If a wrist strap is not available, maintain contact with the computer throughout any procedure requiring ESD protection.

Preinstallation instructions

Always observe the following before you install any component:
1. Turn off your computer and all the peripherals connected to it before opening it. Then unplug all cables from the power outlets.
2. Open your computer according to the instructions on page 53.
3. Follow the ESD precautions described above before handling a computer component.
4. Remove any expansion boards or peripherals that block access to the DIMM sockets or component connector.
5. See the following sections for specific instructions on the component you wish to install.
51
Warning! Not turning off the computer properly before you start installing the components may cause serious damage.
Do not attempt the procedures described in the following sections unless you are a qualified service technician.
52
4 Upgrading your computer

Post-installation instructions

Observe the following after installing a computer component:
1. See to it that the components are installed according to the step­by-step instructions in their respective sections.
2. Replace any expansion boards or peripherals that you removed earlier.
3. Replace the computer cover.
4. Connect the necessary cables and turn on your computer.

Opening your computer

Caution: Before you proceed, make sure that you have turned off your computer and all peripherals connected to it. Read the “Preinstallation instructions” on page 51.
You need to open your computer before you can install additional components. See the following section for instructions.

To remove the side panel

1. Turn off your computer and unplug all cables.
2. Place your computer on a flat, steady surface.

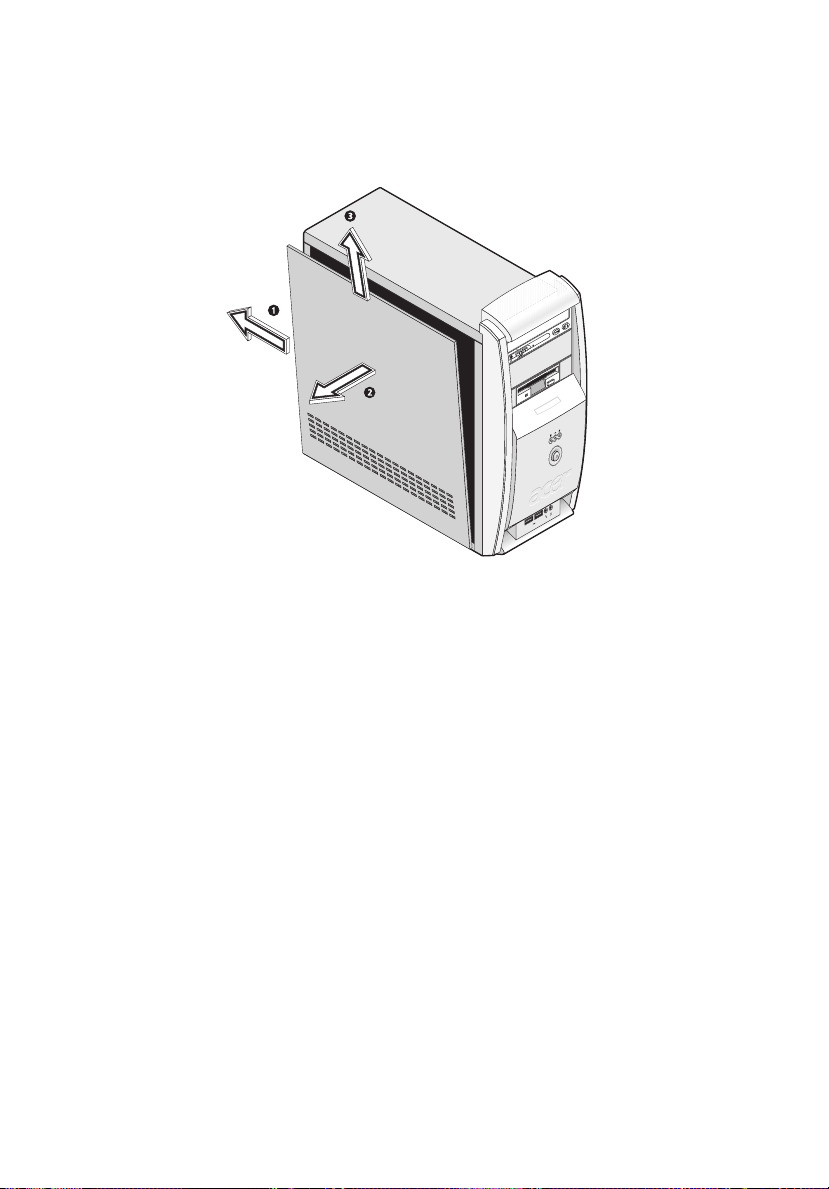

3. Remove the two screws from the rear panel using a screwdriver. Set the screws aside.
53
54
4 Upgrading your computer
4. Slide the panel slightly backward (1), tilt it away from the housing (2) before pulling it upward to detach it from the chassis (3).

To replace the side panel

1. Align the side panel to the housing (1), insert the latches into the slots (2) and slide it forward into place (3).
55
56
2. Secure the side panel with two screws.
4 Upgrading your computer

Internal components

The figure below shows what your computer looks like once you remove the cover:
57
No. Component
1 5.25-inch drive bays (two bays)
2 3.5-inch drive bays (two bays)
3 Hard disk
4 Daughterboard
5 Mainboard
6 Expansion slots
7 Connectors
8Power supply
58
4 Upgrading your computer

System boards

Mainboard

The layout below shows all the connectors and jumpers of the mainboard. Refer to the table for a brief description of each connectors and jumpers.
The mainboard becomes accessible once you open your computer. It should look like the figure shown below:
Label Component
AGP1 AGP slot
AUDI01 MIDI/game (upper), line-out (left), line-in (middle),
and rear mic-in (right) ports
BATT Battery
BIOS BIOS chipset
CNR Communication network riser
CONN1 ATX Power supply
CPU CPU socket
CPUFA 3-pin CPU fan connector
DIMM 1 DIMM sockets 1
DIMM 2 DIMM sockets 2
FDD1 FDD Connector
IDE1 IDE 1 connector
59
IDE2 IDE 2 connector
J8 Chassis intrusion switch connector
JAUD Front audio connector
JAUX1 Audio FPIO connector
JBAT1
JCD1
JCOM2 Internal serial port for COM2
Clear CMOS jumper
CD-in connector
60
Label Component
4 Upgrading your computer
JFP1/
JFP2
JIR IrDA infrared module connector
JKBMS1 PS/2 mouse (upper) and keyboard (lower) ports
JMD1 Modem-in connector
JPW1 Power connector (12 V power)
JUSB1 Front USB connector
JUSB2 Front USB connector
PCI1 PCI slots 1
PCI2 PCI slots2
PCI3 PCI slots 3
SiS 645/650 SiS 645/650 chipset
JFP1 1,3 HDD LED connector
2,4 Power LED connector 5,7 Reset switch connector 6,8 Power switch connector
JFP2 2,8 Speaker connector
4,6 Buzzer connector 1,3,5 Power LED connector
SiS 961 SiS 961 chipset
SYSFA 3-pin system fan connector
USB1 Network (upper) and USB (lower) ports
VGA/COM/LPT1 Serial port and VGA port (lower left and right) and
parallel port (upper)

Audio board

The audio board that came with your computer should look like the figure that follows.
Label Description
JAUD Audio connector - connects to the JAUD connector of
the mainboard
JMIC
JSPK Audio-out port
JUSB USB connector - connects to the JUSB1, JUSB2
Microphone-in jack (front)
connector of the mainboard
see note
61
JUSB1 USB ports
JUSB2 USB ports
Note: The system has two microphone-in jacks (front and rear). However, you cannot use both of them at the same time. By default, your system enables the microphone-in jack in front and disables the one at the back.
62
4 Upgrading your computer

Upgrading your computer

Certain components of your computer are upgradeable such as the memory, the hard disk, the CPU and the expansion cards. However, for safety purposes, we do not recommend that you perform these upgrades yourself. If you want to replace or upgrade any of these components, contact your dealer or a qualified service technician for assistance.
Note: Observe the “Installation precautions” on page 51 when installing or removing a computer component.

Installing additional memory

The two 184-pin sockets on the mainboard support Double Data Rate (DDR) Synchronous Dynamic Random Access Memory (SDRAM)-type DIMMs. You may install 128-MB, 256-MB, 512-MB or 1-GB DIMMs for a maximum memory capacity of 2 GB.
Note: To capitalize on the system memory capacity mentioned above, you must use 1-GB memory modules which are not yet available in the market. The biggest capacity memory module type currently available is 512-MB which allows a maximum of 1GB.
The DDR DIMMs should work under 2.5 volts. You can install PC1600/ DDR200 or PC2100/DDR266 DDR modules on the DDR DIMM sockets. Contact your dealer for qualified DIMM vendors.
Caution! Do not install and use both DDR200 (PC1600) and DDR266 (PC2100) SDRAM together. Combining DDR DIMMs of different types might cause your computer to malfunction.
Each of the DDR DIMM socket is independent from each other. This independence allows you to install DDR DIMMs with different capacities to form different configurations.
To remove a DDR DIMM
Before you can install a new DDR DIMM, remove first any previously installed DDR DIMM.
Note: The DDR DIMM has only one notch located on the center of the module.
1. Remove the side panel (see page 53).
2. Locate the DDR DIMM socket on the mainboard.
3. Press the holding clips on both sides of the DDR DIMM socket outward to release the DDR DIMM (1,2). Gently pull the DDR DIMM out of the socket (3).
63
To install a DDR DIMM
1. Locate the DDR DIMM socket on the mainboard.
64
2. Align the DDR DIMM with the socket (1). Press the DDR DIMM into the socket until the clips lock onto the DDR DIMM (2,3).
Note: The DDR DIMM sockets are slotted to ensure proper installation. If you insert a DDR DIMM but it does not fit easily into the socket, you may have inserted it incorrectly. Turn the DDR DIMM and try to insert it again.
4 Upgrading your computer
Reconfiguring your computer
Your computer automatically detects the amount of memory installed. Run the BIOS (Basic Input/Output System) Setup utility to view the new value for total system memory and make a note of it. For more information on BIOS Setup utility, refer to the AcerPower Sd online guide (see “Accessing the online guide” on page 6).

Replacing the hard disk

Follow these steps to replace your computer’s hard disk:
1. Remove the side panel (see page 53).
2. Locate the hard disk frame.
65
3. Disconnect all hard disk cables (power and signal).
4. Remove the three screws that hold the drive frame to the housing (1,2,3) and pull out the drive frame (4).
66
4 Upgrading your computer
5. Remove the three screws that hold the hard disk to the drive frame (1,2,3) and pull out the hard disk (4).
6. Insert the new hard disk (1) and secure it with the three screws you previously removed (2,3,4).
7. Reinstall the drive frame into the housing as shown in the following figure:
a. Align the drive frame to the housing notch (1,2).
b. Attach the drive frame to the housing by securing it to the floppy drive frame latches (3).
c. Secure the drive by using the three screws (4,5,6) you removed earlier.
67
68
8. Connect all hard disk cables.
Note: Make sure that the other ends of the disk cables are securely connected to their corresponding connectors on the mainboard.
4 Upgrading your computer
9. Replace the side panel (see page 55).

Replacing the CD-ROM/DVD-ROM/CD-RW drive

Follow these steps to replace your computer’s CD, DVD or CD-RW drive:
1. Remove the side panel (see page 53).
2. Locate the CD/DVD/CD-RW drive.
69
3. Disconnect all CD/DVD/CD-RW drive cables (power, signal and audio).
4. Remove the two screws that hold the CD/DVD/CD-RW drive to the disk frame (1,2) and save the screws. Pull out the CD/DVD/CD-RW drive from its bay (3).
70
4 Upgrading your computer
5. Install a new CD/DVD/CD-RW drive into the drive bay (1) and secure it with two screws you removed earlier (2,3).
6. Connect all CD/DVD/CD-RW drive cables.
7. Replace the side panel.
71

Installing an expansion card

To install an expansion card:
1. Remove the side panel (see page 53).
2. Locate an empty PCI slot on the mainboard.
3. Remove the screw that holds the bracket to the computer and save the screw (1). Pull out the bracket opposite the selected empty slot (2).
4. Remove the expansion card from its protective packaging.
72
4 Upgrading your computer
5. Align the card with the empty bracket and then insert it into the slot (1). Make sure that the card is properly seated. Secure the card to your computer with a screw you removed earlier (2).
6. Replace the side panel (see page 55).
When you turn on the computer, BIOS automatically detects and assigns resources to the newly-installed devices. For more information on BIOS, refer to the AcerPower Sd online guide (see “Accessing the online guide” on page 6).

5 Software

This chapter describes the applications that came with your computer.
Your computer comes with the following applications:
Acrobat® Reader™
Norton AntiVirus
NTI CD-Maker
•PowerDVD
All of the applications that came with your computer are very easy to use. However, if you need more help and information, you may refer to the online help documentation provided in each software application.
75
76
5 Software

Acrobat Reader

Acrobat Reader is a software that lets you view, navigate, browse and print Adobe Portable Document Format (PDF) files on all major computer platforms. Acrobat Reader can open your document across a broad range of hardware and software, and it will look exactly as you intended - with layout, fonts, links and images intact.
To run Acrobat Reader, double-click the Acrobat Reader icon on your Windows's desktop.
For more information about Acrobat Reader, you may refer to its Help menu.
77

Norton AntiVirus

Norton AntiVirus is an anti-virus software which finds and repairs infected files, protects against viruses to keep your computer data safe and secure. It also scans incoming email attachments for viruses. It provides useful virus detection and repair facilities.
To install Norton AntiVirus:
1. Double-click the Norton AntiVirus installer icon on your Windows desktop.
2. Follow all onscreen instructions until you finish installation.
Note: After you finish installing the Norton AntiVirus software, delete the Norton AntiVirus installer icon from your Windows desktop.
For more information about Norton AntiVirus, you may refer to the Norton AntiVirus Help menu.
78
5 Software
NTI CD-Maker (for models with CD­RW)
The NTI CD-Maker is a CD-Recording software which allows you to create and copy audio, data and videos to CD-RW discs.
To run NTI CD-Maker:
1. Double-click the NTI CD-Maker icon on your Windows desktop.
2. Follow all onscreen instructions.
For more information on how to use the NTI CD-Maker, refer to the NTl CD-Maker Help menu.
79

PowerDVD (for models with DVD)

PowerDVD is a high-quality, pure software DVD player which brings high-quality movies and karaoke to your multimedia PC. You can play back high resolution DVD titles or MPEG-2 files with MPEG-2 video and Dolby Digital (AC-3) audio. PowerDVD provides a complete set of commands for navigation and advanced features such as multi-angle switching, multi-language and multi-subtitle selection, and parental control. It also has the i-Power Internet Enabling feature, which links to online DVD resources via the Power DVD Desktop Portal Page.
To run PowerDVD:
1. Double-click the PowerDVD icon on your Windows desktop.
2. Follow all onscreen instructions.
For more information about PowerDVD, refer to the PowerDVD Help menu.
80
5 Software

Reinstalling programs

If you uninstall one of the preinstalled programs and want to reinstall it, do the following:
1. Make sure that the system is turned on.
2. Insert the System CD into the CD or DVD drive.
3. Select the application that you want to reinstall.
4. Follow all onscreen instructions until you finish the installation.

Recovering your system

When your operating system files are lost or damaged, the recovery process will require you to restore your system's original factory default settings. Follow the steps below:
1. Insert the System CD into the CD or DVD drive.
2. Reboot the system.
3. Follow all onscreen instructions.
4. Remove the System CD and insert the Recovery CD into the CD or DVD drive.
5. After the operating system has been copied to your hard disk, remove the Recovery CD and insert the System CD into the CD or DVD drive.
6. Follow all onscreen instructions until you finish the installation.
Caution! Using the Recovery CD will erase all files previously saved in your computer so make sure to back up your important files before starting the recovery process.
Make sure that the Systems CD/Recovery CD is properly inserted into the CD or DVD drive. Improper insertion may damage both the CD and the drive.

6 Q & A

This chapter tells you what to do in case your computer is not working properly. However, if a more serious problem arises, contact your dealer or the technical support center (www.acersupport.com
) for assistance.
83
The following questions are possible situations that may arise during the use of your computer and each is followed by easy answers and solutions to the situation.
Q: I pressed the power switch but the system did not boot up.
A: Check the LED located above the power switch.
If the LED is not lit, no power is being applied to the system. Do any of the following:
Check if the voltage selector switch located on the rear panel of the computer is set to the correct voltage.
Check if you plugged the power cable properly into an electrical outlet.
If you are using a power strip or AVR, make sure that it is plugged in and turned on.
If the LED is lit, check the following:
Is a nonbootable (nonsystem) diskette in the floppy drive? If yes, remove or replace it with a system diskette and press Ctrl + Alt + Del to restart your computer.
The operating system files may be damaged or missing. Insert the startup disk you created during Windows setup into the floppy drive and press Ctrl + Alt + Del to restart your computer. This will automatically diagnose your system and make necessary fixes. However, if the diagnostic utility still reports a problem, then you may have to perform the recovery process to restore your system to its original default factory settings.
Note: For more information about recovering your system, refer to page 80.
84
6 Q & A
Q: Nothing appears on the screen.
A: Your computer’s power management function automatically blanks
the screen to save power. Just press any key to turn the display back on.
If pressing a key does not work, you can restart your computer. If restarting your computer does not work, contact your dealer or the technical support center for assistance.
Q: The printer does not work.
A: Do the following:
Make sure that the printer is connected to a power outlet and that it is turned on.
Make sure that the printer cable is connected securely to the system’s parallel port and the corresponding port on the printer. See “Printer” on page 38 for information on how to connect the printer to your computer.
For additional information concerning the printer, refer to the printer’s documentation.
Q: No sound comes out from the computer.
A: Check the following:
The volume may be muted. Look for the Volume icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute option. You can also press the volume control/mute knob on your USB keyboard to toggle from mute to sound on.
If headphones, earphones, or external speakers are connected to the line-out jack of your computer, the internal or built-in speakers are automatically turned off.
85
Q: System cannot read diskette, hard disk, CD or DVD information.
A: Check the following:
Make sure that you are using the correct type of disc or diskettes. See “Disk drives” on page 21.
Check if the diskette is formatted correctly. If not, format it again.
Caution: If you reformat a diskette, you will lose all data on it.
Make sure the diskette, CD or DVD is inserted into the drive correctly.
Check if the CD or DVD is clean and not scratched.
Check your drive by using a good (i.e., undamaged) diskette or a good disc. If your floppy drive, CD or DVD drive can not read the information on the good diskette, CD or DVD there may be a problem with the drive. Contact your dealer or technical support center for assistance.
Q: System cannot write diskette, hard disk or disc.
A: Check the following:
Make sure the diskette or hard disk is not write-protected. See “Disk drives” on page 21.
Make sure that you are using the correct type of diskette. See “Disk drives” on page 21.
Check if the diskette is formatted correctly. If not, format it again.
Caution: If you reformat a diskette, you will lose all data on it.
86
6 Q & A

Index

A
accessing the online guide 6
C
computer maintenance 4
cleaning 4 servicing 4
connecting options
lcd monitor 41 multimedia devices 43
audio line-in device 45 earphones/headphones 44 external speakers 43 joystick 43
microphone 43 network 38, 42 printer 38
Parallel printer 38
Serial printer 39
USB printer 39 serial mouse 40
D
disk drives 21
CD-ROM/DVD-ROM/CD-RW drive
inserting CDs/DVDs 22
taking care CDs/DVDs 23 floppy drive 21
not write-protect 21
write-protect 21 hard disk 24
F
features 9
connectivity 9 multimedia 9 performance 9
front panel 11
I
internal components 57 internet/suspend key
email 19 suspend 19 web browser 19
87
K
keyboard 15
application key 17 caps lock 15 cursor keys 15 function keys 15 internet/suspend keys 16 multimedia keys 15 num lock key 15 palm rest 15 programmable keys 16 scroll lock key 15 volume control/mute knob 15 Windows logo key 15
L
laser compliance vii lithium battery vii
M
mouse 20
buttons 20 clicking 20 double-click 20 ratchet wheel 20
multimedia key
forward 18 play/pause 18 stop 18
N
notice iii
fcc notice iii periperhal devices iii shield cables iii
Q
Q&A 83
blank screen 84 no audio 84 no sound 84 printer not working 84 system cannot read disk 85 system cannot write to disk 85 system did not boot up 83
R
rear panel 13 recovering your system 80
88
Index
remove the side panel 53
S
safety instructions v setting up computer 27, 29
area 27 chair 27 connecting peripherals
external monitor 33 power cable 34 PS/2 keyboard 32 PS/2 mouse 30 USB keyboard 31
USB mouse 29 keyboard 28 monitor 28 mouse 28
software
Acrobat Reader 76 Norton AntiVirus 77 NTI CD-Maker 78 PowerDVD 79 reinstalling programs 80
system boards 58
audio board 61 mainboard 58
T
turning off computer 37
software shutdown 37 suspend mode 37
turning on computer 35
power button 35
U
upgrade
add memory 62
install DIMM 63
reconfigure computer 64 computer 62 installation precautions 51
ESD 51
post-installation 52
preinstallation 51 open computer
remove side panel 53
replace side panel 55 remove DIMM 63 replace components 62
memory 62
USB devices 47
W
Windows logo key
Shift +Windows + M 17 Windows + E 17 Windows + F 17 Windows + M 17 Windows + R 17 Windows + Tab 17
Y
year 2000 compliance vii
Loading...
