Acer 5280 Product Sheet

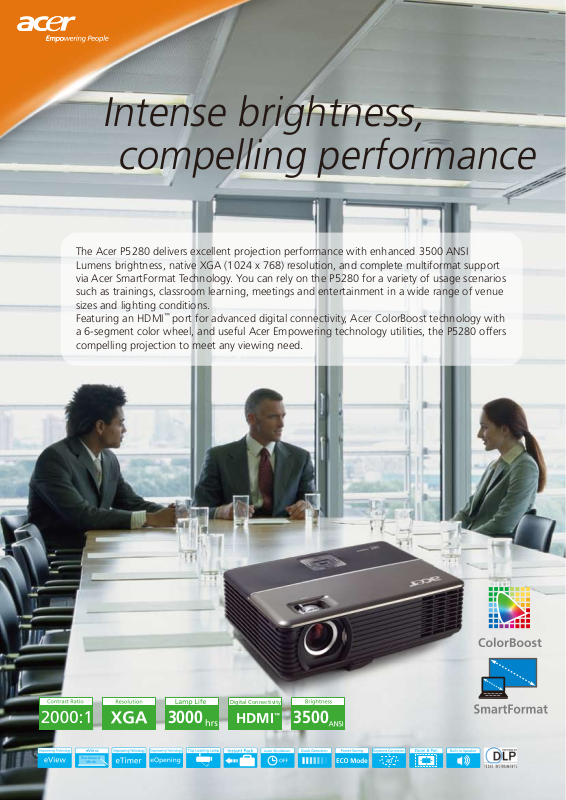

Intense brightness,

compelling performance

The Acer P5280 delivers excellent projection performance with enhanced 3500 ANSI Lumens brightness, native XGA (1024 x 768) resolution, and complete multiformat support via Acer SmartFormat Technology. You can rely on the P5280 for a variety of usage scenarios such as trainings, classroom learning, meetings and entertainment in a wide range of venue sizes and lighting conditions. Featuring an HDMI a 6-segment color wheel, and useful Acer Empowering technology utilities, the P5280 offers compelling projection to meet any viewing need.

™

port for advanced digital connectivity, Acer ColorBoost technology with

eView

Blackboard

Mode

Digital Connectivity

HDMI

™

35003000

Intense brightness, compelling performance

P5280

Acer Projector P5280 Quick Spec

Projection system DLP® Resolution Native: XGA (1024 x 768)

Maximum UXGA (1,600 x 1,200), WSXGA+ (1,680 x 1,050)

Aspect ratio 4:3 (native), 16:9 Brightness 3,500 ANSI Lumens (standard),

2,800 ANSI Lumens (economy)

Contrast ratio 2000:1 Displayable colors 134 million colors Projection lens F / 2.41 to 2.55, f = 21.79 mm to 23.99 mm;

Manual zoom (1.1x) and manual focus

Projection screen size 23" (58cm) ~ 300" (762cm) Projection distance 3.3' (1.0m) ~ 39.0' (11.9m) Throw ratio 50 inches @ 2 m Lamp type Philips 260 W user replaceable UHP lamp Lamp life 2000 hours (standard), 3000 hours (economy) Keystone correction +/-40 degrees (vertical) Projection mode Front, rear, front-ceiling, rear-ceiling Ceiling mount capability Yes Audio One internal speaker with 2 W output Weight 3.0 kg (6.6 lbs.) Dimensions (W x H x D) 299 x 229 x 93 mm; 11.8 x 9.0 x 3.7 inches Remote Control IR remote control with laser pointer &

PgUp/PgDn functions

Noise Level 34 dBA (Standard mode),

Feature highlights

High-impact projection

• Unique, elegant design

• Acer ColorBoost technology

• XGA resolution

• 3500 lumens and 2000:1 contrast ratio

• DLP system design

Optimal usability

• Acer eView Management with innovative Blackboard Mode

• Acer eTimer Management

• Acer eOpening Management

• Acer SmartFormat Technology

• Acer Top-Load Lamp Design

• Acer InstantPack technology

• Automatic safety shutdown

• Quick signal detection

Versatile multimedia

• Digital connectivity via an HDMI

• Digital connectivity via a DVI-D port

• Dual D-Sub Input

• Multi-PC Connectivity

• Monitor loop through

• RS232

• Microsoft Vista

Complete functionality

• Low noise level

• Keystone correction (40° vertical)

• Digital zoom and pan

• Built-in speaker

• Alarm

• PIN security

• Sliding lens cover

• ECO mode

™

Compliant

™

port

31 dBA (Economy mode)

eView

Blackboard

Mode

Acer ColorBoost Technology

Featuring an optimized 6-segment color-wheel design, powerful image processing, and advanced lamp illumination technology Acer ColorBoost technology provides incredible color performance, never before seen in conventional projectors. Brilliant color with a high contrast ratio presents ultra-vivid images for business presentations, educational purposes, and home entertainment.

Acer SmartFormat Technology

Conveniently supports comprehensive wide-format PC signals. Users no longer need to worry about annoying "Signal not supported" issues, nor must they change the resolution of their wide-format notebook.

Acer eTimer Management

A digital clock that can be set by the user and displayed onscreen for convenient reference keeps presentations going at the right pace. Acer eTimer Management also features a visual countdown and alarm, or countdown alone, to warn the presenter when time is up.

Acer eView Management with Blackboard Mode

Acer eView Management helps users adjust their projector settings to suit any environment and any type of content in just a few moments. Six factory or user-defined presets instantly reconfigure color, brightness and contrast to deliver best-quality images every time. Innovative Blackboard Mode allows users to instantly project onto a traditional green chalkboard. There is no longer a need to set up a separate white screen.

Acer eOpening Management

Acer eOpening Management allows users to easily create a customized startup screen for their Acer projector. Business users can set a corporate logo to create a professional brand image or add owner information to protect the projector from theft. Home users can have fun displaying their favorite photographs.

Acer Top-Load Lamp Design

The lamp module is now top-loaded, as opposed to the conventional bottom-loading design. Hence, even when the projector is ceiling-mounted, the user can easily replace the lamp module without detaching the projector from the ceiling.

Instant Pack

If the user is in a hurry to leave, the power cord can be unplugged right after the projector is turned off, without any resulting damage. There's no need to wait for a cooling period; the user can pack up the projector and leave immediately.

S-video mini DIN

USB connector for remote

computer control

RS-232 port

3.5 mm audio mini jack

3.5 mm audio mini jack Kensington lock slot

Composite video RCA jack 15-pin D-Sub for monitor loop through 15-pin D-sub for PC analog signal/ HDTV/component video input 29-pin DVI-I port (VGA/Component/HDTV/HDCP)

19-pin HDMI port AC-in jack
