Acer 240P, 250P User Manual

TravelMate 240P/250P series

User’s guide

TravelMate 240P/250P series User’s guide Original Issue: June 2003

Changes may be made periodically to the information in this publication without obligation to notify any person of such revision or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date, and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number, and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Acer Incorporated.

TravelMate 240P/250P series Notebook computer

Model Number : __________________________________

Serial Number: ___________________________________

Purchase Date: ___________________________________

Place of Purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other company's product names or trademarks are used herein for identification purposes only and belong to their respective companies.

iii

First things first

We would like to thank you for making the TravelMate series of notebook computers your choice for your mobile computing needs. We hope you will be happy with your TravelMate as much as we enjoyed making it for you.

You r g ui de s

To help you use your TravelMate, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your computer.

This User’s guide introduces you to the many ways your computer can help you be more productive. This guide provides clear and concise information about the computer, so read it thoroughly.

If you ever need to print out a copy, this User’s guide is also available in PDF (Portable Document Format). Follow these steps:

1 Click on Start, Programs, TravelMate. 2 Click on TravelMate User’s guide.

Note: Viewing the file requires Adobe Acrobat Reader

installed. If Adobe Acrobat Reader is not installed on your computer, clicking on TravelMate User’s guide will run the Acrobat Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Acrobat Reader, access the Help menu.

English

Basic care and tips for using your computer

English

Turning your computer on and off

To turn on the computer, simply press and release the power switch below the LCD screen beside the Launch keys. See “Front view” on page 3 for the location of the power switch.

To turn the power off, do any of the following:

• Use the Windows shutdown command Click on Start, Turn Off Computer; then click on Tu r n Off.

• Use the power switch

Note: You can also use the power switch to perform power

management functions. See “Power management” on page 30.

• Use the customized functions for power management You can also shut down the computer by closing the display cover,

or by pressing the sleep hot key (Fn-F4). See “Power management” on page 30.

Note: If you cannot power off the computer normally, press and hold the power switch for more than four seconds to shut down the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up.

Taking care of your computer

Your computer will serve you well if you take care of it.

• Do not attempt to use the “TIPS” as show in the following:

• Do not fold the “TIPS” in the position as shown:

• Do not expose the computer to direct sunlight. Do not place it

near sources of heat, such as a radiator.

• Do not expose the computer to temperatures below 0ºC (32ºF) or above 50ºC (122ºF).

• Do not subject the computer to magnetic fields.

• Do not expose the computer to rain or moisture.

• Do not spill water or any liquid on the computer.

• Do not subject the computer to heavy shock and vibration.

• Do not expose the computer to dust and dirt.

• Never place objects on top of the computer to avoid damaging the

computer.

• Do not slam the computer display when you close it.

• Never place the computer on uneven surfaces.

Taking care of your AC adapter

Here are some ways to take care of your AC adapter:

• Do not connect the adapter to any other device.

• Do not step on the power cord or place heavy objects on top of it.

Carefully route the power cord and any cables away from personal traffic.

• When unplugging the power cord, do not pull on the cord itself but pull on the plug.

• The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Taking care of your battery pack

Here are some ways to take care of your battery pack:

• Use only batteries of the same kind as replacements. Turn the power off before removing or replacing batteries.

• Do not tamper with batteries. Keep them away from children.

• Dispose of used batteries according to local regulations. Recycle if

at all possible.

English

Cleaning and servicing

When cleaning the computer, follow these steps:

1 Power off the computer and remove the battery pack. 2 Disconnect the AC adapter. 3 Use a soft cloth moistened with water. Do not use liquid or

aerosol cleaners.

If any of the following occurs:

English

• The computer has been dropped or the body has been damaged.

• Liquid has been spilled into the product.

• The computer does not operate normally.

Please refer to "Troubleshooting my computer" on page 61.

First things first iii

Your guides iii Basic care and tips for using your computer iv

1 Getting to know your TravelMate 1

A TravelMate tour 3

Front view 3 Left view 4 Right view 5 Rear view 6

Bottom view 7 Features 9 Indicators 11

Understanding the icons 12 Using the keyboard 13

Special keys 13 Touchpad 20

Touchpad basics 20 Storage 22

Hard disk 22

Optical drive 22

Floppy drive 24 Audio 25

Adjusting the volume 25 Power management 26 Moving around with your TravelMate 27

Disconnecting from the desktop 27

Moving around 27

Taking the computer home 28

Traveling with the computer 30

Traveling internationally with the computer 30 Securing your computer 32

Using a computer security lock 32

2 Customizing my computer 35

Expanding through options 37

Connectivity options 37

Upgrade options 41 Using system utilities 44

Notebook Manager 44

Launch Manager 44

BIOS Utility 45

English

Contentsviii

3 Troubleshooting my computer 59

Frequently-asked questions 61 Error messages 65 Requesting service 69

International Traveler’s Warranty (ITW) 69 Before you call 69

Appendix A Specifications 71

Appendix B Notices 77

Index 85

1 Getting to know your

TravelMate

Your TravelMate computer combines highperformance, versatility, power management features and multimedia capabilities with a unique style and ergonomic design. Work with unmatched productivity and reliability with your new power computing partner.

A TravelMate tour

After setting up your computer as illustrated in the Just for Starters... poster, let us show you around your new TravelMate

computer.

Front view

English

# Item Description

1 Display screen Also called LCD (liquid-crystal display),

displays computer output.

1 Getting to know your TravelMate4

# Item Description

English

2 Status indicators LEDs (light-emitting diodes) that turn on

3 Launch Keys Buttons for launching frequently used

4 Power switch Turns on the computer power.

5 Palmrest Comfortable support area for your hands

6 Click buttons (left,

center and right)

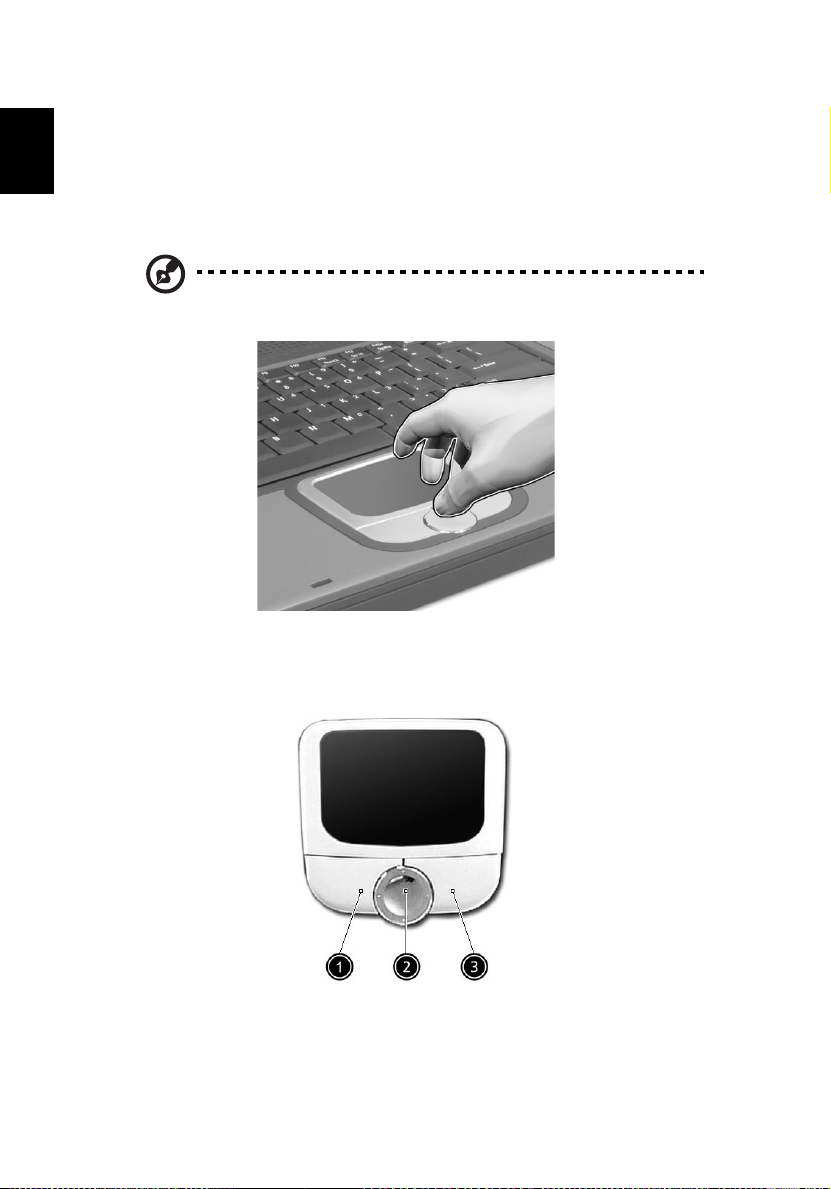

7 Touchpad Touch-sensitive pointing device which

8 Keyboard Inputs data into your computer.

9 Ventilation Slot Enables the computer to stay cool, even

and off to show the status of the computer, its functions and components.

programs. See“Launch Keys” on page 23 for more details.

when you use the computer.

The left and right buttons function like the left and right mouse buttons; the center button serves as a 4-way scroll button.

functions like a computer mouse.

after prolonged use.

Left view

# Item Description

1 PC Card slot Connects to two Type II 16-bit PC Card

or 32-bit CardBus PC Card.

# Item Description

2 Eject button Ejects the PC Card from the slot.

3 Optical drive Internal optical drive; accepts CDs or

DVDs depending on the optical drive type.

4 Infrared port Interfaces with infrared devices (e.g.,

5 LED indicator Lights up when the optical drive is

6 Emergency eject button Ejects the optical drive tray when the

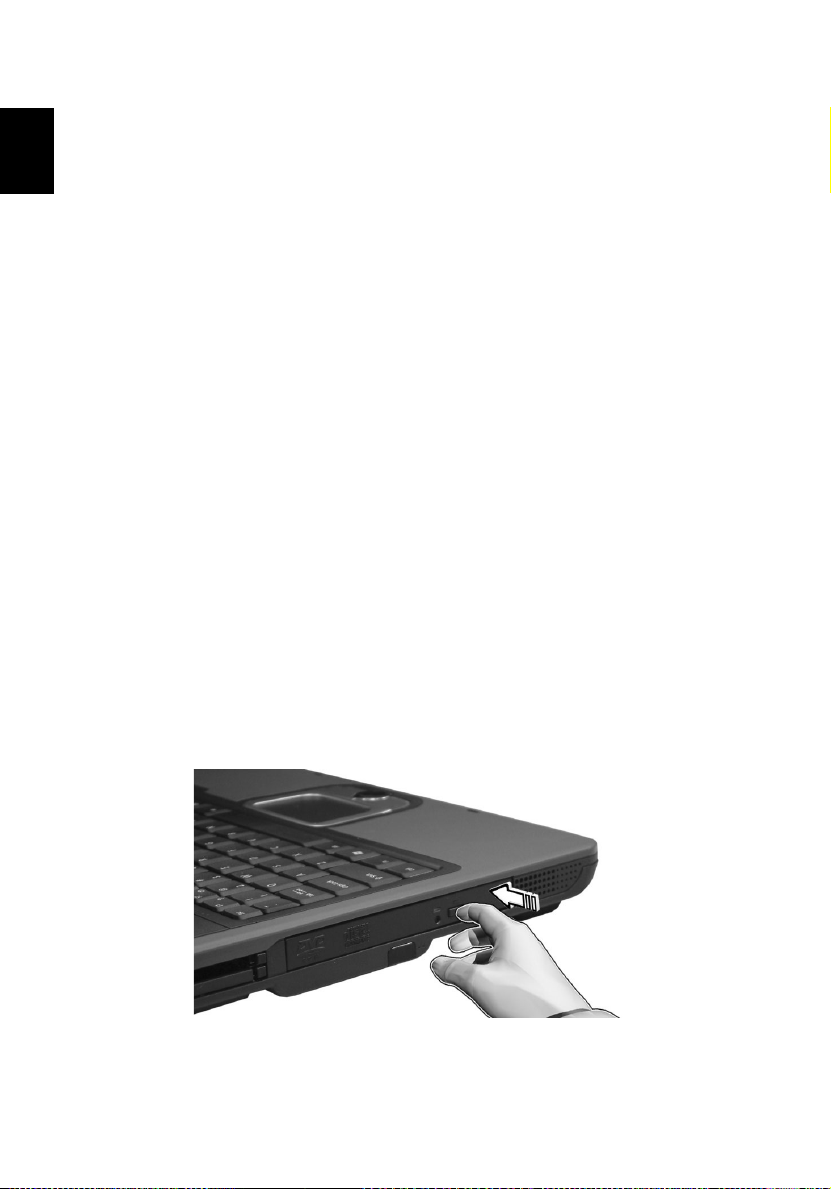

7 Eject button Ejects the optical drive tray from the

8 Speaker Delivers stereo audio output.

9 Tablet Input Panel Support

(TIPS)

infrared printer, IR-aware computer).

active.

computer is turned off. See page 64 for more details.

drive.

A folding support to facilitate writing on the screen.

Right view

English

# Item Description

1 Speaker Delivers stereo audio output.

Floppy activity

indicator

LED (light-emitting diode) that turns on and off when the floppy is active.

English

1 Getting to know your TravelMate6

# Item Description

Floppy drive Internal diskette drive; accepts 3.5-inch

diskettes.

Floppy disk eject

button

5 Security keylock Connects to a Kensington-compatible

6 Tablet Input Panel

Support (TIPS)

Push this button to eject the floppy disk.

computer security lock.

A folding support to facilitate writing on the screen.

Rear view

# Item Description

1 Power jack Connects to an AC adapter.

2 Parallel port Connects to a parallel device (e.g., parallel

printer).

3 External display

port

4 USB 2.0 ports (4) Connect to Universal Serial Bus (USB) 2.0

Connects to a display device (e.g., external monitor, LCD projector) and displays up to 16M colors at 1024x768 resolution.

devices (e.g., USB mouse, USB camera).

# Item Description

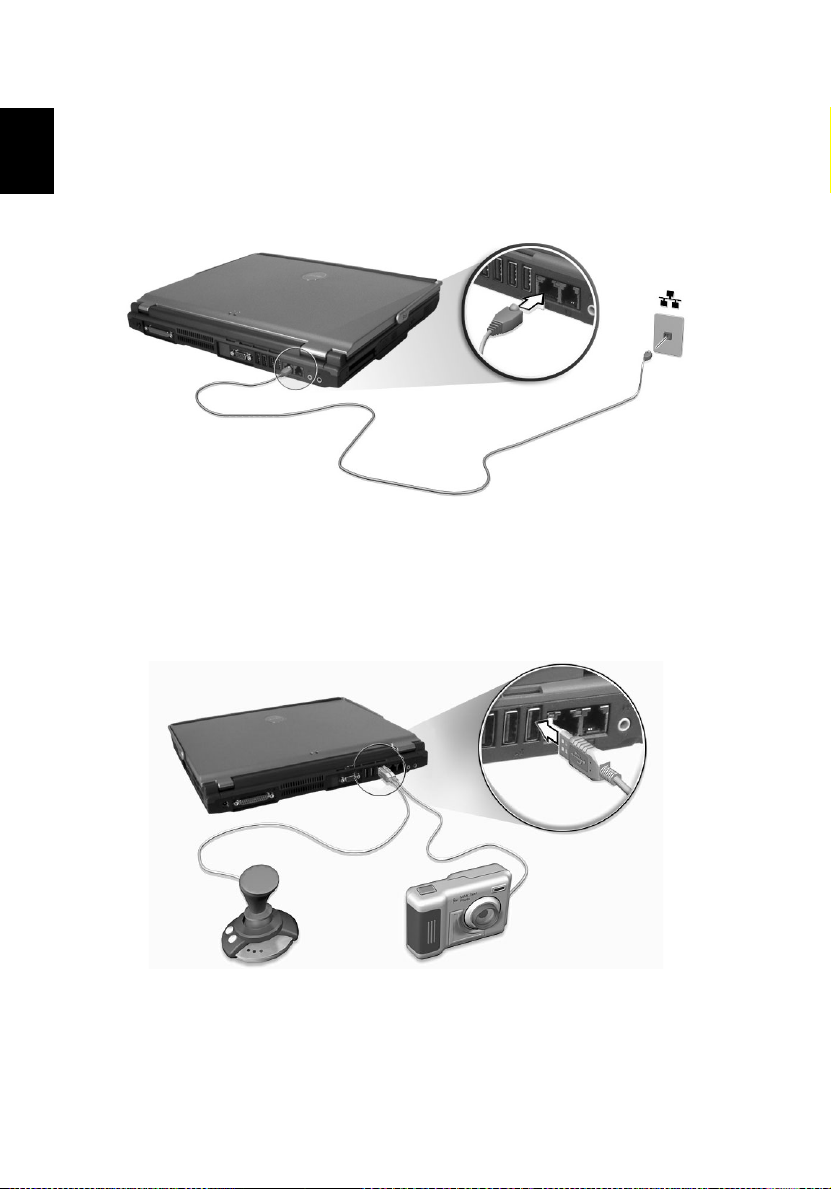

5 Network jack Connects to an Ethernet 10/100-based

6 Modem jack Connects to a phone line.

7 Speaker/Line-out

Headphone jack

8 Line-in/Mic-in jack Accepts audio line-in devices (e.g., audio CD

network.

Connects to audio line-out devices (e.g., speakers, headphones).

player, stereo walkman).

English

1 Getting to know your TravelMate8

Bottom view

# Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery release

latch

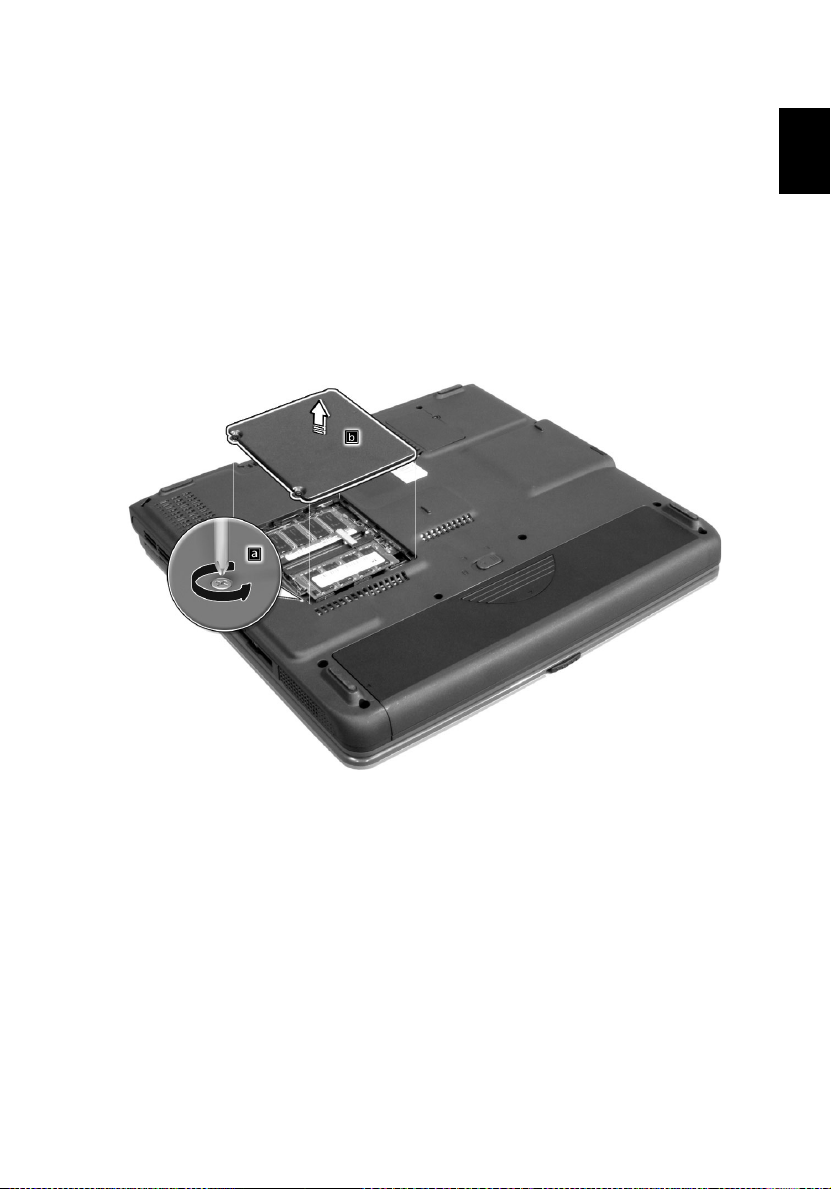

Memory

compartment

Unlatches the battery to remove the battery pack.

Houses the computer's main memory.

Using your computer in tablet mode

Your computer is designed for convenience, ergonomic use, and portability. Running the Windows XP Tablet PC edition operating system, your TravelMate utilizes an EMR stylus for pen-based input. Software developed specifically for the computer allows for both handwriting recognition converted to application text, or handwriting captured as rich digital ink for manipulation, editing, and formatting. “Tablet Input Panel Support” (TIPS) located on the back of the display screen is a folding support to facilitate writing on the screen under Windows XP Tablet edition.

Writing in the tablet mode

To write in the table mode, follow the steps below: 1 Turn the latch to the right (a) and open the display screen in the

direction as shown in the illustration below (b).

English

1 Getting to know your TravelMate10

2 Push the display screen in the direction as shown in the illustration

below until the "TIPS" stands firmly.

3 Adjust "TIPS" to the angle where you desire.

(Suggested angle :125~150 degrees)

4 Begin to write in the tablet mode.

5 When you finish writing in the tablet mode, close the display

screen and store “TIPS” back to the “TIPS” slot in the illustration below.

English

1 Getting to know your TravelMate12

Warning: “TIPS” is not a handle ! Do NOT use the "TIPS" to lift the computer !

Do NOT store"TIPS" to rear side !

Av oi d “ TI PS” p la ci ng pr es su re on re ar ca bl es !

Features

Below is a brief summary of the computer’s many features:

Performance

• Mobile Intel® Pentium® 4 processor with 512 KB L2 cache or Intel® Celeron® processor with 128 KB L2 cache

• CD, DVD, DVD/CD-RW combo or DVD Rewritable drive

• Built-in floppy drive

• High-capacity Enhanced-IDE hard disk

• High-capacity battery pack

• Advanced Configuration Power Interface (ACPI) power

management system

Display

• 14.1” Thin-Film Transistor (TFT) liquid crystal display (LCD) supporting pen-based input, with 16M color at 1024x768 XGA (eXtended Graphics Array) resolution

• 3D capabilities

• Simultaneous LCD and CRT display support

• Supports other output display devices such as LCD projection

panels for large-audience presentations

• "Automatic LCD dim" feature that automatically decides the best settings for your display and conserves power

• Dual display capability

English

Multimedia

• 16-bit high-fidelity AC’97 stereo audio with 3D sound and wavetable synthesizer

• Built-in dual speakers

• High-speed CD, DVD, DVD/CD-RW combo or DVD Rewritable drive

Connectivity

• High-speed fax/data modem port

• Ethernet/Fast Ethernet port

English

1 Getting to know your TravelMate14

• USB (Universal Serial Bus) 2.0 ports

• 802.11a+g/802.11b wireless LAN option

• Bluetooth option

Human-centric design and ergonomics

• All-in-one design (CD, DVD or combo drive, floppy drive, and hard disk)

• Sleek, smooth and stylish design

• Full-sized keyboard

• Ergonomically-centered touchpad pointing device

Expansion

• Two Type II CardBus PC Card slots

• Upgradeable memory

Indicators

The computer has six easy-to-read status icons below the display screen.

The Power and Sleep status icons are visible even when you close the display cover so you can see the status of the computer while the cover is closed.

Icon Function Description

English

Power Lights when the computer is on.

Sleep Lights when the computer enters Standby mode

and blinks when it enters into or resumes from hibernation mode.

Media Activity Lights when the floppy drive, hard disk or

Battery Charge Lights when the battery is being charged.

Caps Lock Lights when Caps Lock is activated.

Num Lock Lights when Num Lock is activated.

optical drive is active.

English

1 Getting to know your TravelMate16

Indicators in Cover

When the cover of your computer is closed, 2 easy-to-read icons are shown, indicating which state or feature is enabled or disabled.

Icon Description

Lights up when the computer is on.

Lights when the computer enters Standby mode and blinks when it enters into or resumes from hibernation mode.

Using the keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys.

Special keys

Lock keys

The keyboard has three lock keys which you can toggle on and off.

Lock key Description

Caps Lock When Caps Lock is on, all alphabetic characters typed are in

uppercase.

English

Num Lock (Fn-F11)

Scroll Lock (Fn-F12)

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

English

1 Getting to know your TravelMate18

Embedded numeric keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired access Num lock on Num lock off

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys Hold Fn while typing letters

Note: If an external keyboard or keypad is connected to the computer, the Num Lock feature automatically shifts from the internal keyboard to the external keyboard or keypad.

Type numbers in a normal manner.

Hold Shift while using cursor-control keys.

on embedded keypad.

Hold Fn while using cursor-control keys.

Type the letters in a normal manner.

Windows keys

The keyboard has two keys that perform Windows-specific functions.

Key Description

Windows logo key Start button. Combinations with this key perform

shortcut functions. Below are a few examples:

+ Tab (Activates next taskbar button)

+ E (Explores My Computer)

+ F (Finds Document)

English

+ M (Minimizes All)

Shift + + M (Undoes Minimize All)

+ R (Displays the Run... dialog box)

Application key Opens a context menu (same as a right-click).

English

1 Getting to know your TravelMate20

Hot keys

The computer employs hot keys or key combinations to access most of the computer’s controls like screen brightness, volume output and the BIOS Utility.

To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.

Hot key Icon Function Description

Fn-F1 Hot Key Help Displays help on hot keys.

Fn-F2 Setup Accesses the computer’s

configuration utility.

Fn-F3 Power

Management Scheme Toggle

Fn-F4 Sleep Puts the computer in Sleep

Switches the power management scheme used by the computer (function available if supported by operating system).

mode.

Hot key Icon Function Description

Fn-F5 Display Toggle Switches display output

between the display screen, external monitor (if connected) and both the display screen and external monitor.

Fn-F6 Screen Blank Turns the display screen

backlight off to save power. Press any key to return.

Fn-F7 Touchpad Toggle Turns the internal touchpad

on and off.

Fn-F8 Speaker Toggle Turns the speakers on and off.

Fn-↑ Volume up Increases the sound volume.

Fn-↓ Volume down Decreases the sound volume.

Fn-→ Brightness up Increases the screen

brightness.

English

Fn-

←

Fn-PgUp Home Functions as the “Home” key.

Fn-PgDn End Functions as the “End” key.

Alt GrEuro

Brightness down Decreases the screen

brightness.

Euro Types the Euro symbol.

English

1 Getting to know your TravelMate22

The Euro symbol

If your keyboard layout is set to United States-International or United Kingdom or if you have a keyboard with a European layout, you can type the Euro symbol on your keyboard.

Note for US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro symbol to work, the keyboard layout has to be set to United States-International.

To verify the keyboard type: 1 Click on Start, Control Panel. 2 Double-click on Regional and Language Options. 3 Click on the Language tab and click on Details. 4 Verify that the keyboard layout used for "En English (United

States)" is set to United States-International. If not, select and click on ADD; then select United States-

International and click on OK.

5 Click on OK. To type the Euro symbol:

1 Locate the Euro symbol on your keyboard. 2 Open a text editor or word processor. 3 Hold Alt Gr and press the Euro symbol.

Some fonts and software do not support the Euro symbol. Please refer to http://www.microsoft.com/typography/faq/faq12.htm for more information.

Launch Keys

Located at the top of the keyboard are six buttons. These buttons are called launch keys. They are designated as Wireless, Bluetooth button, Web browser button, mail button, P1 and P2. The Wireless and Bluetooth buttons cannot be set by the user. To set the other four launch keys, run the Acer Launch Manager.

No. Description Default application

Mail Email application

English

2 Web browser Internet browser application

P1 User-programmable

P2 User-programmable

Bluetooth(optional) Starts Bluetooth functionality and

Indicates that Bluetooth is enabled.

Wireless(optional) Opens wireless connectivity and Indicates

status of wireless communication.

Caution: It’s important that Bluetooth and Wireless LAN are turned off before boarding an airplane.

Touchpad

1 Getting to know your TravelMate24

English

The built-in touchpad is a PS/2-compatible pointing device that senses movement on its surface. This means the cursor responds as you move your finger on the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.

Note: When using an external USB or serial mouse, you can press Fn-F7 to disable the touchpad.

Touchpad basics

The following items teach you how to use the touchpad:

• Move your finger across the touchpad to move the cursor.

• Press the left (#1) and right (#3) buttons located on the edge of the

touchpad to do selection and execution functions. These two

buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad produces similar results.

• Use the 4-way scroll (#2) button to scroll up or down and move left or right a page. This button mimics your cursor pressing on the right scroll bar of Windows applications.

Function Left button

Execute Click twice

quickly

Select Click once Tap once

Drag Click and

hold, then use finger to drag the cursor on the touchpad

Access context menu

Right button

Click once

Center button

Tap

Tap twice (at the same speed as double-clicking a mouse button)

Tap twice (at the same speed as double-clicking a mouse button) then hold finger to the touchpad on the second tap and drag the cursor

English

Scroll Click

and hold the up/ down/ left/ right

Note: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response. Tapping harder will not increase the touchpad’s responsiveness.

Storage

1 Getting to know your TravelMate26

English

This computer supplies you with the following media storage:

• High-capacity Enhanced-IDE hard disk

• Optical (CD, DVD, DVD/CD-RW combo, or DVD Rewritable ) drive

• Floppy drive

Hard disk

The high-capacity hard disk is the answer to your storage needs. This is where your data files and applications are stored.

Optical drive

Your computer comes equipped with an optical drive which may be one of the following:

• CD-ROM drive

• DVD-ROM drive

• DVD/CD-RW combo drive

• DVD Rewritable drive

Ejecting the CD or DVD tray

To eject the CD or DVD tray when the computer is turned on, press the drive eject button; then pull out the tray.

When the power is off, you can eject the drive tray using the emergency eject hole. See page 64.

Playing DVD movies

When the DVD drive module is installed in the optical drive bay, you can play DVD movies on your computer.

1 Eject the DVD tray and insert a DVD movie disc; then close the DVD

tray.

Important! When you launch the DVD player for the first time, the program asks you to input the region code. DVD discs are divided into 6 regions. Once your DVD drive is set to a region code, it will play DVD discs of that region only. You can set the region code a maximum of five times (including the first time), after which the last region code set will remain permanent. Recovering your hard disk does not reset the number of times the region code has been set. Refer to the table later in this section for DVD movie region code information.

2 The DVD movie will automatically play after a few seconds.

Region Code Country or Region

1 U.S.A., Canada

English

2 Europe, Middle East, South Africa, Japan

3 Southeast Asia, Taiwan, Korea (South)

4 Latin America, Australia, New Zealand

5 Former U.S.S.R., parts of Africa, India

6 People's Republic of China

Note: To change the region code, insert a DVD movie of a different region into the DVD drive.

English

1 Getting to know your TravelMate28

Floppy drive

The internal floppy drive accepts standard 3.5-inch, 1.44 MB diskettes.

Ejecting a diskette

Eject a diskette by pressing the floppy disk eject button (1) and pull out the diskette (2) to remove it.

Audio

The computer comes with 16-bit high-fidelity AC’97 stereo audio. The built-in dual stereo speakers are easy to access.

English

There are audio ports on the rear panel of the computer. See “Rear view” on page 6 for more information on external audio devices.

Power management

1 Getting to know your TravelMate30

English

This computer has a built-in power management unit that monitors system activity. System activity refers to any activity involving one or more of the following devices: keyboard, mouse, floppy drive, hard disk, peripherals connected to the serial and parallel ports, and video memory. If no activity is detected for a period of time (called an inactivity timeout), the computer stops some or all of these devices in order to conserve energy.

This computer employs a power management scheme that supports ACPI (Advanced Configuration and Power Interface), which allows for maximum power conservation and maximum performance at the same time. Windows handles all power-saving chores for your computer.

Moving around with your TravelMate

This section gives you tips and hints on things to consider when moving around or traveling with your computer.

Disconnecting from the desktop

Follow these steps to disconnect your computer from external accessories:

1 Save your work in progress. 2 Remove any media, diskette or compact disc, from the drive(s). 3 Shut down the operating system. 4 Turn off the computer. 5 Close the display cover. 6 Disconnect the cord from the AC adapter. 7 Disconnect the keyboard, pointing device, printer, external

monitor, and other external devices.

8 Disconnect the Kensington lock if you are using one to secure the

computer.

Moving around

English

“when you are just moving within short distances, for example, from your office desk to a meeting room”

Preparing the computer

Before moving the computer, close and latch the display cover to place it in Sleep mode. You can now safely take the computer anywhere you go within the building. To bring the computer out of Sleep mode, open the display.

If you are taking the computer to a client's office or a different building, you may choose to shut down the computer:

1 Click on Start, Turn Off Computer. 2 Click on Tur n Off.

- or -

English

1 Getting to know your TravelMate32

you can put the computer in Sleep mode by pressing Fn-F4. Then close and latch the display.

When you are ready to use the computer again, unlatch and open the display, and press and release the power switch. If the power indicator is off, the computer has entered Hibernation mode and turned off. Press and release the power switch to turn the computer back on. Note that the computer may enter Hibernation mode after a period of time it is in Sleep mode. Turn the power on to wake up the computer from Hibernation mode.

What to bring to short meetings

A fully charged battery runs the computer for about 2 hours under most circumstances. If your meeting is shorter than that, you probably do not need to bring anything with you other than the computer.

What to bring to long meetings

If your meeting will last longer than 2 hours or if your battery is not fully charged, you may want to bring the AC adapter with you to plug in your computer in the meeting room.

If the meeting room does not have an electrical outlet, reduce the drain on the battery by putting the computer in Sleep mode. Press Fn- F4 or close the display cover whenever you are not actively using the computer. Then tap any key or open the display to resume.

Taking the computer home

“when you are moving from your office to your home or vice versa”

Preparing the computer

After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home:

• Check if you have removed all media, diskettes and compact discs, from the drive(s). Failure to remove the media can damage the drive head.

• Pack the computer in a protective case that can prevent the computer from sliding around and cushion it if it should fall.

Caution: Avoid packing items next to the top cover of the computer. Pressure against the top cover can damage the screen

What to bring with you

Unless you already have some items at home, bring the following items with you:

• AC adapter and power cord

• The printed user’s manual

Special considerations

Follow these guidelines to protect your computer while traveling to and from work:

• Minimize the effect of temperature changes by keeping the computer with you.

• If you need to stop for an extended period of time and cannot bring the computer with you, leave the computer in the trunk of the car to avoid exposing the computer to excessive heat.

• Changes in temperature and humidity can cause condensation. Allow the computer to return to room temperature, and inspect the screen for condensation before turning on the computer. If the temperature change is greater than 18°F (10°C), allow the computer to come to room temperature slowly. If possible, leave the computer for 30 minutes in an environment with a temperature between outside and room temperature.

English

Setting up a home office

If you frequently work on your computer at home, you may want to purchase a second AC adapter for use at home. With a second AC adapter, you can avoid transporting the extra weight to and from home.

If you use your computer at home for significant periods of time, you might also want to add an external keyboard, monitor, or mouse.

English

1 Getting to know your TravelMate34

Traveling with the computer

“when you are moving within a larger distance, for instance, from your office building to a client’s office building or traveling locally”

Preparing the computer

Prepare the computer as if you were taking it home. Make sure that the battery in the computer is charged. Airport security may require you to turn on your computer when bringing it into the gate area.

What to bring with you

Bring the following items with you:

• AC adapter

• Spare, fully-charged battery pack(s)

• Additional printer driver files if you plan to use another printer

Special considerations

In addition to the guidelines for taking the computer home, follow these guidelines to protect your computer while traveling:

• Always take the computer as carry-on luggage.

• If possible, have the computer inspected by hand. Airport security

X-ray machines are safe, but do not put the computer through a metal detector.

• Avoid exposing floppy disks to hand-held metal detectors.

Traveling internationally with the computer

“when you are moving from country to country”

Preparing the computer

Prepare the computer as you would normally prepare it for traveling.

What to bring with you

Bring the following items with you:

• AC adapter

• Power cords that are appropriate for the country to which you are travelling

• Spare, fully-charged battery packs

• Additional printer driver files if you plan to use another printer

• Proof of purchase, in case you need to show it to customs officials

• International Traveler’s Warranty passport

Special considerations

Follow the same special considerations as when traveling with the computer. In addition, these tips are useful when traveling internationally:

• When travelling in another country, check that the local AC voltage and the AC adapter power cord specifications are compatible. If not, purchase a power cord that is compatible with the local AC voltage. Do not use converter kits sold for appliances to power the computer.

• If you are using the modem, check if the modem and connector is compatible with the telecommunications system of the country you are travelling in.

English

1 Getting to know your TravelMate36

Securing your computer

English

Your computer is a valuable investment that you need to take care of. Learn how to protect and take care of your computer.

Security features include hardware and software locks — a security notch and passwords.

Using a computer security lock

A security keylock notch located on the right panel of the computer lets you connect a Kensington-compatible computer security lock.

Wrap a computer security lock cable around an immovable object such as a table or locked drawer handle. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

Setting a password

Follow these steps: 1 Use the cursor up/down keys to highlight a password parameter

and press the Enter key. The password box appears.

2 Type a password. The password may consist of up to eight

characters (A-Z, a-z, 0-9).

3 Press Enter. Retype the password to verify your first entry and press

Enter.

4 After setting the password, the computer automatically sets the

chosen password parameter to Present.

Removing a password

Should you want to remove a password, do the following: 1 Use the cursor up/down keys to highlight a password parameter

and press the Enter key. The password box appears.

2 Enter the current password and press Enter. 3 Press Enter twice without entering anything in the new and

confirm password fields to remove the existing password.

English

Note: When you want to remove the Hard Disk (or 2nd Hard Disk) password, you are prompted for the current Hard Disk password before it is removed.

Changing a password

Should you want to change a password, do the following:

1 Remove the current password. 2 Set a new password.

Setting passwords

You can set passwords using:

• Notebook Manager

• BIOS Utility

English

1 Getting to know your TravelMate38

2 Customizing

my computer

After learning the basics of your TravelMate computer, let’s get acquainted with the advanced features of your computer. In this chapter, you will learn how to add options, upgrade components for better performance, and customize your computer.

Expanding through options

Your TravelMate offers you a complete mobile computing experience.

Connectivity options

Ports allow you to connect peripheral devices to your computer as you would with a desktop PC.

Modem

Your computer has a built-in V.90/V.92 56Kbps AC’97 Link modem.

Warning! This modem port is not compatible with digital phone lines. Plugging this modem into a digital phone line will damage the modem.

To use the modem, connect a phone cable from the modem jack to a phone line jack.

English

Start your communications software program. See your communications manual for instructions.

English

2 Customizing my computer42

Network

Your computer has built-in Ethernet/Fast Ethernet capabilities. To use the network feature, connect an Ethernet cable from the network jack to an network jack or hub. Consult your network administrator for details.

Universal Serial Bus

The Universal Serial Bus (USB) 2.0 port is a high-speed serial bus which allows you to connect and daisy-chain USB peripherals without taking up precious system resources. Your computer has four ports available.

PC Card slot

There are two Type II CardBus PC Card slots found on the left side of the computer. This slot accepts credit-card-sized cards that enhance the usability and expandability of the computer. These cards should have a PC Card logo on them.

PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving you expansion possibilities long afforded by desktop PCs. CardBus improves on the 16-bit PC card technology by expanding the bandwidth to 32 bits.

Note: Refer to your card’s manual for details on how to install and use the card and its functions.

Inserting a PC Card

Insert the card into the lower slot and make the proper connections (e.g., network cable), if necessary. See your card manual for details.

English

Ejecting a PC Card

Before ejecting a PC Card:

1 Exit the application using the card. 2 Left-click on the Safely Remove Hardware icon on the taskbar and

click on the PC Card item. Click OK to confirm.

English

2 Customizing my computer44

3 Press the slot eject button (1) to pop out the eject button; then

press it again (1) to eject the card (2).

Upgrade options

Your computer delivers superior power and performance. However, some users and the applications they use may demand more. This computer allows you to upgrade key components when you need increased performance.

Note: Contact your authorized dealer if you decide to perform a key component upgrade.

Memory upgrade

Memory is expandable to 2 GB, employing DDR 266/333 256MB/512MB/ 1GB SDRAM modules. Two DDR DIMM slots. The computer supports shadow RAM.

There are two memory slots on your computer, one of which is occupied by standard memory. You can upgrade memory by installing a memory module into the available slot, or replacing the standard memory with a higher-capacity memory module.

Installing memory

Follow these steps to install memory: 1 Turn off the computer, unplug the AC adapter (if connected) and

remove the battery pack. Then turn the computer over to access its base.

2 Remove the screw from the memory cover (a); then lift up and

remove the memory cover (b).

English

2 Customizing my computer46

3 Insert the memory module diagonally into the slot (1), then gently

press it down until it clicks into place (2).

4 Replace the memory cover and secure it with the screw. The computer automatically detects and reconfigures the total

memory size.

Using system utilities

Notebook Manager

The computer has a built-in system setup program called Notebook Manager. The Windows-based Notebook Manager allows you to set passwords, the startup sequence of the drives, and power management settings. It also shows current hardware configurations. To start the Notebook Manager, press Fn-F2 or follow these steps: 1 Click on Start, Programs, then Notebook Manager. 2 Select the Notebook Manager application to run the program. Click on Help for more information.

English

2 Customizing my computer48

Launch Manager

There are six Launch Keys located above the keyboard. The Wireless and Bluetooth buttons are not programmable. Launch Manager only allows you to set the other four Launch Keys. See “Launch Keys” on page 23 for more information.

You can access the Launch Manager by clicking on Start, Programs, and then Launch Manager to start the application.

BIOS Utility

The BIOS Utility is a hardware configuration program built into your computer’s BIOS (basic input/ouput system).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run it.

To activate the BIOS Utility, press F2 during the POST (power-on selftest) while the TravelMate logo is being displayed.

English

Navigating the BIOS Utility

These are the menu options: Information, Main, Advanced, Security, Boot and Exit.

To enter a menu, highlight the item using the ← → keys. Within a menu, navigate through the BIOS Utility by following these

instructions:

• Press the cursor up/down keys (↑↓) to select item.

• Press the -/+ to change the value of a parameter.

• Press Enter to go to sub-menu.

• Press Esc while you are in any of the menu options to return to the

main menu

English

2 Customizing my computer50

Note: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen.

Information

The Information screen displays a summary of your computer hardware information.

Note: The screen above is for reference only. Actual values may differ.

The table below describes the parameters in this screen.

Parameter Description

CPU Type Describes the type of CPU installed in the system.

System Memory (KB)

Extended Memory (MB)

Shows the system memory size.

Shows the extended memory size.

Parameter Description

HDD1 Serial Number

System BIOS Version

VGA BIOS Version

KBC Version Shows the current keyboard controller (KBC) version

Serial Number Shows the system serial number.

Asset Tag Number

Product Name Shows the official name of the product.

Manufacturer Name

UUID Shows the universally unique identifier number.

Shows the primary master hard disk drive serial number.

Shows the system BIOS version.

Shows the video graphics accelerator BIOS version.

Shows the asset tag number.

Shows the name of the manufacturer.

Main

The Main menu screen allows you to set basic settings about your computer such as date and time and boot settings.

English

2 Customizing my computer52

The table below describes the parameters in the screen.

English

Parameter Description

System Time

System Date

Boot Display

QuickBoot Mode

Boot-time Diagnostic Screen

Boot on LAN

Hotkey Beep

Auto Dim When enabled, the system will automatically dim the LCD

Sets the system time. Format: HH:MM:SS (hour:minute:second)

Sets the system date. Format: MMM DD YYYY (month day year)

Sets the display device when the computer starts up. Options: Both or Auto

Quick Boot allows your computer to skip certain tests at startup to speed-up the boot process.

Options: Enabled or Disabled

Shows the logo during boot up. Options: Enabled or Disabled

When enabled, allows your computer to boot up via the network

Options: Enabled or Disabled

Enables or disables a beep when a hotkey is pressed. Options: Enabled or Disabled

screen when system is running on battery power. Options: Enabled or Disabled

F12 MultiBoot

When enabled, the “Fn-F12 for multi-boot” message will be displayed during POST.

Options: Enabled or Disabled

Advanced

The Advanced screen contains parameters values that define how your computer behaves on startup.

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter Description

Legacy Diskette A:

Shows the floppy drive information.

English

Primary Master

Secondary Master

I/O Device Configuration

PCI IRQ Routing

USB BIOS Legacy Support

Shows the hard disk information. Press Enter to access the sub-menu.

Shows the optical drive information. Press Enter to access the sub-menu.

Press Enter to access and set the I/O Device Configuration sub-menu.

Press Enter to access and set the PCI IRQ Routing sub-menu.

Enables or disables the USB BIOS Legacy Support. Options: Enabled or Disabled

English

2 Customizing my computer54

Primary Master

The Primary Master sub-menu contains parameters related to the hard disk installed in your computer.

Caution: The parameters in this screen are for advanced uses only. Typically, you do not need to change the values in this screen. The default setting of Auto optimizes all the settings in your hard disk drive.

Secondary Master

The Secondary Master sub-menu contains parameters related to the optical drive installed in your computer.

English

2 Customizing my computer56

I/O Device Configuration

The I/O Device Configuration sub-menu contains parameters that are related to your computer hardware.

Parameter Description

Parallel Port Enables or disables the parallel port.

Options: Enabled or Disabled

Mode Sets the operation mode of the parallel port.

Options: Output only, Bi-direction, EPP, or ECP

Base I/O Address Sets the I/O address of the parallel port.

Options: 3BC, 378h, or 278h

Interrupt Sets the interrupt request of the parallel port.

Options: IRQ 5 or IRQ 7

PCI IRQ Routing

The PCI IRQ Routing sub-menu allows you to set the IRQs for PCI devices.

Caution: The parameters in this screen are for advanced users only. Typically, you do not need to change the values in this screen because these values are already optimized.

English

2 Customizing my computer58

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter Description

Set Supervisor Password

Set User Password When set, this password protects the computer from

Password on Boot When enabled, a password is requested when the

Set Primary Hard Disk Password

When set, this password protects the BIOS Utility from unauthorized entry.

Press Enter to set this password.

unauthorized entry during boot-up or resume from Hibernation mode.

Press Enter to set this password.

system boots up. Options: Enabled or Disabled

When set, this password prevents the primary hard disk from unauthorized access. It consists of 8 alphanumeric characters.

Press Enter to set this password.

Boot

The Boot menu contains parameter values that determine in what order the bootable devices in your computer start-up.

Setting the Boot drive sequence

Use the cursor up/down keys to select a boot device, then press ↑ or ↓ to change its order. Items with a “+” sign can be further expanded.

English

2 Customizing my computer60

Exit

This menu contains the exit options.

Parameter Description

Exit Saving Changes

Exit Discarding Changes

Load Setup Defaults

Discard Changes Discards your changes.

Save Changes Saves your changes.

Saves your changes and exits the BIOS Utility.

Discards your changes and exits the BIOS Utility.

Loads default settings for all setup parameters.

3 Troubleshooting

my computer

This chapter instructs you on how to deal with common system problems. Read it before calling a technician if a problem occurs. Solutions to more serious problems require opening up the computer. Do not attempt to open the computer by yourself. Contact your dealer or an authorized service center for assistance.

Frequently-asked questions

The following is a list of possible situations that may arise during the use of your computer. Easy answers and solutions are provided for each one.

I pressed the power switch and opened the display, but the computer does not start or boot-up.

Look at the Power indicator:

• If it is not lit, no power is being applied to the computer. Check the following:

• If you are running on battery power, it may be low and unable

to power the computer. Connect the AC adapter to recharge the battery pack.

• Make sure that the AC adapter is plugged in properly to the

computer and to the power outlet.

• If it is lit, check the following:

• If the Sleep indicator is lit, the computer is in Sleep mode.

Press any key or tap on the touchpad to resume.

• Is a non-bootable (non-system) diskette in the floppy drive?

Remove or replace it with a system diskette and press Ctrl-Alt-

Del to restart the system.

• The operating system files may be damaged or missing. Insert the

startup disk you created during Windows setup into the floppy drive and press Ctrl-Alt-Del to restart the system. This will diagnose your system and make necessary fixes.

English

Nothing appears on the screen.

The computer’s power management system automatically blanks the screen to save power. Press any key to turn the display back on.

If pressing a key does not turn the display back on, two things might be the cause:

• The brightness level might be too low. Press Fn-→ to increase the brightness level.

• The display device might be set to an external monitor. Press the display toggle hot key Fn-F5 to toggle the display back to the computer.

English

3 Troubleshooting my computer64

Image is not full-screen.

Make sure that the resolution is set to 1024x768. This is the native resolution of your computer display. Right-click on your Windows desktop and select Properties to bring up the Display Properties dialog box. Then click on the Settings tab to make sure that the resolution is set to the appropriate resolution. Resolutions lower than the specified resolution are not full-screen on the computer or on an external monitor.

No audio is heard from the computer.

Check the following:

• The volume may be muted. In Windows, look at the volume control (speaker) icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute option.

• The speakers may be turned off. Press Fn-F8 to turn the speakers on (this hot key also turns the speakers off).

• The volume level may be too low. In Windows, look at the volume control icon on the taskbar.

• If headphones, earphones or external speakers are connected to the line-out port, the internal speakers automatically turn off.

I want to eject the CD or DVD tray without turning on the power. I cannot eject the CD or DVD tray.

There is a mechanical eject button on the CD-ROM or DVD-ROM drive. Simply insert the tip of a pen or paperclip and push to eject the tray.

The floppy drive cannot access a diskette.

Check the following:

• Make sure the diskette is properly inserted in the floppy drive.

• Make sure the diskette is formatted.

• If the diskette is not the cause of the problem, the floppy drive

may be dirty. Clean it using a drive cleaning kit. Follow the instructions included with the kit.

The CD or DVD drive cannot access a disc.

Check the following:

• Make sure the disc is supported by the drive. If your computer has a CD-ROM drive, it can read CDs but cannot read DVDs. If your computer has a DVD drive, it can read DVDs in addition to CDs.

• When placing the CD or DVD in the drive tray, make sure it is secure in the spindle on the drive tray.

• Make sure the CD or DVD is free from scratches or smudges. If the CD or DVD is dirty, clean it using a disc cleaning kit. Remember to follow the instructions included with the kit.

• If the problem does not lie with the disc, your CD or DVD drive may be dirty. Clean it using a drive cleaning kit. Follow the instructions included with the kit.

English

The keyboard does not respond.

Try attaching an external keyboard to the USB connector on the computer’s rear. If it works, contact your dealer or an authorized service center as the internal keyboard cable may be loose.

The serial mouse does not work.

Check the following:

• Make sure that the serial cable is plugged securely into the serial port.

• During the POST, press F2 to access the BIOS Utility and verify that the serial port is enabled. See “BIOS Utility” on page 49 for more details.

The printer does not work.

Check the following:

English

3 Troubleshooting my computer66

• Make sure that the printer is connected to a power outlet and that it is turned on.

• Depending on your connection (USB or parallel), make sure that the printer cable is connected securely to the appropriate port on your computer and the corresponding port on the printer.

• During POST, press F2 to access the BIOS Utility and verify that the parallel port is enabled if you use a parallel printer.

I want to set up my location to use the internal modem.

To properly use your communications software, you need to set up your location:

1 Click on Start, Control Panel. 2 Double-click on Phone and Modem Options. 3 Click on the Dialing Rules tab and begin setting up your location.

Refer to Windows Help and Support.

Requesting service

International Traveler’s Warranty (ITW)

Your computer is backed by an International Traveler’s Warranty (ITW) that gives you security and peace of mind when traveling. Our worldwide network of service centers are there to give you a helping hand.

An ITW passport comes with your computer. This passport contains all you need to know about the ITW program. A list of available, authorized service centers is in this handy booklet. Read this passport thoroughly.

Always have your ITW passport on hand, especially when you travel to receive the benefits from our support centers. Place your proof-ofpurchase in the flap located inside the front cover of the ITW passport.

If the country you are traveling in does not have an Acer-authorized ITW service site, you can still get in contact with our offices worldwide.

Please consult www.acersupport.com

English

Before you call

Please have the following information available when you call Acer for online service, and please be at your computer when you call. With your support, we can reduce the amount of time a call takes and help solve your problems efficiently.

If there are error messages or beeps reported by your computer, write them down as they appear on the screen (or the number and sequence in the case of beeps).

English

3 Troubleshooting my computer68

You are required to provide the following information: Name:________________________________________ Address:______________________________________ ______________________________________________ Telephone number:____________________________ Machine and model type:_______________________ Serial number:_________________________________ Date of purchase:______________________________

Appendix A

Specifications

This appendix lists the general specifications of your computer.

Microprocessor

• Mobile Intel® Pentium® 4 processor with 512 KB L2 cache

- or Intel® Celeron® processor with 128 KB L2 cache

Memory

• Main memory expandable to 2 GB

• Two DDR DIMM slots

• Support DDR 266/333 256MB, 512MB, 1GB SDRAM modules

• 512 KB Flash ROM BIOS; Shadow RAM support

Data storage

• One 3.5-inch internal floppy drive

• One high-capacity, Enhanced-IDE hard disk

• One 5.25-inch internal CD-ROM, DVD-ROM, DVD/CD-RW combo, or

DVD Rewritable drive

Display and video

• 14.1" Thin-Film Transistor (TFT) liquid crystal-display (LCD) supporting pen-based input, with 32-bit true-color at 1024x768 eXtended Graphics Array (XGA) resolution

• 3D capabilities

• Simultaneous LCD and CRT display support

• Dual display capability

English

Audio

• 16-bit AC’97 stereo audio with built-in wavetable synthesizer

• Dual speakers

• Windows Sound System-compatible

• Separate audio ports for line-out, line-in devices

Keyboard and pointing device

• 84/85-key Windows keyboard

• Ergonomically-centered touchpad pointing device with scroll

function

English

Appendix A Specifications72

I/O ports

• Two type II PC Card slots

• One RJ-11 phone jack (V.90/V.92, 56Kbps modem)

• One RJ-45 network jack (Ethernet 10/100BaseT)

• One DC-in jack (AC adapter)

• One parallel port (ECP/EPP compliant)

• One external monitor port

• One line-out jack (3.5mm minijack)

• One line-in jack (3.5mm minijack)

• Four USB 2.0 ports

Weight and dimensions

• 3.776 kg (8.32 lbs) for 14.1" TFT model with battery

• 332 (W) x 294 (D) x 45.2~49.7 (H) mm

Environment

• Temperature

• Operating: 5°C ~ 35°C

• Non-operating: -10°C ~ 60°C

• Humidity (non-condensing)

• Operating: 20% ~ 85% RH

• Non-operating: 20% ~ 85% RH

System

• Microsoft Windows XP Home/Pro

• ACPI support

• DMI 2.0-compliant

Power

• Battery pack

• 4000mAh Li-Ion battery pack

• AC adapter

• 120-Watt

• Auto sensing 100~240Vac, 50~60Hz

Options

• 256MB/512MB/1GB memory upgrade module

• Additional AC adapter and battery pack

English

Appendix A Specifications74

Appendix B

Notices

This appendix lists the general notices of your computer.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the device and receiver

• Connect the device into an outlet on a circuit different from that to which

the receiver is connected

• Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

English

Caution

Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this computer.

Use conditions

This part complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

English

Appendix B Notices78

Notice: Canadian users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Remarque à l’intention des utilisateurs canadiens

Cet appareil numérique de la classe B respected toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Modem notices

FCC

This equipment complies with Part 68 of the FCC rules. Located on the bottom side of the modem is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor.

TBR 21

This equipment has been approved [Council Decision 98/482/EC - “TBR 21”] for pan-European single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance.

Important safety instructions

Read these instructions carefully. Save these instructions for future reference.

1 Follow all warnings and instructions marked on the product.

2 Unplug this product from the wall outlet before cleaning. Do not use

liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

3 Do not use this product near water.

4 Do not place this product on an unstable cart, stand, or table. The product

may fall, causing serious damage to the product.

5 Slots and openings in the cabinet and the back or bottom are provided for

ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

6 This product should be operated from the type of power indicated on the

marking label. If you are not sure of the type of power available, consult your dealer or local power company.

7 Do not allow anything to rest on the power cord. Do not locate this

product where persons will walk on the cord.

8 If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

9 Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

10 Do not attempt to service this product yourself, as opening or removing

covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

11 Unplug this product from the wall outlet and refer servicing to qualified

service personnel under the following conditions:

a When the power cord or plug is damaged or frayed

b If liquid has been spilled into the product

c If the product has been exposed to rain or water

English

Appendix B Notices80

d If the product does not operate normally when the operating

instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

e If the product has been dropped or the cabinet has been damaged

f If the product exhibits a distinct change in performance, indicating a

need for service.

12 Replace the battery with the same type as the product's battery we

recommend. Use of another battery may present a risk of fire or explosion. Refer battery replacement to a qualified serviceman.

13 Warning! Batteries may explode if not handled properly. Do not

disassemble or dispose of them in fire. Keep them away from children and dispose of used batteries promptly.

14 Use only the proper type of power supply cord set (provided in your

accessories box) for this unit. It should be a detachable type: UL listed/CSA certified, type SPT-2, rated 7A 125V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

Laser compliance statement

The CD or DVD drive used with this computer is a laser product. The CD or DVD drive’s classification label (shown below) is located on the drive.

CLASS 1 LASER PRODUCT CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

APPAREIL A LASER DE CLASSE 1 PRODUIT LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.

LUOKAN 1 LASERLAITE LASER KLASSE 1 VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHLL AUSSETZEN

PRODUCTO LÁSER DE LA CLASE I ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE EXPONERSE A LOS RAYOS.

ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.

VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE. VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA SÅTEESEENSTIRRA EJ IN I STRÅLEN

VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I STRÅLEN

ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN

Lithium battery statement

The TravelMate 240P/250P series uses the lithium battery, models BTP58A1, BTP-59A1 and BTP-60A1 only.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

ADVARSEL!

Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til leverandøren.

ADVARSEL

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.

VARNI NG

Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt batteri enligt fabrikantens instruktion.

VAROI TUS

Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

VORSICHT!

Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.

English

Appendix B Notices82

Year 2000 compliance statement

The TravelMate 240P/250P series notebook computer carries the "Hardware NSTL Tested Year 2000 Compliant" logo, which certifies that this model has been tested by NSTL using the YMark2000 test, and has been found to meet NSTL's standards for Year 2000 hardware compliance.

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or colored dots. This has no effect on the recorded image and does not constitute a malfunction.

A-Tick notice

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited viewing uses only.

For safety reasons, only connect headsets with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified.

The unit shall be connected to Telecommunication Network through a line cord which meets the requirements of ACA Technical Standard TS008.

Australian approved mains cord set shall be used with the equipment.

Regulatory information for 802.11b WLAN

Note: Below regulatory information is for models with 802.11b wireless LAN only.

Regulatory Information

The Wireless module must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio

frequency and safety standards.

Canada - Industry Canada (IC)

This device complies with RSS 210 of Industry Canada.

Europe - EU Declaration of Conformity

This device complies with the standards listed below, following the provisions of the EMC Directive 89/336/EEC:

• ETSI EN 301 489-1/17

• ETSI EN 300 328-2

USA - Federal Communications Commission (FCC)

This device complies with Part 15 of FCC Rules. Operation of the devices in an Wireless LAN System is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference that may cause undesired operation.

Exposure to Radio Frequency Radiation

The radiated output power of the Wireless module is far below the FCC radio frequency exposure limits. Nevertheless, the Wireless module shall be used in such a manner that the potential for human contact during normal operation is minimized.

The transmitter and the antenna are permanently installed inside the notebook, and are specific for this model (not for generic computer). The antenna of this device is installed on the top of the LCD display. For compliance with FCC radiation exposure limits. it should be operated with a separation distance of 20cm or more between the antenna and the body of the user, and the antenna should not be operated next to a nearby person.

English

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

English

Appendix B Notices84

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment (example - use only shielded interface cables when connecting to computer or peripheral devices).

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Index

AC adapter

caring for v

audio 25

adjusting the volume 25 troubleshooting 62

battery pack

caring for v charging indicator 11

BIOS Utility 45– 57

Advanced menu

i/o device configuration 53 pci irq routing 54 primary master 51 secondary master 52

advanced menu 50 boot menu 56 exit menu 57 main menu 48 navigating 46

security menu 55 BIOS utility 45 brightness

hotkeys 17

caps lock 13

on indicator 11 care

AC adapter v

battery pack v

computer iv CD

troubleshooting 63 CD-ROM

ejecting 22

ejecting manually 62

troubleshooting 62 cleaning

computer v computer

bringing to meetings 28

caring for iv cleaning v disconnecting 27 features 3, 9 indicators 11 keyboards 13 moving around 27 on indicator 11 performance 9 security 32 setting up a home office 29 taking home 28 traveling internationally 30 traveling on local trips 30 troubleshooting 60 turning off iv

CPU 47

date

setting in BIOS Utility 49

display

hotkeys 16 troubleshooting 61, 62

DVD 23

troubleshooting 63

DVD movies

playing 23

error messages 65 Ethernet 38 Euro 17

FAQ. See frequently-asked questions floppy drive

troubleshooting 63 frequently-asked questions 61 front view 3

hard disk 22 help

online services 69 Hibernation mode

hotkey 16 hotkeys 15

English

indicator lights 11 ITW. See warranty

keyboard 13

embedded numeric keypad 14 hotkeys 15 lock keys 13 troubleshooting 63 Windows keys 15

LEDs 11

media access

on indicator 11

memory

installing 42– 43 upgrading 41

messages

error 65 modem 37 mouse

troubleshooting 63

network 38 Notebook Manager 44

hotkey 16 notice

DVD copyright protection 84

year 2000 compliance 84 num lock 13

on indicator 12 numeric keypad

embedded 14

num lock 14

online services 69 optical drive 22 options

memory upgrade 41

parallel port

setting in BIOS Utility 53

PC Card 40

ejecting 40

inserting 40 ports 37 POST (power-on self-test) 46 printer

troubleshooting 63 problems 61

CD 63

CD-ROM 62

diskette 63

display 61, 62

DVD 63

floppy drive 63

keyboard 63

printer 63

serial mouse 63

startup 61

troubleshooting 60

questions

setting location for modem use

safety

CD-ROM 82

FCC notice 79

general instructions 81

modem notices 80 scroll lock 13 security

keylock 32 service

when to call vi speakers

hotkey 17

troubleshooting 62 specifications 72 Standby mode

hotkey 16

status indicator 11 status indicators 11 storage 22

CD, DVD, or DVD/CD-RW combo

drive 22

hard disk 22 support

information 69

time

setting in BIOS Utility 48

touchpad 20

hotkey 17 using 20– 21

travel

international flights 30 local trips 30

troubleshooting 60

universal serial bus 39 utility

BIOS Setup 45– 57

view

front 4 left 4 rear 6 right 5

volume

adjusting 25

warranty

International Traveler’s Warran-

ty 69

Windows keys 15

English

Acer 240P, 250P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

First things first

You r g ui de s

Basic care and tips for using your computer

Contents

A TravelMate tour

Front view

Left view

Right view

Rear view

Bottom view

Using your computer in tablet mode

Writing in the tablet mode

Features

Indicators

Using the keyboard

Special keys

Touchpad

Touchpad basics

Storage

Hard disk

Optical drive

Floppy drive

Audio

Power management

Moving around with your TravelMate

Disconnecting from the desktop

Moving around

Taking the computer home

Traveling with the computer

Traveling internationally with the computer

Securing your computer

Using a computer security lock

Expanding through options

Connectivity options

Upgrade options

Using system utilities

Notebook Manager

Launch Manager

BIOS Utility

Frequently-asked questions

Requesting service

International Traveler’s Warranty (ITW)

Before you call

Index
