24-Port Fast Ethernet Switch
Quick Installation Guide
M73-APO07 -460
FCC REGULATORY STATE MENTS
FCC Certification, Part15, Class A
This equipment has been tested and found to comply with the limits for a class A Digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and use d in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures
INTRODUCTION
The 24-Port Fast Ethernet 10/100Mbps N-Way Switch provides you a flexible, reliable,
and affordable solution for an Ethernet network. It comes with twenty-four independent
10BASE-T/100BASE-TX ports. Each port delivers up to 200Mbps throughput, and is
able to operate in either half or full-duplex modes.
The 24-Port Fast Ethernet 10/100Mbps N-Way Switch also possesses a N-Way autonegotiation function, which automatically adjusts the device for optimum operation.
“Store-and-Forward” architecture filters eliminate error packets and improve efficiency.
Plus, based on Auto-MDI/MDIX technology, you are able to use either a straight through
or a crossover Ethernet cable to connect with other devices. Moreover, the built-in
Universal Power Supply allows you to install the switch easily without any external
power adapter.
Key Features
•
Complies with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standards
•
Supports twenty four 10M/100M auto-detect Half/Full duplex switch ports
•
Supports 802.3x Flow Control pause packet for Full Duplex in case buffer is full
•
Supports Back Pressure function for Half Duplex operation in case buffer is full
•
All ports support Auto-negotiation
•
Supports source/ destination MAC address lookup and aging with 8K MAC address
(4K entries each entry table)
•
Store-and-Forward switching operation
•
No-head-of-line blocking system support
•
Broadcast storm prevention
•
Built in Universal Power Supply: 90~264V
•
Emission certification: FCC Class A, CE mark
- 1 -

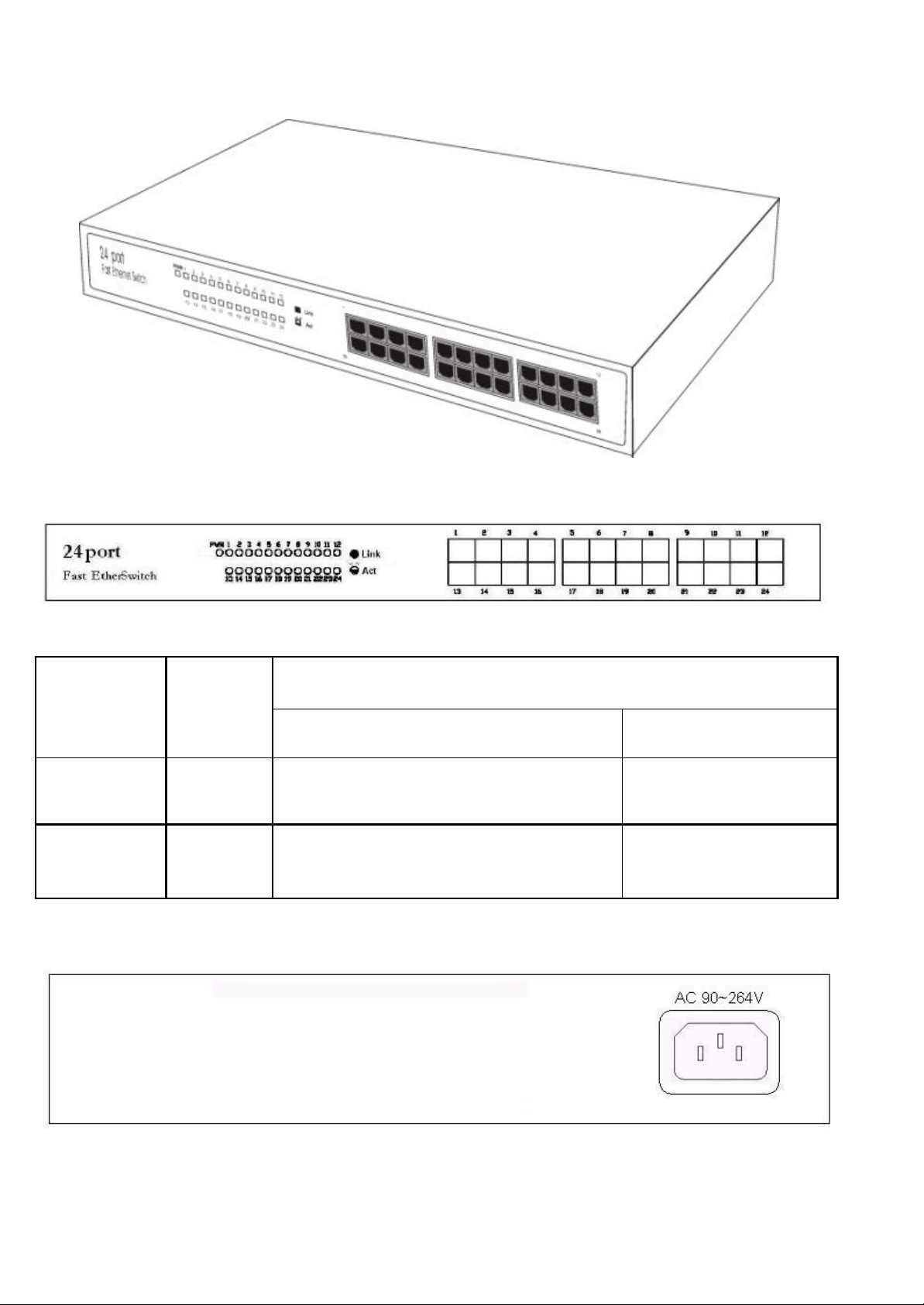

PARTS NAMES AND FUNCTIONS
solid green when power is
Sending or Receiving
Front Panel: LED Indicators
LED Color
Power Green
LINK/ACT
Green Successful connection
Becomes
turned on.
Rear Panel: Power Port
Status
Solid Flashing
N/A
packets
- 2 -
HARDWARE INSTALLATION
The switch is considered as a “plug and play” network device and requires no special
setup procedures. Connect the power cord and cables correctly and you are ready to go .
Switch installation
1. Put the switch on the appropriate location. When you install the switch, there are
two things needed to be considered:
Ÿ Location: Your switch should be located in a place that is central to your
home/office space and allows all computers and networked devices connected to
your switch.
Ÿ Power: Remember to locate your switch near electrical outlet.
2. Power on the switch by connecting the power cord.
3. Verify if the power (POWER) LED is on. If the POWER LED does not light up,
check the power cord and power outlet to verify its connection. If it still remains
unlit, please contact your dealer for support.
Ethernet Port Connection
Connect user machines, servers, another switch, hub, or any other devices to the Ethernet
ports on this switch with either straight through or crossover Ethernet cables.
- 3 -
SPECIFICATION
45 Ports (support
Input power
Agency and
IEEE 802.3 10Base -T Ethernet
Standards
Protocol CSMA/CD
Ports
Switching Scheme Store-and-Forward
Flow control
Cabling type
MAC Address
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE802.3x Flow Control
Twenty four 10/100Mbps RJAuto-MDI/MDIX)
Full Duplex: IEEE802.3x
Half Duplex: Back Pressure
UTP Category 3 or better (10Base -T)
UTP Category 5 or better (100Base-TX)
8K
Power Green
LED indicators
Physical
Dimension
Weight 1.9 kg
specifications
Power
Consumption
Regulatory
Operating
Temperature
Link/Act Green: on for successful connection,
438 x 184 x 44mm3 (Width x Depth x Height)
AC 90~264V, 50~60Hz
5.3 W
FCC Class A, CE mark
0°C to 40°C
flashing for activity
Operating Humidity 5~90% non-condensing
- 4 -
