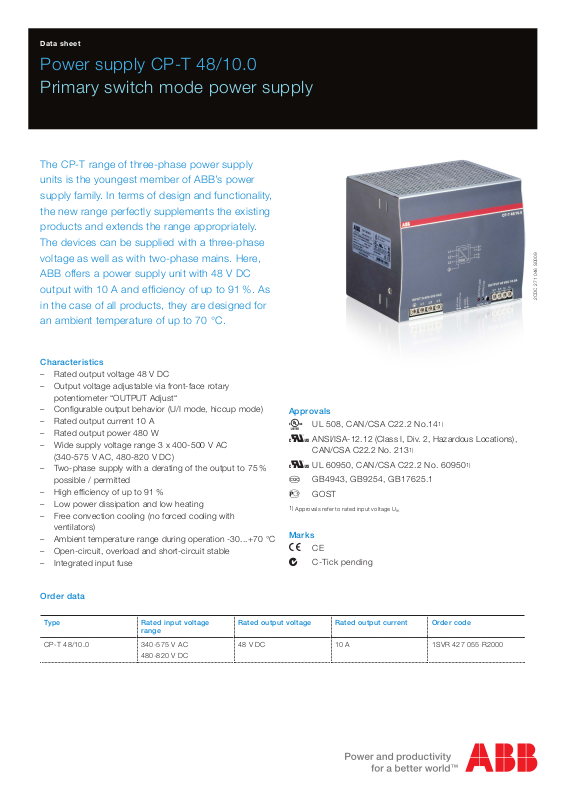

ABB Power supply CP-T 48/10.0 Data Sheet

Data sheet

Power supply CP-T 48/10.0

Primary switch mode power supply

The CP-T range of three-phase power supply

units is the youngest member of ABB’s power

supply family. In terms of design and functionality,

the new range perfectly supplements the existing

products and extends the range appropriately.

The devices can be supplied with a three-phase

voltage as well as with two-phase mains. Here,

ABB offers a power supply unit with 48 V DC

output with 10 A and efficiency of up to 91 %. As

in the case of all products, they are designed for

an ambient temperature of up to 70 °C.

2CDC 271 046 S0009

Characteristics

– Rated output voltage 48 V DC
– Output voltage adjustable via front-face rotary

potentiometer “OUTPUT Adjust“
– Configurable output behavior (U/I mode, hiccup mode)
– Rated output current 10 A
– Rated output power 480 W
– Wide supply voltage range 3 x 400-500 V AC

(340-575 V AC, 480-820 V DC)
– Two-phase supply with a derating of the output to 75 %

possible / permitted
– High efficiency of up to 91 %
– Low power dissipation and low heating
– Free convection cooling (no forced cooling with

ventilators)
– Ambient temperature range during operation -30...+70 °C
– Open-circuit, overload and short-circuit stable
– Integrated input fuse

Order data

Type Rated input voltage

range

CP-T 48/10.0 340-575 V AC

480-820 V DC

Rated output voltage Rated output current Order code

48 V DC 10 A 1SVR 427 055 R2000

Approvals

UL 508, CAN/CSA C22.2 No.14

A

ANSI/ISA-12.12 (Class I, Div. 2, Hazardous Locations),

H

CAN/CSA C22.2 No. 213

UL 60950, CAN/CSA C22.2 No. 60950

H

GB4943, GB9254, GB17625.1

R

GOST

D

1)

Approvals refer to rated input voltage U

Marks

CE

a

C-Tick pending

b

1)

in

1)

1)

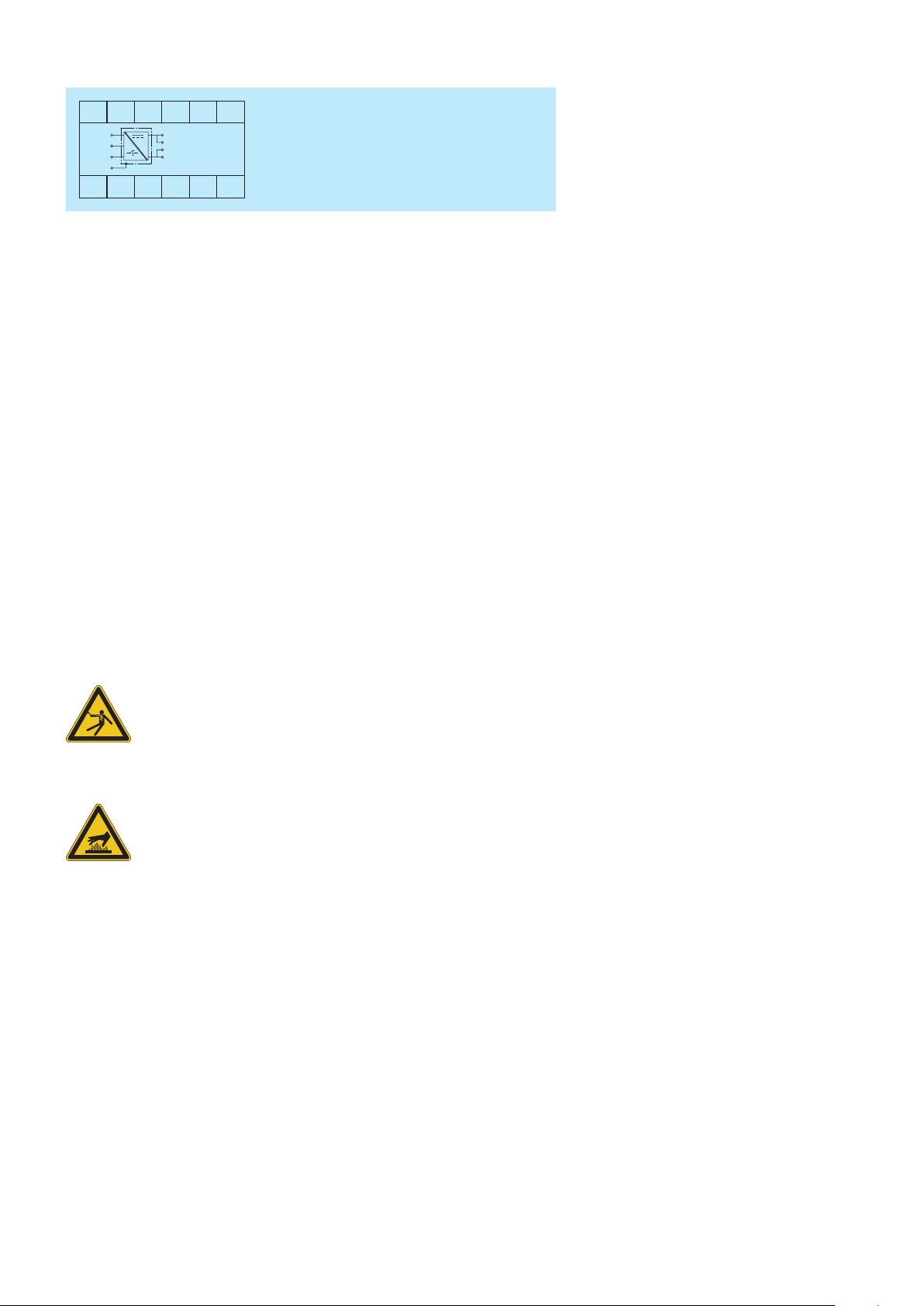

1 Circuit diagram

2 Output

OUTPUT L+, L+, L-, L-: terminals - output

3 Adjustable output voltage

OUTPUT Adjust: potentiometer

The CP-T range types feature a continuously

1

adjustable output voltage. Thus, they can be optimally
adapted to the application, e.g. compensating the
voltage drop caused by a long cable length.

2CDC 271 046 S0009

2

4 Indication of operational states

OUTPUT LOW: red LED - output voltage too low

3

OUTPUT OK: green LED - output voltage OK

4
5
6

5 Configuration of single or parallel operation

Sliding switch

7

6 Configuration of U/I mode/hiccup mode

Sliding switch

7 Wide input range

INPUT L1, L2, L3, PE: terminals - input

Optimised for worldwide applications: The CP-T
power supply units can be supplied for a wide range
of AC and DC voltages. Both kinds of power supply
(three-phase and two-phase) are possible.1

Application

The primary switch mode power supply offers a three-phase supply voltage range of 3 x 400-500 V AC. A two-phase power
supply is also possible and it can also be supplied by 480-820 V DC. Furthermore, this power supply unit is equipped with
two generous capacitors, which ensure mains buffering of at least 20 ms. That is why the devices can be used worldwide
also in high fluctuating networks and battery-powered plants.

Operating mode

By means of the potentiometer “OUTPUT Adjust“ the output voltage can be adjusted within a range of 47-56 V DC. Thus,
the power supply can be optimally adapted to the application, e.g. compensating the voltage drop caused by a long line
length.

The green LED “OUTPUT OK“ is lightening during proper operation, i. e. when the output voltage exceeds 75 %.

The red LED “OUTPUT LOW“ is lightening when the output voltage is less than 70 % of the rated output voltage.

Two-phase supply is permissible with a derating of the output to 75 %.

2 - Power supply CP-T 48/10.0 | Data sheet

Installation

The device must be installed by qualified persons only and in accordance with the specific national regulations (e.g. VDE, etc.).
The devices are maintenance-free chassis-mounted units.

Before installation

DANGER!

Components with high stored energy and circuits with high voltage

Danger to be electrocuted!

► Disconnect the system from the supply network and protect against switching on before any installation,

maintenance or modification work.

► Do not introduce any objects into the unit and do not open the unit.

► Ensure that the service personnel is protected against inadvertent contact with parts carrying energy.

Mounting

The switch mode power supply can be snapped on a DIN rail (TH 35-15 or TH 35-7.5 according to IEC/EN 60715) as
shown in the accompanying picture. For that the device is set with its mounting rail slide on the upper edge of the mounting
rail and locked by lifting it downwards.

2CDC 272 016 F0010

Demounting

Remove the switch mode power supply as shown in the accompanying picture. For that the latching lever is pulled
downwards by means of the screwdriver. Alternatively you can press the unlock button to release the device. Then in both
cases the device can be unhinged from the mounting rail edge and removed.

2CDC 272 017 F0010

Mounting position

The devices have to be mounted horizontally with the input terminals on the bottom. In order to ensure a sufficient
convection, the minimum distance to other modules should not be less than 25 mm (0.98 in) in vertical and horizontal
direction.

[B]

[A]

CP-T 48/10.0

L2

L3

L+L1

PWM

L1 L2 L3

[B]

L+
L­L-

L+ L+ L- L-

[A]

2CDC 272 014 F0010

Data sheet | Power supply CP-T 48/10.0 - 3
