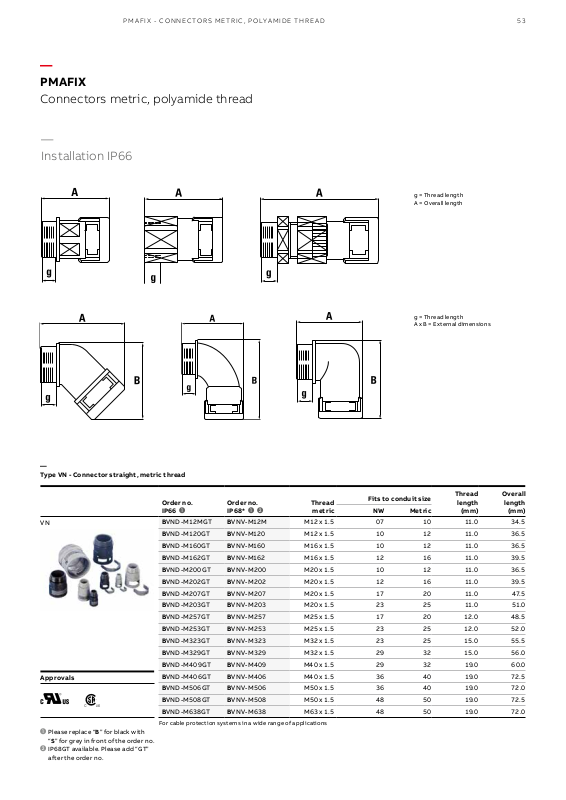

ABB PMAFIX Catalog Page

—

PMAFIX

Connectors metric, polyamide thread

—
Installation IP66

g = Thread length
A = Overa ll length

53PMAFIX - CONNECTORS METRIC, POLYAMIDE THREAD

—
Type VN - Connector straight, metric thread

VN

Approvals

❶

Plea se replace “B” for black with

“S” for grey in front of the order no.

❷

IP6 8GT available. Please add “GT”

after the orde r no.

Order no.

IP66

BVND -M12MGT BVNV-M12M M12 x 1.5 07 10 11.0 3 4 . 5

BVND -M120GT BVNV-M120 M12 x 1.5 10 12 11.0 36.5

BVND-M160 GT BVN V- M160 M16 x 1.5 10 12 11.0 36.5

BVND-M162G T BVN V- M162 M16 x 1.5 12 16 11.0 3 9 . 5

BVND-M200GT BVNV-M200 M20 x 1.5 10 12 1 1 . 0 36.5

BVND -M202GT BVNV-M202 M20 x 1.5 12 16 1 1 . 0 3 9 . 5

BVND- M207GT BVNV-M207 M20 x 1.5 17 20 1 1 . 0 4 7 . 5

BVND -M203GT BVNV- M203 M20 x 1.5 23 25 1 1 . 0 5 1 . 0

BVND- M257GT BVNV-M257 M25 x 1.5 17 20 1 2 . 0 4 8 . 5

BVND -M253GT BVNV-M253 M25 x 1.5 23 25 1 2 . 0 5 2 . 0

BVND -M323GT BVNV-M323 M32 x 1.5 23 25 1 5 . 0 5 5 . 5

BVND -M329GT BVNV-M329 M32 x 1.5 29 32 1 5 . 0 5 6 . 0

BVND -M409GT BVNV-M4 09 M40 x 1.5 29 32 1 9 . 0 6 0 . 0

BVND -M406GT BVNV-M406 M40 x 1.5 36 40 1 9 . 0 7 2 . 5

BVND-M506GT BVNV-M506 M50 x 1.5 36 40 1 9 . 0 7 2 . 0

BVND-M508GT BVNV-M508 M50 x 1.5 48 50 1 9 . 0 7 2 . 5

BVND-M638GT BVNV-M638 M 63 x 1.5 48 50 1 9 . 0 7 2 . 0

For cab le protecti on systems in a w ide range of ap plic ation s

g = Thread length
A x B = Exte rnal dimensions

❶

Order no.

❶ ❷

IP68*

Thread

metric

Fits to conduit size

Thread

length

(mm)

Overall

length

(mm)NW Metric
