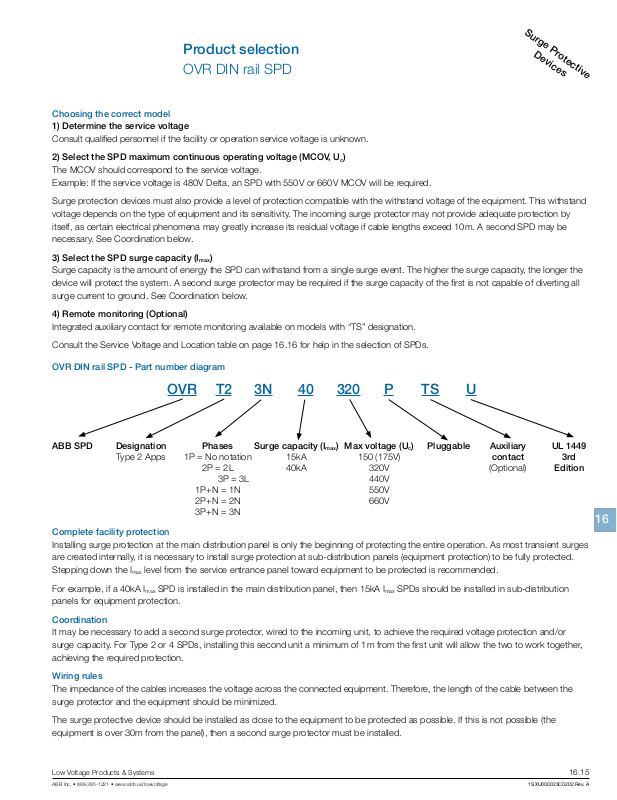

ABB OVR DIN rail SPD Selection Guide
Surge Protective
Product selection
Devices
OVR DIN rail SPD
Choosing the correct model
1) Determine the service voltage
Consult qualied personnel if the facility or operation service voltage is unknown.
2) Select the SPD maximum continuous operating voltage (MCOV, U
The MCOV should correspond to the service voltage.
Example: If the service voltage is 480V Delta, an SPD with 550V or 660V MCOV will be required.
Surge protection devices must also provide a level of protection compatible with the withstand voltage of the equipment. This withstand
voltage depends on the type of equipment and its sensitivity. The incoming surge protector may not provide adequate protection by
itself, as certain electrical phenomena may greatly increase its residual voltage if cable lengths exceed 10m. A second SPD may be
necessary. See Coordination below.
3) Select the SPD surge capacity (I
max
)
Surge capacity is the amount of energy the SPD can withstand from a single surge event. The higher the surge capacity, the longer the
device will protect the system. A second surge protector may be required if the surge capacity of the rst is not capable of diverting all
surge current to ground. See Coordination below.
4) Remote monitoring (Optional)
Integrated auxiliary contact for remote monitoring available on models with “TS” designation.
Consult the Service Voltage and Location table on page 16.16 for help in the selection of SPDs.
)
c
OVRDINrailSPD-Partnumberdiagram
OVR T2 3N 40 320 P TS U
ABB SPD Designation Phases Surge capacity (I
Type 2 Apps 1P = No notation 15kA 150 (175V) contact 3rd
2P = 2L 40kA 320V (Optional) Edition
3P = 3L 440V
1P+N = 1N 550V
2P+N = 2N 660V
3P+N = 3N
Complete facility protection
Installing surge protection at the main distribution panel is only the beginning of protecting the entire operation. As most transient surges
are created internally, it is necessary to install surge protection at sub-distribution panels (equipment protection) to be fully protected.
Stepping down the I
For example, if a 40kA I
level from the service entrance panel toward equipment to be protected is recommended.
max
SPD is installed in the main distribution panel, then 15kA I
max
panels for equipment protection.
Coordination
It may be necessary to add a second surge protector, wired to the incoming unit, to achieve the required voltage protection and/or
surge capacity. For Type 2 or 4 SPDs, installing this second unit a minimum of 1m from the rst unit will allow the two to work together,
achieving the required protection.
) Max voltage (Uc) Pluggable Auxiliary UL1449
max
SPDs should be installed in sub-distribution
max
16
Wiring rules
The impedance of the cables increases the voltage across the connected equipment. Therefore, the length of the cable between the
surge protector and the equipment should be minimized.
The surge protective device should be installed as close to the equipment to be protected as possible. If this is not possible (the
equipment is over 30m from the panel), then a second surge protector must be installed.
Low Voltage Products & Systems 16.15
ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage 1SXU000023C0202 Rev. A
