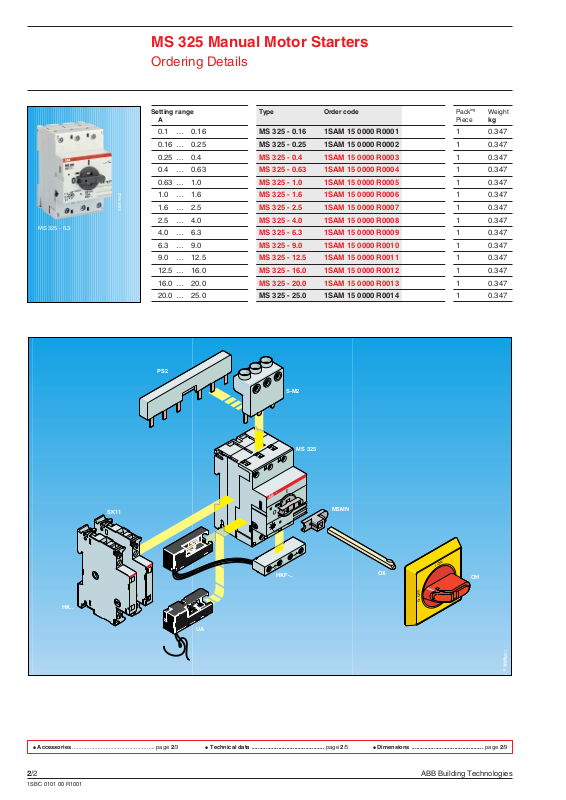

MS 325 Manual Motor Starters
Ordering Details
MS 325 - 6.3
SB7695C3
Setting range Type Order code Pack
A Piece kg
ing
Weight
0.1 … 0.16 MS 325 - 0.16 1SAM 15 0000 R0001 1 0.347
0.16 … 0.25 MS 325 - 0.25 1SAM 15 0000 R0002 1 0.347
0.25 … 0.4 MS 325 - 0.4 1SAM 15 0000 R0003 1 0.347
0.4 … 0.63 MS 325 - 0.63 1SAM 15 0000 R0004 1 0.347
0.63 … 1.0 MS 325 - 1.0 1SAM 15 0000 R0005 1 0.347
1.0 … 1.6 MS 325 - 1.6 1SAM 15 0000 R0006 1 0.347
1.6 … 2.5 MS 325 - 2.5 1SAM 15 0000 R0007 1 0.347
2.5 … 4.0 MS 325 - 4.0 1SAM 15 0000 R0008 1 0.347
4.0 … 6.3 MS 325 - 6.3 1SAM 15 0000 R0009 1 0.347
6.3 … 9.0 MS 325 - 9.0 1SAM 15 0000 R0010 1 0.347
9.0 … 12.5 MS 325 - 12.5 1SAM 15 0000 R0011 1 0.347
12.5 … 16.0 MS 325 - 16.0 1SAM 15 0000 R0012 1 0.347
16.0 … 20.0 MS 325 - 20.0 1SAM 15 0000 R0013 1 0.347
20.0 … 25.0 MS 325 - 25.0 1SAM 15 0000 R0014 1 0.347
PS2
HK..
SK11
UA
HKF-..
S-M2
MS 325
MSMN
OX
OH
E0702D1
E1391D
● Accessories .................................................... page 2/3 ● Technical data .............................................. page 2/5 ● Dimensions ............................................. page 2/9
2/2 ABB Building Technologies
1SBC 0101 00 R1001
MS 325 Manual Motor Starters
Technical Data
MS 325
Manual Motor
Starters
SB7695C2
SB7695C2
Types MS 325-0.16 to MS 325-9.0 MS325-12.5 to MS 325-25.0
Setting range A 0.1 … 0.16 1.0 … 1.6 9.0 … 12.5
Rated short-circuit
breaking capacity
380 / 400 V I
Rated service short-circuit
breaking capacity
Connecting capacity
main circuit
Rigid solid 1 x mm
Rigid stranded 1 x mm
Flexible without 1 x mm
cable end
Auxiliary circuit
Rigid solid 1 x mm
Degree of protection IP 20
Temperature compensation - 25 °C … + 50 °C
Phase failure sensitivity yes
kA 100 50
cu
Ics= % I
cu
2
2
2
2
2
2 x mm
0.16 … 0.25 1.6 … 2.5 12.5 … 16.0
0.25 … 0.4 2.5 … 4.0 16.0 … 20.0
0.4 … 0.63 4.0 … 6.3 20.0 … 25.0
0.63 … 1.0 6.3 … 9.0
100 100
1 … 10
1 … 10
1 … 6
0.5 … 2.5
0.5 … 2.5
SB7695C2
2
● Dimensions .................................................................................................................................................................................................................................................................... page 2/9
ABB Building Technologies 2/5
1SBC 0101 00 R1001
