Page 1

protect them reliably and without the need for a fuse from short-circuits, overload and

handle with a clear switch position indication. The manual motor starter is suitable for

undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking

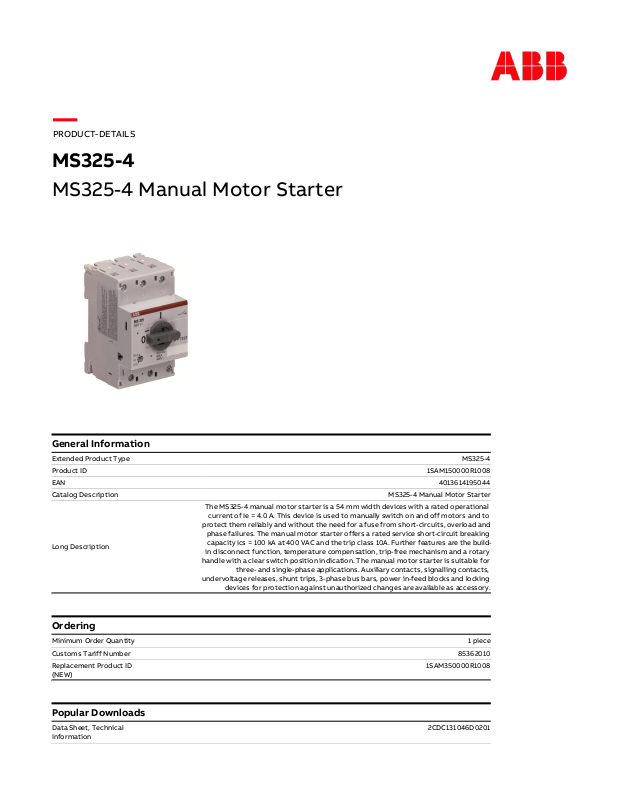

PRODUCT-DETAILS

Minimum Order Quantity

MS325-4

MS325-4 Manual Motor Starter

General Information

Extended Product Type

Product ID

EAN

Catalog Description

The MS325-4 manual motor starter is a 54 mm width devices with a rated operational

current of Ie = 4.0 A. This device is used to manually switch on and off motors and to

phase failures. The manual motor starter offers a rated service short-circuit breaking

Long Description

capacity Ics = 100 kA at 400 VAC and the trip class 10A. Further features are the build-

in disconnect function, temperature compensation, trip-free mechanism and a rotary

three- and single-phase applications. Auxiliary contacts, signalling contacts,

devices for protection against unauthorized changes are available as accessory.

MS325-4 Manual Motor Starter

1SAM150000R1008

MS325-4

4013614195044

Ordering

1 piece

85362010 Customs Tariff Number

(NEW)

1SAM350000R1008 Replacement Product ID

Popular Downloads

Information

2CDC131046D0201 Data Sheet, Technical

Page 2

Rated Operational Power

MS325-4

Manuals

Characteristic Curve

2CDC131089M6801 Instructions and

1SAM100513F0008 Time-Current

Dimensions

54 mm Product Net Width

87.5 mm Product Net Height

Length

75.5 mm Product Net Depth /

0.34 kg Product Net Weight

Technical

Rated Service ShortCircuit Breaking Capacity (I

Rated Ultimate ShortCircuit Breaking Capacity (I

Short-Circuit Current Setting (I

AC-3 (P

Rated Operational Voltage

Current (I

Current AC-3 (I

Rated Frequency (f)

Withstand Voltage (U )

(Ui)

Thermal Current (I

Degree of Protection

Connecting Capacity Main Circuit

Wire Stripping Length

Recommended Screw Driver

)

imp

at Rated Operating Conditions per Pole 0.9 ... 2.3 W Power Loss

)

Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm²

Flexible with Ferrule 1/2x 0.75 ... 4 mm²

(400 V) Three Phase 1.5 kW

Main Circuit Terminals IP20

(230 V AC) 100 kA (400 V AC) 100 kA (440 V AC) 100 kA

(500 V AC) 60 kA

(690 V AC) 10 kA

(230 V AC) 100 kA (400 V AC) 100 kA (440 V AC) 100 kA

(500 V AC) 60 kA

(690 V AC) 10 kA

50 A Rated Instantaneous

2.5 ... 4.0 A Setting Range

Main Circuit 690 V AC Main Circuit 440 V DC

4 A Rated Operational

Main Circuit 50 Hz Main Circuit 60 Hz

Main Circuit 6 kV Rated Impulse

690 V Rated Insulation Voltage

3 Number of Poles

Main Circuit 4 A Conventional Free-air

Housing IP20

3 Pollution Degree

50000 cycle Electrical Durability

100000 cycle Mechanical Durability

Screw Terminals Terminal Type

Flexible 1/2x 1 ... 6 mm²

Rigid 1/2x 1 ... 6 mm²

Main Circuit 1.4 N·m Tightening Torque

Auxiliary Circuit 8 mm

Main Circuit 10 mm

M3.5

Pozidriv 2

Page 3

MS325-4

Position 1 to 6 Mounting Position

Mounting on DIN Rail

Indication

Standards

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Rotary Handle Actuator Type

ON / OFF Contact Position

IEC/EN 60947-1 IEC/EN 60947-2

IEC/EN 60947-4-1

UL 60947-1

UL 60947-4-1

Technical UL/CSA

Voltage UL/CSA

Horsepower Rating UL/CSA

Connecting Capacity Main Circuit UL/CSA

Tightening Torque UL/CSA

(220 ... 240 V AC) Three Phase 1 Hp (440 ... 480 V AC) Three Phase 2 Hp (550 ... 600 V AC) Three Phase 3 Hp

Main Circuit 600 V AC Maximum Operating

4 A Ampere Rating UL/CSA

Flexible 1/2x 14-8 AWG

Stranded 1/2x 14-8 AWG

Auxiliary Circuit 7 in·lb

Main Circuit 14 in·lb

Environmental

Ambient Air Temperature

Temperature Compensation

Altitude Permissible

to IEC 60068-2-27

acc. to IEC 60068-2-6

Following EU Directive 2002/95/EC August 18, 2005 and amendment RoHS Status

Around the Enclosure 0 ... +40 °C

Operation -25 ... +50 °C

Operation Compensated -25 ... +50 °C

Storage -50 ... +80 °C

Yes Ambient Air

2000 m Maximum Operating

11 ms Pulse 15g Resistance to Shock acc.

5g / 10 ... 150 Hz Resistance to Vibrations

Certificates and Declarations (Document Number)

1SAA918000-3903 ATEX Certificate

1SAA918000-0205 BV Certificate

1SAA918000-2003 CB Certificate

1SAA918000-3807 CCC Certificate

cUL Certificate

Conformity - CE

Information

Manuals

cUL_E137861

cUL_E345003

1SAD938517-0003 Declaration of

1SAA918000-0306 DNV Certificate

1SAA918000-2702 Environmental

1SAA918000-0403 GL Certificate

1SAA918000-2703 GOST Certificate

2CDC131089M6801 Instructions and

1SAA918000-0504 LR Certificate

1SAA918000-0803 RINA Certificate

Page 4

MS325-4

1SAA918000-0704 RMRS Certificate

1SAD938514-0003 RoHS Information

Characteristic Curve

UL Certificate

1SAM100513F0008 Time-Current

UL_E137861

UL_E345003

Container Information

box 1 piece Package Level 1 Units

92 mm Package Level 1 Width

Length

Weight

Length

Weight

58 mm Package Level 1 Depth /

78 mm Package Level 1 Height

0.37 kg Package Level 1 Gross

4013614195044 Package Level 1 EAN

carton 24 piece Package Level 2 Units

280 mm Package Level 2 Width

395 mm Package Level 2 Depth /

210 mm Package Level 2 Height

0.61 kg Package Level 2 Gross

4013614494468 Package Level 2 EAN

Classifications

Code

Code (IGCC)
