SWITCH FUSES OS AND OSM WORLD CLASS PERFORMANCE 50
—

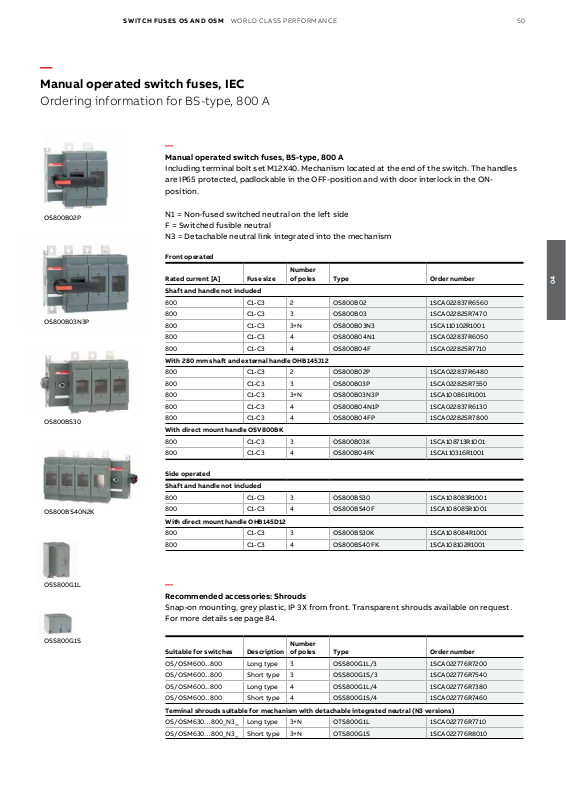

Manual operated switch fuses, IEC
Ordering information for BS-type, 800 A
—
Manual operated switch fuses, BS-type, 800 A
Including terminal bolt set M12X40. Mechanism located at the end of the switch. The handles
are IP65 protected, padlockable in the OFF-position and with door interlock in the ONposition.
OS800B02P
OS800B03N3P
OS800BS30
OS800BS40N2K
N1 = Non-fused switched neutral on the left side
F = Switched fusible neutral
N3 = Detachable neutral link integrated into the mechanism
Front operated
Rated current [A] Fuse size
Shaft and handle not included
800 C1-C3 2 OS800B02 1SCA022837R6560
800 C1-C3 3 OS800B03 1SCA022825R7470
800 C1-C3 3+N OS800B03N3 1SCA110102R1001
800 C1-C3 4 OS800B04N1 1SCA022837R6050
800 C1-C3 4 OS800B04F 1SCA022825R7710
With 280 mm shaft and external handle OHB145J12
800 C1-C3 2 OS800B02P 1SCA022837R6480
800 C1-C3 3 OS800B03P 1SCA022825R7550
800 C1-C3 3+N OS800B03N3P 1SCA100861R1001
800 C1-C3 4 OS800B04N1P 1SCA022837R6130
800 C1-C3 4 OS800B04FP 1SCA022825R7800
With direct mount handle OSV800BK
800 C1-C3 3 OS800B03K 1SCA108713R1001
800 C1-C3 4 OS800B04FK 1SCA110316R1001
Side operated
Shaft and handle not included
800 C1-C3 3 OS800BS30 1SCA108083R1001
800 C1-C3 4 OS800BS40F 1SCA108085R1001
With direct mount handle OHB145D12
800 C1-C3 3 OS800BS30K 1SCA108084R1001
800 C1-C3 4 OS800BS40FK 1SCA108102R1001
Number
of poles Type Order number
04
OSS800G1L
OSS800G1S
—
Recommended accessories: Shrouds
Snap-on mounting, grey plastic, IP 3X from front. Transparent shrouds available on request.
For more details see page 84.
Suitable for switches Description
OS/OSM600...800 Long type 3 OSS800G1L/3 1SCA022776R7200
OS/OSM600...800 Short type 3 OSS800G1S/3 1SCA022776R7540
OS/OSM600...800 Long type 4 OSS800G1L/4 1SCA022776R7380
OS/OSM600...800 Short type 4 OSS800G1S/4 1SCA022776R7460
Terminal shrouds suitable for mechanism with detachable integrated neutral (N3 versions)
OS/OSM630…800_N3_ Long type 3+N OTS800G1L 1SCA022776R7710
OS/OSM630…800_N3_ Short type 3+N OTS800G1S 1SCA022776R8010
Number
of poles Type Order number
