Page 1

Tropos Networks MetroMesh Router

Installation Guide

Model 5320

Tropos Networks, Inc.

555 Del Rey Ave.

Sunnyvale, CA 94085

USA

Part No. 200197-00 Rev A0

July 2006

Page 2

©2006 Tropos Networks, Inc. All rights reserved. Tropos Networks is a registered trademark of Tropos Networks, Inc. in the United States and certain other jurisdictions. Specifications are subject to change without notice.

Loctite is a registered trademark of Loctite Corporation, USA.

This product includes technology protected by U.S. Patents 6,704,301; 6,965,575; 7,016,328, and 7,031,293.

FCC Notice to Users and Operators

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by using one of the following measures:

 Reorient or relocate the receiving antenna.

 Increase separation between the equipment and receiver.

 Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician.

This Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Tropos Networks could void the user's authority to operate this device.

Industry Canada

Notice to users and operators:

This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Tropos 5320 MetroMesh Router Installation Guide ii

Page 3

Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des réglements d’équipement. L’opération est sujette aux deux conditions suivantes : (1) cet dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l'interférence qui peut causer l’opération peu désirée.

Warning

It is illegal to modify the construction of this product. Modifying the operating frequency or enhancing the transmit output power through the use of external amplifiers or other equipment is specifically disallowed by the “Telecommunications Act.”

Warning

This device is for outdoor or indoor use with conditions that no harmful interference to authorized radio stations results from the operation of this device. This device shall not influence aircraft security and/or interfere with legal communications as defined in the “Telecommunications Act.” If this device is found to cause interference, the operator of this equipment shall cease operating this device immediately until no interference is achieved.

European Union WEEE Notice

For EU member countries, this symbol means: Do not dispose of this equipment as unsorted municipal waste. This equipment must be collected separately.

The return and collection of this product has not been defined at this time, please contact Tropos Networks for return and/or collection.

It is important for users of this equipment to participate in reuse, recycling, and other forms of recovery. The potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment are a waste of natural resources and cause pollution.

Tropos 5320 MetroMesh Router Installation Guide iii

Page 4

European Community Language Versions of Informal Statement for Inclusion in User Information

The following statements are in accordance with Article 6.3 of Directive 1999/5/EC.

Tropos 5320 MetroMesh Router Installation Guide iv

Page 5

STOP!! STOP!! STOP!! STOP!!

READ THIS FIRST!

Important Safety Instructions

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Caution

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not defeat the safety purpose of the grounding.

Only use attachments/accessories specified by the manufacturer.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damage in any way, such as power-supply cord or plug is damaged, liquid has been spilled on objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Tropos 5320 MetroMesh Router Installation Guide v

Page 6

Warning

Caution

Risk of personal injury or death when installing this device!

There is a risk of personal injury or death if the router antennas come near electric power lines. Carefully read and follow all instructions in this manual. By nature of the installation, you may be exposed to hazardous environments and high voltage. Use caution when installing the outdoor system.

This apparatus must be connected to earth ground.

Do not open the unit — risk of electric shock inside.

Risque d'électrocution. Ne pas ouvrir l'unité.

You are cautioned that any change or modification not expressly approved in this manual could void your authority to operate this equipment.

Les changements et modifications, non expressément approuvés dans le présent manuel, peuvent entraîner une interdiction d'utiliser cet appareil pour l'utilisateur.

Service

There are no user-serviceable parts inside. All service must be performed by qualified personnel.

Vous ne devez pas réparer les pièces se trouvant à l'intérieur de l'appareil. Les réparations doivent être effectuées uniquement par du personnel qualifié.

The Tropos 5320 MetroMesh Router may contain a lithium-ion battery. To avoid the possibility of an explosion, the Tropos 5320 MetroMesh Router should NOT be exposed to any temperatures higher than 85 degrees C.

The RJ45 connectors of your Tropos 5320 MetroMesh Router may source DC power on pins 4,5 and 7,8. The IEEE 802.3 standards allow for pins 4,5 and 7,8 to be used for Power Over Ethernet. Some products may be incompatible with the Tropos Power Over Ethernet capability. If such problems occur, make sure that the unit is configured with the Power Over Ethernet capability set to Off (default setting). If problems persist, use Ethernet cables that have no connections to the unused pins 4,5 and 7,8.

Tropos 5320 MetroMesh Router Installation Guide vi

Page 7

The Tropos 5320 MetroMesh Router is installed in wet, outdoor locations. Make sure closure caps are installed and all cable connections are securely fastened and waterproofed.

The Tropos 5320 MetroMesh Router can only be used with approved antennas. See Appendix C, “Approved Antenna Configurations and Attenuation Settings” for further information.

Surfaces may become hot. Use caution when accessing the Tropos 5320 MetroMesh router.

Tropos 5320 MetroMesh Router Installation Guide vii

Page 8

Contents

1 Installing the Tropos MetroMesh Router . . . . . . . . . . . . . . . . . . . . . . . . . 1

Preparing for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Model Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation Hardware and Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Site Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Location Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Antenna Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Site Surveys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Mounting Strategies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Proper Use of Hose Clamps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Pole, Tower, and Streetlight Mounting Instructions . . . . . . . . . . . . . . . . . 9

Metal Pole Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Wood Pole Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Wood Brace Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Tower Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Streetlight Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting Cable Attached Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Waterproofing Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . 20

Installing Attached Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Grounding the Tropos 5320 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Grounding the Data Protection Device . . . . . . . . . . . . . . . . . . . . . . . 23

Connecting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Categories of Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Connecting to AC Power (Category C) . . . . . . . . . . . . . . . . . . . . . . . 27

Connecting to Streetlight Power (Category C) . . . . . . . . . . . . . . . . . 28

Connecting a Data Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Resetting the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Connecting Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Battery Backup Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Safety Information for the Tropos MetroMesh Router . . . . . . . . . . . . . . 38

Tropos 5320 MetroMesh Router Installation Guide viii

Page 9

2 Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

3 Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4 Approved Antenna Configurations and Attenuation Settings . . . . . . . 48

High Power Product Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

U.S. and Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Standard Power Product Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

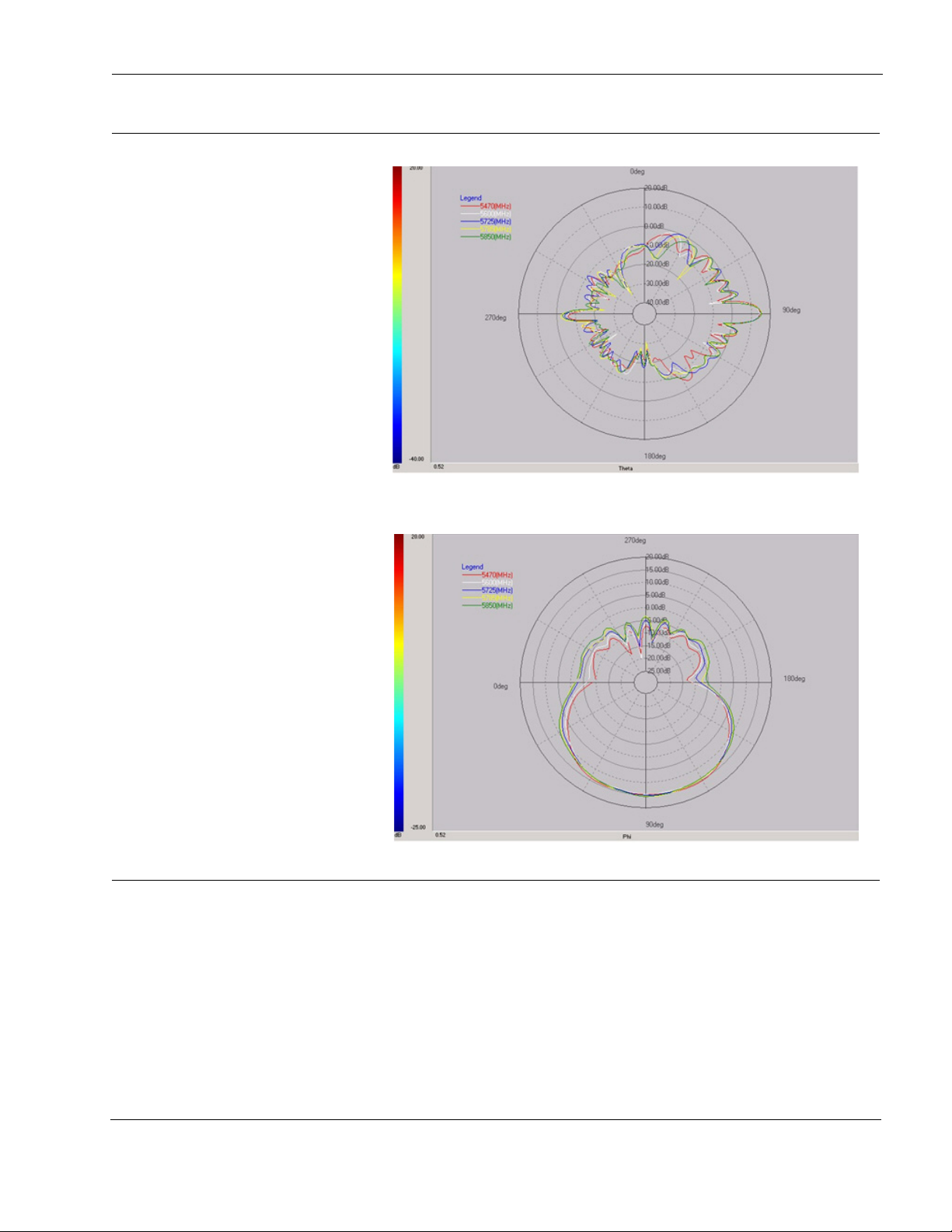

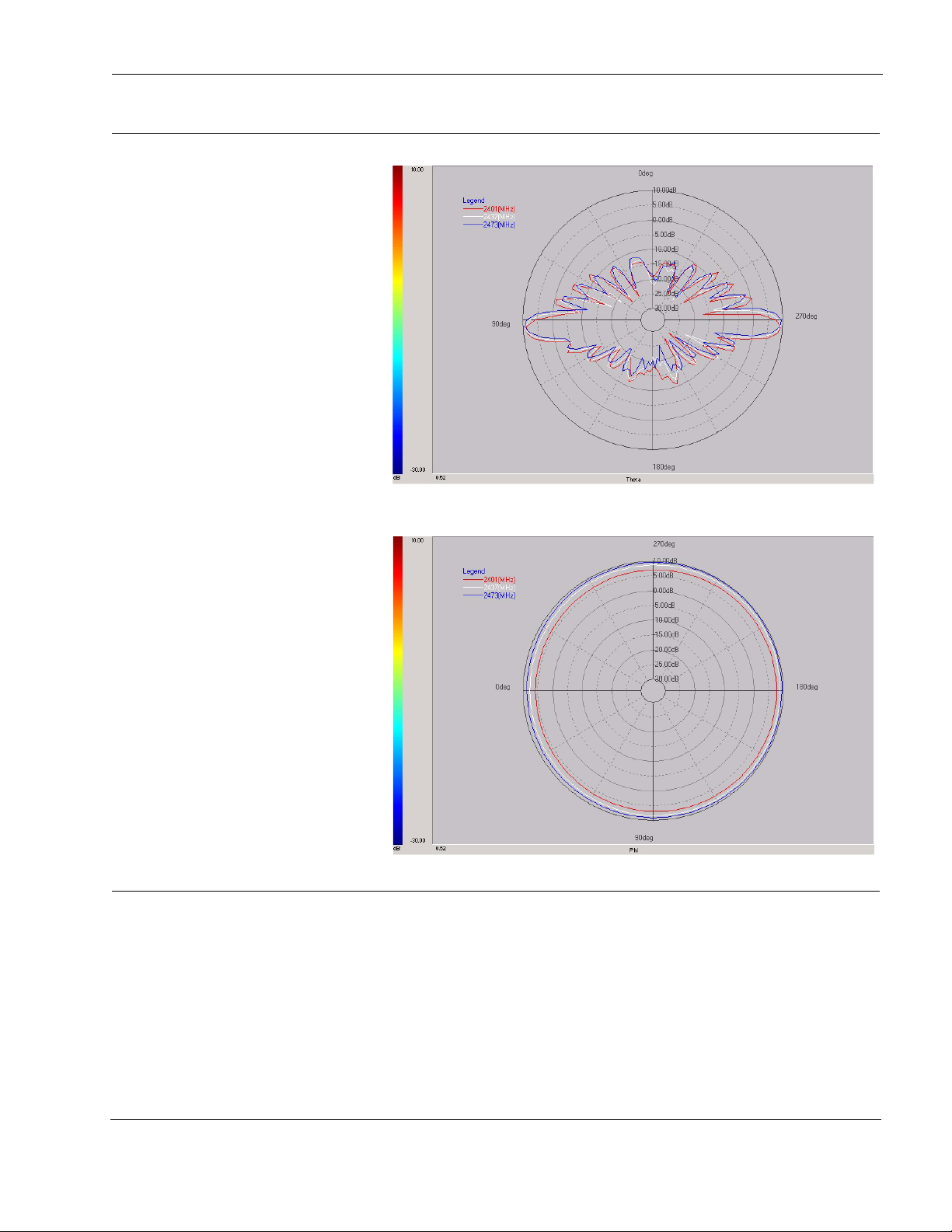

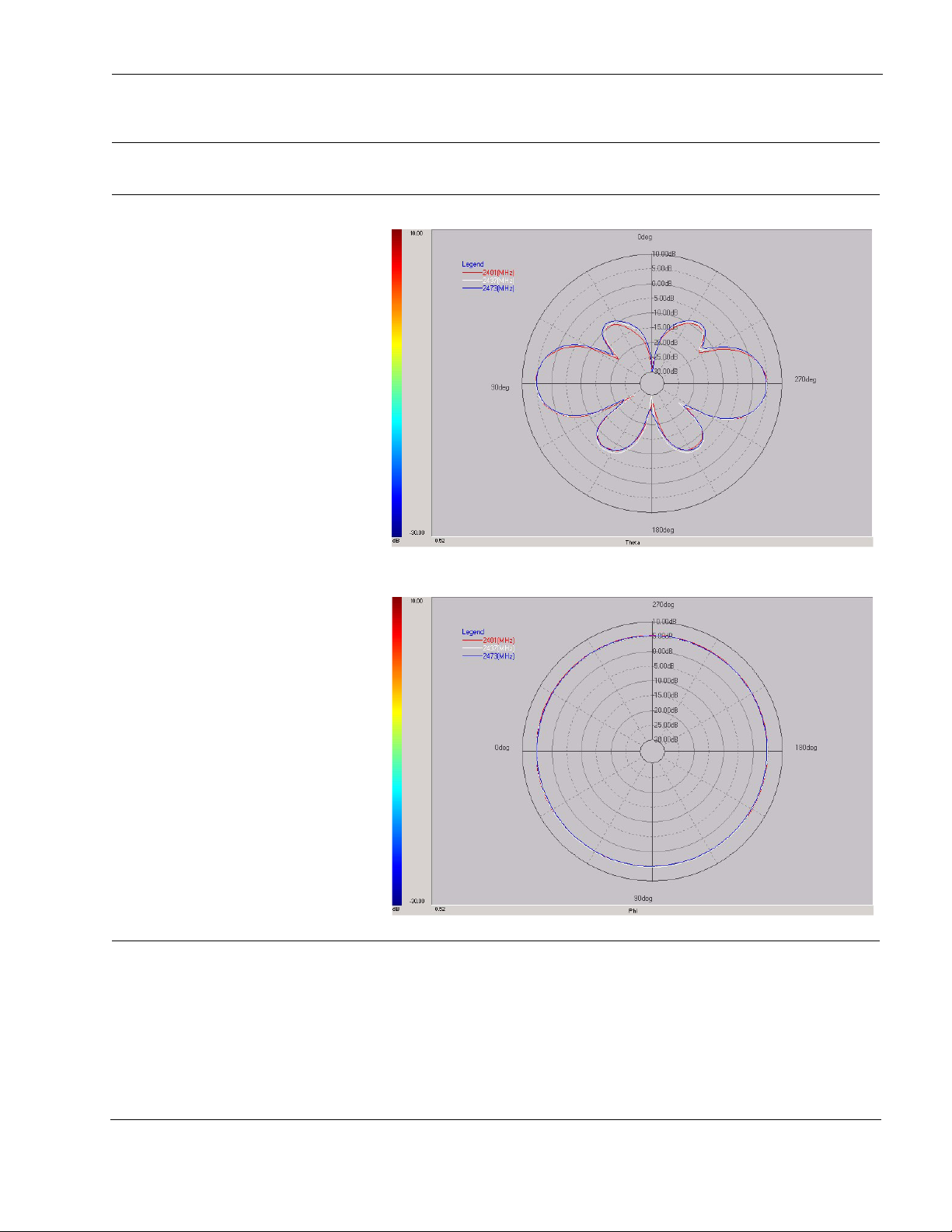

5 Antenna Specifications and Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

6 Installation Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

7 AC Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

8 Wind Loading Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

9 Canopy Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

10 Cable Termination Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Tropos 5320 MetroMesh Router Installation Guide ix

Page 10

List of Figures

Tropos MetroMesh Router Exploded View . . . . . . . . . . . . . . . . . . . . . . . 3

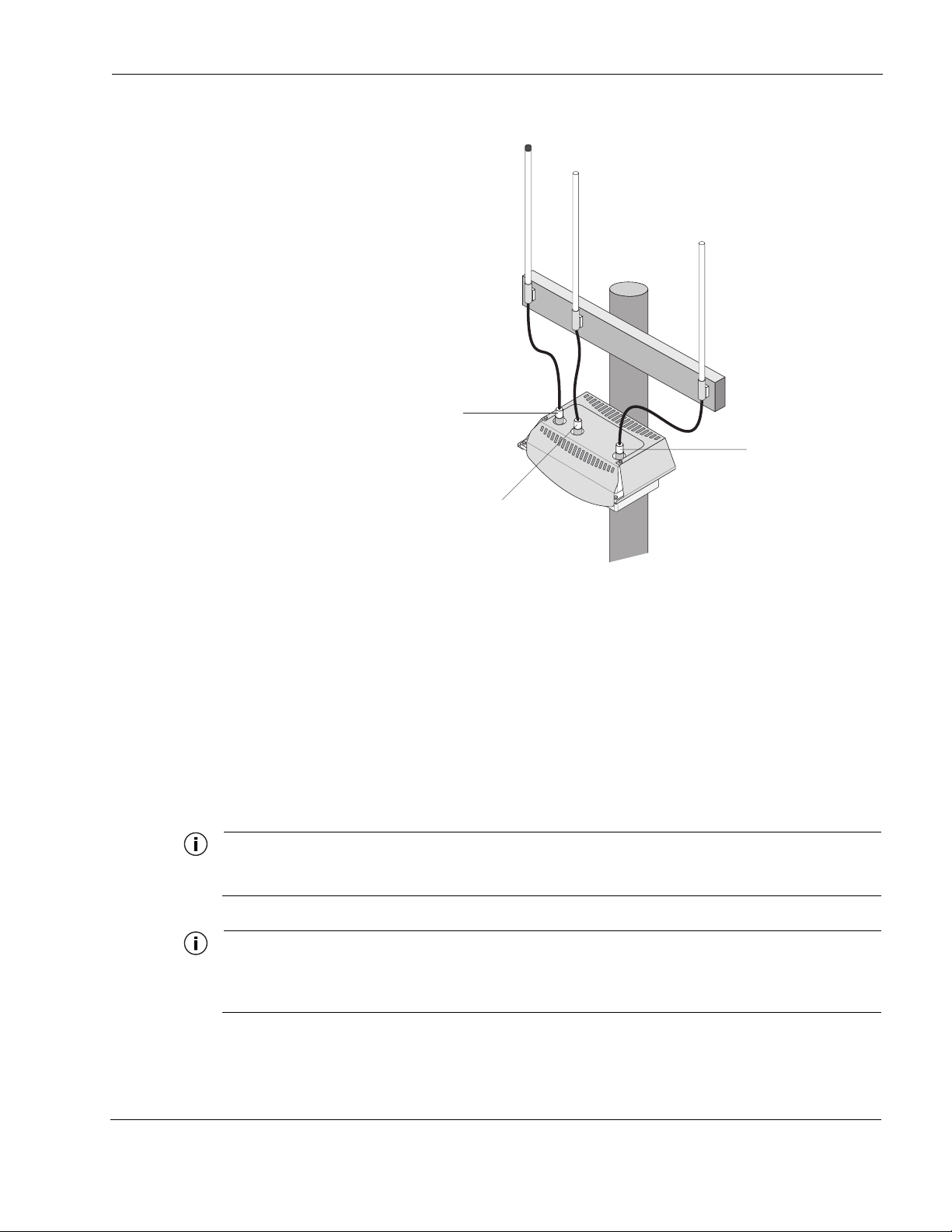

Example Mounting Location - Antennas Facing Upward . . . . . . . . . . . . 7

Proper Use of Hose Clamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Metal Pole Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Sun Shield Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Wood Pole Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Wood Brace Mounting Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Tower Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Streetlight Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

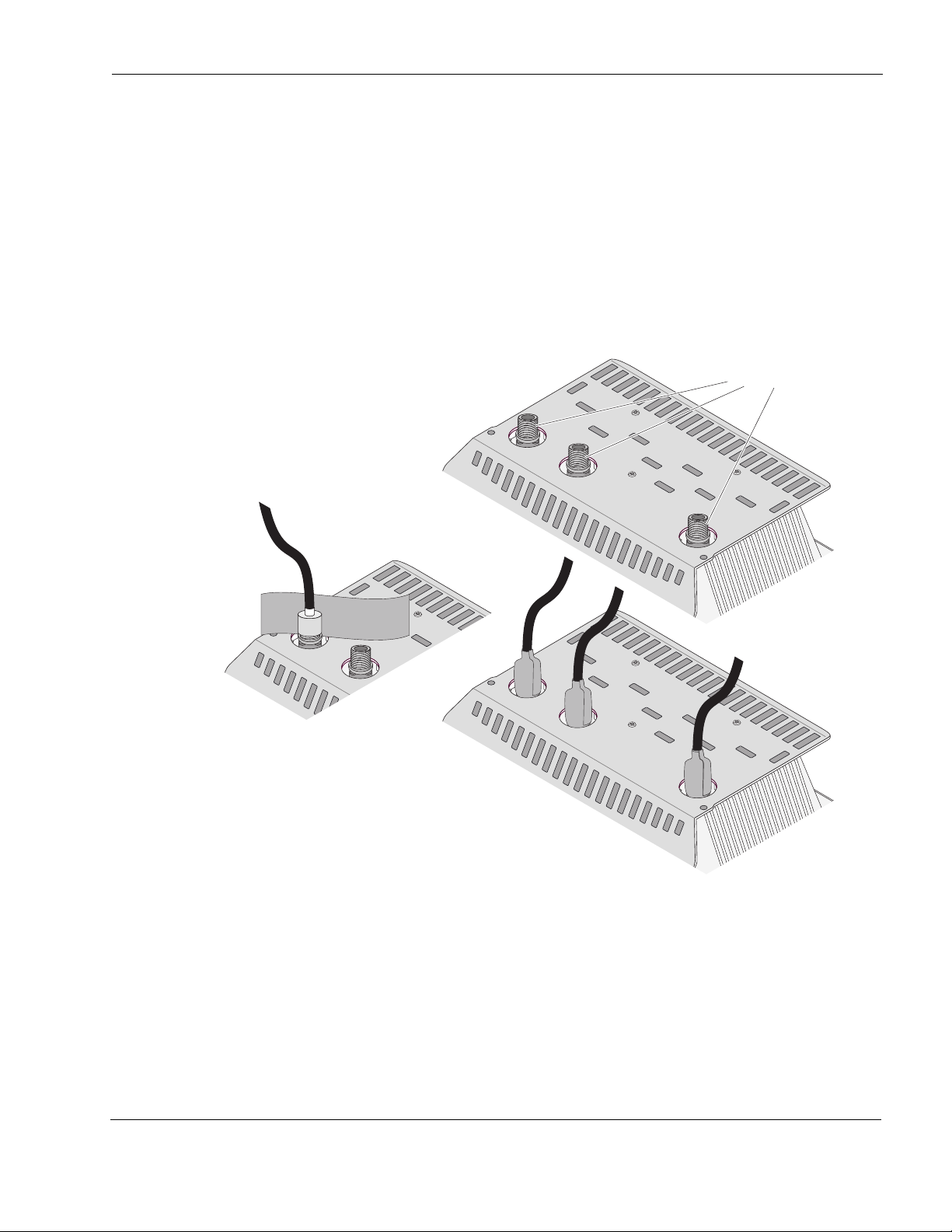

Connecting External Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Waterproofing Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 20

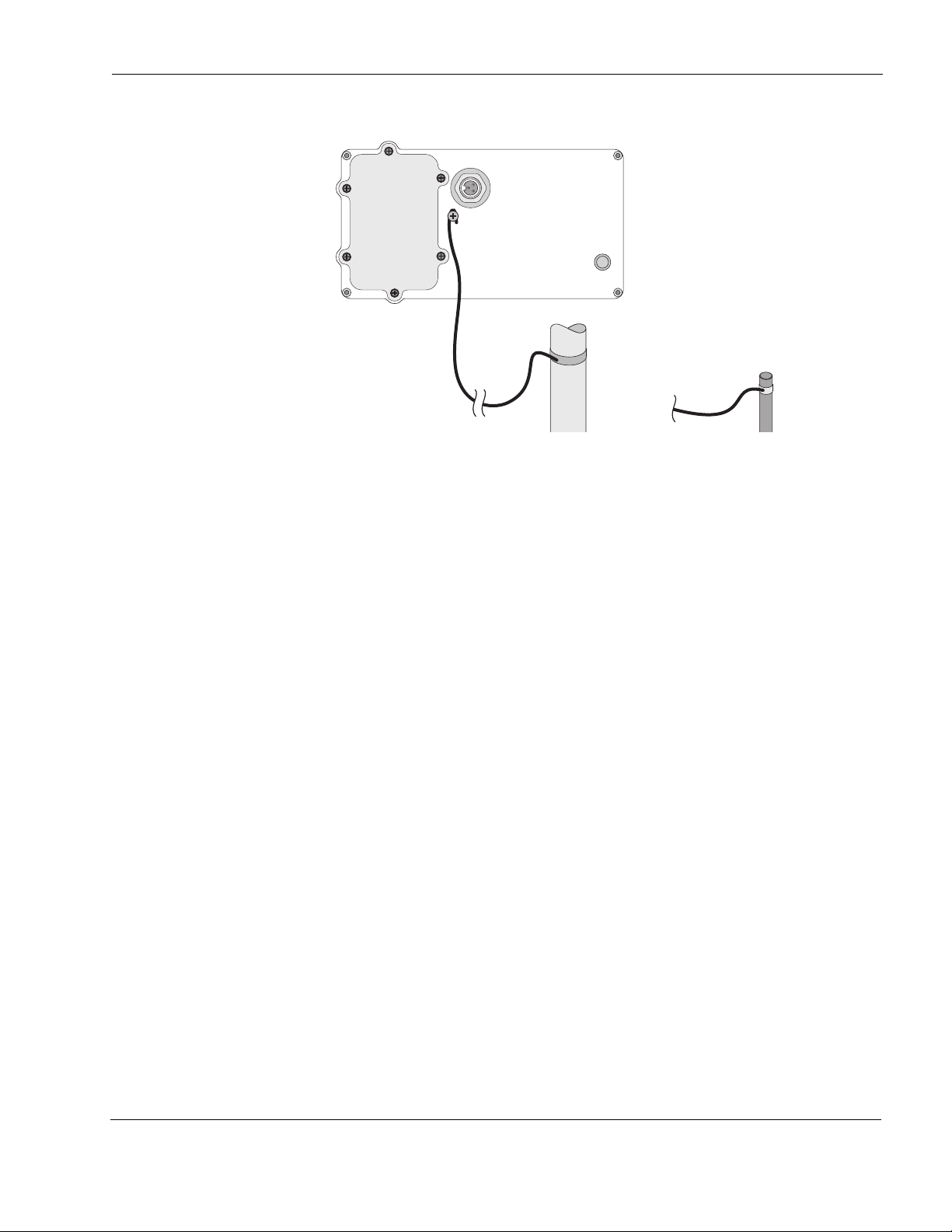

Grounding Arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Grounding the Indoor Network Protection Unit . . . . . . . . . . . . . . . . . . . 23

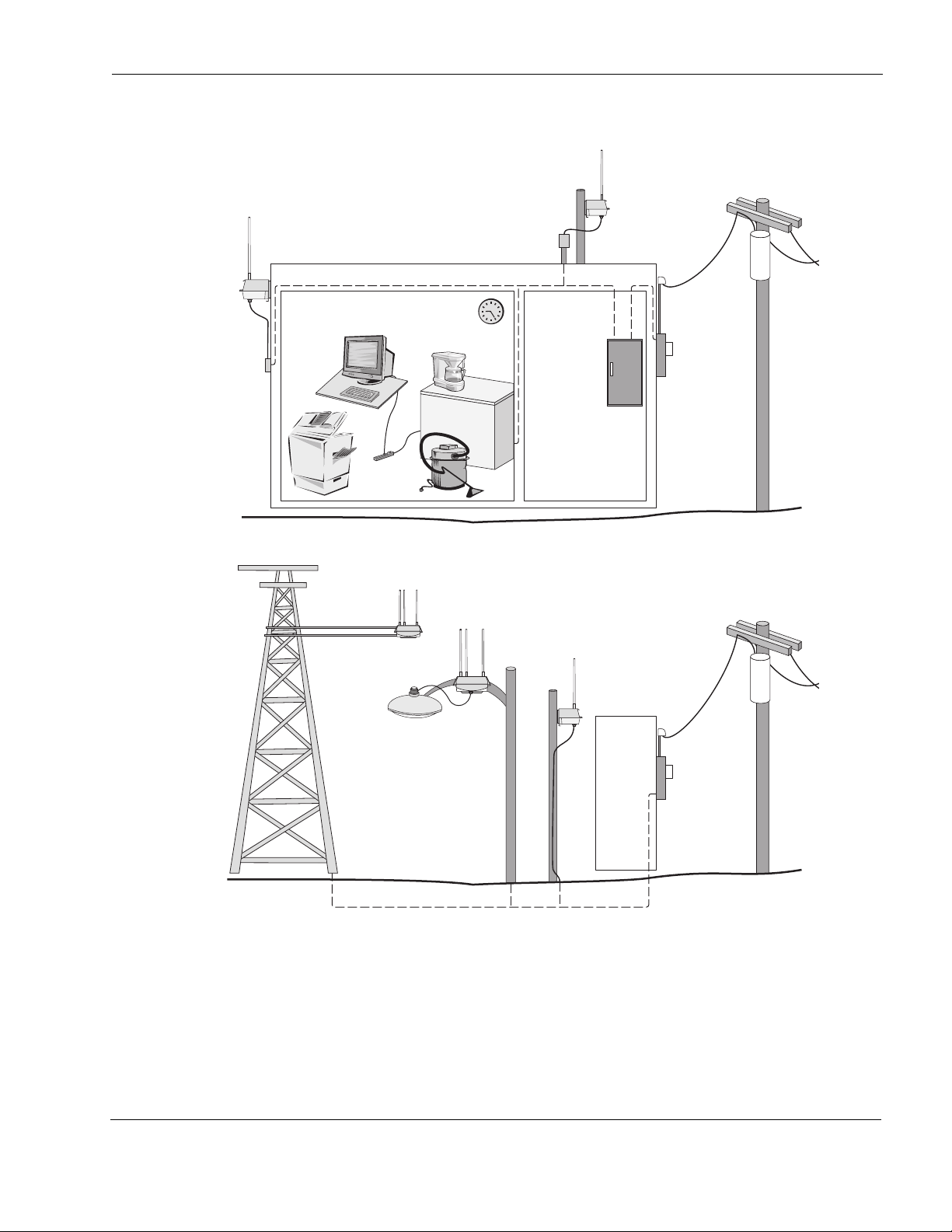

IEEE/ANSI C62.41 Power Categories . . . . . . . . . . . . . . . . . . . . . . . . . . 26

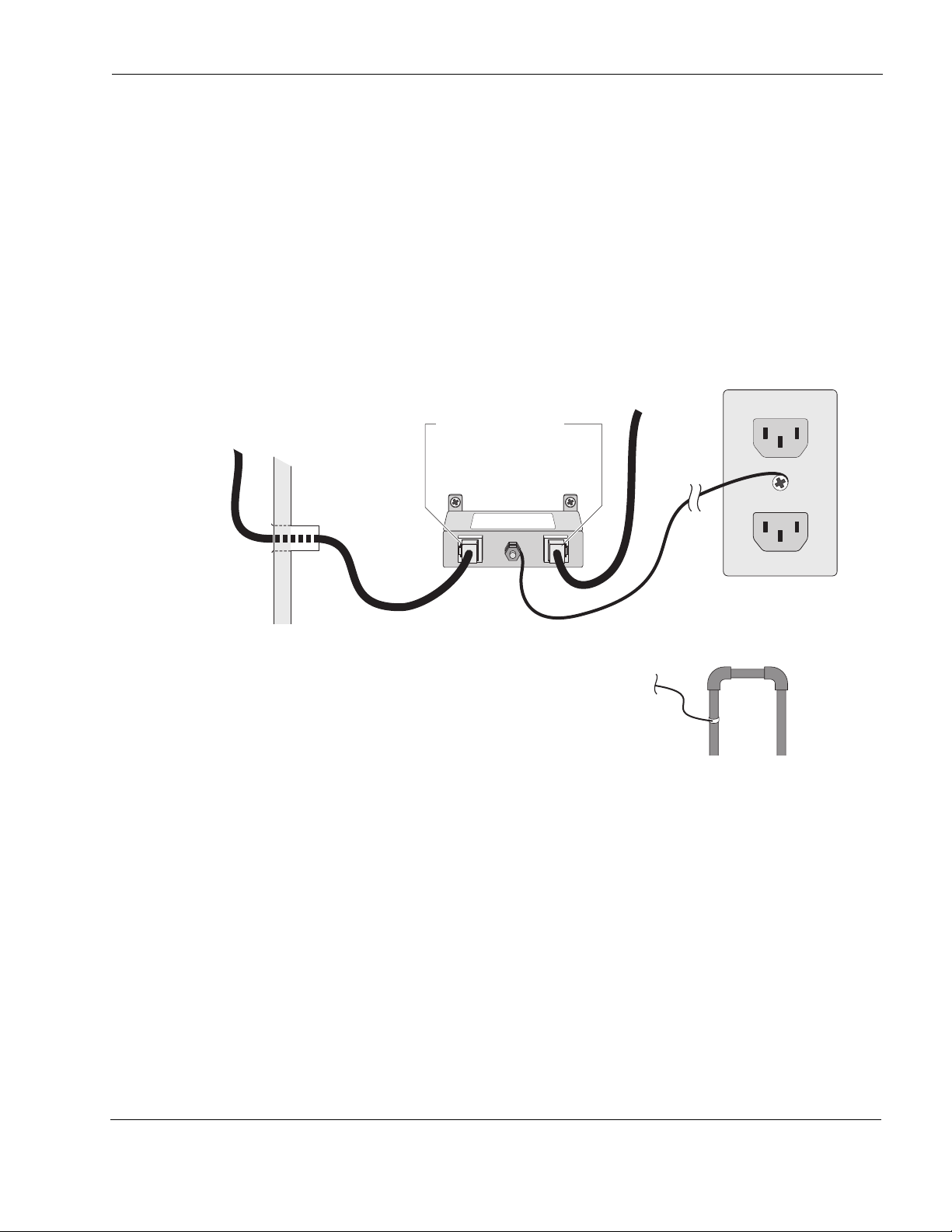

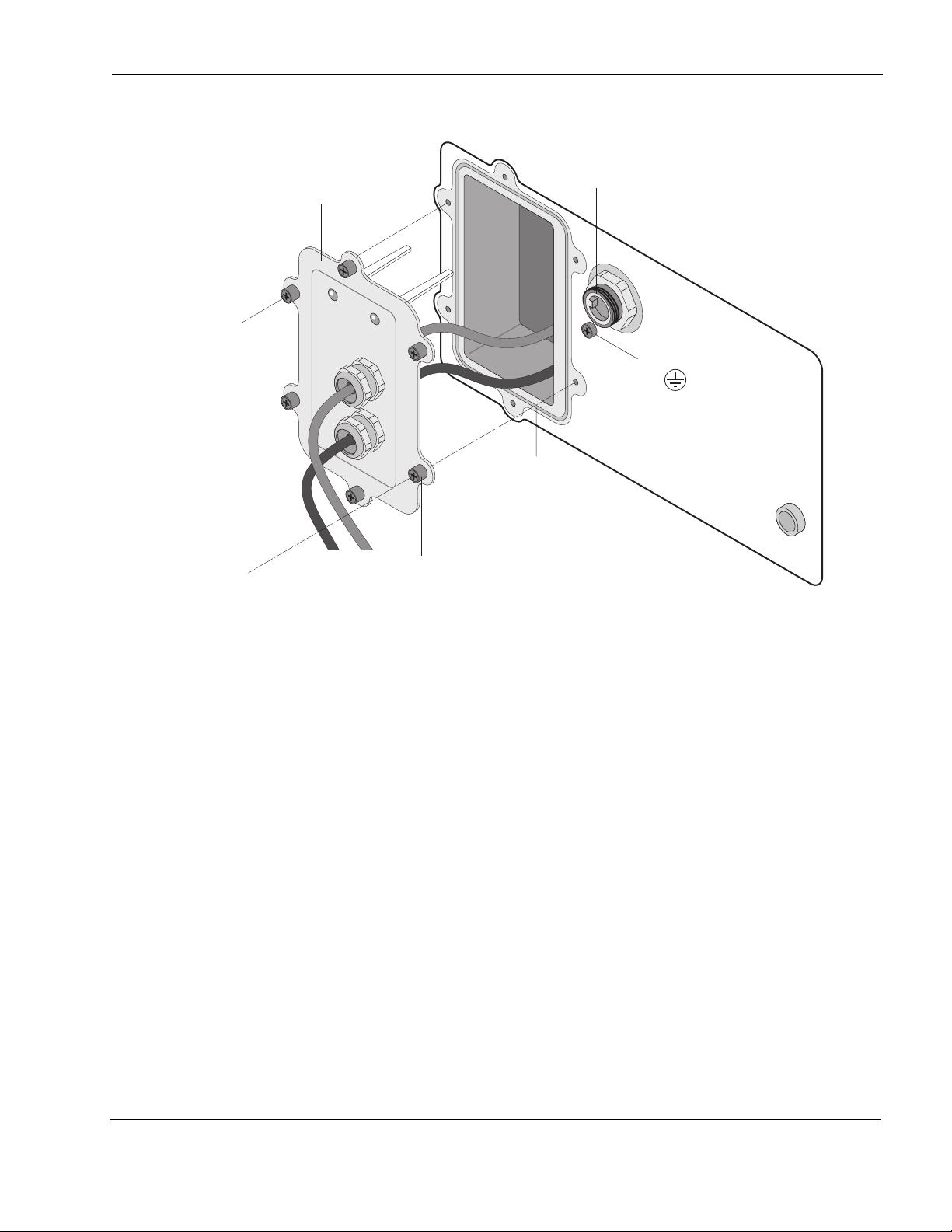

Connecting Category C AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Connecting the AC Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

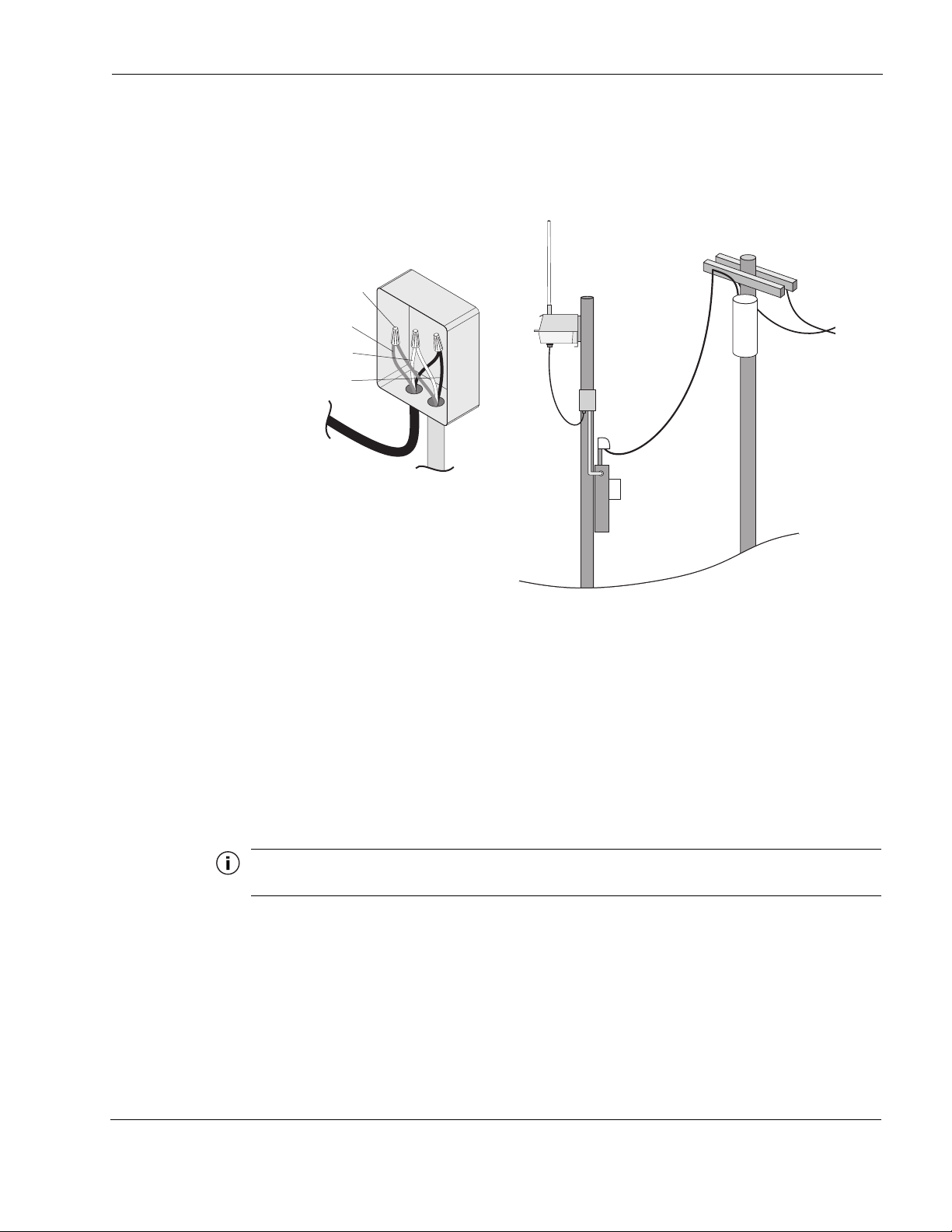

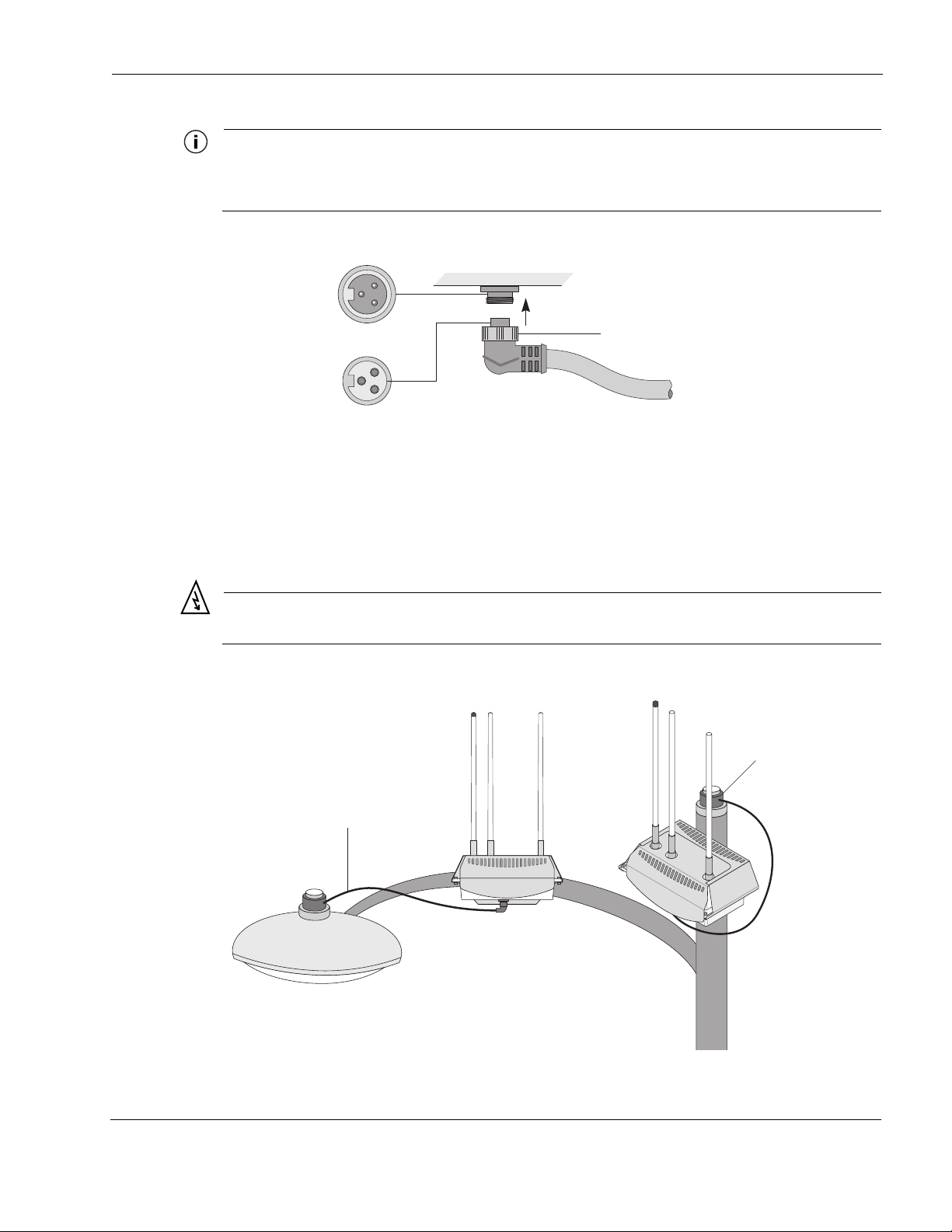

Connecting Streetlight Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Options for Connecting a Data Port . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

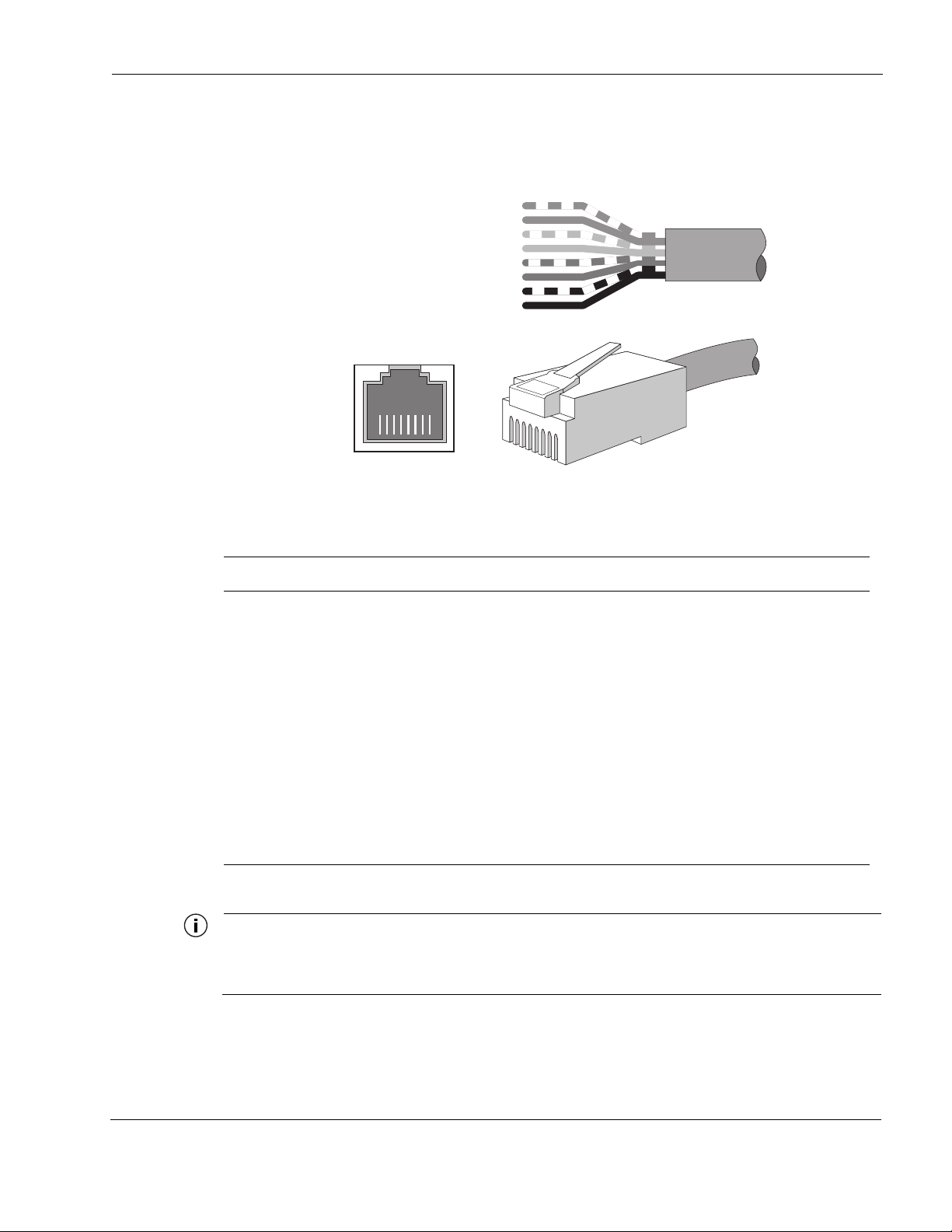

Data Cable Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

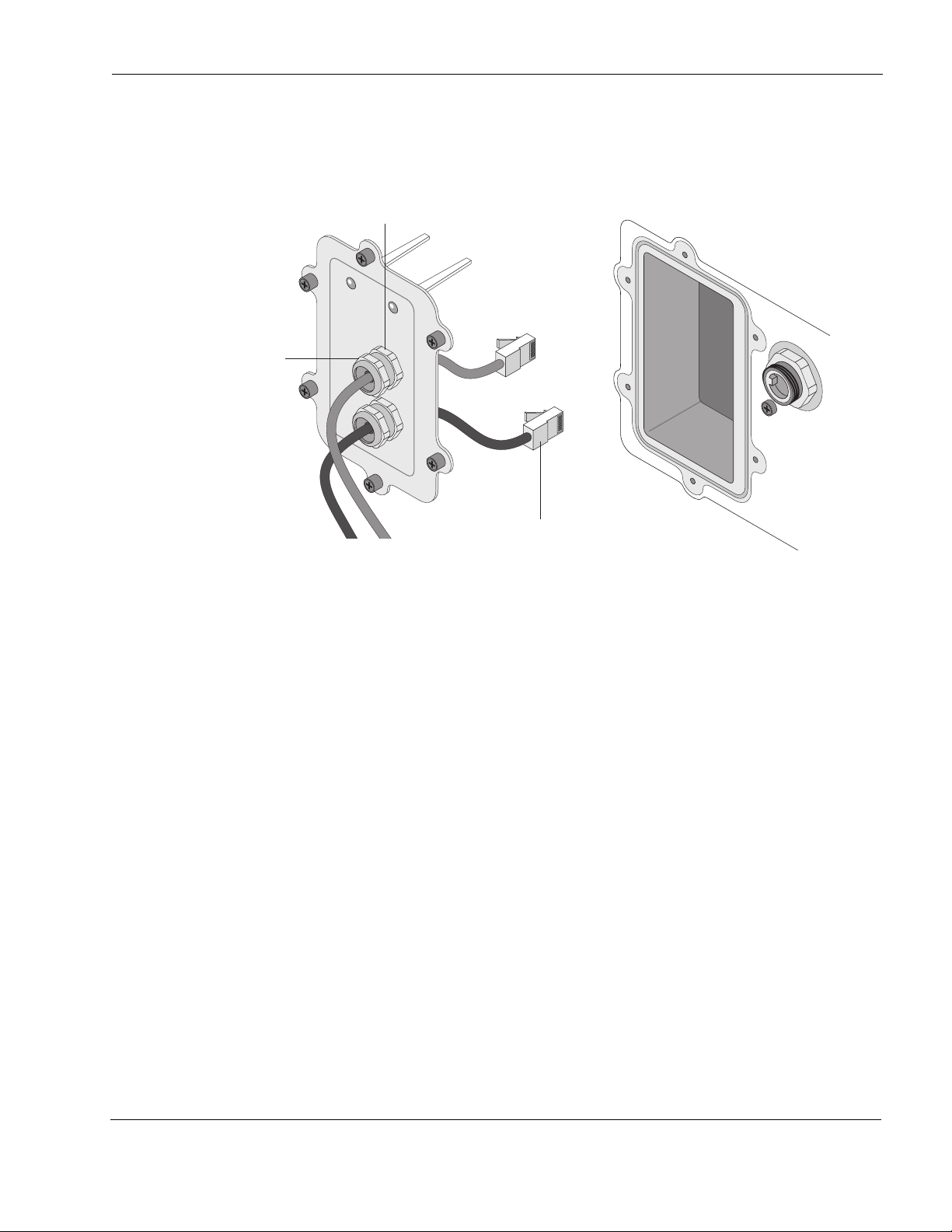

Data Port Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

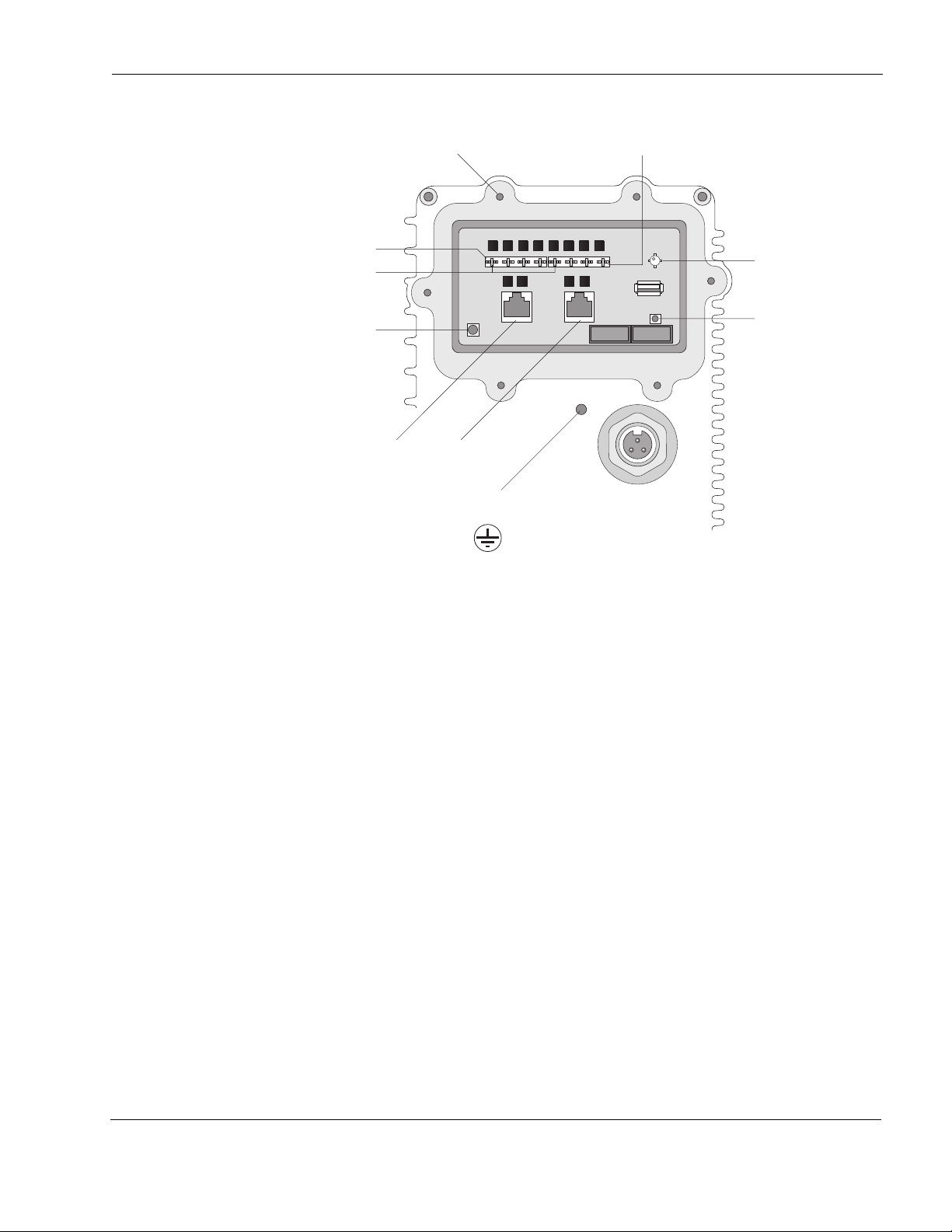

Circuit Board Connection Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

RJ45 Pin Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

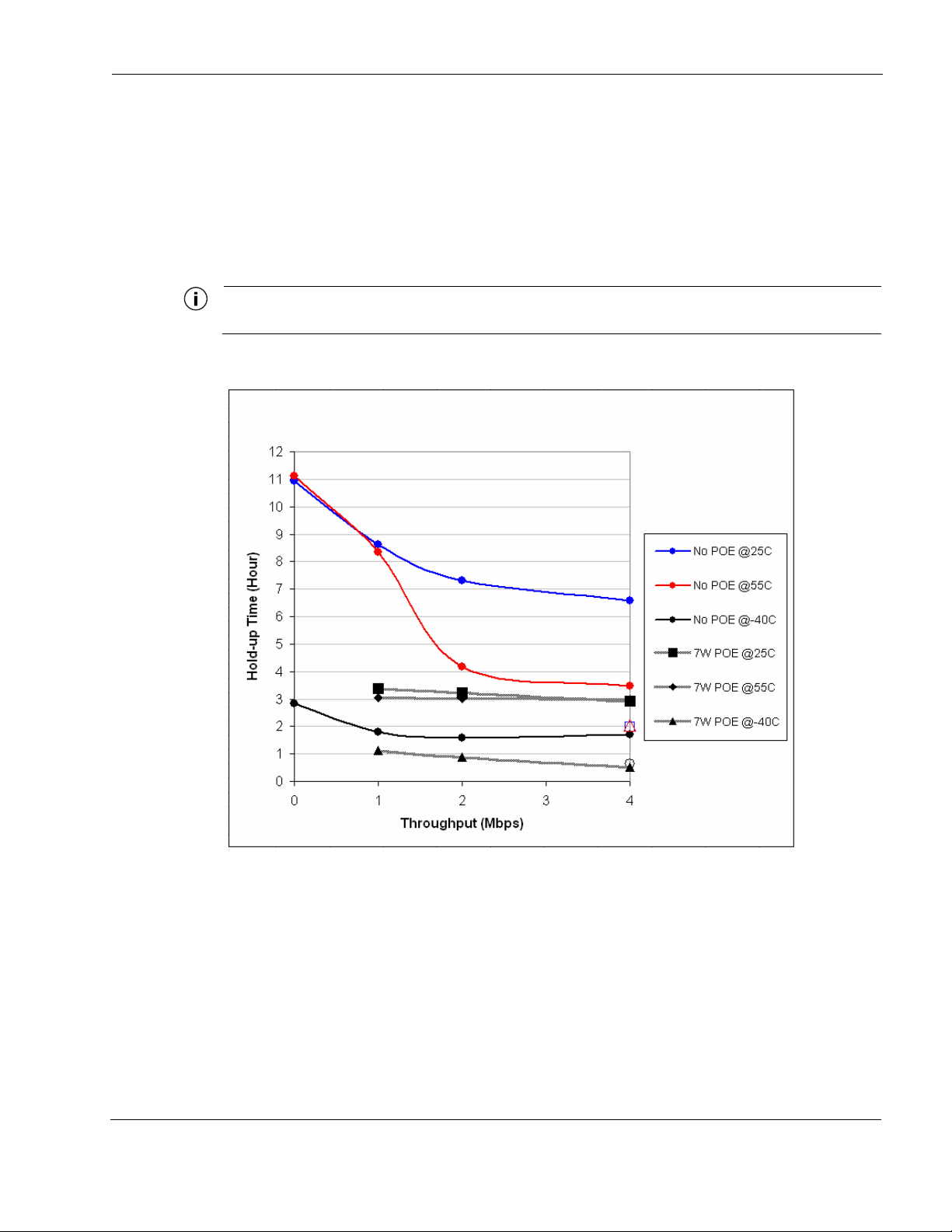

Average Battery Backup Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

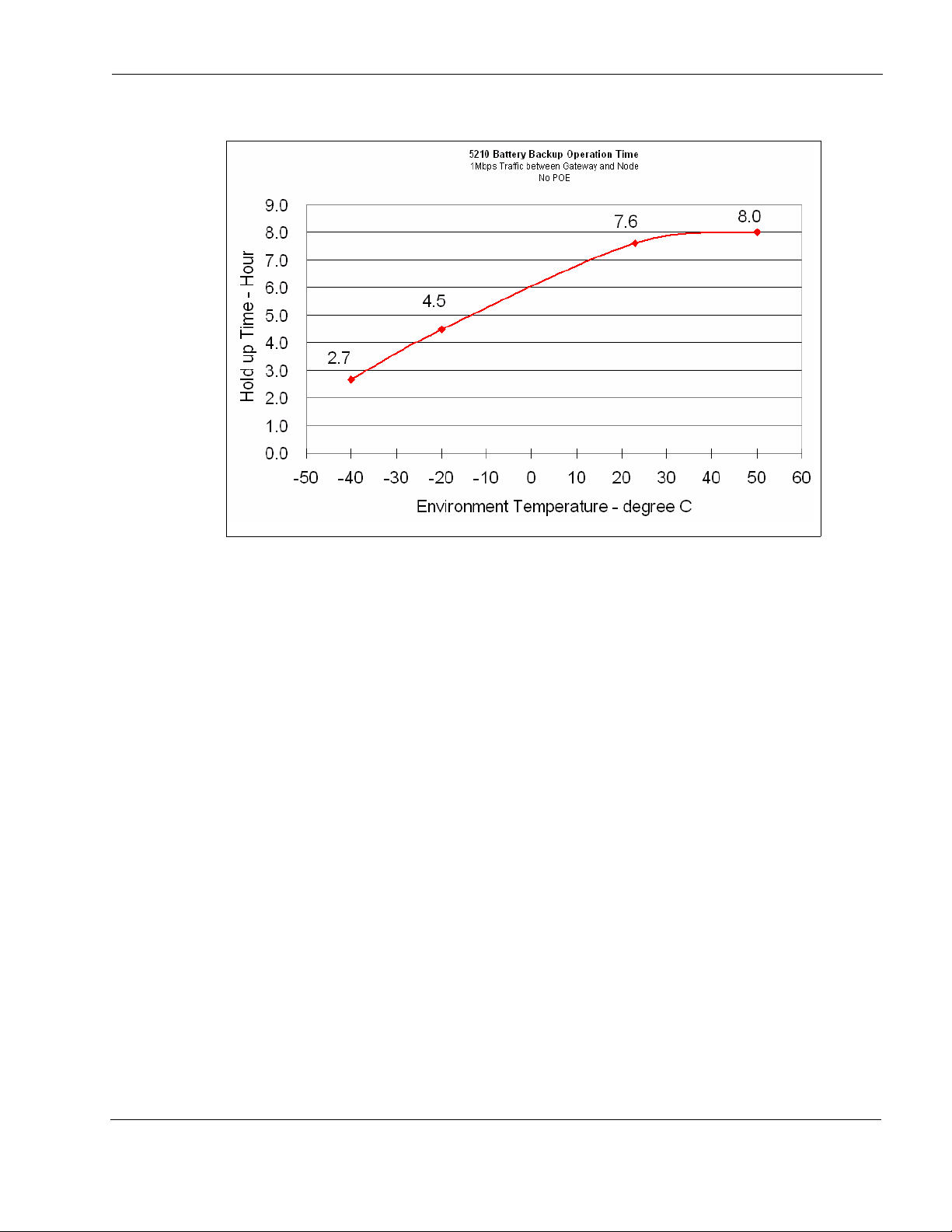

Average Battery Backup Time vs. Temperature . . . . . . . . . . . . . . . . . . 38

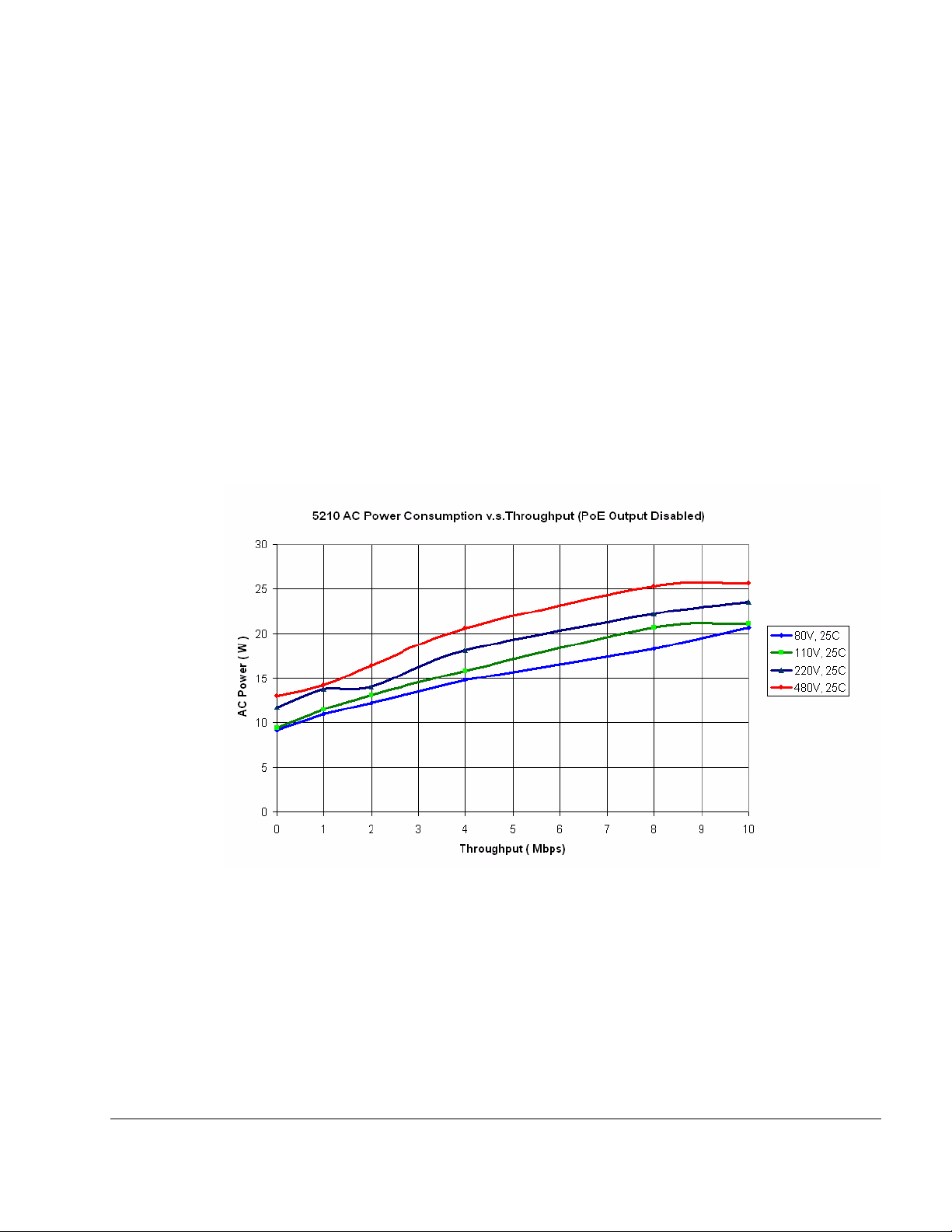

AC Power Consumption vs. Throughput with PoE Output Disabled . . . 40

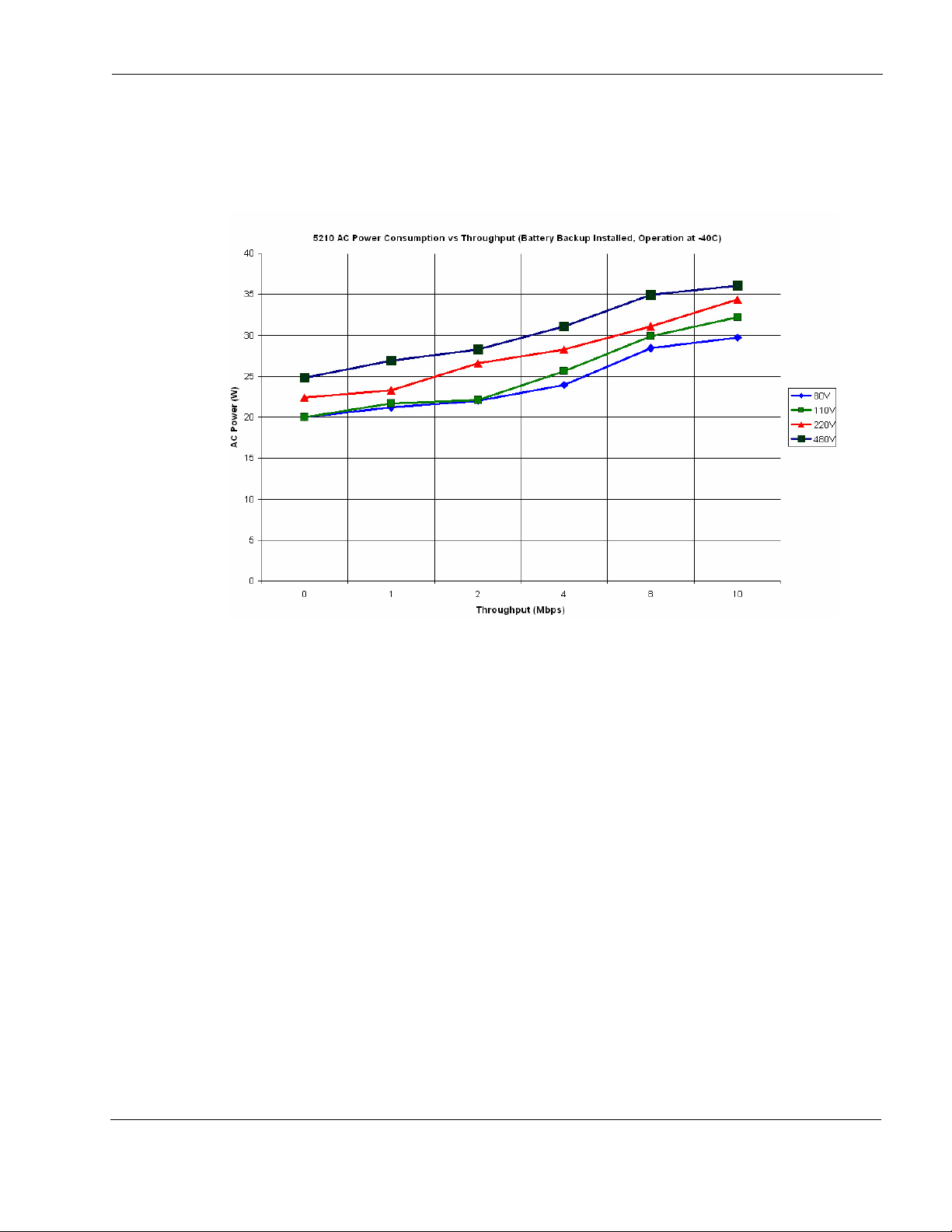

AC Power Consumption vs. Throughput (Battery Backup, -40o C) . . . . 41

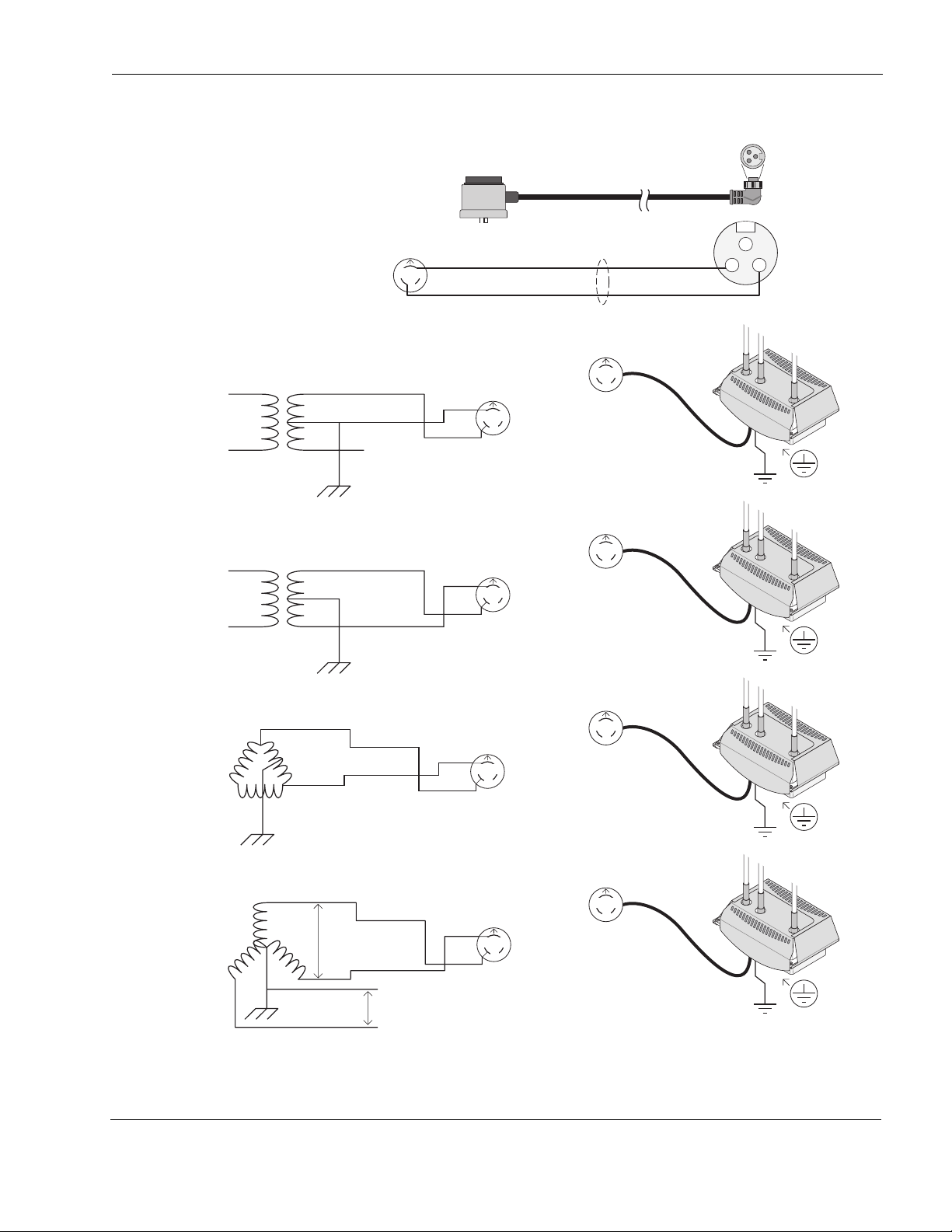

AC Wiring — Photoelectric Power Tap . . . . . . . . . . . . . . . . . . . . . . . . . 67

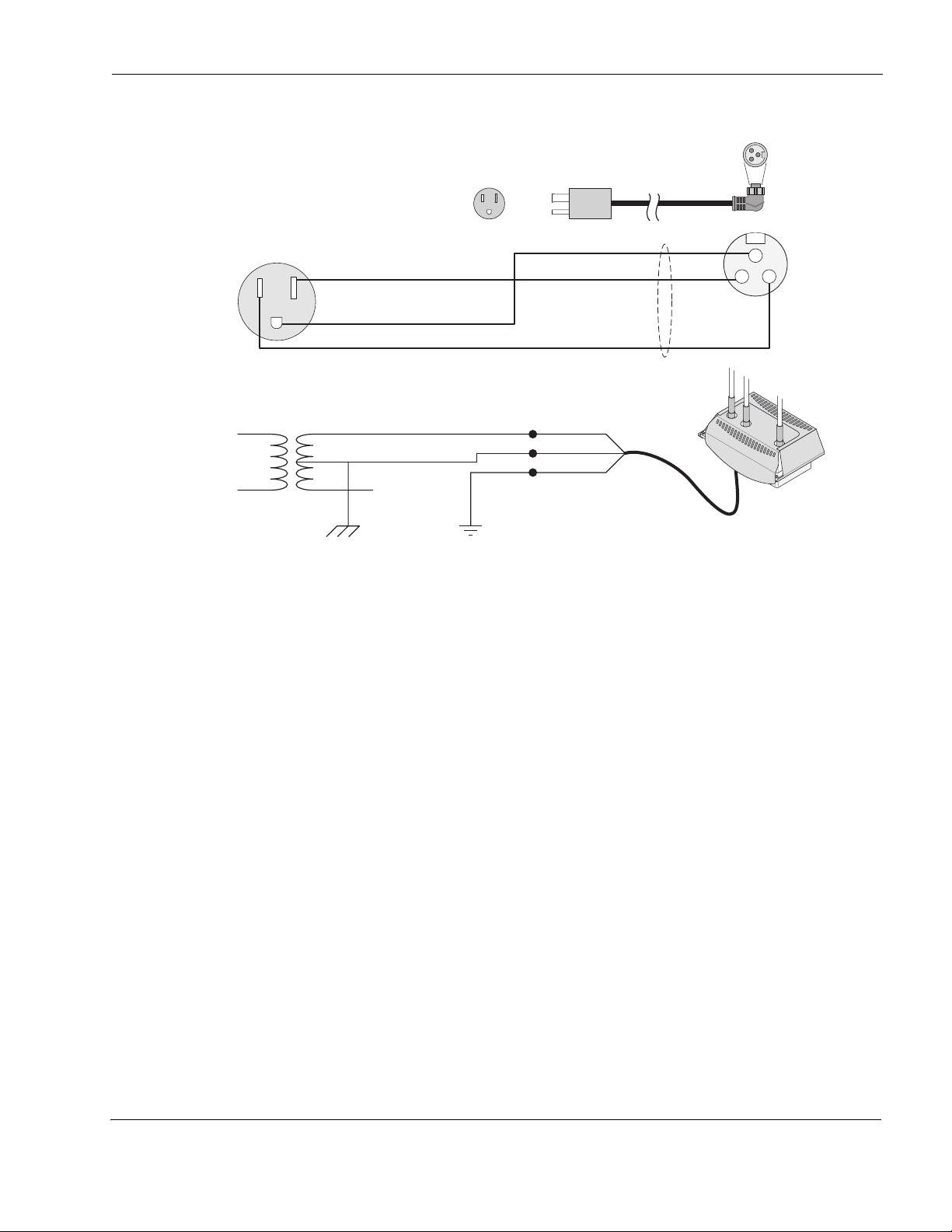

AC Wiring Power Cable 120VAC, 15A Plug . . . . . . . . . . . . . . . . . . . . . 68

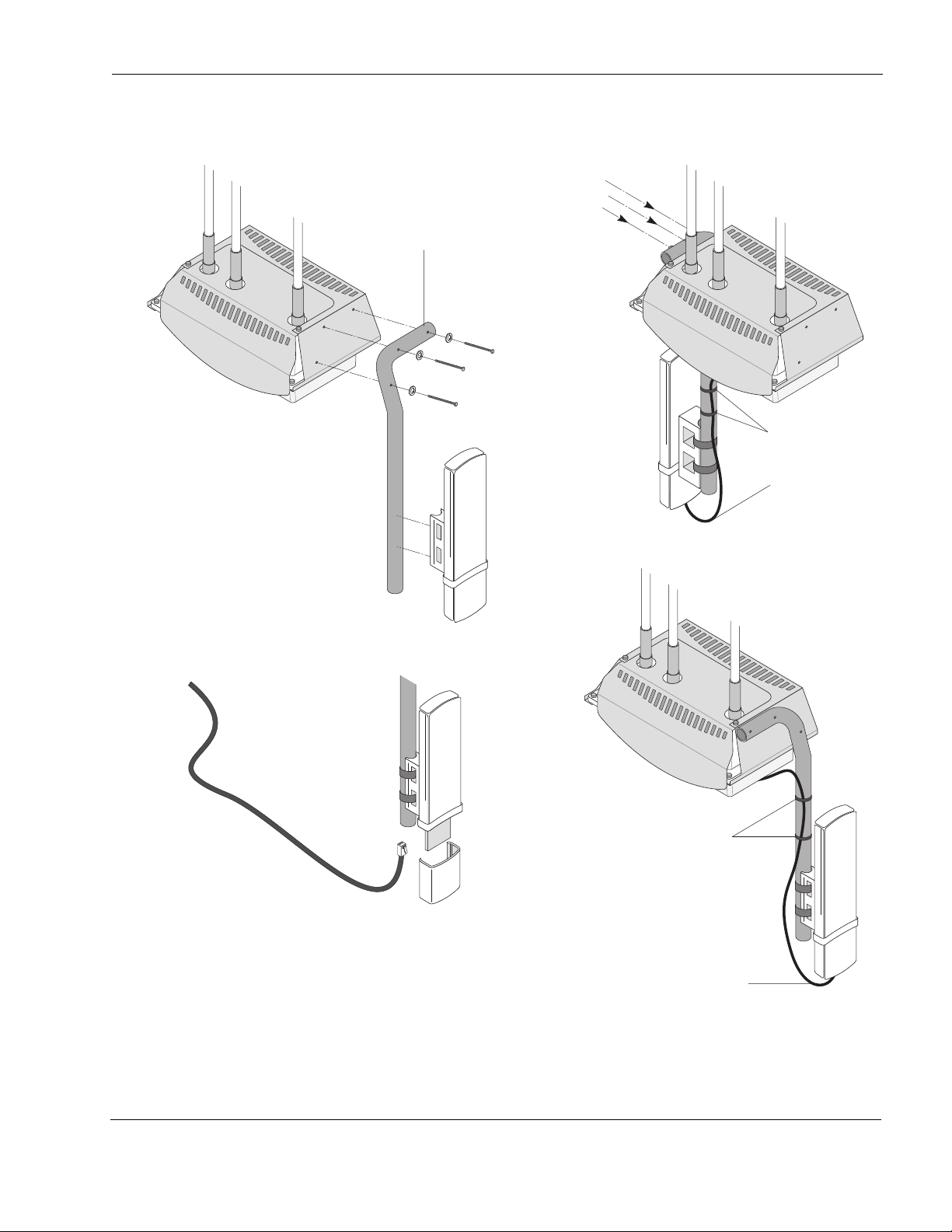

Canopy Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

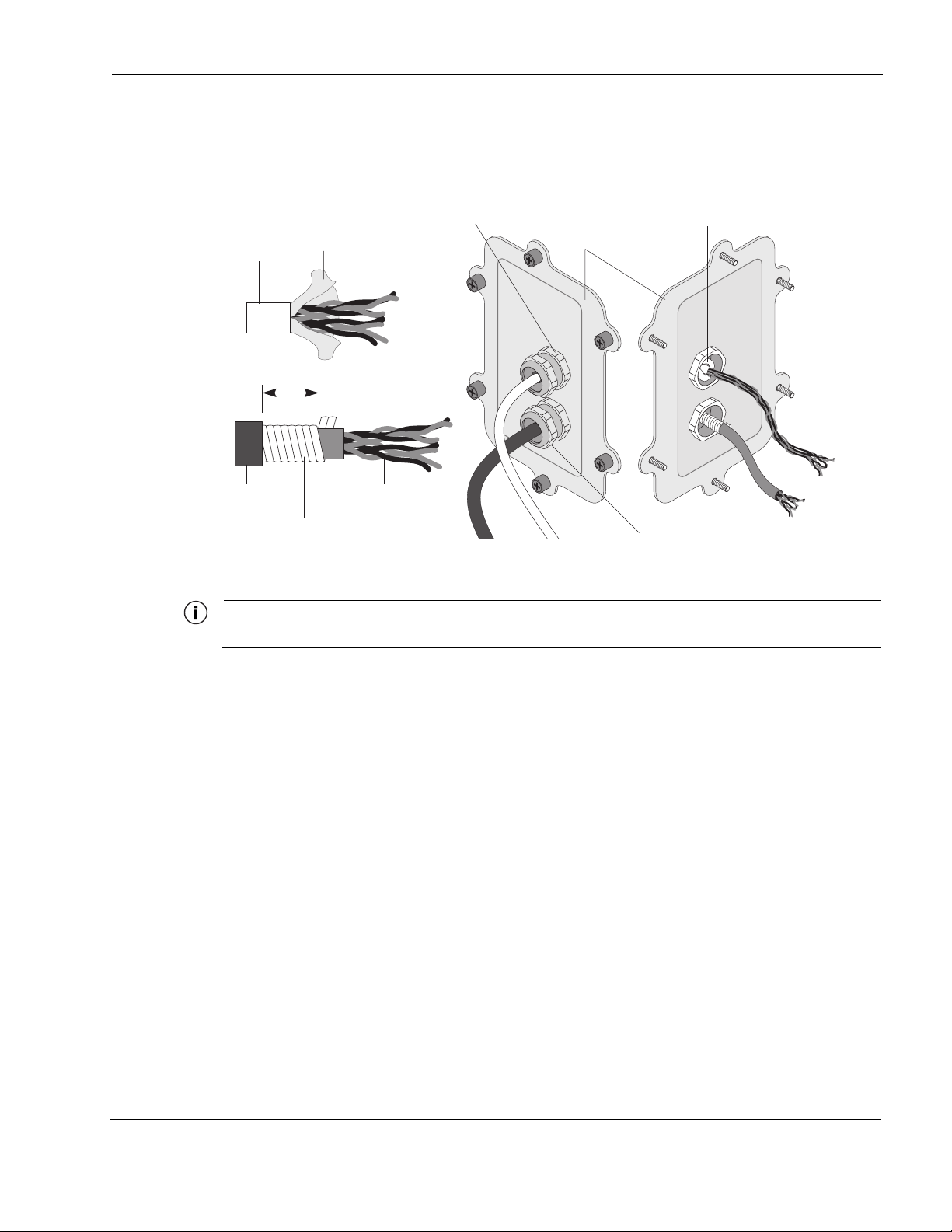

Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Cable Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

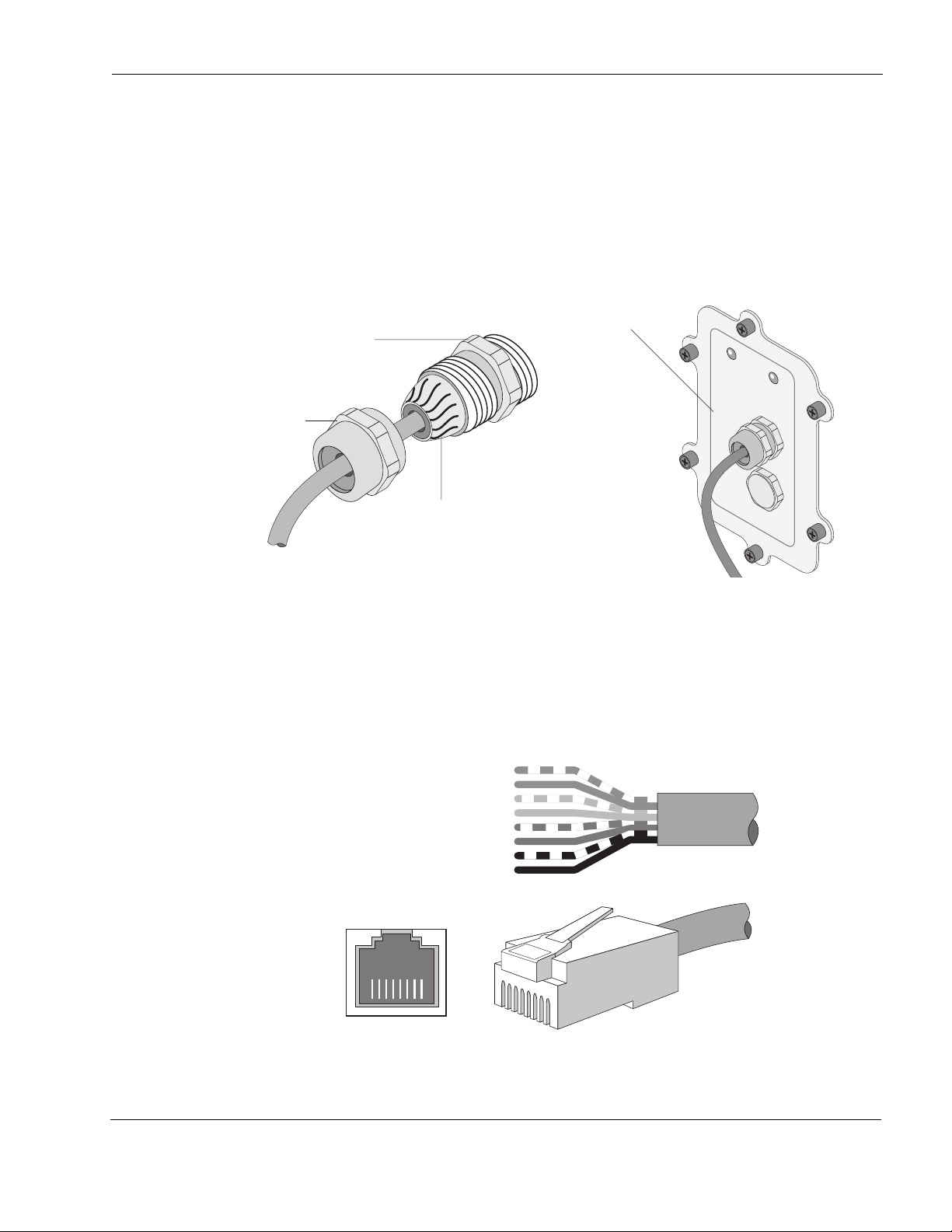

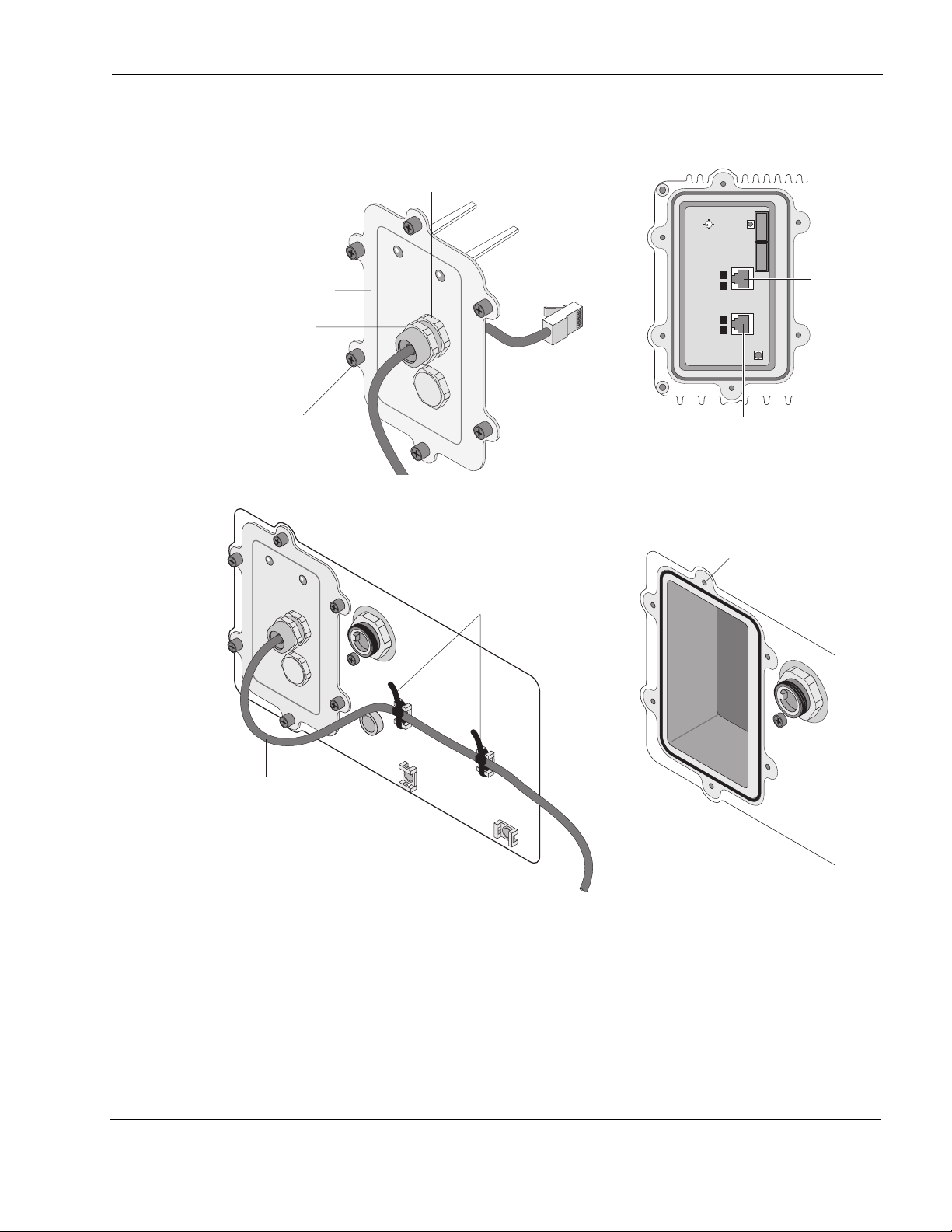

Cable Gland Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

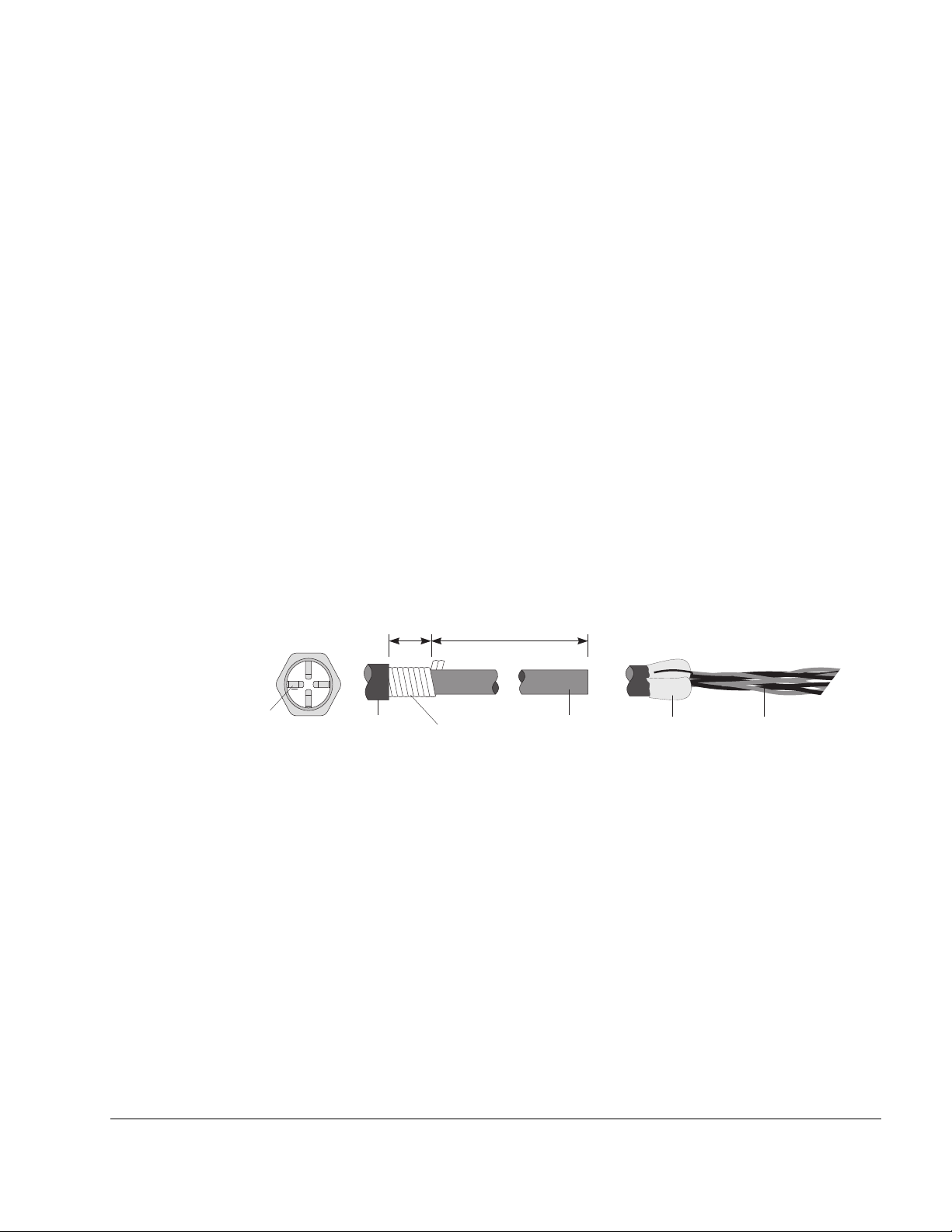

Cable Preparation and Termination . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Tropos 5320 MetroMesh Router Installation Guide x

Page 11

List of Tables

IEEE/ANSI C62.41 Power Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PoE Power Sourcing Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

RJ45 Pin Descriptions for Data Connection . . . . . . . . . . . . . . . . . . . . . . . . 36

Physical Specifications - Tropos 5320 Router . . . . . . . . . . . . . . . . . . . . . . . 42

Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Power Options / Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Power Over Ethernet - Power Sourcing . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Certifications, Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

802.11b/g Antenna Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

802.11a Radio (5.725-5.850 GHz) - Antenna Configurations . . . . . . . . . . . 50

802.11b/g Antenna Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

802.11a Radio (5.470-5.725 GHz) - Antenna Configurations . . . . . . . . . . . 51

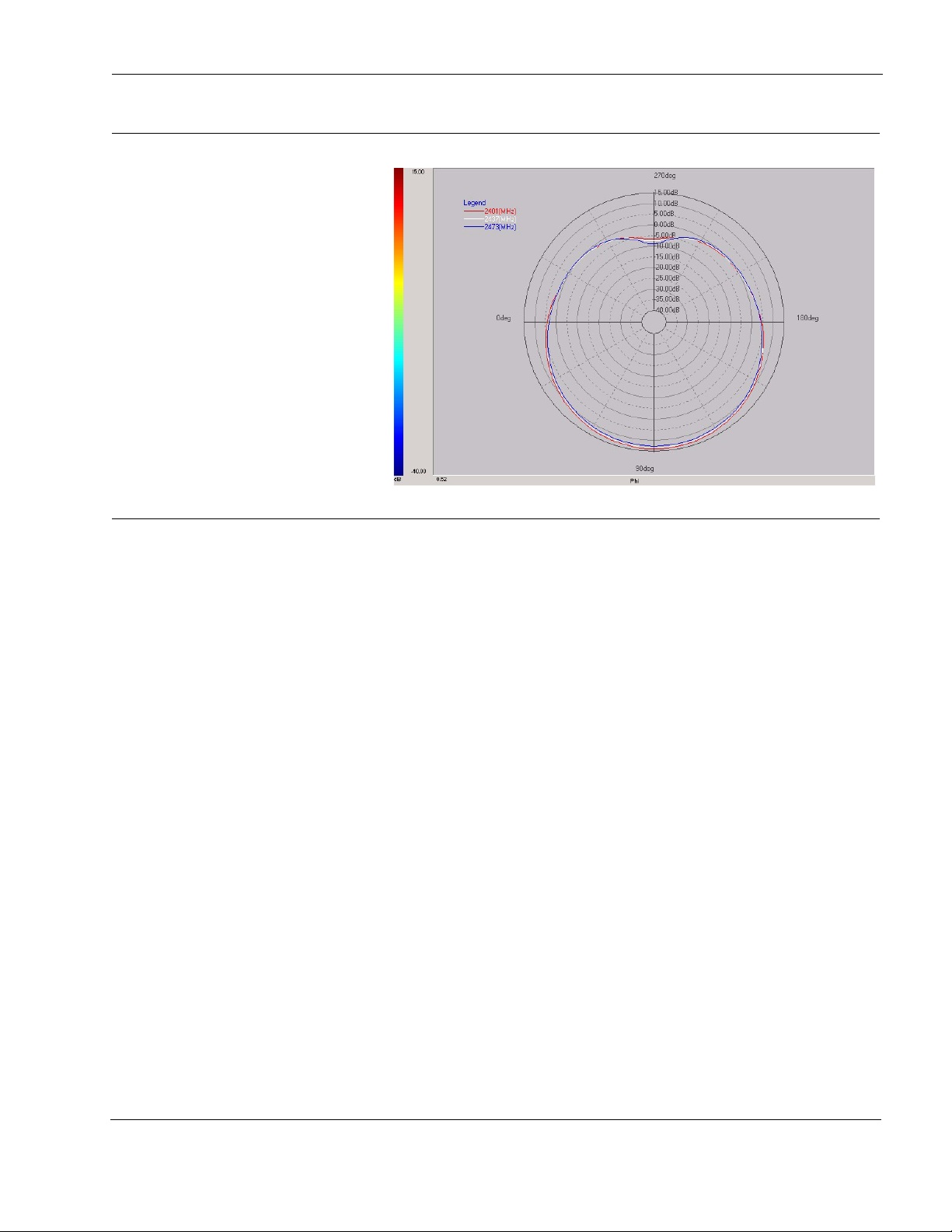

Antenna Specifications and Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Installation Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Tropos Antennas, Cables, and Related Ordering Numbers . . . . . . . . . . . . 64

Canopy Cable Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

TIA/EIA 5688 Wiring - RJ-45 Pin Descriptions for Data Connection . . . . . . 77

Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Tropos 5320 MetroMesh Router Installation Guide xi

Page 12

1 Installing the Tropos MetroMesh

Router

This guide explains how to install the Tropos 5320 MetroMesh router safely and is intended for trained technical professionals. This chapter covers the following topics:

 “Preparing for Installation” on page 2

 “Mounting Strategies” on page 7

 “Proper Use of Hose Clamps” on page 8

 “Pole, Tower, and Streetlight Mounting Instructions” on page 9

 “Connecting Cable Attached Antennas” on page 18

 “Grounding the Tropos 5320 Router” on page 21

 “Connecting Power” on page 24

 “Connecting a Data Port” on page 29

 “Resetting the Router” on page 34

 “Connecting Peripherals” on page 35

 “Battery Backup Operation” on page 37

 “Safety Information for the Tropos MetroMesh Router” on page 38

Tropos 5320 MetroMesh Router Installation Guide 1

Page 13

Preparing for Installation

The Tropos 5320 MetroMesh router must be installed by a trained professional, value added reseller, or systems integrator who is familiar with RF planning issues and regulatory limits defined by the governing body of the country in which the unit will be installed. This section lists the required equipment and model numbers and explains how to prepare the installation site.

Model Numbers

An exploded view of the Tropos 5320 MetroMesh router assembly is shown in Figure 1.

Note

Antenna(s) must be installed by a trained professional. Operating the unit with non-qualified antennas is a violation of U.S. FCC Rules Part 15.203(c), Code of Federal Regulations, Title 47. See “Approved

Antenna Configurations and Attenuation Settings” on page 48 for a listing of antenna options.

Preparing for Installation

Tropos 5320 MetroMesh Router Installation Guide 2

Page 14

Figure 1 Tropos MetroMesh Router Exploded View

802.11b/g

802.11a

#10-32

hex head 5/16"

machine screws

Aux

Tx/Rx antenna

802.11b/g Main

Tx/Rx antenna

Sun shield

Preparing for Installation

Pole bracket

Hose

clamps

Router

Connector

access cover

without

cable glands

Connector

access cover

Cable gland

10/100 BaseT

LAN cable

10/100 BaseT

Management cable

Shielded outdoor

cat5 cable

LED

AC input

power connector

Quick tie

anchors

Ground

bolt

Bottom view of Router

trp_150

Tropos 5320 MetroMesh Router Installation Guide 3

Page 15

Installation Hardware and Tools

Tropos Networks provides the following accessories to install the Tropos 5320 MetroMesh router:

 One pole bracket

 One sun shield

 Two 4-inch diameter hose clamps

 Four 6-inch diameter hose clamps

 Seven 5/16-inch #10-32 stainless steel hex head machine screws

You must supply the following tools:

 5/16-inch nut driver

 1/4-inch flat blade screwdriver

 Tower mounting only: supply stainless or galvanized steel channel stock and 1/2-inch or

5/8-inch nuts, bolts, and washers to connect to the tower arm.

 Wood pole mounting only: two 5/8-inch diameter, 3-inch long lag bolts

Preparing for Installation

Site Planning

To ensure safe and durable wiring, installation of the Tropos 5320 MetroMesh router must follow appropriate electrical and building codes. Follow the National Electrical Code (NEC) requirements, unless local codes in your area take precedence over the NEC code.

The following distance limits apply to installations that have 10/100 Base-T Category 5 network cables attached to the Tropos 5320 MetroMesh router:

 300 feet maximum between devices for 100BaseT operation

 600 feet maximum for 10BaseT operation.

The Ethernet duplex and speed setting is configurable.

Note

National Electrical Codes (NEC) Article 800 requires the use of Agency Listed (UL/CSA/TUV) Building Entrance Protector for all power and data communications cables entering a building. The NEC intends by Article 800 to protect the building and occupants from fires caused by transient voltage and current surges.

Note

Ethernet data cable installations having lengths greater than 140 feet in the outdoor environment must use a UL497 approved (UL/CSA/TUV Listed) primary protection device at the building entrance. Ethernet data cable installations having lengths less than 140 feet in the outdoor environment may use

Tropos 5320 MetroMesh Router Installation Guide 4

Page 16

a UL497A (UL/CSA/TUV Listed) secondary protection device at the building entrance. Tropos Data Protection Device and Network Protection Units are UL497A secondary protection devices.

Location Guidelines

The Tropos 5320 MetroMesh router is a radio device and therefore susceptible to interference that can reduce throughput and range. Follow these guidelines to ensure the best performance:

 Install the unit in an area where trees, buildings, and large steel structures do not obstruct

radio signals to and from the antenna. Direct line-of-sight operation is best.

 Install the unit away from microwave ovens or other devices operating in the 2.4 GHz or 5

GHz frequency range.

 Install the unit away from other possible sources of 802.11a or 802.11b/g interference, such

as cordless phones, home spy cameras, frequency hopping (FHSS) and DSSS LAN transceivers (non-802.11), electronic news gathering video links, radars, amateur radios, land mobile radio services, local government sites (such as law enforcement), fixed microwave services, local TV transmission and private fixed point transmitters.

Preparing for Installation

Antenna Options

You can purchase the Tropos 5320 MetroMesh router with an integrated omni-directional antenna, or use an approved external antenna. Omni-directional antennas are best for systems requiring a signal distribution in more than one direction. To comply with regulatory RF exposure limits, locate antennas a minimum distance of 7.9 inches (20cm) from people. For antenna model numbers, refer to “Approved Antenna Configurations and Attenuation Settings” on page 48.

Note

Antenna Configurations and Attenuation Settings” on page 48 for a listing of antenna options.

Site Surveys

Due to variations in component configuration, placement, and physical environment, each installation is unique. Before installing the Tropos 5320 MetroMesh router, perform a site survey to determine the optimum placement of units for maximum range, coverage, and network performance. Consider the following factors when performing a site survey:

 Data rates—Sensitivity and range are inversely proportional to data bit rates. The maximum

radio range is achieved at the lowest workable data rate. A decrease in receiver threshold sensitivity occurs as radio data rate increases.

Tropos 5320 MetroMesh Router Installation Guide 5

Page 17

 Antenna type and placement—Proper antenna configuration is a critical factor in

maximizing radio range. As a general rule, range increases in proportion to gain and antenna height measured from the ground.

 Physical environment—Clear or open areas provide better radio range than closed or filled

areas. The less cluttered the operating environment, the greater the range.

 Obstructions—A physical obstruction, such as a building or tree, can block or hinder

communication. Avoid locating antennas in a location where there is an obstruction between sending and receiving devices.

 Building materials—Radio penetration is influenced by the building material used in

construction. For example, drywall construction permits greater range than concrete blocks.

 Diversity—The Tropos 5320 MetroMesh router supports transmit and receive diversity for

802.11b/g. Diversity requires two antennas.

Power Source

The Tropos 5320 MetroMesh router supports the following options for connecting to a power source:

 AC power source (3-wire service) — 3W(P+N+PE) or 3W(2P+PE); 100-480 VAC, 50/60

 NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or

2W(P+N); 100-480 VAC 50/60 Hz

 In Europe, a suitably rated plug provided by the installer

Preparing for Installation

Safety

Warning

Connect the AC powered outdoor system only to a rated power source. Do not connect to a power source of other voltage.

Caution

You must install an external grounding wire if the Tropos 5320 MetroMesh router is installed on a non-metal pole or if the metal installation structure is not properly grounded. You must also ground the outdoor data protection device to a bonded pipe or ground rod. Make sure that grounding is complete before you connect power to the Tropos 5320 MetroMesh router.

Installing the Tropos 5320 MetroMesh router can pose a serious hazard. Be sure to take precautions to avoid the following:

 Exposure to high voltage lines during installation

 Falls when working at heights or with ladders

 Injuries from dropping tools and equipment

Tropos 5320 MetroMesh Router Installation Guide 6

Page 18

 Contact with AC wiring

Mounting Strategies

When choosing mounting locations, consider the available mounting structures and antenna clearance. The Tropos 5320 MetroMesh router should always be mounted with the top of the unit horizontal and level and with the antennas facing upward.

It is usually best to attach ground and data cables to the router prior to mounting. Before mounting the router, review the wiring instructions in “Grounding the Tropos 5320 Router” on page 21 and “Connecting a Data Port” on page 29 to determine the best strategy for the selected location.

Note

To eliminate potential interference from the mounting structure, the router should be mounted with at least 4 feet of clearance around the antennas.

Acceptable options for mounting on a streetlight are shown in Figure 2. In each case the router is mounted to assure clearance for the antennas above the height of the streetlight.

Mounting Strategies

Figure 2 Example Mounting Location - Antennas Facing Upward

Antennas clear of obstruction

Antennas clear

of obstruction

trp_151

Tropos 5320 MetroMesh Router Installation Guide 7

Page 19

Proper Use of Hose Clamps

The mounting assembly for the Tropos 5320 MetroMesh router contains hose clamps to secure the router to the mounting structure. Figure 3 illustrates the proper use of the hose clamps. The clamps must be routed through slots in the pole bracket as shown in the figure, and then attached to the pole and tightened.

Figure 3 Proper Use of Hose Clamps

Band goes

behind

inner tabs

Proper Use of Hose Clamps

Hose clamp

band

Sun shield

trp_096

Tropos 5320 MetroMesh Router Installation Guide 8

Page 20

Pole, Tower, and Streetlight Mounting Instructions

This section explains how to mount the Tropos 5320 MetroMesh router on a pole, tower, or streetlight. It is best to mount the router to aluminum or galvanized steel structures. The mounting brackets are designed to pierce any oxidation layers that are on the outside of the pole, thereby assuring good quality connection to the grounded structure.

Due to potential antenna obstruction issues, the router is not designed to be directly mounted on a building wall. If it is necessary to mount the router on a wall, follow the instructions for mounting on a wooden pole (“Wood Pole Mounting” on page 13), and attempt to mount the router with maximum possible clearance around the antennas.

Note

The Tropos 5320 MetroMesh router should always be mounted with the top of the router horizontal and level and with the antennas facing upward.

Note

It is best to attach ground and data cables to the router before sliding the router into the mounted sun shield, as explained in this section. Before mounting the router, review the wiring instructions in

“Grounding the Tropos 5320 Router” on page 21 and “Connecting a Data Port” on page 29 to

determine the best strategy for the selected location.

Note

Mounting to wood, concrete, or painted poles may require primary grounding for the unit. Check the national electrical codes in your area for specific rules.

Tropos 5320 MetroMesh Router Installation Guide 9

Page 21

Metal Pole Mounting

Figure 4 illustrates the proper method of mounting the Tropos 5320 MetroMesh router on an

outdoor metal pole.

Note

Antennas must be clear of obstruction.

Figure 4 Metal Pole Mounting

Pole, Tower, and Streetlight Mounting Instructions

Pole bracket

(rotated)

Sun shield

Router

trp_097 trp_153

Tropos 5320 MetroMesh Router Installation Guide 10

Page 22

Pole, Tower, and Streetlight Mounting Instructions

Mount the Tropos 5320 MetroMesh router on a metal pole

1. Select a mounting location. You can attach the router to any pipe or pole with diameter

between 1 inch and 10 inches.

2. Slip the flat portion of the hose clamps under the inner tabs or slots of the pole bracket.

3. Use the hose clamps to attach the pole bracket to the pole. Depending upon the diameter of

the pole, you may need to use a single small clamp, single large clamp, or pair of large clamps joined together to reach around the pole.

4. Attach the sun shield of the router to the pole bracket with three 5/16-inch machine screws.

Insert one screw through the hole in the center back of the sun shield and the other two screws through the curved slot tracks. Figure 5 shows the proper screw locations on the back of the sun shield.

Note

Use anti-seize lubricant, such as Loctite 37230, when screwing the router into the sun shield.

5. Level the sun shield by rotating the unit along the curved slot tracks. A built-in level is

located on the left side of the shield. Tighten the screws.

6. Slide the router into place with the antennas on top and secure it at the end with four #10-32

hex head machine screws.

To continue installing the router, see “Connecting Cable Attached Antennas” on page 18.

Tropos 5320 MetroMesh Router Installation Guide 11

Page 23

Bubble

level

Pole, Tower, and Streetlight Mounting Instructions

Figure 5 Sun Shield Connections

Screws to attach router to sun shield

Use lag bolts

to attach sun shield

to wooden pole

Use machine screws

to attach sun shield

to pole bracket

trp_154

Tropos 5320 MetroMesh Router Installation Guide 12

Page 24

Wood Pole Mounting

Figure 6 shows a typical installation with the Tropos 5320 MetroMesh router mounted on an

outdoor wood pole.

Note

Antennas must be clear of obstruction.

Figure 6 Wood Pole Mounting

Pole, Tower, and Streetlight Mounting Instructions

Sun shield

Router

trp_155

Tropos 5320 MetroMesh Router Installation Guide 13

Page 25

Mount the Tropos 5320 MetroMesh router on a wood pole

1. Select a mounting location. You can attach the router to any outdoor wood pole of diameter

at least 1 inch.

2. Attach the sun shield of the router to the pole with two 5/8-inch bolts, making sure that the

shield is level. Figure 5 on page 12 shows the proper bolt locations on the back of the sun shield. The bolts should be at least 3 inches in length.

3. Slide the router into place and secure it at the end with four #10-32 hex head machine

screws.

To continue installing the router, see “Connecting Cable Attached Antennas” on page 18.

Wood Brace Mounting

You can mount the pole bracket directly on a wood brace without using pole hose clamps, as shown in Figure 7.

Figure 7 Wood Brace Mounting Option

Pole, Tower, and Streetlight Mounting Instructions

1/4" lag bolts

2-1/2" minimum

Wood brace

trp_141

Tropos 5320 MetroMesh Router Installation Guide 14

Page 26

Pole, Tower, and Streetlight Mounting Instructions

Mount the Tropos 5320 MetroMesh router on a wood pole

1. Select a mounting location. You can attach the router to any wood brace.

2. Attach the pole bracket to the wood brace with two 1/4-inch lag bolts that are at least 2 1/2

inches in length, making sure that the wood brace is level.

3. Attach the sun shield of the router to the pole bracket with three 5/16-inch machine screws.

Insert one screw through the hole in the center back of the sun shield and the other two screws through the curved slot tracks. Figure 5 on page 12 shows the proper screw locations on the back of the sun shield.

Note

Use thread lubricant, such as Loctite 37230, when screwing the router into the sun shield.

4. Level the sun shield by rotating the unit along the curved slot tracks. A built-in level is

located on the left side of the shield. Tighten the screws.

5. Slide the router into place with the antennas on top and secure it at the end with four #10-32

hex head machine screws.

To continue installing the router, see “Connecting Cable Attached Antennas” on page 18.

Tropos 5320 MetroMesh Router Installation Guide 15

Page 27

Tower Mounting

You can mount the Tropos 5320 MetroMesh router to an outdoor tower.

Note

At the antenna level, the Tropos 5320 MetroMesh router must be free from metal obstruction within a 4-foot radius (Figure 8).

Figure 8 Tower Mounting

Pole, Tower, and Streetlight Mounting Instructions

Channel stock

Brackets not included

trp_156

Mount the Tropos 5320 MetroMesh router on a tower

1. Remove the pole bracket from the sun shield.

2. Make a tower bracket by attaching the sun shield directly to any stainless steel or galvanized

steel channel stock.

3. Attach the sun shield to the tower arm so that the top of the shield is horizontal and level.

4. Tighten the mounting bolts.

5. Slide the router into place and secure it at the end with four #10-32 hex head machine

screws.

To continue installing the router, see “Connecting Cable Attached Antennas” on page 18.

Tropos 5320 MetroMesh Router Installation Guide 16

Page 28

Streetlight Mounting

You can mount the Tropos 5320 MetroMesh router on the horizontal or angled arm of a streetlight. Figure 9 shows a typical streetlight mounting installation.

Figure 9 Streetlight Mounting

Pole, Tower, and Streetlight Mounting Instructions

Pole bracket

Sun shield

Router

trp_157

Mount the Tropos 5320 MetroMesh router on a streetlight

1. Select a mounting location. You can attach the router to any streetlight arm with diameter 1”

to 10”.

2. Slip the flat portion of the hose clamp under the inside lip of the pole bracket.

3. Use the hose clamps to attach the pole bracket to the streetlight. Depending upon the

diameter of the pole, you may need to use 2 small clamps, 2 large clamps, or 2 pairs of large clamps joined together to reach around the pole.

Tropos 5320 MetroMesh Router Installation Guide 17

Page 29

Connecting Cable Attached Antennas

4. Attach the sun shield of the router to the structure with three 5/16-inch machine screws.

Insert one screw through the hole in the center back of the sun shield and the other two screws through the curved slot tracks.

5. To level the assembly, slide the router loosely into the sun shield, but do not secure it. Level

the sun shield by rotating the unit along the curved slot tracks. A built-in level is located on the left side of the shield. Maintain the level orientation while you slide the router out of the sun shield. Tighten the sun shield screws.

6. Slide the router into place and secure it at the end with four #10-32 hex head machine

screws.

To continue installing the router, see “Connecting Cable Attached Antennas” on page 18.

Connecting Cable Attached Antennas

This section applies to external antennas used with the Tropos 5320 router. You can mount the antenna on a structure and then use cables to attach it to the router. After mounting, secure the antennas with ThreadLocker Loctite 242 and waterproof them using self-fusing EPR tape. (See

“Installation Accessories” on page 63 for the correct part number.) Figure 10 shows an

installation with external antenna cabling.

Warning

Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, as they can cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local codes (e.g. U.S.:NFPA 70, National Electrical Code, Article 810, in Canada: Canadian Electrical Code, Section 54).

Tropos 5320 MetroMesh Router Installation Guide 18

Page 30

Figure 10 Connecting External Antennas

Cables

from antennas

to unit

802.11a antenna

802.11b/g Aux

antenna

Connecting Cable Attached Antennas

802.11b/g Main antenna

trp_101

trp_158

Connect antenna cables

1. Mount the antennas in a suitable location, following the instructions supplied with the

antennas.

2. Perform a trial installation of the antenna cables.

3. When you are satisfied with the trial placement of the antenna cables, remove the antenna

connections from the Tropos 5320 MetroMesh router and apply two drops of ThreadLocker Loctite 242 to the antenna connector thread (Figure 11).

4. Install the antenna cables. Be sure to provide a drip loop to divert water away from the

connector.

Note

To ensure good electrical contact with the antenna, do not get Loctite on the center conductor pin of the antenna cable or outdoor system connector.

Note

Antenna Configurations and Attenuation Settings” on page 48 for a listing of antenna options.

Tropos 5320 MetroMesh Router Installation Guide 19

Page 31

Waterproofing Antenna Connections

Figure 11 illustrates how to waterproof the antenna connections after they are installed. Make

sure that you waterproof the connections at both ends (cable-to-antenna and cable-to-router).

Waterproof the antenna connections

1. Locate the self-fusing EPR waterproofing tape included in the antenna installation kit.

2. Separate the liner from the tape.

3. Pre-stretch the tape and wrap it tightly around the connector.

Figure 11 Waterproofing Antenna Connections

Connecting Cable Attached Antennas

Apply 2 drops of

Loctite to threads

Apply tape around

RF cable joints

trp_159

Tropos 5320 MetroMesh Router Installation Guide 20

Page 32

Installing Attached Antennas

The following steps explain how to install antennas that are attached directly to the Tropos 5320 MetroMesh router.

Replace the Tropos 5320 MetroMesh router antennas

1. Turn power off to the router.

2. Remove the screws that secure the router to the sun shield, and slide the router out from the

sun shield.

3. Apply two drops of Loctite Threadlocker 242 to the antenna connector thread.

4. Screw the antennas onto the router, making the connection hand-tight.

5. Locate the self-fusing EPR waterproofing tape included in the antenna installation kit.

6. Separate the liner from the tape.

7. Pre-stretch the tape and wrap it tightly around the connector.

8. Slide the router back into the sun shield and secure it with screws.

Grounding the Tropos 5320 Router

Caution

The grounding arrangement for the Tropos 5320 router is shown in Figure 12.

Tropos 5320 MetroMesh Router Installation Guide 21

Page 33

Grounding the Tropos 5320 Router

Figure 12 Grounding Arrangement

Grounding

screw

Grounding strap

on pipe or grounding rod

10 AWG wire

to ground

trp_104

Ground the Tropos 5320 MetroMesh router

1. Insert the grounding screw into the grounding screw hole on the bottom of the router.

2. Connect a length of #10 AWG bare copper wire to the grounding screw and tighten.

3. Connect the other end of the grounding wire to a grounding strap that is attached to a

grounded surface or other earth ground, such as a grounding rod.

Tropos 5320 MetroMesh Router Installation Guide 22

Page 34

Grounding the Data Protection Device

The grounding arrangement for an indoor data protection device is shown in Figure 13.

Ground an indoor data protection device

1. Place the protection device as close to the building entrance as possible.

2. Connect a length of #10 AWG bare copper wire to the ground post on the data protection

device.

3. Connect the other end of the grounding wire to the ground connection of an electrical outlet

or a grounded water pipe.

Figure 13 Grounding the Indoor Network Protection Unit

Shielded RJ45 ports

Grounding the Tropos 5320 Router

To network

Data cable enters

building wall

through conduit

Indoor network

protection unit

10 AWG wire

to ground

Grounding wire

to elecrtical outlet ground

or water pipe

trp_140

Tropos 5320 MetroMesh Router Installation Guide 23

Page 35

Connecting Power

This section explains the different categories of electrical power and provides procedures for connecting the outdoor system to power. There are two options for connecting the Tropos 5320 MetroMesh router to a power source:

 AC power source (3-wire service) — 3W(P+N+PE) or 3W(2P+PE); 100-480 VAC, 50/60

 NEMA plug, for streetlight photoelectric control power tap (2-wire service) —2W(2P) or

2W(P+N); 100-480 VAC 50/60 Hz

Warning

Before you work on an electrical circuit, make sure the power is off. Turn off the breaker to the circuit you plan to work on. Post a sign on the service panel so nobody tries to reconnect power while you are working on the circuits. Double-check the circuit with a circuit tester before you touch it to make sure the correct breaker has been disconnected.

Caution

Connecting Power

Categories of Power

The IEEE/ANSI C62.41 standards (equivalent to the IEC Category IV standards) define Categories A-C. Equipment designed to a CAT C standard is resistant to much higher energy transients than one designed to CAT B or CAT A standards. Within a category, a higher voltage rating denotes a higher transient withstand rating.

Table 1 lists power types and Figure 14 shows hook-ups for the IEEE/ANSI C62.41 Power

Categories power categories.

Tropos 5320 MetroMesh Router Installation Guide 24

Page 36

Table 1 IEEE/ANSI C62.41 Power Categories

Category Summary Examples

Connecting Power

CAT C Outside and service

entrance

CAT B Major feeders and

short branch circuits

CAT A Outlets and long

branch circuits

• Service drop from pole to building entrance

• Run between meter and distribution panel

• Overhead line to detached buildings

• Underground lines to well pumps

• Distribution panel devices

• Bus and feeder systems in industrial plants

• Heavy appliance outlets with “short” connections to the

service entrance

• Lightning systems in commercial buildings

• All outlets at more than 10 m (30 ft) from Category B with

wires #14-10

• All outlets at more than 20 m (60 ft) from Category C with wires #14-10

Tropos 5320 MetroMesh Router Installation Guide 25

Page 37

Figure 14 IEEE/ANSI C62.41 Power Categories

Connecting Power

Outdoor units powered from

distribution panel are in

Overvoltage Installation Category B

Category A Category B

Outdoor units powered from electrical meter are in

Overvoltage Installation Category C

Category C

trp_105 trp_164

Tropos 5320 MetroMesh Router Installation Guide 26

Page 38

Connecting to AC Power (Category C)

The AC power connections for a Category C AC power source are shown in Figure 15.

Figure 15 Connecting Category C AC Power

AC wiring in junction box

Wire nuts

Green wire

White wire

Black wire

Connecting Power

To outdoor unit

To power

source

AC power

from meter

trp_106

Connect an AC power source

1. Verify that the service voltage is 100-480 VAC 50/60 Hz.

2. Verify that power is turned off on the designated circuits.

3. Install 1/2-inch liquid-tight conduit from the building entrance point to within 3 feet of the

outdoor system.

4. Run 3-wire AC service through the conduit.

5. Connect the conduit to a junction box. The conduit and junction box must be IEEE/ANSI

compliant and suitable for outdoor use.

Note

Data and power must never be enclosed in the same conduit.

6. Connect the AC cable to the router and tighten the nut hand-tight. See Figure 16.

7. Connect the Tropos 5320 MetroMesh router to a 100-480 VAC 50/60 Hz CAT C power

source.

8. Reenergize the circuit and confirm that power to the router comes on.

Tropos 5320 MetroMesh Router Installation Guide 27

Page 39

Note

The Tropos 5320 MetroMesh router is equipped with additional AC surge protection and dual fuse branch circuit protection. Additional ISA branch circuit protection is not required in the upstream power distribution.

Figure 16 Connecting the AC Power Cable

Tighten nut to secure

power connection

Connecting to Streetlight Power (Category C)

The power connections for Category C streetlight power are shown in Figure 17. Use the 3prong NEMA twist-lock adapter with twist-lock style photoelectric controls for outdoor lighting commonly used by utilities. The NEMA twist-lock adapter can be used only with UL 773 listed outdoor lighting controls rated for and operated at 100-480 VAC 50/60 Hz.

Connecting Power

trp_107

Warning

Be extremely careful when connecting to Category C streetlight power.

Figure 17 Connecting Streetlight Power

AC power from

power adapter

on photosensor

AC power from

power adapter

on photosensor

Tropos 5320 MetroMesh Router Installation Guide 28

Page 40

Connecting a Data Port

Warning

Connect the outdoor system only to a twist-lock style outdoor lighting control powered by 100-480 VAC 50/60 Hz. Do not connect it to twist-lock style outdoor lighting controls powered by higher voltage.

Connect a streetlight power source

1. Verify that the service voltage is 100-480 VAC 50/60 Hz.

2. Verify that power is turned off on the designated circuits.

3. Remove the photosensor from the streetlight.

4. Connect the NEMA 3 prong plug from the Tropos 5320 MetroMesh router to the

photosensor connector on the street light.

5. Connect the photosensor to the top of the NEMA 3 prong plug.

6. Connect the AC plug to the router and tighten hand-tight.

7. Reenergize the circuit and confirm that power to the router comes on.

Note

Do not leave connectors open to the environment. Connectors should be covered with closure caps when not in use. Closure caps should be tightened to be snug.

Connecting a Data Port

The Tropos 5320 MetroMesh router is equipped with two Ethernet ports that support RJ45 connectors.

Note

The Tropos 5320 MetroMesh router is shipped pre-configured. For post-installation changes in configuration, you can communicate with the router by way of its wireless connection. For more information, see the Tropos Networks Configuration Guide.

Tropos 5320 MetroMesh Router Installation Guide 29

Page 41

Connecting a Data Port

Note

Only use shielded Cat5 cable rated for outdoor use. For protection against risk of fire, electrical hazard and to ensure the reliable operation of this equipment, the shields of the Cat5 cable must be properly terminated and bonded to the unit and to the protective earth (PE) at the building entrance.

Note

National Electrical Codes (NEC) Article 800 requires the use of Agency Listed (UL/CSA) Building Entrance Protector for all power and communications cables entering a building. The NEC intends by Article 800 to protect the building and occupants from fires caused by transient voltage and current surges.

Warning

DC voltage may be present on RJ-45 pins 4,5 (+) and 7,8 (-)

Attention

Une tension continue peut être présente sur les broches RJ-45 4, 5 (+) et 7, 8 (-).

Note

This is not a mid-span powered device. Never attempt to daisy-chain Power Over Ethernet devices.

Tropos 5320 MetroMesh Router Installation Guide 30

Page 42

Connecting a Data Port

Figure 18 illustrates the method for routing cables to the Tropos 5320 MetroMesh router. Use

the RJ45 jacks for port connection.

Figure 18 Options for Connecting a Data Port

Watertight access cover

cable glands

Shield

termination

Cable terminated with

RJ45 jack for port

connection

trp_111

Tropos 5320 MetroMesh Router Installation Guide 31

Page 43

Connecting a Data Port

Figure 19 shows the layered shield and jacket for the data cable, which must be removed to

expose the inner cable and twisted pairs.

Figure 19 Data Cable Detail

Cable

Outer jacket

Belfoil

shield

1/2 inch

Conductive

shield

Watertight bulkhead

Tw i st e d

pairs

cable glands

Connector access

cover

Securely tighten gland

Terminate cable shield

at cable gland

for weathertight seal

Note

Attach ground and data cables to the router before sliding it into the sun shield.

trp_117

Connect to the data port

1. Verify that power is turned off on the designated circuits.

2. Run shielded Category 5 Ethernet cable appropriate for outdoor use from a data protection

unit to the Tropos 5320 MetroMesh router.

3. Connect one end of the Category 5 cable to the protection unit.

4. Remove the connector access cover on the bottom of the router.

5. Run raw cables for the Management or LAN port, or both, through the bulk head openings,

allowing sufficient length to terminate the cables without causing crowding in the connection area. See Figure 20.

Tropos 5320 MetroMesh Router Installation Guide 32

Page 44

Figure 20 Data Port Connection

Connector access cover

Connecting a Data Port

AC power

connector

Ground bolt

Cable guides

O-ring

Tighten six screws to

fasten bulkhead plate

trp_112

6. Connect the cable ends that were routed through the connector access cover to the LAN and

Management ports on the router. Use an appropriate RJ45 8-pin modular plug to terminate the cables at the desired lengths. The outer jacket and conductive shield must be stripped to expose the twisted pairs for attachment, as shown in Figure 19. The proper location of the connections on the circuit board is shown in Figure 21.

7. Verify that the protection unit is properly grounded.

Tropos 5320 MetroMesh Router Installation Guide 33

Page 45

Figure 21 Circuit Board Connection Locations

Management

punch-down block

Brown

Resetting the Router

LAN punch-down blockScrew holes for access cover

LED

Reset

Management

port

Resetting the Router

You can use the Reset button on the circuit board to reset the hardware and software and to turn the router off if it is operating on battery power.

Perform a hardware reset

1. Remove the connector access cover on the bottom of the router.

LAN

port

Threaded hole for

grounding bolt

LED

AC power connector

trp_110

2. Press the Reset button for one second.

Turn the battery-powered router off

Follow these steps if AC power is off and the router is running on battery power:

1. Remove the connector access cover on the bottom of the router.

2. Press and hold the Reset button for 3-5 seconds.

Tropos 5320 MetroMesh Router Installation Guide 34

Page 46

Connecting Peripherals

The Tropos 5320 MetroMesh router can be configured to source DC power on the Ethernet connector pins 4,5 and 7,8, This capability allows the router to power remote peripherals such as backhaul point-to-point radios, video cameras, or fiber optic transceivers. The Tropos Power over Ethernet (PoE) power sourcing capability is a fully isolated supply and can be used to power either positive or negative polarity peripherals.

The Tropos PoE power sourcing capability differs from the IEEE 802.3af standard in the following ways:

 Tropos PoE includes support for multiple voltages; the 802.3af standard supports only 48V

operation.

 Tropos PoE does not include support for auto-discovery.

Many IEEE 802.3af-compliant power devices (PDs) will operate using the Tropos power sourcing equipment capabilities.

The Tropos 5320 MetroMesh router can supply up to a total of 30W of DC power distributed to the LAN port, Management port, or both. Each port must be configured for the same voltage. To configure the voltage, use the Tropos Configuration Utility (see the Tropos Networks User

Guide) or an element management system such as Tropos Control (see the Tropos Control EMS Installation and User Guide). The DC output voltage can be configured to 12Vdc, 24Vdc,

48Vdc, or to the Off state (0Vdc). Tab l e 2 lists the maximum power output as a function of voltage.

Table 2 PoE Power Sourcing Power Output

Connecting Peripherals

Voltage Max PoE Power Output

12Vdc 30W

24Vdc 30W

48Vdc 30W

In the event of an over-current or short-circuit fault event, the Tropos 5320 MetroMesh router will remove PoE output for three to five seconds before attempting to resume sourcing power to the peripheral device.

Note

When the software restarts following a software upgrade, the PoE output will experience a disruption for the period of the restart.

If the battery backup capability is installed, PoE output power is unaffected by the temporary loss of AC power. The power sourcing feature continues to function during battery backup operation (see “Battery Backup Operation” on page 37).

Tropos 5320 MetroMesh Router Installation Guide 35

Page 47

Connecting Peripherals

Figure 22 shows the pin locations for the RJ45 connector, and Table 3 shows the associated pin

descriptions.

Figure 22 RJ45 Pin Locations

Orange/white

Orange

Green/white

Blue/white

Green

Brown/white

Brown

RJ45 port

18765432

Blue

1 2 3 4 5 6 7 8

Category 5 cable

RJ45 jack

Table 3 RJ45 Pin Descriptions for Data Connection

Pin T/R Signal Color Description

1 T TXD+ Orange-White TX Data 10/100BaseT

2 R TXD- Orange TX Data 10/100BaseT

trp_109

3 T RXD+ Green-White RX Data 10/100BaseT

4 R PoE+ Blue Power output, 0, 12, 24, 48 Vdc (+)

5 T PoE+ Blue-White Power output, 0, 12, 24, 48 Vdc (+)

6 R RXD- Green RX Data 10/100BaseT

7 T PoE- Brown-White Power output, 0, 12, 24, 48 Vdc (-)

8 R PoE- Brown Power output, 0, 12, 24, 48 Vdc (-)

Note

Tropos 5320 MetroMesh Router Installation Guide 36

Page 48

Battery Backup Operation

The Tropos 5320 MetroMesh router may contain an automatically recharging battery, which provides an integrated uninterruptible power supply (UPS). The available backup time depends upon the level of network traffic serviced by the router and the ambient temperature. Figure 24 shows the relationship between average throughput and battery uptime. The Tropos 5320 router will typically recharge the UPS in approximately 10 hours.

Note

The internal battery is not field replaceable.

Figure 23 Average Battery Backup Time

Battery Backup Operation

The battery is equipped with a small internal heater that enhances battery life in very cold operating conditions. When the ambient temperature of the unit approaches -12 degrees C, the internal heater is activated. An active internal battery heater consumes power; therefore, the average power consumption of the Tropos 5320 MetroMesh router increases slightly in extremely cold weather conditions.

Figure 24 shows the battery discharge hold time as a

function of ambient temperature.

Tropos 5320 MetroMesh Router Installation Guide 37

Page 49

Safety Information for the Tropos MetroMesh Router

Figure 24 Average Battery Backup Time vs. Temperature

Safety Information for the Tropos MetroMesh Router

The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has adopted a safety standard for human exposure to RF electromagnetic energy emitted by FCC certified equipment. The Tropos 5320 products meet the uncontrolled environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio according to the instructions found in this manual and the hardware and software guides on the Tropos 5320 MetroMesh routers result in user exposure that is substantially below the FCC recommended limits.

Follow these guidelines to ensure safe operation of the Tropos 5320 MetroMesh routers:

 Do not touch or move the antenna(s) while the unit is transmitting or receiving.

 Do not hold any component containing a radio such that the antenna is very close to or

touching any exposed parts of the body, especially the face or eyes, while transmitting.

 Do not operate the radio or attempt to transmit data unless the antenna is connected;

otherwise, the radio may be damaged.

 Use in specific environments:

 Do not operate a portable transmitter near unshielded blasting caps or in an explosive

environment unless it is a type especially qualified for such use.

 The use of wireless devices in hazardous locations is limited to the constraints posed by

the safety directors of such environments.

Tropos 5320 MetroMesh Router Installation Guide 38

Page 50

Safety Information for the Tropos MetroMesh Router

 The use of wireless devices on airplanes is governed by the Federal Aviation

Administration (FAA).

 The use of wireless devices in hospitals is restricted to the limits set forth by each

hospital.

 Antenna use:

 The Tropos 5320 MetroMesh routers must be used only with Tropos-approved

components and antennas. See “Approved Antenna Configurations and Attenuation

Settings” on page 48 for details.

 In order to comply with FCC RF exposure limits, dipole antennas should be located at a

minimum distance of 7.9 inches (20 cm) or more from the body of all persons.

 High-gain, wall-mount or mast-mount antennas are designed to be professionally

installed and should be located at a minimum distance of 24 inches (60 cm) or more from the body of all persons. Please contact your professional installer, VAR, or antenna manufacturer for proper installation requirements.

 Battery backup:

 The Tropos 5320 MetroMesh router may contain a lithium-ion battery. To avoid the

possibility of an explosion, the Tropos 5320 MetroMesh router should not be exposed to any temperatures higher than 85 degrees C.

Tropos 5320 MetroMesh Router Installation Guide 39

Page 51

2 Power Consumption

Several factors influence the power consumption at any given time, including the level of network traffic and whether a powered peripheral device is connected to the LAN or Management port of the Tropos 5320 MetroMesh Router. Temperature may also influence the power consumption for units configured with battery backup, due to the internal freeze protection capability associated with the internal battery module. Figure 25 shows the basic relationship between throughput and AC power consumption at normal temperatures.

Figure 25 AC Power Consumption vs. Throughput with PoE Output Disabled

Tropos 5320 MetroMesh Router Installation Guide 40

Page 52

When a Tropos 5320 MetroMesh Router is equipped with a battery and the router is exposed to cold temperatures (below -12 degrees C), the internal heater associated with the battery is activated. This causes the router to draw additional AC power, as shown in Figure 26.

Figure 26 AC Power Consumption vs. Throughput (Battery Backup, -40o C)

Tropos 5320 MetroMesh Router Installation Guide 41

Page 53

3 Product Specifications

The tables in this chapter contain specifications for the Tropos 5320 MetroMesh routers:

 “Physical Specifications - Tropos 5320 Router” on page 42

 “Interfaces” on page 44

 “Power Options / Consumption” on page 46

 “Power Over Ethernet - Power Sourcing” on page 47

 “Certifications, Other” on page 47

Table 4 Physical Specifications - Tropos 5320 Router

Physical Dimensions Height Width Depth

Inches 5.3 13.2 7.9

Centimeters 13.5 33.5 20.1

Weight

lbs - maximum 14 Includes all brackets

Kg - maximum 6.35

Mounting Pole Diameter 1” to 10”

Temperature Min Max

AC Powered Operating Range -40

Storage Range -45o C85C

Weather

Weather Rating UL579/IEC 60529 IP67

Wind Survivability > 165 mph

Wind Loading (165 mph) < 300 newtons

Projected Area 0.7 sq. ft. (101 sq. in.)

Corrosion Resistance MIL-STD-810F 509.4 Salt Fog

Color

Color Gloss white

Shock and Vibration

Operational: ETSI 300-19-2-4

Specification T41.E,

C55C

class 4M3

and sun shields

Tropos 5320 MetroMesh Router Installation Guide 42

Page 54

Table 4 Physical Specifications - Tropos 5320 Router (continued)

Transportation: ISTA 2A

Random Bounce

Random Vibration

6 Corner Drop Test

Reliability

Reliability (MTBF): 505,787 hours demonstrated

Field failure rate 1.73%

Tropos 5320 MetroMesh Router Installation Guide 43

Page 55

Table 5 Interfaces

Data Interface Maximum Distance (ft) Connector

IEEE 802.3 10/100BaseT 600 (10BaseT Duplex Setting)

300 (100BaseT Duplex Setting)

Management Interface Maximum Distance (ft) Connector

IEEE 802.3 10/100Base T 600 (10BaseT Duplex Setting)

300 (100BaseT Duplex Setting)

802.11b/g Wireless Interface

Standard IEEE 802.11b/g Wi-Fi

Frequency Range 2400 to 2485 MHz ISM Band

Modulation DSSS; DBPSK @ 1 Mbps,

DQPSK @ 2 Mbps,

CCK @ 5.5 and 11 Mbps

OFDM @ 54, 48, 36, 24, 18, 12, 6

Rx Sensitivity -100dBm (1 Mbps)

-95dBm (2 Mbps)

-93dBm (5.5 Mbps)

-91dBm (11 Mbps)

-94dBm (6 Mbps)

-93dBm (9 Mbps)

-92dBm (12 Mbps)

-89dBm (18 Mbps)

-86dBm (24 Mbps)

-83dBm (36 Mbps)

-78dBm (48 Mbps)

-76dBm (54 Mbps)

RJ45

Rx Saturation Maximum Power at Antenna Port

-5dBm (1 Mbps)

-5dBm (2 Mbps)

-5dBm (5.5 Mbps)

-5dBm (11 Mbps)

-5dBm (6 Mbps)

-5dBm (9 Mbps)

-5dBm (12 Mbps)

-10dBm (18 Mbps)

-30dBm (24 Mbps)

-35dBm (36 Mbps)

-35dBm (48 Mbps)

-35dBm (54 Mbps)

Tropos 5320 MetroMesh Router Installation Guide 44

Page 56

Table 5 Interfaces (continued)

802.11a Wireless Interface

Standard IEEE 802.11a Wi-Fi

Frequency Range 2400 to 2485 MHz ISM Band

Modulation OFDM @ 54, 48, 36, 24, 18, 12, 6

Rx Sensitivity -94dBm (6 Mbps)

-93dBm (9 Mbps)

-92dBm (12 Mbps)

-89dBm (18 Mbps)

-86dBm (24 Mbps)

-83dBm (36 Mbps)

-78dBm (48 Mbps)

-76dBm (54 Mbps)

Rx Saturation Maximum Power at Antenna Port

Antennas

Antennas External

Antenna Diversity 802.11b/g: Transmit/Receive

Impedance 50 ohms

VSWR 1.5 : 1

Connectors (three) N (female)

Indicator - Status Lamp Red/Green

-30dBm (6 Mbps)

-30dBm (9 Mbps)

-30dBm (12 Mbps)

-30dBm (18 Mbps)

-30dBm (24 Mbps)

-35dBm (36 Mbps)

-35dBm (48 Mbps)

-35dBm (54 Mbps)

802.11a: No diversity

Tropos 5320 MetroMesh Router Installation Guide 45

Page 57

Table 6 Power Options / Consumption

Single Phase VAC 100-480 VAC 50/60 Hz

IEEE/ANSI C62.41 CAT C Power Source

IEC Category IV Power Source

Protection Circuits

Antenna Protection <= 0.5µJ for 3kA @ 8/20µS Waveform

EN61000-4-2 Level 4 ESD Immunity

EN61000-4-5 Level 4 Surge Immunity

AC Input Protection IEEE/ANSI C62.41 Category C 10kA @

8/20uS Waveform; 36kA per phase L-L,

L-N, L-PEWh

EN61000-4-2 Level 4 ESD Immunity

EN61000-4-5 Level 4 Surge Immunity

EN61000-4-4 Level 4 EFT Immunity

Integrated Branch Circuit Protection

Class CC-Fuse: Littlefuse KLDR Time-

Delay 20A

Data Port Protection EN61000-4-2 Level 4 ESD Immunity

EN61000-4-5 Level 4 Surge Immunity

23W/60W typical/max

Tropos 5320 MetroMesh Router Installation Guide 46

Page 58

Table 7 Power Over Ethernet - Power Sourcing

LAN and/or Management Port + on pins 4,5; - on pins 7,8

DC Output Voltages 0 (Off), 12, 24, 48 Vdc

Output Power Total power on LAN and/or

Management ports

Over-Current Protection Hi Cup mode

Over-Voltage Protection 90Vdc surge

Output Isolation 2000Vdc

Table 8 Certifications, Other

U.S. CFR 47 FCC Part 15.C; Class B

UL579/IEC 60529 IP67 Rated for Outdoor Use

ISTA 2A

Europe EN60950 cTUVus Listed I.T.E.

IEEE/ANSI C62.41 Category C AC Surge Immunity

EN61000-4-5 Level 4 AC Surge Immunity

EN61000-4-2 Level 4 ESD Immunity

EN61000-4-4 Level 4 EFT Burst Immunity

EN61000-4-3 EMC Field Immunity

ETSI EN 301 489-17

ETSI EN 300 328

EN 60950-1, IEC 60950-1

CISPR 22 Class B

Voltage

12Vdc 24Vdc 48Vdc

Max Power

Output

30W 30W 30W

Canada Industry Canada RSS210

Tropos 5320 MetroMesh Router Installation Guide 47

Page 59

4 Approved Antenna

Configurations and Attenuation Settings

This chapter lists approved antenna configurations and ordering information and attenuation settings:

 “High Power Product Antennas” on page 49

 “Standard Power Product Antennas” on page 50

Tropos 5320 MetroMesh Router Installation Guide 48

Page 60

High Power Product Antennas

U.S. and Canada

The information in this section applies to the following Tropos router models:

 53201000—Dual mode outdoor Tropos router for FCC markets (802.11b/g and 802.11a,

5.8 GHz)

 53201100—Dual mode outdoor Tropos router for FCC markets (802.11b/g and 802.11a,

5.8 GHz), with battery backup

Table 9 lists antenna configurations for the 802.11b/g antennas, and Table 10 lists antenna

configurations for the 802.11a antennas.

Table 9 802.11b/g Antenna Configurations

Antenna Ordering Number

(b or g)

Mode

High Power Product Antennas

Measured

Cond. Avg.

Power (dBm)

Attenuation

Software

Setting (dB)

Approximate

EIRP (dBm)

7.4dBi omni, unit mounted AN074077 b 28.6 0 36.0

7.4dBi omni, unit mounted AN074077 g 28.6 0 36.0

10.0dBi omni, unit mounted AN100022 b 26.0 3 36.0

10.0dBi omni, external bracket mounted

12.0dBi sector, external bracket mounted

a. All external antennas include pole mounting bracketry and sealing materials. RF cables are not included.

AN100022 g 26.0 3 36.0

AN120044 b 24.0 5 36.0

AN120044 g 24.0 5 36.0

Tropos 5320 MetroMesh Router Installation Guide 49

Page 61

Standard Power Product Antennas

Table 10 802.11a Radio (5.725-5.850 GHz) - Antenna Configurations

Part

Description

9.1dBi omni, unit mounted, point-tomulti point operation

17dBi 90° sector, external bracket mounted, point-to-point operation

17dBi 90° sector, external bracket mounted, point-to-multipoint operation

19dBi patch antenna, external bracket mounted, point-to-point operation

a. All external antennas include pole mounting bracketry and sealing materials. RF cables are not included.

Number

AN091058 26.9 0 36.0

AN170058 26.9 0 43.9

AN170058 18.9 8 35.9

AN190058 26.9 0 45.9

Measured Cond.

Avg. Power

(dBm)

Tx Attenuation

Software

Setting (dB)

Approximate

EIRP (dBm)

Attenuation with Antennas

If external antennas are used, it is necessary to adjust the transmit power attenuation to provide the correct power level for the router. Use the following formulas to compute the required attenuation levels:

802.11b/g:

Attenuation setting = Antenna gain (dBi) - 7.4 dBi - Cable loss

802.11a:

Attenuation setting point-to-multipoint links = Antenna gain (dBi) - 9.1 dBi -

Cable loss

The attenuation setting cannot be negative; therefore, a positive attenuation setting is only required if the antenna gain is greater than 7.4dBi. Table 9 and Table 10 show the proper attenuation settings, assuming that low-loss cable is used (1dB). The attenuation should be rounded to the nearest half-integer value.

When using a directional antenna in a point-to-multipoint application, the maximum allowed EIRP is 36.0dBm. The conducted power should be reduced accordingly.

Standard Power Product Antennas

Europe

The approved European countries are Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Tropos 5320 MetroMesh Router Installation Guide 50

Page 62

Standard Power Product Antennas

Malta, Netherlands, Norway, Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, and the United Kingdom.

The information in this section applies to the following Tropos router models:

 53200000—Dual mode outdoor Tropos router for ETSI markets (802.11b/g and 802.11a,

5.4 GHz)

 53200100—Dual mode outdoor Tropos router for ETSI markets (802.11b/g and 802.11a,

5.4 GHz), with battery backup

Table 11 lists antenna configurations for the 802.11b/g antennas, and Table 12 lists antenna

configurations for the 802.11a antennas.

Table 11 802.11b/g Antenna Configurations

Measured

Mode

Antenna Ordering Number

6.0dBi omni, unit mounted AN060077 b 13.6 4 19.6

6.0dBi omni, unit mounted AN060077 g 13.0 4 19.0

(b or g)

Cond. Avg.

Power (dBm)

Attenuation

Software

Setting (dB)

Approximate

EIRP

7.4dBi omni, unit mounted AN074077 b 11.4 6 18.8

7.4dBi omni, unit mounted AN074077 g 11.6 5 19.0

10.0dBi omni, unit mounted AN100022 b 9.2 8 19.2

10.0dBi omni, external bracket mounted

12.0dBi sector, external bracket mounted

a. All external antennas include pole mounting bracketry and sealing materials. RF cables are not included.

AN100022 g 9.1 8 19.1

AN120044 b 7.3 10 19.3

AN120044 g 7.2 9 19.2

Table 12 802.11a Radio (5.470-5.725 GHz) - Antenna Configurations

Part

Description

9dBi omni, unit mounted AN091058 19.3 2 28.4

17dBi 90° sector, external bracket mounted

Number

AN170054 12.0 10 29.0

Measured Cond.

Avg. Power

(dBm)

Tx Attenuation

Software

Setting (dB)

Approximate

EIRP

19dBi patch antenna, external bracket mounted

AN190054 9.8 12 28.8

Tropos 5320 MetroMesh Router Installation Guide 51

Page 63

Standard Power Product Antennas

a. All external antennas include pole mounting bracketry and sealing materials. RF cables are not included.

Tropos 5320 MetroMesh Router Installation Guide 52

Page 64

5 Antenna Specifications and

Patterns

Table 1 3 provides antenna specifications and patterns for the Tropos-supplied antennas.

Tropos 5320 MetroMesh Router Installation Guide 53

Page 65

Table 13 Antenna Specifications and Patterns

Part Number Specifications Pattern

AN060077 One outdoor 6.0dBi

omni unit-mounted antenna; N connector

• Length: 11.9 in (30.3 cm)

• Weight: 4.4 oz (.125 kg)

• Color: White

• Measured peak gain:

5.3dBi

• Connector type: N male

Elevation

Azimuth

Tropos 5320 MetroMesh Router Installation Guide 54

Page 66

Table 13 Antenna Specifications and Patterns (continued)

AN074077

AN074088

One outdoor 7.4dBi omni unit-mounted antenna;

N connector

• Length: 19 in (48.3 cm)

• Weight: 4.7 oz (.133 kg)

• Color: White

• Measured peak gain:

7.1dBi

• Connector type: N male

One outdoor 7.4dBi omni mast-mounted antenna;

N connector; bracketry

• Length: 19 in (48.3 cm)

• Weight: 4.7 oz (.133 kg)

• Color: White

• Measured peak gain:

7.1dBi

• Connector type: N male

Elevation

Azimuth

Tropos 5320 MetroMesh Router Installation Guide 55

Page 67

Table 13 Antenna Specifications and Patterns (continued)

AN100022 One outdoor 9.9dBi omni

mast-mounted antenna; N connector; bracketry

• Length: 45 in (114.3 cm)

• Weight: 20 oz (.57 kg)

• Color: White

• Measure peak gain: 9.9dBi

• Connector type: N female

Elevation

Azimuth

Tropos 5320 MetroMesh Router Installation Guide 56

Page 68

Table 13 Antenna Specifications and Patterns (continued)

AN120022 One outdoor 12.0dBi 90°

sector antenna; N connector; bracketry

• Length: 34 in (86.4 cm)

• Width: 3 in (7.6 cm)

• Depth: 1.2 in (3.0cm)

• Weight: 25.6 oz (.73 kg)

• Color: Gray

• Measured peak gain:

12.0dBi

• Connector type: N female

Elevation (Phi=0°)

Elevation (Phi=90°)

Tropos 5320 MetroMesh Router Installation Guide 57

Page 69

Table 13 Antenna Specifications and Patterns (continued)

AN120022 (continued)

Outdoor 12.0dBi 90° sector antenna (continued)

Azimuth

Tropos 5320 MetroMesh Router Installation Guide 58

Page 70

Table 13 Antenna Specifications and Patterns (continued)

AN091058 Outdoor 9.1dBi omni

antenna; N connector

• Length: 17.5 in (43.2 cm)

• Weight: 4.7 oz (.133 kg)

• Color: White

• Measured peak gain: 6.7

dBi

• Connector Type: N Male

Elevation

Azimuth

Tropos 5320 MetroMesh Router Installation Guide 59

Page 71

Table 13 Antenna Specifications and Patterns (continued)

AN170058 Outdoor 17.0dBi 90° sector

antenna; N connector, bracketry

• Length: 14.5 in (370 cm)

• Width: 6.7 in (170 cm)

• Depth: 2.5 in (65 cm)

• Weight: 2.2 lbs (1 kg)

• Color: gray

• Measured peak gain: 15.3

dBi

• Connector Type: N Female

Elevation

Azimuth

Tropos 5320 MetroMesh Router Installation Guide 60

Page 72

Table 13 Antenna Specifications and Patterns (continued)

AN190058 Outdoor 19.0dBi 16° patch

antenna; N connector, bracketry

• Length: 7.45 in (189 cm)

• Width: 7.45 in (189 cm)

• Depth: 1.37 in (35 cm)

• Weight: 1.6 lbs (0.72 kg)

• Color: gray

• Measured peak gain: 17.3

dBi

• Connector Type: N Female

Elevation

Azimuth

Tropos 5320 MetroMesh Router Installation Guide 61

Page 73

Table 13 Antenna Specifications and Patterns (continued)

AN170054 One outdoor 17.0dBi 90°

sector antenna; N connector; bracketry

• Length: 14.5 in (370 cm)

• Width: 6.7 in (170 cm)

• Depth: 2.5 in (65 cm)

• Weight: 2.2 lbs (1 kg)

• Color: gray

• Measured peak gain:

• Connector Type: N Female

AN190054 One outdoor 19.0dBi 16°

patch antenna; N connector; bracketry

• Length: 7.45 in (189 cm)

• Width: 7.45 in (189 cm)

• Depth: 1.37 in (35 cm)

• Weight: 1.6 lbs (0.72 kg)

• Color: gray

• Measured peak gain:

• Connector Type: N Female

Patterns not available

Tropos 5320 MetroMesh Router Installation Guide 62

Page 74

6 Installation Accessories

This chapter contains accessory ordering information:

 “Installation Accessories” on page 63

 “Tropos Antennas, Cables, and Related Ordering Numbers” on page 64

Table 14 Installation Accessories

Description Manufacturer Part Number Distributor Contact Information

Outdoor CAT5 4-Pair Data Cable

Cable, CAT5, 8 Conductor, Harsh Environment

Self-Fusing EPR Tape 3M Scotch 23

ThreadLocker LocTite 242 0.5 ml (0.017oz)

3 pin AC Male Plug (cord end)

- 115 VAC 15A

3 pin AC Female Receptacle 115 VAC 1 5A

Belden

Superior Essex BBDG Anixter www.anixter.com

Madison Cable 08KFK00013 Tyco www.xgsgroup.com

LocTite 242 McMaster Carr www.mcmaster.com 91458A24

Leviton 14W47-B Alameda Electric

Leviton 15W47 Alameda Electric

7929A

7921A (recommended)

Rubber Splicing Tape

Anixter

McMaster Carr

Alameda Electric Distributors

Distributors

www.anixter.com

www.mcmaster.com

www.alamedaelectric.com

Order Number

7682A65

3 pin AC Plug Female (cord end) - Tropos 5320 router

Data Protection Device Polyphase IX-2H1DC48/W Electro-Comm www.electro-comm.com

Remke 50982 DSC Technical

Sales

Hyperlink HGLN-CAT5-1 www.hyperlinktech.com

www.dsctechnicalsales.com

Tropos 5320 MetroMesh Router Installation Guide 63

Page 75

Table 14 Installation Accessories

Description Manufacturer Part Number Distributor Contact Information

Order Number

Yellow 3-Pin Mini-Link AC Plug Female Pig Tail Unterminated 12 ft.

Anti-seize lubricant Loctite 37230 McMaster Carr www.mcmaster.com

Universal remote control Universal

McMaster-Carr 321K16 www.mcmastercarr.com

MX-500 www.universalremote.com

Remote

Table 15 Tropos Antennas, Cables, and Related Ordering Numbers

Part Number Description

AN060077 One outdoor 6.0dBi omni unit-mounted antenna; N connector

AN074077 One outdoor 7.4dBi omni unit-mounted antenna; N connector

AN074088 One outdoor 7.4dBi omni mast-mounted antenna; N connector; bracketry

AN100022 One outdoor 9.9dBi omni mast-mounted antenna; N connector; Mounting Bracket;

Sealing Materials

AN120022 One outdoor 12.0dBi 90° sector antenna; N connector with pole-mount bracketry;

Sealing Materials (RF cable not included)

RC003400 3' N (male) to N (male) cable - LMR 400 DB

RC006400 6' N (male) to N (male) cable - LMR 400 DB

RC005000 50 ohm terminator - N (male); Sealing Materials

RC008000 Sealing Kit - Loctite242, EPR Rubber Splicing Tape

RC008100 N connector cover/cap, outdoor, water tight

RC009000 N adapter for 7.4dBi Mast-mounted antenna to N (male) cable

SA006801 Indoor Cat 5 data cable surge protector

SA006802 Indoor Cat5 data cable surge protector for shielded cable

PT021004 5320 input power cable - photo-electric cell adaptor; 2-wire; 4 ft.

PT021020 5320 input power cable - photo-electric cell adaptor; 2-wire; 20 ft.

PT031006 5320 input power cable - watertight plug; 3-wire; 6 ft.

PT031030 5320 input power cable - watertight plug; 3-wire; 30 ft.

Tropos 5320 MetroMesh Router Installation Guide 64

Page 76

Table 15 Tropos Antennas, Cables, and Related Ordering Numbers

Part Number Description

PT032030 5320 input power cable - pigtail, 3-wire, 30 ft., for EU markets

EC003500 5320 weathertight gateway connector kit

EC003600 5320 weathertight field-installable cable gland

EC003704 5320 weathertight RJ45 data cable, crossover, 4 ft (requires EC003500 gateway

connector kit)

EC003708 5320 weathertight RJ45 data cable, crossover, 8 ft (requires EC003500 gateway

connector kit)

MB0044300 5320 unit-attached mounting pole for Canopy SM; bracket and cable

MB005320 Pole mounting kit, 5320 HFC

Tropos 5320 MetroMesh Router Installation Guide 65

Page 77

7 AC Wiring Diagrams

This chapter contains wiring diagrams for AC power:

 “AC Wiring — Photoelectric Power Tap” on page 67

 “AC Wiring Power Cable 120VAC, 15A Plug” on page 68

Tropos 5320 MetroMesh Router Installation Guide 66

Page 78

Figure 27 AC Wiring — Photoelectric Power Tap

PT021004 (4') or PT021020 (20')

Photoelectric Power-Tap

Power Input Cable 2Wire - 90-480Vac

NEMA Plug - UL Standard 773

Plug-in locking type for

photocontrols in use with

area lighting

North

L2 / N

Carol P-7K-123033 MSHA or equal

Length: 4' or 20'

White

Black

16/2 SOOW

1 - Green

2 - Black

3 - White

Power-Tap single phase; two wire service

Black

White

Protective Earth

NEMA Photoelectric

Control / UL773

(female)

Power-Tap single phase; two wire service

Black

Red

Protective Earth

NEMA Photoelectric

Control / UL773

(female)

Three phase; two wire service (Delta)

Black

White

Protective Earth

North

NEMA Photoelectric

Control / UL773

(female)

North

White

North

Black

NEMA Photoelectric

Control / UL773

Power-Tap Adapter

(male)

White

North

Black

NEMA Photoelectric

Control / UL773

Power-Tap Adapter

(male)

White

North

Black

NEMA Photoelectric

Control / UL773

Power-Tap Adapter

(male)

Router

208Vac three phase; two wire service (grounded-Wye)

480Vac

Protective Earth

Black

Red

277Vac

North

NEMA Photoelectric

Control / UL773

(female)

North

White

Black

NEMA Photoelectric

Control / UL773

Power-Tap Adapter

(male)

Router

trp_161

Tropos 5320 MetroMesh Router Installation Guide 67

Page 79

Figure 28 AC Wiring Power Cable 120VAC, 15A Plug

PT031006 (6’) or PT031030 (30’)

Overvoltage Category 2 or IEEE/ANSI C62.41 Category B Power Electrical Service Cable

3Wire - 120Vac

L2/N

White

Protective Earth

Green or Green/Yellow

L1 Black

120Vac single phase; three wire service

Neutral

Protective Earth

Black

Green

Black

White

Green

White

Length: 3' to 30'

Green or Green/Yellow

White

Black

Black (L1)

White (N)

Green

Input Power

Cable

16/3 SOOW

3 2

Router

1 - Green 2 - Black 3 - White

trp_162

Tropos 5320 MetroMesh Router Installation Guide 68

Page 80

8 Wind Loading Considerations

The American Association of State Highway and Transportation Officials (AASHTO) standards manual, “Standard Specifications for Structural Supports for Signs, Luminaires and Traffic Signals,” governs most structural support issues related to traffic lighting and controls. Many state and city public works departments site the AASHTO standard as the guide for their requirements. Local municipalities in coastal states, which experience frequent hurricanes, etc., may have exceptions to the AASHTO standard that require higher design limits for wind velocity or dead load.

Numerous pole and mast arm assemblies are used for traffic controls and traffic lighting. Each assembly and installation is unique and worthy of an evaluation of the static and dynamic load bearing capabilities; however, in most cases, the assembly will include a pole with a single 6', 9' or 12' mast arm holding a single luminaire. Many of these mast arms are typically designed to hold hundreds of pounds of static load and to carry several square meters of sail area in 80mph winds. The typical mast arm is capable of supporting a single traffic control (typically weighing around 160 lbs) and a single traffic sign (typically presenting a few square meters of sail area). A single luminaire typically weighs about 60 lbs and presents about 3 square feet of sail area.

Note

Each assembly and installation is unique and worthy of an evaluation of the static and dynamic load bearing capabilities. It is your responsibility to evaluate the load bearing capabilities of the structure.

The Tropos 5320 MetroMesh Router weighs approximately 14 lbs, including all mounting hardware. The Tropos 5320 MetroMesh Router may be mounted to either the pole portion of the streetlight or to the mast arm portion.

When the Tropos 5320 MetroMesh Router is mounted to the pole or mast arm, most of the unit is hidden by the pole or mast arm and therefore presents minimal additional sail area to the structure. When the Tropos 5320 MetroMesh Router is mounted to the pole portion of the structure, the sail area of the router is approximately 1 square foot. Pole manufacturers have advised Tropos Networks that small communications devices such as the Tropos 5320 MetroMesh Router do not present any significant static or dynamic load to these structures.

Tropos 5320 MetroMesh Router Installation Guide 69

Page 81

9 Canopy Installation Instructions

The 5320 Canopy Subscriber Module and Bracket kit allows you to attach a third-party radio, the Motorola Canopy Subscriber Module, to the Tropos 5320 MetroMesh Router.

The kit includes the following items:

 Outdoor CAT5 weatherproof cable

 Bracket (metal pole)

 Screws #6-32 x 1.5"

 Lockwashers

 Cable ties

Follow these steps to install the canopy (refer to Figure 29):

1. Align the bracket and attach it using the three screws included in the kit.

2. Attach your radio subscriber module to the end of the bracket. Direct the Canopy Subscriber

Module toward the canopy base station.

3. Remove the cable access cover on the Canopy Subscriber Module so that you can attach the

RJ45 end of the data cable to the module. (The cover slides off.) Put the cable access cover

back in place.

Tropos 5320 MetroMesh Router Installation Guide 70

Page 82

Figure 29 Canopy Assembly

Canopy bracket

Screws

#6-32 x 1.5"

Lock

washers

4' weatherproof

cable

Screws

#6-32 x 1.5"

Canopy radio

subscriber

module

Alternate

radio

installation

Cable ties

Drip loop

Cable ties

Finished

Cable access

cover

installation

Drip loop

trp_163

Tropos 5320 MetroMesh Router Installation Guide 71

Page 83

4. Unscrew the 6 screws around the Tropos 5320 access cover (Figure 30). Replace the access

cover of the 5320 unit with the access cover provided with the Canopy Subscriber Module

cable.

5. Connect cable to the LAN port inside the 5320 unit.

Tropos 5320 MetroMesh Router Installation Guide 72

Page 84

Figure 30 Cable Connections

Watertight access cover

cable glands

Connector

access cover

Shield

termination

Tighten six screws to

fasten access cover

Cable from radio

Cable ties

LAN

port

Management

port

Cable terminated

with RJ45 jack

for port connection

Screw holes

for access cover

Drip loop

trp_122a

6. Attach the access cover by tightening the 6 screws. Check that the cable gland is securely

tightened.

7. Secure the weatherproof cable to the canopy bracket with two cable ties (Figure 29). Use

two additional cable ties to anchor the cable to the bottom of the 5320 unit (Figure 30). Refer

to Table 16 for canopy cable wiring information.

Tropos 5320 MetroMesh Router Installation Guide 73

Page 85

Table 16 Canopy Cable Wiring

Tropos 5320

Canopy SM

(RJ45) Color

3 Orange 1 TXD+

6 Orange-White 2 TXD-

1 Blue 3 RXD+

7 Green 4 24Vdc+

8 Green-White 5 24Vdc+

2 Blue-White 6 RXD-

4 Brown 7 24Vdc_RTN

5 Brown-White 8 24Vdc_RTN

Shield Drain wire Shield Shield

MetroMesh

Router Signal

Tropos 5320 MetroMesh Router Installation Guide 74

Page 86

10 Cable Termination Instructions

Follow these steps to prepare and terminate cables connected to the 5320 unit:

1. Strip off the outer sheath of cable to expose 6 inches of the inner cable or twisted pairs. The

shield may be armored, braided or foil type depending upon cable type (see Table 31).

2. For armored or braided cable, remove all but 1/2 inch of the armor or braid.

 Remove waxy residues on the shields of “flooded” type cables.

 For foil shielded cable, remove all but 1/2 inch of the foil, and fold the foil part back onto

the outer sheath. Most foil shields are conductive on the inner side, as the outer side typically has a plastic coating.

 The exposed conductive surfaces will ground to the conductive contacts inside the cable

gland.

Figure 31 Cable Components

Conductive

contacts

Cable gland

Outer jacket

1/2 inch

5-1/2 inches

Armor or braided

conductive shield

Outer jacket

Foil

conductive side out

Twis ted

pairs

Tropos 5320 MetroMesh Router Installation Guide 75

Page 87

3. Run the stripped part of the cable through the cable gland (Figure 32). Make sure that the

braided conductive shield of the cable makes contact with the conductive contacts of the

cable gland (Figure 32).

4. Attach the cable gland by first tightening the gland base into the access cover. Then tighten

the gland cover to constrict the weather-tight grommet around the outer jacket of the cable,

thereby creating a weather-tight fitting.

Figure 32 Cable Gland Assembly

Accessory connector

Cable gland

base tightened first

to cover

Gland cover

then tightened

over cable

Weather-tight

grommet

access cover

Finished installation

trp_123a

5. Apply a RJ45 modular jack and connect to the LAN or Management port. Figure 32 shows

the termination options, and Tabl e 1 7 provides pin descriptions.

Figure 33 Cable Preparation and Termination

Orange/white

Orange

Green/white

Blue/white

Green

Brown/white

Brown

RJ45 port

18765432

Blue

1 2 3 4 5 6 7 8

Category 5 cable

RJ45 jack

trp_109

Tropos 5320 MetroMesh Router Installation Guide 76

Page 88

Table 17 TIA/EIA 5688 Wiring - RJ-45 Pin Descriptions for Data Connection

Pin T/R Signal Color Description

1 T TXD+ Orange-White TX Data 10/100BaseT

2 R TXD- Orange TX Data 10/100BaseT

3 T RXD+ Green-White RX Data 10/100BaseT

4 R PoE+ Blue Power output, 0, 12, 24, 48 Vdc (+)

5 T PoE+ Blue-White Power output, 0, 12, 24, 48 Vdc (+)

6 R RXD- Green RX Data 10/100BaseT

7 T PoE- Brown-White Power output, 0, 12, 24, 48 Vdc (-)

8 R PoE- Brown Power output, 0, 12, 24, 48 Vdc (-)

Tropos 5320 MetroMesh Router Installation Guide 77

Page 89

Abbreviations

The following acronyms are used in this document.

Table 18 Acronyms

2P Two-Phase or Split Phase

2W Two-Wire

3W Three-Wire

AASHTO American Association of State Highway and Transportation Officials

AC Alternating Current

ANSI American National Standards Institute

AWG American Wire Gauge

C Celsius

CAT Category

CCK Complementary Code Keying

CE Conformite Europeene

CFR Code of Federal Regulations

CISPR International Special Committee on Radio Interference

CSA Canadian Standard Association

dB Decibels

dBi Decibels Relative to an Isotropic Radiator

dBm Decibels Referred to 1 Milliwatt

DBPSK Differential-Binary Phase-Shift Keying

DC Direct Current

Tropos 5320 MetroMesh Router Installation Guide 78

Page 90

Table 18 Acronyms (continued)

DGT Directorate General of Telecommunications (Taiwan)

DQPSK Differential-Quadrature Phase-Shift Keying

DSSS Direct-Sequence Spread Spectrum

EFT Electrically Fast Transients

EIRP Effective Isotropic Radiated Power

EMC Electromagnetic Compatibility

EN IEC standard

ESD Electrostatic Discharge

ETSI European Telecommunications Standards Institute

FCC Federal Communications Commission

FHSS Frequency Hopping Spread Spectrum

HFC Hybrid Fiber Coax

Hz Hertz

IEC International Electrotechnical Commission

IEEE Institute of Electrical and Electronics Engineers

IP67 Ingress Protection Standard

ISM Instrumentation, Scientific, and Medical band

ISTA International Safe Transit Association

LAN Local Area Network

Mbps Megabits Per Second

MHz Megahertz

MIL-STD Military Standard

MPHPT Ministry of Public Management, Home Affairs, Posts and Telecommunications (Japan)

MSO Multiple Service Operator

MTBF Mean Time Between Failure

N Neutral

NEC National Electrical Codes

Tropos 5320 MetroMesh Router Installation Guide 79

Page 91

Table 18 Acronyms (continued)

NEMA National Electrical Manufacturers Association

OFDM Orthogonal Frequency Division Multiplexing

P Phase

PE Protective Earth

PoE Power over Ethernet

RJ45 Registered Jack 45

RSS Received Signal Strength

Rx Receive

RXD Receive Data

TUV Technical Inspection Association

Tx Transmit

TXD Transmit Data

UL Underwriters Laboratories

UPS Uninterruptible Power Supply

VAC Voltage (Alternating Current)

VCCI Voluntary Control Council for Interference (Japan)

VDC Voltage (Direct Current)

VSWR Voltage Standing Wave Ratio

WWatts

Tropos 5320 MetroMesh Router Installation Guide 80

Page 92

Index

power source 6 wiring diagrams 66

American Association of State High-

way and Transportation Officials (AASHTO)

antenna type and placement 5 antennas

approved configurations connecting 18 distances from people 5 external 19 omni-directional 5 options 5 waterproofing 20

attenuation 50

battery

backup turning router off 34

battery backup vs. throughput chart

37, 38

building materials 5

cable

gland termination 75

canopy installation 70 canopy subscriber module and bracket

kit

categories of power 24 category A power 25 category B power 25 category C power 25 cautions vi circuit board connection locations 34 clearance for mounting 7 concrete pole mounting 9 connecting

antennas category III AC power 27

power 24 connecting a data port 29 connecting data ports 32 connecting peripherals 35

data cables 31

attaching before mounting 7 data port

connecting 29

connection options 31 data protection device 23 data rate considerations 5 distance limits 4 diversity 5

external antennas 19

FCC antenna rules 2

grounding

connecting 23

data protection device 23

router 21

hardware reset 34 hose clamps 8

installation considerations

antenna options

site surveys 5 installation hardware and tools 4 installing Tropos router 1

LAN port 29 LED 34 location guidelines 5

management port 29 metal pole mounting 10 mounting

clearance

instructions 9 metal pole 10 orientation 7 poles greater than 8 inches diameter

strategies 7 streetlight 17 streetlight options 7 to wood, concrete, painted poles 9 tower 16 wood brace 14 wood pole 13

obstructions 5 omni-directional antenna 5

peripherals

connecting

physical environment 5 pole mounting 10 ports 29 power

categories 24 connecting 24 connecting category III AC power 27 connecting streetlight 28 consumption 40 output 35

power over Ethernet (PoE) 35 power sources

overview 6 preparing for installation 2 product specifications 42

regulatory notices ii resetting the router 34 RJ45 Ethernet ports 29 RJ45 pin descriptions 77 RJ45 pin locations and descriptions 36 router

diagram

exploded view 3

resetting 34

safety

general considerations

information 38 site planning 4

Tropos 5320 MetroMesh Router Installation Guide

Page 93

site surveys 5 specifications 42 streetlight

mounting instructions 17 mounting options 7 power 28

sun shield 12

terminating cables 75 tools for installation 4 tower mounting 16

voltage 6

warnings, general vi waterproofing antenna connections 20 wind loading 69 wiring diagrams 66 wood brace mounting 14 wood pole mounting 13

Tropos 5320 MetroMesh Router Installation Guide
